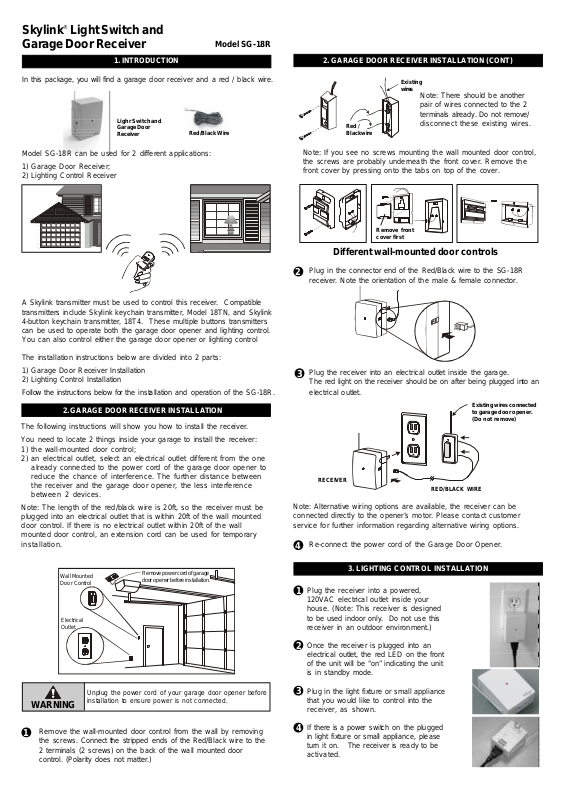

Page 1
Skylink® Light Switch and
Garage Door Receiver
1. INTRODUCTION
Model SG-18R
2. GARAGE DOOR RECEIVER INSTALLATION (CONT)
In this package, you will find a garage door receiver and a red / black wire.
Lighr Switch and
Garage Door
Receiver
Red/Black Wire
Model SG-18R can be used for 2 different applications:
1) Garage Door Receiver;
2) Lighting Control Receiver
A Skylink transmitter must be used to control this receiver. Compatible
transmitters include Skylink keychain transmitter, Model 18TN, and Skylink
4-button keychain transmitter, 18T4. These multiple buttons transmitters
can be used to operate both the garage door opener and lighting control.
You can also control either the garage door opener or lighting control
Existing
wires
Note: There should be another
pair of wires connected to the 2
terminals already. Do not remove/
Red /
Black wire
disconnect these existing wires.
Note: If you see no screws mounting the wall mounted door control,
the screws are probably underneath the front cover. Remove the
front cover by pressing onto the tabs on top of the cover.
Remove front
cover first
Different wall-mounted door controls
Plug in the connector end of the Red/Black wire to the SG-18R
2
receiver. Note the orientation of the male & female connector.
The installation instructions below are divided into 2 parts:
1) Garage Door Receiver Installation
2) Lighting Control Installation
Follow the instructions below for the installation and operation of the SG-18R.
2. GARAGE DOOR RECEIVER INSTALLATION
The following instructions will show you how to install the receiver.
You need to locate 2 things inside your garage to install the receiver:
1) the wall-mounted door control;
2) an electrical outlet, select an electrical outlet different from the one
already connected to the power cord of the garage door opener to
reduce the chance of interference. The further distance between
the receiver and the garage door opener, the less interference
between 2 devices.
Note: The length of the red/black wire is 20ft, so the receiver must be
plugged into an electrical outlet that is within 20ft of the wall mounted
door control. If there is no electrical outlet within 20ft of the wall
mounted door control, an extension cord can be used for temporary
installation.
Wall Mounted
Door Control
Electrical
Outlet
Remove power cord of garage
door opener before installation.
Plug the receiver into an electrical outlet inside the garage.
3
The red light on the receiver should be on after being plugged into an
electrical outlet.
Existing wires connected
to garage door opener.
(Do not remove)
RECEIVER
RED/BLACK WIRE
Note: Alternative wiring options are available, the receiver can be
connected directly to the opener’s motor. Please contact customer
service for further information regarding alternative wiring options.
Re-connect the power cord of the Garage Door Opener.
4
3. LIGHTING CONTROL INSTALLATION
Plug the receiver into a powered,
1
120VAC electrical outlet inside your
house. (Note: This receiver is designed
to be used indoor only. Do not use this
receiver in an outdoor environment.)
Unplug the power cord of your garage door opener before
WARNING
Remove the wall-mounted door control from the wall by removing
1
the screws. Connect the stripped ends of the Red/Black wire to the
installation to ensure power is not connected.
2 terminals (2 screws) on the back of the wall mounted door
control. (Polarity does not matter.)
Once the receiver is plugged into an
2
electrical outlet, the red LED on the front
of the unit will be “on” indicating the unit
is in standby mode.
Plug in the light fixture or small appliance
3
that you would like to control into the
receiver, as shown.
If there is a power switch on the plugged
4
in light fixture or small appliance, please
turn it on. The receiver is ready to be
activated.
Page 2
4. PROGRAM A TRANSMITTER TO THE RECEIVER
7. TROUBLE SHOOTING (CONT)
You need to do the programming in order to add a transmitter to the
receiver.
Button A
Model 18TN
Learn
Button
Plug the receiver into an electrical socket.
1
Depending on what application you would like to control, the
2
Button A
Button C
Model 18T4
Button B
Button B
Button D
programming sequence is slightly different.
Program a transmitter to operate garage door opener:
Press the learn button once to program a transmitter to operate the
garage door opener, the LED will flash slowly indicating the transmitter
(button) you are about to program will control the garage door opener.
Program a transmitter to operate lighting control:
Press the learn button again (twice) to program a transmitter to
operate the lighting control, the LED will flash rapidly indicating the
transmitter (button) you are about to program will control the lighting.
3
Press the assigned button of transmitter 18TN (either button A or B) or transmitter 18T4 (either button A, B, C or D) you want to program to the receiver.
4
The receiver red LED will stop flashing indicating the programming is
completed.
5
Repeat steps 1 to 4 to program addition transmitter (button).
5. REMOVE TRANSMITTER FROM THE RECEIVER
You can delete the transmitter from a receiver by following the instructions
below:
1
Unplug the receiver from the electrical socket.
2
Press and hold the learn button on the left hand side of the receiver
when plugging the receiver into an electrical socket, the red LED on the
receiver will flash rapidly. All the transmitters and keypads are deleted.
6. ADDITIONAL TRANSMITTER
You can add up to 15 transmitters as you want to
control the same receiver. Simply program the
transmitters to the receiver. Skylink® offers Keychain
Transmitter Model 18T4 and Keyless Entry Transmitter
Model 18K to work with your receiver. For more
information, please visit our website at
www.skylinkhome.com or contact us.
7. TROUBLE SHOOTING
General
Q: The programmed transmitter (button) should operate the garage
door, but now it turns on the light, or vice versa.
A: You have programmed the transmitter to the receiver incorrectly.
Please erase the programmed transmitter(s) from the receiver, and
then re-program the transmitter to the receiver again following the
instructions on section 4. Pay attention to step 2 to select which
application you want to program the transmitter into.
Q: Receiver does not react after pressing the button on the transmitter ?
A: - Ensure when the button on the transmitter is pressed, the red light on
the transmitter comes on. Otherwise, check if the battery is inserted
properly.
- The appropriate button on the transmitter should be pressed.
- Ensure the transmitter has been programmed to the receiver. Refer
to section 4 for how to program a transmitter to the receiver.
Garage Door Opener
Q: Door opener does not react after pressing the button on the transmitter ?
A: - If the red light on the receiver flashes when you press the appropriate
button on the transmitter, but the door opener does not respond, please
ensure the red/black wire is successfully connected from the receiver
to the wall mounted door control.
- Ensure the wires that are previously connected to the wall mounted
door control are not loose.
Lighting
Q: After pressing the button on the transmitter, I hear a “click” sound
from the receiver, but the plugged in lighting is not on.
A: Please ensure the power cord of the plugged in light is securely
plugged into the receiver. Also, if the plugged in light has a on/off
switch, that switch must be turned on.
8. CAUTION
RISK OF ELECTRICAL SHOCK. FOR INDOOR USE ONLY.
CAUTION : DISCONNECT POWER BEFORE SERVICING.
Maximum Rating:
Input : 120VAC 60Hz
AC socket for appliance control
RISK OF ELECTRICAL SHOCK. FOR INDOOR USE ONLY.
CAUTION : NOT FOR USE WITH DIMMER.
DISCONNECT POWER BEFORE SERVICING.
Maximum Rating :
Incandescent : 300 watts
Motor Load : 1/3 HP
9. FCC
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept any interference
received, including interference that may cause undesired operation.
WARNING:
Changes or modifications to this unit not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the followi ng measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
10. WARRANTY
If, within one year from date of purchase, this product should become defective
(except battery), due to faulty workmanship or materials, it will be repaired or
replaced, without charge. Proof of purchase and a Return Authorization are required.
11. CUSTOMER SER VICE
If you would like to order Skylink’s products or have difficulty getting them to work,
please :
1. visit our FAQ website at www.skylinkhome.com, or
2. email us at support@skylinkhome.com (reply within 24 hrs), or
3. call our toll free at 1-800-304-1187 from Monday to Friday, 9 am to 5 pm EST.
Fax +800 286-1320
CUSTOMER SERVICE
17 Sheard Avenue, Brampton, Ontario, Canada L6Y 1J3
Email:support@skylinkhome.com
http://www.skylinkhome.com
P/N. 101A402
