DesignView® Presentation System

SET UP

INSTRUCTIONS

TABLE OF CONTENTS

SET UP ........................................................................................................... 2

DRAPE ............................................................................................................ 3

IMAGE PROJECTION ....................................................................................... 5

TAKEDOWN ................................................................................................ 10

SCREEN REPLACEMENT ................................................................................. 12

REMOVAL ...................................................................................................... 12

INSTALLATION ............................................................................................... 13

APPENDIX - NEC PROJECTOR................................................................................14

PN 32675-F

DesignView® Presentation System

Before setting up the DesignView Presentation System for the first time,

read these instructions carefully. Although this product has been designed

for safety, injury could occur if certain precautions are not followed.

Unpack parts.

Put feet aside.

Long Sections are

horizontals

SET UP

Hinges

Short Sections

are verticals

Frame Orientation

Lay frame and fabric on a drop

cloth or clean area to avoid

soiling the fabric.

Lift up on the top 2 corners

and unfold the unit 180º.

180º

Corners

Hinges

When unfolded in this

manner, the front of the

unit with the fabric, will

be on top

DesignView® Presentation System

FABRIC DRAPE: Recommended for brighter venues. (optional) The drape will be in-

stalled after the frame is unfolded, before it’s tipped up to put the feet on.

DRAPE

SET UP

Place frame with the graphic side down

1) Clean frame where the brackets will be installed with alcohol swab.

2) Remove tape from both brackets (first time only), and press firmly to install on corners numbered 2 and 5. Make sure the bracket is not protruding past the corners.

For best adhesion results, apply corner brackets 24-72 hrs before using the DesignView System.

3) Thread the first pole into the nut, making sure it is straight, or cross threading may occur. Tighten pole down.

DesignView® Presentation System

DRAPE

SET UP

4) Slide fabric banner over first pole

5) Insert second pole into fabric on opposite corner.

6) Proceed to thread the second pole into the nut, making sure it is both straight & tight. (Corner #2)

7) Attach the feet and unfold the frame per set-up instructions.

BACK VIEW

DesignView® Presentation System

Rotate frame so that the fabric is to the

front and the button heads face up. Install feet onto the button heads of the lower vertical frame sections

Button Heads

SET UP

Lift one of the upper corners of the frame (above the feet) to

unfold that side. Only unfold one side at a time. Pull hinge to the outside of the frame until you hear 2 clicks and the locking knob is fully engaged.

Clicks

Yes No

DesignView® Presentation System

Repeat Step 4 for the last vertical side.

SET UP

Clicks

DesignView® Presentation System

IMAGE PROJECTION

Dukane 8101H Projector Support Resources:

These quick Start instructions are meant to serve as a supplemental reference during your trade show set up. Please refer to the instructions enclosed with your projector before you set it up for the first time as they include more detailed information on how to set up and operate your projector safely and more effectively.

• Dukane provides directions in a Concise User manual as well as in a more comprehensive booklet and CD formats.

If you are unable to resolve issues by reviewing these instructions please review the Dukane website at http://www.dukane.com/av/service/default.asp

Call Toll-free Support During Business Hours 800-676-2487. Emergency Technical Support After hours 630-632-5244 or 630-464-0783

Steps to set up the Dukane Projector

Place the projector on the surface you will be using to project from (floor or projector case) behind (or in front of) the projection screen. The projector should be centered on the projection area (white space) and parallel to the screen.

Determine the distance between the projector and the projection screen by referring to the set up grid below.

CHOOSE YOUR VIDEO

SIZE

Diagonal Video Size When

Fabric Is Stretched On Frame

50” (127 cm) N/A 17” (43 cm)

66.7” (169 cm) N/A 23” (58 cm)

75” (191 cm) N/A 26” (66 cm)

92” (234 cm) 31” (79 cm) N/A

100” (254 cm) 34” (86 cm) N/A

For example, if your projection area (white space) is a diagonal video size of 100” (254 cm), place the rear of your projector (distance A) 34” (86 cm) away from the screen.

The projector should be placed on the case for the three smallest screen sizes.

APPROXIMATE EXHIBIT SPACE NEEDED - DISTANCE

FROM SCREEN TO FAR SIDE OF PROJECTOR

Projector On Floor Projector On Case

(14”)

Plug power cord into projector and AC outlet.

DesignView® Presentation System

Desktop PC Laptop

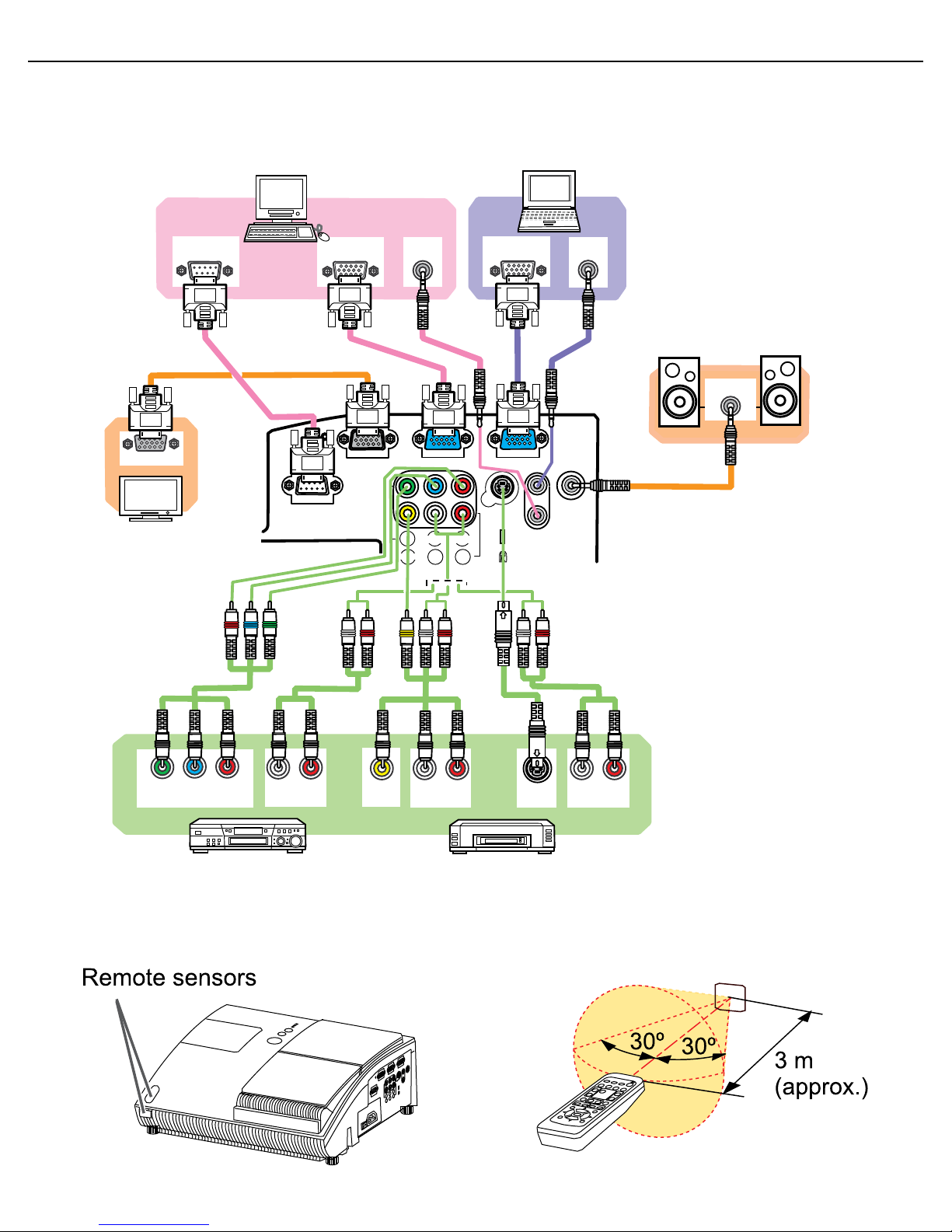

Connect the projector to your image source, such as a computer or DVD player.

IMAGE PROJECTION

RS-232C

RGB IN

Monitor for

Desktop PC

CONTROL

RGB OUT

MONITOR OUT

AUDIO

OUT

COMPUTER IN2

Y CB/P

B CR/PR

VIDEO L R

AUDIO IN3

RGB OUT

COMPUTER IN1

S-VIDEO

AUDIO IN

AUDIO

OUT

Speakers

(with an ampliﬁer)

AUDIO IN

AUDIO

OUT

Y CB/PBC R/P

COMPONENT VIDEO OUT

Prepare the remote control by making sure it has batteries. Always point the remote control to the active

R L

TUO OIDUA

sensor in the front of the projector, to assure it receives the signal. (For details, review the Operating Guide on the

VIDEO

OUT

R L

TUO OIDUA

S-VIDEO OUT

R L

VCR/DVD

TUO OIDUA

players

DesignView® Presentation System

IMAGE PROJECTION

CD.)

Turn on the main power switch by pressing the projector Power Switch to the “I” position. Then press the Power “STANDBY/ON” button on the top of the projector OR the Power “ON” button on the remote control for a minimum of two seconds, until the power indicator light turns green.

Wait a couple seconds after the power indicator lights up to use the control buttons.

Move the projector closer to or farther from the screen, until the image fits outside of the screen borders. Note that as the size of the image increases or decreases, the displayed image will move up or down. Smaller images will move less than larger ones. The screen height may have to be changed using the adjustable feet, if the projector is moved.

The distance between the screen and projector cannot be changed without changing image size.

To Display and switch the image, press the VIDEO or COMPUTER button on the remote to see the image from one of the active input ports. Each time you press the button, the port is switched (when there are two or more signals going into the projector.) Make sure that the remote control

is pointed at the sensor in the projector to assure it receives the signal. NOTE: If screen proportion is off, press function key F8 on the computer (the function key used may vary, depending on the computer.) The most

common resolution is 1024 x 768.

To adjust from front to rear projection:

COMPUTERVIDEO

DesignView® Presentation System

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

POSITION

ESC

ENTER

RESET

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

VOLUME

OFF

FREEZE

FOCUS D-ZOOM

- + - +

KEYSTONE

MUTE

MY BUTTON

1 2

FOCUS D-ZOOM

- + - +

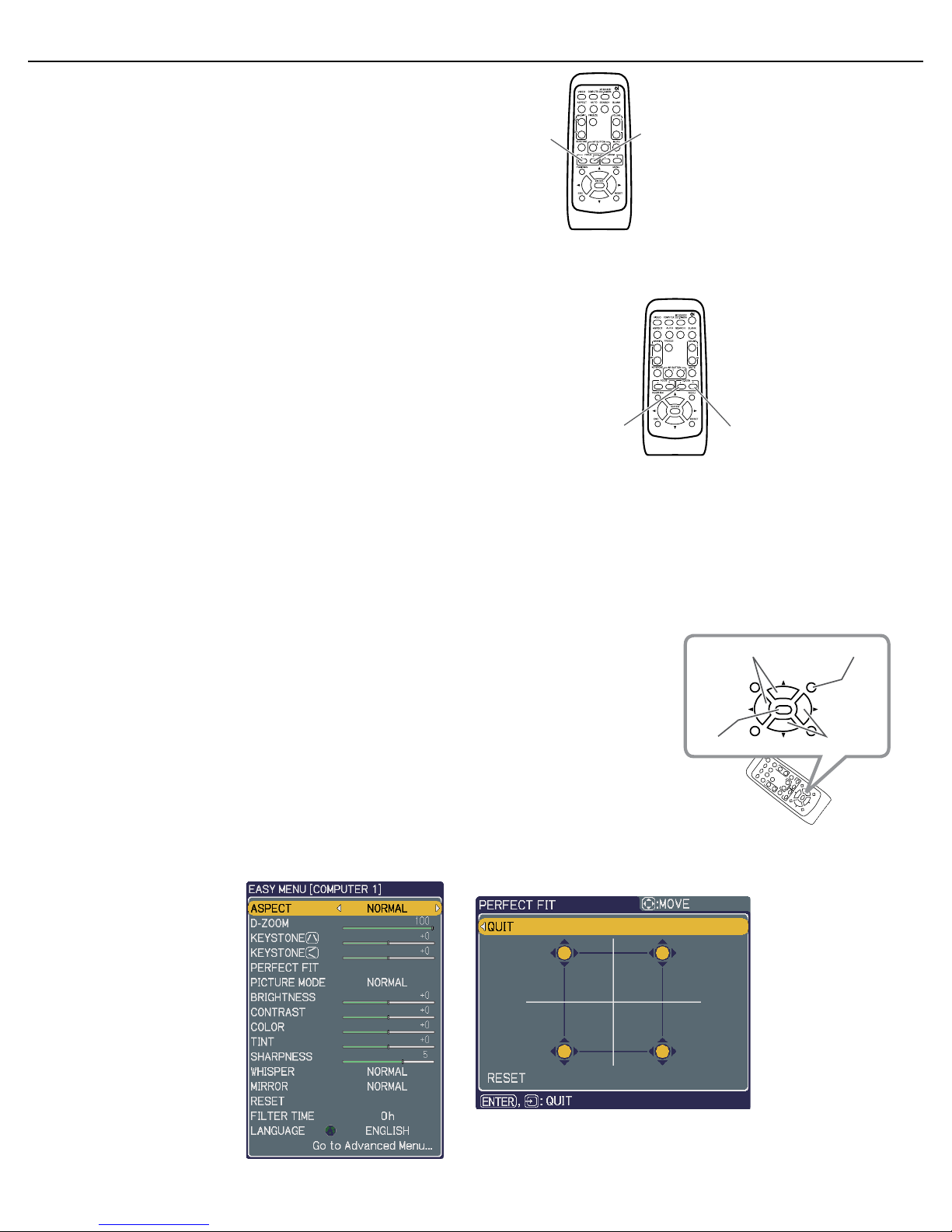

• Press the MENU button on the remote to access the EASY MENU.

• Select the MIRROR option and use the up/down arrow buttons to choose H-Invert.

10.

ADJUST THE PROJECTOR FOCUS AS NEEDED.

Use the FOCUS + and FOCUS – buttons on the projector or remote control to adjust the screen focus.

11.

SELECT THE ASPECT RATIO. Press the ASPECT button on the remote control to switch to the appropriate aspect ratio. Standard DesignView screens

are set up for a 4:3 ratio.

FOCUS –

IMAGE PROJECTION

FOCUS +

D-ZOOM +D-ZOOM –

12.

ZOOM by using the D-ZOOM + and the D-ZOOM - buttons on the remote control to adjust the screen size.

13.

Adjust the projected picture position by pressing the POSITION button on the remote control & using the arrow buttons. Press the POSITION button when finished. (NOTE: If your image size is at 100%, the image position may not shift.)

Arrow buttons

14.

FITTING THE PROJECTED IMAGE TO THE PROJECTION AREA IN YOUR

POSITION

SCREEN: Press the MENU button on the remote to access the EASY MENU (pictured below left.) Select the PERFECT FIT option and press ENTER. You will see the

ENTER

ESC

adjustment dialog box (pictured below right.)

Choose the corner to adjust using the arrow buttons & press ENTER.

Use the arrow buttons to adjust the position of the corner.

Press ENTER when you reach the desired location to exit the adjustment of the corner.

ENTER

RESET

Arrow buttons

DesignView® Presentation System

Power Switch

POWER

STANDBY/ON

IMAGE PROJECTION

VOLUME +

Repeat steps a-c to adjust other corners.

VOLUME -

To reset the adjustment of all the corners, select RESET using up or down arrow buttons and press ENTER.

15.

To adjust the volume, use the VOLUME+ and VOLUME-

MUTE

buttons on the remote control.

• To mute, simply press the MUTE button.

• Press the MUTE button again to restore sound.

16. If image appears washed-out, press the MENU button on the remote to access the EASY MENU & adjust PICTURE MODE, BRIGHTNESS, SHARPNESS and CONTRAST, as needed.

Note: High-contrast content is recommended for environments with bright ambient lighting.

17. SHUTTING DOWN THE PROJECTOR:

indicator

VIDEO

ASPECT SEARCH

MAGNIFY

OFF

KEYSTONE

FOCUS D-ZOOM

- + - +

POSITION

ESC

LAMP

TEMP

POWER

MY SOURCE/

COMPUTER

DOC.CAMERA

AUTO

BLANK

FREEZE

VOLUME

＋

ー

MUTE

MY BUTTON

1 2

ENTER

RESET

STANDBY/ON

INPUT

STANDBY/ON

Press the STANDBY/ON button on the remote control or projector. The “POWER OFF?” dialog appears on the screen for 5 seconds. Confirm that the lens door will not hit anything when closing. Then press the STANDBY/ON button again while the message appears. The projection lamp will go off, lens door will close, and the POWER indicator will begin to blink orange.

NOTE: To cool the projector, wait until the POWER indicator turns a steady orange before

turning the Power Switch off.

These abbreviated instructions are provided for your convenience, but should not be used as a replacement for carefully reading all the manuals for this product. Please note that the manufacturer provides a concise user manual and a more complete manual, in both booklet and CD formats. Follow all the instructions in those manuals, or on the product, for optimum performance.

DesignView® Presentation System

The hinges have a tension lock.

TAKEDOWN

To release the tension, brace the bottom of the frame with your foot, and push outward on the section of the frame above the hinge while pulling the locking pin of the hinge out.

When hinge

Push frame out while pulling pin to release hinge

releases, hold onto upper section and fold the side down.

Fold frame inward

Repeat with the second side.

Brace

DesignView® Presentation System

Make sure to lay frame and fabric on a drop cloth

or clean area to avoid soiling the fabric.

Remove Feet by lifting up on

locking pin and sliding feet off of button heads.

Turn frame so that the fabric (front) side is

down. Applying slight downward pressure on the horizontal hinges to release tension, pull both locking pins out.

TAKEDOWN

Lift up with the locking pins

to fold the frame. Frame can then be packed in the case.

DesignView® Presentation System

SCREEN REPLACEMENT

REPLACING DESIGNVIEW PROJECTION SCREEN FABRIC

Removing existing fabric

Open the frame and find the loop tab along the bottom front right of your fabric. Pull it gently. (If the loop has been removed or broken after long-term use, pull on the side tab of the fabric located next to the locking knob.)

Pull fabric off the frame starting at the tab or locking knob hinge area. Remove the fabric by gently pulling until it is no longer attached.

DesignView® Presentation System

APPENDIX - NEC PROJECTOR

InstallIng the new fabrIc

1. Clean area: Handle the fabric with clean hands and on a clean area. Use the enclosed drop cloth below the frame and be sure to wear the white gloves provided with your purchase.

2. Open frame face up: Lay open frame (with feet removed) down on a clean, flat area with the top of the frame facing up.

3. Drape fabric over frame: Drape fabric in the position you plan to install it. Remember that the bottom of the frame will have the button heads for attaching the feet.

Button

Heads

4. Corners first: Insert the rubber strip into the outside slot of the frame in the four corner areas first. On the final corner, it helps to hold one side of the corner while inserting the other side so the first side does not slip. Make sure you insert the rubber strip into the outside slot of the frame.

5. Hinge areas next: Insert the rubber strip on both sides of the locking knob first. Do one side frame section, then the other. Next, insert the rubber strip on both sides of the hinge on the top and bottom frame sections.

6. Continue to work from the center of each section:

Continue to work from the center of each area to

avoid bunching the fabric until the entire rubber strip is completely inserted.

DesignView® Presentation System

APPENDIX - NEC PROJECTOR

Steps to set up the Projector

PLACE THE PROJECTOR ON THE SURFACE YOU WILL BE USING TO PROJECT FROM (floor or projector case) BEHIND (or in front of) THE PROJECTION SCREEN. The projector should be centered to the projection area (white space) and parallel to the screen.

Determine the distance between the projector and the projection screen by referring to the set up grid below.

CHOOSE YOUR VIDEO SIZE SETUP FLOOR INFO

DIAGONAL VIDEO SIZE WHEN

FABRIC IS STRETCHED ON

FRAME

50” (127 cm) 18.00” (45.7 cm)

APPROXIMATE EXHIBIT SPACE

NEEDED - DISTANCE FROM SCREEN

TO FAR SIDE OF PROJECTOR

66.7” (169.4 cm) 24.25” (61.6 cm)

75” (190.5 cm) 27.50” (69.9 cm)

92” (233.7 cm) 33.38” (84.8 cm)

100” (254 cm) 36.50” (92.7 cm)

For example, if your projection area (white space) is a diagonal video size of 50” (127 cm), place the rear of your projector (distance A)

18.00” (45.7 cm) away from the screen. The projector should be placed on the case for the two smallest screen sizes.

3. OPEN THE MIRROR by unlocking the cover lock switch and lifting it to the open position.

4. PLUG POWER CORD INTO PROJECTOR AND AC OUTLET

POWER

CORD

INLET

POWER

SWITCH

DesignView® Presentation System

TURN ON THE MAIN POWER SWITCH ON THE PROJECTOR

by pressing the Projector power switch to the

APPENDIX - NEC PROJECTOR

on position. Then press the power “ON/STAND BY” button on the top of the projector OR the Power “ON” button on the remote control for a minimum of two seconds, until the power indicator light turns to a steady green.

ON/

STANDBY

MOVE THE PROJECTOR TOWARD OR AWAY FROM THE SCREEN UNTIL THE IMAGE FITS THE WIDTH OF THE SCREEN.

up or down. Smaller images will move less than larger ones. CHANGED USING THE ADJUSTABLE FEET IF THE PROJECTOR IS MOVED.

Note that as the size of the image increases or decreases the displayed image will move

THE SCREEN HEIGHT WILL HAVE TO BE

The distance between the

screen and projector cannot be changed without changing image size.

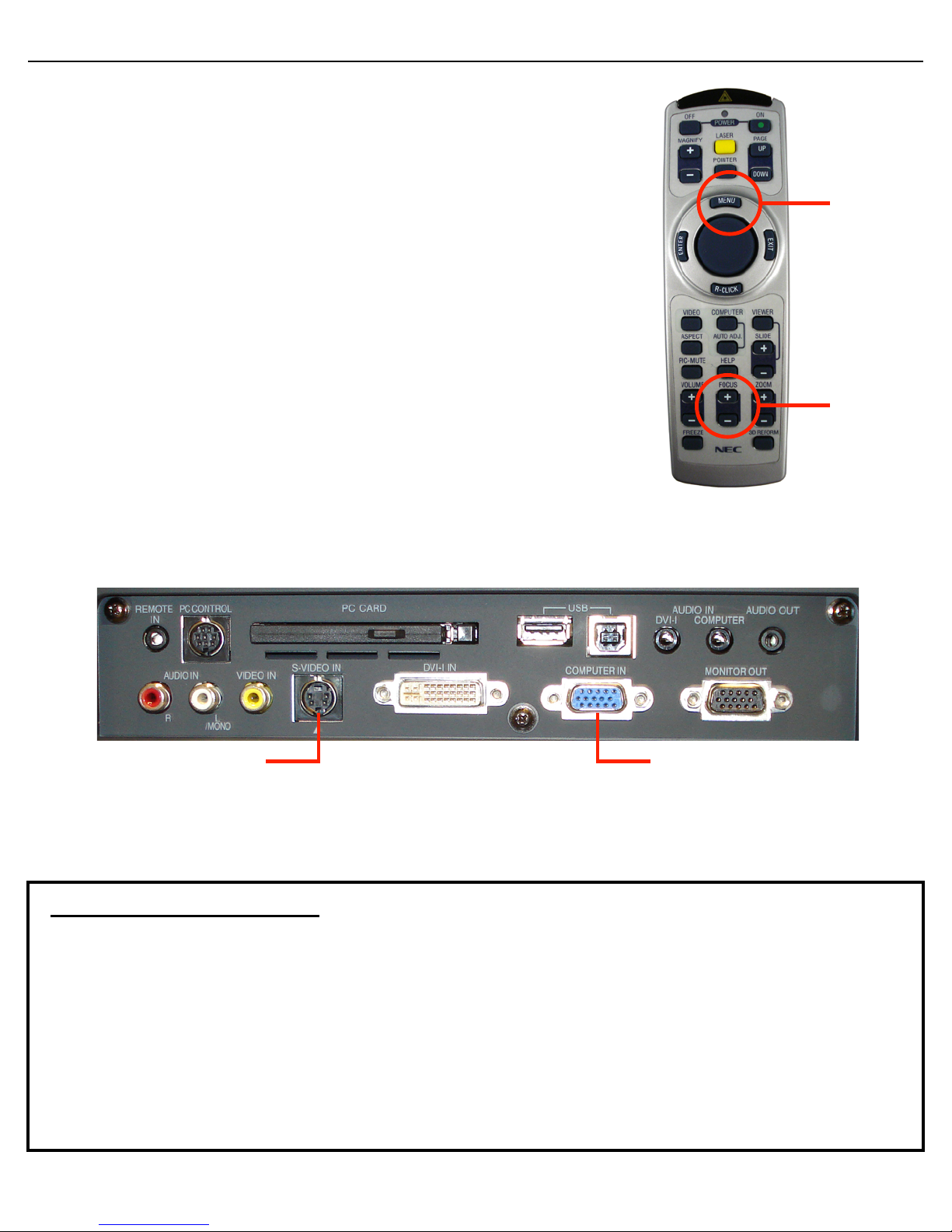

PRESS THE MENU BUTTON TO SEE THE MENU DISPLAY ON THE SCREEN.

Each menu tab includes different menu selections. You must hit the tab to access each of its selections. (It is generally easier to use the remote control than the control panel on the projector.) Make sure that the remote control is pointed at the sensor in the projector to assure it receives the signal.

SENSOR LOCATION

DesignView® Presentation System

APPENDIX - NEC PROJECTOR

8. IT IS VERY IMPORTANT TO SQUARE THE PROJECTOR relative to the projection screen. The projector needs to be centered horizontally relative to the projection area (white space) and parallel to the screen. Leveling feet can be adjusted to account for floor variability.

Align centers of

projector and

screen

Parallel

90º

9. ENSURE THAT THE PROJECTOR IS LEVEL by selecting “SET-UP” from the screen menu, then select “TILT INDICATOR”. If the projector needs to be leveled adjust the projector feet until both tilt indicators

are centered. Tilting the projector will move the indicators. The indicators will turn green when the projector is level.

DesignView® Presentation System

10. ADJUST THE PROJECTOR FOCUS AND KEYSTONE AS NEEDED.

a. Bring up the test pattern by selecting MENU, SOURCE, TEST

PATTERN

b. Adjust focus by selecting the focus button until the pattern is

clear

c. Ensure the image is squared by selecting MENU, SET UP,

KEYSTONE

d. Repeat 2 and 3 as necessary e. If focus is acceptable but image is not square, go back to step

10 to ensure the projector is squared.

f. To clear these adjustments and start over, depress the 3D

Reform button for 3 seconds.

APPENDIX - NEC PROJECTOR

FOCUS

11. CONNECT THE PROJECTOR TO YOUR COMPUTER (OR DVD PLAYER) Connect the VGA cable from your computer (or DVD player) select input source (Computer Input or S-Video Input) and start your presentation.

S-VIDEO INPUT

COMPUTER INPUT

12. SHUTTING DOWN THE PROJECTOR. Press the Power button twice. Wait until the power indicator light is red before closing the mirror lid.

Projector Support Resources:

1. Please refer to the instructions enclosed with the projector as they include additional information on

how to set up and operate the projector.

2. If you are unable to resolve your questions by reviewing these instructions you may review NEC’s website at http://www.necdisplay.com/Products/Product/.

3. If you are still having trouble you may call NEC directly at 1-800-836-0655 (7am - 7pm central standard time Monday through Friday).

4. Should you have trouble after hours you may call our vendor CompView at 1-800-248-1090.

5. If you are unable to get the help you need from these resources please call Skyline Customer

Service at 1-800-328-2725.

DesignView® Presentation System

APPENDIX - NEC PROJECTOR

FREQUENTLY ASKED QUESTIONS - Part 1 (obtained from NEC’s website)

1. Where do I plug in my PC or DVD player? NEC projector input panels feature RGB computer inputs, a composite video input (yellow RCA type plug) and an S-Video input. The RGB computer input (blue) and can also be used with an optional component video adapter for connection to a DVD player or other video source, if desired.

2. How do I turn on/off the projector? The projector can be turned on with either the remote control, the control panel on the projector or via a control system via RS232. With some projectors there is a Main Power Switch that also has to be turned on.

3. How do I get the image from my computer to my projector (hot swap of pc)? Function F* (this varies from computer to computer)

4. How do I mute the picture? Press “Picture Mute” on the Remote Control, with the HTML page over the LAN or when using a control system via RS232.

5. How do I magnify the image? On models with this feature, image magnification can be controlled by pressing the + or – magnification button on the remote control.

6. How do I set up the Auto adjust in the menu? The auto adjust feature can be activated by pressing the “auto adj.” button on the projector control panel or on the remote control.

7. How do I set up or use the picture management in the menu? On most NEC remotes there is a button labeled “picture”, by pressing this button the menu automatically goes to the picture adjustment screen. Another way to access picture management is to first press “menu”, then “adjust” and then go to the picture management tab in the menu.

8. How do I change from a blue screen to black when there is no signal to the projectors? This can be done by going into the OSM and making the change there or by sending a specific RS232 command to the projector from a computer.

DesignView® Presentation System

APPENDIX - NEC PROJECTOR

FREQUENTLY ASKED QUESTIONS - Part 2 (obtained from Skyline Dealers)

1. What do I do if the projected image is displayed backward?

a. Switch to rear projection (if the projector is behind the screen).

1. Press the menu button.

2. Go to the “Basic” tab.

3. Highlight “Desktop rear”.

b. Switch to front projection (if the projector is set up in front of the screen).

1. Press the menu button.

2. Go to the “Basic” tab.

3. Highlight “Desktop front”.

2. What do I do if my projected image is getting worse as I make adjustments?

a. Reset the projector to its original settings.

•Go to Menu and select RESET.

3. What do I do if the image is not displaying on the screen but is displaying in your computer?

a. Press Function F8 (this varies from computer to computer). b. Adjust the screen proportion (see directions below).

4. What do I do if the image displayed “Screen Proportion” appears to be the wrong.

a. Check the Screen Ratio. b. Open Display, click START, point to SETTINGS, click CONTROL PANEL, and then double-click

DISPLAY.

c. On the Settings tab, under Screen Resolution, drag the slider to the second screen, and then click

APPLY.

•Select Screen ratio to 1024 x 768 for the correct projector resolution. d. When prompted to apply the settings, click OK. Your screen will turn black for a moment. e. Once your screen resolution changes, you have 15 seconds to confirm the change. Click YES to

confirm the change; click NO or do nothing to revert to your previous setting.

Skyline Exhibits DesignView Setup Instructions

Specifications and Main Features

Frequently Asked Questions

User Manual
