Skylab M&C Technology Co., Ltd.
WG231-User Manual
WG231 WIFI module
User Manual

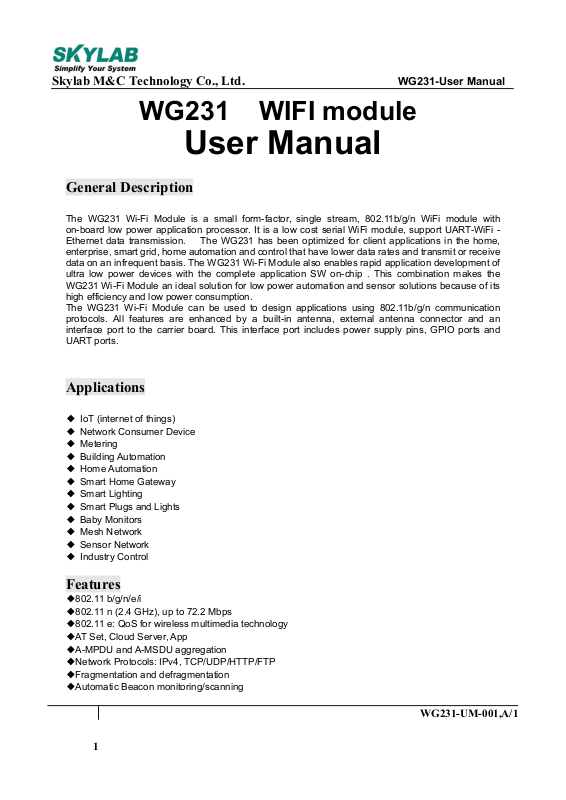

General Description
The WG231 Wi-Fi Module is a small form-factor, single stream, 802.11b/g/n WiFi module with
on-board low power application processor. It is a low cost serial WiFi module, support UART-WiFi Ethernet data transmission. The WG231 has been optimized for client applications in the home,
enterprise, smart grid, home automation and control that have lower data rates and transmit or receive
data on an infrequent basis. The WG231 Wi-Fi Module also enables rapid application development of
ultra low power devices with the complete application SW on-chip . This combination makes the
WG231 Wi-Fi Module an ideal solution for low power automation and sensor solutions because of its
high efficiency and low power consumption.
The WG231 Wi-Fi Module can be used to design applications using 802.11b/g/n communication
protocols. All features are enhanced by a built-in antenna, external antenna connector and an
interface port to the carrier board. This interface port includes power supply pins, GPIO ports and
UART ports.
Applications
◆ IoT (internet of things)
◆ Network Consumer Device
◆ Metering
◆ Building Automation
◆ Home Automation
◆ Smart Home Gateway
◆ Smart Lighting
◆ Smart Plugs and Lights
Baby Monitors
◆
◆ Mesh Network
◆ Sensor Network
◆ Industry Control
Features
◆802.11 b/g/n/e/i
◆802.11 n (2.4 GHz), up to 72.2 Mbps
◆802.11 e: QoS for wireless multimedia technology
◆AT Set, Cloud Server, App
◆A-MPDU and A-MSDU aggregation
◆Network Protocols: IPv4, TCP/UDP/HTTP/FTP
◆Fragmentation and defragmentation
◆Automatic Beacon monitoring/scanning
WG231-UM-001,A/1
1
Page 2
Skylab M&C Technology Co., Ltd.
◆802.11 i security features: pre-authentication and TSN
◆Wi-Fi Protected Access (WPA)/WPA2/WPA2-Enterprise/Wi-Fi Protected Setup (WPS)
◆Infrastructure BSS Station mode/Soft AP mode
◆Wi-Fi Direct (P2P), P2P Discovery, P2P Group Owner mode and P2P Power Management
◆UMA compliant and certif
ied
WG231-User Manual

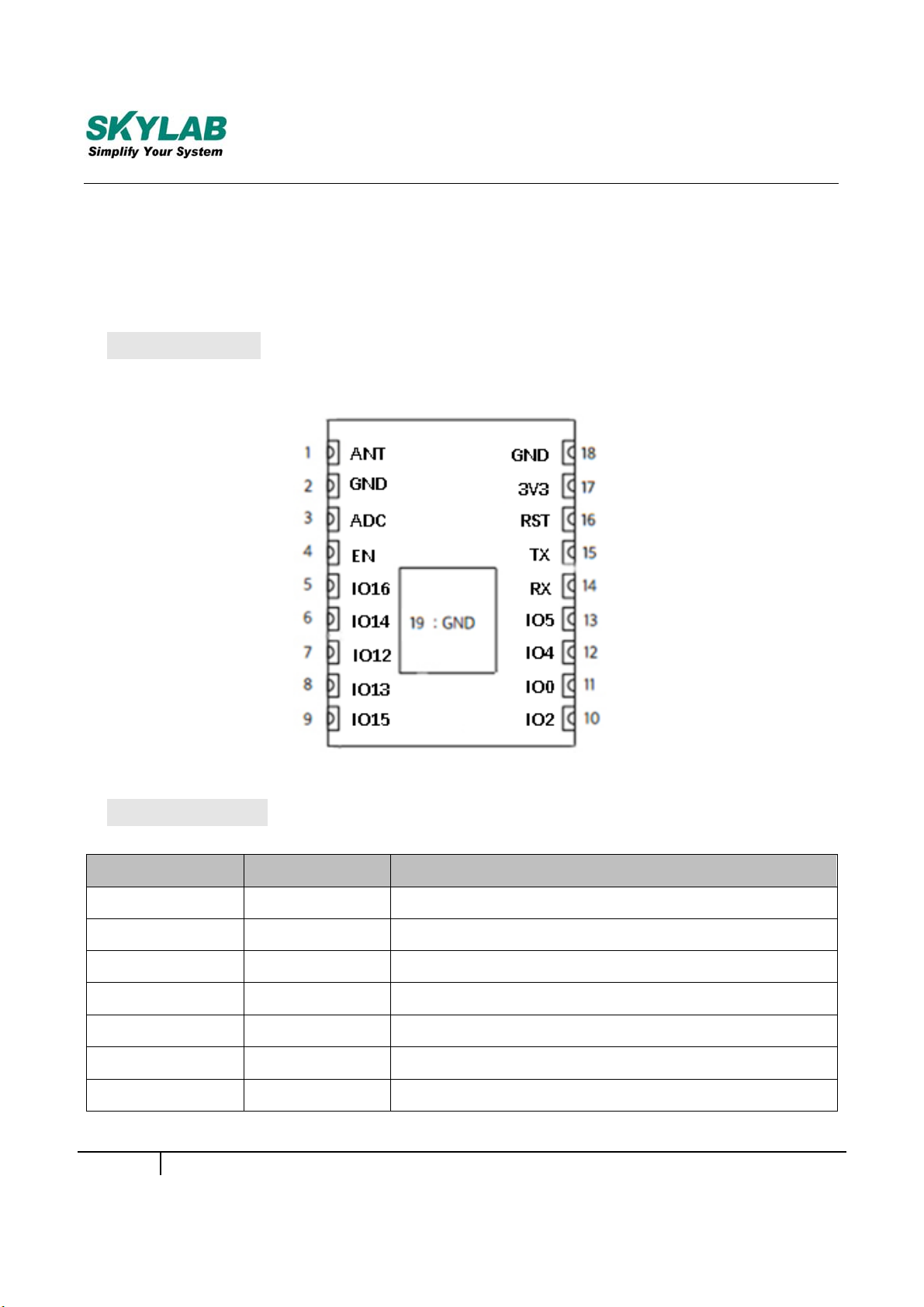

Module Pinout
Pin Description
NO Name Function
1 GND GND
2 VDD33 3.3 V power supply (VDD)
3 ADC ADC Pin can be used to check the power voltage of VDD33
4 EN Chip enable pin. Active high.
5 IO16 GPI16, Deep-Sleep Wakeup
6 IO14 MTMS, GPI14, HSPI_CLK
7 IO12 MTDI, GPI12, HSPI_MISO
Figure 1: WG231 Pin Name
WG231-UM-001,A/1
2
Page 3
Skylab M&C Technology Co., Ltd.
8 IO13 MTCK, GPIO13, HSPI_MOSI, UART0_CTS
9 IO15 MTDO, GPIO15, HSPI_CS, UART0_RTS
10 IO2 GPIO2, UART TX during flash programming
11 IO0 GPIO0, SPI_CS2
12 IO4 GPIO4
13 IO5 GPIO5
14 RXD0 GPIO3, U0RXD
15 TXD0 GPIO1, U0TXD
16 RST Reset Signal (Active Low)
17 VDD33 3.3 V power supply (VDD)
18 GND GND

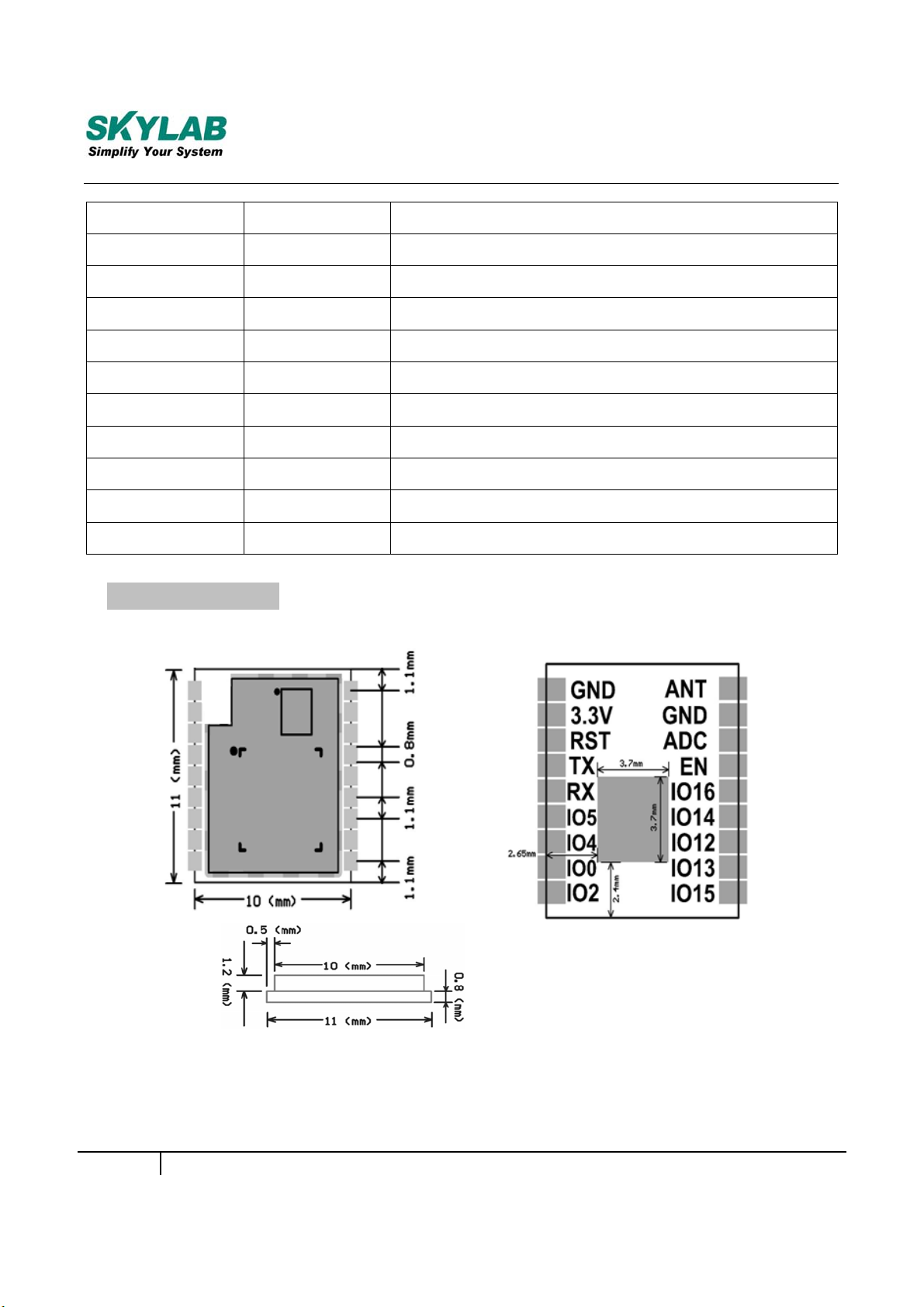

PCB Dimensions
WG231-User Manual
Figure 2:
WG231 Dimensions
WG231-UM-001,A/1
3
Page 4

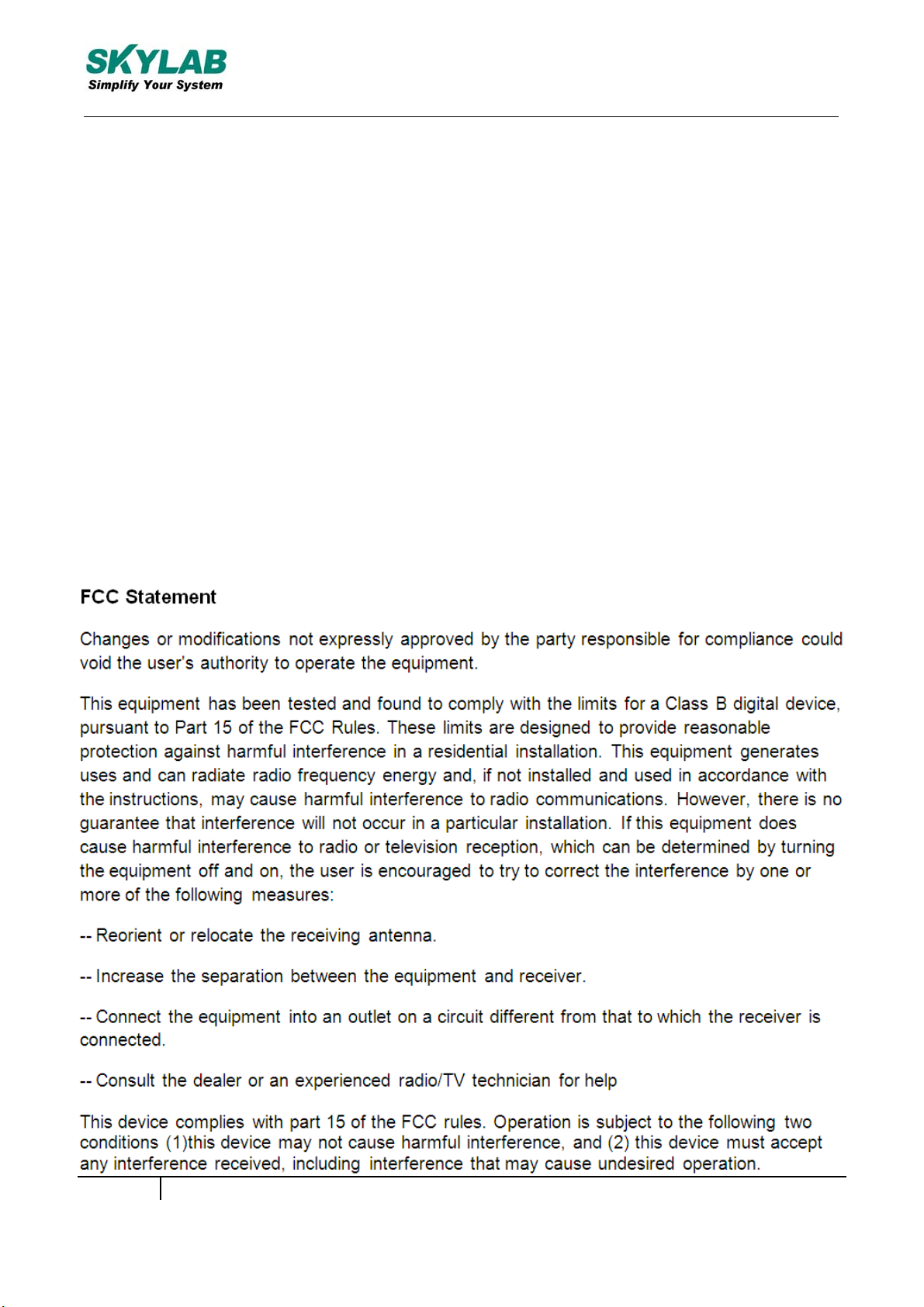

Skylab M&C Technology Co., Ltd.

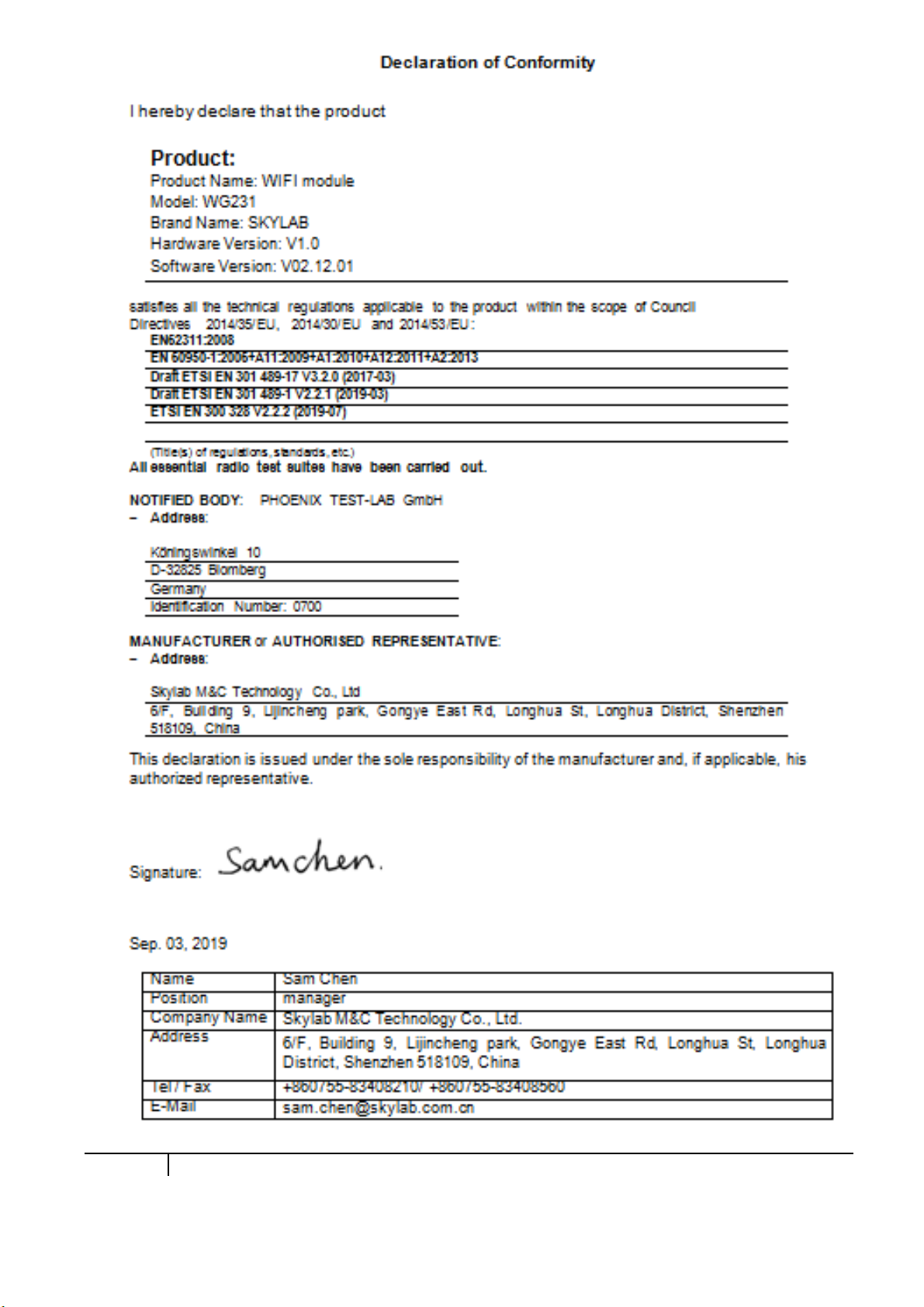

CE Statement
Herby,Skylab M&C Technology Co., Ltd. declares that this WIFI module，WG231 is in compliance
with the essential requirements and other relevant provisions of Directive 2014/53/EU. In accordance
with Article 10(2) and Article 10(10), this product allowed to be used in all EU member
Use the WIFI module in the environment with the temperature between -20℃ and 60℃
This equipment should be installed and operated with minimum distance 20 cm between the
radiator & your body.
Operation Frequency: 2412MHz~2472MHz (802.11b/802.11g/802.11n(HT20))
Max output power: Wifi: 0.0511W
This module requires customers to match the antenna themselves
Available antenna Type: monopole, PIFA, dipole Antenna
Antenna Gain: less than 5dBi.
Manufacturer：Skylab M&C Technology Co., Ltd.
Address：6/F, Building 9, Lijincheng park, Gongye East Rd, Longhua St, Longhua District, Shenzhen
518109, China
Tel: 860755-83408210
Fax: +860755-83408560
E-mail: [email protected]
WG231-User Manual
states.
WG231-UM-001,A/1
444
Page 5
Skylab M&C Technology Co., Ltd.
WG231-User Manual

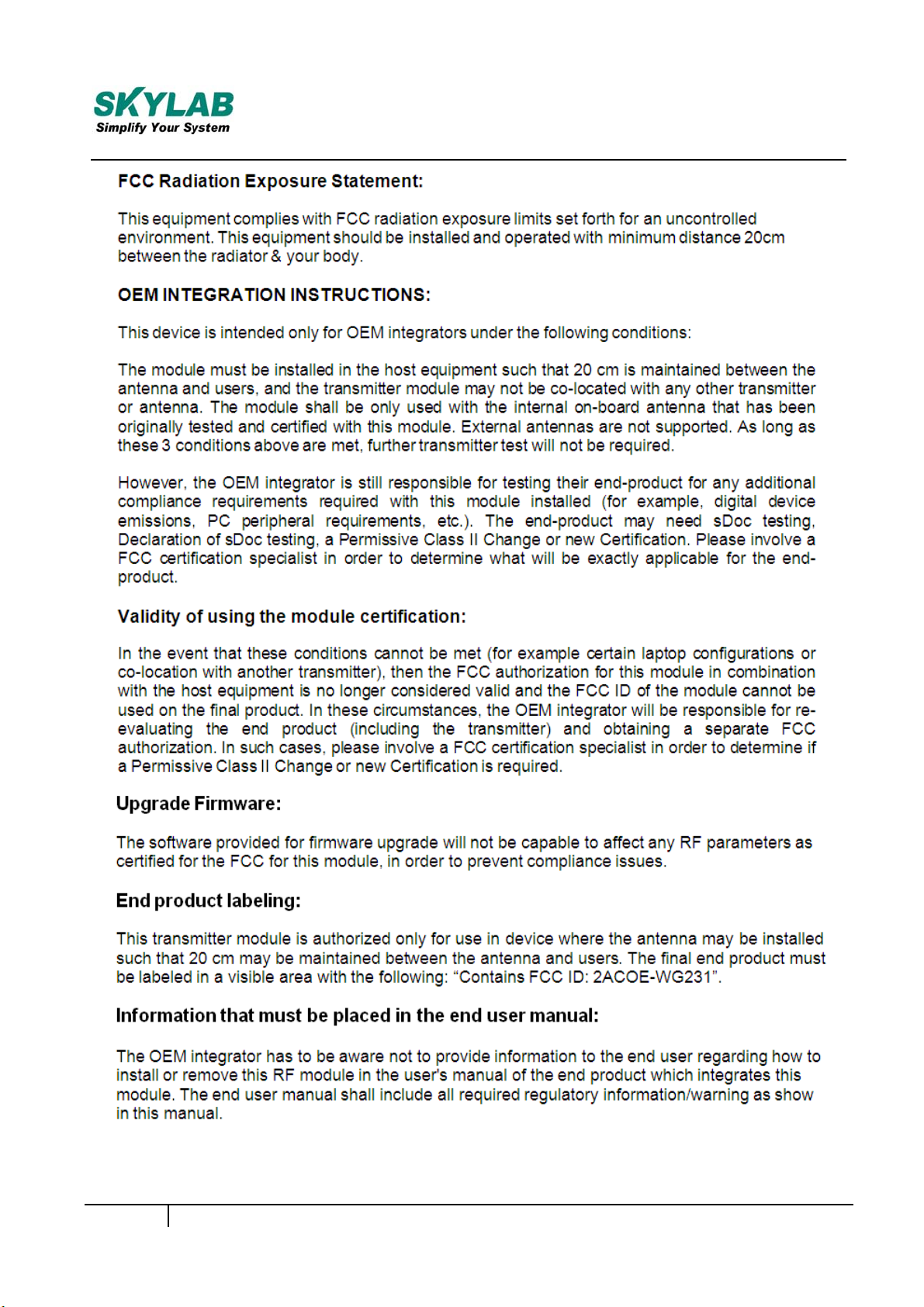

The host system using this module, should have label in a visible area indicated the
following texts: "Contains FCC ID: 2ACOE-WG231
Applicable Standards: FCC CFR Title 47 Part 15 Subpart C
WG231-UM-001,A/1
5
