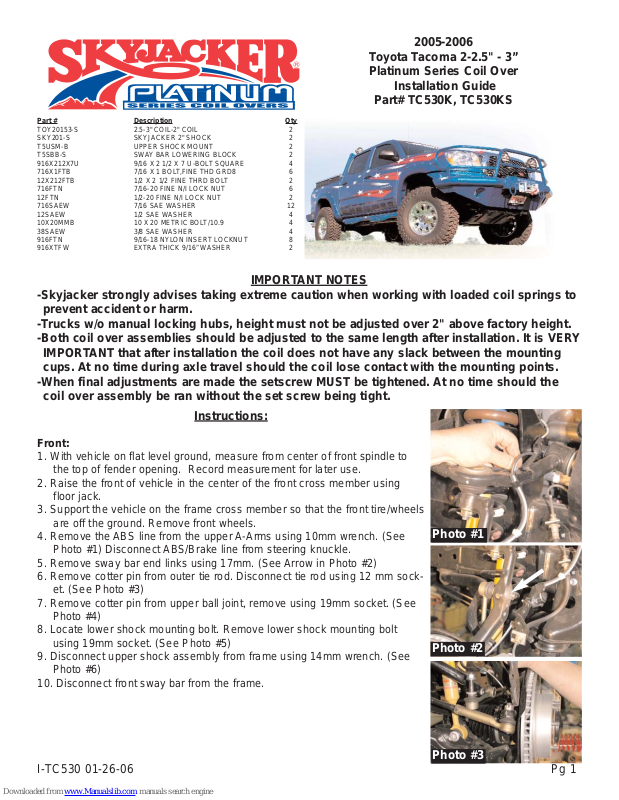

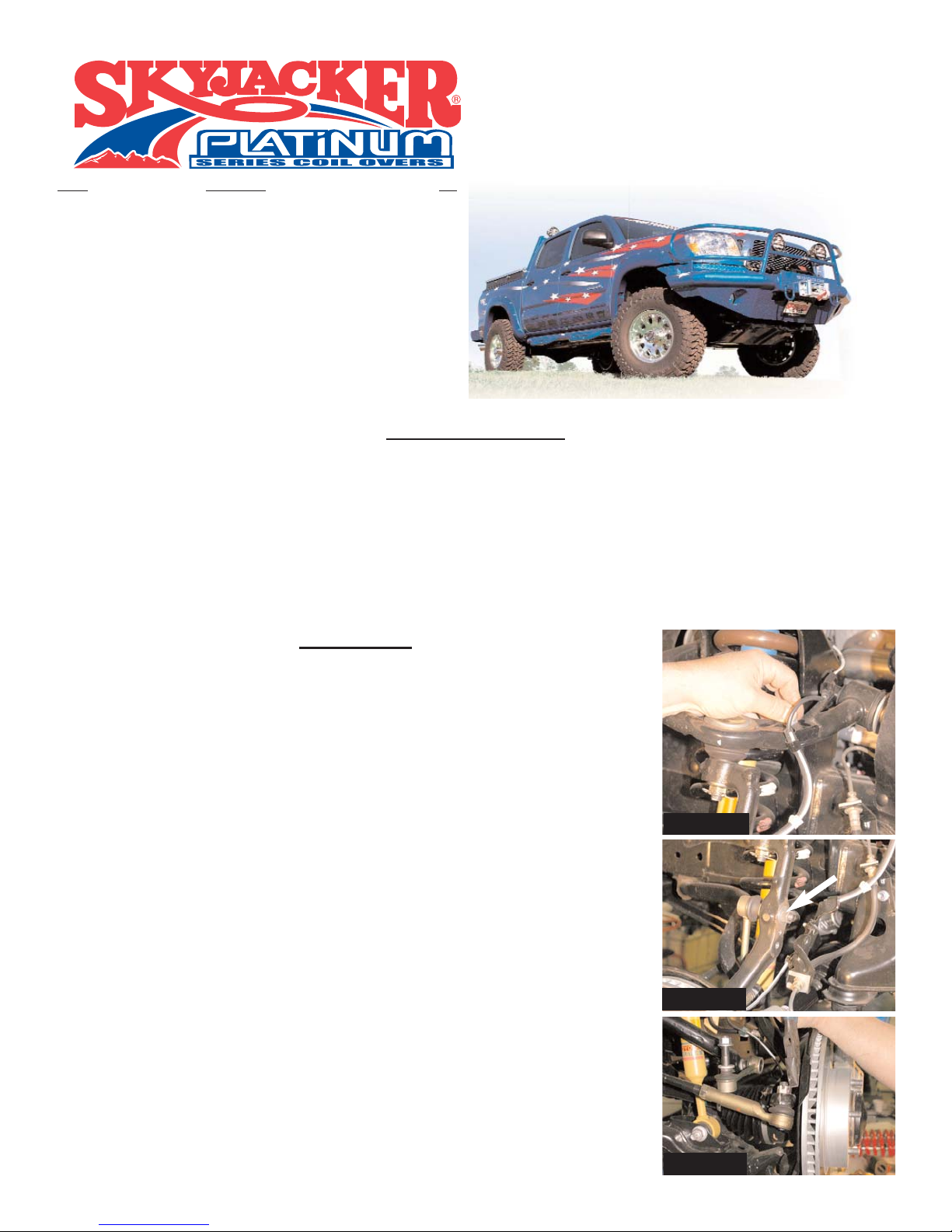

Page 1
IMPORT
ANT NOTES
-Skyjacker strongly advises taking extreme caution when working with loaded coil springs to
prevent accident or harm.
-Trucks w/o manual locking hubs, height must not be adjusted over 2" above factory height.
-Both coil over assemblies should be adjusted to the same length after installation. It is VERY
IMPORTANT that after installation the coil does not have any slack between the mounting
cups. At no time during axle travel should the coil lose contact with the mounting points.
-When final adjustments are made the setscrew MUST be tightened. At no time should the
coil over assembly be ran without the set screw being tight.
Part # Description Qty
TOY20153-S 2.5-3" COIL-2" COIL 2
SKY201-S SKYJACKER 2" SHOCK 2
T5USM-B UPPER SHOCK MOUNT 2
T5SBB-S SWAY BAR LOWERING BLOCK 2
916X212X7U 9/16 X 2 1/2 X 7 U-BOLT SQUARE 4
716X1FTB 7/16 X 1 BOLT,FINE THD GRD8 6
12X212FTB 1/2 X 2 1/2 FINE THRD BOLT 2
716FTN 7/16-20 FINE N/I LOCK NUT 6
12FTN 1/2-20 FINE N/I LOCK NUT 2
716SAEW 7/16 SAE WASHER 12
12SAEW 1/2 SAE WASHER 4
10X20MMB 10 X 20 METRIC BOLT/10.9 4
38SAEW 3/8 SAE WASHER 4
916FTN 9/16-18 NYLON INSERTLOCKNUT 8
916XTFW EXTRA THICK 9/16” WASHER 2
Instructions:
Front:
1. With vehicle on flat level ground, measure from center of front spindle to
the top of fender opening. Record measurement for later use.
2. Raise the front of vehicle in the center of the front cross member using
floor jack.
3. Support the vehicle on the frame cross member so that the front tire/wheels
are off the ground. Remove front wheels.
4. Remove the ABS line from the upper A-Arms using 10mm wrench. (See
Photo #1) Disconnect ABS/Brake line from steering knuckle.
5. Remove sway bar end links using 17mm. (See Arrow in Photo #2)
6. Remove cotter pin from outer tie rod. Disconnect tie rod using 12 mm sock-
et. (See Photo #3)
7. Remove cotter pin from upper ball joint, remove using 19mm socket. (See
Photo #4)
8. Locate lower shock mounting bolt. Remove lower shock mounting bolt
using 19mm socket. (See Photo #5)
9. Disconnect upper shock assembly from frame using 14mm wrench. (See
Photo #6)
10. Disconnect front sway bar from the frame.
Photo #1
Photo #2
Pg 1
2005-2006
Toyota Tacoma 2-2.5" - 3”
Platinum Series Coil Over
Installation Guide
Part# TC530K, TC530KS
I-TC530 01-26-06
Photo #3

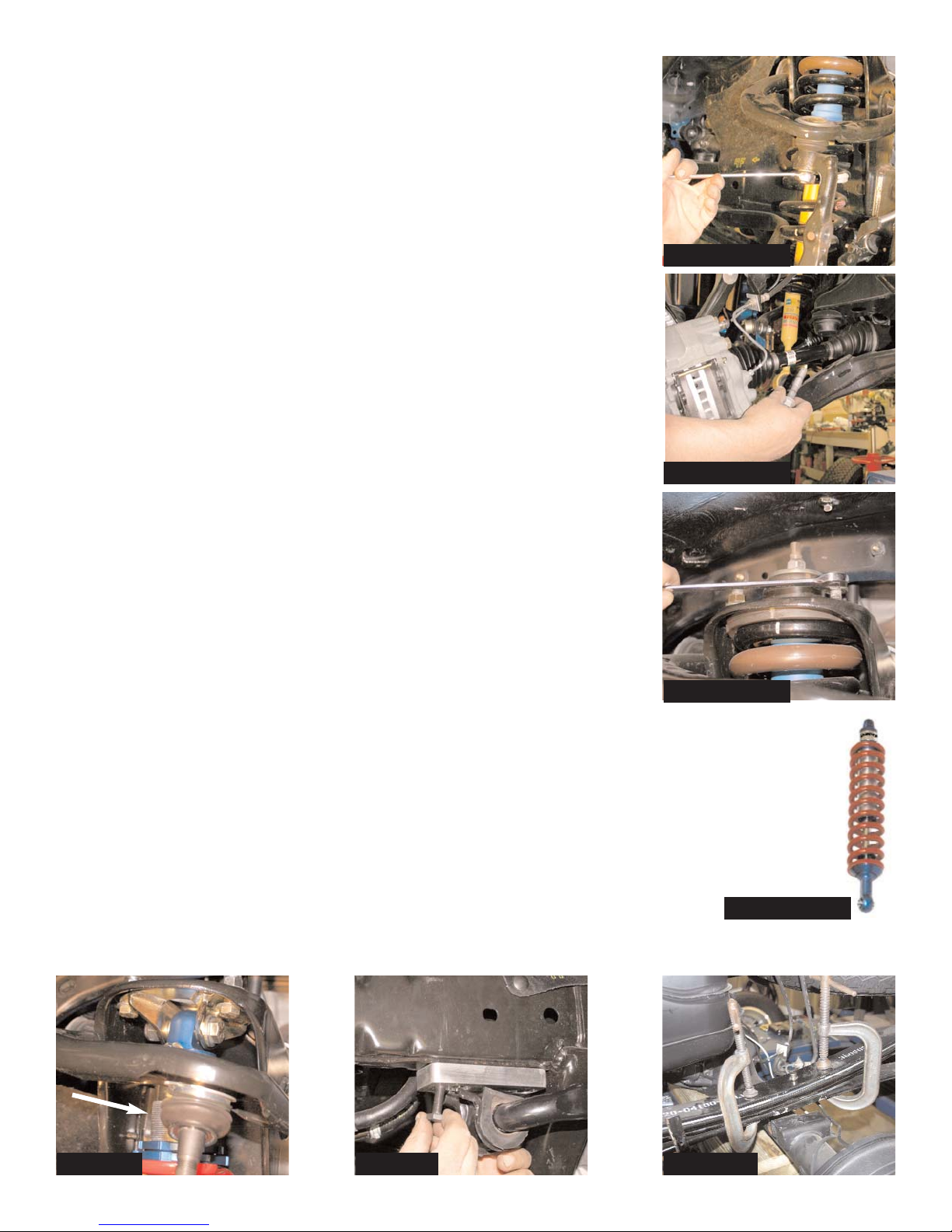

Page 2
Pg 2
11. Assemble new Coil-Over as shown in Photo #7. Attach new skyjacker coil over to new upper mounting bracket using the 1/2 x 2 1/2” fine
thread bolt, washers, and nut. Attach new coil -over assembly to factory
upper mount using the 7/16 x 1” fine thread bolts, washers and nuts. (See
Photo #8).
12. Attach lower shock mount to factory location using factory bolt and hardware. With Coil-Over installed, measure the amount of exposed thread
above the upper spanner nut. 1.75” of thread should yield 2.5”-3” of lift.
(See Arrow in Photo #8)
13. Locate new aluminum sway bar relocation brackets. Attach new aluminum
bracket to the factory location in the frame using the factory hardware.
Factory bolts will mount through the counter-sunk holes. Attach swat bar
in new forward holes using the 10 x 20 mm bolts and 3/8” flat washers.
(See Photo #9)
14. Disconnect sway bar end links from sway bar. Place one 9/16” thick washer onto threads and reattach link to sway bar. This will allow adequate
clearance between the sway bar link and the new coil springs.
14. Reattach ABS line/Brake line and sway bar end links.
15. Reinstall front tires/wheels and lower vehicle to the ground.
Rear:
16. Raise rear of vehicle from the rear frame horns. Remove rear shocks and
disconnect brake line bracket from the axle. Remove rear U-Bolts, allowing
access to rear springs.
Rear Spring Models: Disconnect E-brake cable from leaf spring. Remove
factory leaf spring and install new Skyjacker leaf spring using the
916x212x7 U-Bolts. Be sure to re-attach E-Brake cable to leaf spring using
factory hardware.
Add-A-Leaf Models: Using C-Clamps, secure the leaf pack together and
remove center tie-bolt. (See Photo #10) Loosen C-Clamps and install adda-leaf into the spring pack. Add-A-Leaf will fit into the pack longest to shortest. Re-Install C-Clamps tightly and install Tie Bolt. Torque Tie-Bolt to 17Ft.
Lbs. Do NOT use the tie bolt to draw the spring pack together. Install new
916x212x7 U-Bolts.
17. Install new Skyjacker Shocks and lower vehicle to the ground.
18. With lift complete, measure vehicle (as in Step #1) to determine ride
height. If needed raise the front end and adjust lower spanner nut as
needed. Once adjustments have been made, tighten the upper spanner
nut to lock into place.
* After install is complete, check all hardware and brackets for accurate
installation. Be sure all bolts are tight and properly installed.
* Check all bolts for tightness after the first 100 miles.
*Seat Belts Save Lives, Please Wear Your Seat Belt*
Photo #4
Photo #5
Photo #6
Photo #7
Photo #8 Photo #9 Photo #10
