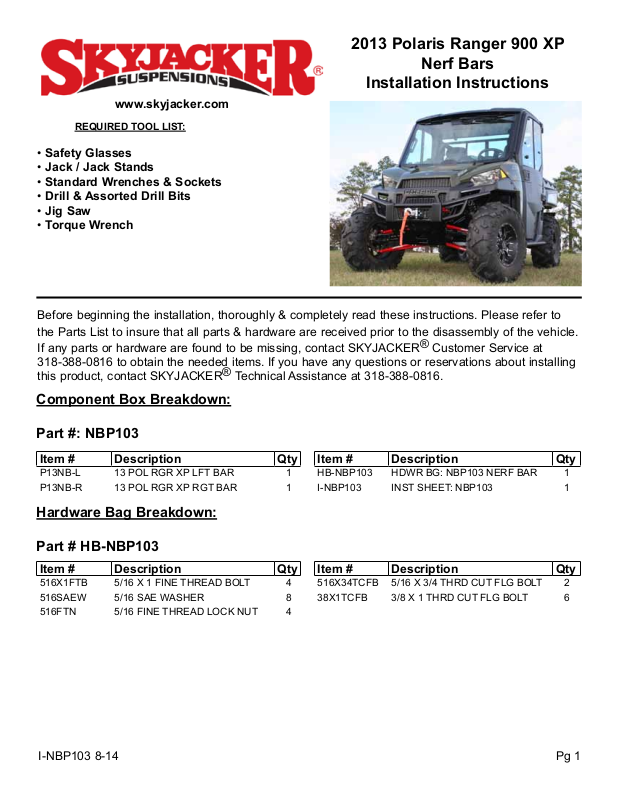

2013 Polaris Ranger 900 XP
Nerf Bars
Installation Instructions
www.skyjacker.com
REQUIRED TOOL LIST:
• Safety Glasses
• Jack / Jack Stands
• Standard Wrenches & Sockets
• Drill & Assorted Drill Bits
• Jig Saw
• Torque Wrench
Before beginning the installation, thoroughly & completely read these instructions. Please refer to
the Parts List to insure that all parts & hardware are received prior to the disassembly of the vehicle.
If any parts or hardware are found to be missing, contact SKYJACKER® Customer Service at
318-388-0816 to obtain the needed items. If you have any questions or reservations about installing
this product, contact SKYJACKER® Technical Assistance at 318-388-0816.
Component Box Breakdown:
Part #: NBP103
Item # Description Qty Item # Description Qty
P13NB-L 13 POL RGR XP LFT BAR 1 HB-NBP103 HDWR BG: NBP103 NERF BAR 1
P13NB-R 13 POL RGR XP RGT BAR 1 I-NBP103 INST SHEET: NBP103 1
Hardware Bag Breakdown:
Part # HB-NBP103
Item # Description Qty Item # Description Qty
516X1FTB 5/16 X 1 FINE THREAD BOLT 4 516X34TCFB 5/16 X 3/4 THRD CUT FLG BOLT 2
516SAEW 5/16 SAE WASHER 8 38X1TCFB 3/8 X 1 THRD CUT FLG BOLT 6
516FTN 5/16 FINE THREAD LOCK NUT 4
I-NBP103 8-14 Pg 1
Page 2

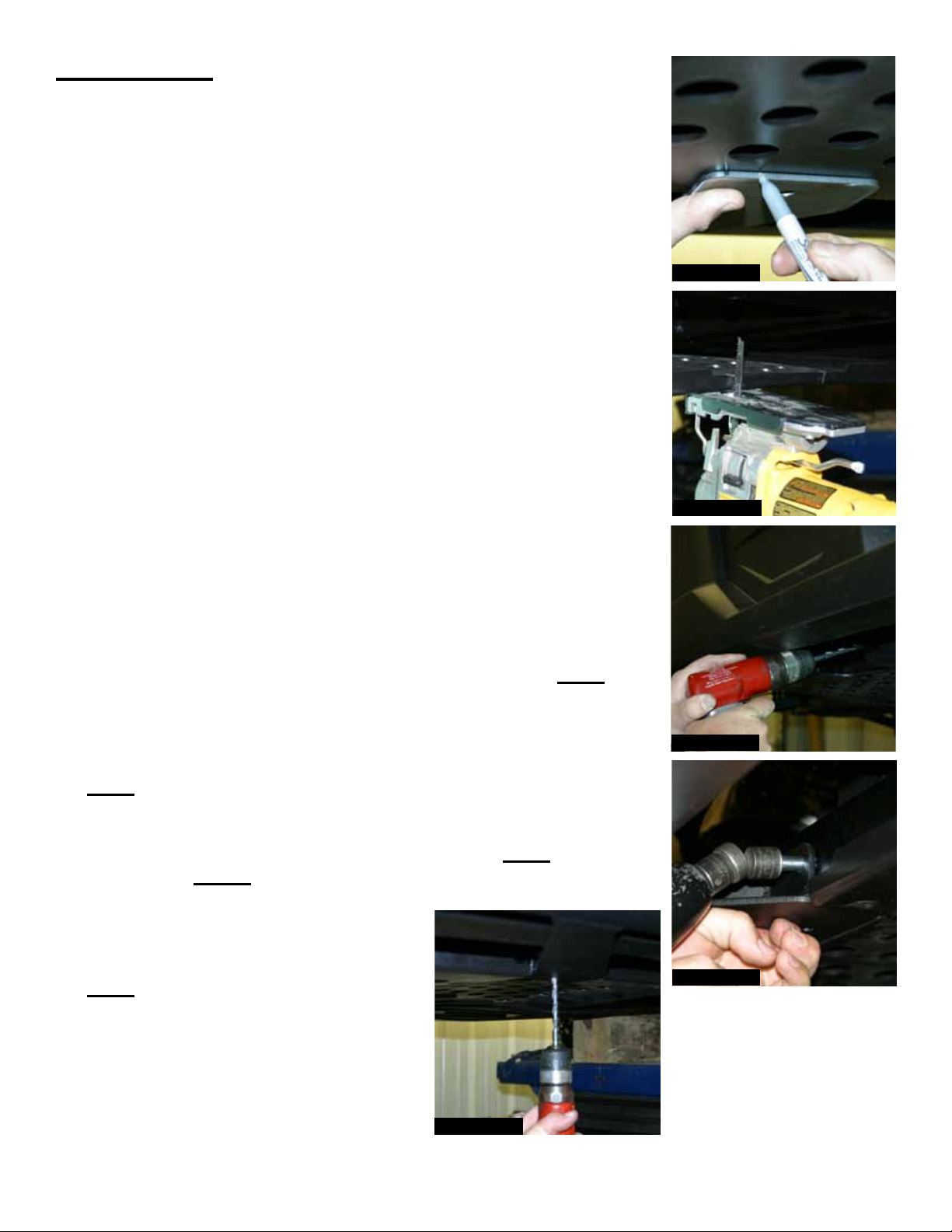

Installation:
1. With the vehicle on at level ground, set the emergency brake, &
block the front & rear tires / wheels.
2. Align the new Skyjacker nerf bar with the front & rear fender wells &
support the new nerf bar using jacks / jack stands.
3. Align the mounting brackets of the new Skyjacker nerf bar with the
OEM holes located on the frame rail of the vehicle.
4. Mark a line on the OEM skid plate around the rear mounting bracket
of the new Skyjacker nerf bar. (See Photo # 1)
5. Remove the outer OEM skid plate hardware & lower the OEM skid
plate in order to cut along the previously drawn line using a jig saw or
similar tool. (See Photo # 2)
6. Once the OEM skid plate has been cut, reattach the OEM skid plate
using the OEM hardware.
Photo # 1
Photo # 2
7. Drill the two upper rear OEM frame rail mounting locations using a
5/16" drill bit & install the supplied 3/8" x 1" thread cutting bolts using
a 9/16" socket. (See Photo # 3)
8. Remove the previously installed 3/8" x 1" thread cutting bolts & attach
the new Skyjacker nerf bar to the front upper frame rail using the
supplied 5/16" x 1" bolts, washers, nuts, & a 1/2" socket. Note: Do
not completely tighten at this time.
9. Attach the new Skyjacker nerf bar to the rear upper frame rail using
the previously removed 3/8" x 1" thread cutting bolts & a 9/16" socket.
Note: Do not completely tighten at this time. (See Photo # 4)
10. Slightly drill the rear lower mounting location of the new Skyjacker
nerf bar to create a pilot mark using a 3/8” drill bit. Note: Only create
a pilot mark, do not completely drill this mounting location at this time.
11. Drill the previously pilot marked rear
lower mounting location of the new
Skyjacker nerf bar using a 5/16” drill bit.
Note: Be extremely careful not to drill
through the oor of the vehicle. (See
Photo # 5)
Photo # 3
Photo # 4
I-NBP103
Photo # 5
Pg 2
Page 3

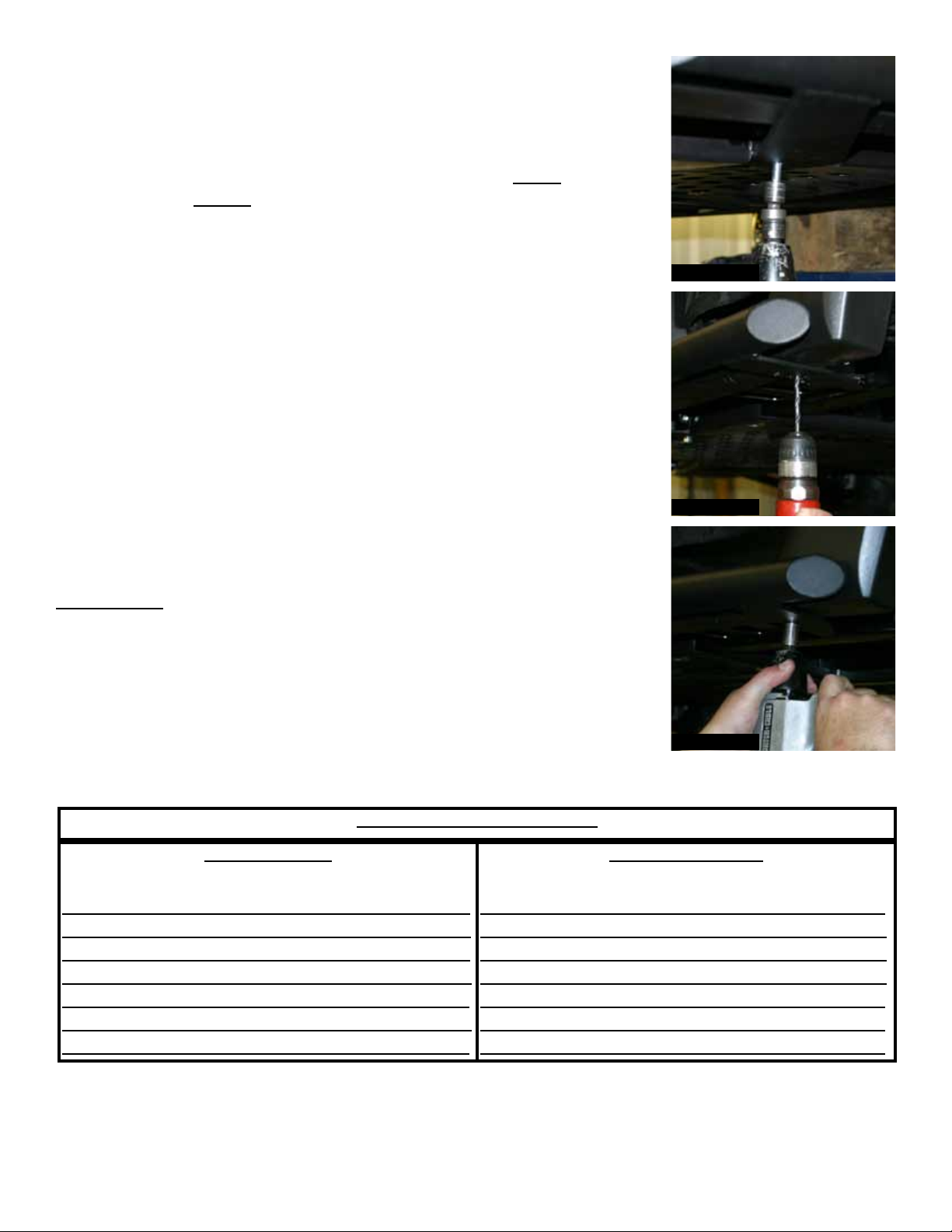

12. Once drilled, attach the new Skyjacker nerf bar to the rear lower
frame rail of the vehicle using the supplied 3/8" x 1" thread cutting
bolts & a 9/16" socket. (See Photo # 6)
13. Slightly drill the front lower mounting location of the new Skyjacker
nerf bar to create a pilot mark using a 5/16” drill bit. Note: Only create
a pilot mark, do not completely drill this mounting location at this time.
14. Drill the previously pilot marked front lower mounting location of the
new Skyjacker nerf bar using a 1/4” drill bit. (See Photo # 7)
15. Once drilled, attach the new Skyjacker nerf bar to the front lower
frame rail of the vehicle using the supplied 5/16" x 3/4" thread cutting
bolts & a 1/2" socket. (See Photo # 8)
16. Completely tighten all mounting hardware at this time using a 1/2" &
9/16" socket.
17. Remove the jacks / jack stands.
Photo # 6
18. Complete Steps # 2 thru # 17 for the opposite side of the vehicle.
19. Unblock the front & rear tires / wheels & release the emergency brake.
Final Notes:
• After the installation is complete, double check that all nuts & bolts are
tight. Refer to the following chart for the proper torque specifications.
(Do not retighten any nuts & bolts where thread lock compound was
used. )
• After the first 100 miles, check all hardware for the proper torque &
periodically thereafter.
TORQUE SPECIFICATIONS
INCH SYSTEM
Bolt Size Grade 5 Grade 8
5/16 15 FT LB 20 FT LB
3/8 30 FT LB 35 FT LB
7/16 45 FT LB 60 FT LB
1/2 65 FT LB 90 FT LB
9/16 95 FT LB 130 FTLB
5/8 135 FT LB 175 FT LB
3/4 185 FT LB 280 FT LB
Bolt Size Class 8.8 Class 10.9
6MM 5 FT LB 9 FT LB
8MM 18 FT LB 23 FT LB
10MM 32 FT LB 45 FT LB
12 MM 55 FT LB 75 FT LB
14MM 85 FT LB 120 FT LB
16MM 130 FT LB 165 FT LB
18MM 170 FT LB 240 FT LB
METRIC SYSTEM
Photo # 7
Photo # 8
• The above specifications are not to be used when the bolt is being installed with a bushing.
Seat Belts Save Lives, Please Wear Your Seat Belt.
Pg 3I-NBP103
