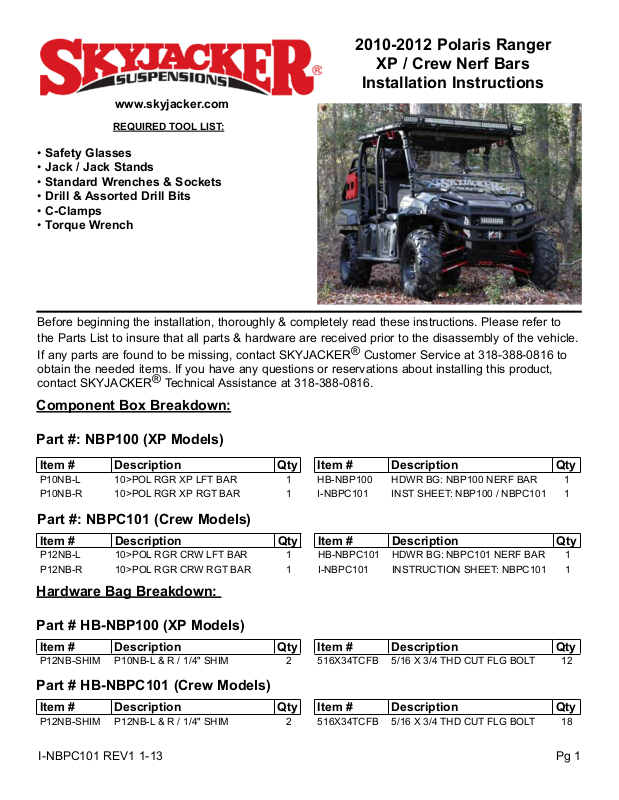

Page 1
2010-2012 Polaris Ranger
XP / Crew Nerf Bars
Installation Instructions
www.skyjacker.com
REQUIRED TOOL LIST:
• Safety Glasses
• Jack / Jack Stands
• Standard Wrenches & Sockets
• Drill & Assorted Drill Bits
• C-Clamps
• Torque Wrench
Before beginning the installation, thoroughly & completely read these instructions. Please refer to
the Parts List to insure that all parts & hardware are received prior to the disassembly of the vehicle.
If any parts are found to be missing, contact SKYJACKER® Customer Service at 318-388-0816 to
obtain the needed items. If you have any questions or reservations about installing this product,
contact SKYJACKER® Technical Assistance at 318-388-0816.
Component Box Breakdown:
Part #: NBP100 (XP Models)
Item # Description Qty Item # Description Qty
P10NB-L 10>POL RGR XP LFT BAR 1 HB-NBP100 HDWR BG: NBP100 NERF BAR 1
P10NB-R 10>POL RGR XP RGT BAR 1 I-NBPC101 INST SHEET: NBP100 / NBPC101 1
Part #: NBPC101 (Crew Models)
Item # Description Qty Item # Description Qty
P12NB-L 10>POL RGR CRW LFT BAR 1 HB-NBPC101 HDWR BG: NBPC101 NERF BAR 1
P12NB-R 10>POL RGR CRW RGT BAR 1 I-NBPC101 INSTRUCTION SHEET: NBPC101 1
Hardware Bag Breakdown:
Part # HB-NBP100 (XP Models)
Item # Description Qty Item # Description Qty
P12NB-SHIM P10NB-L & R / 1/4" SHIM 2 516X34TCFB 5/16 X 3/4 THD CUT FLG BOLT 12
Part # HB-NBPC101 (Crew Models)
Item # Description Qty Item # Description Qty
P12NB-SHIM P12NB-L & R / 1/4" SHIM 2 516X34TCFB 5/16 X 3/4 THD CUT FLG BOLT 18
I-NBPC101 REV1 1-13 Pg 1
Page 2

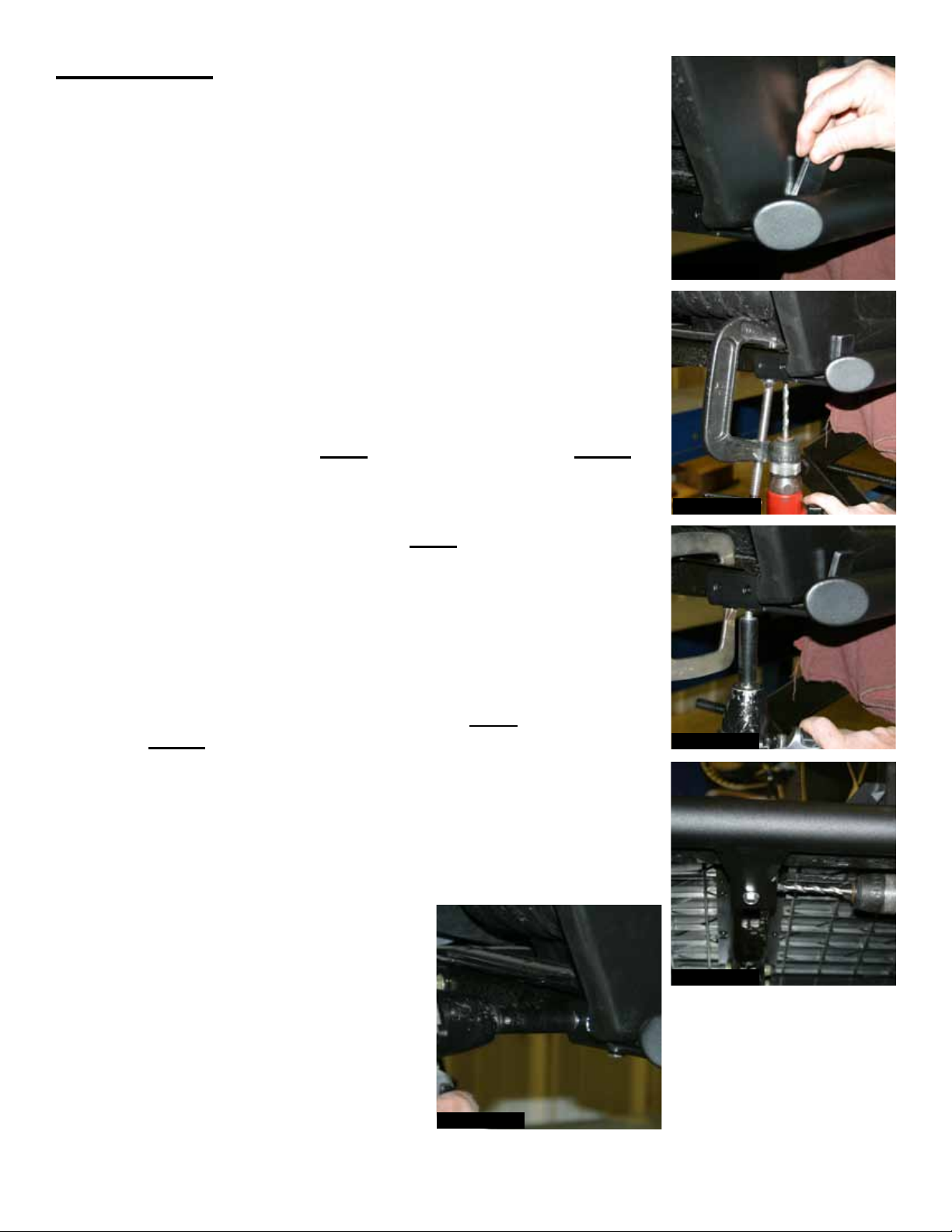

Installation:
1. With the vehicle on at level ground, set the emergency brake, &
block the front & rear tires / wheels.
2. Align the new Skyjacker nerf bar with the front & rear fender wells &
support the nerf bar using jacks / jack stands.
3. Align the mounting brackets of the new Skyjacker nerf bar with the
frame rails of the vehicle.
4. Place the supplied 1/4” shims between the vehicle body & new
Skyjacker nerf bar to obtain the correct clearance between the body
& nerf bar. (See Photo # 1)
5. Clamp the new Skyjacker nerf bar in place & slightly drill the lower
mounting locations of the new Skyjacker nerf bar to create pilot
marks using a 5/16” drill bit. Note: Only create pilot marks, do not
completely drill these mounting locations at this time.
Photo # 1
6. Drill the previously pilot marked lower mounting locations of the new
Skyjacker nerf bar using a 1/4” drill bit. Note: Be careful not to drill
through the oor of the vehicle. (See Photo # 2)
7. Once drilled, attach the new Skyjacker nerf bar to the frame rails of
the vehicle using the supplied 5/16" x 3/4" thread cutting bolts & a
1/2" socket. (See Photo # 3)
8. Slightly drill the upper mounting locations of the new Skyjacker nerf
bar to create pilot marks using a 5/16” drill bit. Note: Only create pilot
marks, do not completely drill these mounting locations at this time.
9. Drill the previously pilot marked upper mounting locations of the new
Skyjacker nerf bar using a 1/4” drill bit. (See Photo # 4)
10. Once drilled, nish attaching the new Skyjacker nerf bar to the
vehicle using the supplied 5/16" x 3/4" thread cutting bolts & a 1/2"
socket. (See Photo # 5)
11. Remove the jacks / jack stands.
Photo # 2
Photo # 3
12. Complete Steps # 2 thru # 11 for the
opposite side of the vehicle.
13. Unblock the front & rear tires / wheels
& release the emergency brake.
I-NBPC101
Photo # 4
Photo # 5
Pg 2
Page 3
FINAL NOTES:
• After the installation is complete, double check that all nuts & bolts are tight. Refer to the
following chart for the proper torque specifications. (Do not retighten the nuts & bolts where
thread lock compound was used.)
• Retorque all hardware after the first 100 miles.
TORQUE SPECIFICATIONS
INCH SYSTEM
Bolt Size Grade 5 Grade 8
5/16 15 FT LB 20 FT LB
3/8 30 FT LB 35 FT LB
7/16 45 FT LB 60 FT LB
1/2 65 FT LB 90 FT LB
9/16 95 FT LB 130 FTLB
5/8 135 FT LB 175 FT LB
3/4 185 FT LB 280 FT LB
• The above specifications are not to be used when the bolt is being installed with a bushing.
Bolt Size Class 8.8 Class 10.9
6MM 5 FT LB 9 FT LB
8MM 18 FT LB 23 FT LB
10MM 32 FT LB 45 FT LB
12 MM 55 FT LB 75 FT LB
14MM 85 FT LB 120 FT LB
16MM 130 FT LB 165 FT LB
18MM 170 FT LB 240 FT LB
METRIC SYSTEM
Seat Belts Save Lives, Please Wear Your Seat Belt.
I-NBPC101 Pg 3
