Before beginning the installation, read these instructions and the enclosed driver’s WARNING
NOTICE thoroughly and completely. Also affix the WARNING decal in passenger compartment in
clear view of all occupants. If any of these items are missing from this instruction packet, do not proceed with installation, but call SKYJACKER®to obtain needed items. If you have any questions or
reservations about installing this lift kit, call SKYJACKER®at 318-388-0816 for Technical Assistance
or Customer Service departments.
Make sure you park the vehicle on a level concrete or asphalt surface. Many times a vehicle is
uneven (side-to-side) from the factory, but usually not noticed until a lift kit has been installed which
makes the difference more visible. Using a measuring tape, measure the front and rear (both sides)
from the ground up to the center of the fender opening above the axle. Record below for future reference.
Driver Side Front: Passenger Side Front:
Driver Side Rear: Passenger Side Rear:
IMPORTANT NOTES:
• Please refer to Parts List to insure that all parts and hardware are received prior to disassembly of
vehicle. If any parts are found to be missing, contact your dealer as soon as possible.
• If larger tires (10% more than stock diameter) are installed, speedometer recalibration is necessary
(see Toyota dealer or Tire Store).
• After installation, a qualified alignment facility is required to align the vehicle to factory specs.
2007 Toyota FJ Cruiser
2” Value Kit
Installation Instructions
Part # FJ20MS
www.skyjacker.com
I-FJ20MS Pg 1
Page 2
Kit Box Breakdown:
FJ20MS: Main Component Box
ITEM# DESCRIPTION QTY
TC520MS-S TOYOTA 2" ALUM FRONT SPACER 2
FJPS15 FJ CRUISER REAR POLY SPACER 2
HB-716X2DES HARDWARE BAG/ALUM SPACER KITS 1
Hardware Bag Breakdown:
HB-716X2DES
ITEM#
DESCRIPTION QTY
716X2DES 7/16 X 2" DOUBLE ENDED STUD 6
716SAEW 7/16 SAE WASHER 6
716FTN 7/16-20 FINE N/I LOCK NUT 6
LT100 NUTS N' BOLTS 427 1 ML TUBE 1
Pg 2I-FJ20MS
Page 3

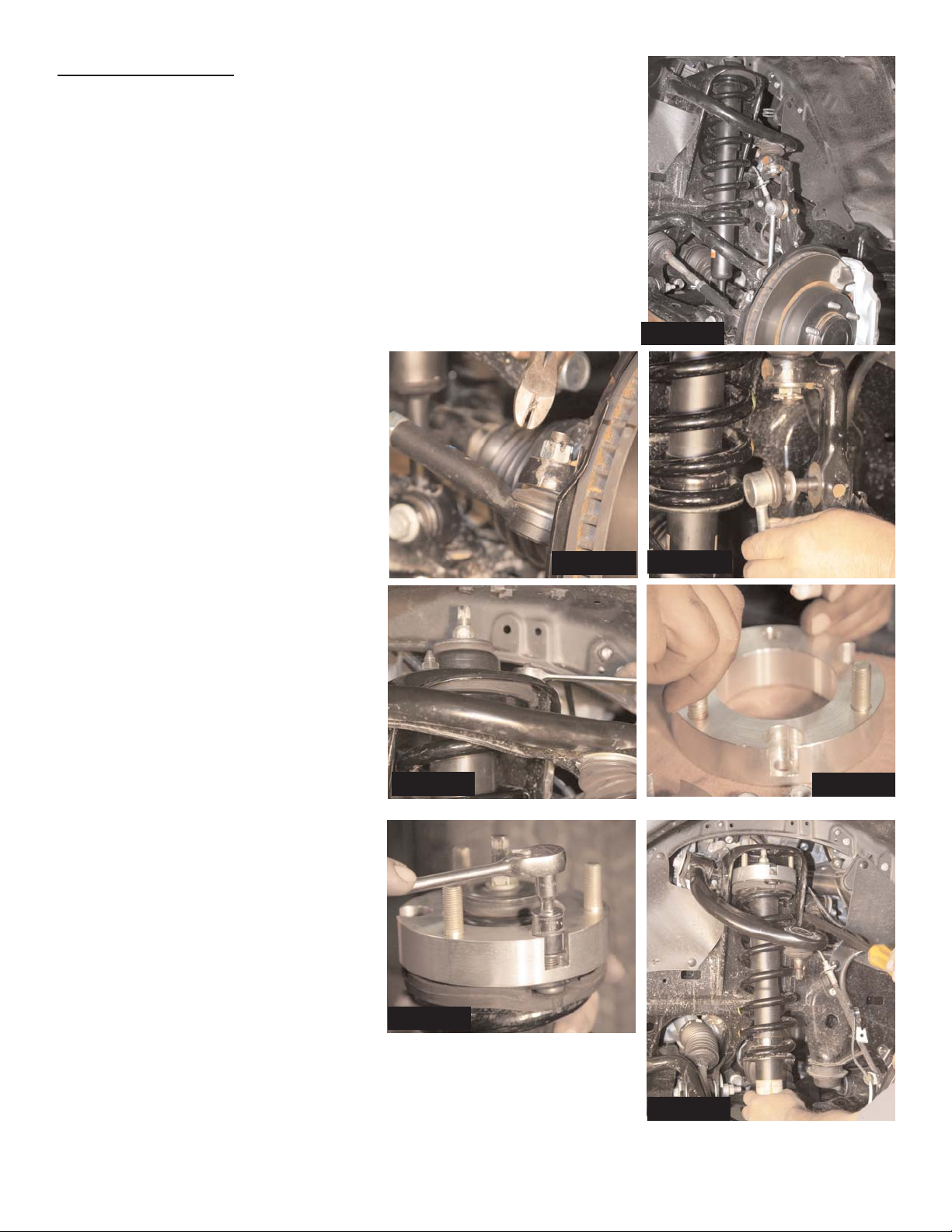

Photo #3
Front Installation:
1. Secure and properly block the tires of vehicle on a level concrete
or asphalt surface.
2. Raise the vehicle from the front center cross member and remove
tires and wheels. (See Photo #1)
3. Disconnect outer tie rod from steering knuckle. Remove cotter pin.
(See Photo #2), It may be necessary to strike the side of the
knuckle to dislodge the tie rod end. Be careful not to damage the
tie rod end itself.
4. Disconnect the ABS line from the upper A-ARM..
5. Disconnect the sway bar end link from the frame and the side of
the steering knuckle (See Photo #3). Disconnect the upper ball
joint from the top of the steering
knuckle.
6. Remove the upper three strut mount-
ing bolts from the upper frame. (See
Photo #4). Remove strut assembly
from vehicle.
7. Locate supplied 7/16" studs and
new front Aluminum Spacers. Apply
thread locking compound to the
coarse thread portion of the studs.
Thread in studs by hand until tight.
(See Photo #5)
8. With studs installed, attach
aluminum spacer to the top of the
factory strut using the factory studs
and nuts. (See Photo #6) Torque to
45 Ft. Lbs.
9. Install new strut assembly. Attach
with new upper 7/16" retaining nuts
and washers. (See Photo #7) Only
start the nuts at this time.
10. With upper nuts started, install
lower shock retaining bolt @ the AArm.
11. Using a floor jack to raise the lower
A-Arm, Re-Attach upper ball joint to
steering knuckle.
I-FJ20MS Pg 3
Photo #1
Photo #2
Photo #4
Photo #5
Photo #6
Photo #7
Page 4
11. Re-Attach outer tie rod end. Torque retaining nut to factory specs.
12. Tighten upper 7/16" nuts. Torque to 50 Ft. Lbs.
13. After both sides are completed re-attach sway bar and factory end
links and ABS lines. (See Photo #8).
14. Install tires and wheels. Lower vehicle to the ground.
Rear Installation:
15. Raise the rear of the vehicle and properly support frame rails
using jack stands.
16. Remove tires and wheels. (See Photo #9). Remove rear shocks.
17. It will be necessary to disconnect the brakeline brackets and sway
bar end link from the axle to allow for installation of the new rear
spacer.Disconnect the track bar from the frame. (See Photo #10).
18. Install new rear spacer on top of factory bump stop pad and
factory coil spring. (See Photo #11)
19. Install coil spring assembly.
20. Re-Attach track bar, brakelines and sway bar end links.
21. Install new rear shocks. Be sure to install the aluminum spacer
supplied with the shock between the oe mount and the shock.
This will allow for proper clearance between shock body and axle.
(See Arrow in Photo #12)
22. Install tires/wheel and lower vehicle to the ground.
FINAL NOTES:
* After installation is complete, double check that all nuts and bolts are
tight. Do Not
tighten nuts/bolts where thread locking compound was
applied.
* Check to ensure there is adequate clearance between All rotating,
mobile and fixed members. Check clearance between inner side
wall of tires.
* Ensure there is adequate clearance between exhaust and brake
lines, fuel lines, fuel tank, floor board, and wiring harnesses. Check
steering gear for interference and proper working order. Inspect
brake lines for damage and adequate clearance. Test brake system.
* With the vehicle on the floor, cycle steering lock to lock and inspect
steering, suspension, drive line and brake line systems for proper
operation, tightness and adequate clearance.
* Front end realignment is necessary so have a qualified alignment
center realign front end to factory specifications.
I-FJ20MS Pg 4

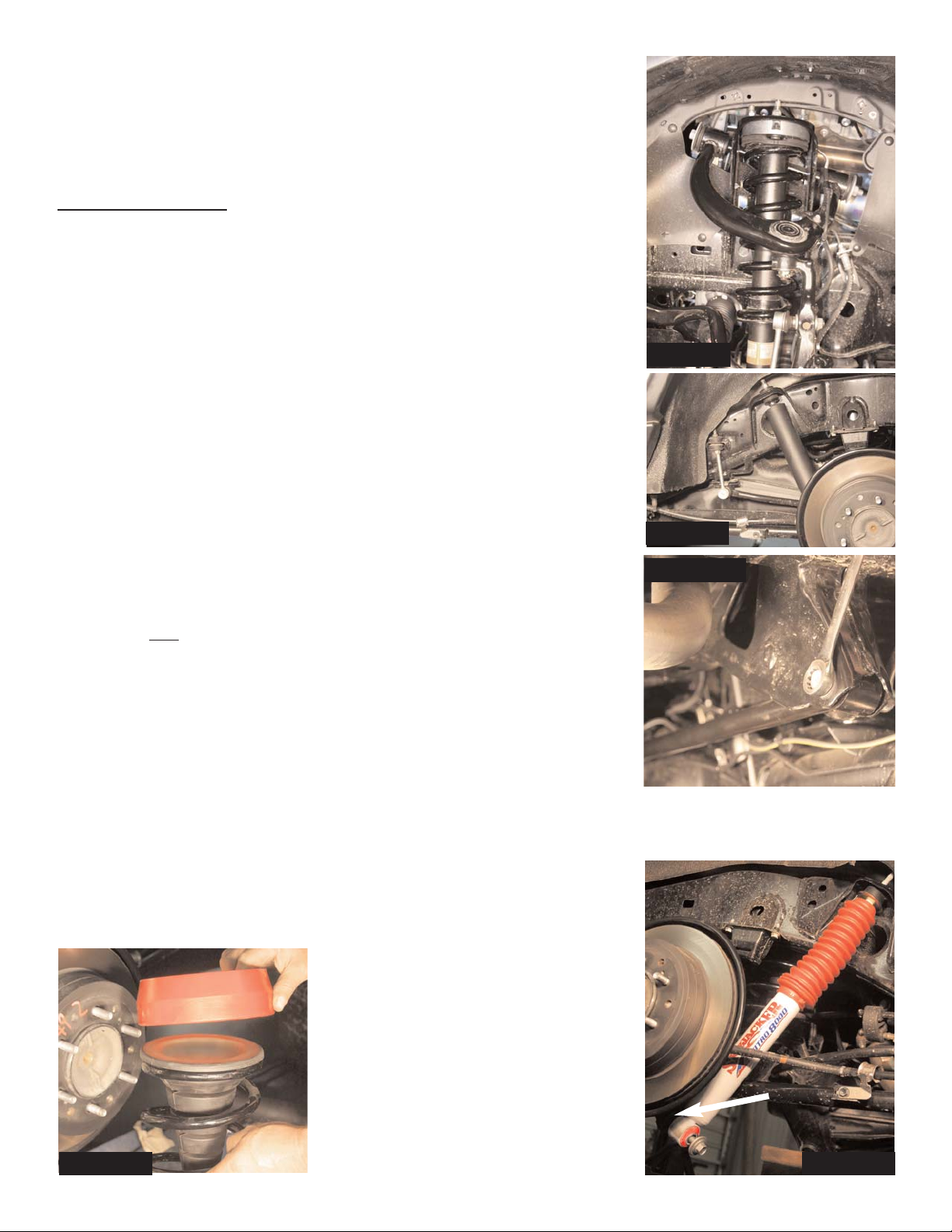

Photo #9
Photo #10
Photo #11 Photo #12
Photo #8
