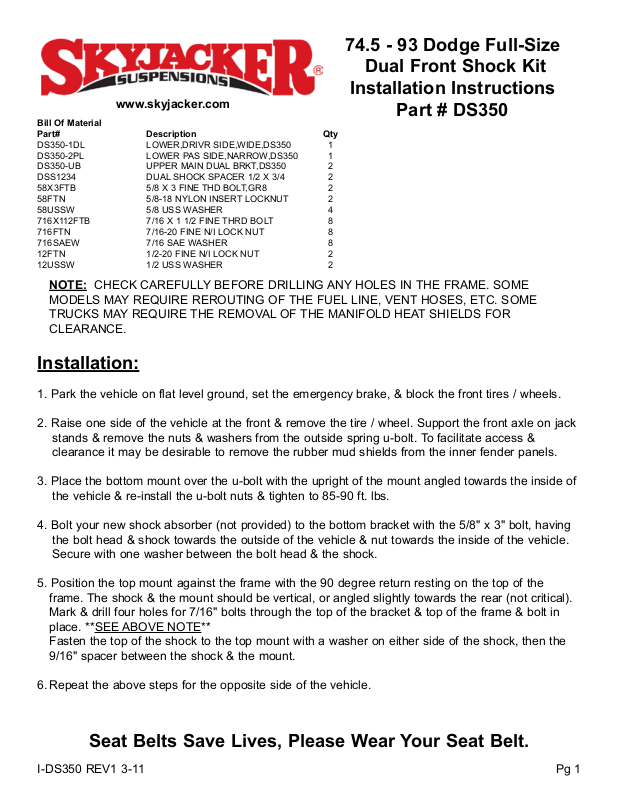

Page 1
74.5 - 93 Dodge Full-Size
Dual Front Shock Kit
Installation Instructions
www.skyjacker.com
Part # DS350
Bill Of Material
Part# Description Qty
DS350-1DL LOWER,DRIVR SIDE,WIDE,DS350 1
DS350-2PL LOWER PAS SIDE,NARROW,DS350 1
DS350-UB UPPER MAIN DUAL BRKT,DS350 2
DSS1234 DUAL SHOCK SPACER 1/2 X 3/4 2
58X3FTB 5/8 X 3 FINE THD BOLT,GR8 2
58FTN 5/8-18 NYLON INSERT LOCKNUT 2
58USSW 5/8 USS WASHER 4
716X112FTB 7/16 X 1 1/2 FINE THRD BOLT 8
716FTN 7/16-20 FINE N/I LOCK NUT 8
716SAEW 7/16 SAE WASHER 8
12FTN 1/2-20 FINE N/I LOCK NUT 2
12USSW 1/2 USS WASHER 2
NOTE: CHECK CAREFULLY BEFORE DRILLING ANY HOLES IN THE FRAME. SOME
MODELS MAY REQUIRE REROUTING OF THE FUEL LINE, VENT HOSES, ETC. SOME
TRUCKS MAY REQUIRE THE REMOVAL OF THE MANIFOLD HEAT SHIELDS FOR
CLEARANCE.
Installation:
1. Park the vehicle on flat level ground, set the emergency brake, & block the front tires / wheels.
2. Raise one side of the vehicle at the front & remove the tire / wheel. Support the front axle on jack
stands & remove the nuts & washers from the outside spring u-bolt. To facilitate access &
clearance it may be desirable to remove the rubber mud shields from the inner fender panels.
3. Place the bottom mount over the u-bolt with the upright of the mount angled towards the inside of
the vehicle & re-install the u-bolt nuts & tighten to 85-90 ft. lbs.
4. Bolt your new shock absorber (not provided) to the bottom bracket with the 5/8" x 3" bolt, having
the bolt head & shock towards the outside of the vehicle & nut towards the inside of the vehicle.
Secure with one washer between the bolt head & the shock.
5. Position the top mount against the frame with the 90 degree return resting on the top of the
frame. The shock & the mount should be vertical, or angled slightly towards the rear (not critical).
Mark & drill four holes for 7/16" bolts through the top of the bracket & top of the frame & bolt in
place. **SEE ABOVE NOTE**
Fasten the top of the shock to the top mount with a washer on either side of the shock, then the
9/16" spacer between the shock & the mount.
6. Repeat the above steps for the opposite side of the vehicle.
Seat Belts Save Lives, Please Wear Your Seat Belt.
I-DS350 REV1 3-11 Pg 1
