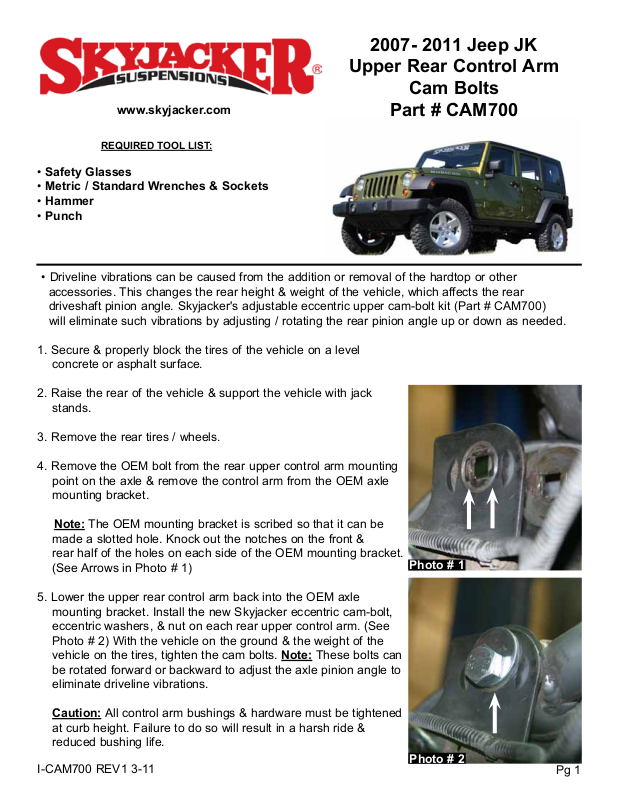

Page 1
2007- 2011 Jeep JK
Upper Rear Control Arm
Cam Bolts
www.skyjacker.com
REQUIRED TOOL LIST:
• Safety Glasses
• Metric / Standard Wrenches & Sockets
• Hammer
• Punch
• Driveline vibrations can be caused from the addition or removal of the hardtop or other
accessories. This changes the rear height & weight of the vehicle, which affects the rear
driveshaft pinion angle. Skyjacker's adjustable eccentric upper cam-bolt kit (Part # CAM700)
will eliminate such vibrations by adjusting / rotating the rear pinion angle up or down as needed.
1. Secure & properly block the tires of the vehicle on a level
concrete or asphalt surface.
2. Raise the rear of the vehicle & support the vehicle with jack
stands.
Part # CAM700
3. Remove the rear tires / wheels.
4. Remove the OEM bolt from the rear upper control arm mounting
point on the axle & remove the control arm from the OEM axle
mounting bracket.
Note: The OEM mounting bracket is scribed so that it can be
made a slotted hole. Knock out the notches on the front &
rear half of the holes on each side of the OEM mounting bracket.
(See Arrows in Photo # 1)
5. Lower the upper rear control arm back into the OEM axle
mounting bracket. Install the new Skyjacker eccentric cam-bolt,
eccentric washers, & nut on each rear upper control arm. (See
Photo # 2) With the vehicle on the ground & the weight of the
vehicle on the tires, tighten the cam bolts. Note: These bolts can
be rotated forward or backward to adjust the axle pinion angle to
eliminate driveline vibrations.
Caution: All control arm bushings & hardware must be tightened
at curb height. Failure to do so will result in a harsh ride &
reduced bushing life.
I-CAM700 REV1 3-11
Photo # 1
Photo # 2
Pg 1
