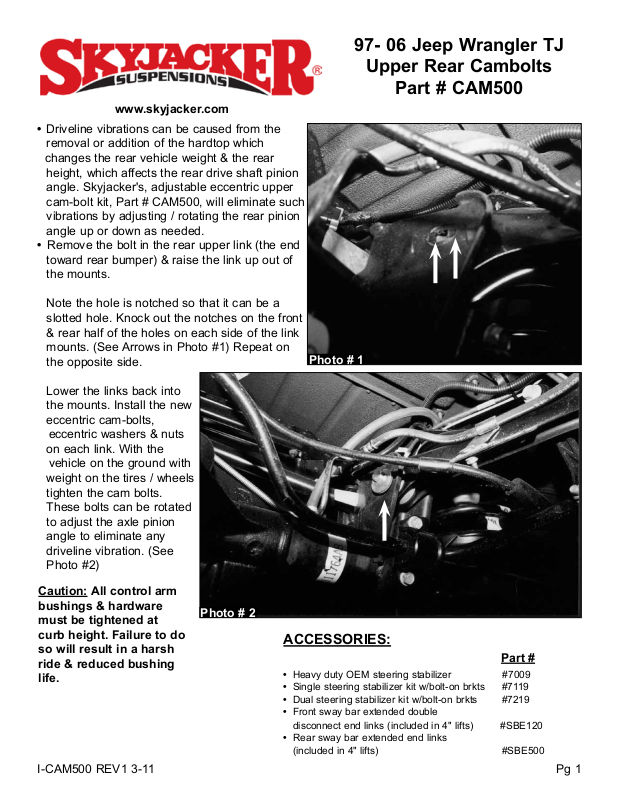

Page 1
www.skyjacker.com
• Driveline vibrations can be caused from the
removal or addition of the hardtop which
changes the rear vehicle weight & the rear
height, which affects the rear drive shaft pinion
angle. Skyjacker's, adjustable eccentric upper
cam-bolt kit, Part # CAM500, will eliminate such
vibrations by adjusting / rotating the rear pinion
angle up or down as needed.
• Remove the bolt in the rear upper link (the end
toward rear bumper) & raise the link up out of
the mounts.
Note the hole is notched so that it can be a
slotted hole. Knock out the notches on the front
& rear half of the holes on each side of the link
mounts. (See Arrows in Photo #1) Repeat on
the opposite side.
97- 06 Jeep Wrangler TJ
Upper Rear Cambolts
Part # CAM500
Photo # 1
Lower the links back into
the mounts. Install the new
eccentric cam-bolts,
eccentric washers & nuts
on each link. With the
vehicle on the ground with
weight on the tires / wheels
tighten the cam bolts.
These bolts can be rotated
to adjust the axle pinion
angle to eliminate any
driveline vibration. (See
Photo #2)
Caution: All control arm
bushings & hardware
must be tightened at
curb height. Failure to do
so will result in a harsh
ride & reduced bushing
life.
Photo # 2
ACCESSORIES:
Part #
• Heavy duty OEM steering stabilizer #7009
• Single steering stabilizer kit w/bolt-on brkts #7119
• Dual steering stabilizer kit w/bolt-on brkts #7219
• Front sway bar extended double
disconnect end links (included in 4" lifts) #SBE120
•Rear sway bar extended end links
(included in 4" lifts) #SBE500
I-CAM500 REV1 3-11
Pg 1
