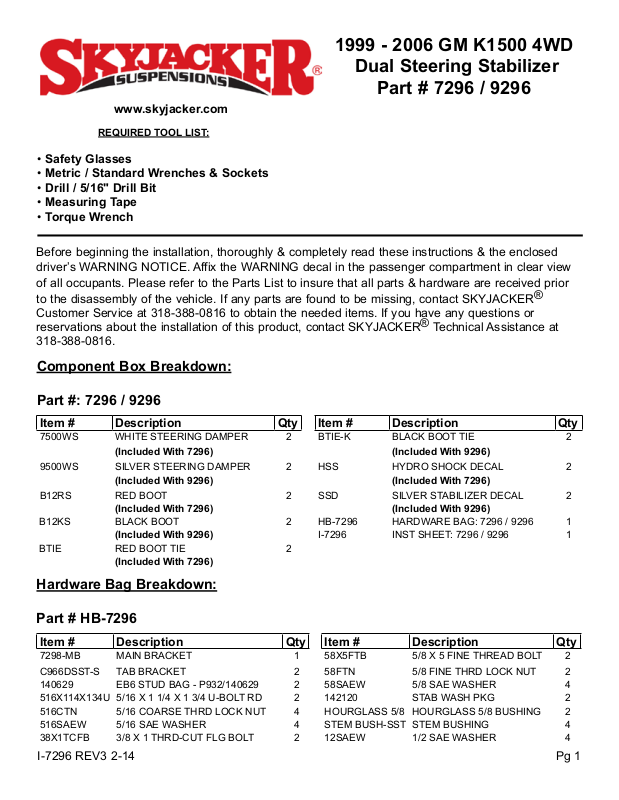

1999 - 2006 GM K1500 4WD
Dual Steering Stabilizer
Part # 7296 / 9296
www.skyjacker.com
REQUIRED TOOL LIST:
• Safety Glasses
• Metric / Standard Wrenches & Sockets
• Drill / 5/16" Drill Bit
• Measuring Tape
• Torque Wrench
Before beginning the installation, thoroughly & completely read these instructions & the enclosed
driver’s WARNING NOTICE. Affix the WARNING decal in the passenger compartment in clear view
of all occupants. Please refer to the Parts List to insure that all parts & hardware are received prior
to the disassembly of the vehicle. If any parts are found to be missing, contact SKYJACKER
Customer Service at 318-388-0816 to obtain the needed items. If you have any questions or
reservations about the installation of this product, contact SKYJACKER® Technical Assistance at
318-388-0816.
®
Component Box Breakdown:
Part #: 7296 / 9296
Item # Description Qty Item # Description Qty
7500WS WHITE STEERING DAMPER 2 BTIE-K BLACK BOOT TIE 2
(Included With 7296) (Included With 9296)
9500WS SILVER STEERING DAMPER 2 HSS HYDRO SHOCK DECAL 2
(Included With 9296) (Included With 7296)
B12RS RED BOOT 2 SSD SILVER STABILIZER DECAL 2
(Included With 7296) (Included With 9296)
B12KS BLACK BOOT 2 HB-7296 HARDWARE BAG: 7296 / 9296 1
(Included With 9296) I-7296 INST SHEET: 7296 / 9296 1
BTIE RED BOOT TIE 2
(Included With 7296)
Hardware Bag Breakdown:
Part # HB-7296
Item # Description Qty Item # Description Qty
7298-MB MAIN BRACKET 1 58X5FTB 5/8 X 5 FINE THREAD BOLT 2
C966DSST-S TAB BRACKET 2 58FTN 5/8 FINE THRD LOCK NUT 2
140629 EB6 STUD BAG - P932/140629 2 58SAEW 5/8 SAE WASHER 4
516X114X134U 5/16 X 1 1/4 X 1 3/4 U-BOLT RD 2 142120 STAB WASH PKG 2
516CTN 5/16 COARSE THRD LOCK NUT 4 HOURGLASS 5/8 HOURGLASS 5/8 BUSHING 2
516SAEW 5/16 SAE WASHER 4 STEM BUSH-SST STEM BUSHING 4
38X1TCFB 3/8 X 1 THRD-CUT FLG BOLT 2 12SAEW 1/2 SAE WASHER 4
I-7296 REV3 2-14 Pg 1
Page 2
Important Note: This steering stabilizer kit is designed for the 99-06
GM 1/2 ton 4WD. It will fit lift heights from 4"- 6”. This kit will NOT
work on vehicles with a lift kit that relocates the upper A-arms.
Installation:
1. Park the vehicle on a level concrete or asphalt surface with the front
tires / wheels pointing straight forward.
2. Set the emergency brake & block the rear tires / wheels.
3. While supporting the front cross member with a floor jack, remove
the front lower A-arm bolt at the frame. (If installing on a vehicle with
4” or more lift, it will be the upper front bolt on the after market cross

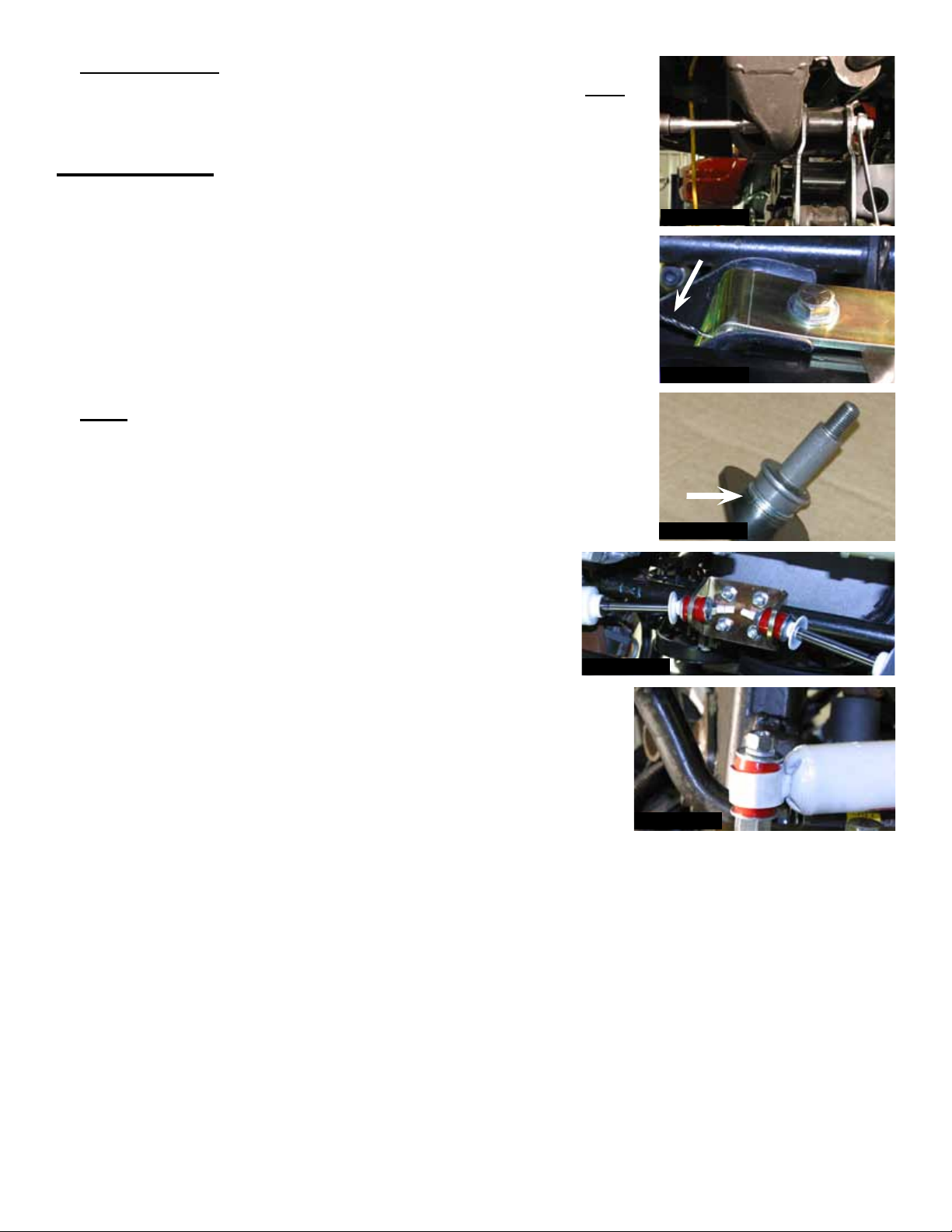

member. Remove the bolt using a 15/16 socket. (See Photo # 1)
Note: A 5/8" x 5” fine thread bolt, washers, & nuts are supplied in
case the existing bolts are not long enough.
4. Once the bolt is removed, reinstall with the new Skyjacker outer
stabilizer bracket. Be sure to install the bolt pointing toward the front
of the vehicle. Drill the mounting hole using a 5/16" drill bit & install
the supplied 3/8" thread cutter bolt. (See Photo # 2 / Arrow
Shows the 5/16" Drill Bit)
5. Attach the new Skyjacker shock stud to the new bracket
being sure to use two of the supplied 1/2" washers between
the new shock stud & new bracket. (See Arrow in Photo
# 3)
Photo # 4
Photo # 1
Photo # 2
Photo # 3
6. Install the new Skyjacker main bracket to the center steering link
using the supplied 516" u-bolts, washers, & nuts. Measure from
the center of the pitman arm 9” & tighten the new main bracket.
Adjust the main bracket as needed, so both steering stabilizers
are pulled out half way. (See Photo # 4)
7. Attach both of the new Skyjacker steering stabilizers to the new
outer brackets & main bracket. (See Photo # 4 & # 5)
8. Once the new steering stabilizers are installed, check all brackets
& bolts for proper installation. Cycle the steering left to right &
check all parts for adequate clearance.
I-7296 Pg 2
Photo # 5
Page 3
Final Notes:
• After the installation is complete, double
check that all nuts & bolts are tight. Refer to
the following chart for the proper torque
specifications. (Do not retighten the nuts &
bolts where thread lock compound was
used.)
• Cycle the steering of the vehicle left to right & check all parts for adequate clearance.
• After the first 100 miles, check all of the hardware for the proper torque & periodically thereafter.
TORQUE SPECIFICATIONS
Bolt Size Grade 5 Grade 8
5/16 15 FT LB 20 FT LB
3/8 30 FT LB 35 FT LB
7/16 45 FT LB 60 FT LB
1/2 65 FT LB 90 FT LB
9/16 95 FT LB 130 FTLB
5/8 135 FT LB 175 FT LB
3/4 185 FT LB 280 FT LB
• The above specifications are not to be used when the bolt is being installed with a bushing.
INCH SYSTEM
METRIC SYSTEM
Bolt Size Class 8.8 Class 10.9
6MM 5 FT LB 9 FT LB
8MM 18 FT LB 23 FT LB
10MM 32 FT LB 45 FT LB
12 MM 55 FT LB 75 FT LB
14MM 85 FT LB 120 FT LB
16MM 130 FT LB 165 FT LB
18MM 170 FT LB 240 FT LB
Seat Belts Save Lives, Please Wear Your Seat Belt.
I-7296 Pg 3
