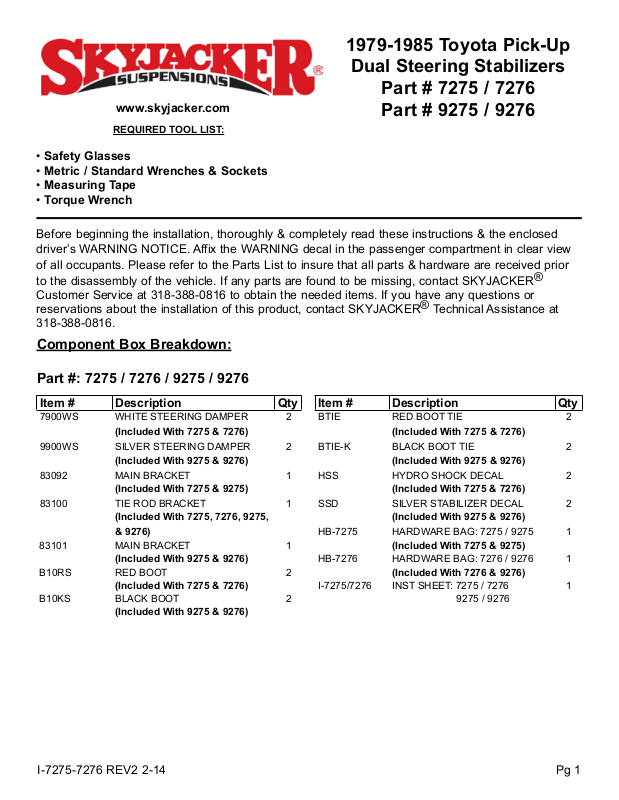

1979-1985 Toyota Pick-Up
Dual Steering Stabilizers
Part # 7275 / 7276
www.skyjacker.com
REQUIRED TOOL LIST:
Part # 9275 / 9276
• Safety Glasses
• Metric / Standard Wrenches & Sockets
• Measuring Tape
• Torque Wrench
Before beginning the installation, thoroughly & completely read these instructions & the enclosed
driver’s WARNING NOTICE. Affix the WARNING decal in the passenger compartment in clear view
of all occupants. Please refer to the Parts List to insure that all parts & hardware are received prior
to the disassembly of the vehicle. If any parts are found to be missing, contact SKYJACKER
®
Customer Service at 318-388-0816 to obtain the needed items. If you have any questions or
reservations about the installation of this product, contact SKYJACKER® Technical Assistance at
318-388-0816.
Component Box Breakdown:
Part #: 7275 / 7276 / 9275 / 9276
Item # Description Qty Item # Description Qty
7900WS WHITE STEERING DAMPER 2 BTIE RED BOOT TIE 2
(Included With 7275 & 7276) (Included With 7275 & 7276)
9900WS SILVER STEERING DAMPER 2 BTIE-K BLACK BOOT TIE 2
(Included With 9275 & 9276) (Included With 9275 & 9276)
83092 MAIN BRACKET 1 HSS HYDRO SHOCK DECAL 2
(Included With 7275 & 9275) (Included With 7275 & 7276)
83100 TIE ROD BRACKET 1 SSD SILVER STABILIZER DECAL 2
(Included With 7275, 7276, 9275, (Included With 9275 & 9276)
& 9276) HB-7275 HARDWARE BAG: 7275 / 9275 1
83101 MAIN BRACKET 1 (Included With 7275 & 9275)
(Included With 9275 & 9276) HB-7276 HARDWARE BAG: 7276 / 9276 1
B10RS RED BOOT 2 (Included With 7276 & 9276)
(Included With 7275 & 7276) I-7275/7276 INST SHEET: 7275 / 7276 1
B10KS BLACK BOOT 2 9275 / 9276
(Included With 9275 & 9276)
I-7275-7276 REV2 2-14 Pg 1
Page 2
Hardware Bag Breakdown:
Part # HB-7275 / HB-7276
Item # Description Qty Item # Description Qty
38X418X4U 3/8 X 4 1/8 X 4 U-BOLT SQ 1 716X112FTB 7/16 X 1 1/2 FINE THRD BOLT 1
516X1X134U 5/16 X 1 X 1 3/4 U-BOLT RD 2 716FTN 7/16 FINE THREAD LOCK NUT 1
38CTN 3/8 COARSE THRD LOCK NUT 2 716SAEW 7/16 SAE WASHER 2
516CTN 5/16 COARSE THR LOCK NUT 4 STEM BUSH-SST STEM BUSHING 8
38SAEW 3/8 SAE WASHER 2 142120 STAB WASH PKG 4
516SAEW 5/16 SAE WASHER 4
Installation:
1. Park the vehicle on a level concrete or asphalt surface with the front tires / wheels pointing
straight forward.
2. Set the emergency brake & block the rear tires / wheels.
3. Install the new Skyjacker main bracket “A” around the front face of the axle using the supplied
square u-bolts, washers, & nuts. (See Photo # 1) Note: Do not tighten at this time.
4. Install the new Skyjacker tie rod bracket “B” to the OEM tie rod using the supplied 7/16” x 1 1/2"
bolt through the new tie rod bracket. Install the supplied washer between the new tie rod bracket
& the OEM tie rod & secure loosely with the washer & lock nut. (See Photo # 1)
5. Install the body end of the new Skyjacker steering stabilizers to the main bracket & connect the
shaft end to the new tie rod bracket using the supplied stem bushings, washers, & nuts. (See
Photos # 1 & # 2)
6. Extend the new steering stabilizer shafts out exactly 4.08” & adjust the new brackets so full
clearance is obtained. Tighten all hardware at this time.
7. Cycle the tires / wheels left to right & check for adequate clearance.
Note: Photo shows 79-83 models. The main bracket will look slightly different on 84-85 models.

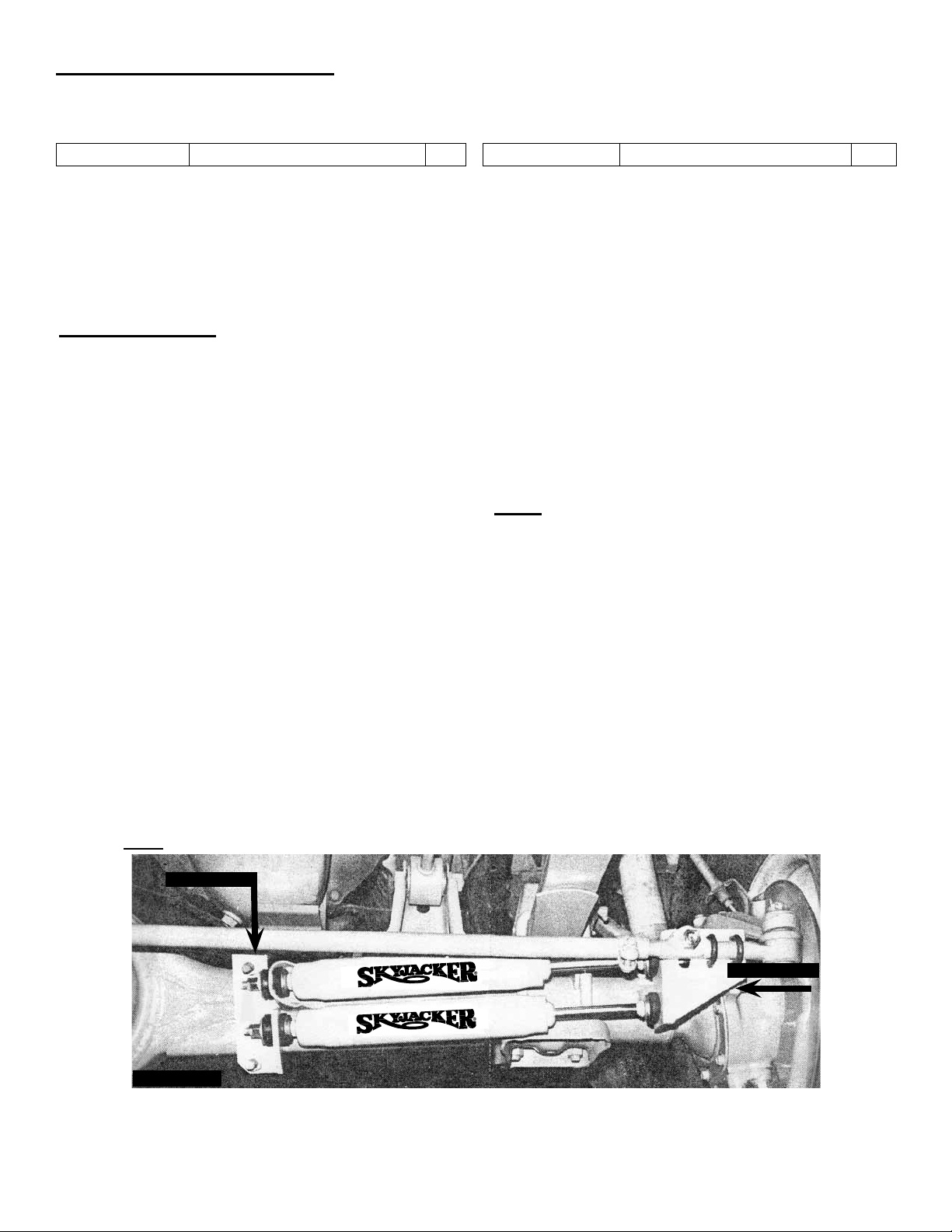

Bracket “A”
Bracket “B”
Photo # 1
I-7275-7276 Pg 2
Page 3

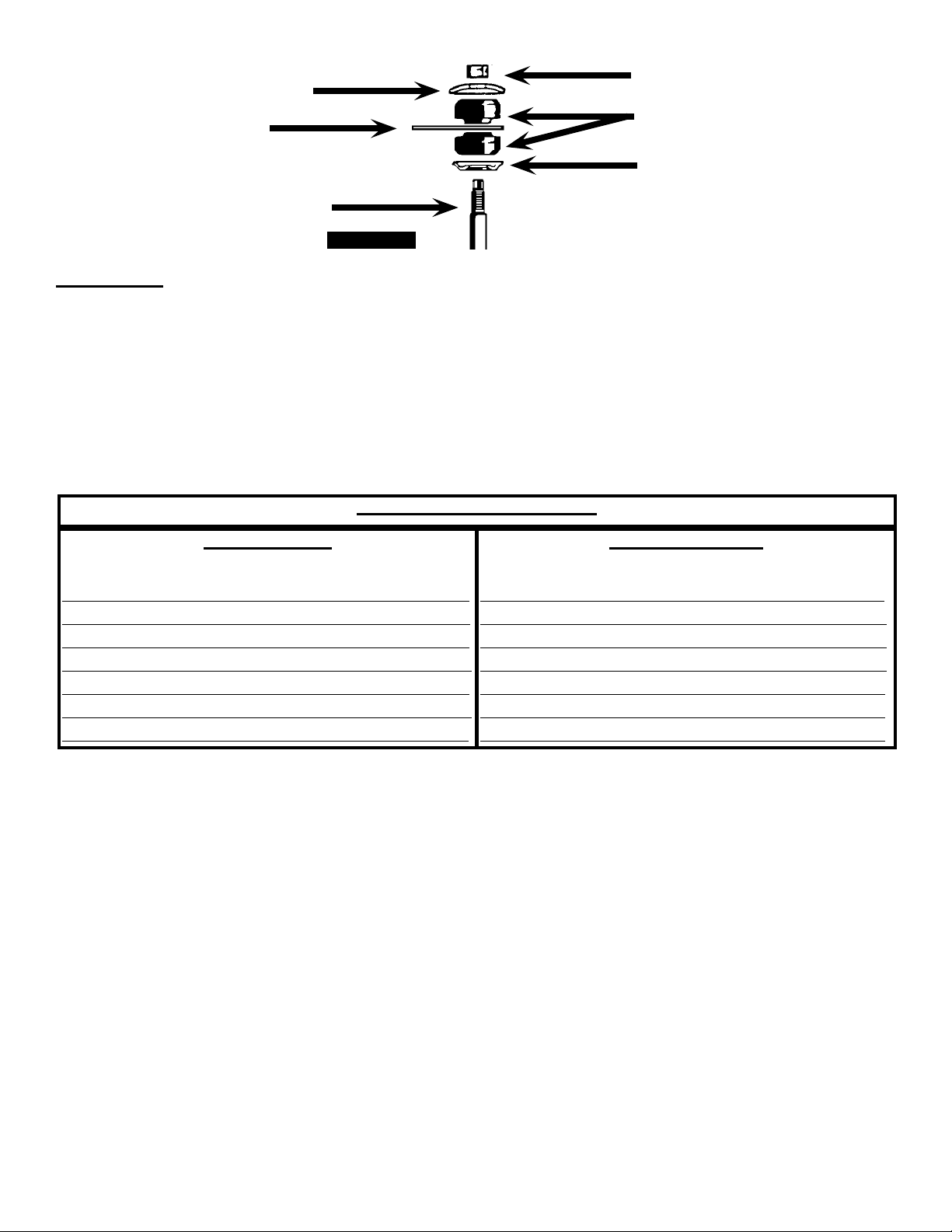

Retaining Washer
Retaining Nut
Bracket
Shock Stud
Photo # 2
Final Notes:
• After the installation is complete, double check that all nuts & bolts are tight. Refer to the following
chart for the proper torque specifications. (Do not retighten the nuts & bolts where thread lock
compound was used.)
• Cycle the steering of the vehicle left to right & check all parts for adequate clearance.
• After the first 100 miles, check all of the hardware for the proper torque & periodically thereafter.
TORQUE SPECIFICATIONS
INCH SYSTEM
Stem Bushings
Retaining Washer
METRIC SYSTEM
Bolt Size Grade 5 Grade 8
5/16 15 FT LB 20 FT LB
3/8 30 FT LB 35 FT LB
7/16 45 FT LB 60 FT LB
1/2 65 FT LB 90 FT LB
9/16 95 FT LB 130 FTLB
5/8 135 FT LB 175 FT LB
3/4 185 FT LB 280 FT LB
• The above specifications are not to be used when the bolt is being installed with a bushing.
Bolt Size Class 8.8 Class 10.9
6MM 5 FT LB 9 FT LB
8MM 18 FT LB 23 FT LB
10MM 32 FT LB 45 FT LB
12 MM 55 FT LB 75 FT LB
14MM 85 FT LB 120 FT LB
16MM 130 FT LB 165 FT LB
18MM 170 FT LB 240 FT LB
