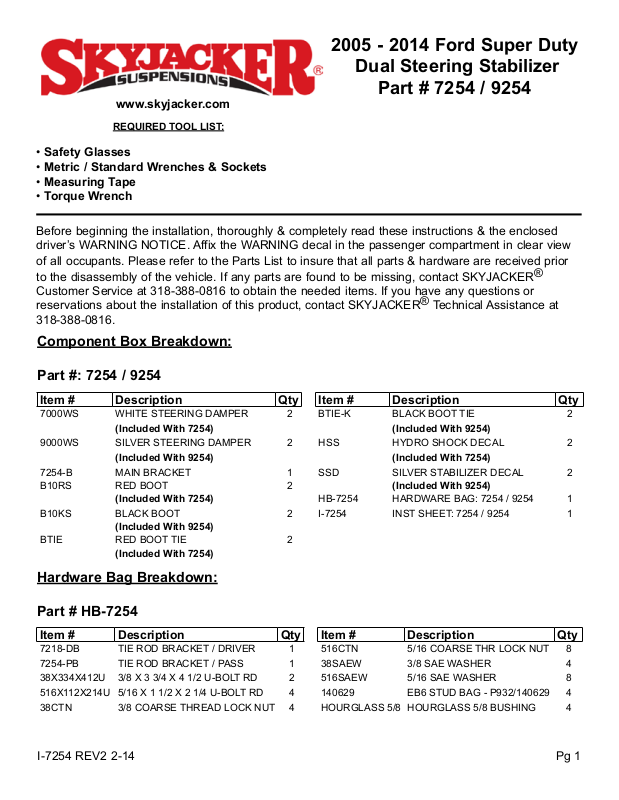

2005 - 2014 Ford Super Duty
Dual Steering Stabilizer
Part # 7254 / 9254
www.skyjacker.com
REQUIRED TOOL LIST:
• Safety Glasses
• Metric / Standard Wrenches & Sockets
• Measuring Tape
• Torque Wrench
Before beginning the installation, thoroughly & completely read these instructions & the enclosed
driver’s WARNING NOTICE. Affix the WARNING decal in the passenger compartment in clear view
of all occupants. Please refer to the Parts List to insure that all parts & hardware are received prior
to the disassembly of the vehicle. If any parts are found to be missing, contact SKYJACKER
Customer Service at 318-388-0816 to obtain the needed items. If you have any questions or
reservations about the installation of this product, contact SKYJACKER® Technical Assistance at
318-388-0816.
®
Component Box Breakdown:
Part #: 7254 / 9254
Item # Description Qty Item # Description Qty
7000WS WHITE STEERING DAMPER 2 BTIE-K BLACK BOOT TIE 2
(Included With 7254) (Included With 9254)
9000WS SILVER STEERING DAMPER 2 HSS HYDRO SHOCK DECAL 2
(Included With 9254) (Included With 7254)
7254-B MAIN BRACKET 1 SSD SILVER STABILIZER DECAL 2
B10RS RED BOOT 2 (Included With 9254)
(Included With 7254) HB-7254 HARDWARE BAG: 7254 / 9254 1
B10KS BLACK BOOT 2 I-7254 INST SHEET: 7254 / 9254 1
(Included With 9254)
BTIE RED BOOT TIE 2
(Included With 7254)
Hardware Bag Breakdown:
Part # HB-7254
Item # Description Qty Item # Description Qty
7218-DB TIE ROD BRACKET / DRIVER 1 516CTN 5/16 COARSE THR LOCK NUT 8
7254-PB TIE ROD BRACKET / PASS 1 38SAEW 3/8 SAE WASHER 4
38X334X412U 3/8 X 3 3/4 X 4 1/2 U-BOLT RD 2 516SAEW 5/16 SAE WASHER 8
516X112X214U 5/16 X 1 1/2 X 2 1/4 U-BOLT RD 4 140629 EB6 STUD BAG - P932/140629 4
38CTN 3/8 COARSE THREAD LOCK NUT 4 HOURGLASS 5/8 HOURGLASS 5/8 BUSHING 4
I-7254 REV2 2-14 Pg 1
Page 2

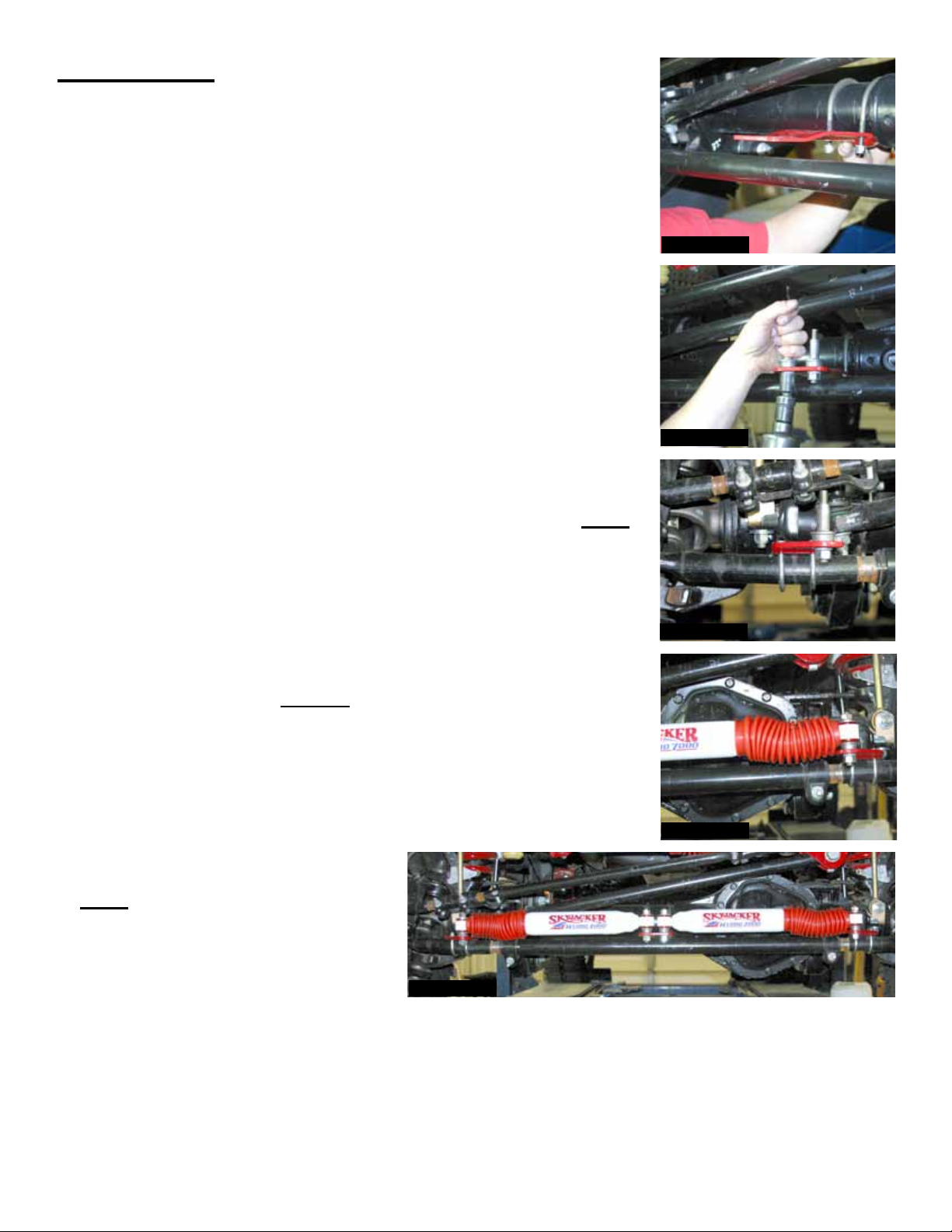

Installation:
1. Park the vehicle on a level concrete or asphalt surface with the front
tires / wheels pointing straight forward.
2. Set the emergency brake & block the rear tires / wheels.
3. Place the new Skyjacker main bracket under the front axle against
the differential. Attach the new main bracket to the differential at this
point using the supplied 3/8” u-bolts, washers, & nuts. (See Photo
# 1) With the new main bracket tightened, be sure to leave 1/8" to
3/16” of clearance between the new bracket & OEM tie rod assembly.
Any more clearance will cause stress to the polyurethane bushings
of the new Skyjacker steering stabilizers once installed. Any less
may cause the OEM tie rod to rub the new main bracket.
Photo # 1
4. Attach two of the new Skyjacker studs (Part #140629) on top of the
new main bracket. (See Photo #2)
5. Install the new Skyjacker passenger side bracket to the OEM tie rod
assembly using the supplied 5/16” u-bolts, washers, & nuts. Note:
Do not tighten at this time. Attach one of the supplied studs (Part
# 140629) to the top of the new passenger side bracket. (See Photo
# 3) Repeat this process on the driver side using the new driver side
bracket.
6. Assemble the new Skyjacker steering stabilizer cylinders by installing
the new Skyjacker shock boots then the hourglass bushings. Pull the
shaft of the cylinder out half way & install onto the new studs of each
new bracket. It will be necessary to adjust the new tie rod brackets to
line up with the new steering stabilizer cylinders. Once lined up,
tighten the new tie rod brackets. (See Photo # 4)
7. With both new steering stabilizer cylinders installed, cycle the
steering left to right & check for clearance between all parts. (See
Photo # 5)
Photo # 2
Photo # 3
Photo # 4
Note: Part # 7254 / 9254 Steering
Stabilizer is designed to work on
vehicles with a minimum 4” lift.
Photo # 5
I-7254 Pg 2
Page 3
Final Notes:
• After the installation is complete, double check that all nuts & bolts are tight. Refer to the following
chart for the proper torque specifications. (Do not retighten the nuts & bolts where thread lock
compound was used.)
• Cycle the steering of the vehicle left to right & check all parts for adequate clearance.
• After the first 100 miles, check all of the hardware for the proper torque & periodically thereafter.
Seat Belts Save Lives, Please Wear Your Seat Belt.
TORQUE SPECIFICATIONS
INCH SYSTEM
Bolt Size Grade 5 Grade 8
5/16 15 FT LB 20 FT LB
3/8 30 FT LB 35 FT LB
7/16 45 FT LB 60 FT LB
1/2 65 FT LB 90 FT LB
9/16 95 FT LB 130 FTLB
5/8 135 FT LB 175 FT LB
3/4 185 FT LB 280 FT LB
• The above specifications are not to be used when the bolt is being installed with a bushing.
Bolt Size Class 8.8 Class 10.9
6MM 5 FT LB 9 FT LB
8MM 18 FT LB 23 FT LB
10MM 32 FT LB 45 FT LB
12 MM 55 FT LB 75 FT LB
14MM 85 FT LB 120 FT LB
16MM 130 FT LB 165 FT LB
18MM 170 FT LB 240 FT LB
METRIC SYSTEM
I-7254 Pg 3
