Ford Ranger / Bronco II /
Explorer
Dual Steering Stabilizer
www.skyjacker.com
REQUIRED TOOL LIST:
Part # 7250 / 9250
• Safety Glasses
• Metric / Standard Wrenches & Sockets
• Measuring Tape
• Torque Wrench
Before beginning the installation, thoroughly & completely read these instructions & the enclosed
driver’s WARNING NOTICE. Affix the WARNING decal in the passenger compartment in clear view
of all occupants. Please refer to the Parts List to insure that all parts & hardware are received prior
to the disassembly of the vehicle. If any parts are found to be missing, contact SKYJACKER
®
Customer Service at 318-388-0816 to obtain the needed items. If you have any questions or
reservations about the installation of this product, contact SKYJACKER® Technical Assistance at
318-388-0816.

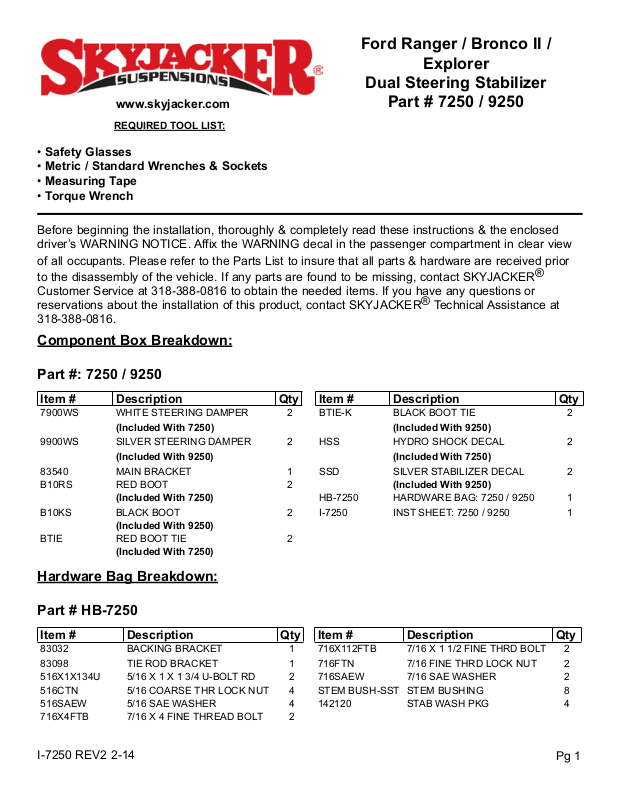

Component Box Breakdown:
Part #: 7250 / 9250
Item # Description Qty Item # Description Qty
7900WS WHITE STEERING DAMPER 2 BTIE-K BLACK BOOT TIE 2
(Included With 7250) (Included With 9250)
9900WS SILVER STEERING DAMPER 2 HSS HYDRO SHOCK DECAL 2
(Included With 9250) (Included With 7250)
83540 MAIN BRACKET 1 SSD SILVER STABILIZER DECAL 2
B10RS RED BOOT 2 (Included With 9250)
(Included With 7250) HB-7250 HARDWARE BAG: 7250 / 9250 1
B10KS BLACK BOOT 2 I-7250 INST SHEET: 7250 / 9250 1
(Included With 9250)
BTIE RED BOOT TIE 2
(Included With 7250)
Hardware Bag Breakdown:
Part # HB-7250
Item # Description Qty Item # Description Qty
83032 BACKING BRACKET 1 716X112FTB 7/16 X 1 1/2 FINE THRD BOLT 2
83098 TIE ROD BRACKET 1 716FTN 7/16 FINE THRD LOCK NUT 2
516X1X134U 5/16 X 1 X 1 3/4 U-BOLT RD 2 716SAEW 7/16 SAE WASHER 2
516CTN 5/16 COARSE THR LOCK NUT 4 STEM BUSH-SST STEM BUSHING 8
516SAEW 5/16 SAE WASHER 4 142120 STAB WASH PKG 4
716X4FTB 7/16 X 4 FINE THREAD BOLT 2
I-7250 REV2 2-14
Pg 1
Page 2
Installation:
1. Park the vehicle on a level concrete or asphalt surface with the front tires / wheels pointing
straight forward.
2. Set the emergency brake & block the rear tires / wheels.

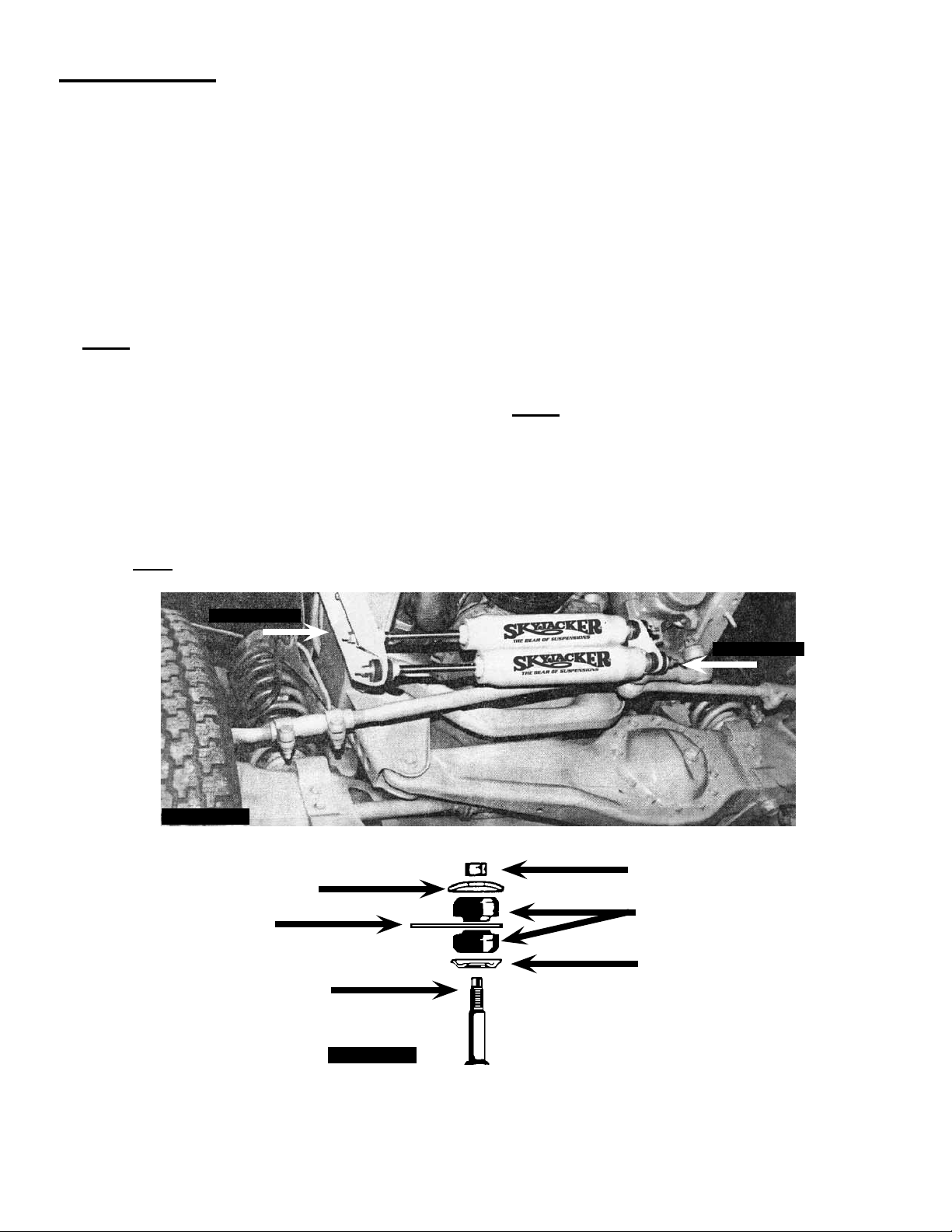

3. Install the new Skyjacker main bracket “A” against the outside of the frame & new Skyjacker
backing plate on the inside of the frame using the supplied bolts through the new backing plate,
through the slotted holes in the frame, & new main bracket. (See Photo # 1)
4. Install the new Skyjacker bracket "B" using the supplied u-bolts, washers, & nuts. (See Photo # 1)
Note: Do not tighten at this time.
5. Attach the shaft end of the new Skyjacker steering stabilizers to the new bracket "A" & the body
end to the new bracket “B”. (See Photos # 1 & # 2) Note: Due to the close fit of the u-bolts to the
OEM tie rod, it requires you to install them at the end of the tie rod that is threaded & slide them
up to the point they will be used.
6. Extend the new Skyjacker steering stabilizer shafts out 4”(exactly half way) & rotate the new
bracket "B" as needed to obtain the best position. Tighten all hardware securely at this time.
Note: Models with a front sway bar will need to move bracket “A” back (away from sway bar)
until clearance of the sway bar is obtained.
Bracket “A”
Bracket “B”
Photo # 1
Retaining Nut
Retaining Washer
Bracket
Stem Bushings
Retaining Washer
Shock Stud
I-7250
Photo # 2
Pg 2
Page 3
Final Notes:
• After the installation is complete, double check that all nuts & bolts are tight. Refer to the following
chart for the proper torque specifications. (Do not retighten the nuts & bolts where thread lock
compound was used.)
• Cycle the steering of the vehicle left to right & check all parts for adequate clearance.
• After the first 100 miles, check all of the hardware for the proper torque & periodically thereafter.
Seat Belts Save Lives, Please Wear Your Seat Belt.
TORQUE SPECIFICATIONS
INCH SYSTEM
Bolt Size Grade 5 Grade 8
5/16 15 FT LB 20 FT LB
3/8 30 FT LB 35 FT LB
7/16 45 FT LB 60 FT LB
1/2 65 FT LB 90 FT LB
9/16 95 FT LB 130 FTLB
5/8 135 FT LB 175 FT LB
3/4 185 FT LB 280 FT LB
• The above specifications are not to be used when the bolt is being installed with a bushing.
Bolt Size Class 8.8 Class 10.9
6MM 5 FT LB 9 FT LB
8MM 18 FT LB 23 FT LB
10MM 32 FT LB 45 FT LB
12 MM 55 FT LB 75 FT LB
14MM 85 FT LB 120 FT LB
16MM 130 FT LB 165 FT LB
18MM 170 FT LB 240 FT LB
METRIC SYSTEM
I-7250
Pg 3
