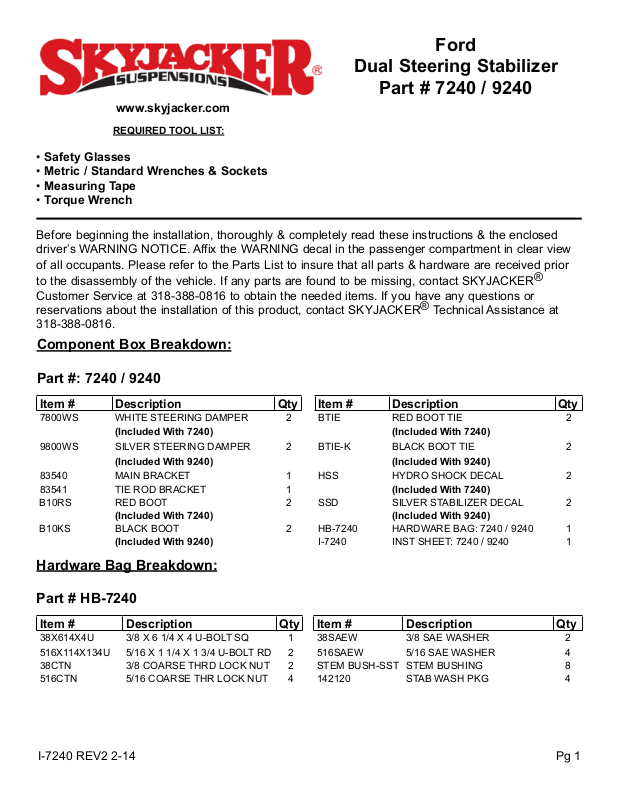

Page 1
Ford
Dual Steering Stabilizer
Part # 7240 / 9240
www.skyjacker.com
REQUIRED TOOL LIST:
• Safety Glasses
• Metric / Standard Wrenches & Sockets
• Measuring Tape
• Torque Wrench
Before beginning the installation, thoroughly & completely read these instructions & the enclosed
driver’s WARNING NOTICE. Affix the WARNING decal in the passenger compartment in clear view
of all occupants. Please refer to the Parts List to insure that all parts & hardware are received prior
to the disassembly of the vehicle. If any parts are found to be missing, contact SKYJACKER
Customer Service at 318-388-0816 to obtain the needed items. If you have any questions or
reservations about the installation of this product, contact SKYJACKER® Technical Assistance at
318-388-0816.
®
Component Box Breakdown:
Part #: 7240 / 9240
Item # Description Qty Item # Description Qty
7800WS WHITE STEERING DAMPER 2 BTIE RED BOOT TIE 2
(Included With 7240) (Included With 7240)
9800WS SILVER STEERING DAMPER 2 BTIE-K BLACK BOOT TIE 2
(Included With 9240) (Included With 9240)
83540 MAIN BRACKET 1 HSS HYDRO SHOCK DECAL 2
83541 TIE ROD BRACKET 1 (Included With 7240)
B10RS RED BOOT 2 SSD SILVER STABILIZER DECAL 2
(Included With 7240) (Included With 9240)
B10KS BLACK BOOT 2 HB-7240 HARDWARE BAG: 7240 / 9240 1
(Included With 9240) I-7240 INST SHEET: 7240 / 9240 1
Hardware Bag Breakdown:
Part # HB-7240
Item # Description Qty Item # Description Qty
38X614X4U 3/8 X 6 1/4 X 4 U-BOLT SQ 1 38SAEW 3/8 SAE WASHER 2
516X114X134U 5/16 X 1 1/4 X 1 3/4 U-BOLT RD 2 516SAEW 5/16 SAE WASHER 4
38CTN 3/8 COARSE THRD LOCK NUT 2 STEM BUSH-SST STEM BUSHING 8
516CTN 5/16 COARSE THR LOCK NUT 4 142120 STAB WASH PKG 4
I-7240 REV2 2-14 Pg 1
Page 2
Installation:
1. Park the vehicle on a level concrete or asphalt surface with the front tires / wheels pointing
straight forward.
2. Set the emergency brake & block the rear tires / wheels.
3. Install the new Skyjacker bracket "A" to the inside of the frame on the passenger side above the
OEM tie rod assembly & mount using the supplied square u-bolt, washers, & nuts. Twist the
bottom of the new bracket forward & tighten. (See Photo # 1 ) Note: On '92-'96 F-250 models,
the new bracket must either be tack welded in place or drill two 3/8" holes through the frame
using two of the holes in the new bracket as a template & bolt to the frame.
4. Attach the body end of the new Skyjacker steering stabilizers to the new bracket "A" using the
supplied bushings, washers, & nuts. (See Photo # 2)
5. Install the new Skyjacker boots on the new steering stabilizers using the supplied plastic ties &
install the new Skyjacker bracket "B" to the new steering stabilizers using the supplied bushings,
washers, & nuts.
6. Extend both of the new steering stabilizer piston rods 4.44" (exactly half-way out) & place the new
bracket "B" against the OEM drag link & secure with the supplied u-bolts, washers, & nuts. (See
Photo # 1)
7. Cycle the tires / wheels fully to right & to left making sure that no interference occurs & that the
stabilizers do not top or bottom out. Make adjustments as needed.
Important Note:
• On F-350 vehicles with 6” or more of lift, the u-bolt supplied for the frame bracket will not work. The
bracket will need to be moved further down on the frame. Place the bracket in the desired position
on the frame & weld in place.

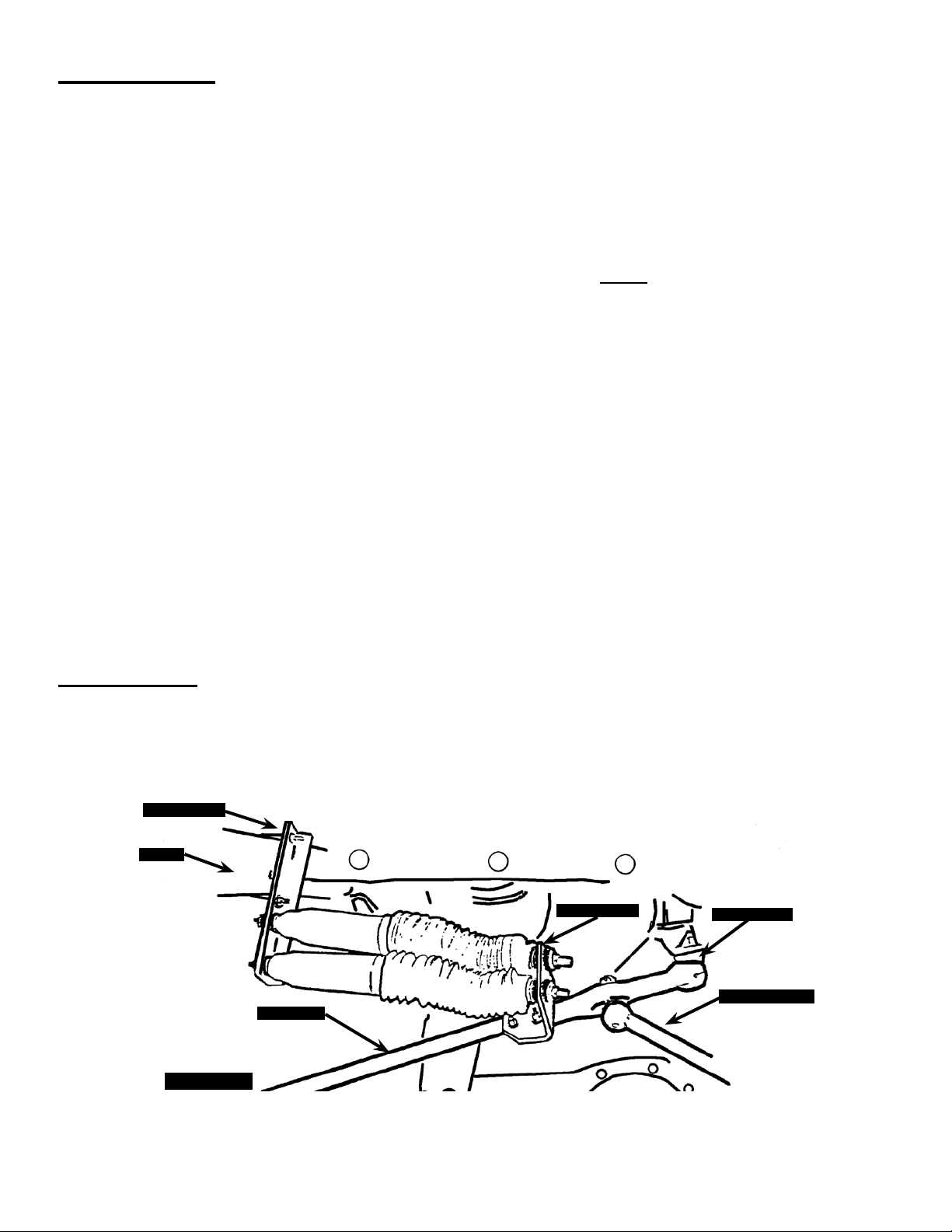

Bracket “A”
Frame
Bracket “B”
Drag Link
Pitman Arm
Outer Tie Rod
Photo # 1
I-7240 Pg 2
Page 3
Retaining Nut
Retaining Washer
Bracket
Shock Stud
Photo # 2
Final Notes:
• After the installation is complete, double check that all nuts & bolts are tight. Refer to the following
chart for the proper torque specifications. (Do not retighten the nuts & bolts where thread lock
compound was used.)
• Cycle the steering of the vehicle left to right & check all parts for adequate clearance.
• After the first 100 miles, check all of the hardware for the proper torque & periodically thereafter.
TORQUE SPECIFICATIONS

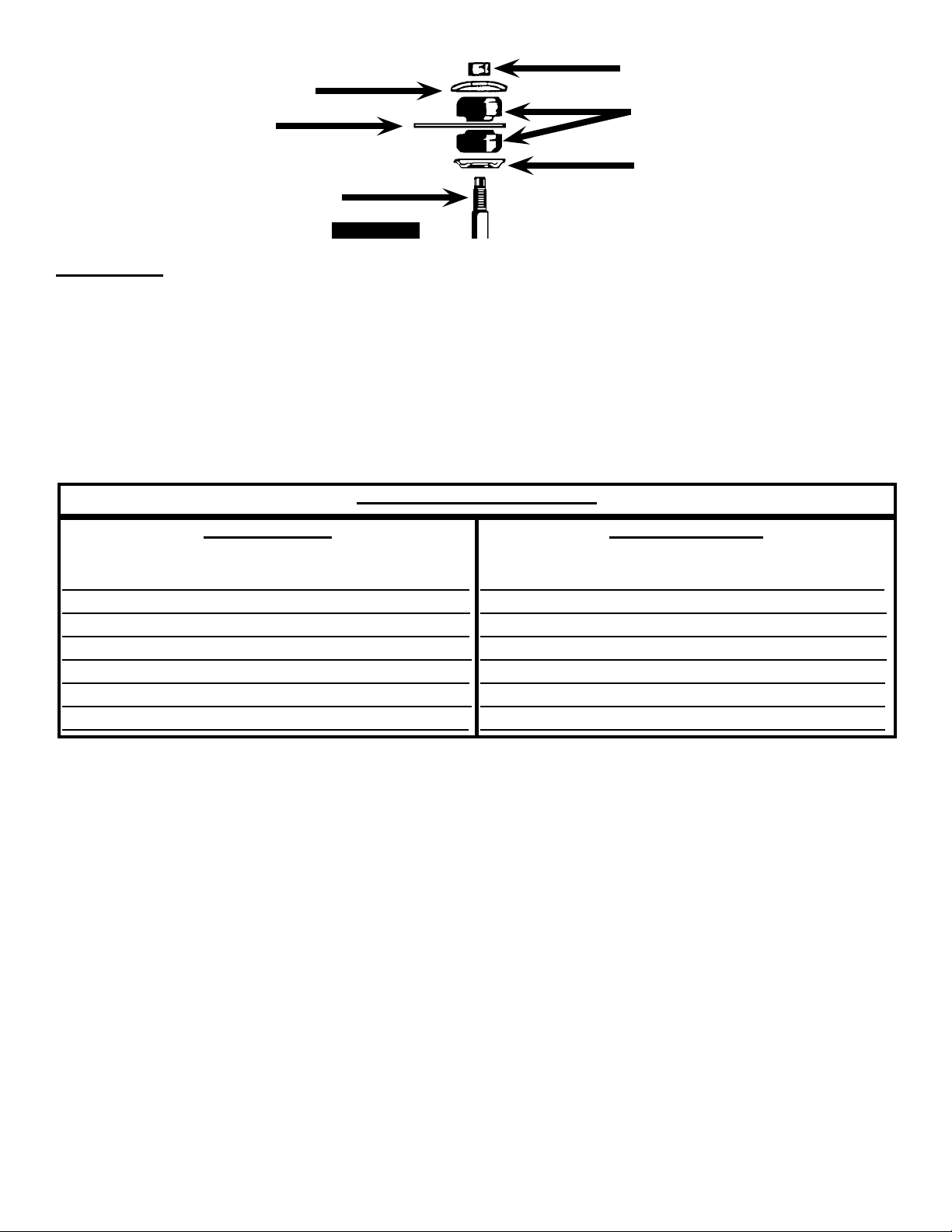

Stem Bushings
Retaining Washer
INCH SYSTEM
Bolt Size Grade 5 Grade 8
5/16 15 FT LB 20 FT LB
3/8 30 FT LB 35 FT LB
7/16 45 FT LB 60 FT LB
1/2 65 FT LB 90 FT LB
9/16 95 FT LB 130 FTLB
5/8 135 FT LB 175 FT LB
3/4 185 FT LB 280 FT LB
• The above specifications are not to be used when the bolt is being installed with a bushing.
Bolt Size Class 8.8 Class 10.9
6MM 5 FT LB 9 FT LB
8MM 18 FT LB 23 FT LB
10MM 32 FT LB 45 FT LB
12 MM 55 FT LB 75 FT LB
14MM 85 FT LB 120 FT LB
16MM 130 FT LB 165 FT LB
18MM 170 FT LB 240 FT LB
METRIC SYSTEM
Seat Belts Save Lives, Please Wear Your Seat Belt.
I-7240 Pg 3
