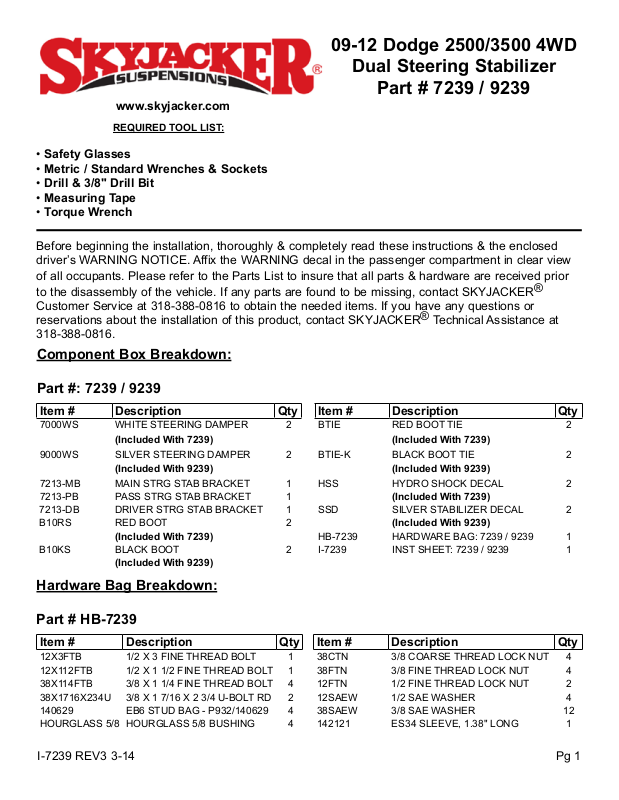

09-12 Dodge 2500/3500 4WD
Dual Steering Stabilizer
Part # 7239 / 9239
www.skyjacker.com
REQUIRED TOOL LIST:
• Safety Glasses
• Metric / Standard Wrenches & Sockets
• Drill & 3/8" Drill Bit
• Measuring Tape
• Torque Wrench
Before beginning the installation, thoroughly & completely read these instructions & the enclosed
driver’s WARNING NOTICE. Affix the WARNING decal in the passenger compartment in clear view
of all occupants. Please refer to the Parts List to insure that all parts & hardware are received prior
to the disassembly of the vehicle. If any parts are found to be missing, contact SKYJACKER
Customer Service at 318-388-0816 to obtain the needed items. If you have any questions or
reservations about the installation of this product, contact SKYJACKER® Technical Assistance at
318-388-0816.
®
Component Box Breakdown:
Part #: 7239 / 9239
Item # Description Qty Item # Description Qty
7000WS WHITE STEERING DAMPER 2 BTIE RED BOOT TIE 2
(Included With 7239) (Included With 7239)
9000WS SILVER STEERING DAMPER 2 BTIE-K BLACK BOOT TIE 2
(Included With 9239) (Included With 9239)
7213-MB MAIN STRG STAB BRACKET 1 HSS HYDRO SHOCK DECAL 2
7213-PB PASS STRG STAB BRACKET 1 (Included With 7239)
7213-DB DRIVER STRG STAB BRACKET 1 SSD SILVER STABILIZER DECAL 2
B10RS RED BOOT 2 (Included With 9239)
(Included With 7239) HB-7239 HARDWARE BAG: 7239 / 9239 1
B10KS BLACK BOOT 2 I-7239 INST SHEET: 7239 / 9239 1
(Included With 9239)
Hardware Bag Breakdown:
Part # HB-7239
Item # Description Qty Item # Description Qty
12X3FTB 1/2 X 3 FINE THREAD BOLT 1 38CTN 3/8 COARSE THREAD LOCK NUT 4
12X112FTB 1/2 X 1 1/2 FINE THREAD BOLT 1 38FTN 3/8 FINE THREAD LOCK NUT 4
38X114FTB 3/8 X 1 1/4 FINE THREAD BOLT 4 12FTN 1/2 FINE THREAD LOCK NUT 2
38X1716X234U 3/8 X 1 7/16 X 2 3/4 U-BOLT RD 2 12SAEW 1/2 SAE WASHER 4
140629 EB6 STUD BAG - P932/140629 4 38SAEW 3/8 SAE WASHER 12
HOURGLASS 5/8 HOURGLASS 5/8 BUSHING 4 142121 ES34 SLEEVE, 1.38" LONG 1
I-7239 REV3 3-14 Pg 1
Page 2
Installation:

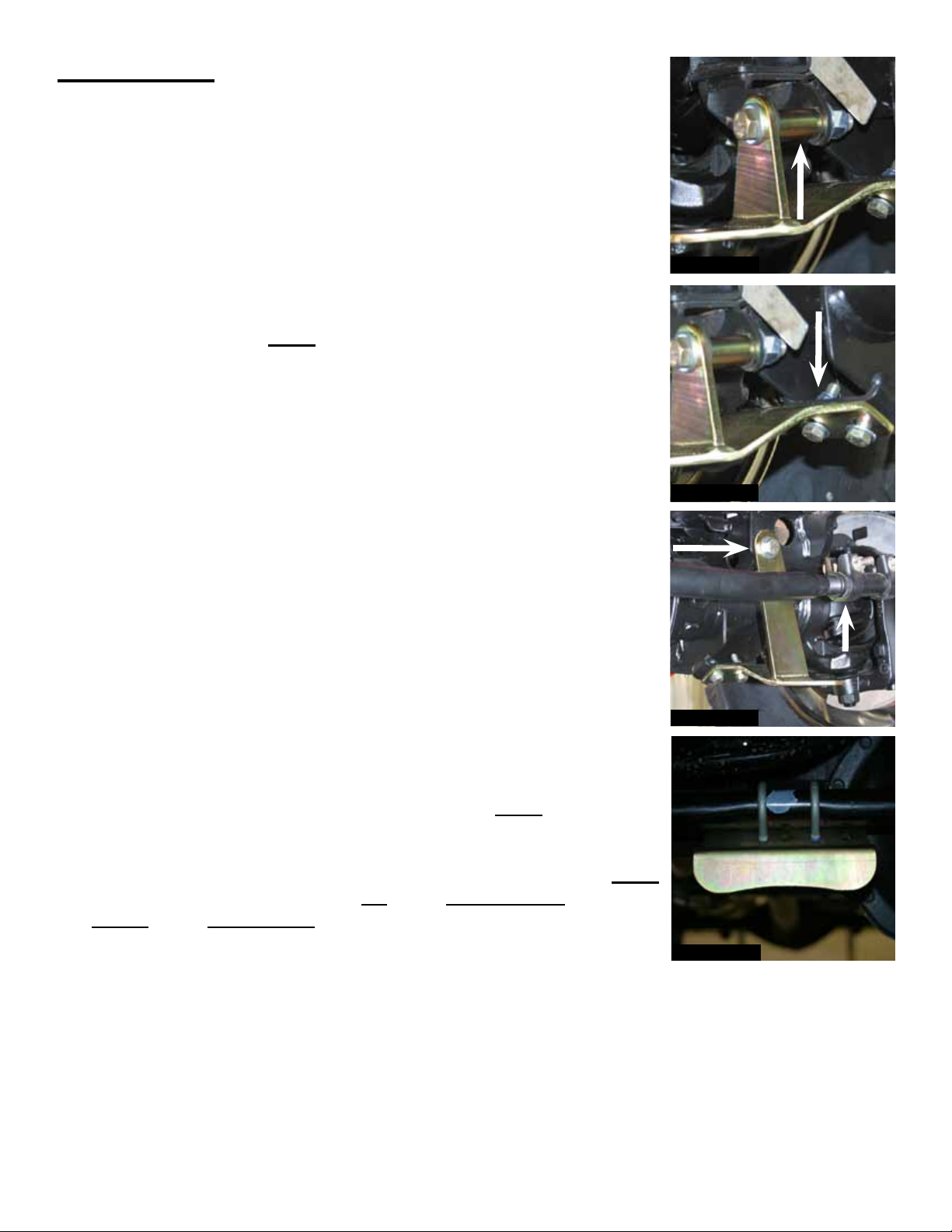

1. Park the vehicle on a level concrete or asphalt surface with the front
tires / wheels pointing straight forward.
2. Set the emergency brake & block the rear tires / wheels.
3. Remove the OEM steering stabilizer from the OEM mount on the
axle & OEM drag link.
4. Install the new Skyjacker passenger side bracket to the OEM
stabilizer mount on the axle using the supplied 1/2" x 3” fine thread
bolt, washers, & nut. Note: Be sure to install the supplied 1.38”
anti-crush sleeve (Part # 142121) inside the OEM mount. (See Arrow
in Photo # 1)
5. Mark & drill the two lower mounting holes of the bracket to 3/8”.
Once drilled, install the supplied 3/8" x 1 1/4” fine thread bolts,
washers, & nuts. (See Arrow in Photo # 2)
6. Loosen & rotate the OEM driver side outer tie rod adjusting sleeve
clamps to the top of the OEM driver side outer tie rod adjusting
sleeve. (See Arrow in Photo # 3) Install the new Skyjacker driver side
bracket to the mounting hole in the bottom of the OEM coil spring
mount, using the supplied 1/2" x 1 1/2” fine thread bolt, washers, &
nut. (See Arrow in Photo # 3)
Photo # 1
Photo # 2
7. Mark & drill the two lower bracket holes the same as in Step # 5.
Once drilled, install using the supplied 3/8" x 1 1/4” fine thread bolts,
washers, & nuts.
8. Remove the OEM stabilizer bracket from the OEM drag link & install
the new Skyjacker main bracket, using the supplied 3/8" x 1 7/16" x
2 3/4” u-bolts, washers, & nuts. (See Photo # 4) Note: Be sure to
line the new u-bolts up with the OEM notches on the OEM drag link.
9. Install the new Skyjacker double ended studs to each bracket. Note:
The new studs will mount to the top of the outer brackets & to the
bottom of the main bracket.
10. Slide the new Skyjacker boots over the shafts of the new Skyjacker
steering stabilizers & attach with the supplied boot ties.
Photo # 3
Photo # 4
I-7239 Pg 2
Page 3

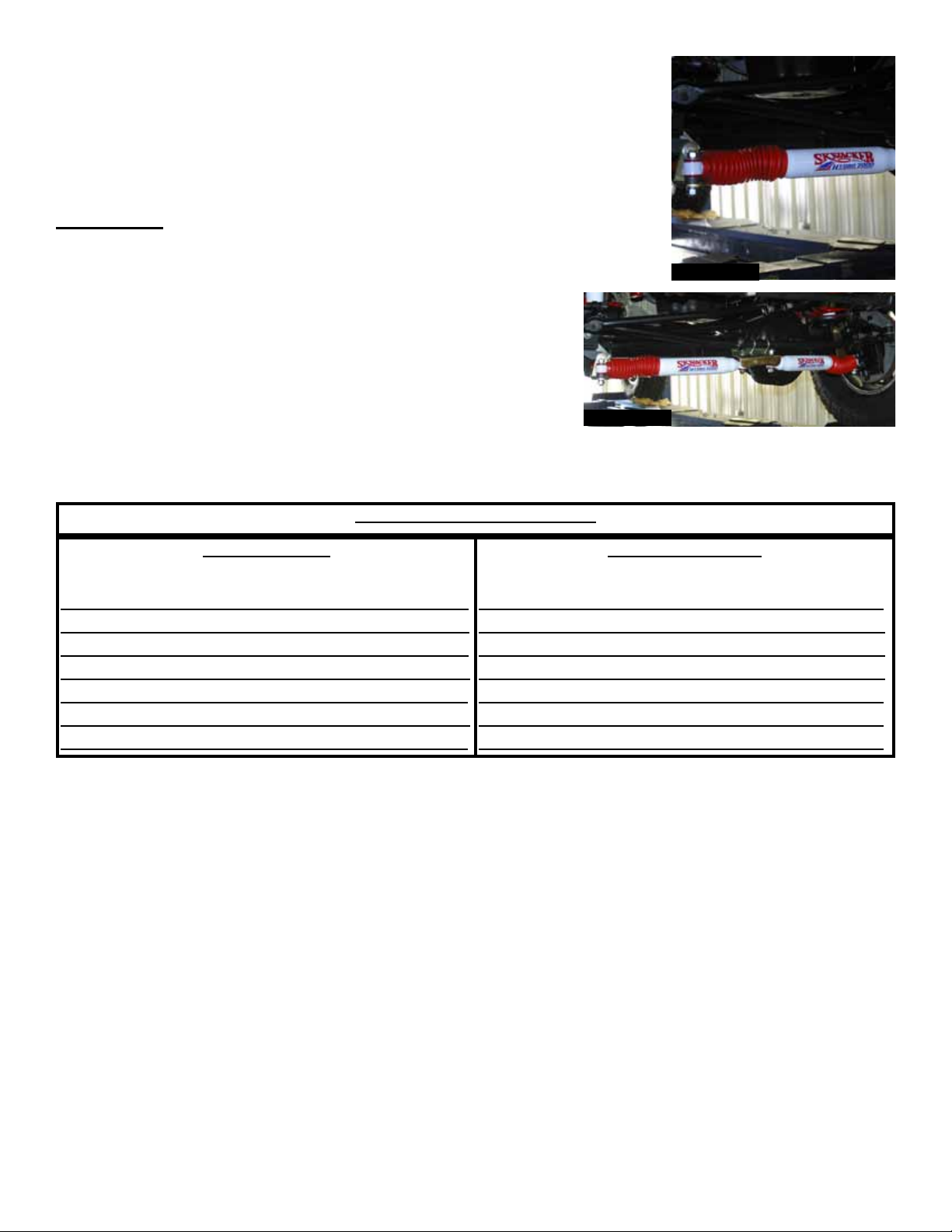

11. Install the new Skyjacker polyurethane bushings into each end of the
new Skyjacker steering stabilizers. Attach the new steering stabilizers
onto the new studs & tighten. (See Photo # 5)
12. Once the steering stabilizers are installed, check all the brackets &
bolts for proper installation. (See Photo # 6)
Final Notes:
• After the installation is complete, double check that all nuts
& bolts are tight. Refer to the following chart for the proper
torque specifications. (Do not retighten the nuts & bolts
where thread lock compound was used.)
• Cycle the steering of the vehicle left to right & check all parts
for adequate clearance.
• After the first 100 miles, check all of the hardware for the
proper torque & periodically thereafter.
TORQUE SPECIFICATIONS
INCH SYSTEM
Bolt Size Grade 5 Grade 8
5/16 15 FT LB 20 FT LB
3/8 30 FT LB 35 FT LB
7/16 45 FT LB 60 FT LB
1/2 65 FT LB 90 FT LB
9/16 95 FT LB 130 FTLB
5/8 135 FT LB 175 FT LB
3/4 185 FT LB 280 FT LB
Bolt Size Class 8.8 Class 10.9
6MM 5 FT LB 9 FT LB
8MM 18 FT LB 23 FT LB
10MM 32 FT LB 45 FT LB
12 MM 55 FT LB 75 FT LB
14MM 85 FT LB 120 FT LB
16MM 130 FT LB 165 FT LB
18MM 170 FT LB 240 FT LB
Photo # 5
Photo # 6
METRIC SYSTEM
• The above specifications are not to be used when the bolt is being installed with a bushing.
Seat Belts Save Lives, Please Wear Your Seat Belt.
I-7239 Pg 3
