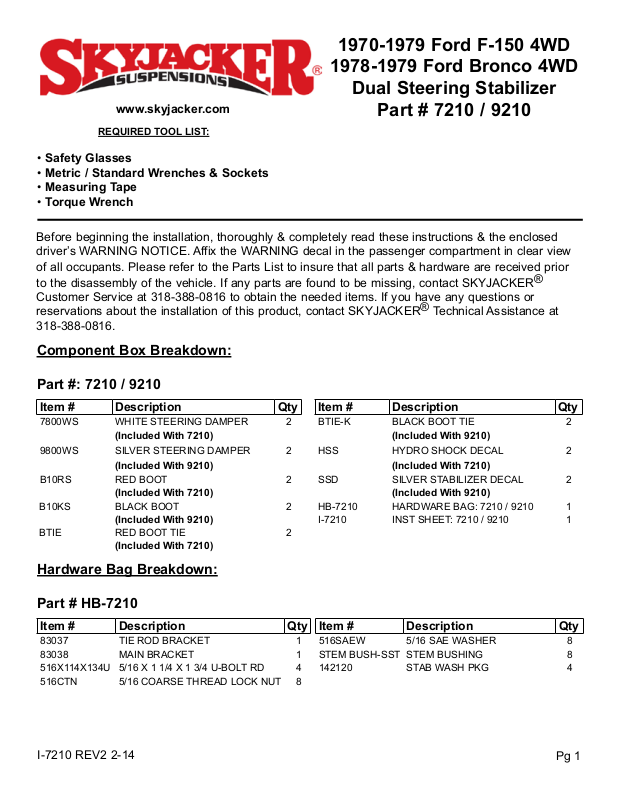

1970-1979 Ford F-150 4WD
1978-1979 Ford Bronco 4WD
Dual Steering Stabilizer
www.skyjacker.com
REQUIRED TOOL LIST:
• Safety Glasses
• Metric / Standard Wrenches & Sockets
• Measuring Tape
• Torque Wrench
Before beginning the installation, thoroughly & completely read these instructions & the enclosed
driver’s WARNING NOTICE. Affix the WARNING decal in the passenger compartment in clear view
of all occupants. Please refer to the Parts List to insure that all parts & hardware are received prior
to the disassembly of the vehicle. If any parts are found to be missing, contact SKYJACKER
Customer Service at 318-388-0816 to obtain the needed items. If you have any questions or
reservations about the installation of this product, contact SKYJACKER® Technical Assistance at
318-388-0816.
Part # 7210 / 9210
®
Component Box Breakdown:
Part #: 7210 / 9210
Item # Description Qty Item # Description Qty
7800WS WHITE STEERING DAMPER 2 BTIE-K BLACK BOOT TIE 2
(Included With 7210) (Included With 9210)
9800WS SILVER STEERING DAMPER 2 HSS HYDRO SHOCK DECAL 2
(Included With 9210) (Included With 7210)
B10RS RED BOOT 2 SSD SILVER STABILIZER DECAL 2
(Included With 7210) (Included With 9210)
B10KS BLACK BOOT 2 HB-7210 HARDWARE BAG: 7210 / 9210 1
(Included With 9210) I-7210 INST SHEET: 7210 / 9210 1
BTIE RED BOOT TIE 2
(Included With 7210)
Hardware Bag Breakdown:
Part # HB-7210
Item # Description Qty Item # Description Qty
83037 TIE ROD BRACKET 1 516SAEW 5/16 SAE WASHER 8
83038 MAIN BRACKET 1 STEM BUSH-SST STEM BUSHING 8
516X114X134U 5/16 X 1 1/4 X 1 3/4 U-BOLT RD 4 142120 STAB WASH PKG 4
516CTN 5/16 COARSE THREAD LOCK NUT 8
I-7210 REV2 2-14
Pg 1
Page 2
Installation:
1. Park the vehicle on a level concrete or asphalt surface with the
front tires / wheels pointing straight forward.
2. Set the emergency brake & block the rear tires / wheels.

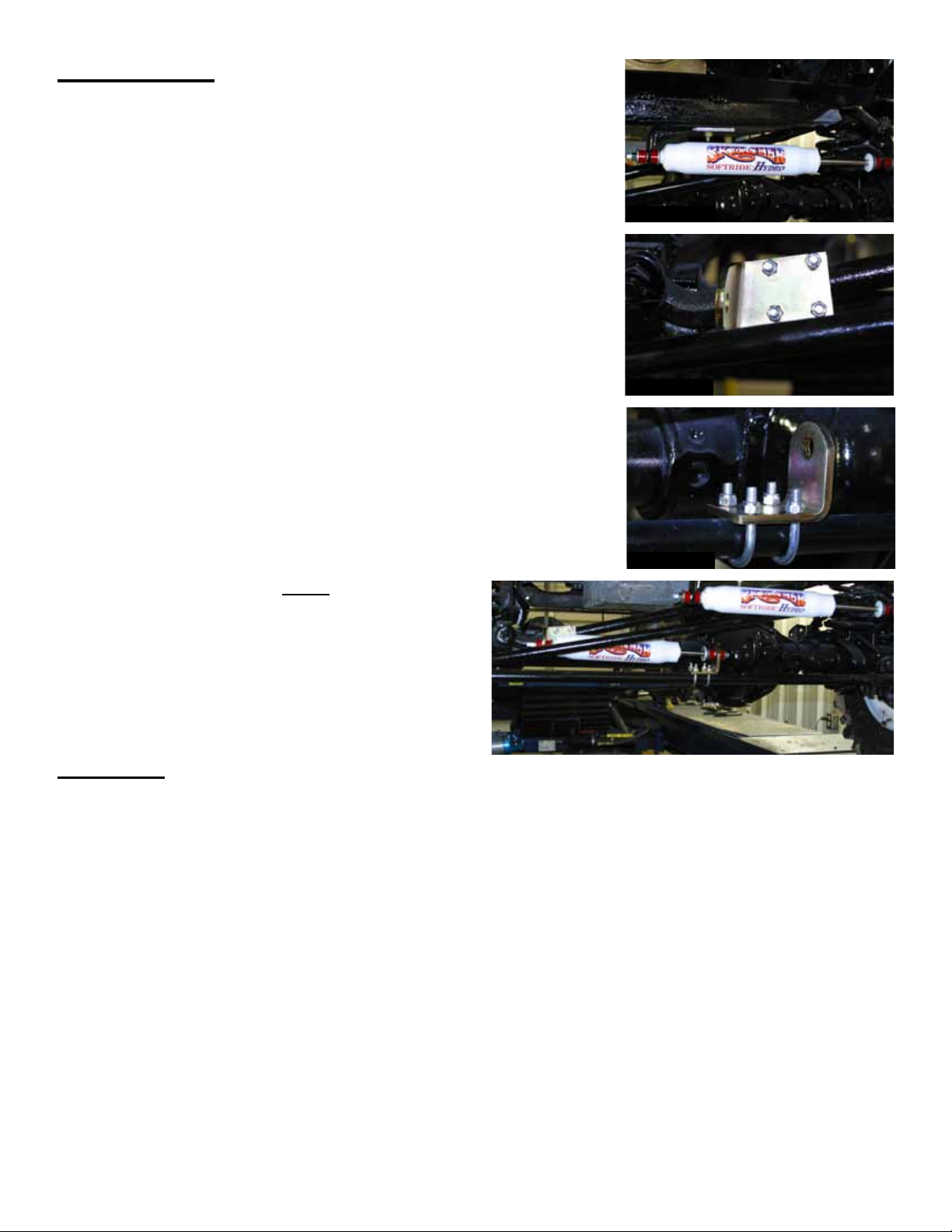

3. Remove the OEM steering stabilizer & install the new Skyjacker
steering stabilizer using the supplied bushings & washer
packets. (Photo # 1)
4. Attach the new Skyjacker track bar mounting bracket to the OEM
track bar using the bent (15 degree angled) bracket. The OEM
track bar runs from the passenger side axle to the driver side
frame. Attach using the supplied 5/16” u-bolts, washers, & nuts.
(Photo # 2)
5. Attach the main end of the new Skyjacker steering stabilizer to
the new track bar bracket & install the new Skyjacker tie rod
bracket to the OEM tie rod assembly using the supplied 5/16”
u-bolts, washers, & nuts. (Photo # 3)
6. Attach the shaft end of the new Skyjacker steering stabilizer to
the new tie rod bracket. Note: Be sure that half
of the shaft (4.44") is pulled out so the new
steering stabilizer does not top or bottom out on
full turn. This bracket should be loose & may
need to be rotated to obtain maximum clearance.
8. Tighten all hardware securely at this time.
Photo # 1
Photo # 2
Photo # 3
Final Notes:
• After the installation is complete, double check that all nuts & bolts are tight. Refer to the following
chart for the proper torque specifications. (Do not retighten the nuts & bolts where thread lock
compound was used.)
• Cycle the steering of the vehicle left to right & check all parts for adequate clearance.
• After the first 100 miles, check all of the hardware for the proper torque & periodically thereafter.
I-7210
Pg 2
Page 3
TORQUE SPECIFICATIONS
INCH SYSTEM
Bolt Size Grade 5 Grade 8
5/16 15 FT LB 20 FT LB
3/8 30 FT LB 35 FT LB
7/16 45 FT LB 60 FT LB
1/2 65 FT LB 90 FT LB
9/16 95 FT LB 130 FTLB
5/8 135 FT LB 175 FT LB
3/4 185 FT LB 280 FT LB
• The above specifications are not to be used when the bolt is being installed with a bushing.
Bolt Size Class 8.8 Class 10.9
6MM 5 FT LB 9 FT LB
8MM 18 FT LB 23 FT LB
10MM 32 FT LB 45 FT LB
12 MM 55 FT LB 75 FT LB
14MM 85 FT LB 120 FT LB
16MM 130 FT LB 165 FT LB
18MM 170 FT LB 240 FT LB
METRIC SYSTEM
Seat Belts Save Lives, Please Wear Your Seat Belt.
I-7210 Pg 3
