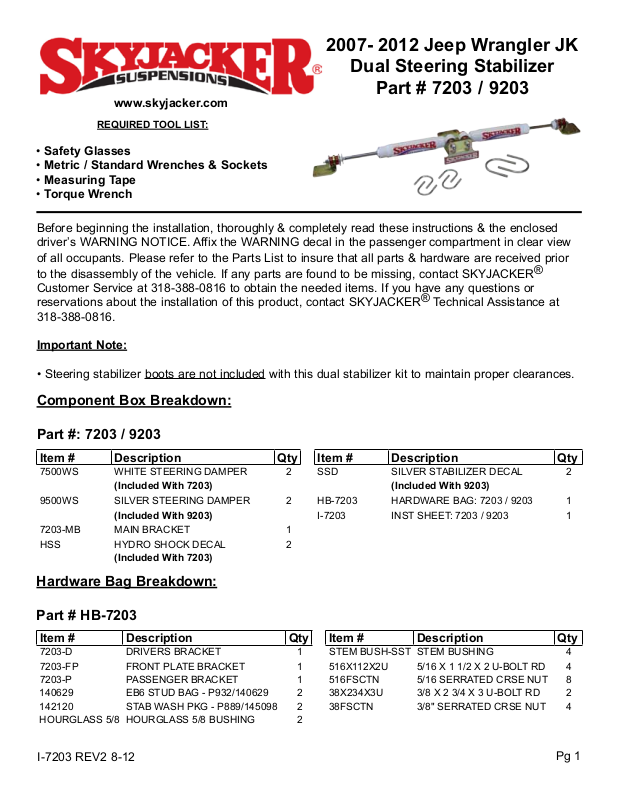

Page 1
2007- 2012 Jeep Wrangler JK
Dual Steering Stabilizer
Part # 7203 / 9203
www.skyjacker.com
REQUIRED TOOL LIST:
• Safety Glasses
• Metric / Standard Wrenches & Sockets
• Measuring Tape
• Torque Wrench
Before beginning the installation, thoroughly & completely read these instructions & the enclosed
driver’s WARNING NOTICE. Affix the WARNING decal in the passenger compartment in clear view
of all occupants. Please refer to the Parts List to insure that all parts & hardware are received prior
to the disassembly of the vehicle. If any parts are found to be missing, contact SKYJACKER
Customer Service at 318-388-0816 to obtain the needed items. If you have any questions or
reservations about the installation of this product, contact SKYJACKER® Technical Assistance at
318-388-0816.
®
Important Note:
• Steering stabilizer boots are not included with this dual stabilizer kit to maintain proper clearances.
Component Box Breakdown:
Part #: 7203 / 9203
Item # Description Qty Item # Description Qty
7500WS WHITE STEERING DAMPER 2 SSD SILVER STABILIZER DECAL 2
(Included With 7203) (Included With 9203)
9500WS SILVER STEERING DAMPER 2 HB-7203 HARDWARE BAG: 7203 / 9203 1
(Included With 9203) I-7203 INST SHEET: 7203 / 9203 1
7203-MB MAIN BRACKET 1
HSS HYDRO SHOCK DECAL 2
(Included With 7203)
Hardware Bag Breakdown:
Part # HB-7203
Item # Description Qty Item # Description Qty
7203-D DRIVERS BRACKET 1 STEM BUSH-SST STEM BUSHING 4
7203-FP FRONT PLATE BRACKET 1 516X112X2U 5/16 X 1 1/2 X 2 U-BOLT RD 4
7203-P PASSENGER BRACKET 1 516FSCTN 5/16 SERRATED CRSE NUT 8
140629 EB6 STUD BAG - P932/140629 2 38X234X3U 3/8 X 2 3/4 X 3 U-BOLT RD 2
142120 STAB WASH PKG - P889/145098 2 38FSCTN 3/8" SERRATED CRSE NUT 4
HOURGLASS 5/8 HOURGLASS 5/8 BUSHING 2
I-7203 REV2 8-12
Pg 1
Page 2
Installation:
1. Park the vehicle on a level concrete or asphalt surface with the front
tires / wheels pointing straight forward.
2. Set the emergency brake & block the rear tires / wheels.
3. Remove the OEM steering stabilizer from the OEM mount on the
axle & OEM drag link.
4. Install the two new Skyjacker straight studs to the new Skyjacker
axle bracket using a 3/4" socket & adjustable pliers. (See Photo # 1)
5. Measure from the differential housing 1 1/4" & install the new axle
bracket under the axle using the supplied 3/8" x 2 3/4" x 3" u-bolts,
nuts, & a 9/16" socket. Note: Do not tighten at this time. (See
Photo # 2)
6. Install the eyelet end of each new Skyjacker stabilizer to a stud on
the new axle bracket & install the supplied 1/2" flat washers. (See
Photo # 3)
Photo # 1
Photo # 2
7. Install the new Skyjacker front plate using the supplied 1/2" lock
washers, nuts, & a 3/4" socket. (See Photo # 4)
8. Extend the new steering stabilizers 3 1/4", (exactly halfway). The
center to center length will be 13 1/2" when the steering stabilizers
are half way out. (See Photo # 5)
9. Install the new Skyjacker driver & passenger side tie rod brackets
using the supplied polyurethane stem bushings, stem washers, 5/16"
x 1 1/2" x 2" u-bolts, nuts, & a 1/2" socket. Note: The new tie rod
brackets are to be installed
with the curved portion of
the bracket facing toward
the front of the vehicle.
(See Photo # 6 & 7)
Photo # 5
Photo # 3
Photo # 4
Photo # 7Photo # 6
I-7203 Pg 2
Page 3
10. With the OEM tie rod assembly rolled up, tighten the new axle bracket so there is 1/4" clearance
between the new steering stabilizer bodies & the OEM tie rod assembly.
11. Turn the front tires / wheels of the vehicle to the left & right to check that the new steering
stabilizers & all brackets are adjusted properly & tightened securely.
Final Notes:
• Cycle the steering of the vehicle left to right & check all parts for adequate clearance.
• After the first 100 miles, check all of the hardware for the proper torque.
TORQUE SPECIFICATIONS
INCH SYSTEM
Bolt Size Grade 5 Grade 8
5/16 15 FT LB 20 FT LB
3/8 30 FT LB 35 FT LB
7/16 45 FT LB 60 FT LB
1/2 65 FT LB 90 FT LB
9/16 95 FT LB 130 FTLB
5/8 135 FT LB 175 FT LB
3/4 185 FT LB 280 FT LB
• The above specifications are not to be used when the bolt is being installed with a bushing.
Bolt Size Class 8.8 Class 10.9
6MM 5 FT LB 9 FT LB
8MM 18 FT LB 23 FT LB
10MM 32 FT LB 45 FT LB
12 MM 55 FT LB 75 FT LB
14MM 85 FT LB 120 FT LB
16MM 130 FT LB 165 FT LB
18MM 170 FT LB 240 FT LB
METRIC SYSTEM
Seat Belts Save Lives, Please Wear Your Seat Belt.
I-7203
Pg 3
