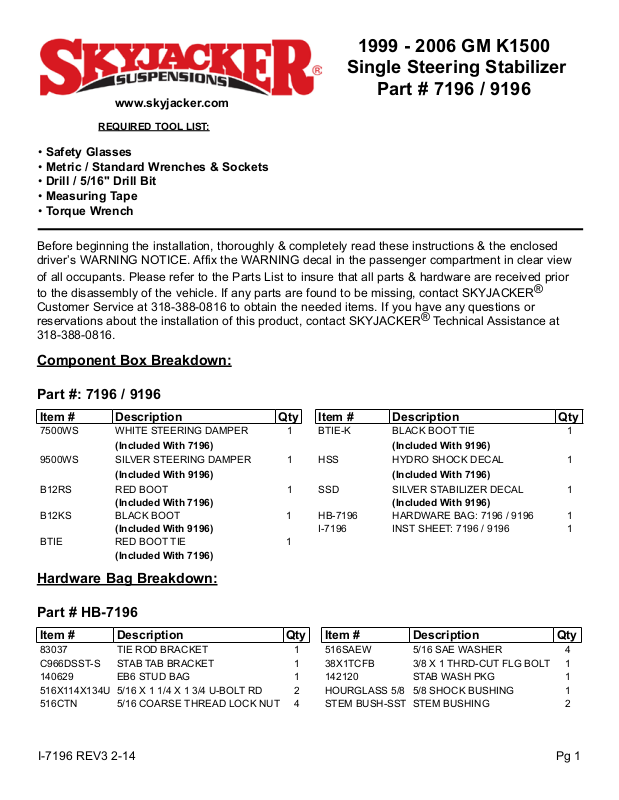

Page 1
1999 - 2006 GM K1500
Single Steering Stabilizer
Part # 7196 / 9196
www.skyjacker.com
REQUIRED TOOL LIST:
• Safety Glasses
• Metric / Standard Wrenches & Sockets
• Drill / 5/16" Drill Bit
• Measuring Tape
• Torque Wrench
Before beginning the installation, thoroughly & completely read these instructions & the enclosed
driver’s WARNING NOTICE. Affix the WARNING decal in the passenger compartment in clear view
of all occupants. Please refer to the Parts List to insure that all parts & hardware are received prior
to the disassembly of the vehicle. If any parts are found to be missing, contact SKYJACKER
Customer Service at 318-388-0816 to obtain the needed items. If you have any questions or
reservations about the installation of this product, contact SKYJACKER® Technical Assistance at
318-388-0816.
®
Component Box Breakdown:
Part #: 7196 / 9196
Item # Description Qty Item # Description Qty
7500WS WHITE STEERING DAMPER 1 BTIE-K BLACK BOOT TIE 1
(Included With 7196) (Included With 9196)
9500WS SILVER STEERING DAMPER 1 HSS HYDRO SHOCK DECAL 1
(Included With 9196) (Included With 7196)
B12RS RED BOOT 1 SSD SILVER STABILIZER DECAL 1
(Included With 7196) (Included With 9196)
B12KS BLACK BOOT 1 HB-7196 HARDWARE BAG: 7196 / 9196 1
(Included With 9196) I-7196 INST SHEET: 7196 / 9196 1
BTIE RED BOOT TIE 1
(Included With 7196)
Hardware Bag Breakdown:
Part # HB-7196
Item # Description Qty Item # Description Qty
83037 TIE ROD BRACKET 1 516SAEW 5/16 SAE WASHER 4
C966DSST-S STAB TAB BRACKET 1 38X1TCFB 3/8 X 1 THRD-CUT FLG BOLT 1
140629 EB6 STUD BAG 1 142120 STAB WASH PKG 1
516X114X134U 5/16 X 1 1/4 X 1 3/4 U-BOLT RD 2 HOURGLASS 5/8 5/8 SHOCK BUSHING 1
516CTN 5/16 COARSE THREAD LOCK NUT 4 STEM BUSH-SST STEM BUSHING 2
I-7196 REV3 2-14 Pg 1
Page 2

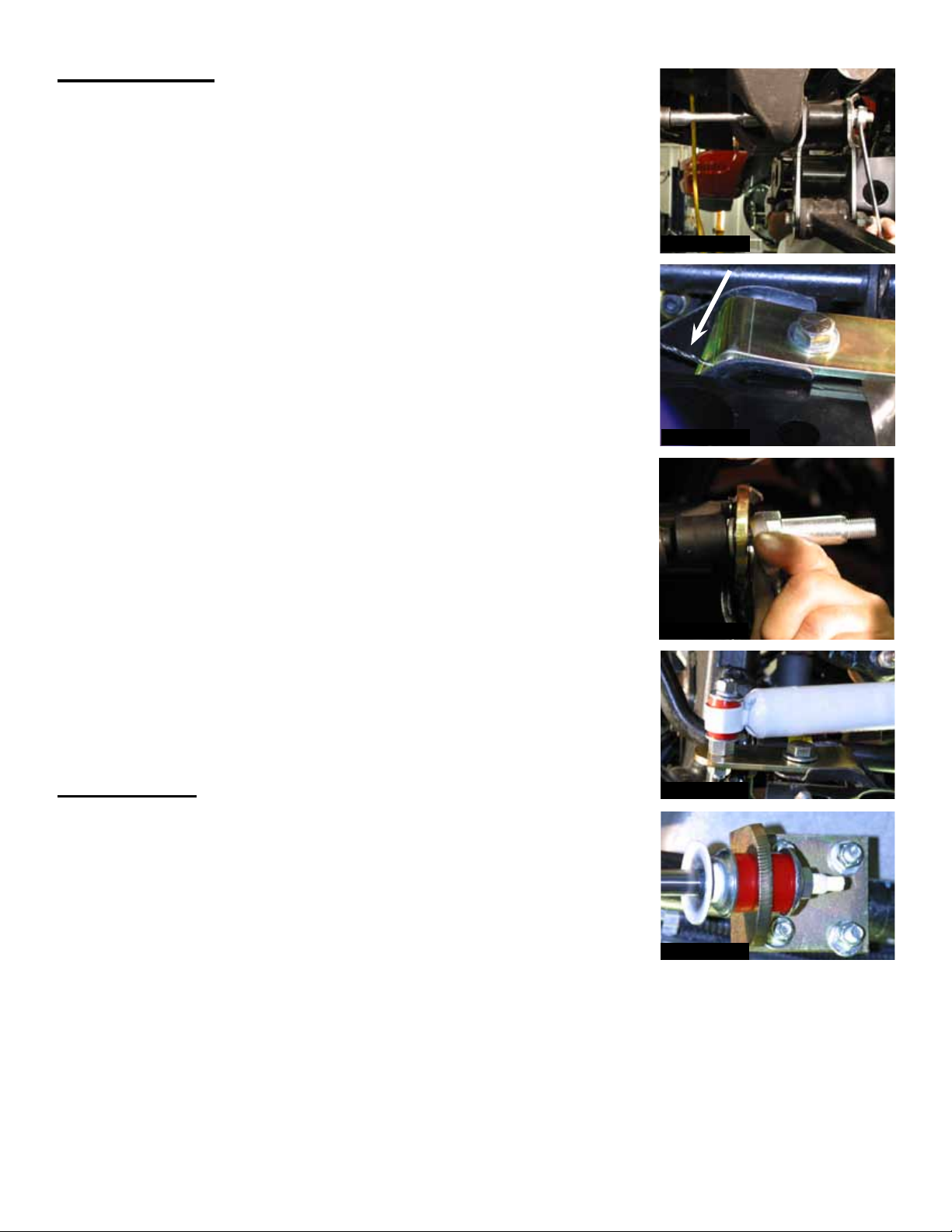

Installation:
1. Park the vehicle on a level concrete or asphalt surface with the front
tires / wheels pointing straight forward.
2. Set the emergency brake & block the rear tires / wheels.
3. While supporting the front cross member with a floor jack, remove the
front lower A-arm bolt at the frame. (If installing on a vehicle with 4”
or more lift, it will be the upper front bolt on the after market cross
member. Remove the bolt using a 15/16" socket. (See Photo # 1)
4. Once the bolt is removed, reinstall with the new Skyjacker outer
stabilizer bracket. Be sure to install the bolt pointing toward the front.
Drill inside the mounting hole using 5/16" drill bit. Then install the
supplied 3/8" thread cutter bolt. (See Photo # 2) The arrow shows the
drill bit.
5. Attach the supplied shock stud to the new bracket being sure to use
washers. (See Photo # 3)
Photo # 1
Photo # 2
6. Install the new Skyjacker main bracket to the OEM center link using
the supplied u-bolts, washers & nuts. Measure from the center of the
OEM pitman arm 9” & mount the drivers side edge of the new center
link bracket at this point. Slightly adjust the new main bracket, so the
new Skyjacker steering stabilizer is pulled out half way. (See Photo
# 5)
7. Attach the new steering stabilizer to the new outer bracket & new
center link bracket using the supplied steering stabilizer hardware.
(See Photo # 4 & # 5)
Important Note:
• This steering stabilizer kit is designed for the 99-06 GM 1/2 ton 4WD.
It will fit lift heights 4"-6” on kits with a lowered front cross member.
This kit will NOT work on vehicles with a lift kit that relocates the upper
A-Arms.
Photo # 3
Photo # 4
Photo # 5
I-7196 Pg 2
Page 3
Final Notes:
• After the installation is complete, double check that all nuts & bolts are tight. Refer to the following
chart for the proper torque specifications. (Do not retighten the nuts & bolts where thread lock
compound was used.)
• Cycle the steering of the vehicle left to right & check all parts for adequate clearance.
• After the first 100 miles, check all of the hardware for the proper torque & periodically thereafter.
TORQUE SPECIFICATIONS
INCH SYSTEM
Bolt Size Grade 5 Grade 8
5/16 15 FT LB 20 FT LB
3/8 30 FT LB 35 FT LB
7/16 45 FT LB 60 FT LB
1/2 65 FT LB 90 FT LB
9/16 95 FT LB 130 FTLB
5/8 135 FT LB 175 FT LB
3/4 185 FT LB 280 FT LB
• The above specifications are not to be used when the bolt is being installed with a bushing.
Bolt Size Class 8.8 Class 10.9
6MM 5 FT LB 9 FT LB
8MM 18 FT LB 23 FT LB
10MM 32 FT LB 45 FT LB
12 MM 55 FT LB 75 FT LB
14MM 85 FT LB 120 FT LB
16MM 130 FT LB 165 FT LB
18MM 170 FT LB 240 FT LB
METRIC SYSTEM
Seat Belts Save Lives, Please Wear Your Seat Belt.
I-7196 Pg 3
