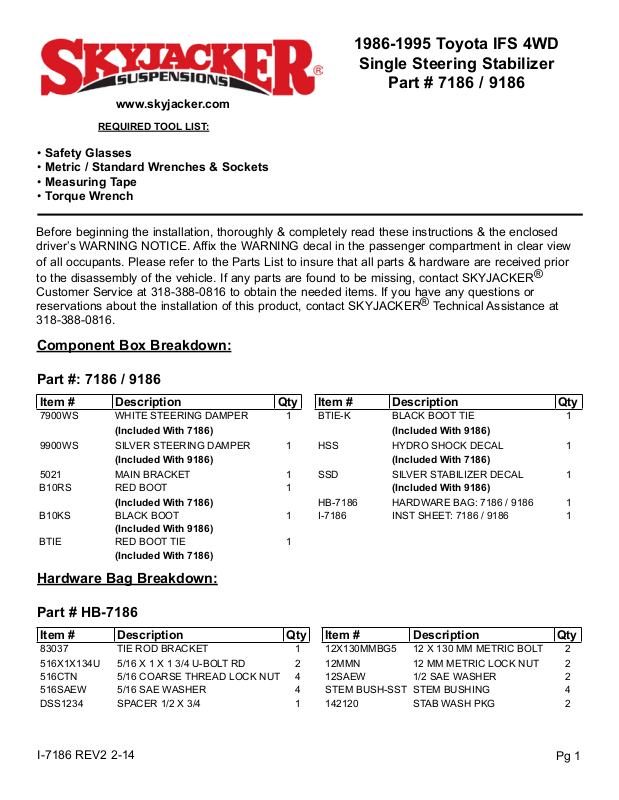

Page 1
1986-1995 Toyota IFS 4WD
Single Steering Stabilizer
Part # 7186 / 9186
www.skyjacker.com
REQUIRED TOOL LIST:
• Safety Glasses
• Metric / Standard Wrenches & Sockets
• Measuring Tape
• Torque Wrench
Before beginning the installation, thoroughly & completely read these instructions & the enclosed
driver’s WARNING NOTICE. Affix the WARNING decal in the passenger compartment in clear view
of all occupants. Please refer to the Parts List to insure that all parts & hardware are received prior
to the disassembly of the vehicle. If any parts are found to be missing, contact SKYJACKER
Customer Service at 318-388-0816 to obtain the needed items. If you have any questions or
reservations about the installation of this product, contact SKYJACKER® Technical Assistance at
318-388-0816.
®
Component Box Breakdown:
Part #: 7186 / 9186
Item # Description Qty Item # Description Qty
7900WS WHITE STEERING DAMPER 1 BTIE-K BLACK BOOT TIE 1
(Included With 7186) (Included With 9186)
9900WS SILVER STEERING DAMPER 1 HSS HYDRO SHOCK DECAL 1
(Included With 9186) (Included With 7186)
5021 MAIN BRACKET 1 SSD SILVER STABILIZER DECAL 1
B10RS RED BOOT 1 (Included With 9186)
(Included With 7186) HB-7186 HARDWARE BAG: 7186 / 9186 1
B10KS BLACK BOOT 1 I-7186 INST SHEET: 7186 / 9186 1
(Included With 9186)
BTIE RED BOOT TIE 1
(Included With 7186)
Hardware Bag Breakdown:
Part # HB-7186
Item # Description Qty Item # Description Qty
83037 TIE ROD BRACKET 1 12X130MMBG5 12 X 130 MM METRIC BOLT 2
516X1X134U 5/16 X 1 X 1 3/4 U-BOLT RD 2 12MMN 12 MM METRIC LOCK NUT 2
516CTN 5/16 COARSE THREAD LOCK NUT 4 12SAEW 1/2 SAE WASHER 2
516SAEW 5/16 SAE WASHER 4 STEM BUSH-SST STEM BUSHING 4
DSS1234 SPACER 1/2 X 3/4 1 142120 STAB WASH PKG 2
I-7186 REV2 2-14
Pg 1
Page 2
Installation:
1. Park the vehicle on a level concrete or asphalt surface with the front tires / wheels pointing
straight forward.
2. Set the emergency brake & block the rear tires / wheels.
3. Remove the two rear bolts that hold the OEM idler arm to the frame on the passenger side &
install the supplied 12mm x 130mm bolts & washers. Note: Do not install the supplied 12mm nuts
at this time. The head of the new 12mm x 130mm bolts should be toward the outside of the
vehicle.
4. Install the supplied spacer on the upper bolt & place one of the thick OEM washers on the lower
bolt. The new spacer & OEM washer go between the frame & the new Skyjacker mounting
bracket. (See Photo # 1) Place the new bracket on the mounting bolts & secure with the
remaining washers & nuts. Tighten at this time.
5. Install the new Skyjacker boot onto the new Skyjacker steering stabilizer & attach the shaft end of
the new steering stabilizer onto the new frame mount.
6. Attach the new Skyjacker tie rod bracket to the new steering stabilizer with the (L) shape going
toward the new steering stabilizer cylinder (See Photo # 2) Extend the shaft out 4” (half-way) &
tighten using the supplied u-bolts, washers, & nuts.
Retaining Washer
Bracket
Shock Stud
Retaining Nut
Stem Bushings
Retaining Washer
Photo # 1
I-7186
Photo # 2
Pg 2
Page 3
Final Notes:
• After the installation is complete, double check that all nuts & bolts are tight. Refer to the following
chart for the proper torque specifications. (Do not retighten the nuts & bolts where thread lock
compound was used.)
• Cycle the steering of the vehicle left to right & check all parts for adequate clearance.
• After the first 100 miles, check all of the hardware for the proper torque & periodically thereafter.
TORQUE SPECIFICATIONS
INCH SYSTEM
Bolt Size Grade 5 Grade 8
5/16 15 FT LB 20 FT LB
3/8 30 FT LB 35 FT LB
7/16 45 FT LB 60 FT LB
1/2 65 FT LB 90 FT LB
9/16 95 FT LB 130 FTLB
5/8 135 FT LB 175 FT LB
3/4 185 FT LB 280 FT LB
• The above specifications are not to be used when the bolt is being installed with a bushing.
Bolt Size Class 8.8 Class 10.9
6MM 5 FT LB 9 FT LB
8MM 18 FT LB 23 FT LB
10MM 32 FT LB 45 FT LB
12 MM 55 FT LB 75 FT LB
14MM 85 FT LB 120 FT LB
16MM 130 FT LB 165 FT LB
18MM 170 FT LB 240 FT LB
METRIC SYSTEM
Seat Belts Save Lives, Please Wear Your Seat Belt.
I-7186 Pg 3
