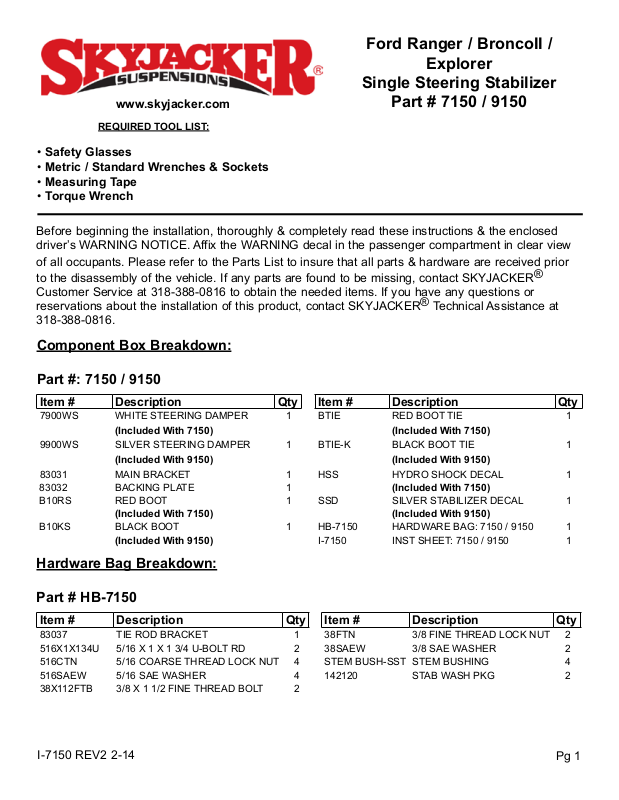

Page 1
Ford Ranger / BroncoII /
Explorer
Single Steering Stabilizer
www.skyjacker.com
REQUIRED TOOL LIST:
Part # 7150 / 9150
• Safety Glasses
• Metric / Standard Wrenches & Sockets
• Measuring Tape
• Torque Wrench
Before beginning the installation, thoroughly & completely read these instructions & the enclosed
driver’s WARNING NOTICE. Affix the WARNING decal in the passenger compartment in clear view
of all occupants. Please refer to the Parts List to insure that all parts & hardware are received prior
to the disassembly of the vehicle. If any parts are found to be missing, contact SKYJACKER
®
Customer Service at 318-388-0816 to obtain the needed items. If you have any questions or
reservations about the installation of this product, contact SKYJACKER® Technical Assistance at
318-388-0816.
Component Box Breakdown:
Part #: 7150 / 9150
Item # Description Qty Item # Description Qty
7900WS WHITE STEERING DAMPER 1 BTIE RED BOOT TIE 1
(Included With 7150) (Included With 7150)
9900WS SILVER STEERING DAMPER 1 BTIE-K BLACK BOOT TIE 1
(Included With 9150) (Included With 9150)
83031 MAIN BRACKET 1 HSS HYDRO SHOCK DECAL 1
83032 BACKING PLATE 1 (Included With 7150)
B10RS RED BOOT 1 SSD SILVER STABILIZER DECAL 1
(Included With 7150) (Included With 9150)
B10KS BLACK BOOT 1 HB-7150 HARDWARE BAG: 7150 / 9150 1
(Included With 9150) I-7150 INST SHEET: 7150 / 9150 1
Hardware Bag Breakdown:
Part # HB-7150
Item # Description Qty Item # Description Qty
83037 TIE ROD BRACKET 1 38FTN 3/8 FINE THREAD LOCK NUT 2
516X1X134U 5/16 X 1 X 1 3/4 U-BOLT RD 2 38SAEW 3/8 SAE WASHER 2
516CTN 5/16 COARSE THREAD LOCK NUT 4 STEM BUSH-SST STEM BUSHING 4
516SAEW 5/16 SAE WASHER 4 142120 STAB WASH PKG 2
38X112FTB 3/8 X 1 1/2 FINE THREAD BOLT 2
I-7150 REV2 2-14
Pg 1
Page 2
Installation:
1. Park the vehicle on a level concrete or asphalt surface with the front tires / wheels pointing
straight forward.
2. Set the emergency brake & block the rear tires / wheels.
3. Install the new Skyjacker bracket “A” (long bracket) against the slotted holes on the outside of the
frame & install the new Skyjacker backing plate bracket on the inside of the frame using the
supplied 3/8" x 1 1/2" bolts, washers, & nuts. (See Photo # 1) Models equipped with a front sway
bar will need to move the new bracket “A” back (away from the sway bar) until clearance of the
sway bar is obtained. Note: Do not tighten at this time.
4. Attach the new bracket “B” to the OEM tie rod using the supplied u-bolts, washers, & nuts. (See
Photo # 1) Note: Do not tighten at this time.
5. Attach the body end of the new Skyjacker steering stabilizer to the new bracket “A” using the
supplied bushings & washers. (See Photos # 1 & # 2)
6. Attach the shaft end of the new Skyjacker steering stabilizer to the new bracket “B” using the
supplied bushings & washers. (See Photos # 1 & # 2)
7. Extend the new Skyjacker steering stabilizer piston rod 4” (exactly half-way out). Rotate the new
brackets “A” & “B” as needed to obtain the best position & tighten all hardware.

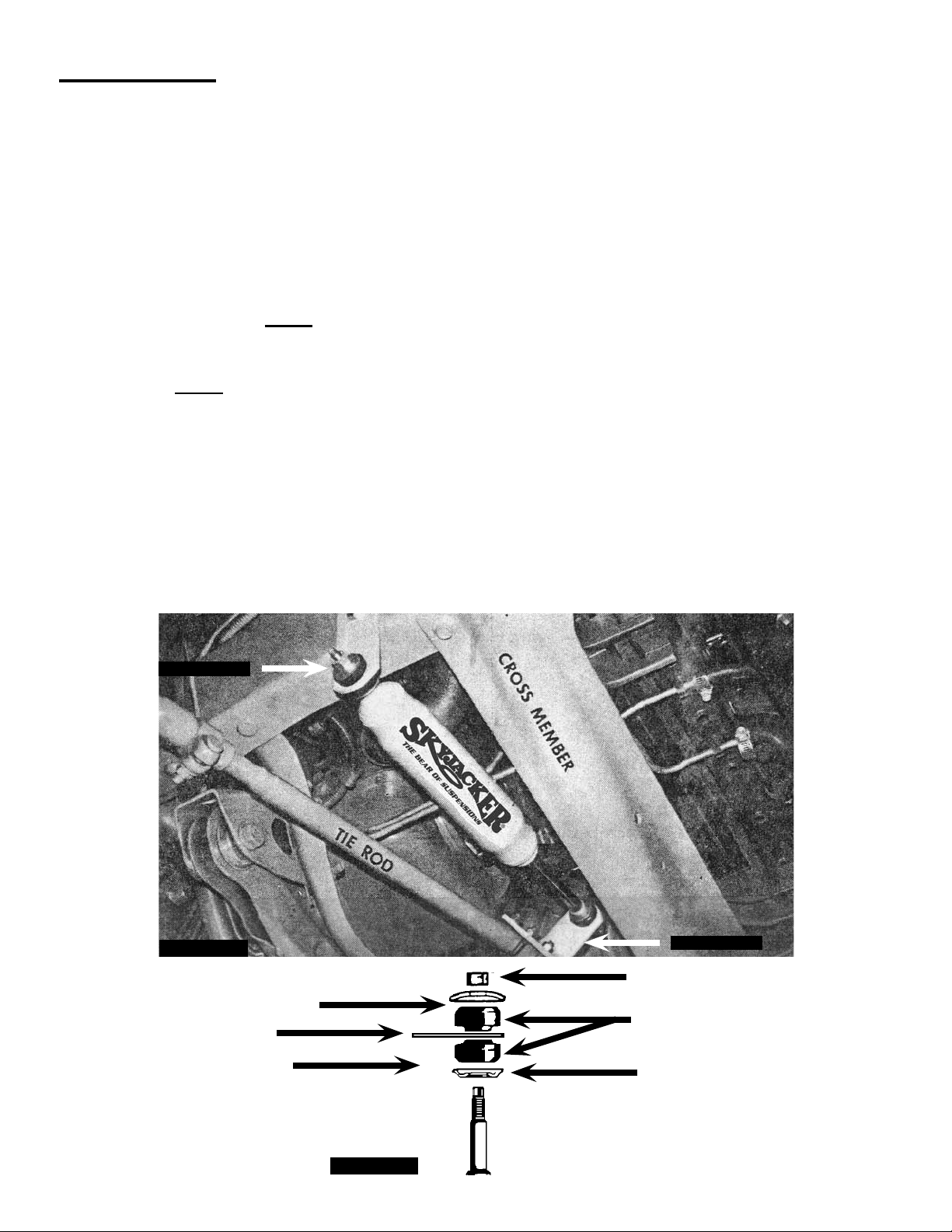

Bracket “A”
Photo # 1
Retaining Washer
Bracket
Bracket “B”
Retaining Nut
Stem Bushings
I-7150
Shock Stud
Photo # 2
Retaining Washer
Pg 2
Page 3
Final Notes:
• After the installation is complete, double check that all nuts & bolts are tight. Refer to the following
chart for the proper torque specifications. (Do not retighten the nuts & bolts where thread lock
compound was used.)
• Cycle the steering of the vehicle left to right & check all parts for adequate clearance.
• After the first 100 miles, check all of the hardware for the proper torque & periodically thereafter.
TORQUE SPECIFICATIONS
INCH SYSTEM
Bolt Size Grade 5 Grade 8
5/16 15 FT LB 20 FT LB
3/8 30 FT LB 35 FT LB
7/16 45 FT LB 60 FT LB
1/2 65 FT LB 90 FT LB
9/16 95 FT LB 130 FTLB
5/8 135 FT LB 175 FT LB
3/4 185 FT LB 280 FT LB
• The above specifications are not to be used when the bolt is being installed with a bushing.
Bolt Size Class 8.8 Class 10.9
6MM 5 FT LB 9 FT LB
8MM 18 FT LB 23 FT LB
10MM 32 FT LB 45 FT LB
12 MM 55 FT LB 75 FT LB
14MM 85 FT LB 120 FT LB
16MM 130 FT LB 165 FT LB
18MM 170 FT LB 240 FT LB
METRIC SYSTEM
Seat Belts Save Lives, Please Wear Your Seat Belt.
I-7150
Pg 3
