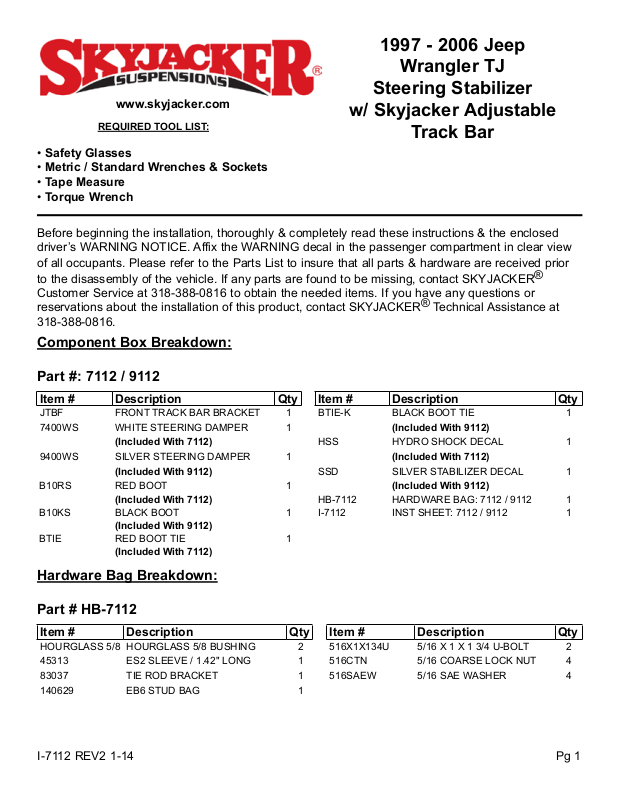

1997 - 2006 Jeep
Wrangler TJ
Steering Stabilizer
www.skyjacker.com
REQUIRED TOOL LIST:
• Safety Glasses
• Metric / Standard Wrenches & Sockets
• Tape Measure
• Torque Wrench
Before beginning the installation, thoroughly & completely read these instructions & the enclosed
driver’s WARNING NOTICE. Affix the WARNING decal in the passenger compartment in clear view
of all occupants. Please refer to the Parts List to insure that all parts & hardware are received prior
to the disassembly of the vehicle. If any parts are found to be missing, contact SKYJACKER
Customer Service at 318-388-0816 to obtain the needed items. If you have any questions or
reservations about the installation of this product, contact SKYJACKER® Technical Assistance at
318-388-0816.
w/ Skyjacker Adjustable
Track Bar
®
Component Box Breakdown:
Part #: 7112 / 9112
Item # Description Qty Item # Description Qty
JTBF FRONT TRACK BAR BRACKET 1 BTIE-K BLACK BOOT TIE 1
7400WS WHITE STEERING DAMPER 1 (Included With 9112)
(Included With 7112) HSS HYDRO SHOCK DECAL 1
9400WS SILVER STEERING DAMPER 1 (Included With 7112)
(Included With 9112) SSD SILVER STABILIZER DECAL 1
B10RS RED BOOT 1 (Included With 9112)
(Included With 7112) HB-7112 HARDWARE BAG: 7112 / 9112 1
B10KS BLACK BOOT 1 I-7112 INST SHEET: 7112 / 9112 1
(Included With 9112)
BTIE RED BOOT TIE 1
(Included With 7112)
Hardware Bag Breakdown:
Part # HB-7112
Item # Description Qty Item # Description Qty
HOURGLASS 5/8 HOURGLASS 5/8 BUSHING 2 516X1X134U 5/16 X 1 X 1 3/4 U-BOLT 2
45313 ES2 SLEEVE / 1.42" LONG 1 516CTN 5/16 COARSE LOCK NUT 4
83037 TIE ROD BRACKET 1 516SAEW 5/16 SAE WASHER 4
140629 EB6 STUD BAG 1
I-7112 REV2 1-14 Pg 1
Page 2
Installation:
Note: This Skyjacker steering stabilizer is only designed to work with vehicles equipped with a
Skyjacker adjustable track bar.
1. Park the vehicle on a level concrete or asphalt surface with the front tires / wheels pointing
straight forward.
2. Set the emergency brake & block the rear tires / wheels.
3. Attach the new Skyjacker steering stabilizer bracket into the OEM track bar mount. Attach the
new bracket to the OEM mounting hole using the OEM hardware. Hold the new bracket straight
so the outer mounting tab can be marked & drilled. (See Photo # 1)
4. Using a 17/64" drill bit, drill the outer mounting tab hole. Attach the outer mounting tab using the
supplied 3/8" x 1" fine thread bolt, washers, & nut. Attach the new Skyjacker tie rod bracket to the
OEM tie rod using the supplied 5/16" u-bolts, washers, & nuts. Note: Do not tighten at this time.
5. Assemble the new Skyjacker steering stabilizer. Install the boot first, then install the bushing &
steel sleeve in the body end of the stabilizer. Install the bushing & stud on the shaft end of the
stabilizer.
6. Pull the shaft out of the new Skyjacker steering stabilizer half way & attach the new steering
stabilizer to both of the new brackets. Attach the new steering stabilizer to the new axle bracket
using the supplied 10mm bolt & nut. Attach to the new tie rod bracket using the supplied stud.
Before tightening the new tie rod bracket to the OEM tie rod, it will be necessary to adjust the
new tie rod bracket so the new steering stabilizer can be installed with shaft pulled out half way.
(See Photo # 2)

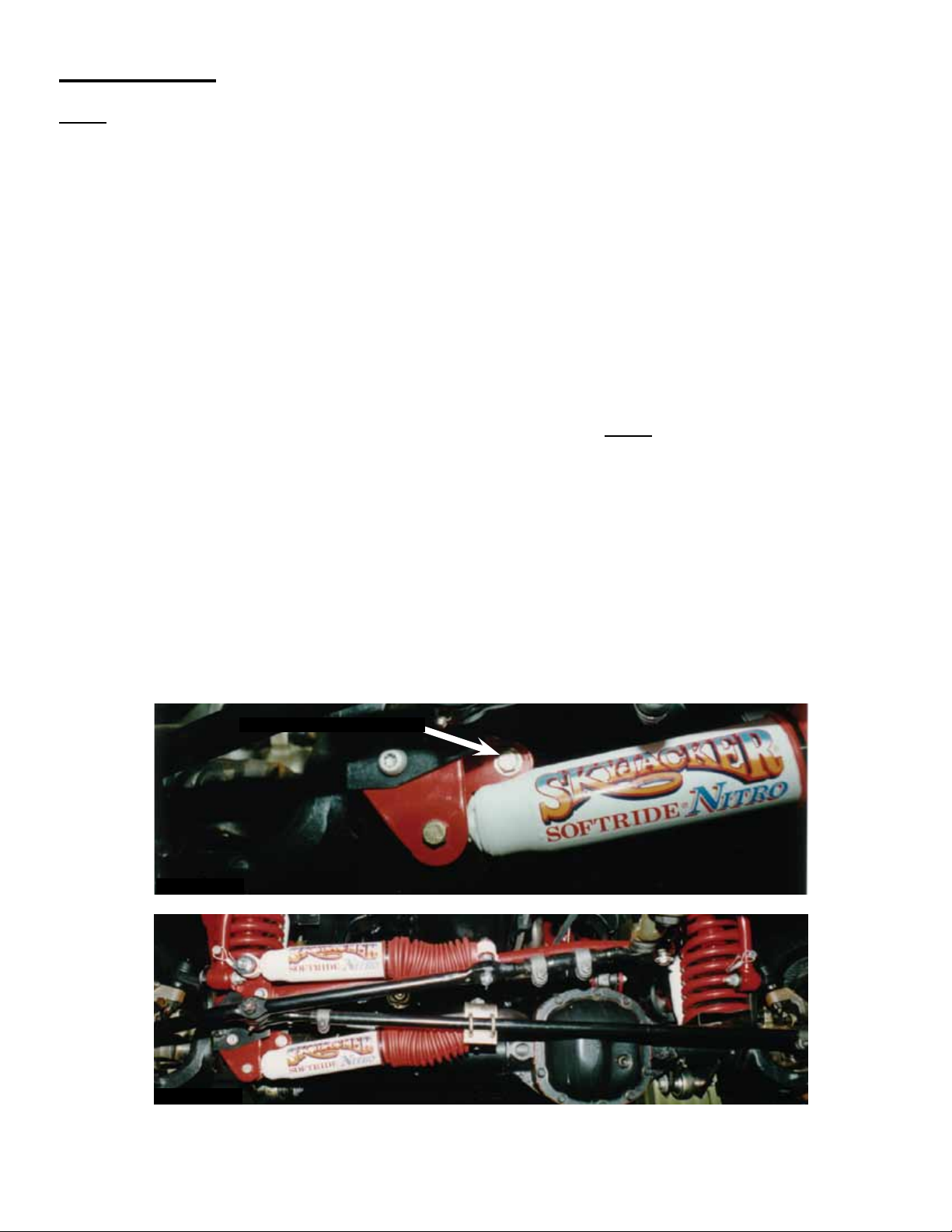

Photo # 1
Outer Mounting Tab Bolt
Photo # 2
I-7112 Pg 2
Page 3
Final Notes:
• After the installation is complete, double check that all nuts & bolts are tight. Refer to the following
chart for the proper torque specifications. (Do not retighten the nuts & bolts where thread lock
compound was used.)
• Cycle the steering of the vehicle left to right & check all parts for adequate clearance.
• After the first 100 miles, check all of the hardware for the proper torque & periodically thereafter.
TORQUE SPECIFICATIONS
INCH SYSTEM
Bolt Size Grade 5 Grade 8
5/16 15 FT LB 20 FT LB
3/8 30 FT LB 35 FT LB
7/16 45 FT LB 60 FT LB
1/2 65 FT LB 90 FT LB
9/16 95 FT LB 130 FTLB
5/8 135 FT LB 175 FT LB
3/4 185 FT LB 280 FT LB
• The above specifications are not to be used when the bolt is being installed with a bushing.
Bolt Size Class 8.8 Class 10.9
6MM 5 FT LB 9 FT LB
8MM 18 FT LB 23 FT LB
10MM 32 FT LB 45 FT LB
12 MM 55 FT LB 75 FT LB
14MM 85 FT LB 120 FT LB
16MM 130 FT LB 165 FT LB
18MM 170 FT LB 240 FT LB
METRIC SYSTEM
Seat Belts Save Lives, Please Wear Your Seat Belt.
I-7112 Pg 3
