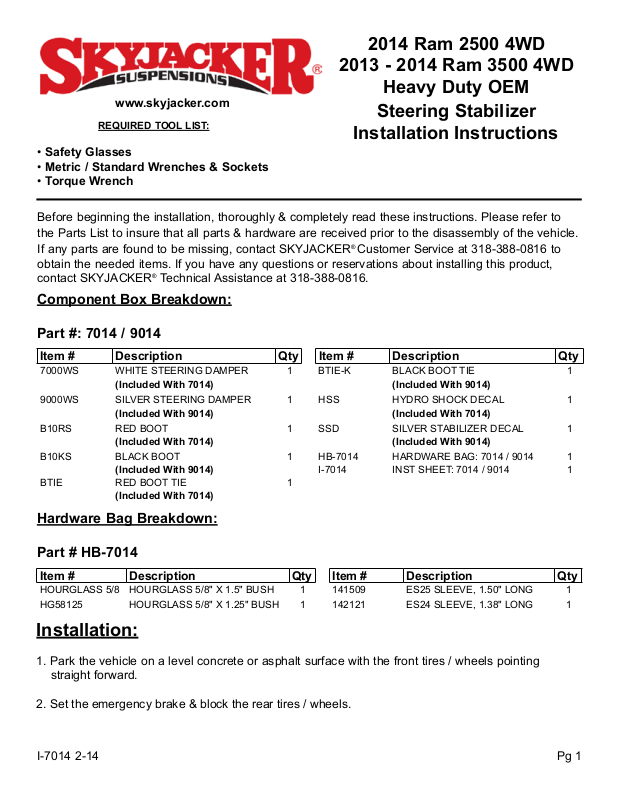

2014 Ram 2500 4WD
2013 - 2014 Ram 3500 4WD
Heavy Duty OEM
www.skyjacker.com
Steering Stabilizer
REQUIRED TOOL LIST:
Installation Instructions
• Safety Glasses
• Metric / Standard Wrenches & Sockets
• Torque Wrench
Before beginning the installation, thoroughly & completely read these instructions. Please refer to
the Parts List to insure that all parts & hardware are received prior to the disassembly of the vehicle.
If any parts are found to be missing, contact SKYJACKER
obtain the needed items. If you have any questions or reservations about installing this product,
®
contact SKYJACKER
Technical Assistance at 318-388-0816.
Component Box Breakdown:
Part #: 7014 / 9014
®
Customer Service at 318-388-0816 to
Item # Description Qty Item # Description Qty
7000WS WHITE STEERING DAMPER 1 BTIE-K BLACK BOOT TIE 1
(Included With 7014) (Included With 9014)
9000WS SILVER STEERING DAMPER 1 HSS HYDRO SHOCK DECAL 1
(Included With 9014) (Included With 7014)
B10RS RED BOOT 1 SSD SILVER STABILIZER DECAL 1
(Included With 7014) (Included With 9014)
B10KS BLACK BOOT 1 HB-7014 HARDWARE BAG: 7014 / 9014 1
(Included With 9014) I-7014 INST SHEET: 7014 / 9014 1
BTIE RED BOOT TIE 1
(Included With 7014)
Hardware Bag Breakdown:
Part # HB-7014
Item # Description Qty Item # Description Qty
HOURGLASS 5/8 HOURGLASS 5/8" X 1.5" BUSH 1 141509 ES25 SLEEVE, 1.50" LONG 1
HG58125 HOURGLASS 5/8" X 1.25" BUSH 1 142121 ES24 SLEEVE, 1.38" LONG 1
Installation:
1. Park the vehicle on a level concrete or asphalt surface with the front tires / wheels pointing
straight forward.
2. Set the emergency brake & block the rear tires / wheels.
I-7014 2-14 Pg 1
Page 2
3. Remove the OEM steering stabilizer from the OEM center link bracket
& front axle bracket.
4. Insert the supplied longer polyurethane bushing (1.5" Long) & the
longer sleeve (1.5" Long) into the shaft end of the new Skyjacker
steering stabilizer.
5. Insert the supplied shorter polyurethane bushing (1.25" Long) & the
shorter sleeve (1.38" Long) into the body end of the new Skyjacker
steering stabilizer.
6. Install the new Skyjacker boot to the new Skyjacker steering stabilizer
& secure with the supplied plastic tie.
7. Install the shaft end of the new Skyjacker steering stabilizer to the OEM
center link bracket using the OEM hardware. (Photo # 1)
8. Install the body end of the new Skyjacker steering stabilizer to the OEM
front axle bracket using the OEM hardware. (Photo # 2)
Final Notes:

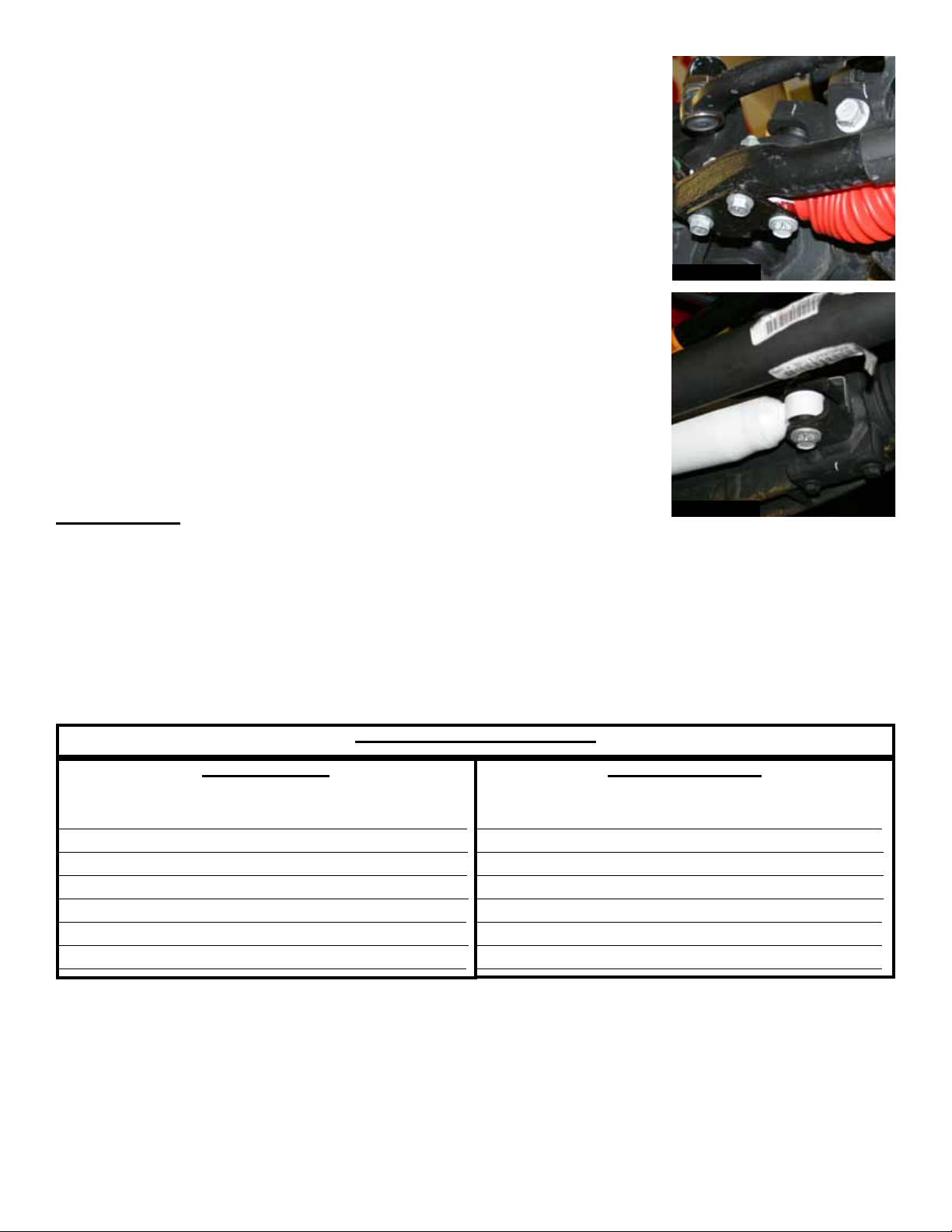

Photo # 1
Photo # 2
• After the installation is complete, double check that all nuts & bolts are tight. Refer to the following
chart for the proper torque specifications. (Do not retighten the nuts & bolts where thread lock
compound was used.)
• Cycle the steering of the vehicle left to right & check all parts for adequate clearance.
• After the first 100 miles, check all of the hardware for the proper torque & periodically thereafter.
TORQUE SPECIFICATIONS
INCH SYSTEM
Bolt Size Grade 5 Grade 8
5/16 15 FT LB 20 FT LB
3/8 30 FT LB 35 FT LB
7/16 45 FT LB 60 FT LB
1/2 65 FT LB 90 FT LB
9/16 95 FT LB 130 FTLB
5/8 135 FT LB 175 FT LB
3/4 185 FT LB 280 FT LB
• The above specifications are not to be used when the bolt is being installed with a bushing.
Bolt Size Class 8.8 Class 10.9
6MM 5 FT LB 9 FT LB
8MM 18 FT LB 23 FT LB
10MM 32 FT LB 45 FT LB
12 MM 55 FT LB 75 FT LB
14MM 85 FT LB 120 FT LB
16MM 130 FT LB 165 FT LB
18MM 170 FT LB 240 FT LB
METRIC SYSTEM
Seat Belts Save Lives, Please Wear Your Seat Belt.
I-7014 Pg 2
