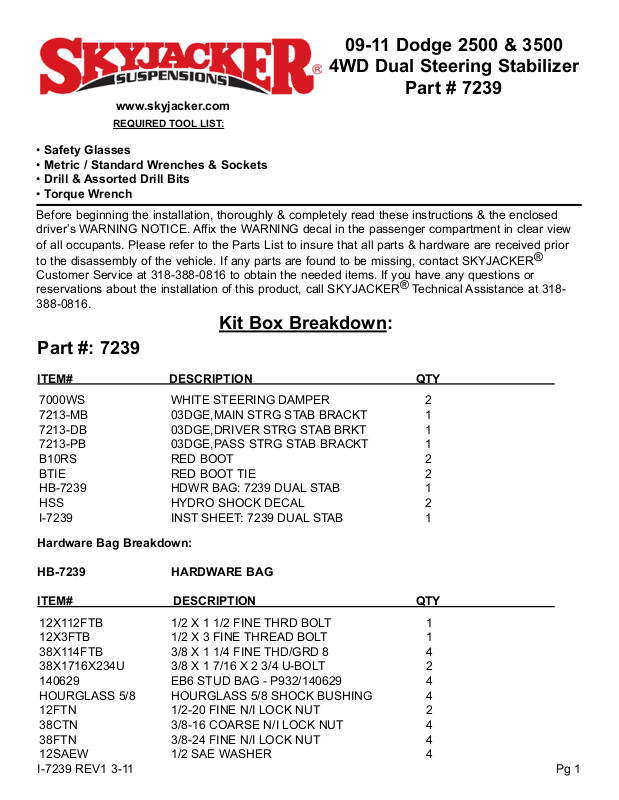

09-11 Dodge 2500 & 3500
4WD Dual Steering Stabilizer
Part # 7239
www.skyjacker.com
REQUIRED TOOL LIST:
• Safety Glasses
• Metric / Standard Wrenches & Sockets
• Drill & Assorted Drill Bits
• Torque Wrench
Before beginning the installation, thoroughly & completely read these instructions & the enclosed
driver’s WARNING NOTICE. Affix the WARNING decal in the passenger compartment in clear view
of all occupants. Please refer to the Parts List to insure that all parts & hardware are received prior
to the disassembly of the vehicle. If any parts are found to be missing, contact SKYJACKER
Customer Service at 318-388-0816 to obtain the needed items. If you have any questions or
reservations about the installation of this product, call SKYJACKER® Technical Assistance at 318388-0816.
®
Kit Box Breakdown:
Part #: 7239
ITEM# DESCRIPTION QTY
7000WS WHITE STEERING DAMPER 2
7213-MB 03DGE,MAIN STRG STAB BRACKT 1
7213-DB 03DGE,DRIVER STRG STAB BRKT 1
7213-PB 03DGE,PASS STRG STAB BRACKT 1
B10RS RED BOOT 2
BTIE RED BOOT TIE 2
HB-7239 HDWR BAG: 7239 DUAL STAB 1
HSS HYDRO SHOCK DECAL 2
I-7239 INST SHEET: 7239 DUAL STAB 1
Hardware Bag Breakdown:
HB-7239 HARDWARE BAG
ITEM# DESCRIPTION QTY
12X112FTB 1/2 X 1 1/2 FINE THRD BOLT 1
12X3FTB 1/2 X 3 FINE THREAD BOLT 1
38X114FTB 3/8 X 1 1/4 FINE THD/GRD 8 4
38X1716X234U 3/8 X 1 7/16 X 2 3/4 U-BOLT 2
140629 EB6 STUD BAG - P932/140629 4
HOURGLASS 5/8 HOURGLASS 5/8 SHOCK BUSHING 4
12FTN 1/2-20 FINE N/I LOCK NUT 2
38CTN 3/8-16 COARSE N/I LOCK NUT 4
38FTN 3/8-24 FINE N/I LOCK NUT 4
12SAEW 1/2 SAE WASHER 4
I-7239 REV1 3-11 Pg 1
Page 2
Hardware Bag Breakdown: (Continued)
HB-7239 HARDWARE BAG
ITEM# DESCRIPTION QTY
38SAEW 3/8 SAE WASHER 12
142121 ES24 SLEEVE/402087 1.38" 1
Installation:
1. Park the vehicle on a level concrete or asphalt surface with the tires
pointing straight forward.
2. Set the emergency brake & block the rear tires.
3. Remove the OEM steering stabilizer from the OEM mount on the
axle & OEM drag link.

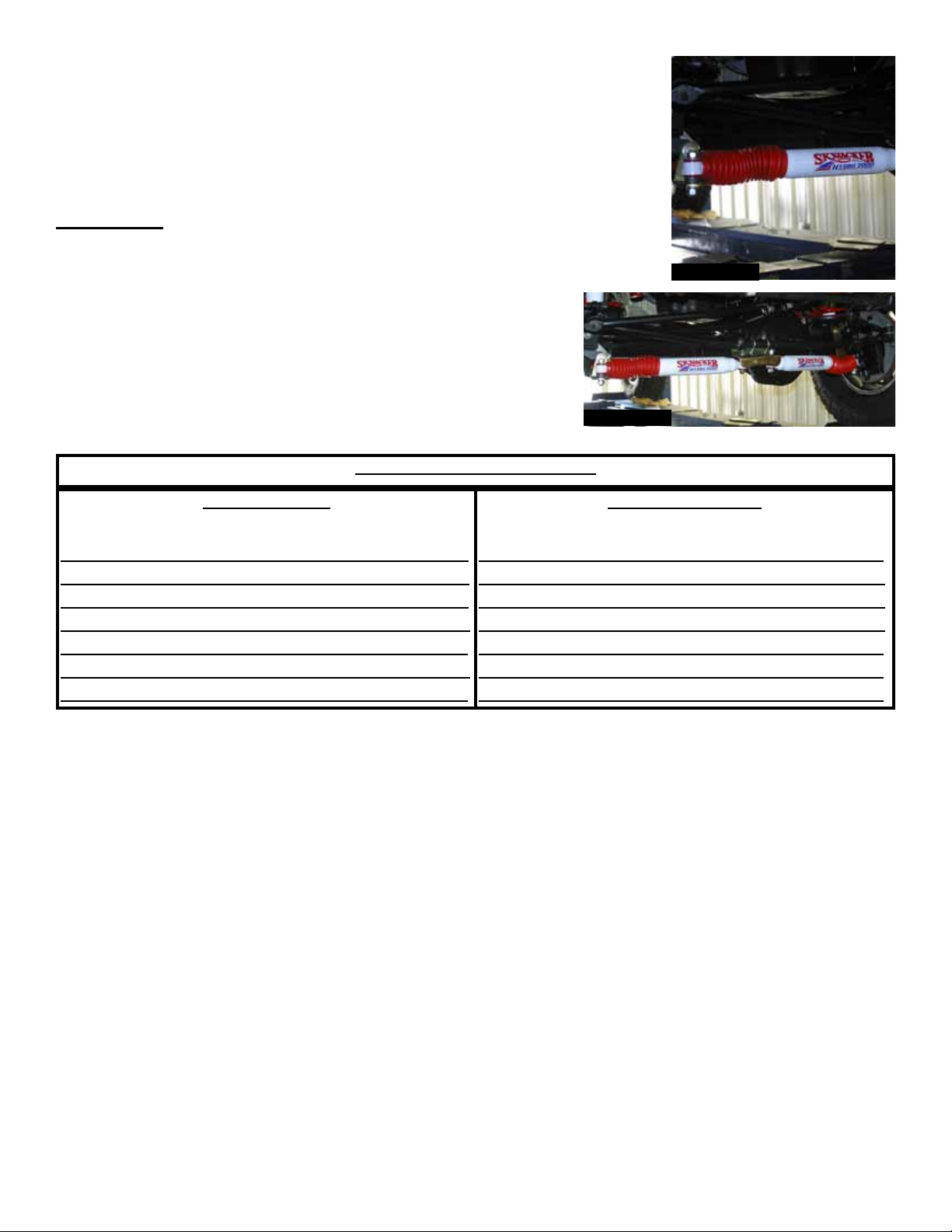

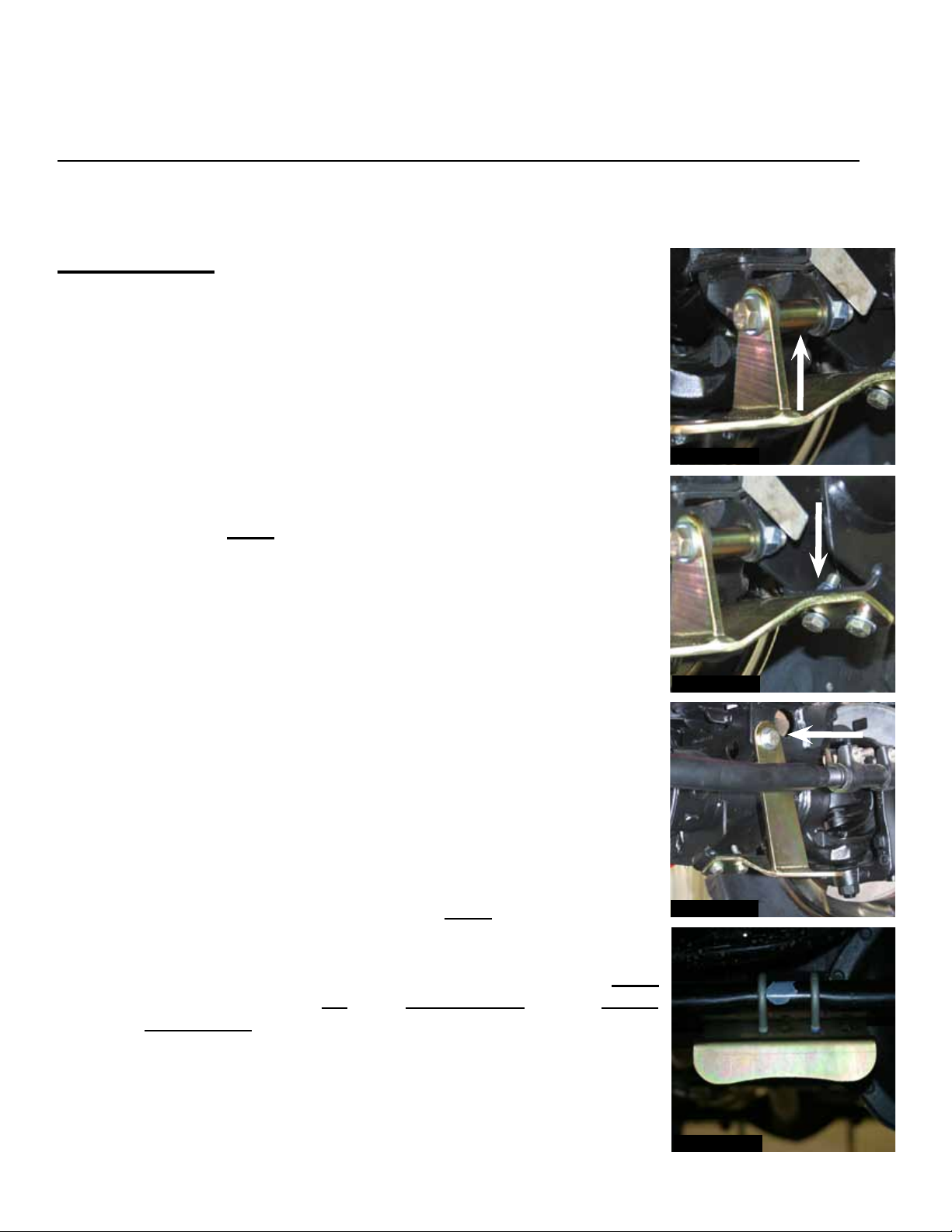

Photo # 1
4. Install the new Skyjacker passenger side bracket to the OEM
stabilizer mount on the axle using the 1/2" x 3” fine thread bolt,
washers, & nut. Note: Be sure to install the 1.38” anti-crush sleeve
(Part # 142121) inside the OEM mount. (See Arrow in Photo # 1)
5. Mark & drill the two lower mounting holes of the bracket to 3/8”.
Once drilled, install the 3/8" x 1 1/4” fine thread bolts, washers, &
nuts. (See Arrow in Photo # 2)
6. Install the new Skyjacker driver side bracket to the mounting hole in
the bottom of the OEM coil spring mount, using the 1/2" x 1 1/2” fine
thread bolt, washers, & nut. (See Arrow in Photo # 3)
7. Mark & drill the two lower bracket holes the same as in Step # 5.
Once drilled, install using the 3/8" x 1 1/4” fine thread bolts, washers,
& nuts.
8. Remove the OEM stabilizer bracket from the OEM drag link & install
the new Skyjacker main bracket, using the 3/8" x 1 7/16" x 2 3/4”
U-bolts, washers, & nuts. (See Photo # 4) Note: Be sure to line the
U-bolts up with the OEM notches on the OEM drag link.
9. Install the new Skyjacker double ended studs to each bracket. Note:
The studs will mount to the top of the outer brackets & to the bottom
of the main bracket.
Photo # 2
Photo # 3
10. Slide the new Skyjacker boots over the shafts of the new Skyjacker
steering stabilizers & attach with the supplied boot tie.
Photo # 4
I-7239 Pg 2
Page 3
11. Install the new Skyjacker polyurethane bushings into each end of the
new Skyjacker steering stabilizers. Attach the steering stabilizers onto
the new studs & tighten. (See Photo # 5)
12. Once the steering stabilizers are installed, check all the brackets &
bolts for proper installation. (See Photo # 6)
Final Notes:
• Cycle the steering left to right & check all parts for adequate clearance.
• Retighten all hardware after the first 100 miles.
Photo # 6
TORQUE SPECIFICATIONS
INCH SYSTEM
Bolt Size Grade 5 Grade 8
5/16 15 FT LB 20 FT LB
3/8 30 FT LB 35 FT LB
7/16 45 FT LB 60 FT LB
1/2 65 FT LB 90 FT LB
9/16 95 FT LB 130 FTLB
5/8 135 FT LB 175 FT LB
3/4 185 FT LB 280 FT LB
Bolt Size Class 8.8 Class 10.9
6MM 5 FT LB 9 FT LB
8MM 18 FT LB 23 FT LB
10MM 32 FT LB 45 FT LB
12 MM 55 FT LB 75 FT LB
14MM 85 FT LB 120 FT LB
16MM 130 FT LB 165 FT LB
18MM 170 FT LB 240 FT LB
METRIC SYSTEM
Photo # 5
• The above specifications are not to be used when the bolt is being installed with a bushing.
Seat Belts Save Lives, Please Wear Your Seat Belt.
I-7239 Pg 3
