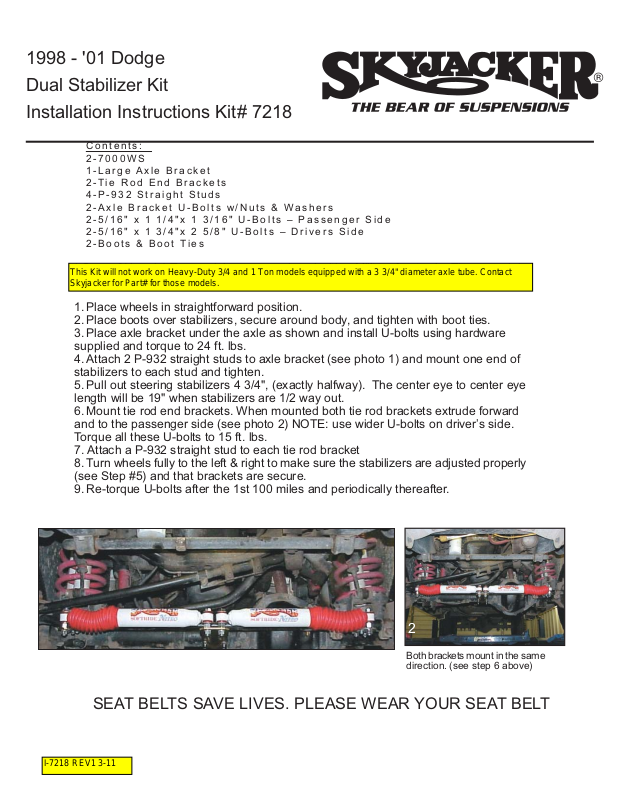

Page 1
1998 - '01 Dodge
This Kit will not work on Heavy-Duty 3/4 and 1 Ton models equipped with a 3 3/4" diameter axle tube. Contact
Skyjacker for Part# for those models.
I-7218 REV1 3-11
Dual Stabilizer Kit
Installation Instructions Kit# 7218
Contents:
2-7000WS
1-Large Axle Bracket
2-Tie Rod End Brackets
4-P-932 Straight Studs
2-Axle Bracket U-Bolts w/Nuts & Washers
2-5/16" x 1 1/4"x 1 3/16" U-Bolts Passenger Side
2-5/16" x 1 3/4"x 2 5/8" U-Bolts Drivers Side
2-Boots & Boot Ties
* Some 3/4 and 1 Ton models come equipped with a Military front axle. These models
carry a 3 3/4 axle tube. This stering stabilizer will not fit those applications.
1. Place wheels in straightforward position.
2. Place boots over stabilizers, secure around body, and tighten with boot ties.
3. Place axle bracket under the axle as shown and install U-bolts using hardware
supplied and torque to 24 ft. lbs.
4. Attach 2 P-932 straight studs to axle bracket (see photo 1) and mount one end of
stabilizers to each stud and tighten.
5. Pull out steering stabilizers 4 3/4", (exactly halfway). The center eye to center eye
length will be 19" when stabilizers are 1/2 way out.
6. Mount tie rod end brackets. When mounted both tie rod brackets extrude forward
and to the passenger side (see photo 2) NOTE: use wider U-bolts on drivers side.
Torque all these U-bolts to 15 ft. lbs.
7. Attach a P-932 straight stud to each tie rod bracket
8. Turn wheels fully to the left & right to make sure the stabilizers are adjusted properly
(see Step #5) and that brackets are secure.
9. Re-torque U-bolts after the 1st 100 miles and periodically thereafter.
1
2
Both brackets mount in the same
direction. (see step 6 above)
SEAT BELTS SAVE LIVES. PLEASE WEAR YOUR SEAT BELT
I-7218 4/03
