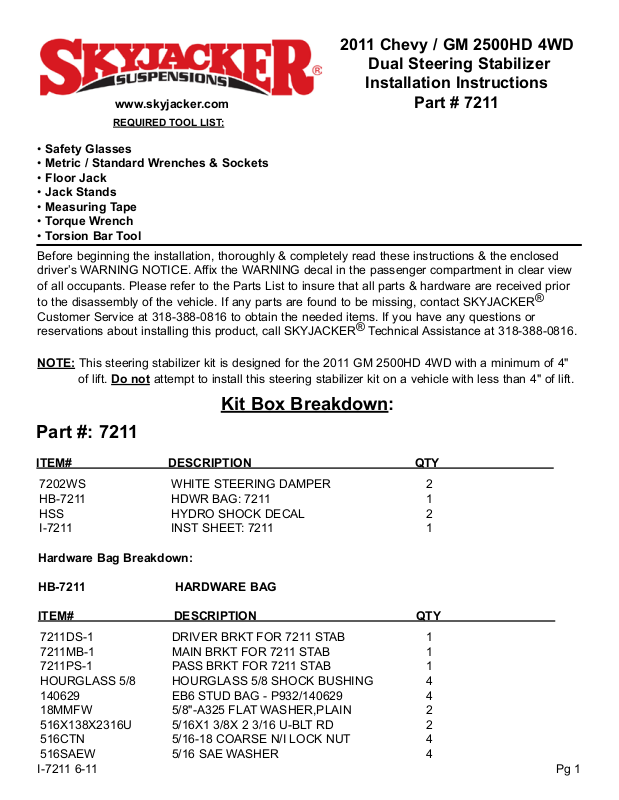

2011 Chevy / GM 2500HD 4WD
Dual Steering Stabilizer
Installation Instructions
www.skyjacker.com
REQUIRED TOOL LIST:
• Safety Glasses
• Metric / Standard Wrenches & Sockets
• Floor Jack
• Jack Stands
• Measuring Tape
• Torque Wrench
• Torsion Bar Tool
Before beginning the installation, thoroughly & completely read these instructions & the enclosed
driver’s WARNING NOTICE. Affix the WARNING decal in the passenger compartment in clear view
of all occupants. Please refer to the Parts List to insure that all parts & hardware are received prior
to the disassembly of the vehicle. If any parts are found to be missing, contact SKYJACKER
Customer Service at 318-388-0816 to obtain the needed items. If you have any questions or
reservations about installing this product, call SKYJACKER® Technical Assistance at 318-388-0816.
NOTE: This steering stabilizer kit is designed for the 2011 GM 2500HD 4WD with a minimum of 4"
of lift. Do not attempt to install this steering stabilizer kit on a vehicle with less than 4" of lift.
Part # 7211
®
Kit Box Breakdown:
Part #: 7211
ITEM# DESCRIPTION QTY
7202WS WHITE STEERING DAMPER 2
HB-7211 HDWR BAG: 7211 1
HSS HYDRO SHOCK DECAL 2
I-7211 INST SHEET: 7211 1
Hardware Bag Breakdown:
HB-7211 HARDWARE BAG
ITEM# DESCRIPTION QTY
7211DS-1 DRIVER BRKT FOR 7211 STAB 1
7211MB-1 MAIN BRKT FOR 7211 STAB 1
7211PS-1 PASS BRKT FOR 7211 STAB 1
HOURGLASS 5/8 HOURGLASS 5/8 SHOCK BUSHING 4
140629 EB6 STUD BAG - P932/140629 4
18MMFW 5/8"-A325 FLAT WASHER,PLAIN 2
516X138X2316U 5/16X1 3/8X 2 3/16 U-BLT RD 2
516CTN 5/16-18 COARSE N/I LOCK NUT 4
516SAEW 5/16 SAE WASHER 4
I-7211 6-11 Pg 1
Page 2
Installation:
1. Park the vehicle on a level concrete or asphalt surface with the front
tires / wheels pointing straight forward.
2. Set the emergency brake & block the rear tires / wheels.
3. If equipped, remove the OEM steering stabilizer from the OEM mount
on the frame & OEM center link.
4. Place a floor jack under the lower control arm’s front cross member &
raise the vehicle. Place jack stands under the frame rails, behind the
front wheel wells & lower the frame of the vehicle onto the jack stands.
WARNING: Be extremely careful when loading or unloading the
torsion bars; there is a tremendous amount of stored energy (load
pressure) in the torsion bars. Keep your hands & body clear of the
adjuster arm assembly & puller tool in case anything slips or breaks.
Photo # 1
NOTE: A special PULLER TOOL (Kent - Moore Part # CH-48809 is
required for the SAFE REMOVAL / INSTALLATION of the torsion bars.
This special puller can be purchased from a GM dealer or auto parts
store.

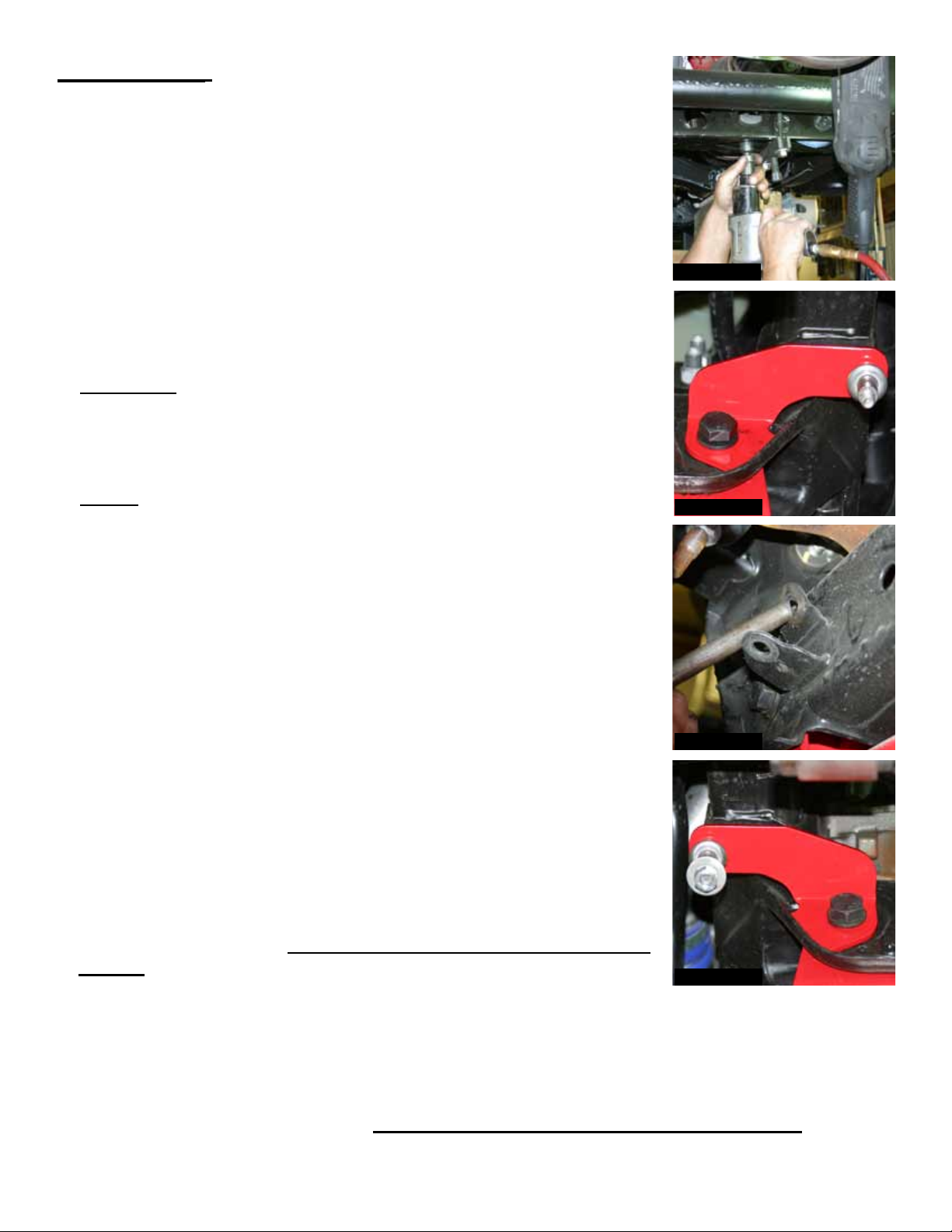

5. Locate the torsion bar adjuster bolt on the bottom of the torsion bar
cross member, measure & record the length of the torsion bar
adjusting bolt that is exposed. Apply a small amount of lubricating
grease to the puller threads & the puller shaft-to-adjuster arm contact
point. Position the puller & load the adjuster arm until the adjuster nut
can be removed from the torsion bar cross member using a 21mm
socket. (See Photo # 1) Repeat this process on the opposite side.
6. Install the four new Skyjacker studs to the driver side, center, &
passenger side brackets using a 3/4" socket & adjustable pliers. (See
Photo # 2, 4, & 5)
7. Remove the upper front cross member bolt on the passenger side of
the vehicle. Install the supplied 18mm washer between the OEM cross
member & the new Skyjacker passenger side bracket. Install the upper
front cross member bolt (With the hex head of the bolt to the new
bracket) thru the new bracket, 18mm washer, & OEM cross member
using a 1 1/16" socket. (See Photo # 2)
Photo # 2
Photo # 3
Photo # 4
8. Bend the OEM stablizer mounting bracket tabs upward using a hammer & punch. (See Photo # 3)
9. Remove the upper front cross member bolt on the driver side of the vehicle. Install the supplied
18mm washer between the OEM cross member & the new Skyjacker driver side bracket. Install
the upper front cross member bolt (With the hex head of the bolt to the new bracket) thru the
new bracket, 18mm washer, & OEM cross member using a 1 1/16" socket. (See Photo # 4)
Pg 2I-7211
Page 3

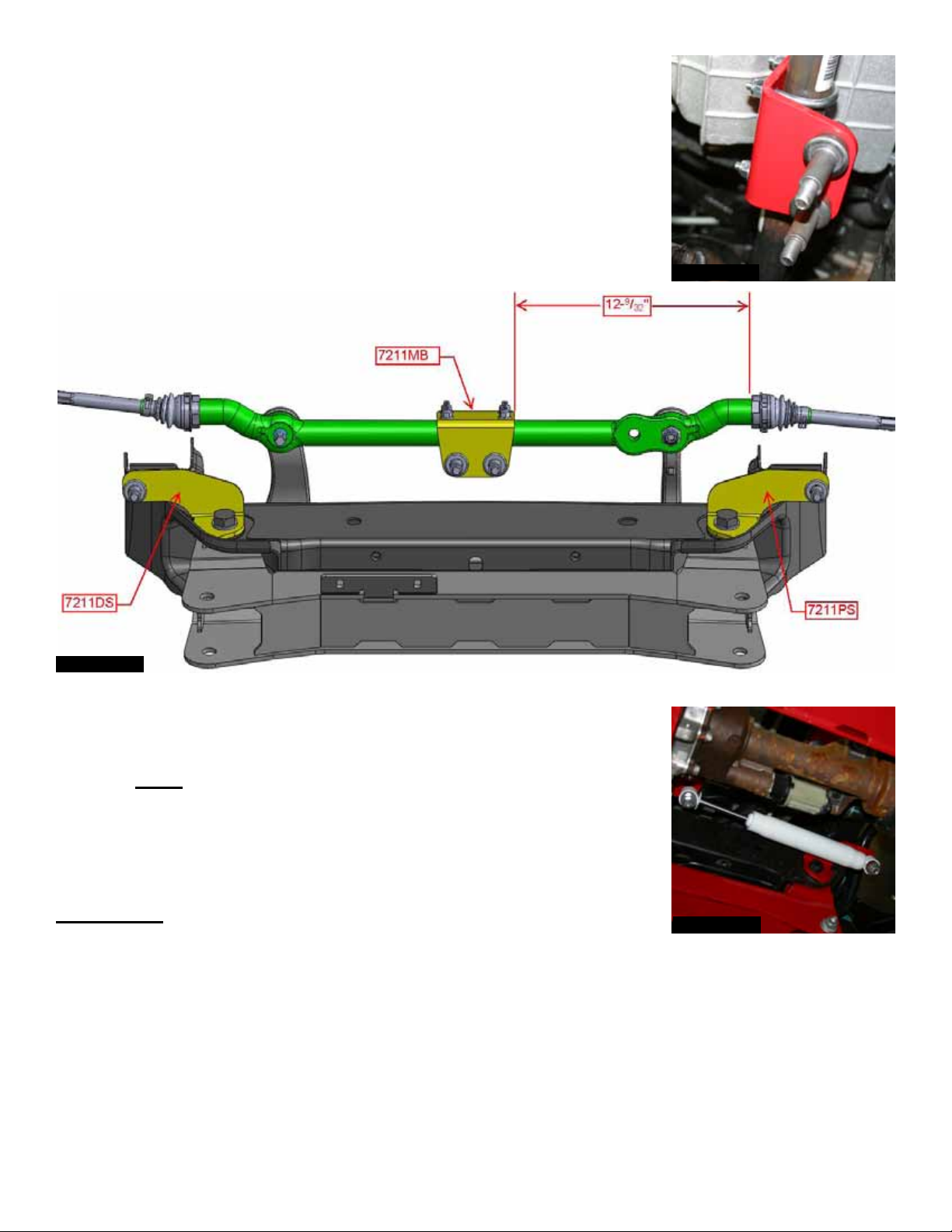

10. Measure from the base of the inner tie rod 12 9/32" & mount the new
Skyjacker center bracket parallel with the angle of the OEM center
link steering stabilizer mounting hole using the 5/16" x 1 3/8" x
2 3/16" u-bolts, washers, nuts, & 1/2" socket. (See Photo # 5 & 6)
11. Install the 5/8” hourglass bushings into each end of the new Skyjacker
steering stabilizers & mount with the shaft end of the new sterring
stabilizers towards the inside using the washers, nuts, & 3/4" socket.
(See Photo # 7)
Photo # 5
Photo # 6
12. Position the torsion bar puller & load the adjuster arm until the
adjuster nut can be installed to the torsion bar cross member using a
21mm socket. (See Photo # 1) Repeat this process on the opposite
side. Note: Be sure to install the adjuster bolts to the same length as
the OEM when removed in Step # 5.
13. Using a floor jack, remove the jack stands from under the frame
rails & lower the vehicle to the ground.
Final Notes:
• Cycle the steering of the vehicle left to right & check all parts for adequate clearance.
• After the first 100 miles, check all of the hardware for the proper torque.
Photo # 7
Seat Belts Save Lives, Please Wear Your Seat Belt.
I-7211 Pg 3
