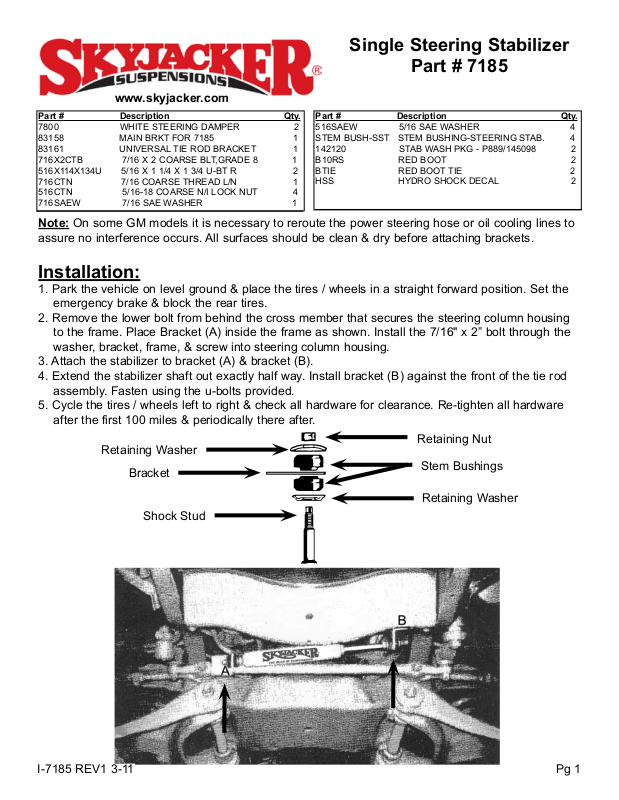

Page 1
www.skyjacker.com
Single Steering Stabilizer
Part # 7185
Part # Description Qty.
7800 WHITE STEERING DAMPER 2
83158 MAIN BRKT FOR 7185 1
83161 UNIVERSAL TIE ROD BRACKET 1
716X2CTB 7/16 X 2 COARSE BLT,GRADE 8 1
516X114X134U 5/16 X 1 1/4 X 1 3/4 U-BT R 2
716CTN 7/16 COARSE THREAD L/N 1
516CTN 5/16-18 COARSE N/I LOCK NUT 4
716SAEW 7/16 SAE WASHER 1
Part # Description Qty.
516SAEW 5/16 SAE WASHER 4
STEM BUSH-SST STEM BUSHING-STEERING STAB. 4
142120 STAB WASH PKG - P889/145098 2
B10RS RED BOOT 2
BTIE RED BOOT TIE 2
HSS HYDRO SHOCK DECAL 2
Note: On some GM models it is necessary to reroute the power steering hose or oil cooling lines to
assure no interference occurs. All surfaces should be clean & dry before attaching brackets.
Installation:
1. Park the vehicle on level ground & place the tires / wheels in a straight forward position. Set the
emergency brake & block the rear tires.
2. Remove the lower bolt from behind the cross member that secures the steering column housing
to the frame. Place Bracket (A) inside the frame as shown. Install the 7/16" x 2” bolt through the
washer, bracket, frame, & screw into steering column housing.
3. Attach the stabilizer to bracket (A) & bracket (B).
4. Extend the stabilizer shaft out exactly half way. Install bracket (B) against the front of the tie rod
assembly. Fasten using the u-bolts provided.
5. Cycle the tires / wheels left to right & check all hardware for clearance. Re-tighten all hardware
after the first 100 miles & periodically there after.
Retaining Washer
Bracket
Shock Stud
Retaining Nut
Stem Bushings
Retaining Washer
I-7185 REV1 3-11
Pg 1
