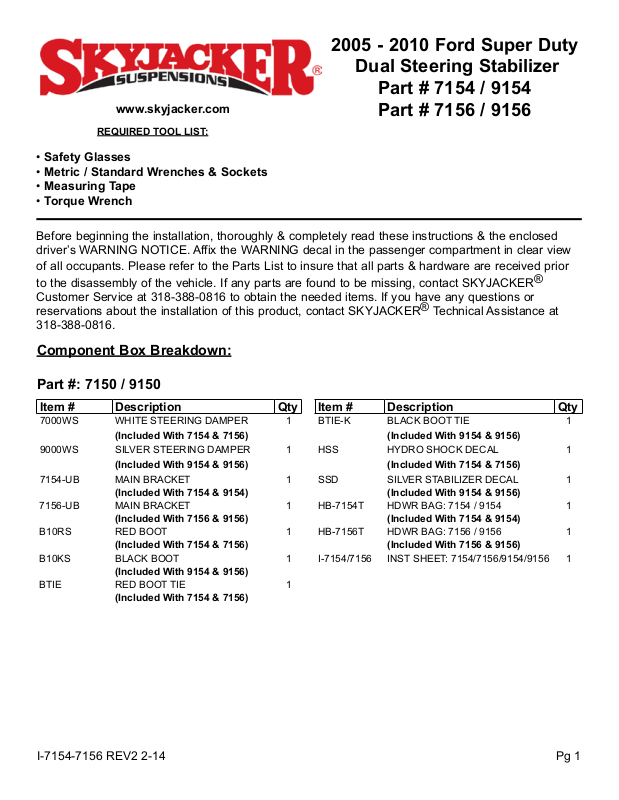

2005 - 2010 Ford Super Duty
Dual Steering Stabilizer
Part # 7154 / 9154
www.skyjacker.com
REQUIRED TOOL LIST:
Part # 7156 / 9156
• Safety Glasses
• Metric / Standard Wrenches & Sockets
• Measuring Tape
• Torque Wrench
Before beginning the installation, thoroughly & completely read these instructions & the enclosed
driver’s WARNING NOTICE. Affix the WARNING decal in the passenger compartment in clear view
of all occupants. Please refer to the Parts List to insure that all parts & hardware are received prior
to the disassembly of the vehicle. If any parts are found to be missing, contact SKYJACKER
®
Customer Service at 318-388-0816 to obtain the needed items. If you have any questions or
reservations about the installation of this product, contact SKYJACKER® Technical Assistance at
318-388-0816.
Component Box Breakdown:
Part #: 7150 / 9150
Item # Description Qty Item # Description Qty
7000WS WHITE STEERING DAMPER 1 BTIE-K BLACK BOOT TIE 1
(Included With 7154 & 7156) (Included With 9154 & 9156)
9000WS SILVER STEERING DAMPER 1 HSS HYDRO SHOCK DECAL 1
(Included With 9154 & 9156) (Included With 7154 & 7156)
7154-UB MAIN BRACKET 1 SSD SILVER STABILIZER DECAL 1
(Included With 7154 & 9154) (Included With 9154 & 9156)
7156-UB MAIN BRACKET 1 HB-7154T HDWR BAG: 7154 / 9154 1
(Included With 7156 & 9156) (Included With 7154 & 9154)
B10RS RED BOOT 1 HB-7156T HDWR BAG: 7156 / 9156 1
(Included With 7154 & 7156) (Included With 7156 & 9156)
B10KS BLACK BOOT 1 I-7154/7156 INST SHEET: 7154/7156/9154/9156 1
(Included With 9154 & 9156)
BTIE RED BOOT TIE 1
(Included With 7154 & 7156)
I-7154-7156 REV2 2-14 Pg 1
Page 2
Hardware Bag Breakdown:
Part # HB-7154T (Included With 7154 / 9154
Item # Description Qty Item # Description Qty
140629 EB6 STUD BAG 1 12SAEW 1/2 SAE WASHER 2
HOURGLASS 5/8 5/8 SHOCK BUSHING 2 12FTN 1/2 FINE THREAD LOCK NUT 1
SSB5468-T STRG STAB TAPERED SLEEVE 1 81004 TAPERED SLEEVE, 1/2" I.D. 1
58SP 5/8" SPACER - 1 1/4" O.D. 1 142121 ES24 SLEEVE, 1.38" LONG 1
12X312FTB 1/2 X 3 1/2 FINE THREAD BOLT 1
Hardware Bag Breakdown:
Part # HB-7156T (Included With 7156 / 9156
Item # Description Qty Item # Description Qty
P837 STAB TAPERED STUD 1 12FTN 1/2 FINE THREAD LOCK NUT 1
140629 EB6 STUD BAG 1 12SAEW 1/2 SAE WASHER 2
HOURGLASS 5/8 5/8 SHOCK BUSHING 2 SSB5468-T STRG STAB TAPERED SLEEVE 1
12X114FTB 1/2 X 1 1/4 FINE THREAD BOLT 1
Installation:
1. Park the vehicle on a level concrete or asphalt surface with the
front tires / wheels pointing straight forward.
2. Set the emergency brake & block the rear tires / wheels.

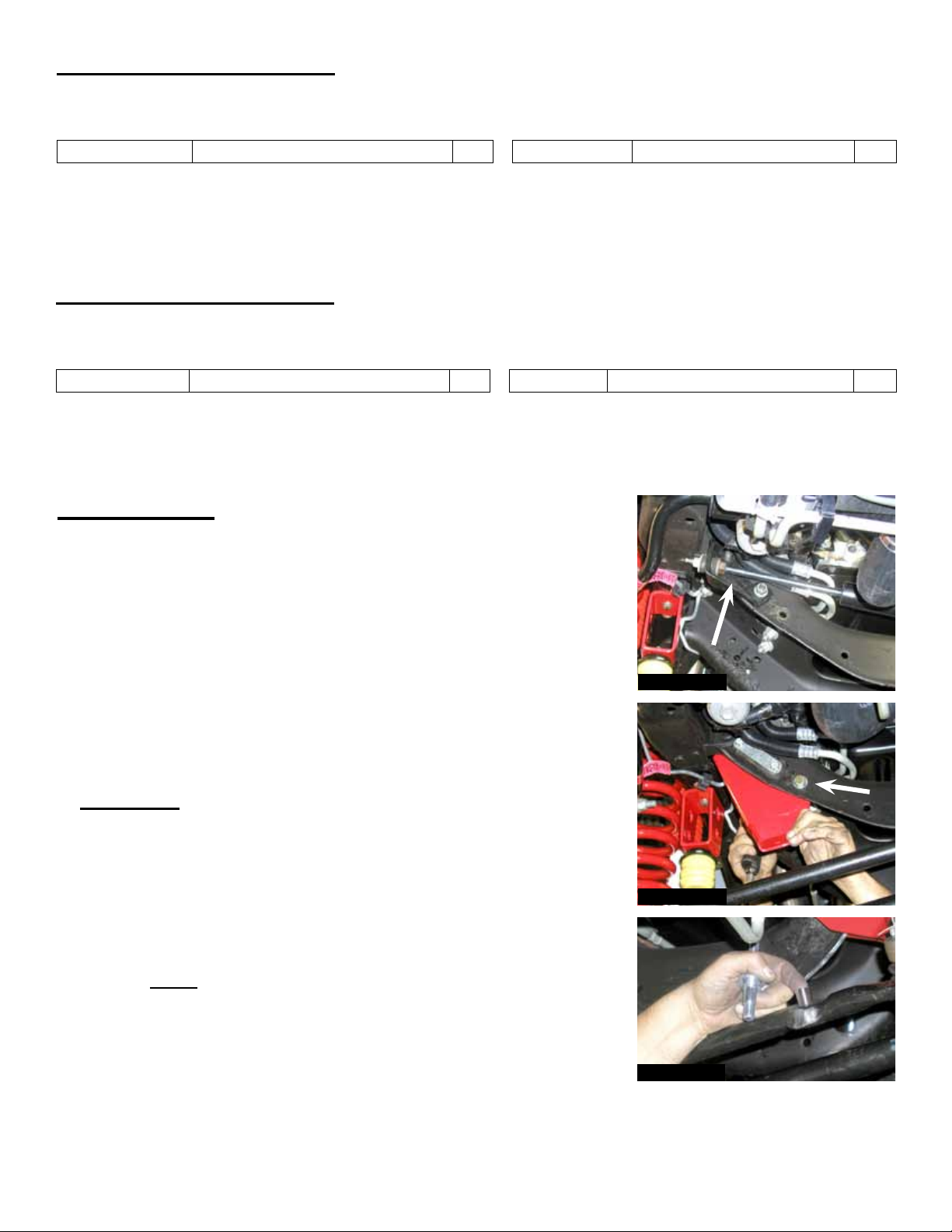

3. Remove the OEM steering stabilizer & OEM bracket from the
cross member using a 18mm socket. (See Photo # 1)
4. Attach the new Skyjacker steering stabilizer bracket to the OEM
cross member using the OEM mounting holes & OEM hardware.
5. Part # 7156: Install the supplied 1/2" x 1 1/4” fine thread bolt,
washers, & nut in the remaining mounting hole. (See Arrow in
Photo # 2)
6. Install the new Skyjacker tapered sleeve into the tapered
mounting hole of the OEM drag link. With the new tapered sleeve
installed, insert the new Skyjacker tapered stud for Part # 7156.
(See Photo # 3) Insert the 1/2" x 3 1/2" bolt & spacer for Part
# 7154. Note: The new spacer is to be installed on the top side of
the OEM drag link.
Photo # 1
Photo # 2
Photo # 3
I-7154-7156 Pg 2
Page 3
7. Install the new Skyjacker non-tapered stud into the top of the new
steering stabilizer bracket. Install the supplied 5/8 hourglass
bushings & boot onto the new Skyjacker steering stabilizer.

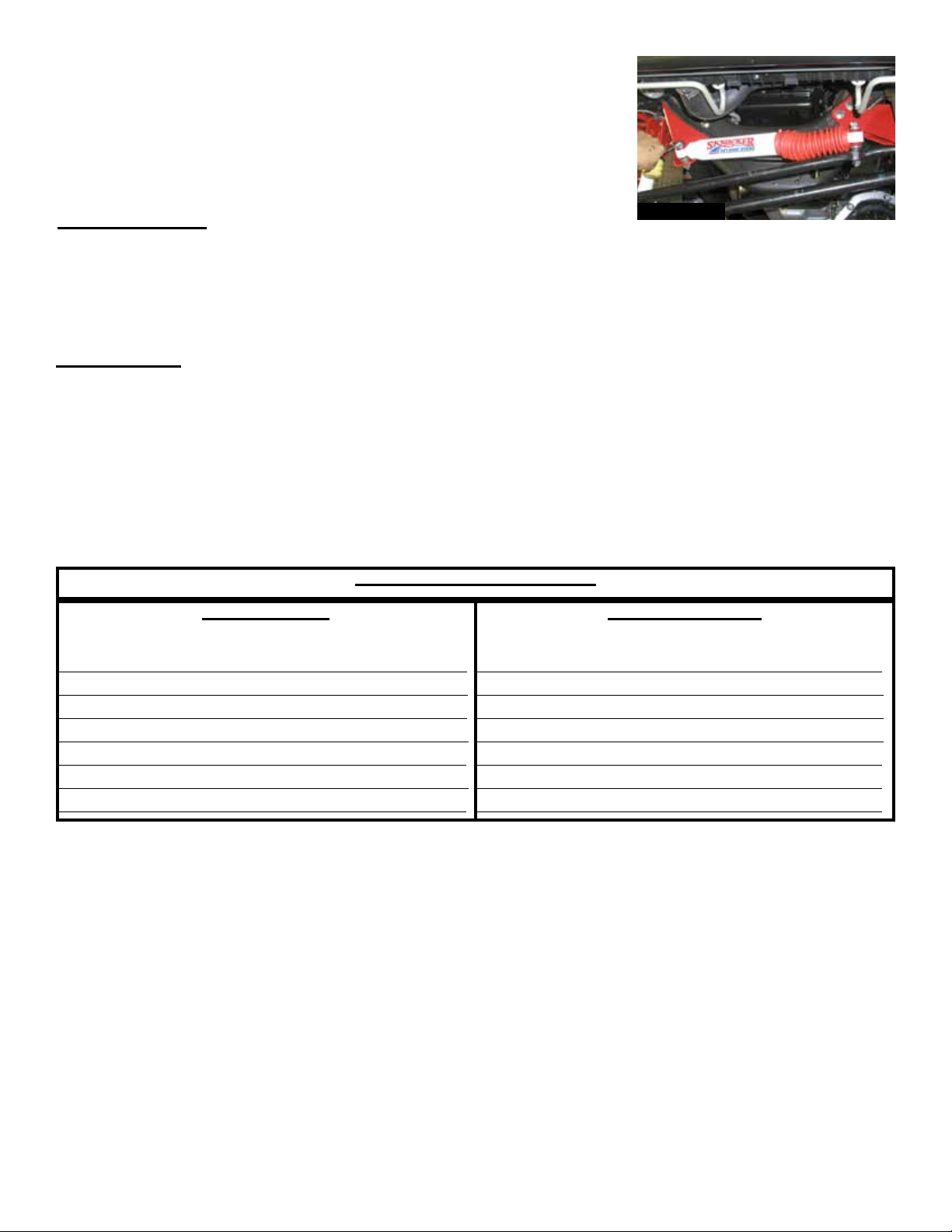

8. Attach the new Skyjacker steering stabilizer onto the new studs
using the supplied washers & nuts. (See Photo # 4)
Important Notes:
• Part # 7154 is designed to work on vehicles with a 4” or 8.5" suspension lift. When installing on an
8.5”, the new steering stabilizer & stud will mount to the bottom of the new frame bracket. Part #
7156 is designed to work on vehicles with a 6” suspension lift.
Photo # 4
Final Notes:
• After the installation is complete, double check that all nuts & bolts are tight. Refer to the following
chart for the proper torque specifications. (Do not retighten the nuts & bolts where thread lock
compound was used.)
• Cycle the steering of the vehicle left to right & check all parts for adequate clearance.
• After the first 100 miles, check all of the hardware for the proper torque & periodically thereafter.
TORQUE SPECIFICATIONS
INCH SYSTEM
Bolt Size Grade 5 Grade 8
5/16 15 FT LB 20 FT LB
3/8 30 FT LB 35 FT LB
7/16 45 FT LB 60 FT LB
1/2 65 FT LB 90 FT LB
9/16 95 FT LB 130 FTLB
5/8 135 FT LB 175 FT LB
3/4 185 FT LB 280 FT LB
Bolt Size Class 8.8 Class 10.9
6MM 5 FT LB 9 FT LB
8MM 18 FT LB 23 FT LB
10MM 32 FT LB 45 FT LB
12 MM 55 FT LB 75 FT LB
14MM 85 FT LB 120 FT LB
16MM 130 FT LB 165 FT LB
18MM 170 FT LB 240 FT LB
METRIC SYSTEM
• The above specifications are not to be used when the bolt is being installed with a bushing.
Seat Belts Save Lives, Please Wear Your Seat Belt.
I-7154-7156 Pg 3
