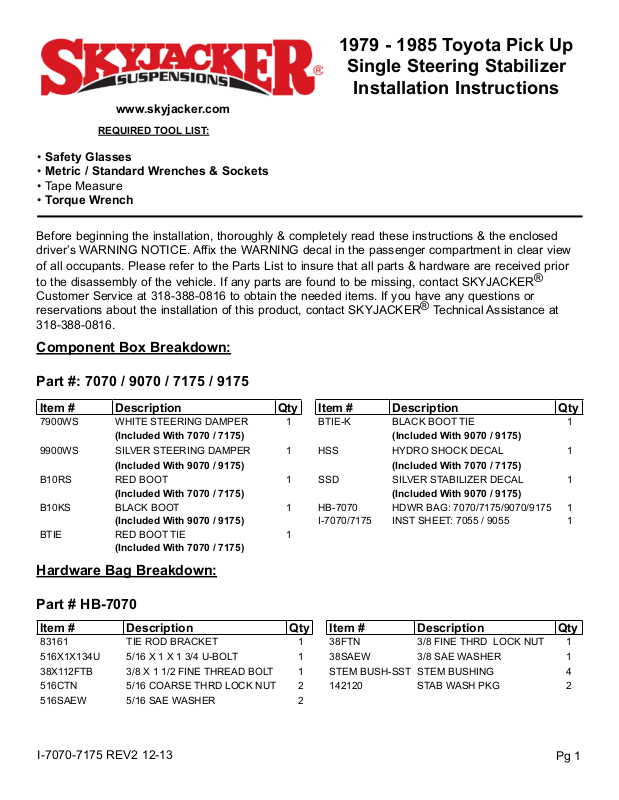

1979 - 1985 Toyota Pick Up
Single Steering Stabilizer
Installation Instructions
www.skyjacker.com
REQUIRED TOOL LIST:
• Safety Glasses
• Metric / Standard Wrenches & Sockets
• Tape Measure
• Torque Wrench
Before beginning the installation, thoroughly & completely read these instructions & the enclosed
driver’s WARNING NOTICE. Affix the WARNING decal in the passenger compartment in clear view
of all occupants. Please refer to the Parts List to insure that all parts & hardware are received prior
to the disassembly of the vehicle. If any parts are found to be missing, contact SKYJACKER
Customer Service at 318-388-0816 to obtain the needed items. If you have any questions or
reservations about the installation of this product, contact SKYJACKER® Technical Assistance at
318-388-0816.
®
Component Box Breakdown:
Part #: 7070 / 9070 / 7175 / 9175
Item # Description Qty Item # Description Qty
7900WS WHITE STEERING DAMPER 1 BTIE-K BLACK BOOT TIE 1
(Included With 7070 / 7175) (Included With 9070 / 9175)
9900WS SILVER STEERING DAMPER 1 HSS HYDRO SHOCK DECAL 1
(Included With 9070 / 9175) (Included With 7070 / 7175)
B10RS RED BOOT 1 SSD SILVER STABILIZER DECAL 1
(Included With 7070 / 7175) (Included With 9070 / 9175)
B10KS BLACK BOOT 1 HB-7070 HDWR BAG: 7070/7175/9070/9175 1
(Included With 9070 / 9175) I-7070/7175 INST SHEET: 7055 / 9055 1
BTIE RED BOOT TIE 1
(Included With 7070 / 7175)
Hardware Bag Breakdown:
Part # HB-7070
Item # Description Qty Item # Description Qty
83161 TIE ROD BRACKET 1 38FTN 3/8 FINE THRD LOCK NUT 1
516X1X134U 5/16 X 1 X 1 3/4 U-BOLT 1 38SAEW 3/8 SAE WASHER 1
38X112FTB 3/8 X 1 1/2 FINE THREAD BOLT 1 STEM BUSH-SST STEM BUSHING 4
516CTN 5/16 COARSE THRD LOCK NUT 2 142120 STAB WASH PKG 2
516SAEW 5/16 SAE WASHER 2
I-7070-7175 REV2 12-13
Pg 1
Page 2
Installation:
1. Park the vehicle on a level concrete or asphalt surface with the front tires / wheels pointing
straight forward.
2. Set the emergency brake & block the rear tires / wheels.
3. Install the body end of the new Skyjacker steering stabilizer onto bracket “A”.
4. Extend the new Skyjacker steering stabilizer shaft out 4”(exactly half way) & attach bracket “B” to
the tie rod using the supplied u-bolt & 3/8” bolt. The supplied 3/8” bolt will be attached to the
lower forward hole on bracket “B”. The supplied u-bolt will be attached around the tie rod &
through bracket “B”.

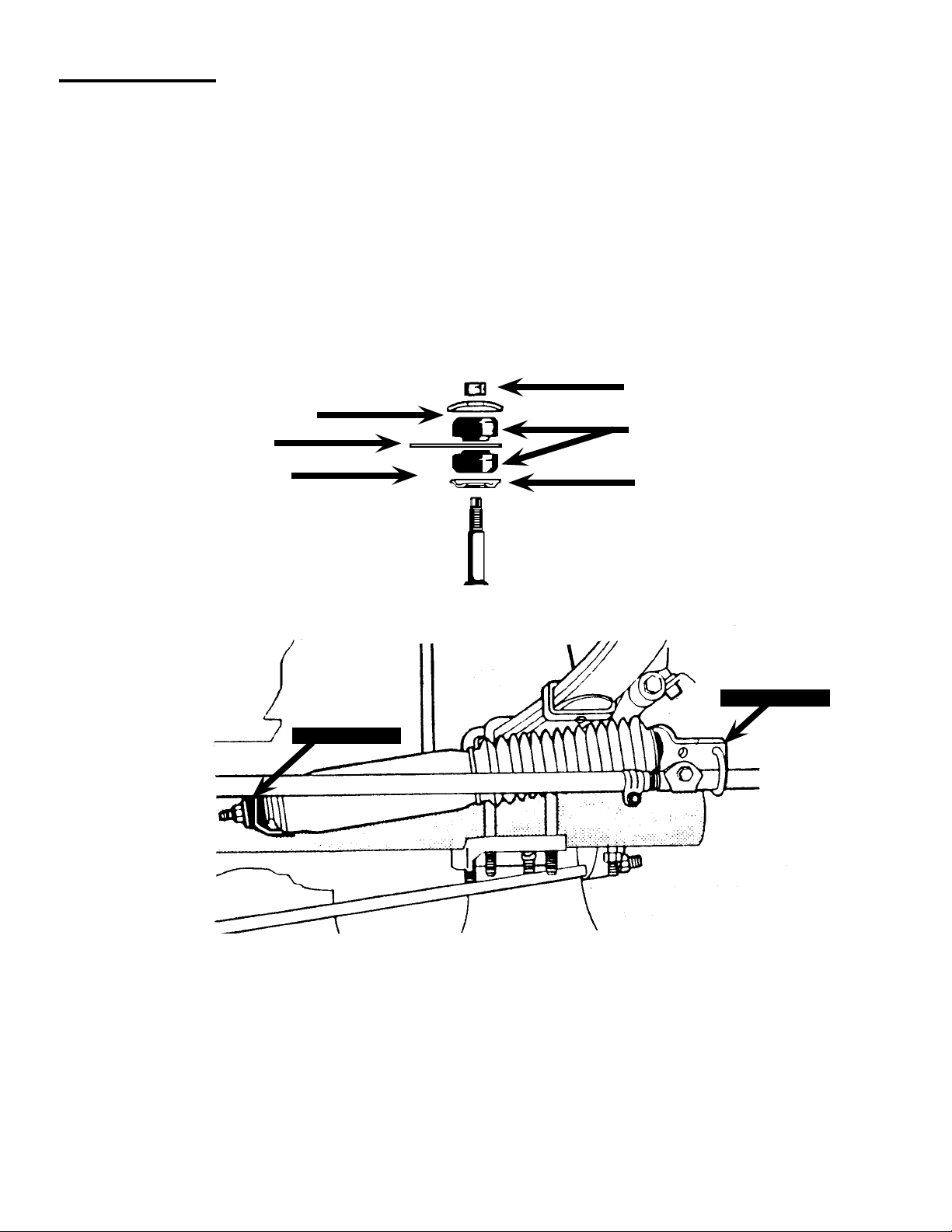

Retaining Nut
Retaining Washer
Bracket
Stem Bushings
Shock Stud
Retaining Washer
Bracket “B”
Bracket “A”
I-7070-7175 Pg 2
Page 3
Final Notes:
• After the installation is complete, double check that all nuts & bolts are tight. Refer to the following
chart for the proper torque specifications. (Do not retighten the nuts & bolts where thread lock
compound was used.)
• Cycle the steering of the vehicle left to right & check all parts for adequate clearance.
• After the first 100 miles, check all of the hardware for the proper torque & periodically thereafter.
TORQUE SPECIFICATIONS
INCH SYSTEM
Bolt Size Grade 5 Grade 8
5/16 15 FT LB 20 FT LB
3/8 30 FT LB 35 FT LB
7/16 45 FT LB 60 FT LB
1/2 65 FT LB 90 FT LB
9/16 95 FT LB 130 FTLB
5/8 135 FT LB 175 FT LB
3/4 185 FT LB 280 FT LB
• The above specifications are not to be used when the bolt is being installed with a bushing.
Bolt Size Class 8.8 Class 10.9
6MM 5 FT LB 9 FT LB
8MM 18 FT LB 23 FT LB
10MM 32 FT LB 45 FT LB
12 MM 55 FT LB 75 FT LB
14MM 85 FT LB 120 FT LB
16MM 130 FT LB 165 FT LB
18MM 170 FT LB 240 FT LB
METRIC SYSTEM
Seat Belts Save Lives, Please Wear Your Seat Belt.
I-7070-7175 Pg 3
