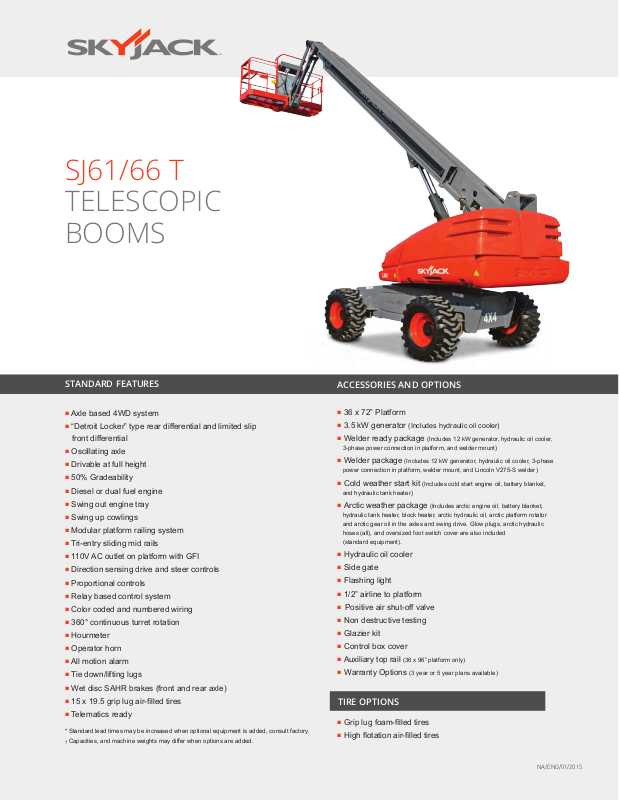

SKYJACK SJ61T Specifications

SJ61/66 T

TELESCOPIC
BOOMS

STANDARD FEATURES

■

Axle based 4WD system

■

“Detroit Locker” type rear differential and limited slip

front differential

■

Oscillating axle

■

Drivable at full height

■

50% Gradeability

■

Diesel or dual fuel engine

■

Swing out engine tray

■

Swing up cowlings

■

Modular platform railing system

■

Tri-entry sliding mid rails

■

110V AC outlet on platform with GFI

■

Direction sensing drive and steer controls

■

Proportional controls

■

Relay based control system

■

Color coded and numbered wiring

■

360° continuous turret rotation

■

Hourmeter

■

Operator horn

■

All motion alarm

■

Tie down/lifting lugs

■

Wet disc SAHR brakes (front and rear axle)

■

15 x 19.5 grip lug air-lled tires

■

Telematics ready

* Standard lead times may be increased when optional equipment is added, consult factory.

† Capacities, and machine weights may differ when options are added.

ACCESSORIES AND OPTIONS

■

36 x 72” Platform

■

3.5 kW generator (Includes hydraulic oil cooler)

■

Welder ready package (Includes 12 kW generator, hydraulic oil cooler,

3-phase power connection in platform, and welder mount)

■

Welder package (Includes 12 kW generator, hydraulic oil cooler, 3-phase

power connection in platform, welder mount, and Lincoln V275-S welder)

■

Cold weather start kit (Includes cold start engine oil, battery blanket,

and hydraulic tank heater)

■

Arctic weather package (Includes arctic engine oil, battery blanket,

hydraulic tank heater, block heater, arctic hydraulic oil, arctic platform rotator

and arctic gear oil in the axles and swing drive. Glow plugs, arctic hydraulic

hoses (all), and oversized foot switch cover are also included

(standard equipment).

■

Hydraulic oil cooler

■

Side gate

■

Flashing light

■

1/2” airline to platform

■

Positive air shut-off valve

■

Non destructive testing

■

Glazier kit

■

Control box cover

■

Auxiliary top rail (36 x 96” platform only)

■

Warranty Options (3 year or 5 year plans available)

TIRE OPTIONS

■

Grip lug foam-lled tires

■

High otation air-lled tires

NA/ENG/01/2015

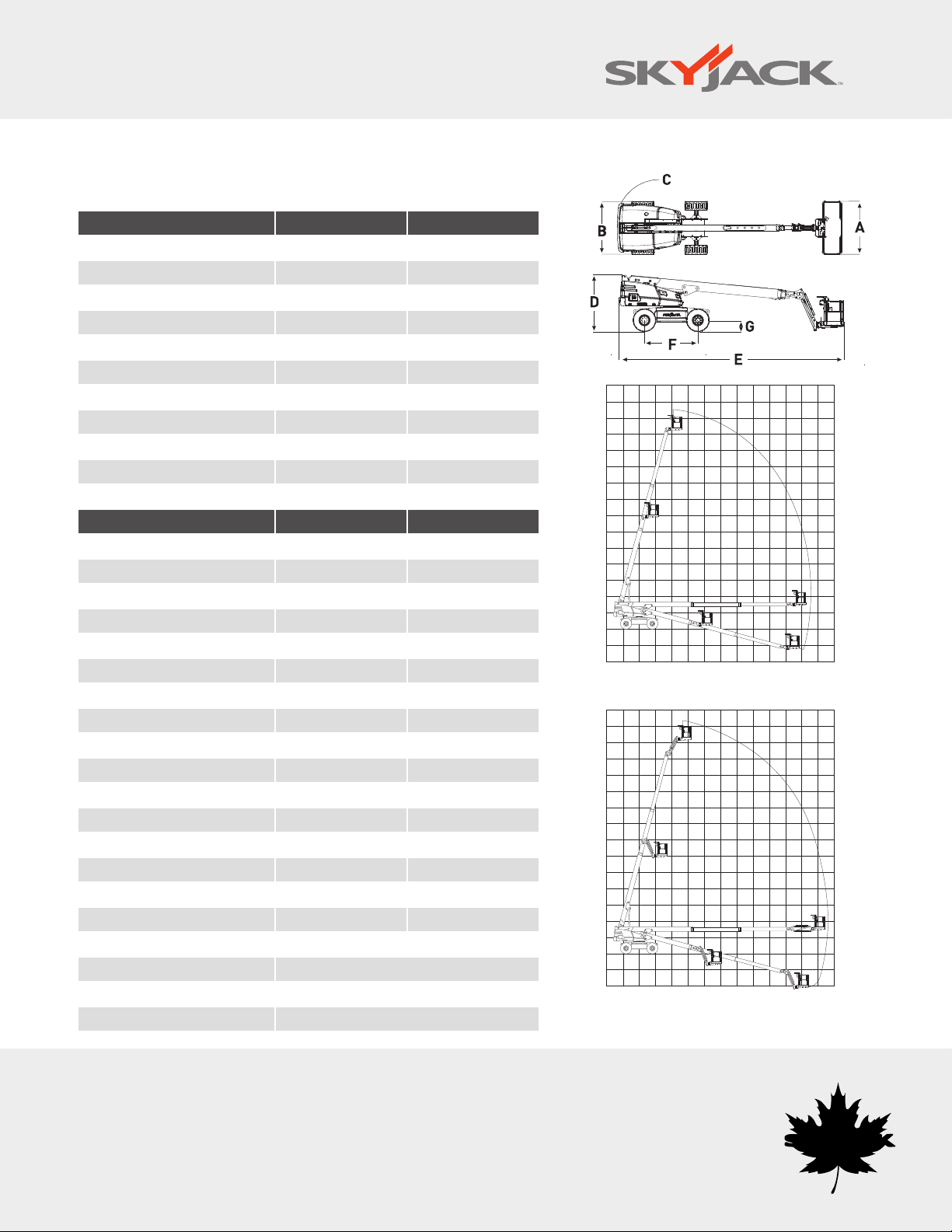

SJ61/66 T TELESCOPIC BOOMS

5’ 60’ 55’ 50’ 45’ 40’ 35’ 30’ 25’ 20’ 15’ 10’

-5’-10’

5’ 60’ 55’ 50’ 45’ 40’ 35’ 30’ 25’ 20’ 15’ 10’

-5’-10’

Dimensions SJ61 T SJ66 T

Work Height 67’3” (20.50 m) 72’ (21.95 m)

Platform Height 61’3” (18.67 m) 66’ (20.12 m)

Horizontal Reach 51’3” (15.62 m) 57’ (17.37 m)

A Platform Size 36” x 96” (0.91 x 2.44 m) 36” x 96” (0.91 x 2.44 m)

B Stowed Width 96” (2.44 m) 96” (2.44 m)

C Tailswing 47” (1.19 m) 47” (1.19 m)

D Stowed Height 101” (2.57 m) 101” (2.57 m)

E Stowed Length 30’4” (9.25 m) 33’11” (10.34 m)

F Wheelbase 96” (2.44 m) 96” (2.44 m)

G Ground Clearance 16” (0.41 m) 16” (0.41 m)

Specications SJ61 T SJ66 T

Rotation 360° Continuous

Platform Rotation 170° 170°

Jib Length - 5’ (1.5 m)

Jib Range +/- - +65° / -60°

Weight 23,400 lbs (10,614 kg) 26,700 lbs (12,111 kg)

Gradeability 50% 50%

Turning Radius (Inside) 111” (2.82 m) 111” (2.82 m)

Turning Radius (Outside) 199” (5.05 m) 199” (5.05 m)

Axle Oscillation 3” (7.62 cm) 3” (7.62 cm)

Drive Speed (High speed) 4.5 mph (7.2 km/h) 4.5 mph (7.2 km/h)

Capacity 500 lbs (227 kg) 500 lbs (227 kg)

Local Floor Load ( With Rated Load) 138 psi (951 kPa) 145 psi (1,000 kPa)

Overall Floor Load (With Rated Load) 266 psf (13 kPa) 304 psf (15 kPa)

Maximum # of Persons 2 2

Tire Type Air Filled Air Filled

Tire Size 15 x 19.5 15 x 19.5

Diesel Engine 74 HP

Dual Fuel Engine 82 HP

Fuel Tank Capacity 45 gallon (170 L)

Hydraulic Reservoir 60 gallon (227 L)
