OPERATING MANUAL (CE)

VERTICAL MAST

MODELS SJ12 SJ16

171729AC-A March 2016

Page 2

This manual is based on Serial Number(s):

SJ12 & SJ16 14 005 746 & Above

Please refer to the website (www.skyjack.com) for older Serial Numbers.

Skyjack Service Center

3451 Swenson Ave. St. Charles, Illinois, 60174 USA Phone: 630-262-0005 Toll Free: 1-800-275-9522 Fax: 630-262-0006 Email: [email protected]

Parts (North America)

Toll Free: 1-800-965-4626 Toll Free Fax: 1-888-782-4825 E-mail: [email protected]

Skyjack Australia Pty Ltd.

4 Coates Place Wetherill Park New South Wales 2164 Australia Tel: +61 (0) 28786 3200 Fax: +61(0) 28786 3222

Parts & Service (Europe)

Unit 1 Maes Y Clawdd Maesbury Road Industrial Estate Oswestry, Shropshire SY10 8NN UK Phone: +44-1691-676-235 Fax: +44-1691-676-238 E-mail: [email protected]

Skyjack Brasil

Alameda Júpiter, 710 Loteamento American Park Empresarial Indaiatuba, SP, Brasil 13347-653 Tel: +55 19 3936 0132

Page 3

The Safety Alert Symbol identifies important safety messages on aerial platform, safety signs in manuals or elsewhere. When you see this symbol, be alert to the possibility of personal injury or death. Follow the instructions in the safety message.

DANGER indicates an imminently hazardous situation which, if not avoided,

will result in death or serious injury.

WARNING indicates a potentially hazardous situation which, if not avoided,

could result in death or serious injury.

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. It may also be used to alert against

This Safety Alert Symbol means attention!

Become alert! Your safety is involved.

DANGER

WARNING

CAUTION

unsafe practices.

Vertical Mast

IMPORTANT

IMPORTANT indicates a procedure essential for safe operation and which,

if not followed, may result in a malfunction or damage to the aerial platform.

Original instructions in English.

Page 3

Page 4

Table of Contents

Section 1 - About Your Aerial Platform ................................................................................................. 5

Read and Heed ....................................................................................................................................................5

Safety Rules ......................................................................................................................................................6

Section 2 - Familiarization ................................................................................................................... 13

2.1 Familiarization of SJ12/16 Series ...............................................................................................13

2.2 Component Identification ...........................................................................................................14

2.3 Visual & Daily Maintenance Inspections ....................................................................................17

2.4 Function Tests .............................................................................................................................23

2.5 Winching and Towing Procedures .............................................................................................31

2.6 Emergency Lowering Procedure ...............................................................................................32

Section 3 - Operation ........................................................................................................................... 33

3.1 General .......................................................................................................................................33

3.2 Major Components .....................................................................................................................34

3.3 Major Assemblies .......................................................................................................................35

3.4 Serial Number Nameplate ..........................................................................................................35

3.5 Component Identification ...........................................................................................................36

3.6 Component Identification (Optional Equipment/Attachments)..................................................38

3.7 Operator’s Responsibility ...........................................................................................................39

3.8 Start Operation ...........................................................................................................................40

3.9 Loading/Unloading .....................................................................................................................43

3.10 Platform Traversing .....................................................................................................................45

3.11 Accessing the Hydraulic/Electrical Compartment .....................................................................45

3.12 Battery Maintenance ...................................................................................................................46

Section 4 - Tables .................................................................................................................................. 49

Table 4.1 Standard and Optional Features ................................................................................................49

Table 4.2 Owner’s Annual Inspection Record............................................................................................50

Table 4.3 Specifications and Features .......................................................................................................51

Table 4.4 Maximum Platform Capacities (Evenly Distributed) ...................................................................52

Table 4.5 Floor Loading Pressure ..............................................................................................................52

Table 4.6 Maintenance and Inspection Schedule ......................................................................................54

Table 4.7 Operator’s Checklist ...................................................................................................................55

Table 4.8 EC Declaration of Conformity .....................................................................................................56

Section 5 - Labels .................................................................................................................................. 57

Page 4

Vertical Mast

Page 5

Section 1 - About Your Aerial Platform Read and Heed

SKYJACK is continuously improving and expanding product features on its equipment, therefore, specifications and

dimensions are subject to change without notice.

Aerial Platform and Mobile Elevating Work Platform Definition

A mobile device that has a positionable platform supported from ground level by a structure.

Purpose of Equipment

The SKYJACK Vertical Mast series aerial platforms are designed to transport and raise personnel, tools and materials to overhead work areas.

Use of Equipment

The aerial platform is a highly maneuverable, mobile work station. Work platform elevation and elevated driving must only be done on a firm, level surface.

Manual

The operating manual is considered a fundamental part of the aerial platform. It is a very important way to communicate necessary safety information to users and operators. A complete and legible copy of this manual must be kept in the provided weather-resistant storage compartment on the aerial platform at all times.

Operator

The operator must read and completely understand both this operating manual and the safety panel label located on the platform and all other warnings in this manual and on the aerial platform. Compare the labels on the aerial platform with the labels found within this manual. If any labels are damaged or missing, replace them immediately.

Service Policy and Warranty

SKYJACK warrants each new Vertical Mast series aerial platform to be free of defective parts and workmanship for the first 24 months. Any defective part will be replaced or repaired by your local SKYJACK dealer at no charge for parts or labor. Contact the SKYJACK Service Department for warranty statement extensions or exclusions.

111

Optional Accessories

The SKYJACK aerial platform is designed to accept a variety of optional accessories.

Scope of this Manual

a. This manual applies to the CE version of the SJ12 and SJ16 Vertical Mast Series aerial platform models listed

on Table 4.1.

Equipment identified with “CE” meets the requirements for the European countries, i.e., Machinery Directive

2006/42/EC and Directive 2004/108/EC and the corresponding EN standards.

b. Operators are required to conform to national, state or territorial/provincial and local health and safety regulations

applicable to the operation of this aerial platform.

Vertical Mast

Page 5

Page 6

Safety Rules Section 1 - About Your Aerial Platform

WARNING

Failure to comply with your required responsibilities in the use and operation of the aerial platform

could result in death or serious injury!

Operator Safety Reminders

A study conducted by St. Paul Travelers showed that most accidents are caused by the failure of the operator to follow simple and fundamental safety rules and precautions.

You, as a careful operator, are the best insurance against an accident. Therefore, proper usage of this aerial platform is mandatory. The following pages of this manual should be read and understood completely before operating the aerial platform.

Common sense dictates the use of protective clothing when working on or near machinery. Use appropriate safety devices to protect your eyes, ears, hands, feet and body.

Any modifications from the original design are strictly forbidden without written permission from SKYJACK.

Page 6

Vertical Mast

Page 7

Section 1 - About Your Aerial Platform Safety Rules

Electrocution Hazard

This aerial platform is not electrically insulated. Maintain a Minimum Safe Approach Distance (MSAD) from energized power lines and parts as listed below. The operator must allow for the platform to sway, rock or sag.

This aerial platform does not provide protection from contact with or proximity to an electrically charged conductor.

DO NOT USE THE AERIAL PLATFORM AS A GROUND FOR WELDING.

DO NOT OPERATE THE AERIAL PLATFORM DURING LIGHTNING OR STORMS.

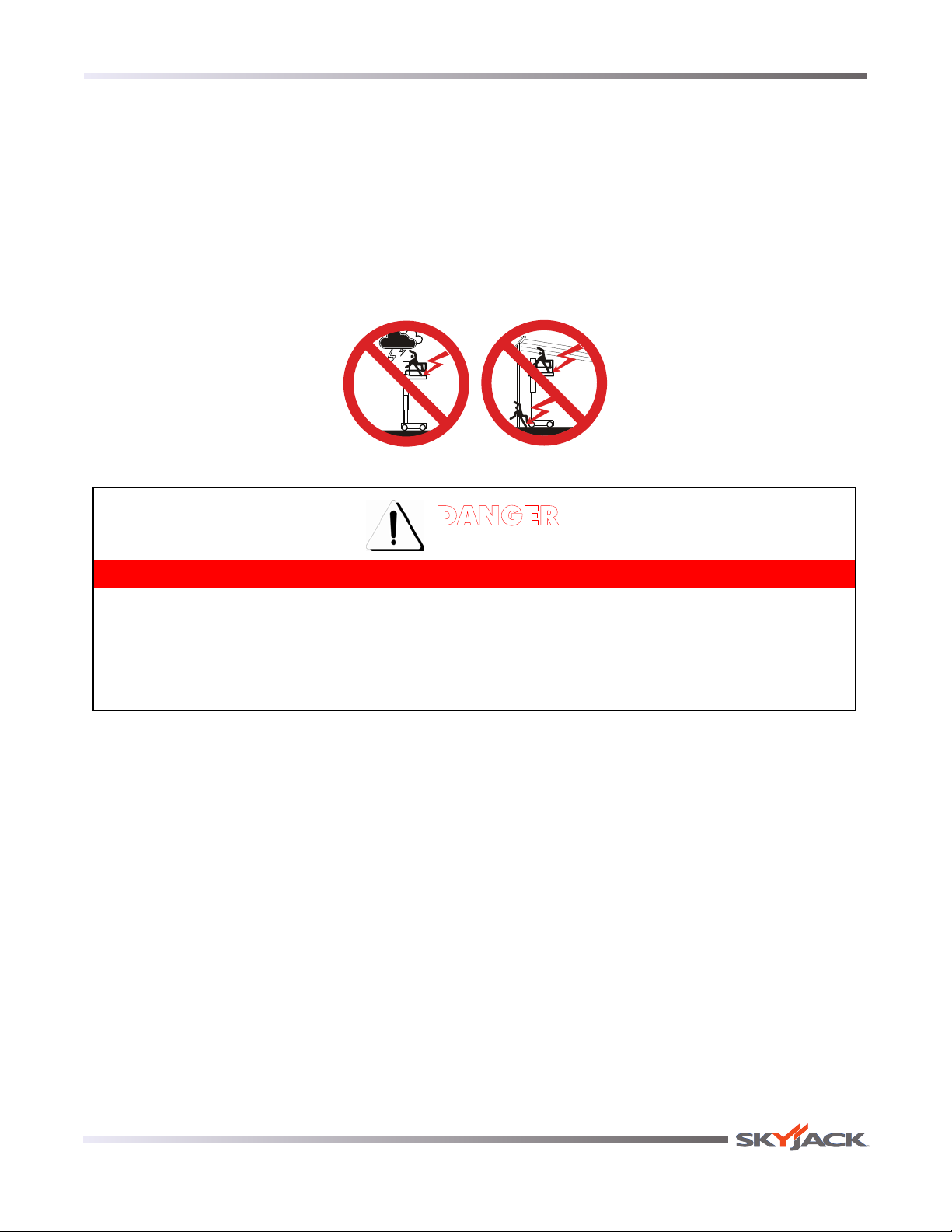

DO NOT OPERATE THE AERIAL PLATFORM NEAR POWER LINES. MAINTAIN A MINIMUM SAFE

APPROACH DISTANCE (MSAD) FROM ENERGIZED POWER LINES.

DANGER

Avoid Power Lines

Minimum Safe Approach Distance

CE Guidance Note

“Avoidance of danger from overhead lines”

Adhere strictly to the governmental rulings and regulations applicable in your country.

FAILURE TO AVOID THIS HAZARD WILL RESULT IN DEATH OR SERIOUS INJURY!

60023AE-CE

Vertical Mast

Page 7

Page 8

Safety Rules Section 1 - About Your Aerial Platform

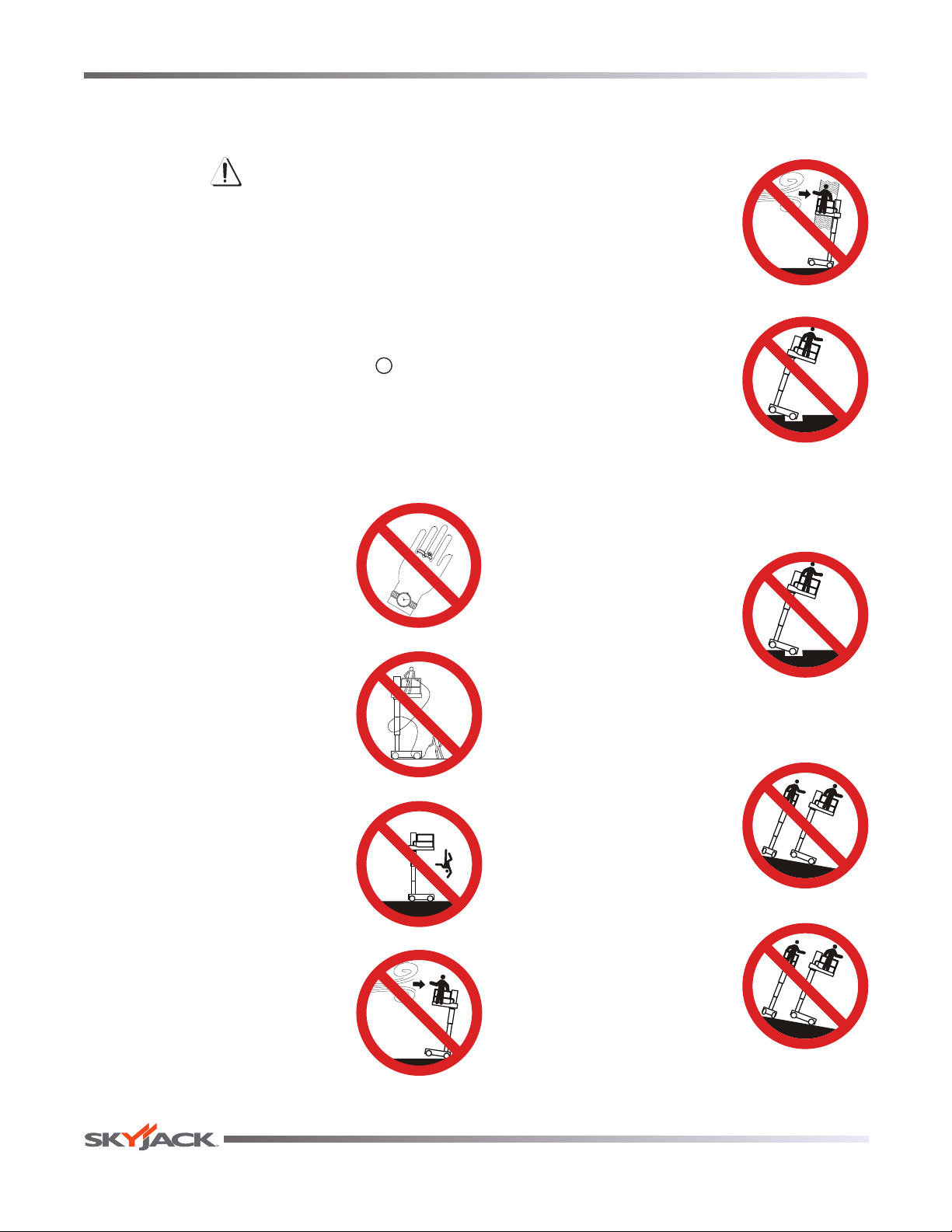

Safety Precautions

Know and understand the safety precautions before going on to next section.

WARNING

Failure to heed the following safety precautions could result in tip over, falling, crushing, or other hazards leading

to death or serious injury.

• KNOW all national, state or territorial/provincial

and local rules which apply to your aerial platform and job site.

• TURN main power disconnect switch “ ” off when leaving the aerial platform unattended. Remove the key to prevent unauthorized use of the aerial platform.

• WEAR all the protective clothing and personal safety devices issued to you or called for by job conditions.

• DO NOT wear loose clothing, dangling neckties, scarves, rings, wristwatches or other jewelry while operating this lift.

• AVOID entanglement with ropes, cords or hoses.

• DO NOT increase the lateral

surface area of the platform. Increasing the area exposed to the wind will decrease the arial platform stability. Avoid tenting.

• DO NOT drive elevated near depressions or holes of any type,loading docks, debris, drop-offs or surfaces that may affect the stability of the aerial platform.

• IF OPERATION IN AREAS

WITH HOLES OR DROPOFFS IS ABSOLUTELY NECESSARY, elevated driving

shall not be allowed. Position the aerial platform horizontally only with the platform fullylowered. After ensuring that all 4 wheels or outriggers (if equipped) have contact with a firm, level surface, the aerial platform can be elevated. After elevation, the drive function must not be activated.

• AVOID falling. Stay within the boundaries of the guardrails.

• DO NOT raise the aerial platform in windy or gusty conditions.

Page 8

• DO NOT elevate or drive

elevated on a slope. Elevated driving must be done on a firm, level surface.

• DO NOT ascend or descend a grade when elevated. When fully lowered, ascending or descending grades up to maximum rated inclines listed in Table 4.3.

Vertical Mast

Page 9

Section 1 - About Your Aerial Platform Safety Rules

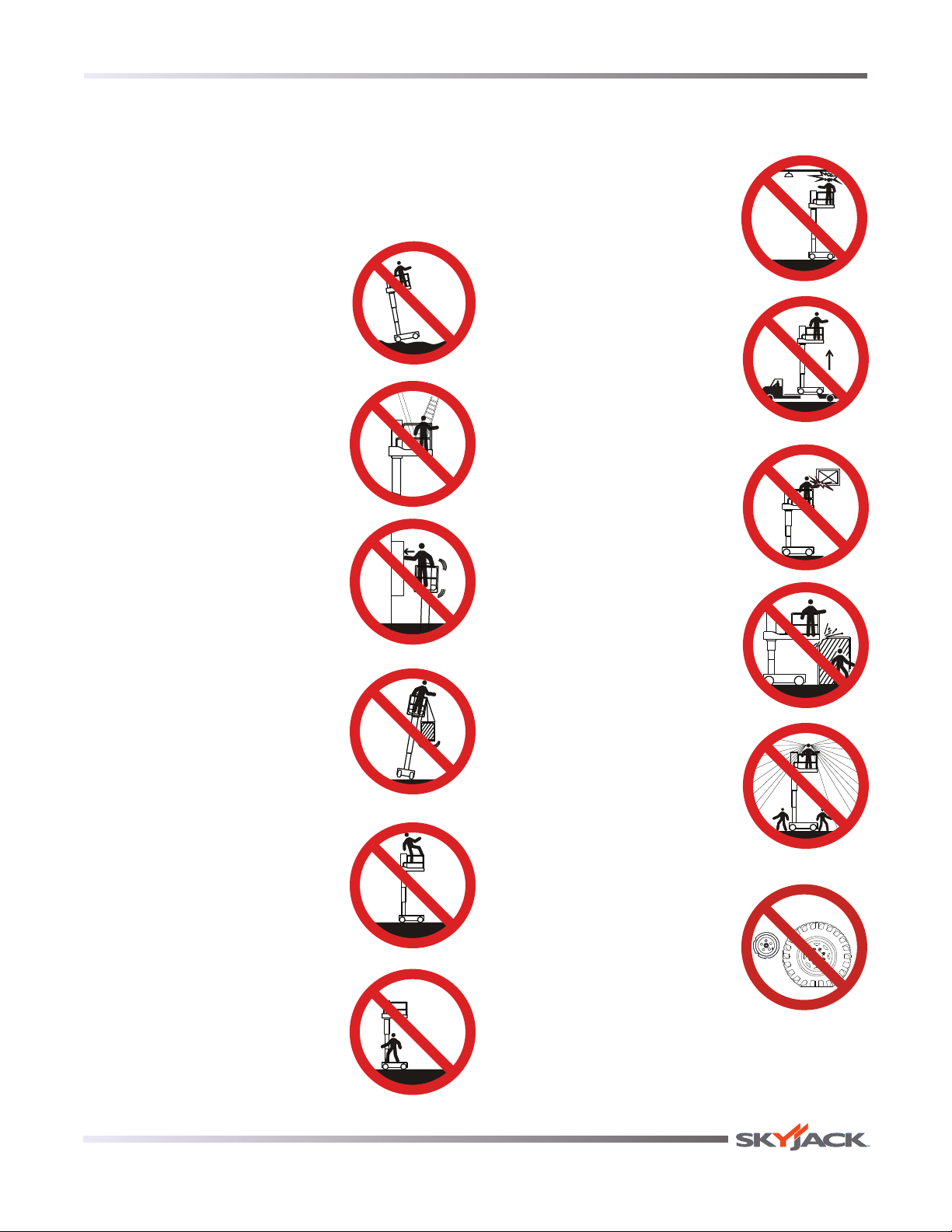

Safety Precautions (Continued)

Know and understand the safety precautions before going on to next section.

• DO NOT operate on surfaces not capable of holding the weight of the aerial platform including the rated load, e.g., covers, drains, and trenches.

• DO NOT drive elevated on a soft or uneven surface.

• DO NOT operate an aerial platform that has ladders, scaffolding or other devices mounted on it to increase its size or work height. It is prohibited.

• DO NOT exert side forces on aerial platform while elevated.

• AVOID overhead obstructions. Be aware of overhead obstructions or other possible hazards around aerial platform when lifting or driving.

• DO NOT raise the aerial platform while the aerial platform is on a truck, fork lift or other device or vehicle.

• AVOID crushing hazards. Be aware of crushing hazards when lifting or driving. Keep all body parts inside the aerial platform.

• DO NOT lower the platform unless the area below is clear of personnel and obstructions.

• DO NOT use the aerial platform as a crane. It is prohibited.

• DO NOT sit, stand or climb on the guardrails. It is prohibited.

• DO NOT climb on base and mast. It is prohibited.

Vertical Mast

• ENSURE that there are no personnel or obstructions in the path of travel, including blind spots.

• DO NOT use with improperly inflated/damaged tires or wheels. Refer to Section 2:

Wheel/Tire Assembly.

Page 9

Page 10

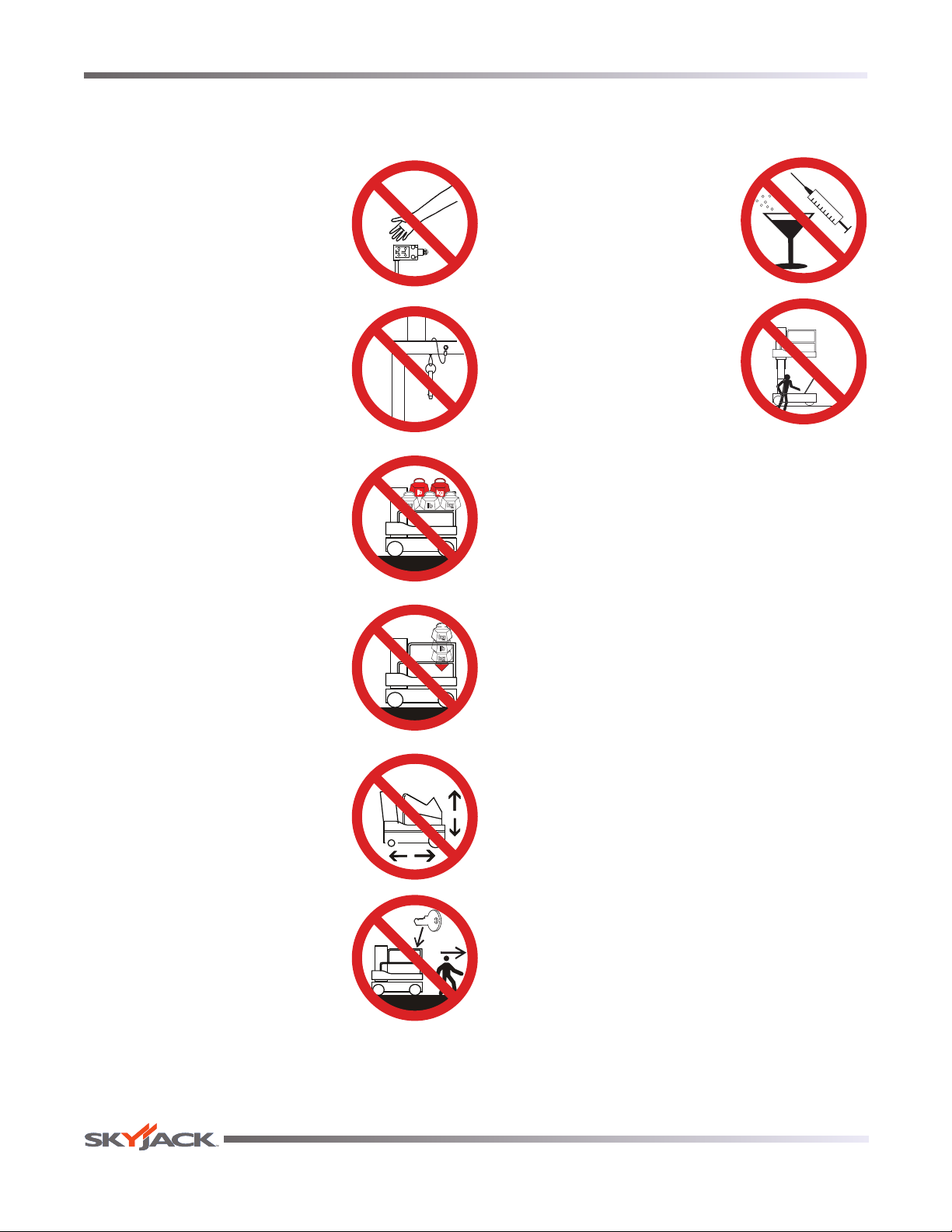

Safety Rules Section 1 - About Your Aerial Platform

Safety Precautions (Continued)

Know and understand the safety precautions before going on to next section.

• DO NOT alter or disable limit switches or other safety devices.

• DO NOT use the aerial platform without guardrails, locking pins and the entry gate (if equipped) in place.

• DO NOT exceed the rated capacity of the aerial platform.

• DO NOT use under influence of alcohol or drugs.

• DO NOT access the hydraulic/ electrical compartment while the platform is raised.

• BE AWARE of blind spots when operating the aerial platform.

• STUNT driving and horseplay are prohibited.

• DO NOT attempt to free a snagged platform with

lower controls until personnel are removed from the platform.

• DO NOT position the aerial platform against another object to steady the platform.

• DO NOT distribute load unevenly.

• DO NOT operate if aerial platform is not working properly or if any parts are damaged or worn.

• DO NOT leave aerial platform unattended with key in key switch.

• DO NOT place materials on the guardrails or materials that exceed the confines of the guardrails unless approved by Skyjack.

Page 10

Vertical Mast

Page 11

Section 1 - About Your Aerial Platform Safety Rules

Safety Precautions (Continued)

Know and understand the safety precautions before going on to next section.

Fall Protection

The guardrail system provides fall protection for the occupants. If additional fall protection is required, by an employer or the authority having jurisdiction, Skyjack recommends the use of a fall restraint system to keep an occupant within the confines of the platform, and thus not expose the occupant to any fall hazard requiring a fall arrest. When used, lanyards should only be attached to dedicated attachment points on the platform.

All personal fall protection equipment must comply with applicable governmental regulations and must be inspected and used in accordance with the manufacturer’s recommendations.

All personal fall protection equipment must be attached only to approved anchorage points within the platform.

WARNING

Entering and exiting the aerial platform should only be done using the three points of contact.

• Use only equipped access openings.

• Enter and exit only when the aerial platform is in the fully retracted position.

WARNING

An operator should not use any aerial platform that:

• does not appear to be working properly.

• has been damaged or appears to have worn or missing parts.

• has alterations or modifications not approved by the manufacturer.

• has safety devices which have been altered or disabled.

• has been tagged or locked out for non-use or repair.

Failure to avoid these hazards could

result in death or serious injury.

Job site Inspection

• Do not use in hazardous locations.

• Perform a thorough job site inspection prior to operating the aerial platform, to identify potential hazards in your work area.

• Be aware of moving equipment in the area. Take appropriate actions to avoid collision.

• Do use three points of contact to enter and exit the platform. Enter and exit the platform from the ground only. Face the aerial platform when entering or exiting the platform.

• Three points of contact means that two hands and one foot or one hand and two feet are in contact with the aerial platform or the ground at all times during entering and exiting.

Vertical Mast

Page 11

Page 12

Notes

Page 12

Vertical Mast

Page 13

Section 2- Familiarization Vertical Mast Series

2.1 Familiarization of SJ12/16 Series

WARNING

Aerial Platform Familiarization should be given only to individuals who are QUALIFIED And

TRAINED to operate an aerial platform.

Do not operate this aerial platform without proper authorization and training. Failure to avoid

this hazard could result in death or serious injury.

It is the responsibility of the operator to read, completely understand and follow all

instructions and warnings contained in this operating manual and on the aerial platform.

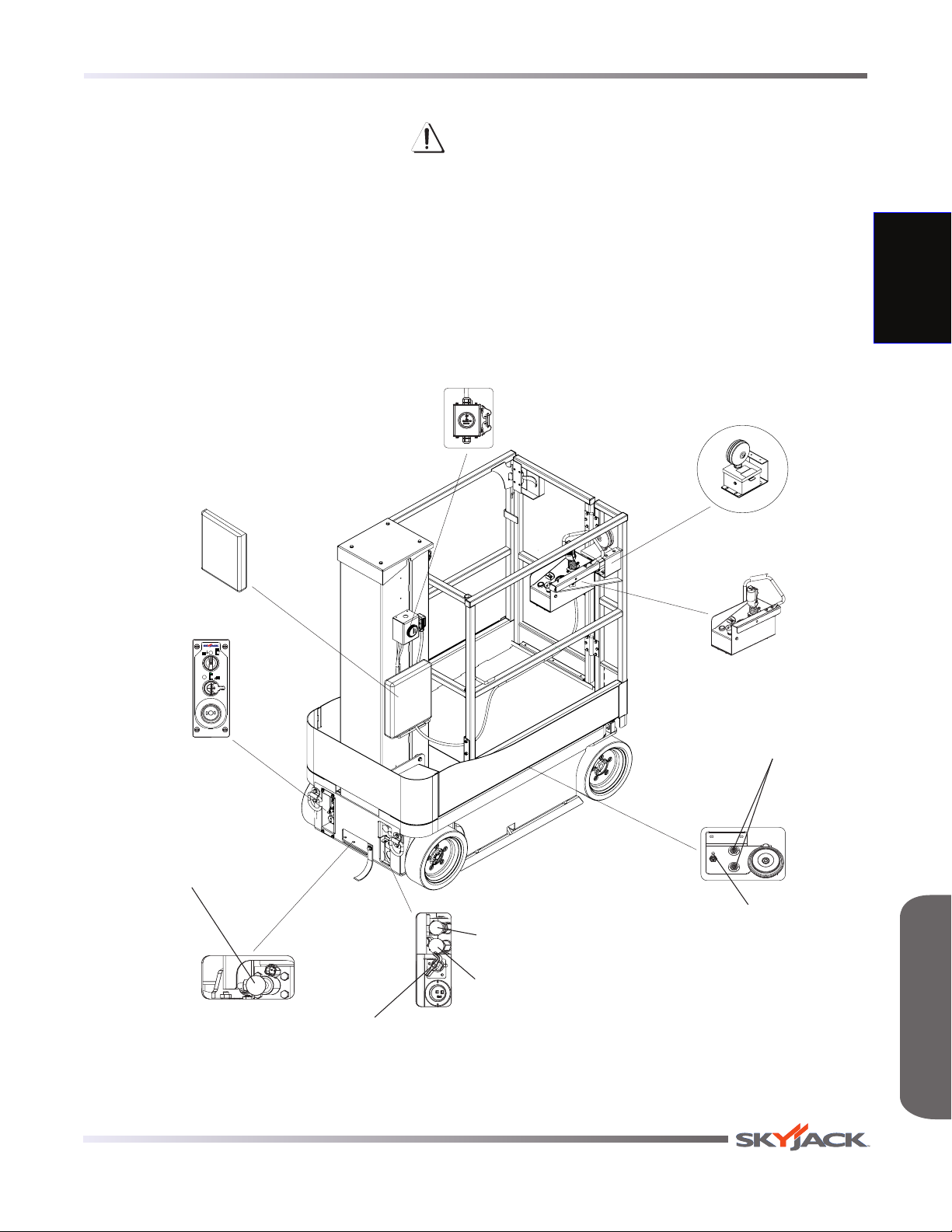

Outdoor Option Flashing

Hourmeter

Manual Box

Base

Control

Console

Light (If Equipped)

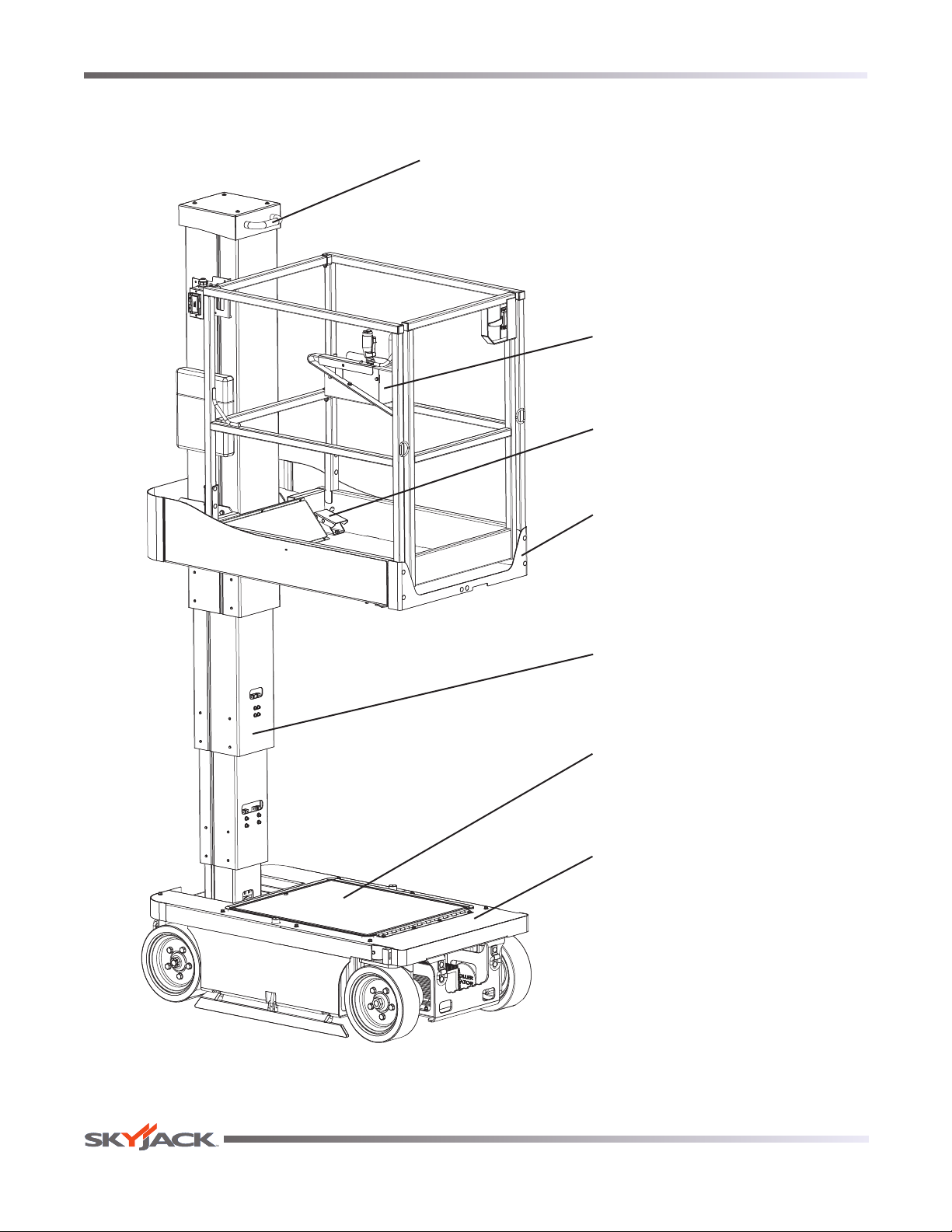

Platform Control Console

Circuit Breaker

Emergency Lowering Valve

Vertical Mast

Main Power Disconnect

Brake Hand Pump

Brake Auto Reset Valve Plunger

Diagnostic Switch

FAMILIARIZATIONFAMILIARIZATION

Page 13

Page 14

Control Functions Section 2 - Familiarization

2.2 Component Identification

The following descriptions are for identification, explanation and locating purposes only.

2.2-1 Main Power Disconnect Switch

This switch is located at the rear of the base.

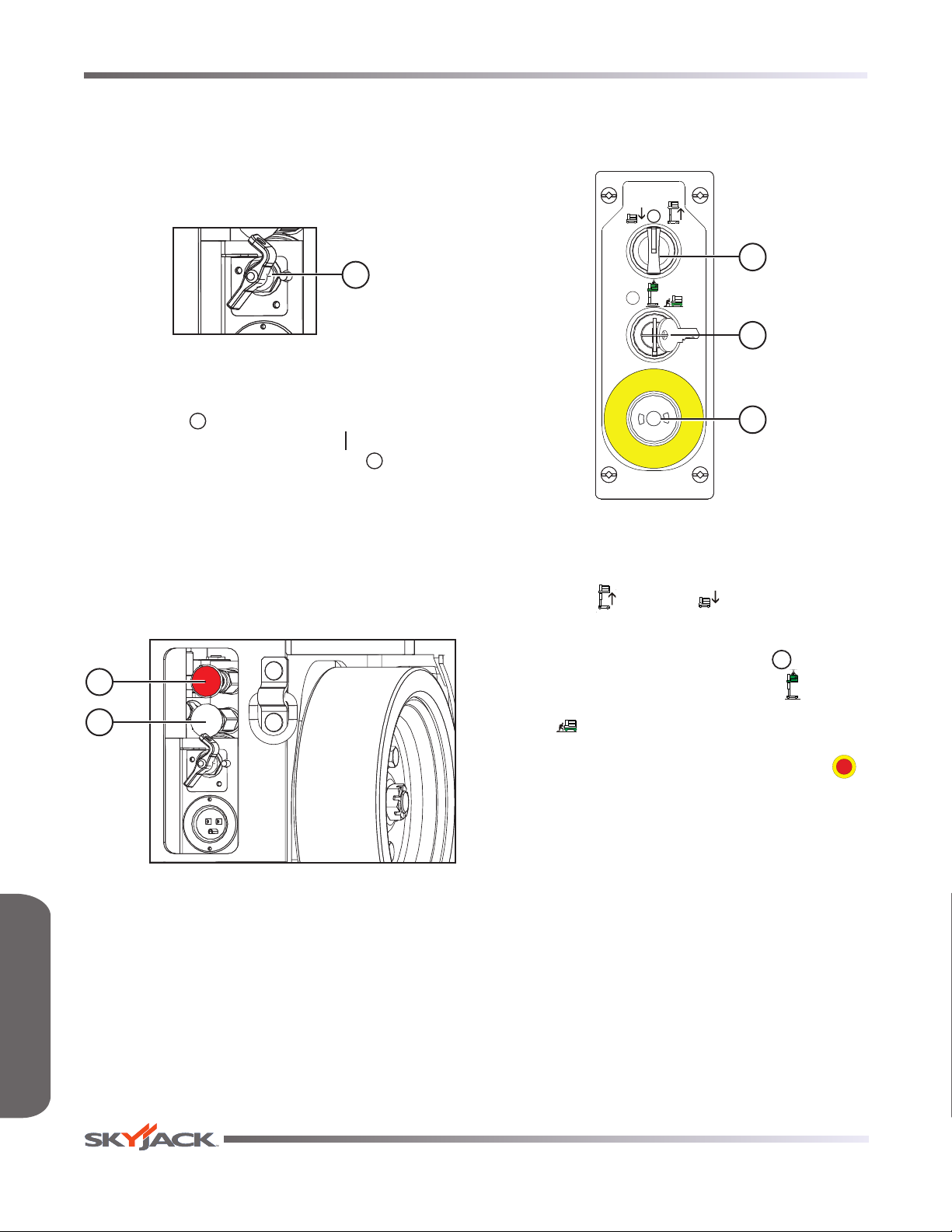

Figure 2-1. Main Power Disconnect Switch

1. Main Power Disconnect Switch - This switch, when in “ ” off position, disconnects power to

all circuits. Switch must be in “ ” on position to operate any circuit. Turn switch “ ” off when transporting aerial platform.

2.2-2 Brake System

The brake system is located at the rear of the base. The brakes must be manually disengaged before pushing, winching or towing. Refer to Section 2.5-1 for procedure on how to release brakes manually. The system contains the following controls:

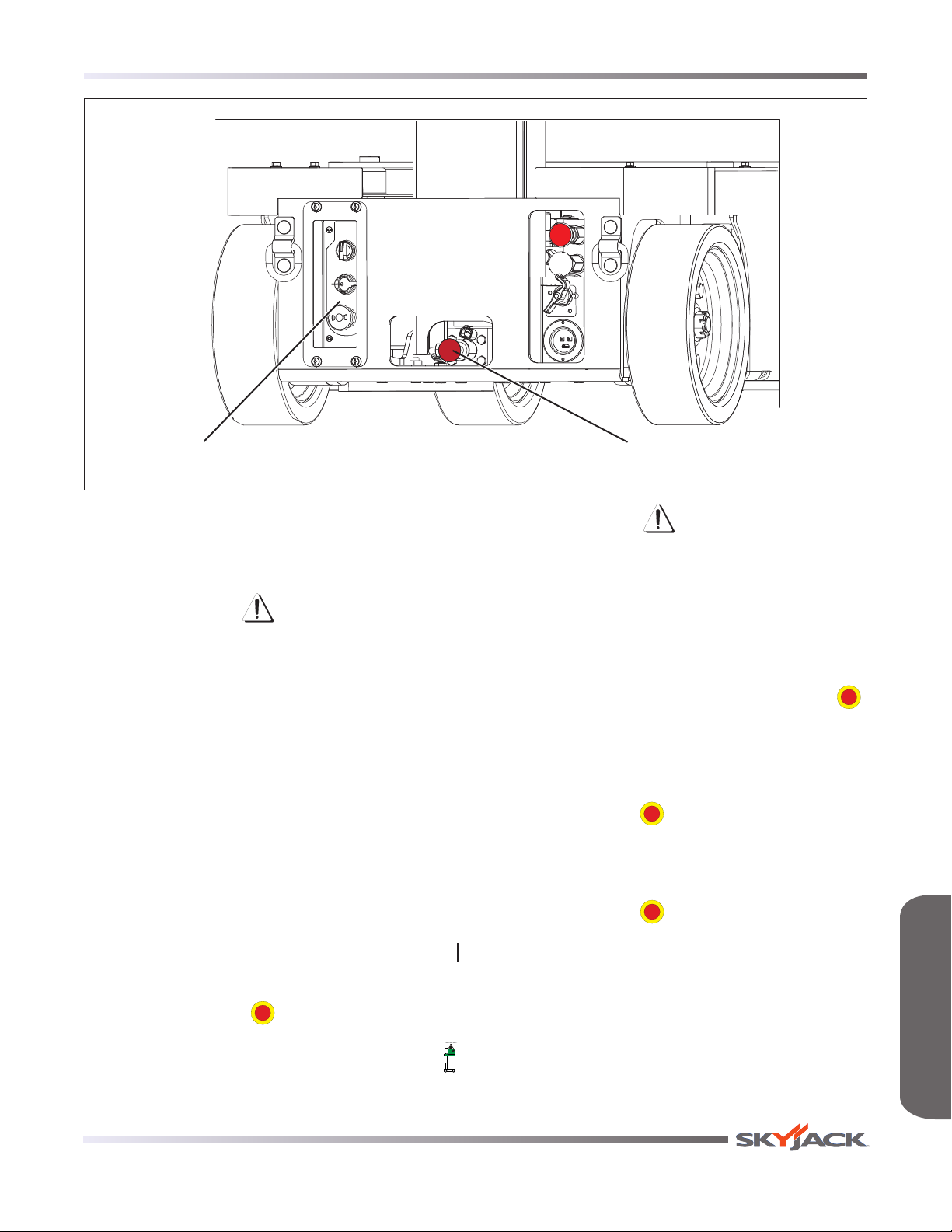

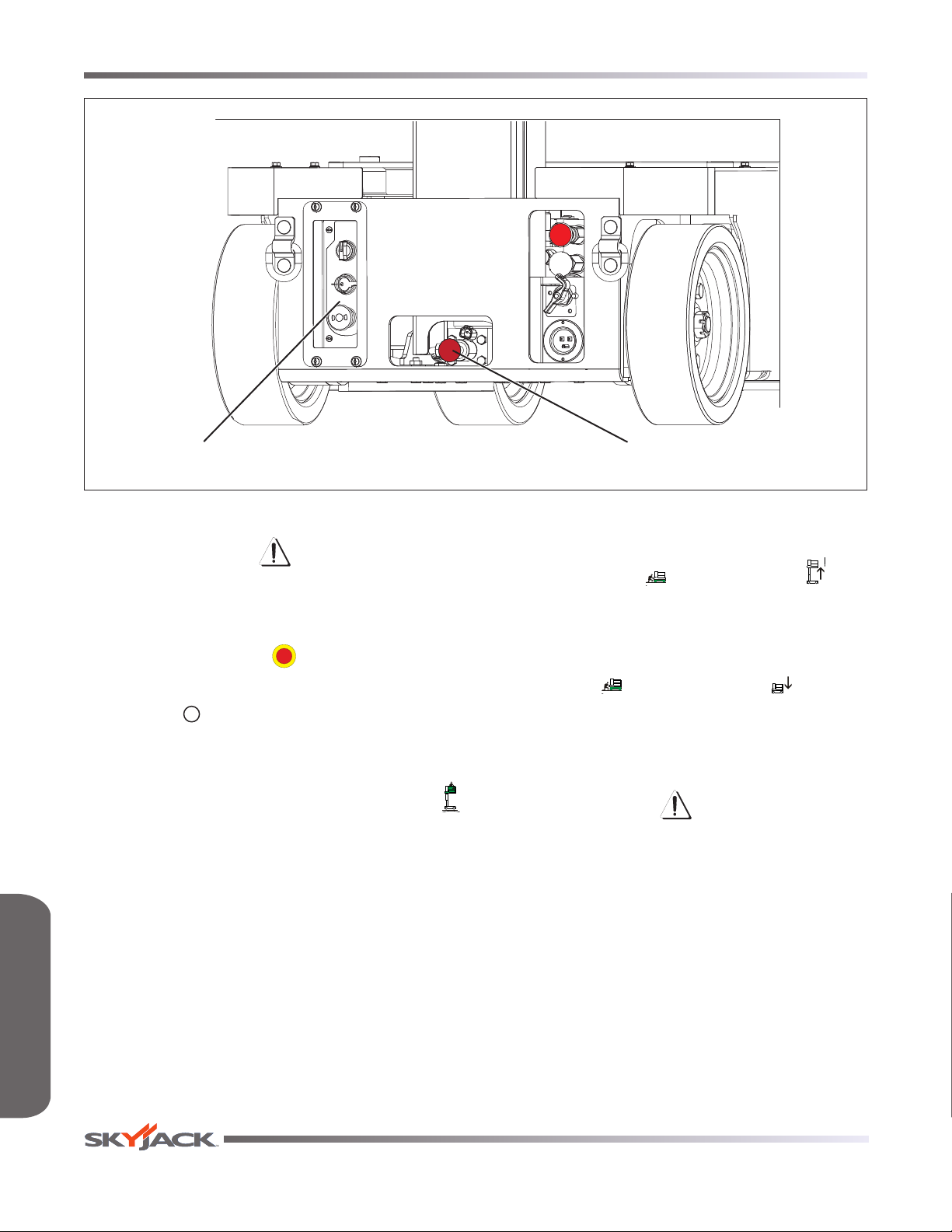

2.2-3 Base Control Console

This control console is located at the rear of the base. It contains the following controls:

Figure 2-3. Base Control Console

1. Lower/Neutral/Raise Switch - This switch

controls “

” raising or “

” lowering of platform.

FAMILIARIZATIONFAMILIARIZATION

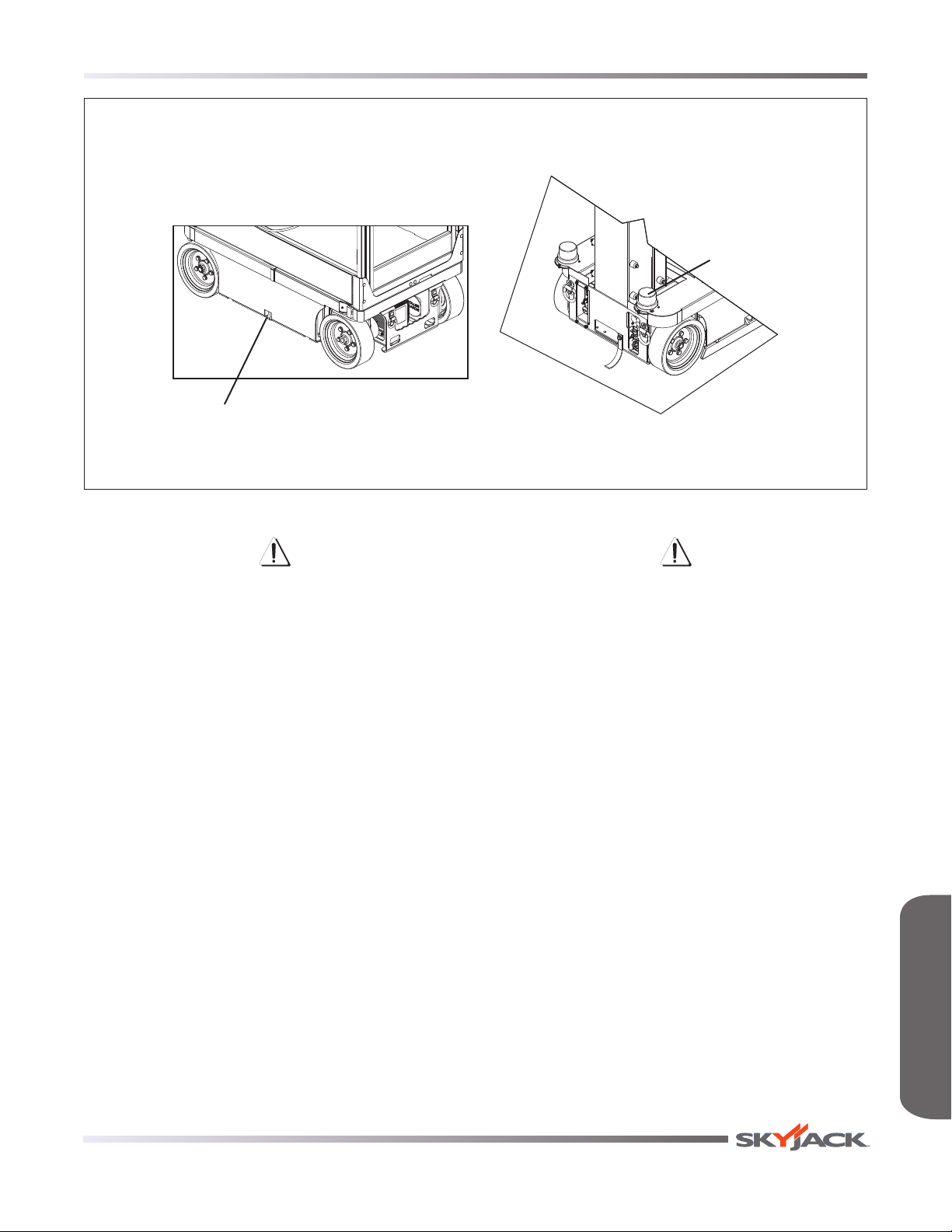

Figure 2-2. Disc Brake System

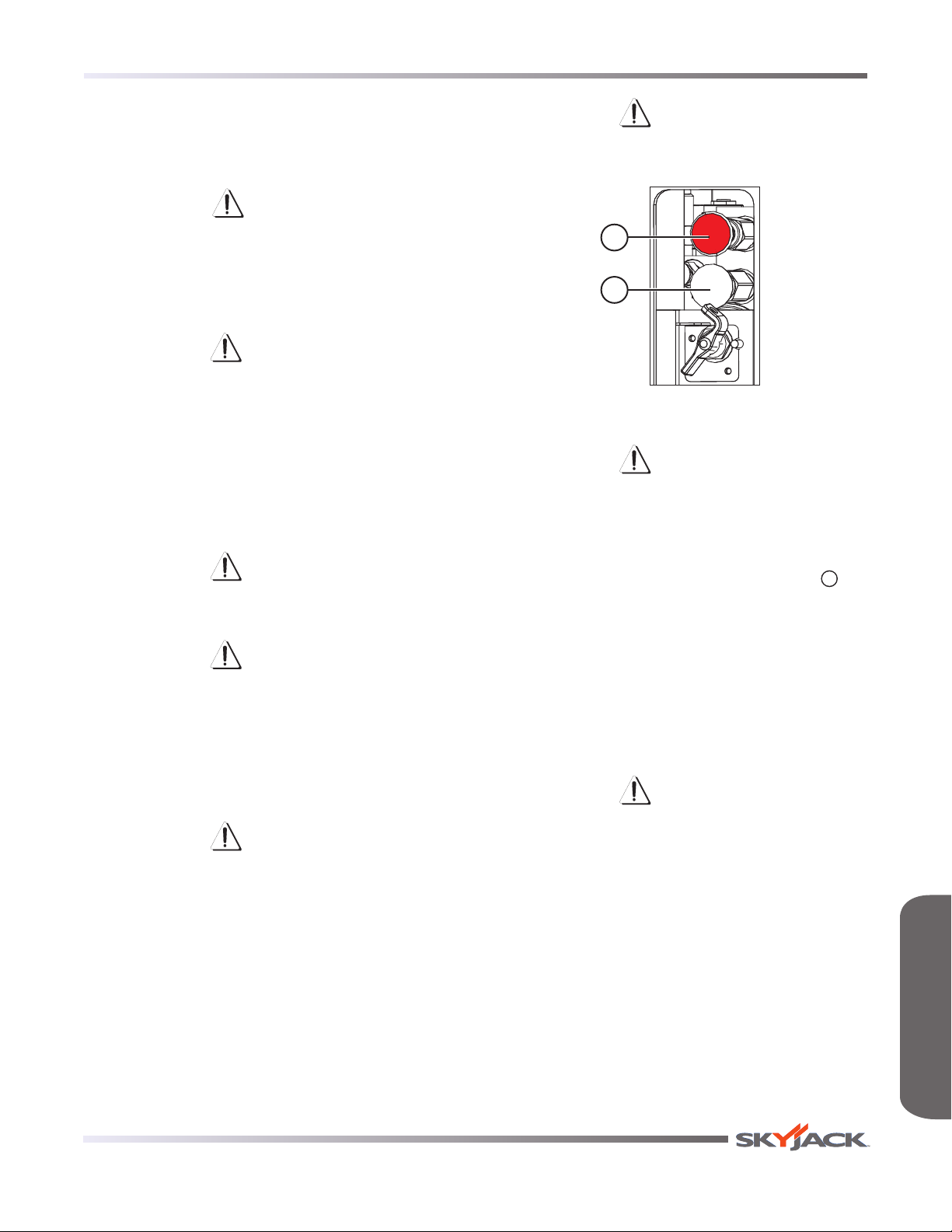

1. Brake hand pump

2. Brake auto reset valve plunger

2. Off/Platform/Base Key Switch - This three-way switch allows the operator to turn “ ” off power

to aerial platform or to activate either “

or “

” base controls.

” platform

3. Emergency Stop Button - This button “ ”, when depressed, disconnects power to the control circuit.

Page 14

It is the responsibility of the operator to read, completely understand and follow all instructions and warnings

contained in this operating manual and on the aerial platform.

Vertical Mast

Page 15

Section 2 - Familiarization Control Functions

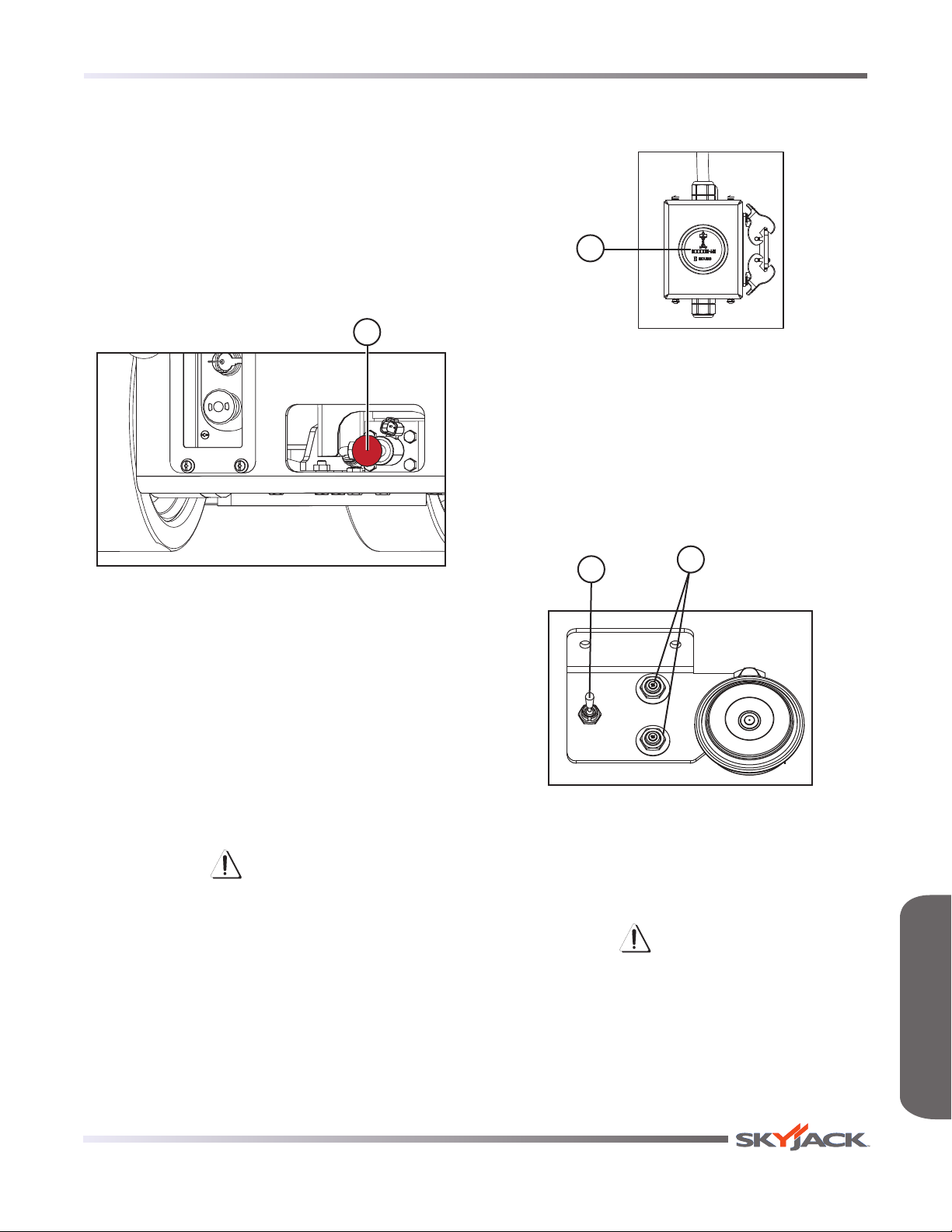

2.2-4 Emergency Lowering System

This emergency lowering system allows platform lowering in the event of an emergency or an electrical system failure.

1. Remove any obstructions from a lowering platform.

2. Extension platform may need to be retracted or aerial platform may need to be moved to clear obstruction. Refer to Section 2.5 for winching and towing procedures.

2.2-6 Hourmeter

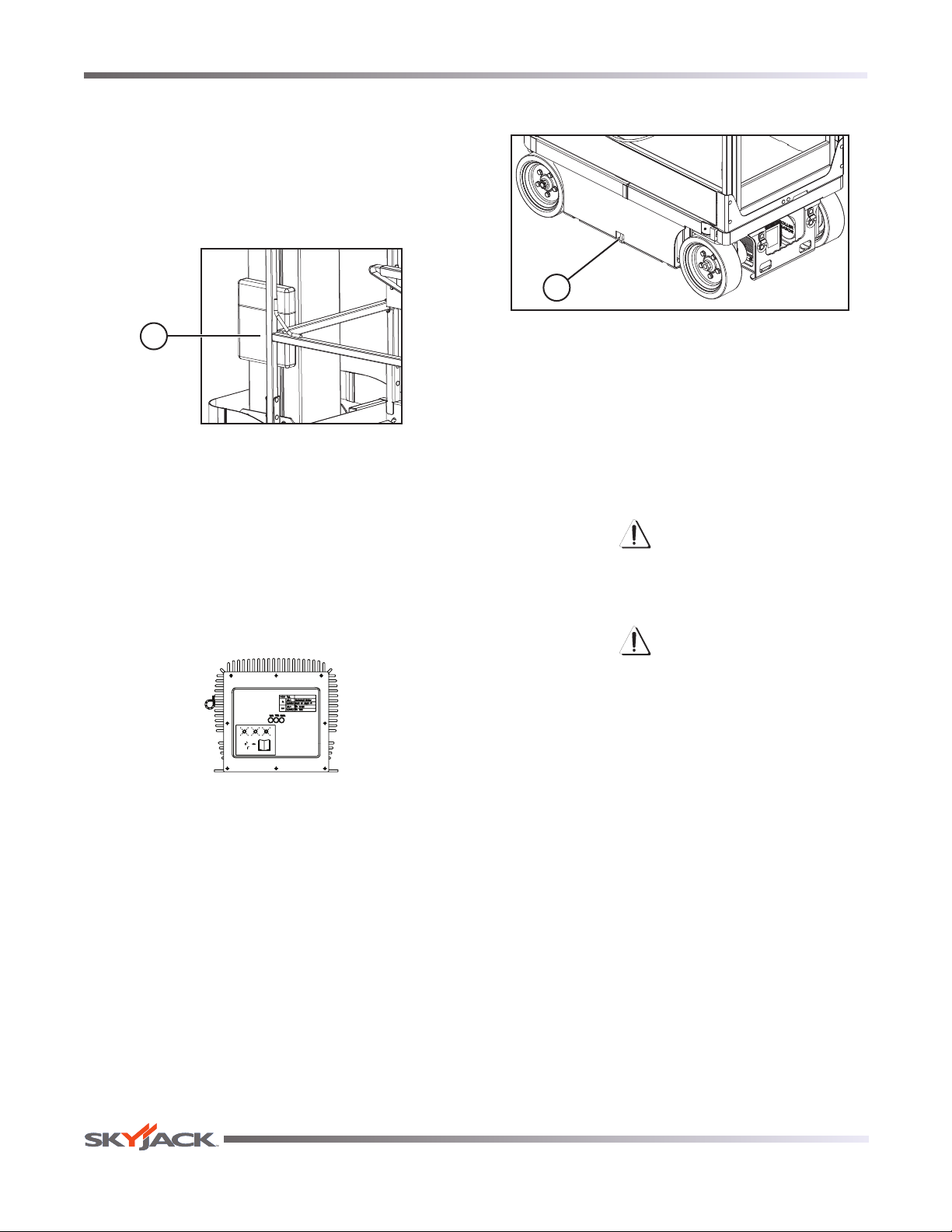

This hourmeter is located on the mast.

Figure 2-5. Hourmeter

1. This gauge records accumulated operating time of the aerial platform.

2.2-7 Circuit Breaker/Diagnostic Switch

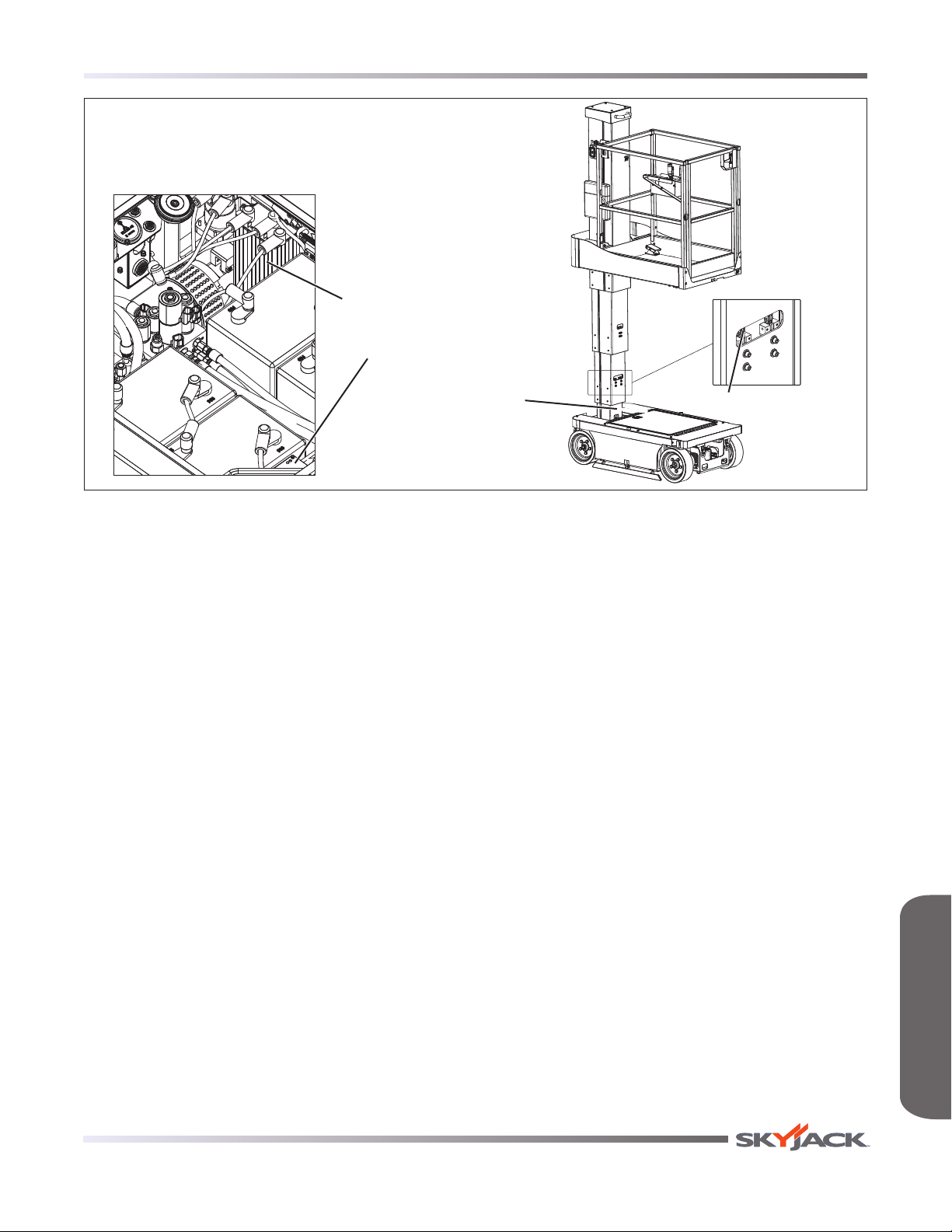

This assembly is located inside the hydraulic/electrical compartment.

Figure 2-4. Emergency Lowering System

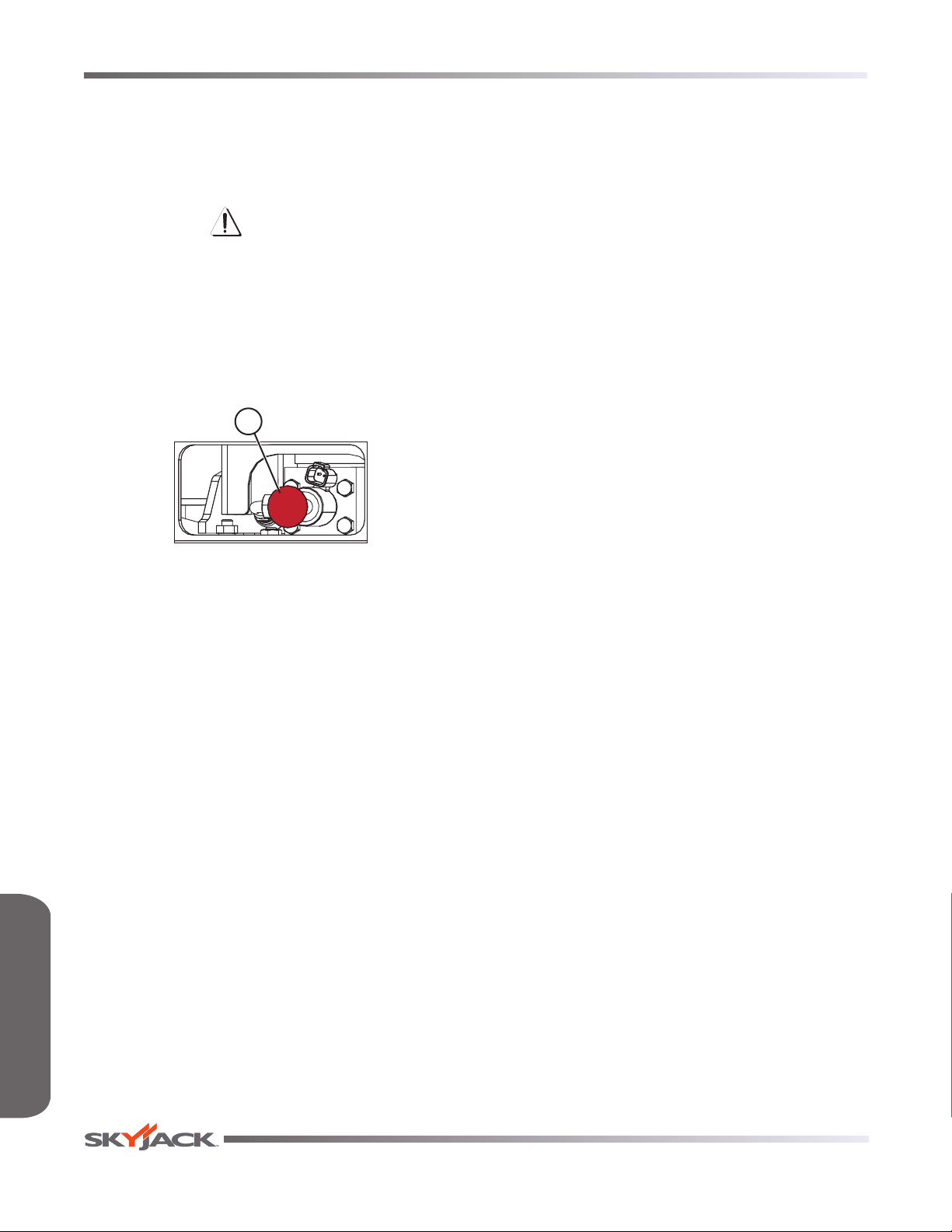

3. Locate emergency lowering valve (item 1) at the base of the lift cylinder, pull out and hold emergency lowering valve (item 1) to lower platform.

2.2-5 Tilt Alarm

The aerial platform is equipped with a device which senses when the aerial platform is out of level in any direction. When activated, it disables drive and lift functions of the aerial platform and an alarm produces an audible sound.

WARNING

If the tilt alarm sounds and the platform does not, or only partially raises, immediately lower the platform completely and ensure that the aerial platform is on

a firm level surface.

Figure 2-6. Circuit Breaker/Diagnostic Switch

1. In the event of power overload or positive circuit grounding, the circuit breaker pops out. Push breaker back in to reset.

WARNING

Diagnostic switch should not be used

while any person are in the platform.

FAMILIARIZATIONFAMILIARIZATION

Vertical Mast

2. Diagnostic switch is used to check machine functionality while the machine is in the service position.

It is the responsibility of the operator to read, completely understand and follow all instructions and warnings

contained in this operating manual and on the aerial platform.

Page 15

Page 16

Control Functions Section 2 - Familiarization

2.2-8 Platform Control Console

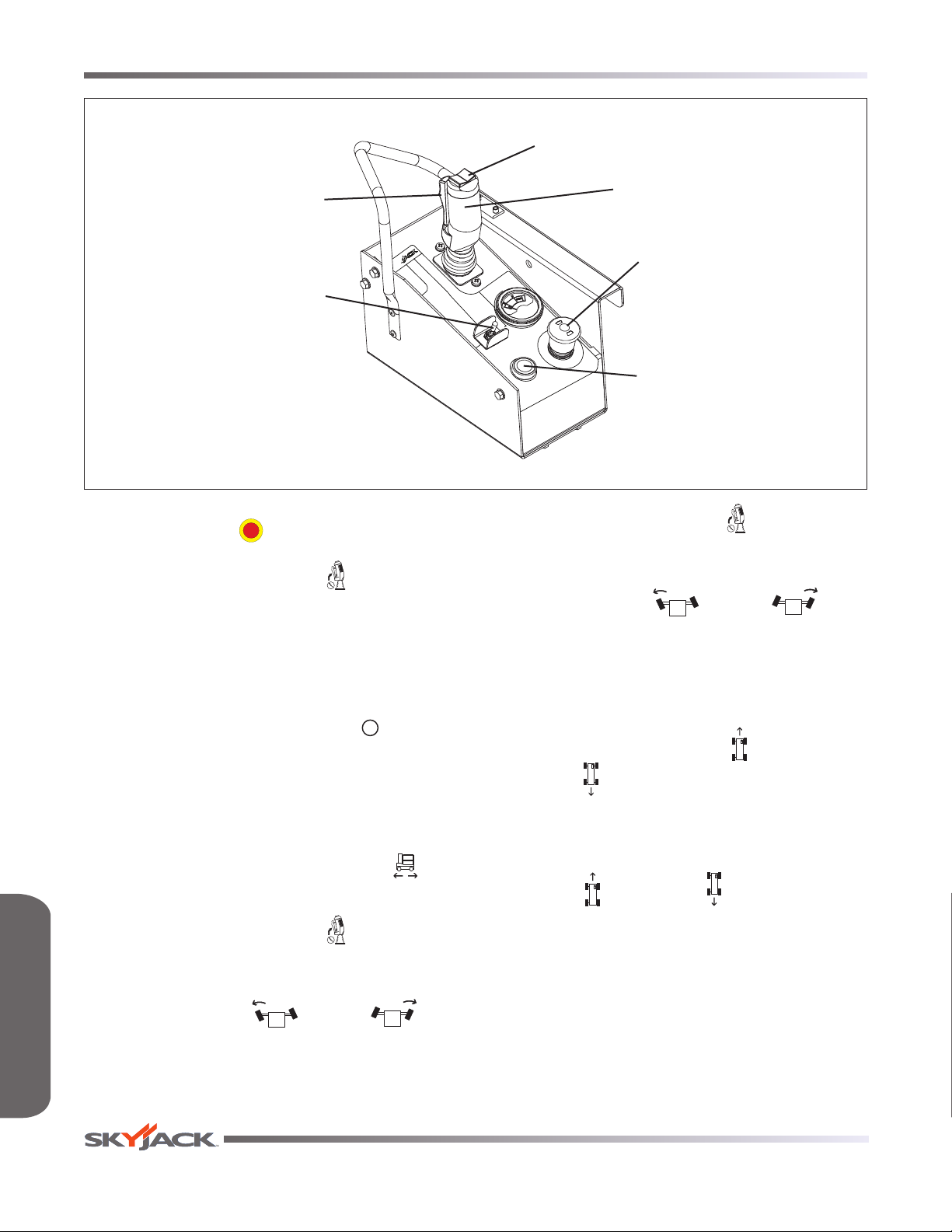

This removable control console is mounted at the right front of the platform. It contains the following controls:

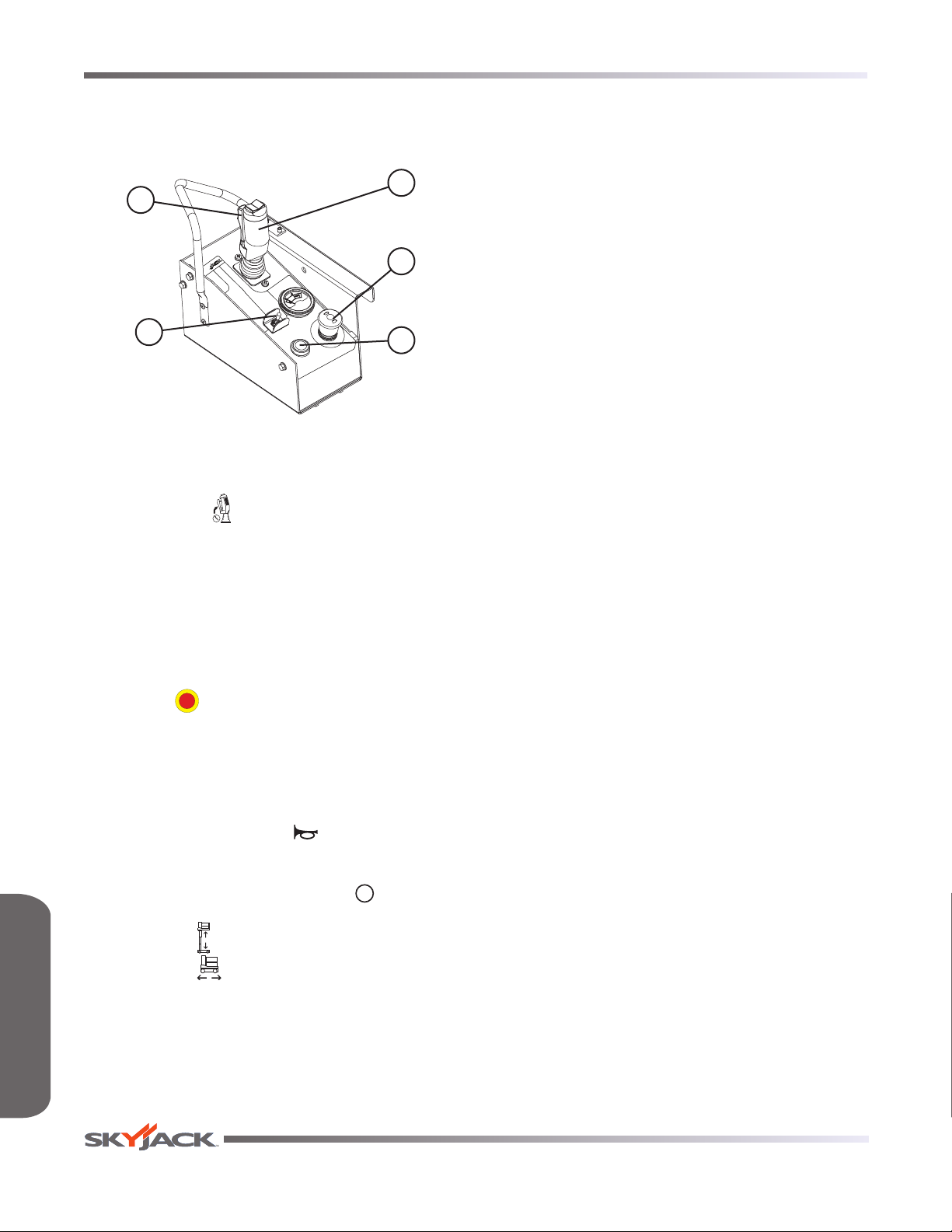

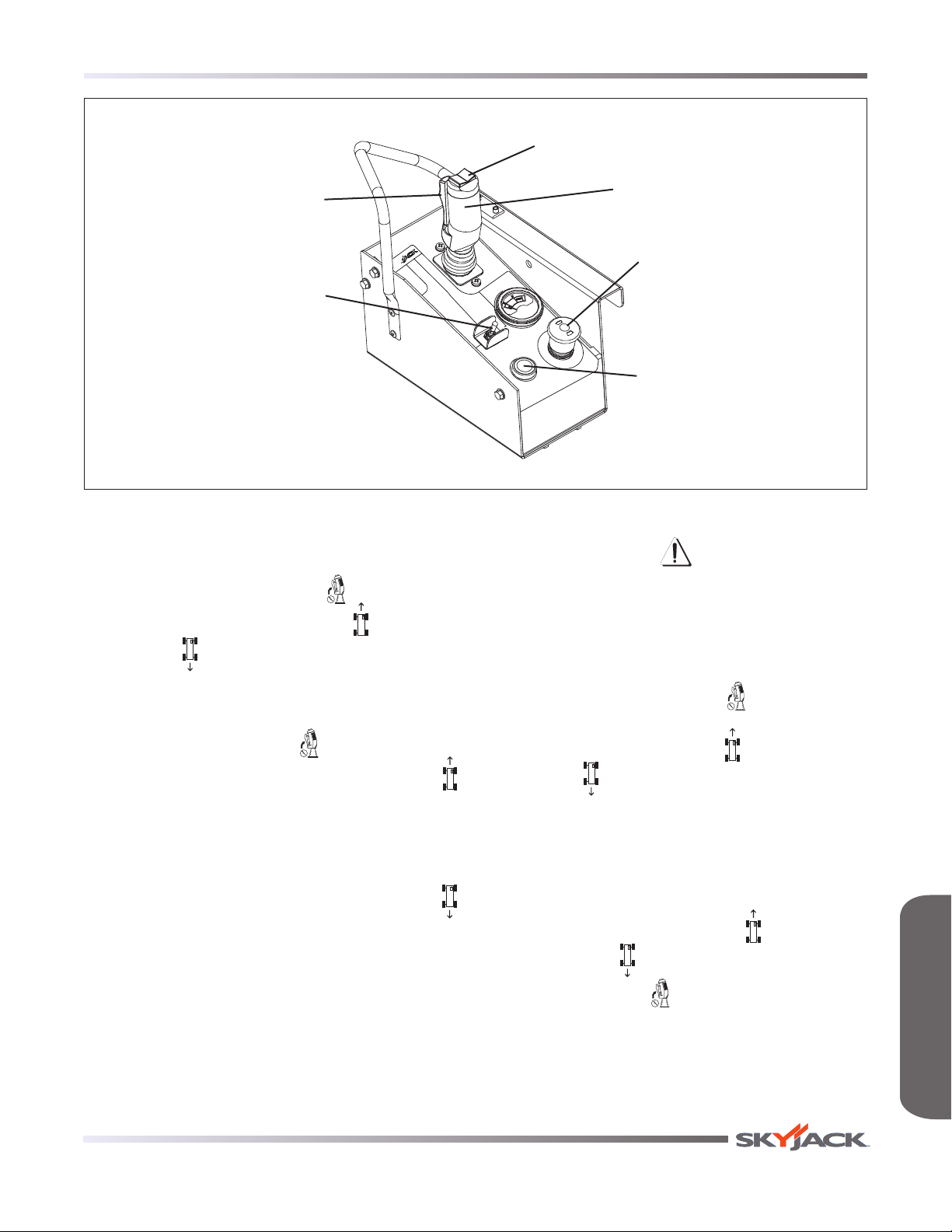

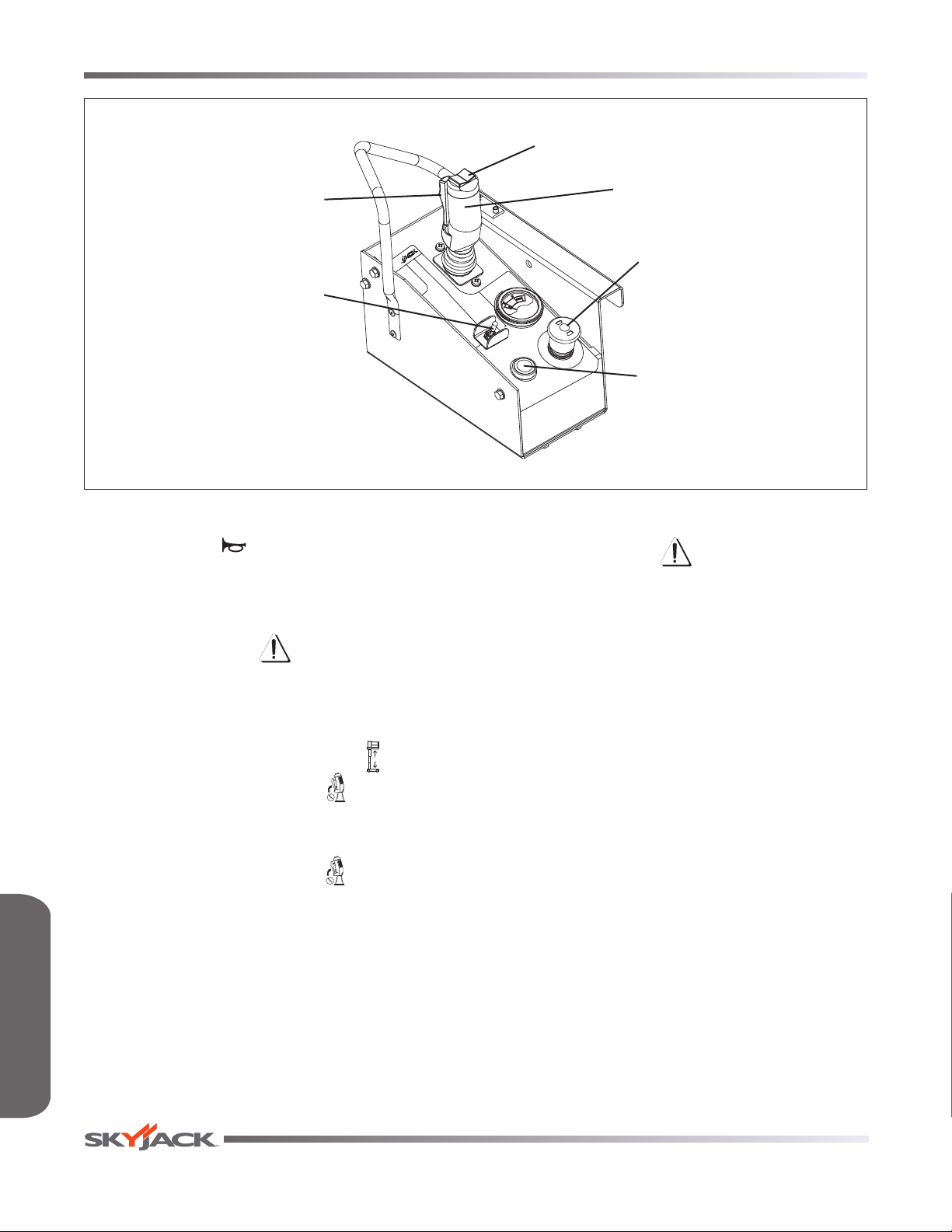

Figure 2-7. Platform Control Console

1. Lift/Drive/Steer Enable Trigger Switch - This

momentary “ ” switch energizes the controller. It must be held depressed continuously while engaging either the lift/drive or steer functions.

2. Lift/Drive/Steer Controller - This one-hand lever controls lift/drive and steer motions. Internal springs return it to neutral when controller is released.

3. Emergency Stop Button/Operation Light - This

button “ ”, when depressed, disconnects power to the control circuit. The operation light indicates upper control availability. It glows when both emergency stop buttons on the platform control console and the base control console are pulled out.

FAMILIARIZATIONFAMILIARIZATION

4. Horn Pushbutton - This “ ” pushbutton sounds an automotive-type horn.

5. Lift/Off/Drive Switch - Selecting “ ” off position disconnects power from both lift and drive circuits.

Selecting “ ” lift position energizes the lift circuit.

Selecting “ ” drive position energizes the drive circuit.

Page 16

It is the responsibility of the operator to read, completely understand and follow all instructions and warnings

contained in this operating manual and on the aerial platform.

Vertical Mast

Page 17

Section 2 - Familiarization Visual & Maintenance Inspection

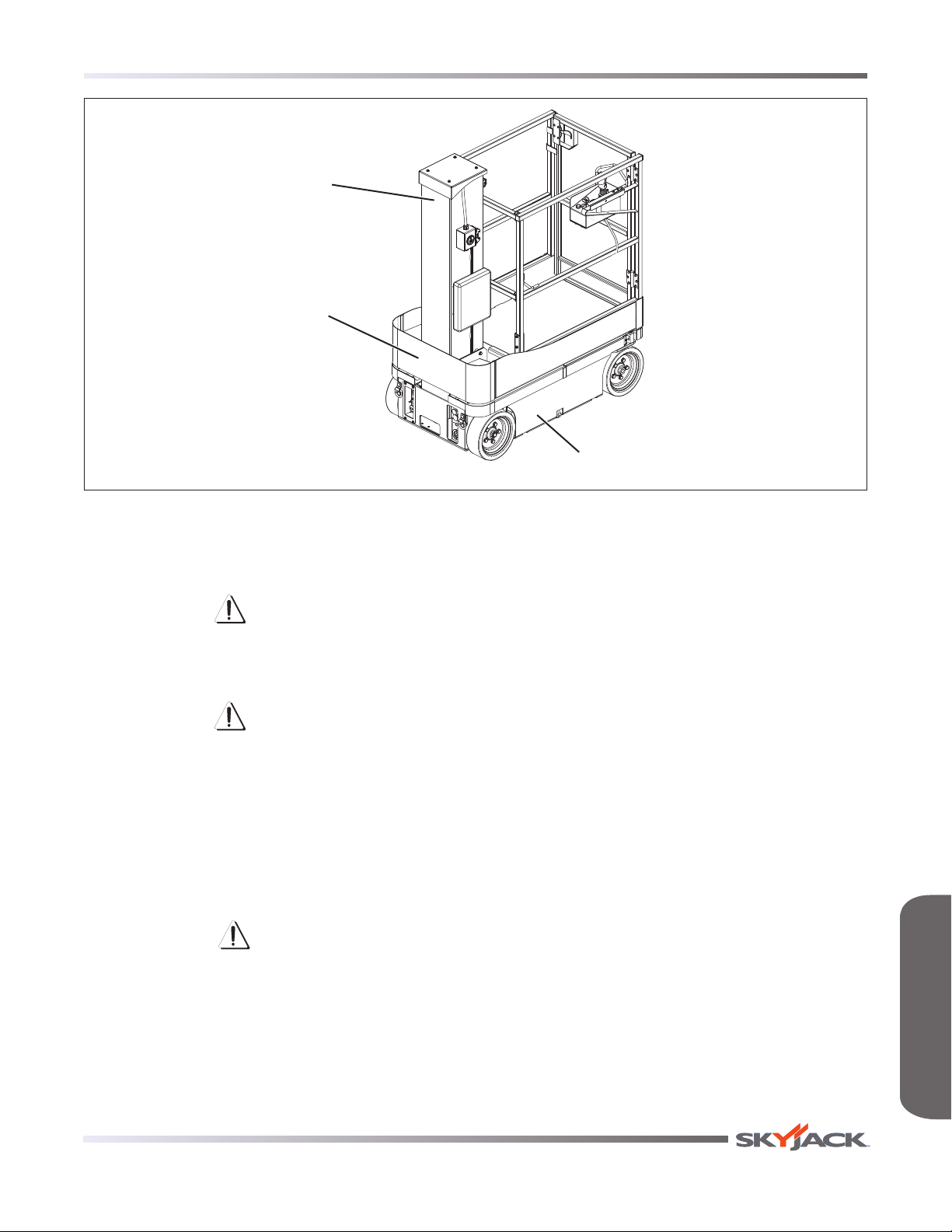

Mast

Platform

Base

2.3 Visual & Daily Maintenance Inspections

Begin the visual and daily maintenance inspections by checking each item in sequence for the conditions listed in this section.

WARNING

To avoid injury, do not operate an aerial platform until all malfunctions have been

corrected.

WARNING

To avoid possible injury, ensure aerial platform power is off during your visual

and daily maintenance inspections.

NOTE

While performing visual and daily inspections in different areas, be aware to also inspect limit switches, electrical and hydraulic

components.

CAUTION

Ensure aerial platform is on firm and level

ground.

2.3-2 Electrical

Maintaining the electrical components is essential to good performance and service life of the aerial platform. Inspect the following areas for chafed, corroded and loose wires:

• all wiring harnesses

• hydraulic/electrical wiring harnesses

2.3-3 Limit Switches

Ensure limit switches are properly secured with no signs of visible damage and movement is not obstructed.

2.3-4 Hydraulic

Maintaining the hydraulic components is essential to good performance and service life of the aerial platform.

Perform a visual inspection around the following areas:

• hoses and fittings

• hydraulic cylinder

• all hydraulic manifolds

• the underside of the base

• ground area under the aerial platform

FAMILIARIZATIONFAMILIARIZATION

2.3-1 Labels

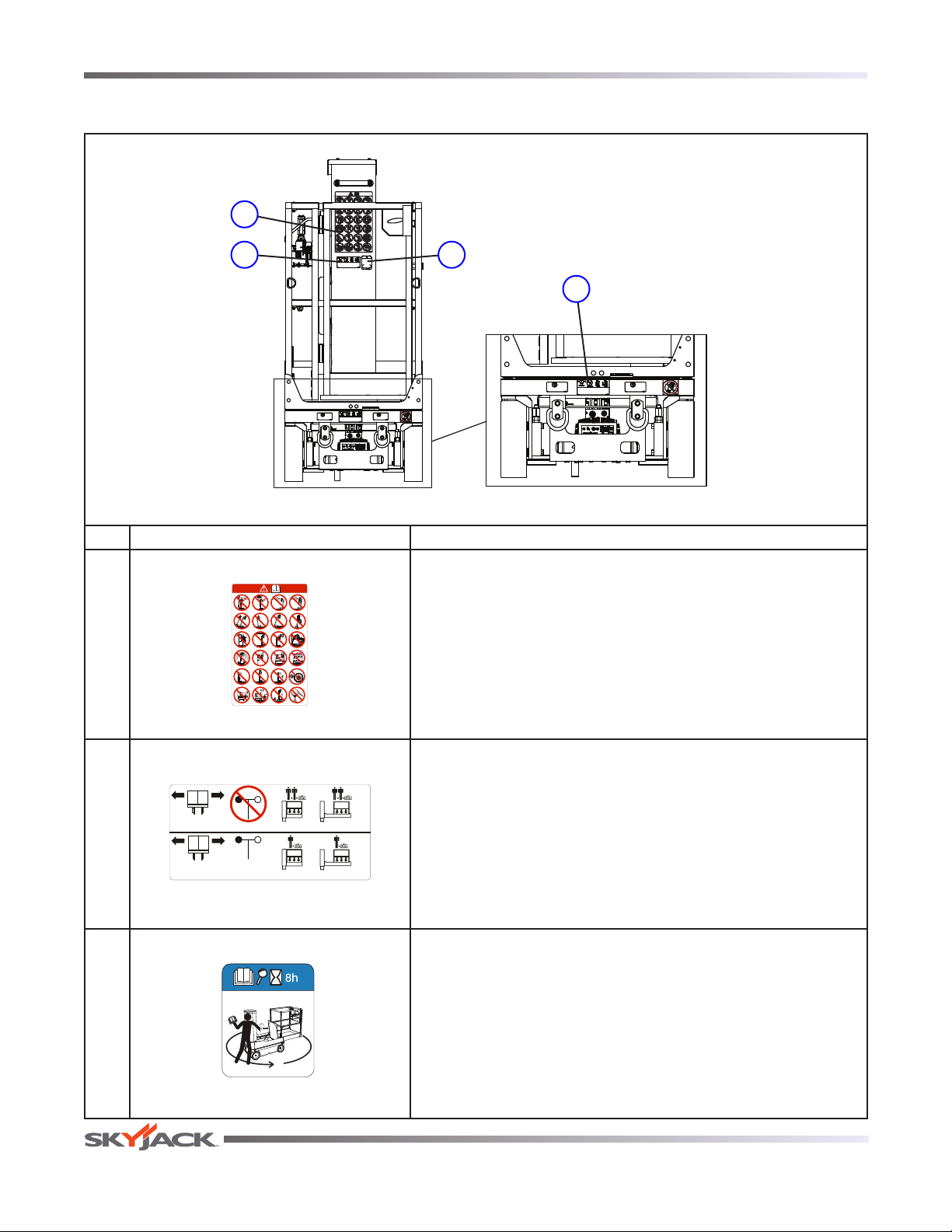

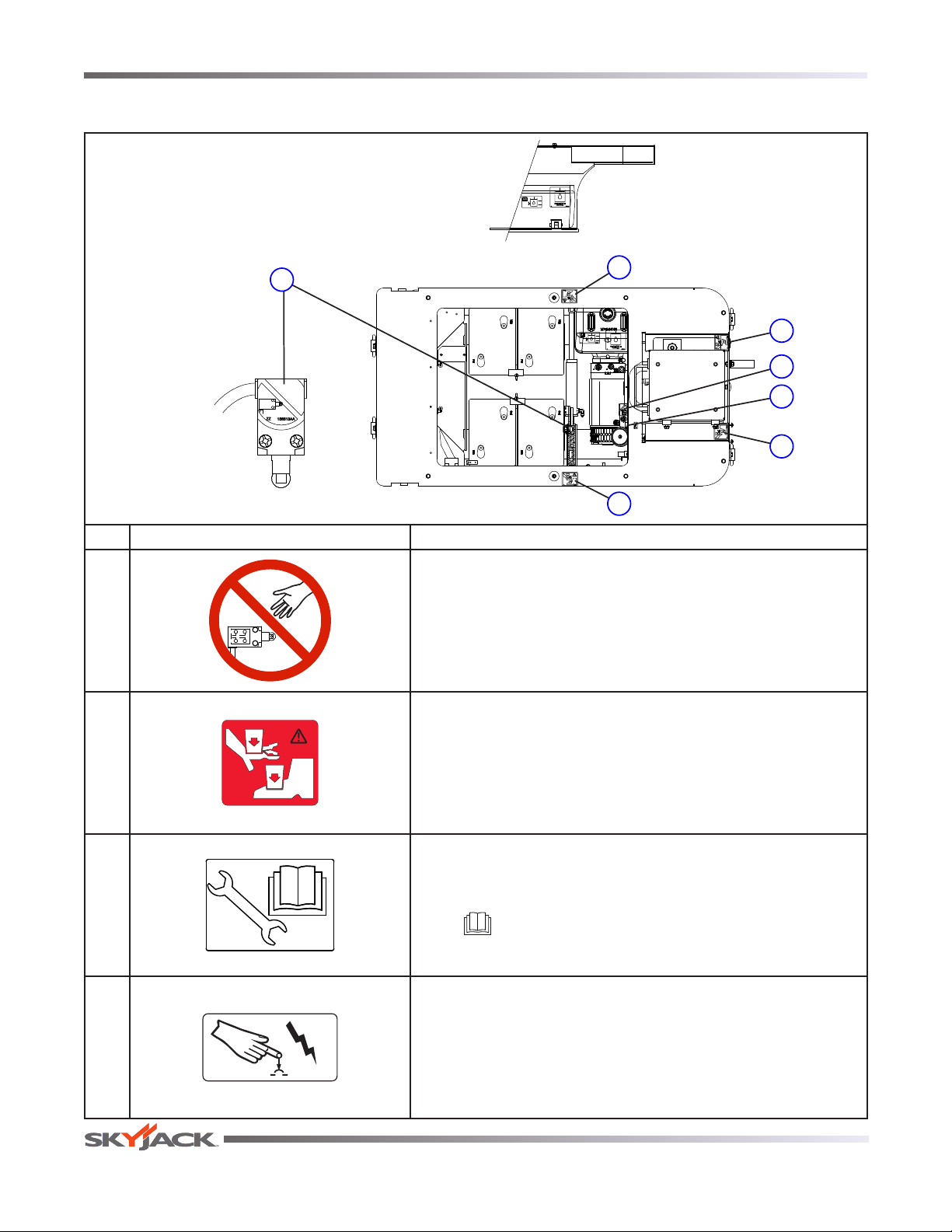

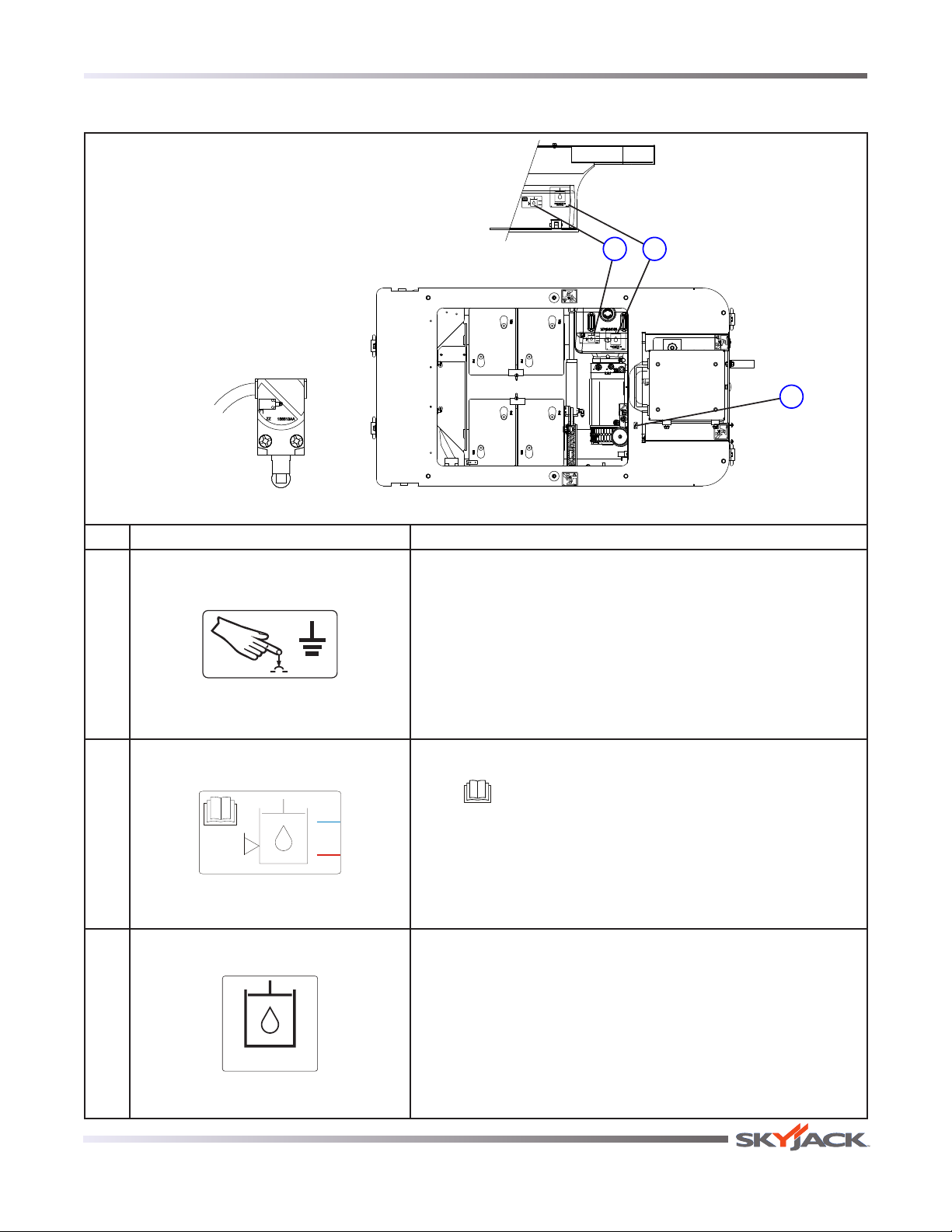

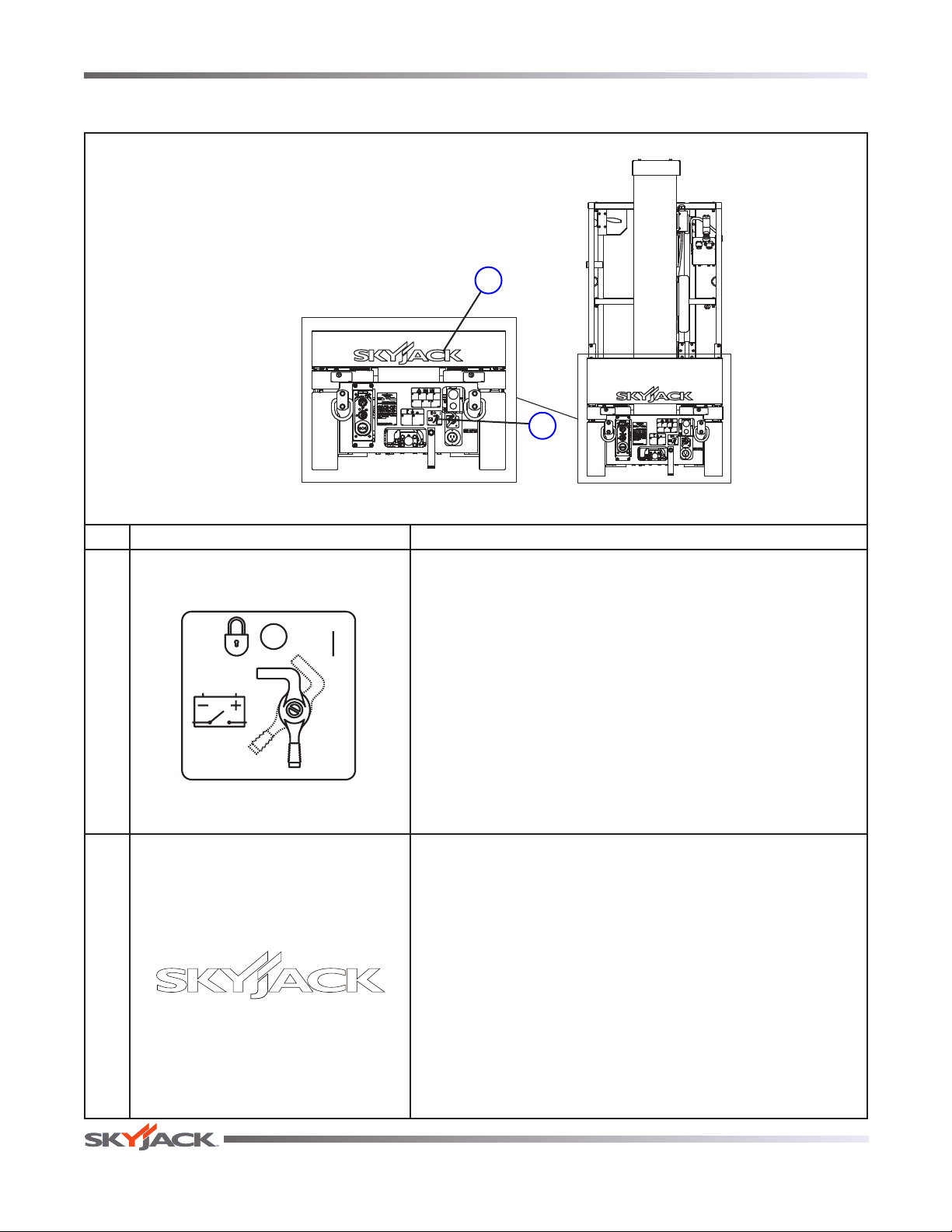

Refer to Section 5 - Labels in this manual and determine that all labels are in place and are legible.

Vertical Mast

It is the responsibility of the operator to read, completely understand and follow all instructions and warnings

contained in this operating manual and on the aerial platform.

Page 17

Page 18

Visual & Maintenance Inspection Section 2 - Familiarization

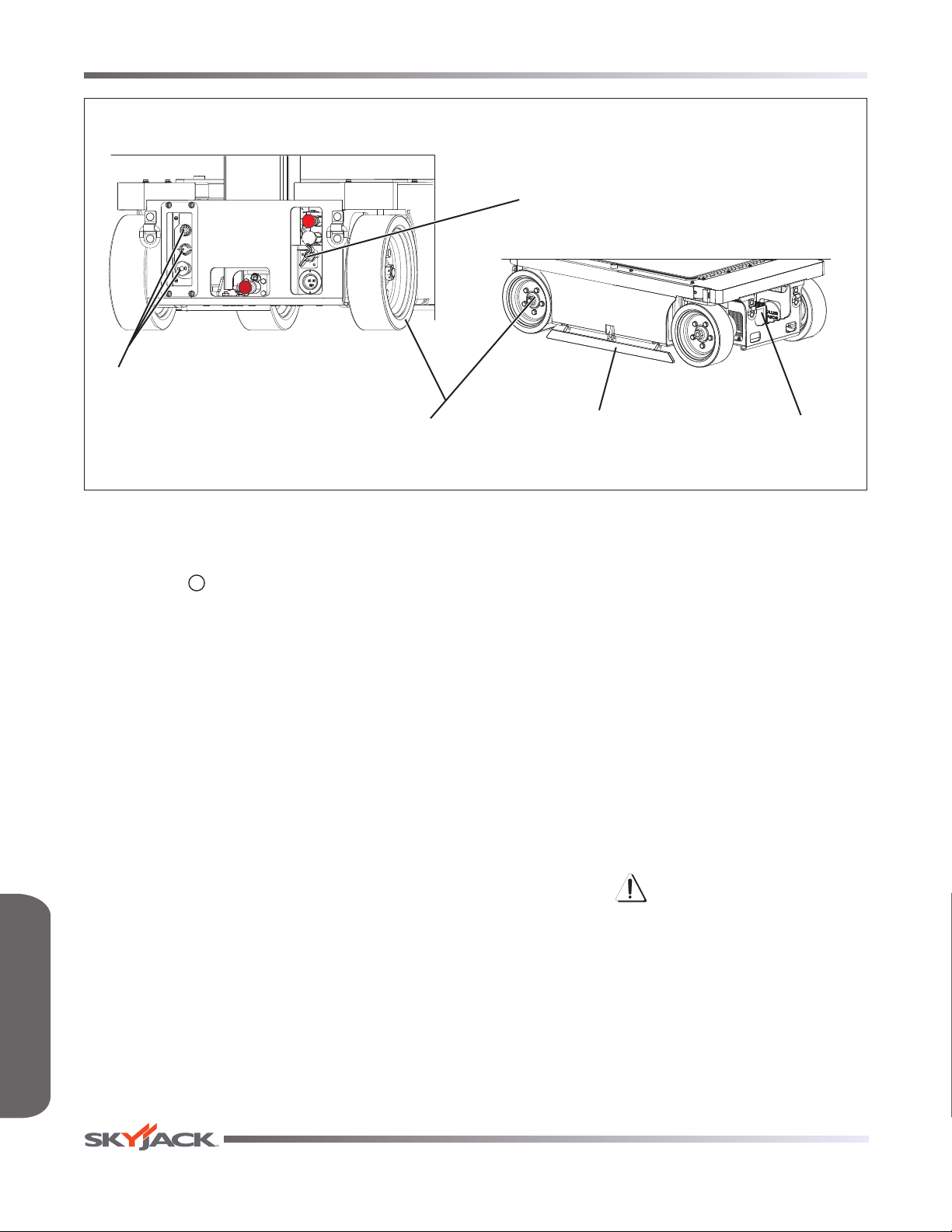

Main Power Disconnect Switch

Base Control Switches

Wheel/Tire Assembly

Pothole Protection

Device

Battery Charger

2.3-5 Base

• Main Power Disconnect Switch

- Turn main power disconnect switch to

“ ” off position.

- Ensure all cables are secure and switch is

in proper working condition.

• Base Control Switches

- Ensure there are no signs of visible

damage and all switches are in their neutral positions.

• Battery Charger

- Ensure charger is secure and shows no

visible damage.

• Pothole Protection Device

- Ensure mechanisms have no sign of

visible damage and are free from dirt and obstructions.

• Wheel/Tire Assembly

The aerial platform is equipped with solid

rubber tires. Tire and/or wheel failure could result in an aerial platform tip-over. Component damage may also result if problems are not discovered and repaired in a timely fashion.

- Check all tire treads and sidewalls for cuts,

cracks, punctures and unusual wear.

- Check each wheel for damage and

cracked welds.

- Check each lug nut for proper torque to

ensure none are loose.

- Check wheel motor assembly for loose or

missing parts and signs of visible damage.

- Ensure wheels are aligned and true

vertically and horizontally.

WARNING

Intermixing tires of different types or using tires of types other than those originally supplied with this equipment can adversely affect stability. Therefore, replace tires only with the exact Skyjack-approved type. Failure to operate with matched approved tires in good condition may result in death

or serious injury.

FAMILIARIZATIONFAMILIARIZATION

Page 18

It is the responsibility of the operator to read, completely understand and follow all instructions and warnings

contained in this operating manual and on the aerial platform.

Vertical Mast

Page 19

Section 2 - Familiarization Visual & Maintenance Inspection

Platform Control Console

Platform Assembly

Manuals Box

Fall Protection

Anchorage

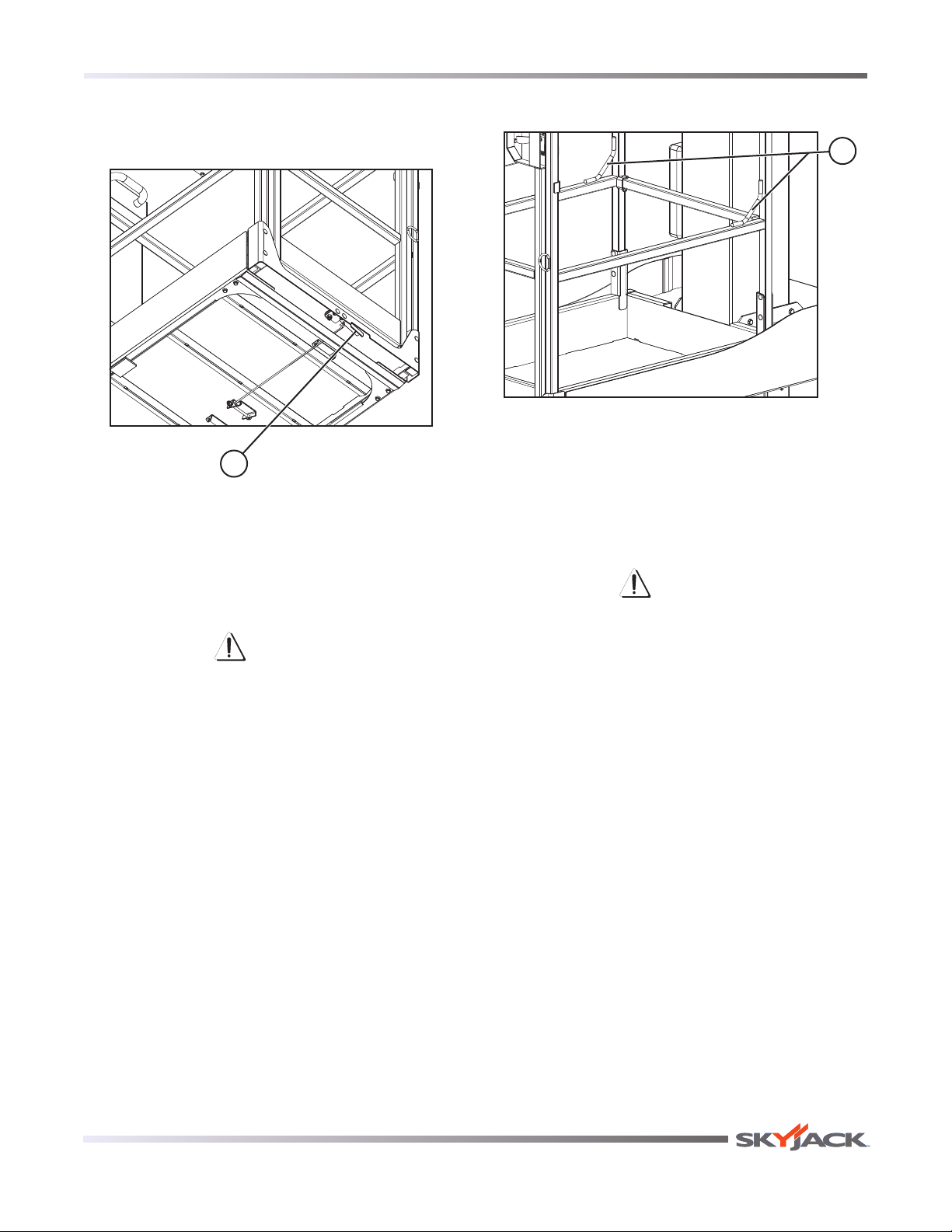

2.3-6 Platform Assembly

WARNING

Ensure that you maintain three points

of contact to mount/dismount platform.

1. Open the gate (if equipped) and access the

platform.

2. Close the gate (if equipped).

- Ensure all railings are properly positioned

and secured.

- Ensure all fasteners are securely in place.

- Ensure gate (if equipped) is in good

working order.

- Ensure there are no loose or missing parts

and there is no visible damage.

- Ensure platform foot pedal is in good

working order and no loose or missing parts and there is no visible damage.

• Fall Protection Anchorage(s)

- Ensure anchorage(s) are secure and there

is no visible damage.

• Platform Control Console

- Ensure all switches and controller are

returned to neutral and are properly secured.

- Ensure there are no loose or missing parts

and there is no visible damage.

WARNING

Ensure that you maintain three points

of contact to mount/dismount platform.

3. Dismount from platform.

4. Close the gate (if equipped).

• Manuals

Ensure a copy of operating manual and

certificate are enclosed in manual storage box.

- Check to be sure manual storage box is

present and in good condition.

FAMILIARIZATIONFAMILIARIZATION

- Ensure manuals are legible and in good

condition.

- Always return manuals to the manual

storage box after use.

Vertical Mast

It is the responsibility of the operator to read, completely understand and follow all instructions and warnings

contained in this operating manual and on the aerial platform.

Page 19

Page 20

Visual & Maintenance Inspection Section 2 - Familiarization

Hydraulic Pump and Motor

Batteries

FAMILIARIZATIONFAMILIARIZATION

Main Manifolds

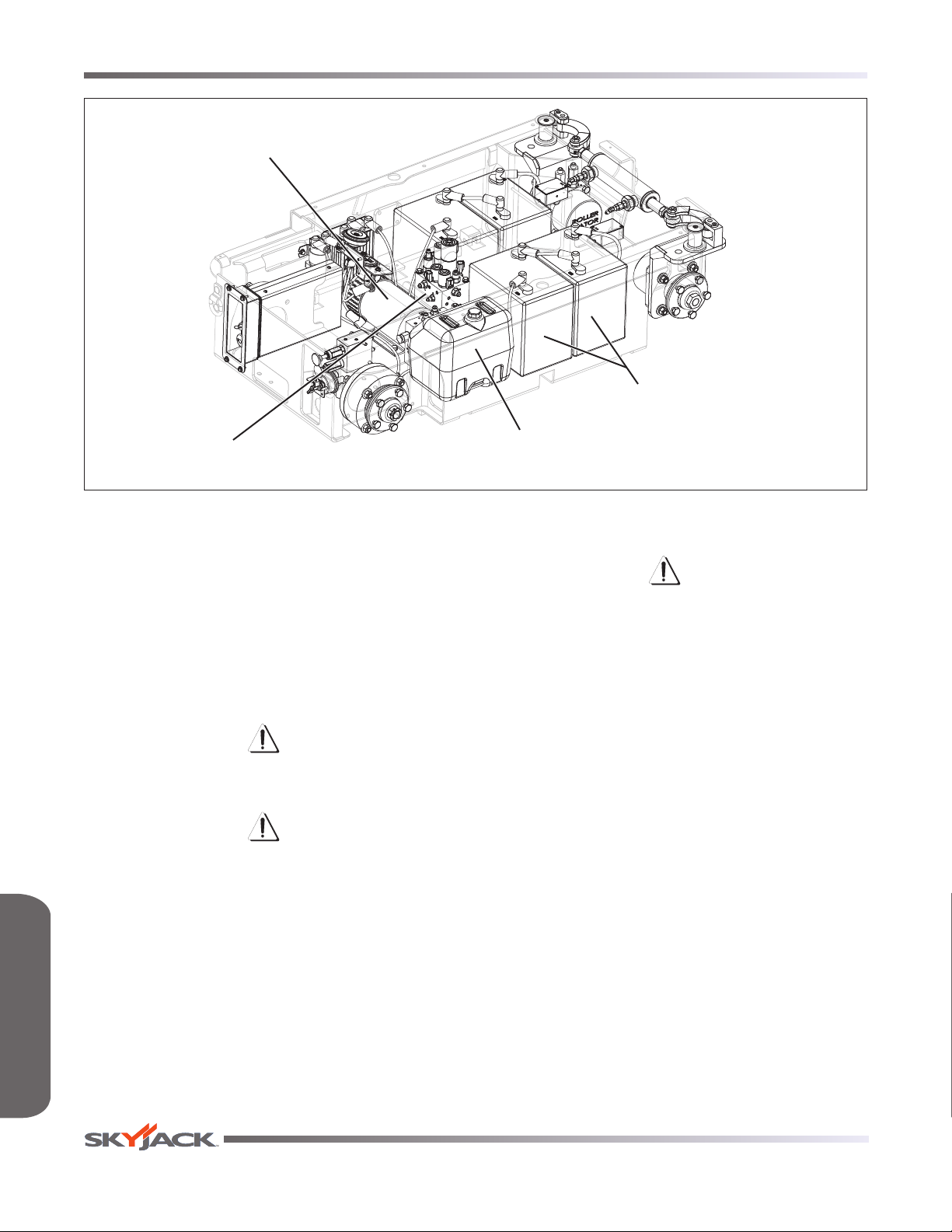

2.3-7 Hydraulic/Electrical Compartment

1. To access the hydraulic/electrical compartment,

refer to Section 3.11.

• Battery

Proper battery condition is essential to

good performance and operational safety. Improper fluid levels or damaged cables and connections can result in component damage and hazardous conditions.

WARNING

Explosion hazard. Keep flames and sparks away. Do not smoke near batteries.

WARNING

Battery acid is extremely corrosive - Wear proper eye and facial protection as well as appropriate protective clothing. If contact occurs, immediately flush with

cold water and seek medical attention.

a. Check battery case for damage. b. Clean battery terminals and cable ends

thoroughly with a terminal cleaning tool or wire

brush. c. Ensure all battery connections are tight. d. If applicable, check battery fluid level. If plates

are not covered by at least 1/2” (13 mm) of

solution, add distilled or demineralized water.

Hydraulic Tank

e. Replace battery if damaged or incapable of

holding a lasting charge.

WARNING

Use original or manufacturer-approved parts and components for the aerial

platform.

• Main Manifolds

- Ensure all fittings and hoses are properly

tightened and there is no evidence of hydraulic leakage.

- Ensure there are no loose wires or missing

fasteners.

• Hydraulic Tank

- Ensure hydraulic filler cap is secure.

- Ensure tank shows no visible damage and

no evidence of hydraulic leakage.

• Hydraulic Pump and Motor

- Ensure there are no loose or missing parts

and there is no visible damage.

• Hydraulic Oil

- Ensure hydraulic oil level is within the

minimum (red line) and maximum (blue line) range found on the hydraulic oil level indicator label.

Page 20

It is the responsibility of the operator to read, completely understand and follow all instructions and warnings

contained in this operating manual and on the aerial platform.

Vertical Mast

Page 21

Section 2 - Familiarization Visual & Maintenance Inspection

Motor Controller

Tilt Sensors

Mast Assembly

• Steer Cylinder Assembly

- Ensure steer cylinder assembly is properly

secured and there are no loose or missing parts.

• Motor Controller

- Ensure the controller is properly secured

and there is no visible damage.

- Ensure there are no loose wires or missing

fasteners.

• Tilt Sensors

- Ensure tilt sensors are properly secured

and there is no visible damage.

• Limit Switches

- Ensure limit switches are properly secured

with no signs of visible damage and movement is not obstructed.

2. Close the compartment access door and latch in place.

3. Push the platform back to its operating position and latch in place.

Chains (Front)

2.3-8 Lifting Mechanism

• Mast Assembly

- Ensure mast assembly shows no visible

damage and no signs of deformation in weldments.

1. Complete Section 2.4 - Function Tests.

2. Raise the platform.

• Wear Pads

- Ensure all bolts are tight, there is no visible

damage to the wear pads and that no parts are missing.

• Chains

- Ensure there are no missing parts, and

all bolts are tight with no signs of visible damage.

- Ensure chains are securely anchored.

FAMILIARIZATIONFAMILIARIZATION

Vertical Mast

It is the responsibility of the operator to read, completely understand and follow all instructions and warnings

contained in this operating manual and on the aerial platform.

Page 21

Page 22

Visual & Maintenance Inspection Section 2 - Familiarization

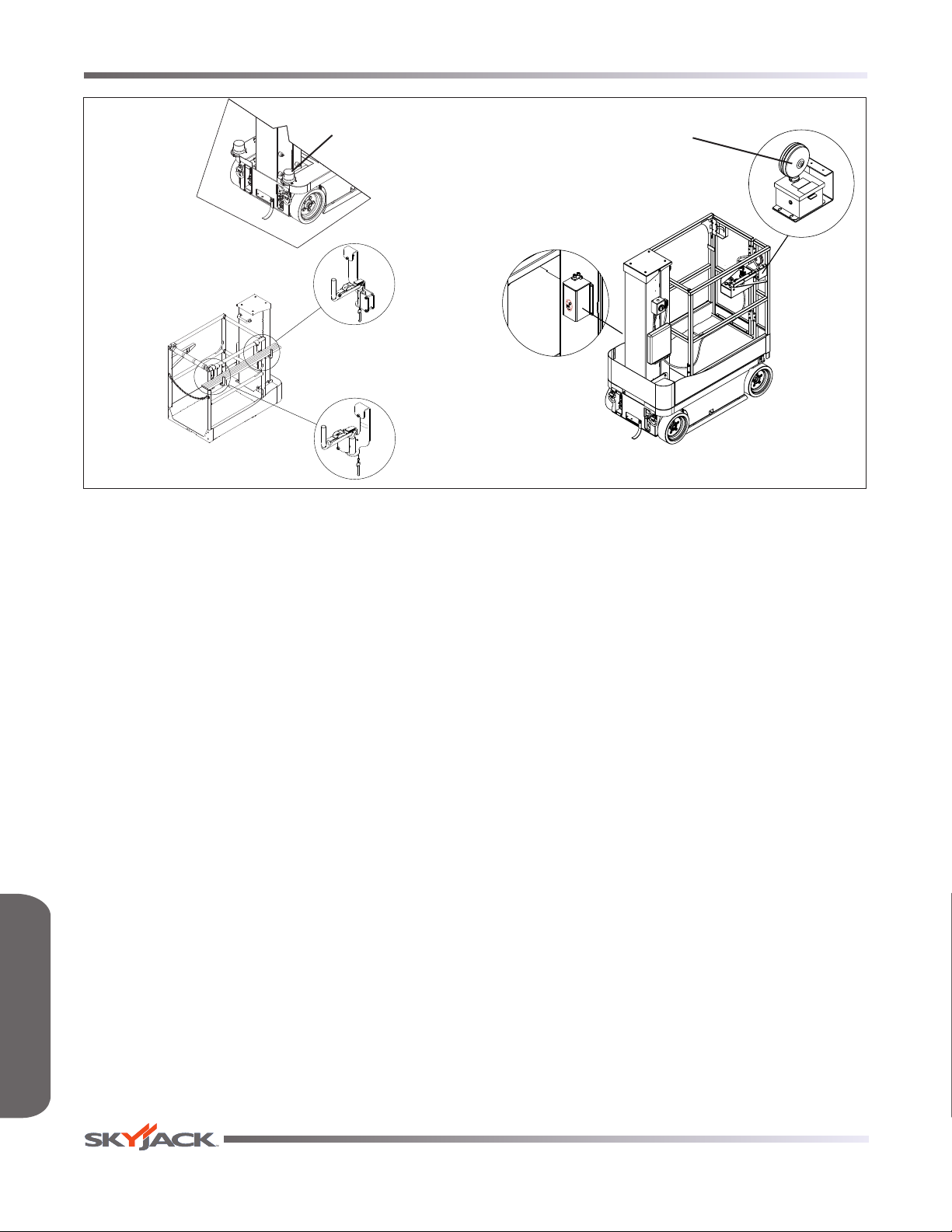

Flashing Light (If Equipped)

Pipe Rack (If Equipped)

2.3-9 Optional Equipment/Attachments

• Flashing Light(s) (If Equipped)

- Ensure there are no loose or missing parts

and there is no visible damage.

Outdoor Option Flashing

Light (If Equipped)

Outdoor Option Limit

Switch (If Equipped)

• Pipe Rack (If Equipped)

- Ensure pipe rack assemblies are properly

secured with no signs of visible damage.

• Outdoor Option Flashing Light & Limit Switch (If Equipped)

- Ensure light is secure and in good

condition.

- Ensure limit switch is properly secured with

no signs of visible damage and movement is not obstructed.

FAMILIARIZATIONFAMILIARIZATION

Page 22

It is the responsibility of the operator to read, completely understand and follow all instructions and warnings

contained in this operating manual and on the aerial platform.

Vertical Mast

Page 23

Section 2 - Familiarization Function Tests

Main Power Disconnect Switch

Base Emergency Stop

2.4 Function Tests

Function tests are designed to discover any malfunctions before aerial platform is put into service. The operator must understand and follow step-by-step instructions to test all aerial platform functions.

WARNING

Never use a malfunctioning aerial platform. If malfunctions are discovered, aerial platform must be tagged and placed out of service. Repairs to aerial platform may only be made by a qualified service technician.

After repairs are completed, operator must perform a pre-operation inspection and a series of function tests again before putting aerial platform into service.

Prior to performing function tests, be sure to read and understand Section 3.8 - Start Operation.

2.4-1 Test Main Power Disconnect Switch

1. On platform control console, pull out “ ” emergency stop button.

3. At rear of the base, turn main power disconnect switch to “ ” off position and attempt to activate all aerial platform functions.

Result: Aerial platform functions should not

operate.

2.4-2 Base Control Console

1. Push in base “ ” emergency stop button.

2. Turn main power disconnect switch to “ ” on position.

• Test Base Emergency Stop Light

1. Pull out base “ ” emergency stop button. Result: Emergency stop light should

continuously illuminate.

• Test Base Emergency Stop

1. Push in “ ” emergency stop button and attempt to raise or lower the platform.

Result: Platform raising and lowering

functions should not operate.

FAMILIARIZATIONFAMILIARIZATION

2. Pull out base “ ” emergency stop button.

Vertical Mast

It is the responsibility of the operator to read, completely understand and follow all instructions and warnings

contained in this operating manual and on the aerial platform.

Page 23

Page 24

Function Tests Section 2 - Familiarization

Base Control Console Emergency Lowering

• Test Off/Platform/Base Switch

WARNING

Be aware of overhead obstructions or other possible hazards around the

aerial platform when lifting.

1. Pull out base “ ” emergency stop button.

2. Select off/platform/base key switch to “ ” off position. Attempt to raise or lower

the platform.

Result: Platform raising and lowering

functions should not operate.

3. Select off/platform/base key switch to “ ” platform position. Attempt to raise or lower the platform.

Result: Platform raising and lowering

functions should not operate.

• Test Lower/Neutral/Raise Switch

1. Select and hold off/platform/base key

switch to “ ” base position and “ ” raise the platform with lower/neutral/raise switch.

Result: Platform should rise.

2. Select and hold off/platform/base key switch

to “ ” base position and “ ” lower the platform with lower/neutral/raise switch.

Result: Platform should lower.

• Test Emergency Lowering

WARNING

Be aware of overhead obstructions or other possible hazards around the

aerial platform when lifting.

1. Raise the platform.

2. On rear of the base, pull out and hold emergency lowering valve to fully lower the platform.

Result: The platform should lower.

FAMILIARIZATIONFAMILIARIZATION

Page 24

It is the responsibility of the operator to read, completely understand and follow all instructions and warnings

contained in this operating manual and on the aerial platform.

Vertical Mast

Page 25

Section 2 - Familiarization Function Tests

Base Control Console Emergency Lowering

2.4-3 Test Platform Maintenance Limit Switch

1. Traverse the platform to maintenance position, refer to Section 3.11.

WARNING

Ensure that you maintain three points

of contact to mount/dismount platform.

2. Open the gate (if equipped) and access the platform.

3. Close the gate (if equipped).

4. At the platform control console, attempt to activate any function.

Result: All functions should not operate.

5. Push the platform back to its operating position and latch in place.

2.4-4 Platform Control Console

1. Ensure main power disconnect switch is in “ ” on position.

2. Ensure base “ ” emergency stop button is pulled out.

WARNING

Ensure that you maintain three points

of contact to mount/dismount platform.

4. Open the gate (if equipped) and access the platform.

5. Close the gate (if equipped).

6. On platform control console, pull out “ ” emergency stop button.

• Test Platform Emergency Stop

1. Push in “ ” emergency stop button and attempt to activate any platform function.

Result: All selected platform functions

should not operate.

2. Pull out “ ” emergency stop button.

3. While activating any platform functions, push in emergency stop button.

Result: Current activated aerial platform

function should immediately stop operating.

FAMILIARIZATIONFAMILIARIZATION

3. Select off/platform/base key switch to “ platform position.

Vertical Mast

It is the responsibility of the operator to read, completely understand and follow all instructions and warnings

contained in this operating manual and on the aerial platform.

”

Page 25

Page 26

Function Tests Section 2 - Familiarization

Rocker Switch

Lift/Drive/Steer Enable

Trigger Switch

Lift/Off/Drive Switch

• Test Enable Trigger Switch

1. Pull out “ ” emergency stop button.

2. Without activating “ ” enable trigger switch, attempt to activate any platform function.

Result: All platform functions should not

operate.

Controller

Emergency Stop Button/ Operation Light

Horn Pushbutton

4. Activate and hold “ ” enable trigger switch.

5. Press rocker switch on top of controller

handle to “ ” left and “ ” right.

Result: Steer wheels should turn left and

right.

FAMILIARIZATIONFAMILIARIZATION

• Test Lift/Off/Drive Switch Off Position

1. Select lift/off/drive switch to“ ” off position, attempt to activate any platform function.

Result: All platform functions should not

operate.

• Test Steering

1. Select lift/off/drive switch to “ ” drive position.

2. Without activating “ ” enable trigger switch.

3. Press rocker switch on top of controller

handle to “ ” left and “ ” right.

Result: Steer wheels should not operate.

• Test Drive Cutout Limit Switch

1. Traverse platform to any position, then

attempt to drive “ ” forward and

“ ” reverse.

Result: Forward and reverse drive functions

should not operate.

2. Fully retract platform, then attempt to drive

“ ” forward and “ ” reverse.

Result: Forward and reverse drive functions

should operate.

Page 26

It is the responsibility of the operator to read, completely understand and follow all instructions and warnings

contained in this operating manual and on the aerial platform.

Vertical Mast

Page 27

Section 2 - Familiarization Function Tests

Rocker Switch

Lift/Drive/Steer Enable

Trigger Switch

Lift/Off/Drive Switch

• Test Driving

1. Ensure path of intended motion is clear.

2. Without activating “ ” enable trigger

switch attempt to drive “ ” forward and

“ ” reverse .

Result: Aerial platform drive functions

should not operate.

Controller

Emergency Stop Button/ Operation Light

Horn Pushbutton

• Test Brakes

WARNING

Brakes will engage instantly when you release the controller handle, causing

aerial platform to stop immediately.

1. Ensure path of intended motion is clear.

2. Activate and hold “ ” enable trigger switch.

3. Activate and hold “ ”enable trigger switch.

4. Slowly move controller handle in “ ”

Result: Aerial platform should move in

5. Slowly move controller handle in “ ”

Result: Aerial platform should move in

Vertical Mast

forward direction until aerial platform begins to move, and then return handle to center position.

forward direction, and then come to a stop.

reverse direction until aerial platform begins to move, and then return handle to center position.

reverse direction, and then come to a stop.

It is the responsibility of the operator to read, completely understand and follow all instructions and warnings

contained in this operating manual and on the aerial platform.

3. Drive aerial platform “ ” forward and then

“ ” backward. Test brake by releasing controller handle.

Result: Aerial platform should come to a

stop. If aerial platform pulls to one side while stopping, do not operate aerial platform until brake adjustments have been checked.

FAMILIARIZATIONFAMILIARIZATION

4. Drive aerial platform “ ” forward and

then “ ” backward. Test brake again by

releasing “ ” enable trigger switch only.

Result: Aerial platform should come to an

instant and abrupt stop. If aerial platform does not stop immediately, or if aerial platform pulls to one side while stopping, do not operate aerial platform until brake adjustments have been checked.

Page 27

Page 28

Function Tests Section 2 - Familiarization

Rocker Switch

Lift/Drive/Steer Enable

Trigger Switch

Lift/Off/Drive Switch

• Test Horn

1. Push “ ” horn pushbutton. Result: Horn should sound.

• Test Platform Raising/Lowering

Controller

Emergency Stop Button/ Operation Light

Horn Pushbutton

• Test Elevated Drive Speed

WARNING

Be aware of overhead obstructions or

other possible hazards around the

aerial platform when lifting.

FAMILIARIZATIONFAMILIARIZATION

WARNING

Be aware of overhead obstructions or other possible hazards around the

aerial platform when lifting.

1. Select lift/off/drive switch to “ ” lift position.

2. Without activating “ ” enable trigger switch attempt to lift/lower the platform.

Result: Aerial platform lift/lower functions

should not operate.

3. Activate and hold “ ” enable trigger switch.

4. Push controller handle and raise the platform to an approximate height of 1 ft. (30.5 cm).

Result: Platform should rise.

5. Pull controller handle and lower the platform fully.

Result: Platform should lower.

1. Ensure path of intended motion is clear.

2. Raise the platform until approximately a height of 1 ft.(30 cm) is reached and attempt to drive forward or reverse. Result: Aerial platform should move slower than when it was in stowed position.

Page 28

It is the responsibility of the operator to read, completely understand and follow all instructions and warnings

contained in this operating manual and on the aerial platform.

Vertical Mast

Page 29

Section 2 - Familiarization Function Tests

Flashing Light (If Equipped)

Pothole

Protection Device

• Test Pothole Sensor

WARNING

Ensure that you maintain three points of contact to mount/dismount platform.

1. Dismount from platform and place a block, approximately 1.5” (3.75 cm), under one side of the pothole protection device.

2. Open the gate (if equipped) and access the platform.

3. Close the gate (if equipped).

4. Raise the platform until approximately a height of 2 feet is reached and attempt to drive forward or reverse.

Result: Aerial platform should not move

forward or backward.

5. Repeat the steps above with block placed under the other-side of the pothole protection device.

Result: Aerial platform should not move

forward or backward.

• Test Lowering Only Alarm

WARNING

Be aware of overhead obstructions or other possible hazards around the

MEWP when lifting.

1. Ensure path of intended motion is clear.

2. Lift and lower the platform. Result: Alarm should sound while platform is lowering.

NOTE

On MEWP with certain options, a flashing amber

light will accompany this alarm.

2.4-5 Optional Equipment/Attachments

• Test Flashing Light (If Equipped)

1. Ensure path of intended motion is clear.

2. Activate any drive or lift functions. Result: Light should flash.

3. Stop all platform motion. Result: Light should stop flashing.

FAMILIARIZATIONFAMILIARIZATION

Vertical Mast

It is the responsibility of the operator to read, completely understand and follow all instructions and warnings

contained in this operating manual and on the aerial platform.

Page 29

Page 30

Function Tests Section 2 - Familiarization

Outdoor Option Flashing

Light (If Equipped)

Flashing Light (If Equipped)

• Test All Motion Alarm (If Equipped)

WARNING

Be aware of overhead obstructions or other possible hazards around the MEWP

when lifting.

1. Ensure path of intended motion is clear.

2. Activate any drive or lift functions.

Result: Alarm should sound.

3. Stop all platform motion.

Result: Alarm should stop.

NOTE

On MEWP with certain options, a flashing amber

light will accompany this alarm.

• Test Outdoor Option Flashing Light (If Equipped)

In no wind conditions (0 m/s), attempt the following:

1. Raise the MEWP to 3.6 m (12 feet). Result: Indicator light should flash.

2. Lower the MEWP below 3.6 m (12 feet). Result: Indicator light should stop flashing.

WARNING

Do not operate the MEWP at a height exceeding 3.6 m (12 feet) if wind

conditions exceed 0 m/s.

FAMILIARIZATIONFAMILIARIZATION

Page 30

It is the responsibility of the operator to read, completely understand and follow all instructions and warnings

contained in this operating manual and on the aerial platform.

Vertical Mast

Page 31

Section 2 - Familiarization Procedures

2.5 Winching and Towing Procedures

This section provides the operator with the Winching and Towing procedure, which includes instructions on how to manually release the brakes.

WARNING

Ensure platform is fully lowered before winching or towing. Sudden motion could cause the aerial platform to become unstable. Death or serious injury could

result.

WARNING

In emergency situations where aerial platform functions are not available and lowering is impeded by an obstacle, utmost care must be taken to move aerial platform far enough to clear the obstacle. In such cases, operation must be extremely smooth with no sudden movements and must not exceed a speed

of 2”/sec (50 mm/sec).

WARNING

When pushing, winching or towing, do

not exceed 2 mph (3.2 km/h).

WARNING

Do not push, winch or tow aerial platform onto a slope, or brake the towing vehicle rapidly. Do not pull aerial platform down

an incline towards a winch.

WARNING

Brakes must be manually disengaged for

pushing, winching or towing.

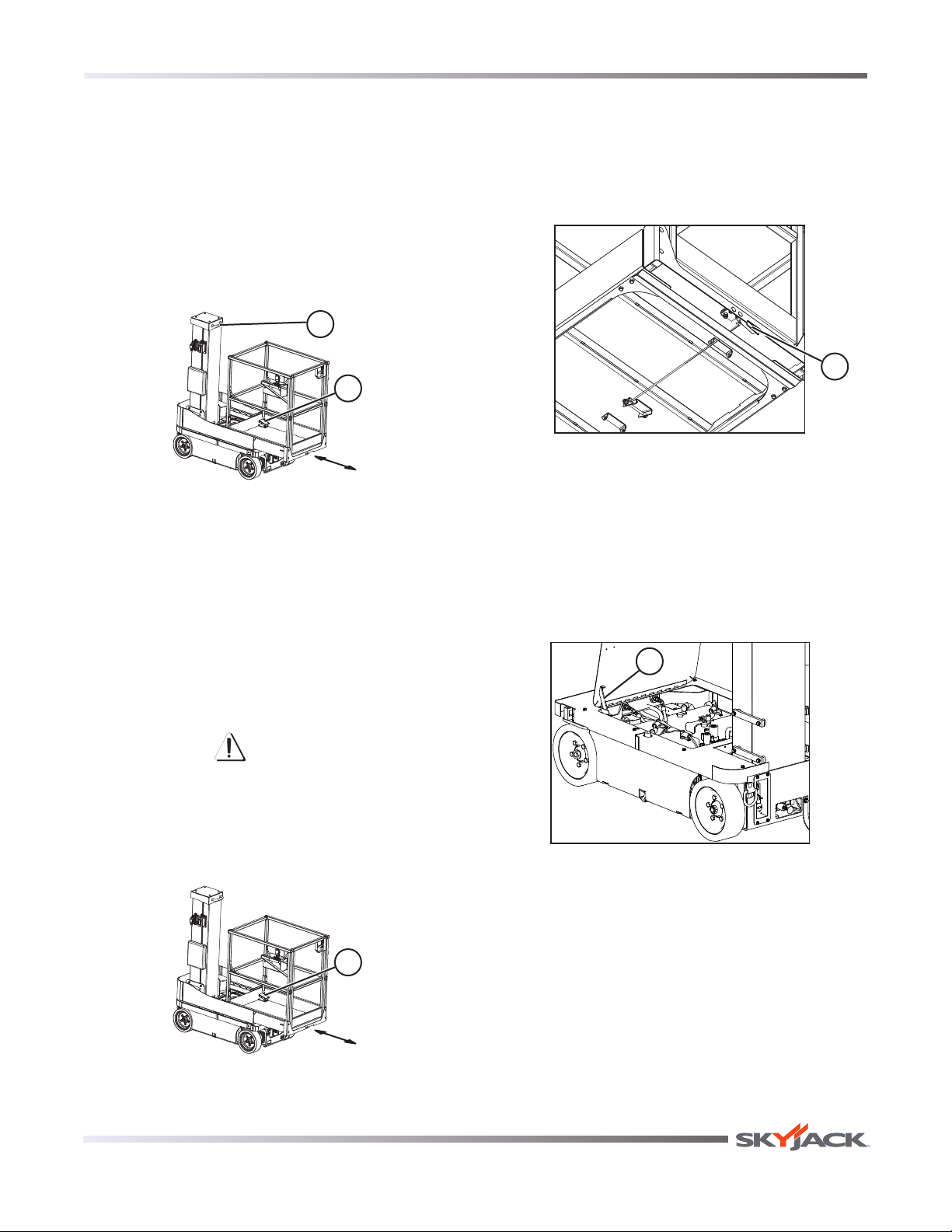

Figure 2-8. Brakes

WARNING

Brakes must be manually disengaged for

pushing, winching or towing.

1. Ensure aerial platform is on level ground. Chock or block wheels to keep aerial platform from rolling.

2. Turn main power disconnect switch to “ ” off position.

3. Locate the brake manifold at the rear of the base.

4. Push in brake auto reset valve plunger (item 2).

5. Grasp brake hand pump (item 1) and rapidly depress until firm resistance is felt. The brakes are now released.

6. Remove wheel chocks or blocks, then push, winch or tow aerial platform to desired location.

7. Position aerial platform on a firm and level surface.

FAMILIARIZATIONFAMILIARIZATION

2.5-1 To Release Brakes Manually

WARNING

Do not manually disengage brakes if the

aerial platform is on a slope.

Vertical Mast

It is the responsibility of the operator to read, completely understand and follow all instructions and warnings

Brakes must be reengaged immediately

after reaching the desired location.

8. Chock or block wheels to prevent aerial platform from rolling.

9. Reengage the brake by pulling out the brake auto reset valve plunger.

contained in this operating manual and on the aerial platform.

WARNING

FAMILIARIZATIONFAMILIARIZATION

Page 31

Page 32

Procedures Section 2 - Familiarization

2.6 Emergency Lowering Procedure

This section guides the operator on how to use the emergency lowering system. This system allows platform lowering in the event of an emergency or an electrical system failure.

WARNING

Keep clear of lifting mechanism when

using emergency lowering valve.

1. Remove any obstructions from a lowering platform.

2. Platform may need to be retracted or aerial platform may need to be moved to clear obstruction. Refer to Section 2.5 for winching and towing procedures.

Figure 2-9. Emergency Lowering System

3. Locate the emergency lowering valve (item 1) at the base of the lift cylinder (rear of the base). Pull out and hold emergency lowering valve (item 1) to lower platform.

FAMILIARIZATIONFAMILIARIZATION

Page 32

It is the responsibility of the operator to read, completely understand and follow all instructions and warnings

contained in this operating manual and on the aerial platform.

Vertical Mast

Page 33

Section 3 - Operation General

3.0 Operation

This section provides the necessary information needed to operate the aerial platform. It is important that the user reads and understands this section before operating the aerial platform.

3.1 General

In order for this aerial platform to be in good working condition, it is important that the operator meets the necessary qualifications and follow the maintenance and inspection schedule referred to in this section.

3.1-1 Operator Qualifications

• Only trained and authorized personnel shall be permitted to operate an aerial platform.

• Safe use of this aerial platform requires the operator to understand the limitations and warnings, operating procedures and operator’s responsibility for maintenance. Accordingly, the operator must understand and be familiar with this operating manual, its warnings and instructions, and all warnings and instructions on the aerial platform.

• The operator must be sure that the aerial platform has been properly maintained and inspected before using it.

• The operator must perform all the daily inspections and function tests found in Table 4.6, even if the operator is not directly responsible for the maintenance of this aerial platform.

3.1-3 Maintenance and Inspection Schedule

• The inspection points covered in Table 4.6 indicate the areas of the aerial platform to be maintained or inspected and at what intervals the maintenance and inspections are to be performed.

• The actual operating environment of the aerial platform may affect the maintenance schedule.

WARNING

Use original or manufacturer-approved parts and components for the aerial

platform.

• The operator must be familiar with employer’s work rules and related government regulations and be able to demonstrate the ability to understand and operate this make and model of aerial platform in the presence of a qualified person.

3.1-2 Operator’s Responsibility for Maintenance

WARNING

Maintenance must be performed by trained and competent personnel who are familiar with mechanical procedures.

Death or serious injury could result from the use of an aerial platform that is not properly maintained or kept in good

working condition.

3.1-4 Owner’s Inspections

It is the responsibility of the owner to arrange daily, quarterly (or 150 hours) and annual inspections of the aerial platform. Refer to Table 4.6 for recommended maintenance and inspection areas and intervals. A record of annual inspection is kept on a label located on the Mast. Refer to Table 4.2 in this manual.

Vertical Mast

Page 33

Page 34

Major Components Section 3 - Operation

3.2 Major Components

Platform Repositioning Handle

Platform Control Console

Foot Pedal

Platform

Mast - Lifting Mechanism

Hydraulic/Electrical Compartment Access Door

Base

Page 34

SKYJACK Vertical Mast Series Aerial Platform

Vertical Mast

Page 35

Section 3 - Operation Major Assemblies

3.3 Major Assemblies

The aerial platform consists of three major assemblies: base, lifting mechanism and platform.

3.3-1 Base

The base is a rigid, one-piece weldment which contains hydraulic, electrical components and four (4) 6 volt batteries. The front wheels are driven by hydraulic motors, steerable by a hydraulic cylinder. The rear wheels are non-driven, with spring-applied hydraulically released brakes.

3.3-2 Lifting Mechanism

The lifting mechanism is constructed of formed steel. The Mast assembly is raised and lowered by a series of chains and a single-acting hydraulic lift cylinder with holding valves. A pump, driven by an electric motor, provides hydraulic power to the lift cylinders.

3.3-3 Platform

The platform is constructed of a tubular support frame, a skid-resistant “diamond plate” deck surface and 43.25” fixed guardrails with 6” toe boards and mid-rails. The platform can be entered from the front through a spring-returned gate with latch (if equipped).

3.4 Serial Number Nameplate

The serial number nameplate, located at the rear of the aerial platform, lists the following:

• Model number

• Serial number

• Aerial platform weight

• Maximum drivable height

• Maximum capacities

• Maximum number of persons permissible on the platform

• Voltage

• System pressure

• Lift pressure

• Maximum platform height

• Maximum wheel load

• Date manufactured

Vertical Mast

Page 35

Page 36

Component Identification Operation - Section 3

3.5 Component Identification

The following descriptions are for identification, explanation and locating purposes only.

3.5-1 Manual Storage Box

This weather-resistant box is mounted on the Mast. It contains operating manual and certificate.

Figure 3-1. Manual Storage Box

1. The operating manual for this make and model of aerial platform must remain with the aerial platform and should be stored in this box.

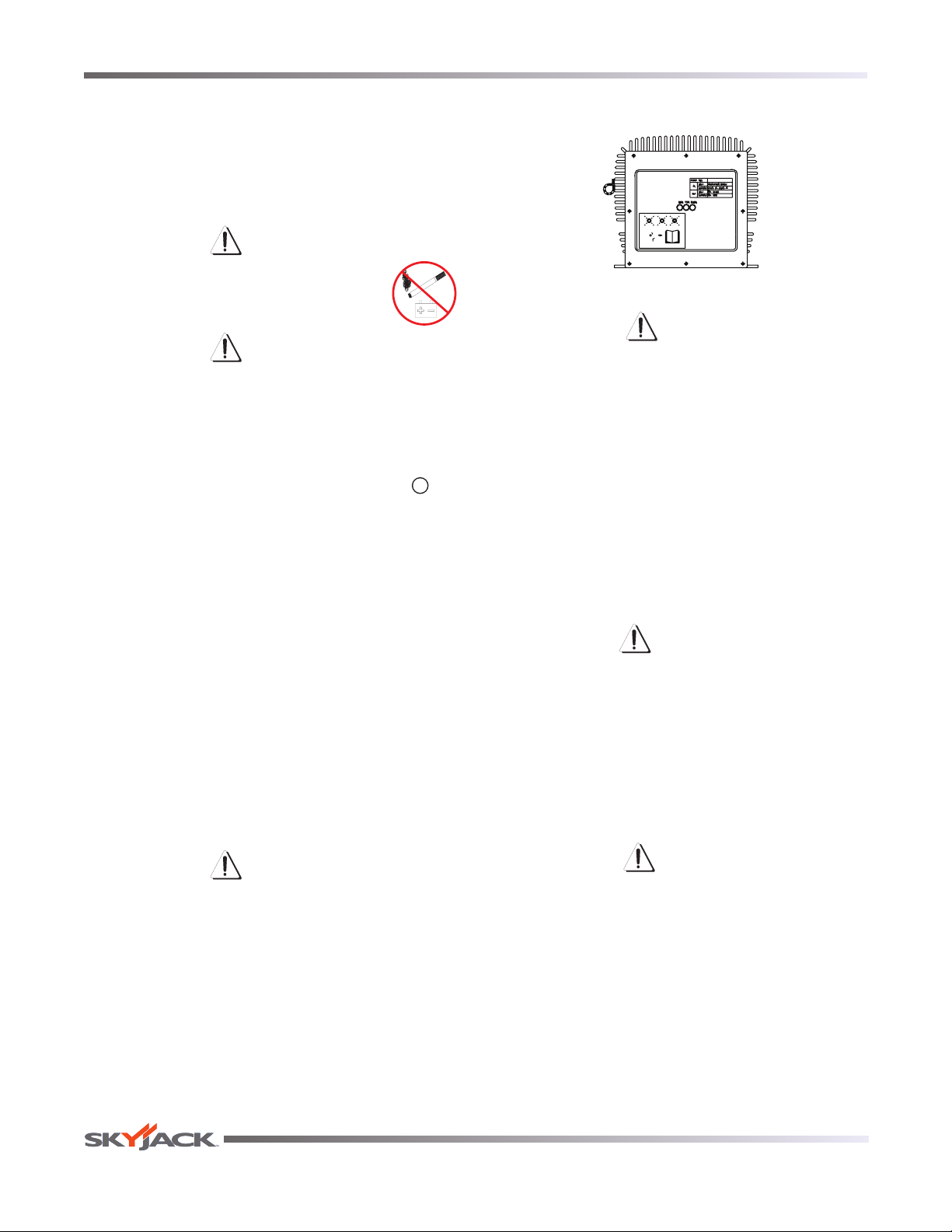

3.5-2 Battery Charger

The charger is located at the front of the base. Refer to

Section 3.12-2 for battery charging operation.

3.5-3 Pothole Protection Device

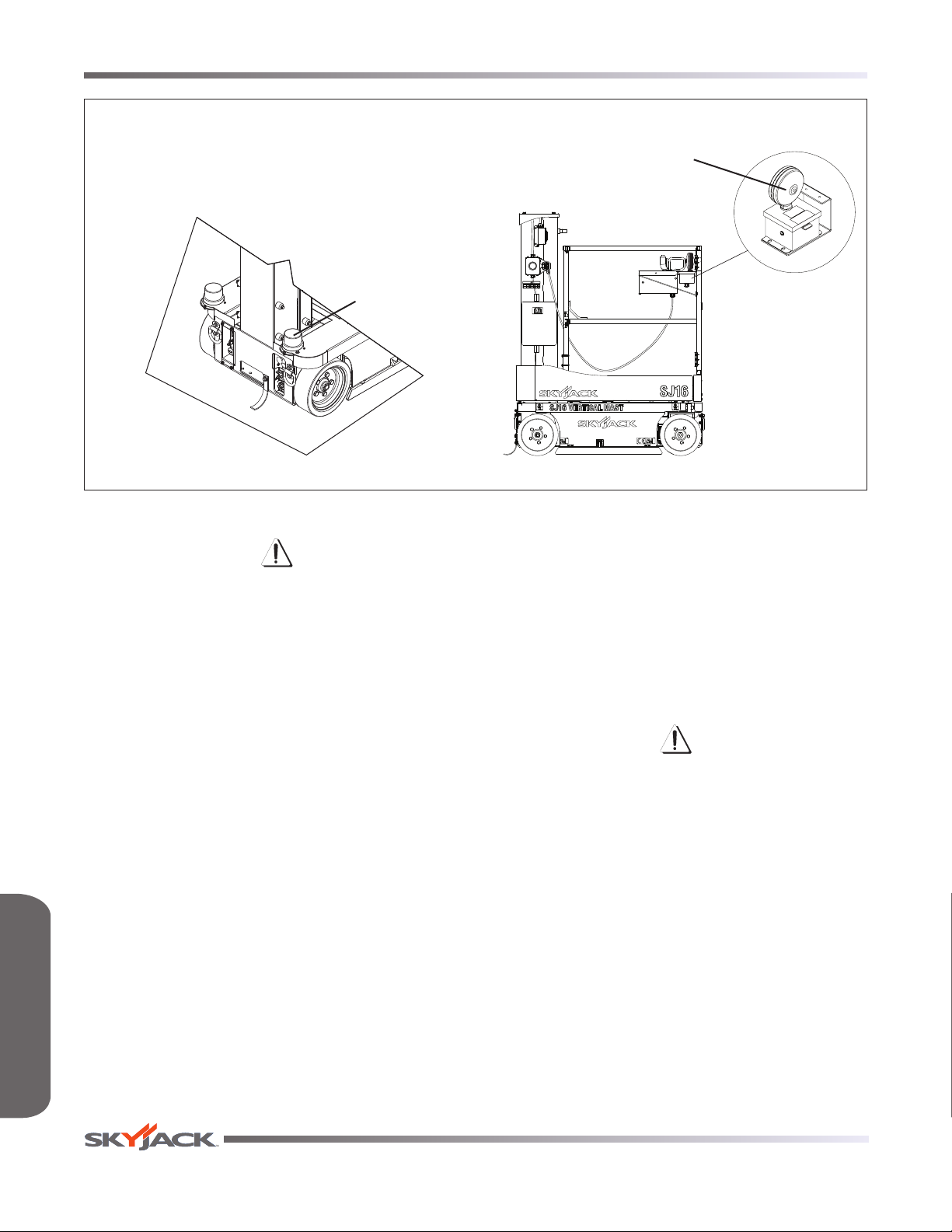

Figure 3-3. Pothole Protection Device

1. Pothole Protection Device - This device consists of a set of mechanically actuated steel weldments located under the base. These weldments will automatically rotate for reduced ground clearance when elevating the aerial platform. If the pothole protection device has not fully lowered, the drive function will be disabled.

WARNING

Crushing Hazard - Personnel on ground must stay clear of pothole protection

device.

Figure 3-2. Battery Charger

WARNING

Do not drive elevated in areas where electrical cords or debris are in the path

of travel.

Maintenance of the Pothole Protection Device

As with all safety devices, periodic inspection and

maintenance is required to ensure the proper operation of the pothole protection device. This mechanism is designed to reduce ground clearance and assist in the stability of an elevated aerial platform in the event the aerial platform encounters a “drop-off” or “pothole.” The nature of this safety feature relies on maintaining a consistent ground clearance, therefore, if the aerial platform ever does come to rest on the pothole device, the platform should be immediately lowered and “locked out” to prevent further use until a complete inspection of the mechanism is performed by a qualified technician.

Page 36

Vertical Mast

Page 37

Section 3 - Operation Component Identification

3.5-4 Platform Maintenance Lock Mechanism

This locking mechanism is located underneath the platform.

Figure 3-4. Platform Maintenance Lock

1. The aerial platform is equipped with a maintenance lock mechanism. When engaged, it allows access to the hydraulic/electrical compartment. During this access, it disables all functions.

CAUTION

Aerial platform motion can occur when

engaging diagnostic switch.

3.5-5 Fall Protection Anchorage

Figure 3-5. Fall Protection Anchorage

1. Fall Protection Anchorage - Use this as an attachment point for a fall restraint system. Do not attach anchorage connectors to any other point on the platform. Do not use this to lift, anchor, secure or support the platform or any other apparatus or material.

WARNING

The fall protection anchorage is to be used for restraint, within the limits of the

platform, only.

2. Hydraulic functions can be enabled by engaging the diagnostic switch.

Vertical Mast

Page 37

Page 38

Component Identification Section 3 - Operation

Max.

Force

3.6 Component Identification (Optional Equipment/Attachments)

The following descriptions are for identification, explanation and locating purposes only.

3.6-1 Flashing Light (If Equipped)

Figure 3-6. Flashing Light

1. Flashing Light Option - This light is attached to the base of the platform and flashes when any movement control is activated.

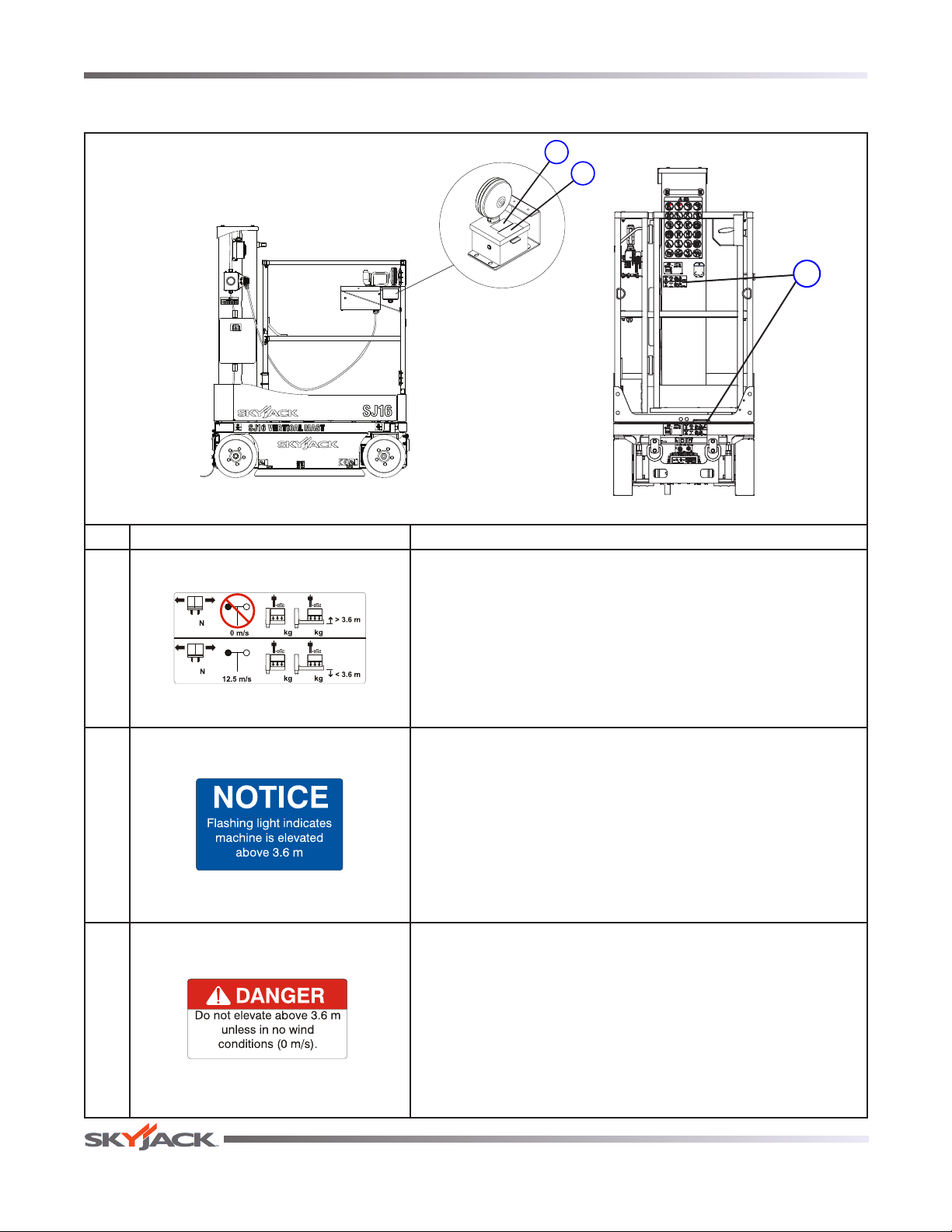

3.6-2a Outdoor Option Flashing Light (If Equipped)

Figure 3-7. Outdoor Option Flashing Light

1. Outdoor Option Flashing Light - This light is attached to the flashing light box. If the emergency stop button/ operation light is illuminated, the outdoor option flashing light flashes when the platform is raised above 3.6 m (12 feet). Refer to Section 3.6-2b for usage limitations.

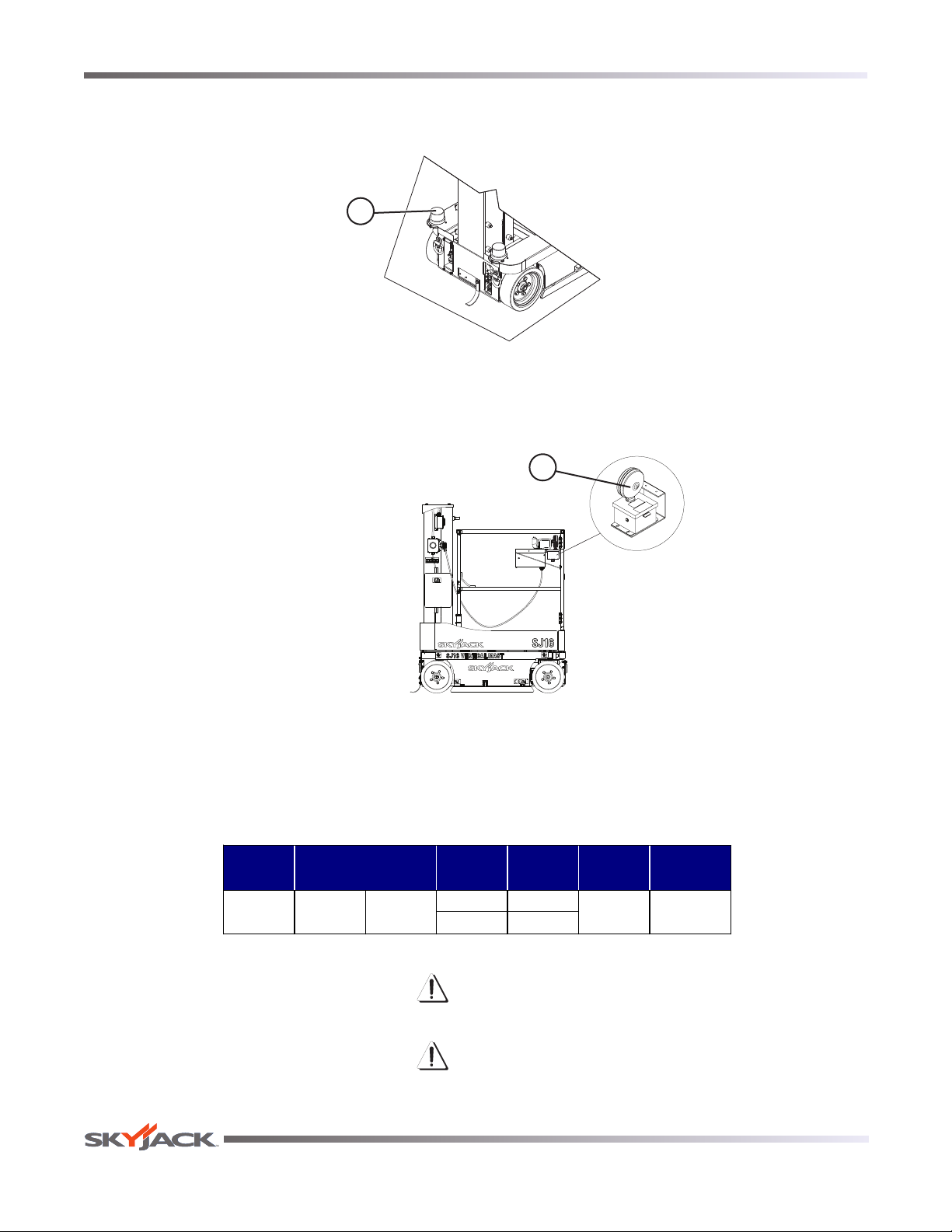

3.6-2b Outdoor Option - Maximum Platform Capacities (Evenly Distributed)

MODEL Capacity

*SJ16

*If used in wind condition above 0 m/s, elevation must not exceed 3.6 m (12 feet).

227 kg 1 Person(s) 200 N

Platform

Height

3.6 m 12.5 m/s

4.75 m No wind

Maximum

Wind Speed

Manual

263AE_CE_SJ16_OutdoorOpt

Tilt Cutout

Setting

1.5 degrees x 3 degrees

WARNING

Do not operate the MEWP at a height exceeding 3.6 m (12 feet) if wind conditions exceed 0 m/s.

WARNING

MEWP must be equipped with working flashing light and limit switch to be able to elevate the MEWP

in wind conditions above 0 m/s.

Page 38

Vertical Mast

Page 39

Section 3 - Operation Operator’s Responsibility

3.7 Operator’s Responsibility

It is the responsibility of the operator, prior to each work shift, to perform the following:

1. Visual and Daily Maintenance Inspections

• are designed to discover any damage of components before the aerial platform is put into service.

• are done before the operator performs the function tests.

WARNING

Failure to locate and repair damage, and discover loose or missing parts may result in an unsafe operating condition.

2. Function Tests

• are designed to discover any malfunctions before the aerial platform is put into service.

IMPORTANT

The operator must understand and follow the step-by-step instructions to test all aerial platform functions.

IMPORTANT

If aerial platform is damaged or any unauthorized variation from factorydelivered condition is discovered, aerial platform must be tagged and removed

from service.

Repairs to the aerial platform may only be made by a qualified service technician. After repairs are completed, the operator must perform visual and daily maintenance inspections & function tests again.

Scheduled maintenance inspections shall only be performed by qualified service technician (see

Table 4.6).

The operator should make a copy of the Operator’s Checklist (see Table 4.7) and fill out the visual and daily maintenance inspections and the function tests sections while performing the items outlined in

Section 2.3 and Section 2.4.

Vertical Mast

Page 39

Page 40

Start Operation Section 3 - Operation

3.8 Start Operation

Carefully read and completely understand the operating manual and all warnings and instruction labels (refer to

Section 5 - Labels) on the aerial platform.

WARNING

Do not operate this aerial platform without proper authorization and training. Failure to avoid this hazard could result in death

or serious injury.

Before operating this aerial platform, perform the following steps:

1. Visual and daily maintenance inspections (see

Section 2.3)

2. Function tests (see Section 2.4)

3. Job site inspection

It is the responsibility of the operator to perform

a job site inspection and avoid the following hazardous situations:

• holes or drop-offs

• ditches or soft fills

• floor obstructions, bumps or debris

• overhead obstructions

• electrical cords, hoses and high voltage

conductors

• hazardous locations

• inadequate surface support to withstand all

load forces imposed by the aerial platform

• wind and weather conditions

• the presence of unauthorized personnel

• other possible unsafe conditions

3.8-1 To Activate Base Control Console

WARNING

Ensure that you maintain three points of

contact to mount/dismount platform.

1. Open the gate (if equipped) and access the platform.

2. Close the gate (if equipped).

3. On platform control console, pull out “ ” emergency stop button.

4. Dismount from platform.

5. Turn main power disconnect switch to “ ”on position.

6. On base control console, pull out “ ” emergency stop button.

3.8-2 To Raise or Lower Platform Using Base

Control Console

WARNING

Be aware of overhead obstructions or other possible hazards around the aerial

platform when lifting.

WARNING

Do not lower the platform unless the area

is clear of personnel and obstructions.

WARNING

An operator should not use any aerial platform that:

• does not appear to be working properly.

• has been damaged or appears to have worn

or missing parts.

• has alterations or modifications not approved

by the manufacturer.

• has safety devices which have been altered

or disabled.

Failure to avoid these hazards could result in death or serious injury.

Page 40

1. Select and hold off/platform/base key switch to

“

” base position.

2. Select and hold lower/neutral/raise switch to either

“

” raise or “

” lower position. Release switch

to stop.

Vertical Mast

Page 41

Section 3 - Operation Start Operation

3.8-3 To Activate Platform Control Console

1. Turn main power disconnect switch to “ ”on position.

2. On base control console, pull out “ ” emergency stop button.

3. Select base/off/platform key switch to “

”

platform position.

WARNING

Ensure that you maintain three points of

contact to mount/dismount platform.

4. Open the gate (if equipped) and access the platform.

5. Close the gate (if equipped).

6. On platform control console, pull out “ ” emergency stop button.

3.8-4 To Raise or Lower Platform Using Platform

Control Console

WARNING

Be aware of overhead obstructions or other possible hazards around the aerial

platform when lifting.

WARNING

Do not lower the platform unless the area

below is clear of personnel and

obstructions.

1. On platform control console, select lift/off/drive

switch to “ ” lift position.

WARNING

To protect against unintended movement of the aerial platform, push in the emergency stop button after you have arrived at your desired location or

elevation.

NOTE

If the tilt alarm sounds and the platform does not, or only partially raises, immediately lower the platform completely and ensure that the aerial platform is on a firm level

surface.

3.8-5 To Drive Forward or Backward

WARNING

Be aware of blind spots when operating

the aerial platform.

WARNING

Ensure that there are no personnel or obstructions in the path of travel,

including blind spots.

NOTE

An interlock limit switch will cutout drive functions when the platform is not fully

retracted.

1. On platform control console, select lift/off/drive

switch to drive “ ” position.

2. Activate and hold “ ” enable trigger switch.

3. Move controller handle “ ” forward/up or

“ ” backward/down to desired speed and direction of aerial platform travel.

2. Activate and hold “ ” enable trigger switch.

3. Move controller handle forward or backward until desired height is reached.

4. Return controller to neutral center position to stop.

Release “ ” enable trigger switch.

Vertical Mast

4. Return controller to neutral center position to stop.

Release “ ” enable trigger switch.

WARNING

To protect against unintended movement of the aerial platform, push in the emergency stop button after you have arrived at your desired location or

elevation.

Page 41

Page 42

Start Operation Section 3 - Operation

3.8-6 To Steer

1. On platform control console, select lift/off/drive

switch to drive “ ” position.

2. Activate and hold “ ” enable trigger switch.

3. Press “ ” rocker switch on top of controller handle in either direction to steer.

NOTE

Steering is not proportional. Driving and

steering may be active at the same time.

3.8-7 Shutdown Procedure

1. Completely lower the platform.

2. On platform control console, push in “ ” emergency stop button.

WARNING

Ensure that you maintain three points of

contact to mount/dismount platform.

3. Dismount from platform.

4. On base control console, push in “ ” emergency stop button.

5. On base control console, select off/platform/base key switch to “ ” off position and remove the key.

6. Turn main power disconnect switch to “ ” off position.

Page 42

Vertical Mast

Page 43

Section 3 - Operation Loading/Unloading

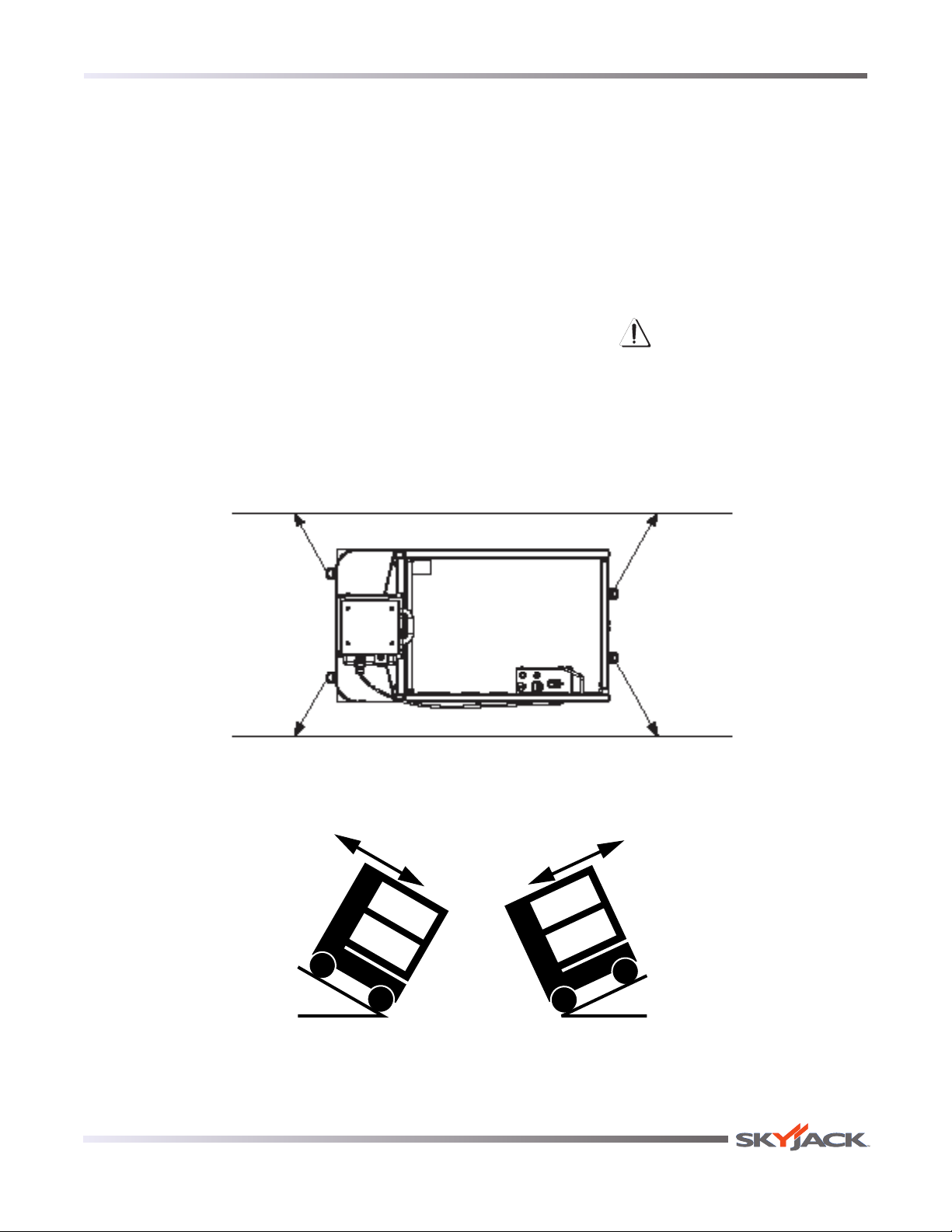

3.9 Loading/Unloading

Know and heed all national, state or territorial/provincial and local rules which apply to your loading/unloading of aerial platforms.

Only qualified personnel shall operate the aerial platform during loading/unloading.

Be sure vehicle capacity and loading equipment hoists, chains, straps, etc., are sufficient to withstand maximum aerial platform weight.

The transport vehicle must be parked on a level surface and must be secured to prevent rolling while aerial platform is being loaded/unloaded.

Tie down/lifting

points

3.9-1 Driving

Before driving the aerial platform:

• Ramp or dock capacity should be sufficient to withstand maximum aerial platform weight.

• Ramp should be equipped with side guards to prevent inadvertent fall from the ramp.

• Incline should not exceed aerial platform gradeability, as illustrated in Figure 3-9.

• Aerial platform brakes should be checked for proper operation.

WARNING

When transporting, the aerial platform must be secured to the truck or trailer deck. Tie downs are available as illustrated

in Figure 3-8.

Tie down/lifting points

Vertical Mast

Tie down/lifting

points

Gradeability 30%: Climbing reverse - Descending forward Gradeability 25%: Climbing forward - Descending reverse

Figure 3-9. Maximum Gradeability of Inclined Driving

Tie down/lifting points

Figure 3-8. Tie Downs/Lifting Points

30% 25%

Page 43

Page 44

Loading/Unloading Section 3 - Operation

3.9-2 Lifting

WARNING

Only qualified rigger shall operate

machinery during lifting.

When it is necessary to lift the aerial platform, the following conditions must be met:

• The platform must be fully lowered.

• The main power disconnect switch must be in “ ” off position.

• The traversing platform must be retracted and secured.

• The platform control console must be secured to the railing or removed.

• The platform must be cleared of all personnel, tools and materials.

• The lifting/rigging must be attached to all four lifting points as illustrated in Figure 3-8.

NOTE

The mass of the aerial platform is as per Table 4.3. The center of gravity is approximately located in the middle of the aerial platform, front to back and side to side, as illustrated in Figure 3-10. Vertically, the center of gravity is approximately just

above the base chassis.

NOTE

The aerial platform can be lifted with a forklift from the sides. Lift with forks in designated forklift lifting locations as

illustrated in Figure 3-10.

Page 44

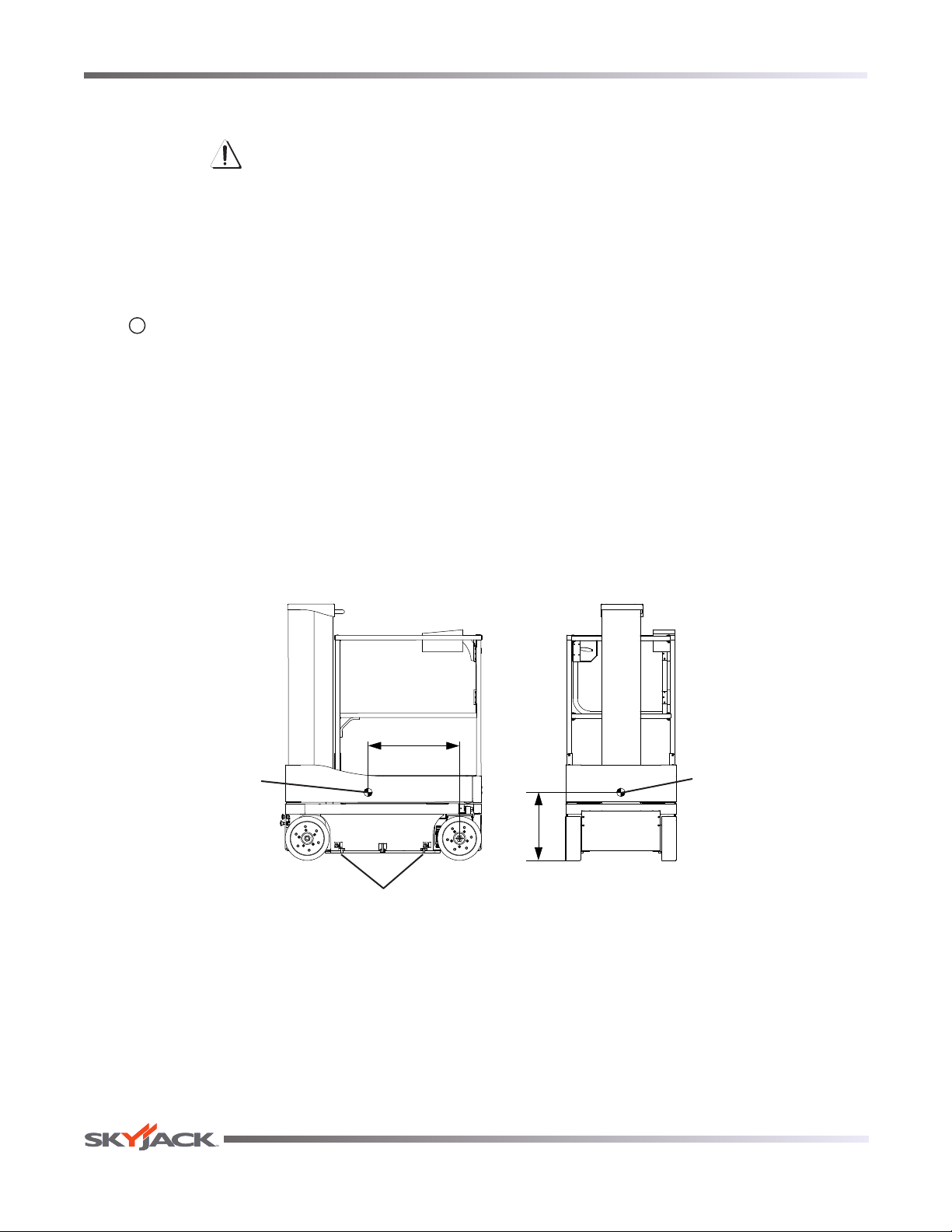

Center of

Gravity

25”

Center of Gravity

18”

Forklift Lifting

Locations

Figure 3-10. Center of Gravity/Forklift Lifting Locations

Vertical Mast

Page 45

Section 3 - Operation Platform Traversing Procedure

3.10 Platform Traversing

NOTE

An interlock limit switch will cutout drive functions when the platform is not fully

retracted.

1. To traverse platform, step on the foot pedal on the platform (item 1) and grasp the platform repositioning handle (item 2) then carefully push/ pull the platform until desired location is reached.

Figure 3-11. Traversing Platform

2. Ensure foot pedal (item 1) rests in one of the locking slots.

3.11 Accessing the Hydraulic/Electrical

Compartment

4. Locate platform maintenance locking mechanism underneath the platform.

5. Unlatch maintenance locking mechanism by pulling and holding the handle (item 2), then pull the platform fully to the maintenance position.

Figure 3-13. Maintenance Lock

NOTE

An interlock limit switch will cutout all functions when the platform is in

maintenance position.

6. Open hydraulic/electrical compartment cover and properly install the prop bar (item 3).

1. Ensure aerial platform is on firm and level ground.

2. Fully lower the platform into stowed position.

CAUTION

The following procedure must be done

from outside of the platform.

3. Depress foot pedal on the platform (item 1), then pull platform as far as possible towards maintenance position.

Figure 3-12. Traversing Platform

Figure 3-14. Prop Bar

Vertical Mast

Page 45

Page 46

Battery Maintenance Section 3 - Operation

3.12 Battery Maintenance

This section provides the operator with procedures on how to service and charge the battery. This also provides charger operation instructions.

3.12-1 Battery Service Procedure

WARNING

Explosion Hazard - Keep flames and sparks away. Do not smoke near

batteries.

WARNING

Battery acid is extremely corrosive - Wear proper eye and facial protection as well as appropriate protective clothing. If contact occurs, immediately flush with cold water

and seek medical attention.

1. Turn main power disconnect switch to “ ” off position.

2. Check battery case for damage.

3. Check battery fluid level in each battery. If plates are not covered by at least 1/2” (13 mm) of solution, add distilled or demineralized water.

4. Clean battery terminals and cable ends thoroughly with a terminal cleaning tool or wire brush.

5. Make sure all battery connections are tight.

6. Replace any battery that is damaged or incapable of holding a lasting charge.

7. Do not use any batteries other than flooded leadacid batteries of the proper Ah rating.

3.12-2 Battery Charging Operation

Figure 3-15. Battery Charger

DANGER

Risk of electric shock - Do not immerse the charger in water. Though the charger is highly resistant to water, it is not designed for immersion and an electric

shock can occur.

1. Provide adequate ventilation for the batteries and charger. The convection cooled design requires access to cooling air for proper operation. Do not allow blankets or other materials to cover the charger. Although the charger protects itself against overheating, the charger cooling fins should be cleaned if clogged with debris for best performance.

WARNING

There could be a spark during charging. Be careful when using fuels, solvents or other flammables near the charger or

batteries.

2. Connect the power supply cord to a properly grounded 100V/50 or 60Hz, 115V/50 or 60Hz, or 230V/50 or 60Hz socket. This charger automatically senses and adjusts to the AC input voltage range.

WARNING

Use original or equivalent to the original parts and components for the aerial

platform.

Page 46

CAUTION

When changing the input voltage wait until all the LEDs are OFF or wait a minimum of 20 seconds before switching

on the new voltage.

Vertical Mast

Page 47

Section 3 - Operation Battery Maintenance

60133AA

3. The charging time is affected by numerous factors including battery Amp-Hour capacity, depth of discharge, battery temperature, and battery condition (new, old or defective). Batteries larger than 240 AH can be recharged but will take longer.

WARNING

Do not disconnect the DC output wires near the batteries when the charger is ON. The resulting arcing could cause the batteries to explode. If the charger must be disconnected, first disconnect the AC power supply cord from its outlet, then disconnect the charger DC connections.

WARNING

Risk of an electric shock - Do not touch un-insulated parts of the charger output wires, battery connector, or battery

terminals.

WARNING

Visually and manually inspect to verify the DC output wires and terminals are in good working condition before each use.

3 LEDs blink once simultaneously:

Output connection error. Check the battery and charger connection. The output may not be connected to the batteries or the connections to the batteries may have corroded or loosened. The output may be shorted due to improper connection to the batteries or pinched wires. The output may be connected in reverse polarity to the batteries. The charger is not damaged by any of these problems.

3 LEDs blink twice simultaneously:

The charger is indicating that the AC voltage is too low or too high. Check the AC input voltage.

3 LEDs blink three times simultaneously:

Charger is overheated. No action required. When the charger cools, charging will restart automatically. Check and correct for dirt or other debris on charger that may be reducing cooling.

3 LEDs blink four times simultaneously:

Input or output over current. No action required, charger will correct and restart automatically.

100% LED lamp blinks:

Charger 18-hour timer has timed out due to battery problem.

4. The charger will start automatically within four to six seconds. The charger will start even with severely discharged batteries (down to 1V terminal voltage). Once charging starts, the LEDs indicate the charging progress.

Charging State LED

State of charge 1ST LED 2ND LED 3RD LED

0 to 50% Blinking Off Off

50% to 75% On Blinking Off

75% to 100% On On Blinking

100% On On On

The charger goes into an equalizing charge mode after the batteries are charged and all 3 LEDs are “ON”. The charger will continue to charge at a low current then shut off automatically when complete. If all 3 LEDs blink together, there is a problem.

Take proper action according to the following instructions:

Batteries do not fully charge.

If the batteries are charged overnight, make sure the AC supply is not being switched off at night with other building items. Check battery condition and for dead cells or reduced capacity. Replace charger only if other problems are not found.

The AC line circuit breaker or fuse is blown.

A defective circuit breaker or fuse, an overloaded circuit, or a charger problem can cause this condition. Try connecting the charger to a different AC outlet (on a different circuit) in the building. If the AC supply

checks good, the charger should be replaced.

Vertical Mast

Page 47

Page 48

Notes

Page 48

Vertical Mast

Page 49

Section 4 Tables

* *

Table 4.1 Standard and Optional Features

Models SJ12 SJ16

S T A N D A R D E Q U I P M E N T

Maximum drive height

Variable speed, front two wheel hydraulic drive

Zero inside turn radius

Dual holding brakes

Proportional controls

24V DC power source

Low voltage battery protection

Solid rubber, non-marking tires

Pothole protection system

Tilt alarm with drive & lift cut-out

Fall protection anchorage(s)

Operator horn

Lift lugs/tie downs

Relay based control system

Color coded and numbered wiring system

Platform traversing

Full height spring hinged gate

Grey nonmarking tires

Lowering only alarm

White nonmarking tires

Full Height Full Height

* *

Flashing light

AC inverter

All motion audible alarm

Bio oil

Outdoor Option Flashing Light

Light duty pipe rack

Tool tray

Vertical Mast

O P T I O N A L E Q U I P M E N T

A T T A C H M E N T S

* *

261AE_CE

Page 49

Page 50

Tables Section 4

Table 4.2 Owner’s Annual Inspection Record

Model Number: _________________ Serial Number:__________________

* 20__ 20__ 20__ 20__ 20__ 20__

20__ 20__ 20__

This decal is located on the mast below the hourmeter. It must be completed after an annual inspection has been completed. Do not use the aerial platform if an inspection has not been recorded in the last 6 months.

Pictorial Description

Inspection Date

Inspector Signature

1001AB

Page 50

Vertical Mast

Page 51

Section 4 Tables

Gradeability (Ramp Angle

** Refer to Section 3.9 Loading/Unloading for more details.

Table 4.3 Specifications and Features

MODEL SJ12 SJ16

Weight

863 kg 980 kg

Overall Width

Overall Length

Platform Size (Inside)

Platform Traversing

Height

Working Height

Platform Elevated Height

Stowed Height

Drive Height

Lowered Platform Height

Standard Operating Times

Lift Time (Rated Load)

Lower Time (Rated Load)

Chassis

Normal Drive Speed

77.5 cm 77.5 cm

140 cm 140 cm

68.6 x 85.0 cm 68.5 x 85.0 cm

40.64 cm 40.64 cm

5.66 m 6.75 m

3.6 m 4.75 m

178.6 cm 178.6 cm

Full Full

45.72 cm 45.72 cm

13 - 16 s 16 - 25 s

13 - 17 s 17 - 19 s

3.1 - 4.0 km/h 3.1 - 4.0 km/h

Elevated Drive Speed

[Reverse/Forward])**

Tires (Solid Rubber)

0.6 - 0.8 km/h 0.6 - 0.8 km/h

30% / 25% 30% / 25%

309 x 100 mm 309 x 100 mm

Hydraulic Oil

Type

Tank Capacity

Emission sound pressure level at platform does not exceed 70 dB(A).

Vibration - acceleration to which operator's body is subjected

does not exceed 0.5 m/sec2.

ATF Dexron III ATF Dexron III

4.92 L 4.92 L

* Weights are approximate; refer to serial nameplate for specific weight.

280AB_CE

Vertical Mast

Page 51

Page 52

Tables Section 4

kPa (kN/m2)

NOTE:

The LCP or OUP that an individual surface can withstand varies from structure to

Table 4.4 Maximum Platform Capacities (Evenly Distributed)

MODEL Capacity

SJ12

SJ16

227 kg 1.5 degrees x 3 degrees

227 kg 1 Person(s) No wind 1.5 degrees x 3 degrees

2 Person(s) No wind

1 Person(s) 12.5 m/s

Maximum

Wind Speed

Tilt Cutout Setting

281AA_CE

NOTE

Refer to Section 3.6-2b for SJ16 MEWPs equipped with the Outdoor Option.

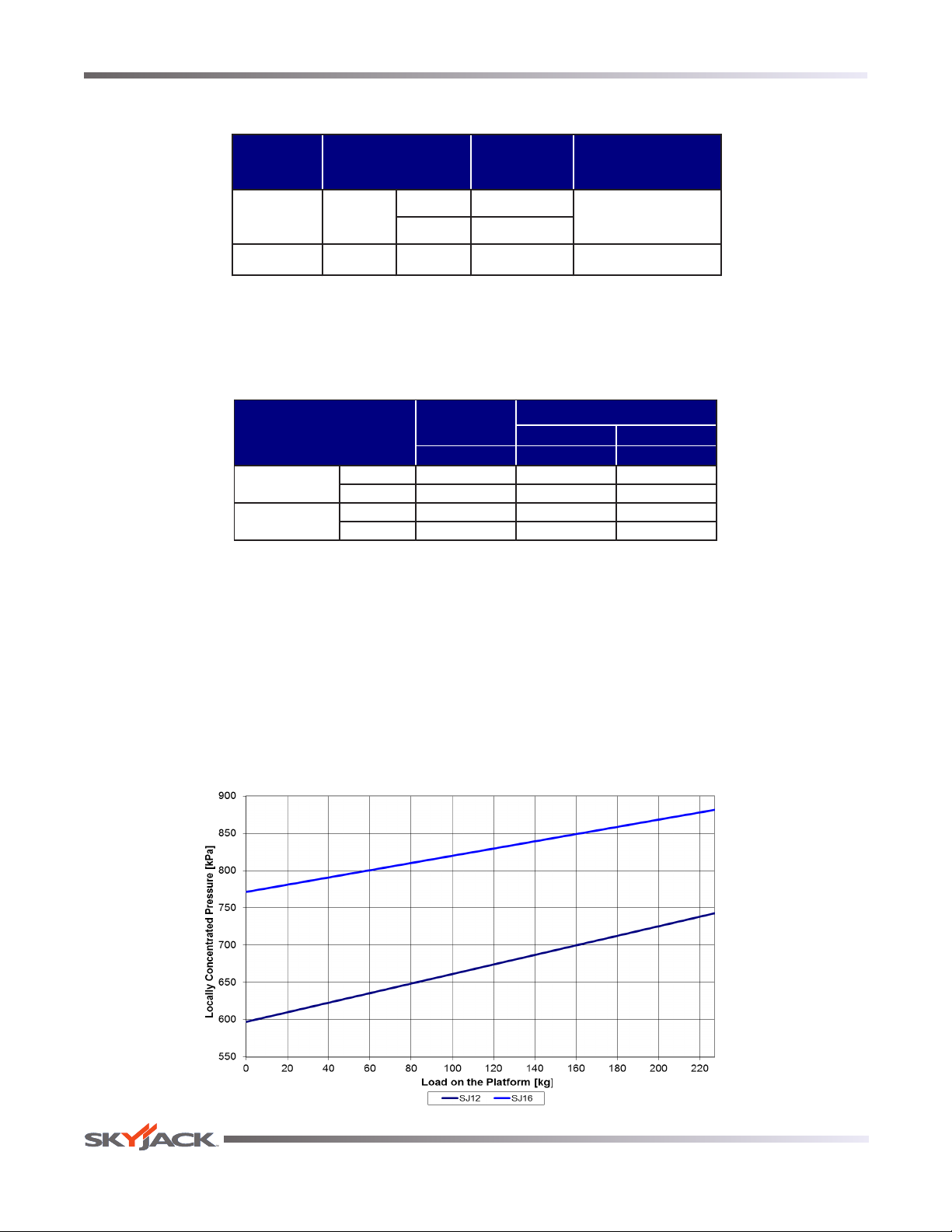

Table 4.5 Floor Loading Pressure

Total Aerial Platform Load

Wheel OUP**

282AB_CE

SJ12

SJ16

Total Aerial

MODEL

Platform Weight

kg kg

min* 863 275 8.1

max* 1090 430 10.2

min* 980 355 9.2

max* 1207 510 11.3

min - Aerial platform weight with no options

max - Aerial platform weight + all options + full capacity

LCP - Locally Concentrated Pressure is a measure of how hard the aerial platform

presses on the areas in direct contact with the floor. The floor covering (tile, carpet, etc.) must be able to withstand more that the indicated values above.

OUP - Overall Uniform Pressure is a measure of the average load the aerial platform imparts on the whole surface directly underneath it. The structure of the operating surface (beams, etc.) must be able to withstand more than the indicated values above.

structure and is generally determined by the engineer or architect for that particular structure (see Floor Loading Pressure chart below).

Page 52

Floor Loading Pressure

SJ16

SJ12

Vertical Mast

Page 53

Section 4 Tables

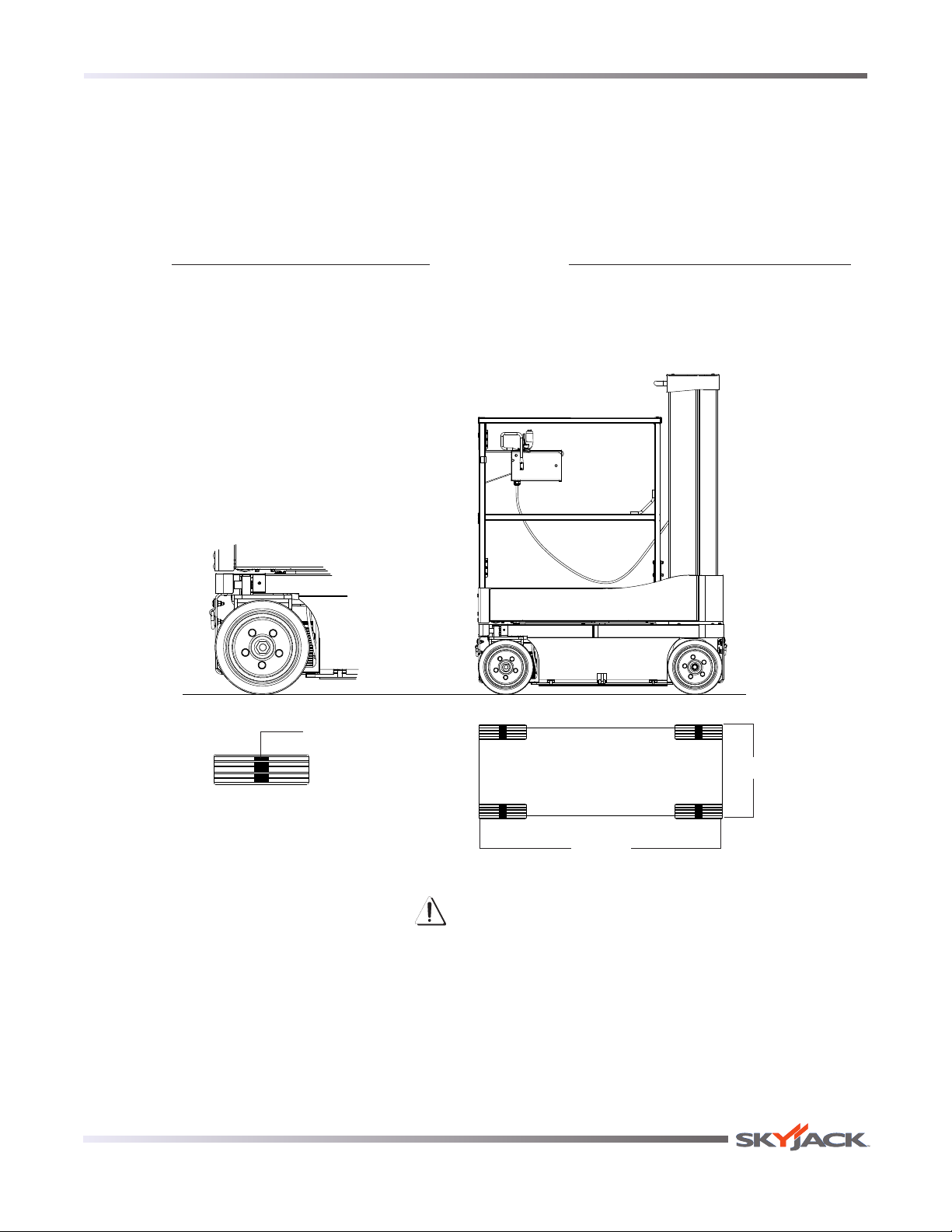

Floor Loading Pressure

Locally Concentrated Pressure (LCP): Overall Uniform Pressure (OUP):

Foot Print Area identified by test.

Wheel Load

LCP =

Foot Print Area

Base Area = Length x Width

Weight of Aerial Platform + Capacity

OUP =

Base Area

Foot Print Area

Width

Length

WARNING

Intermixing tires of different types or using tires of types other than those originally supplied with this equipment can adversely affect stability. Therefore, replace tires only with the exact Skyjackapproved type. Failure to operate with matched approved tires in good condition may result in

death or serious injury.

Vertical Mast

Page 53

Page 54

Tables Section 4

B - Perform Scheduled Maintenance Inspection. Refer to Service & Maintenance manual.

* - Maintenance must be performed only by trained and competent personnel who are familiar with mechanical procedures.

† - Refer to Skyjack's website @ www.skyjack.com for latest service bulletins prior to performing quarterly or yearly inspection.

General Maintenance

Before attempting any repair work, disconnect the battery by turning the main power disconnect switch

to “ ” off position. Preventive maintenance is the easiest and least expensive type of maintenance.

Table 4.6 Maintenance and Inspection Schedule

3 months or

Frequency

Visual and Daily Maintenance In spections Function Tests

Labels A Test Main Power Disconnect Switch A

Electrical A Base Control Console A

Limit Switches A Test Base Emergency Stop Light A

Hydraulic A Test Base Emergency Stop A

Base A

Main Power Disconnect Switch A Test Lower/Neutral/Raise Switch A

Base Control Switches A Test Emergency Lowering A

Battery Charger A Test Platform Maintenance Limit Switch A

Pothole Protection Device A Platform Control Console A

Wheel/Tire Assembly A Test Platform Emergency Stop A

Platform Assembly A Test Enable Trigger Switch A

Fall Protection Anchorage(s) A Test Lift/Off/Drive Switch Off Position A

Platform Control Console A Test Steering A

Manuals A Test Drive Cutout Limit Switch A

Hydraulic/Electrical Compartment A Test Driving A

Battery A Test Brakes A

Main Manifolds A Test Horn A

Hydraulic Tank A Test Platform Raising/Lowering A

Hydraulic Pump and Motor A Test Elevated Drive Speed A

Hydraulic Oil A Test Pothole Sensor A

Steer Cylinder Assembly A Test Lowering Only Alarm A

Motor Controller A Optional Equipment/Attachments A

Tilt Sensors A Test Flashing Lights (If equipped) A

Limit Switches A Test All Motion Alarm (If equipped) A

Lifting Mechanism A Test Outdoor Option Flashing Light (If equipped) A

Mast Assembly A

Wear Pads A

Chains A

Optional Equipment/Attachments A

Flashing Lights (If equipped) A

Pipe Rack (If equipped) A

Outdoor Option Flashing Light & Limit Switch (If equipped)

Daily

150 hours

B*†

Yearly

Frequency

Test Off/Platform/Base Switch

Daily

3 months or

150 hours

B*†

Yearly

259AD_CE

A - Perform Visual and Daily Maintenance Inspections & Functions Test. Refer to Section 2.3 and Section 2.4 of this manual.

WARNING

Use original or equivalent to the original parts and components for the aerial platform.

Page 54

Vertical Mast

Page 55

Section 4 Tables

INSPECTION FREQUENCY

N/A P F R N/A P F R

Optional Equipment/Attachments

Test Outdoor Option Flashing Light (If equipped)

Tilt Sensors

Flashing Lights (If equipped)

Lifting Mechanism

Test Flashing Lights (If equipped)

Battery

Test Platform Raising/Lowering

Hydraulic Tank

Test Brakes

Platform Assembly

Test Enable Trigger Switch

Pothole Protection Device

Platform Control Console

Electrical

Base Control Console

Hydraulic

Test Base Emergency Stop

- NOT APPLICABLE

BI-ANNUALLY

Labels

Test Main Power Disconnect Switch

As each item is inspected, check the appropriate box.

- PASS

FREQUENTLY

- FAIL

DAILY

- REPAIRED

ANNUALLY

OPERATOR'S CHECKLIST

Hourmeter Reading:

Operator's Name (Printed):

Table 4.7 Operator’s Checklist

Serial Number:

Model:

Date:

Time: Operator's Signature:

Each item shall be inspected using the appropriate section of the Skyjack operating manual.

Visual and Daily Maintenance Inspections

Limit Switches Test Base Emergency Stop Light

Base

Main Power Disconnect Switch Test Lower/Neutral/Raise Switch

Base Control Switches Test Emergency Lowering

Battery Charger Test Platform Maintenance Limit Switch

Wheel/Tire Assembly Test Platform Emergency Stop

Fall Protection Anchorage(s) Test Lift/Off/Drive Switch Off Position

Manuals

Hydraulic/Electrical Compartment

Function Tests

Test Off/Platform/Base Switch

Test SteeringPlatform Control Console

Test Drive Cutout Limit Switch

Test Driving

Main Manifolds

Hydraulic Pump and Motor

Hydraulic Oil

Steer Cylinder Assembly

Motor Controller

Limit Switches

Mast Assembly

Wear Pads

Chains

Pipe Rack (If equipped)

Outdoor Option Flashing Light & Limit Switch (If equipped)

Vertical Mast

Test Horn

Test Elevated Drive Speed

Test Pothole Sensor

Test Lowering Only Alarm

Test All Motion Alarm (If equipped)

260AE_CE

Note: Make a copy of this page or visit the Skyjack web site:

www.skyjack.com for a printable copy.

Page 55

Page 56

Tables Section 4

Table 4.8 EC Declaration of Conformity

EC Declaration of Conformity

We, SKYJACK Inc., [*], declare under our sole responsibility that the product Vertical Mast Type Elevating Work Platform

Model number: [*] Serial number: [*]

To which this declaration relates is in conformity with the following directives:

Machinery Directive 2006/42/EC Harmonized European Standard EN280: 2013 Notified body is: [*]

EC type Examination Certificate No: [*]

Directive 2004/108/EC Harmonized European Standard EN13309:2000 Testing Laboratory: [*]

The Technical Construction File is maintained at: [*]

The authorized representative located within the community is: [*]

Place of issue: [*]

Note: In case of unauthorized modification, this Declaration becomes invalid.

Engineering Manager Quality Manager Test & Validation

[*] For information refer to the English Declaration of Conformity provided with your aerial platform.

Page 56

Vertical Mast

Page 57

Section 5 - Labels Label Legend

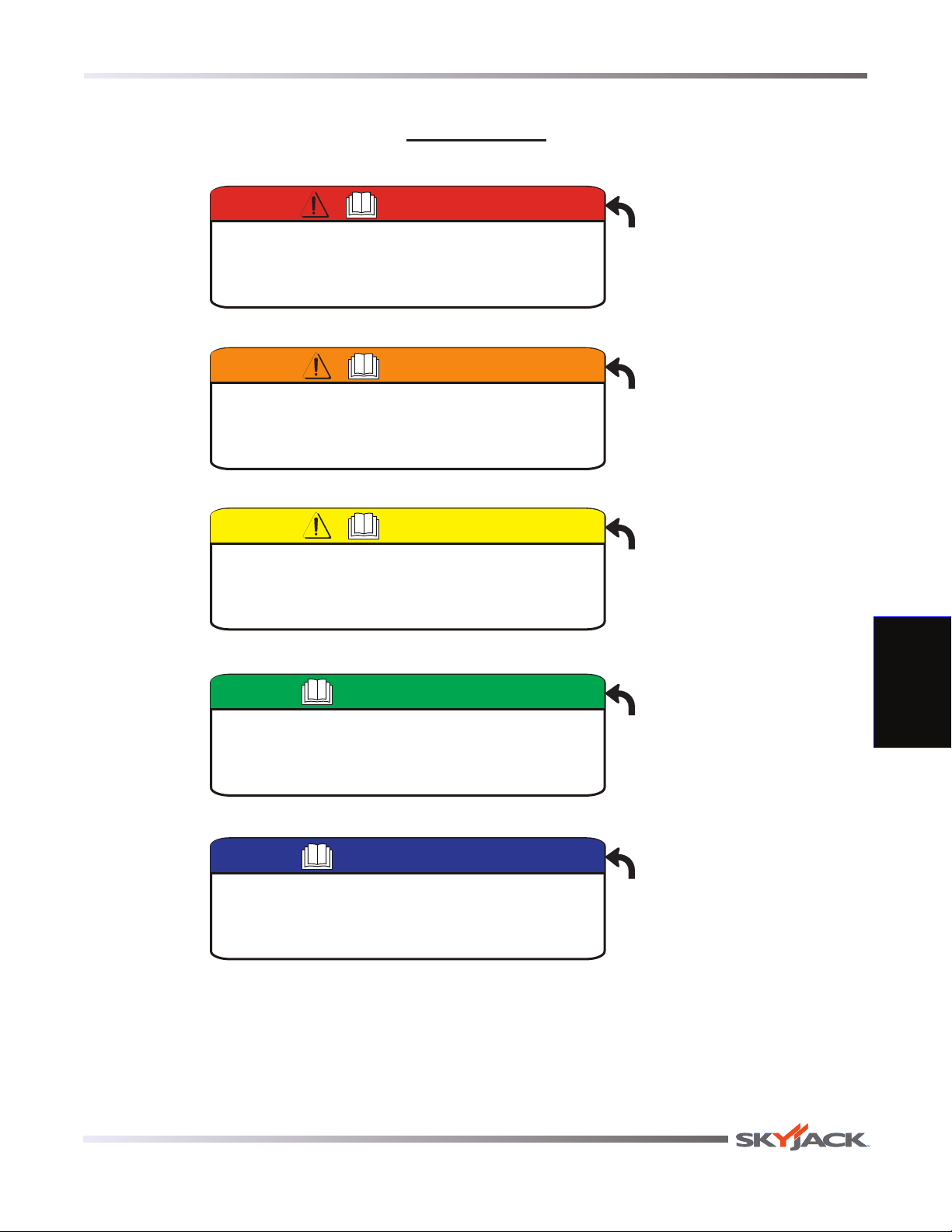

Label Legend

Safety Red

Safety Red indicates DANGER.

Safety Orange indicates WARNING.

Safety Yellow indicates CAUTION.

Safety Green indicates emergency lowering.

Safety Orange

Safety Yellow

Safety Green

Vertical Mast

Safety Blue indicates safety information.

Safety Blue

Page 57

Page 58

Labels Section 5

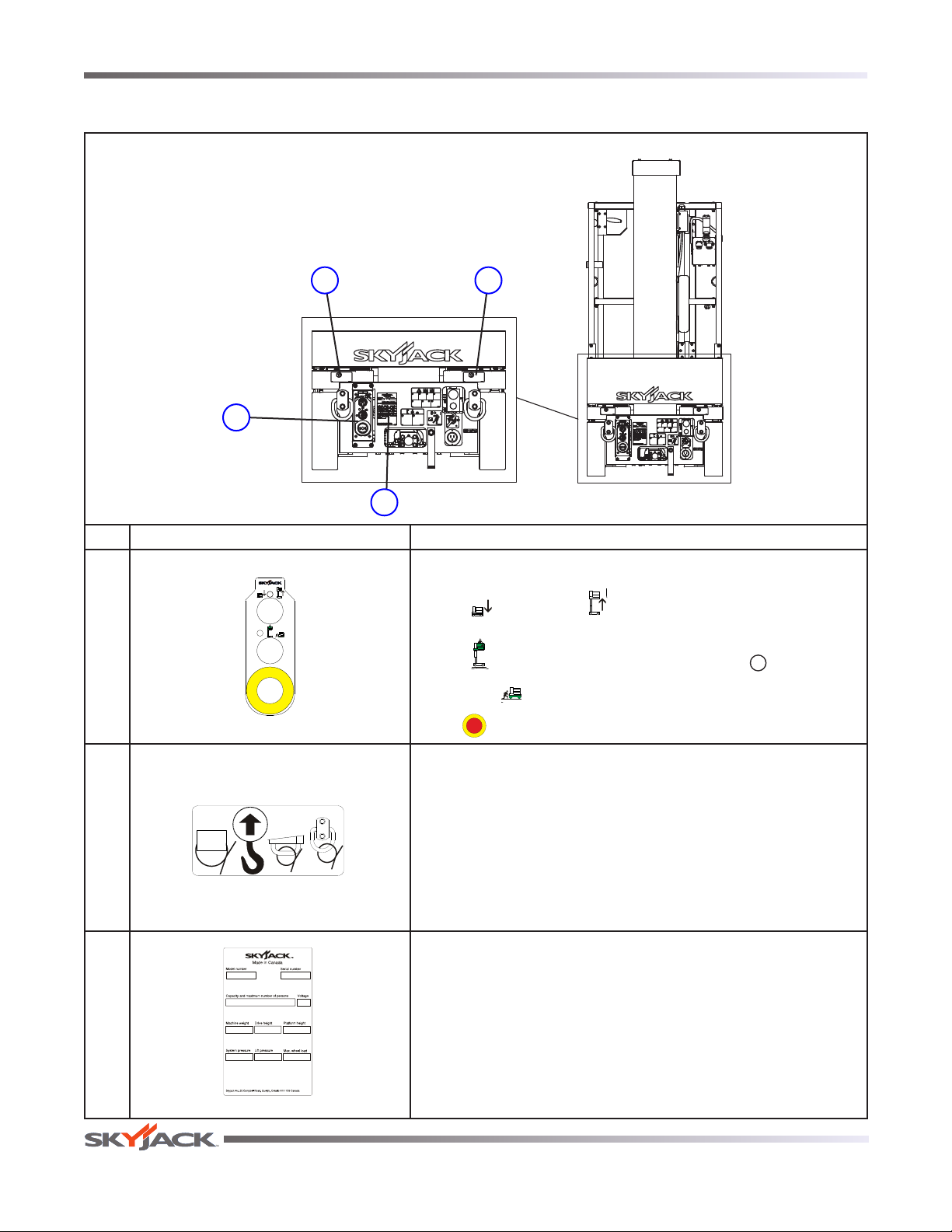

Labels - Models SJ12 & SJ16

Rear View

Nº

Label Pictorial Description

Base Controls

Select “ ” to lower or “ ” raise platform.

Select “ ” platform to enable platform controls, “ ” off to disable

controls or “ ” base to enable base control console.

Push “ ” to disable controls.

Lift and Tie Down Points

Only use these points for lifting or tying down.

Serial Plate*

Product identification and specifications. *Serial plates will vary, may not be as shown.

Page 58

Vertical Mast

Page 59

Section 5 Labels

Labels - Models SJ12 & SJ16

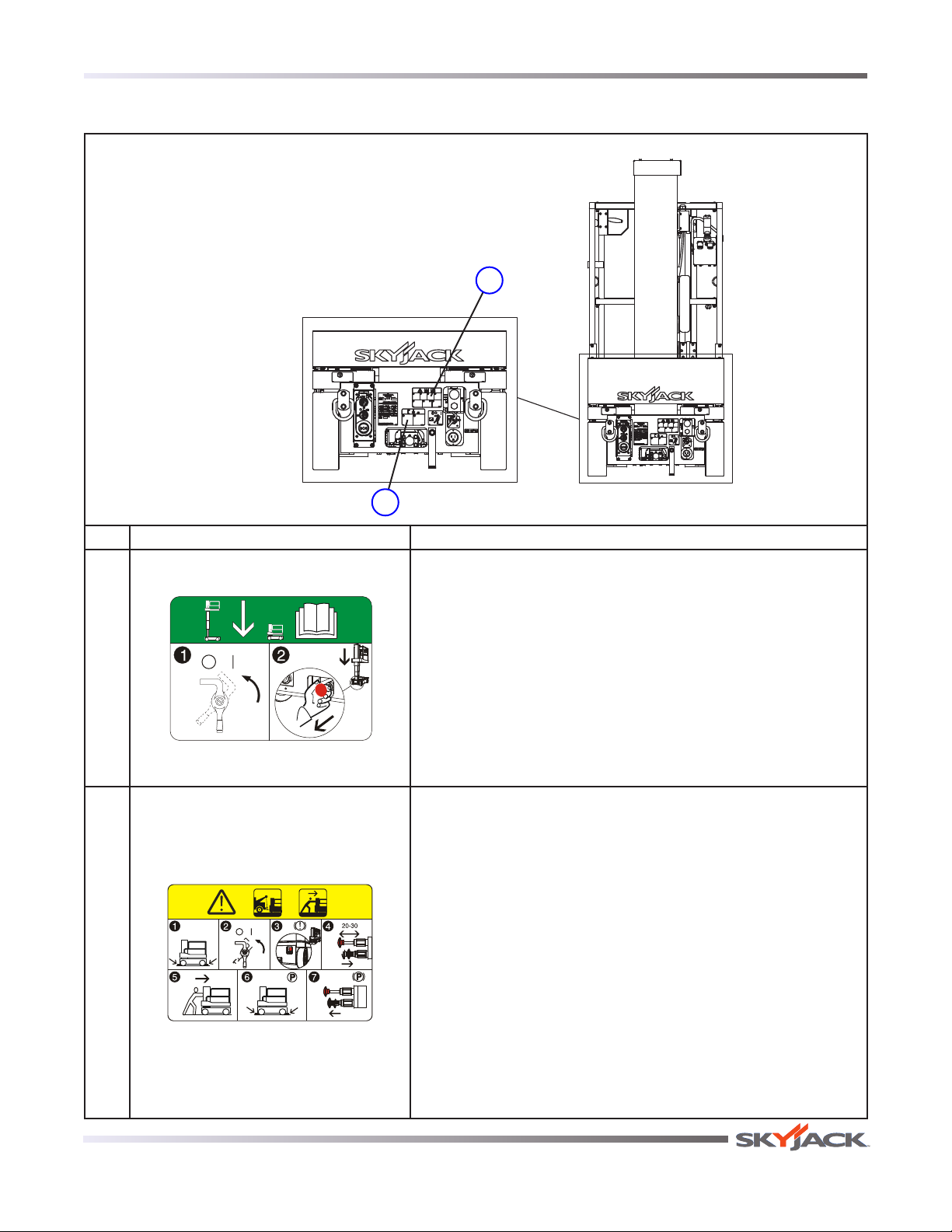

Rear View (Continued)

Nº

Label Pictorial Description

Emergency Lowering Procedure

Refer to Operating manual.

1. Turn main power disconnect switch to off position.

2. Pull emergency lowering valve to lower the platform.

Winching/Towing/Pushing Procedure

Refer to Operating manual.

1. Block or chock wheels to prevent aerial platform from rolling.

2. Turn main power disconnect switch to off position.

3. Locate brake valve and pump.

4. Push in black knob. Pump by pushing red knob in and out until firm resistance is felt. Brake is now released.

Vertical Mast

5. Push/tow/winch to desired location.

6. Block or chock wheels to prevent aerial platform from rolling.

7. Reset brake by pulling out black knob.

Page 59

Page 60

Labels Section 5

Labels - Models SJ12 & SJ16

Rear View (Continued)

Nº

Label Pictorial Description

Main Power Disconnect

Rotate clockwise to turn on main power; rotate counterclockwise to turn off main power; insert padlock to lock in position.

Skyjack Logo

Skyjack.

Page 60

Vertical Mast

Page 61

Section 5 Labels

Labels - Models SJ12 & SJ16

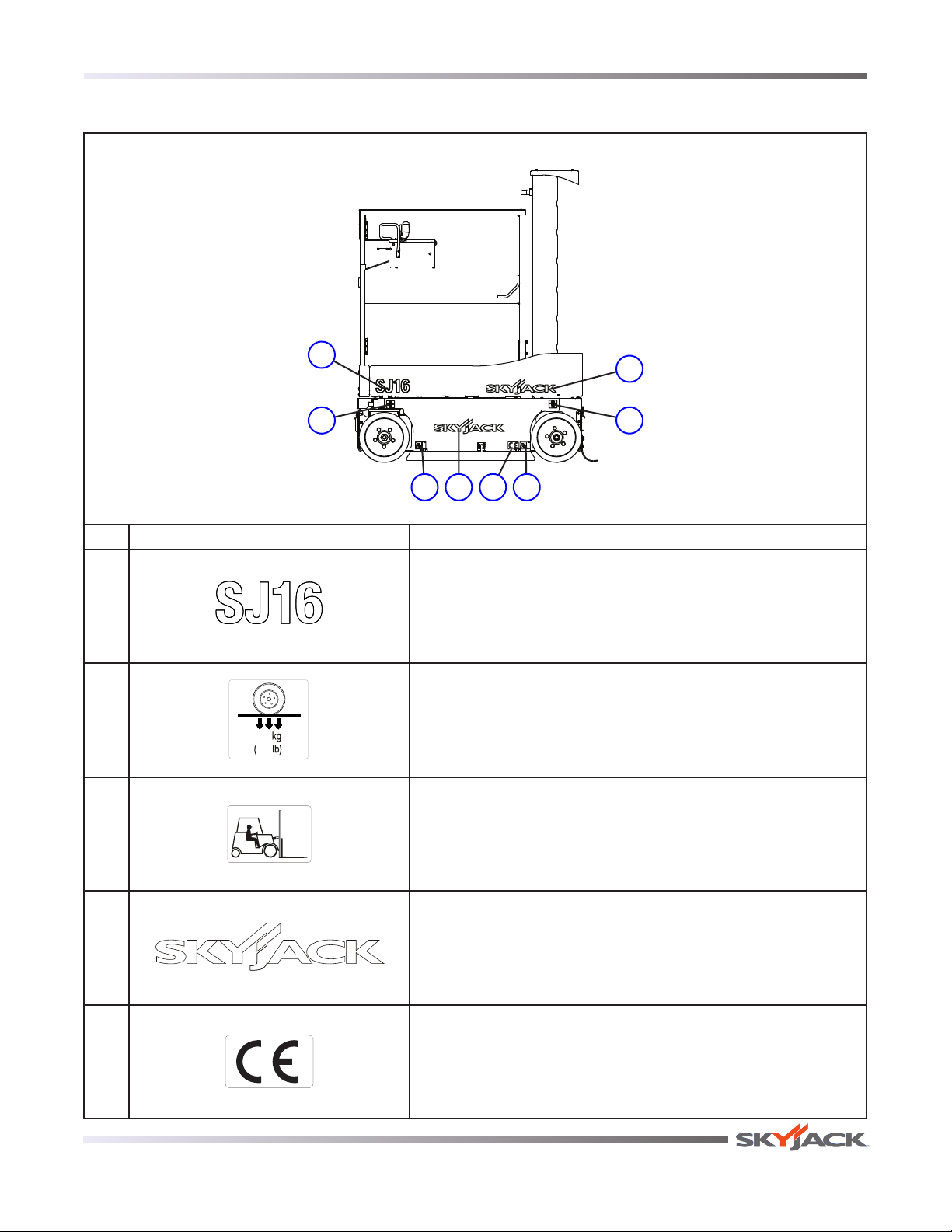

Left View

Nº

4 3

Label Pictorial Description

Model Number*

Product Identifier *Model number will vary, may not be as shown.

Wheel Load

Indicates rated wheel load.

Forklift Lifting Location

Vertical Mast

Insert fork fully into forklift lifting location to lift aerial platform.

Skyjack Logo

Skyjack.

“CE”

CE rating mark.

Page 61

Page 62

Labels Section 5

Labels - Models SJ12 & SJ16

Front View

Nº

Label Pictorial Description

Hazard Identification

Refer to Section 1: Safety Rules. Read and understand the outlined risks associated with this work platform prior to

operation.

Page 62

Horizontal Load Rating & Platform Capacity*

Operating with rated work load in each configuration below indicated wind speed only. *Label will vary, may not be as shown.

Operator’s Daily Inspection.

Refer to the Operating manual. Perform visual inspection and function tests at the beginning of each shift. Refer to Section 4:

Maintenance and Inspection Schedule.

Vertical Mast

Page 63

Section 5 Labels

Labels - Models SJ12 & SJ16

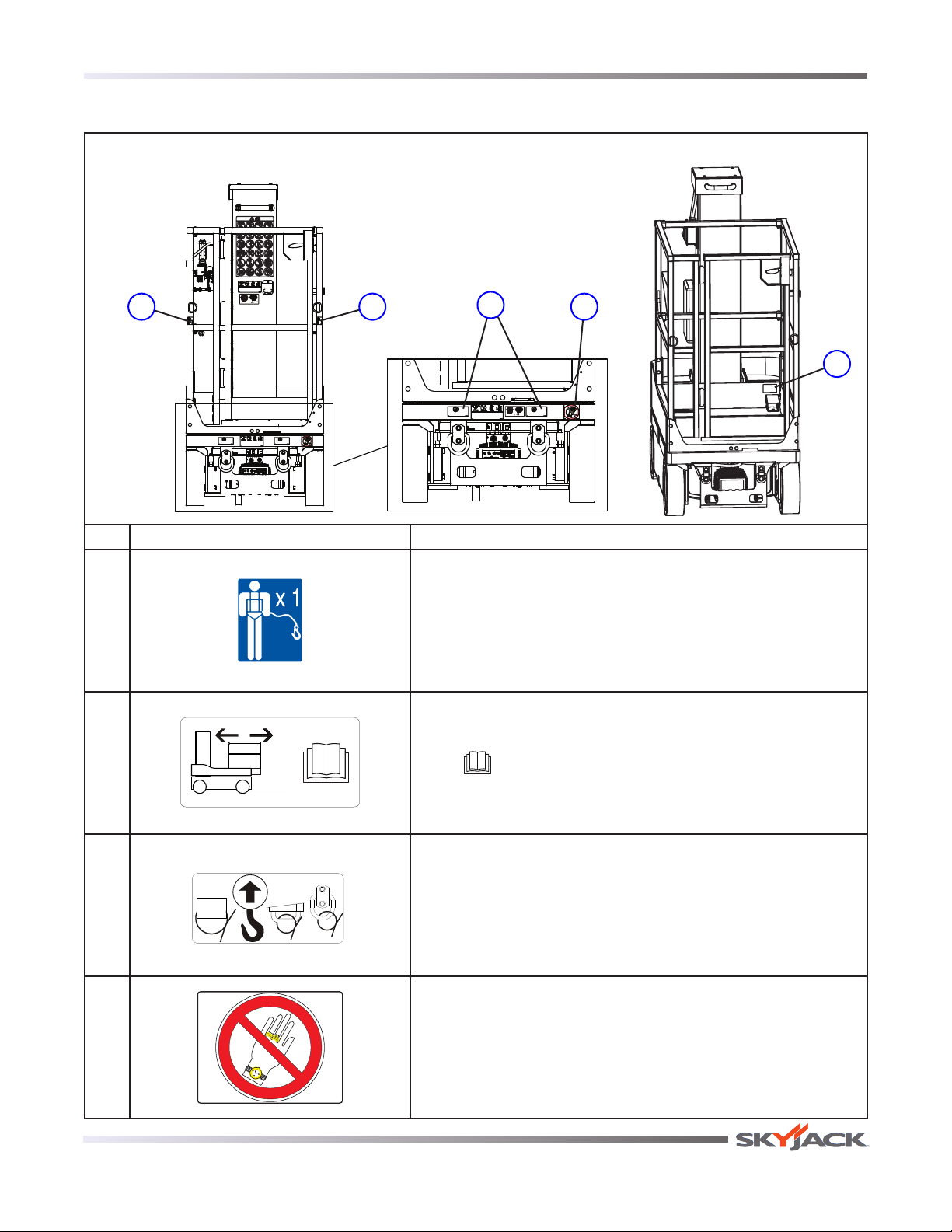

Front View (Continued)

4 7

Nº

Label Pictorial Description

Fall Protection Anchorage

Rated for one (1) person per anchorage.

Platform Traversing Procedure

Follow this procedure to reposition platform.

Read “ ” operating manual.

Vertical Mast

Lift and Tie Down Points

Only use these points for lifting or tying down.

No Jewelry

Caution - Do not wear jewelry.

Page 63

Page 64

Labels Section 5

Labels - Models SJ12 & SJ16

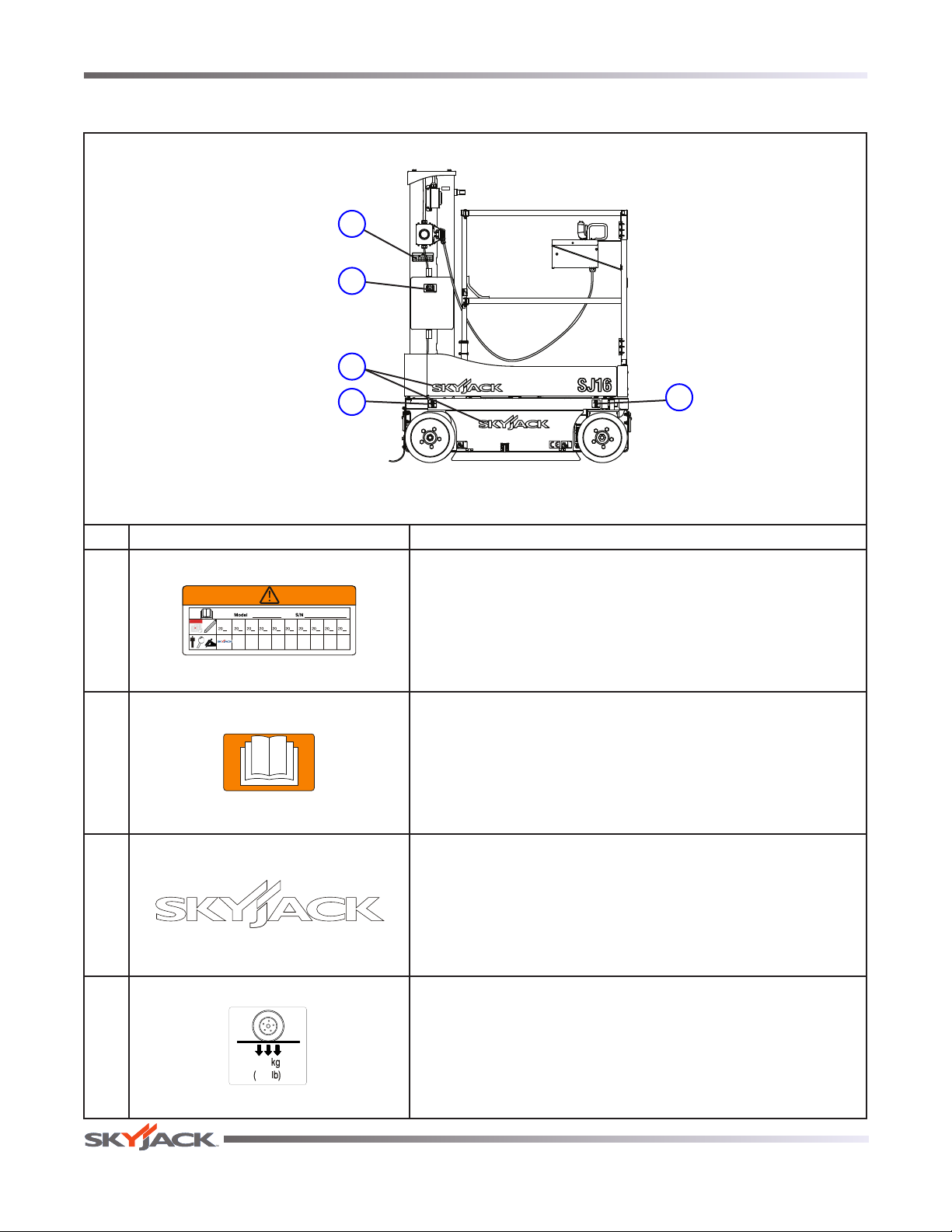

Right View

Nº

Label Pictorial Description

Annual Inspection

Ensure that work platform has received annual inspection prior to operation.

Manual Storage Box

Indicates location of operating manual.

Skyjack Logo

Page 64

Skyjack.

Wheel Load

Indicates rated wheel load.

Vertical Mast

Page 65

Section 5 Labels

Labels - Models SJ12 & SJ16

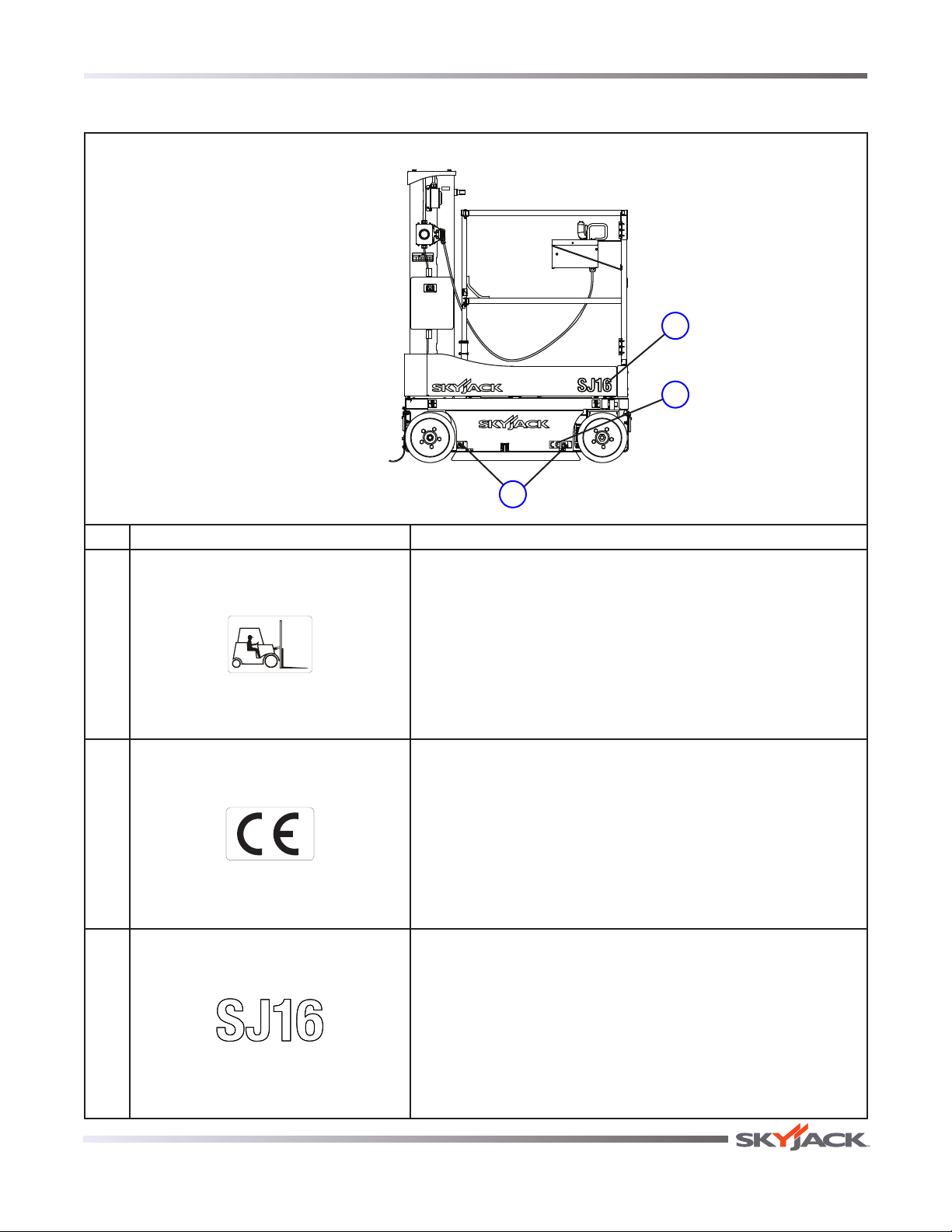

Right View (Continued)

Nº

Label Pictorial

Description

Forklift Lifting Location

Insert fork fully into forklift lifting location to lift aerial platform.

“CE”

CE rating mark.

Model Number*

Product Identifier *Model number will vary, may not be as shown.

Vertical Mast

Page 65

Page 66

Labels Section 5

Labels - Models SJ12 & SJ16

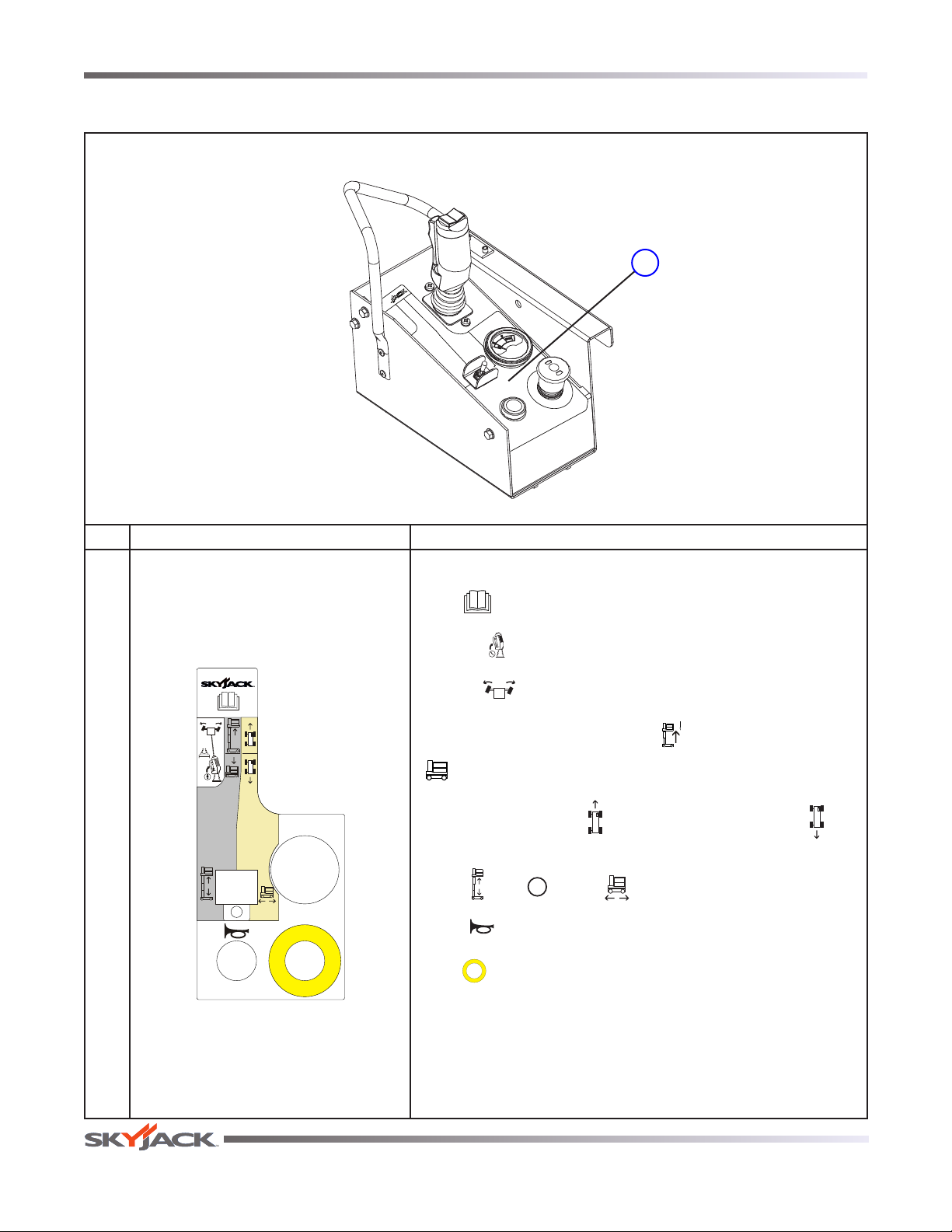

Platform Control Console

Nº

Label Pictorial Description

Platform Control Console

Read “ ” operating manual.

Squeeze “ ” trigger to enable controller.

Operate “ ” rocker switch to steer.

Move controller handle forward to “ ” raise or backward to

“ ” lower platform.

Move controller handle “ ” forward to drive forward or “ ” backward to drive reverse.

Select “ ” lift, “ ” off or “ ” drive mode.

Select “ ” to sound horn.

Push “ ” to disable controls. The operation light illuminates to indicate upper control availability.

Page 66

Vertical Mast

Page 67

Section 5 Labels

Labels - Models SJ12 & SJ16

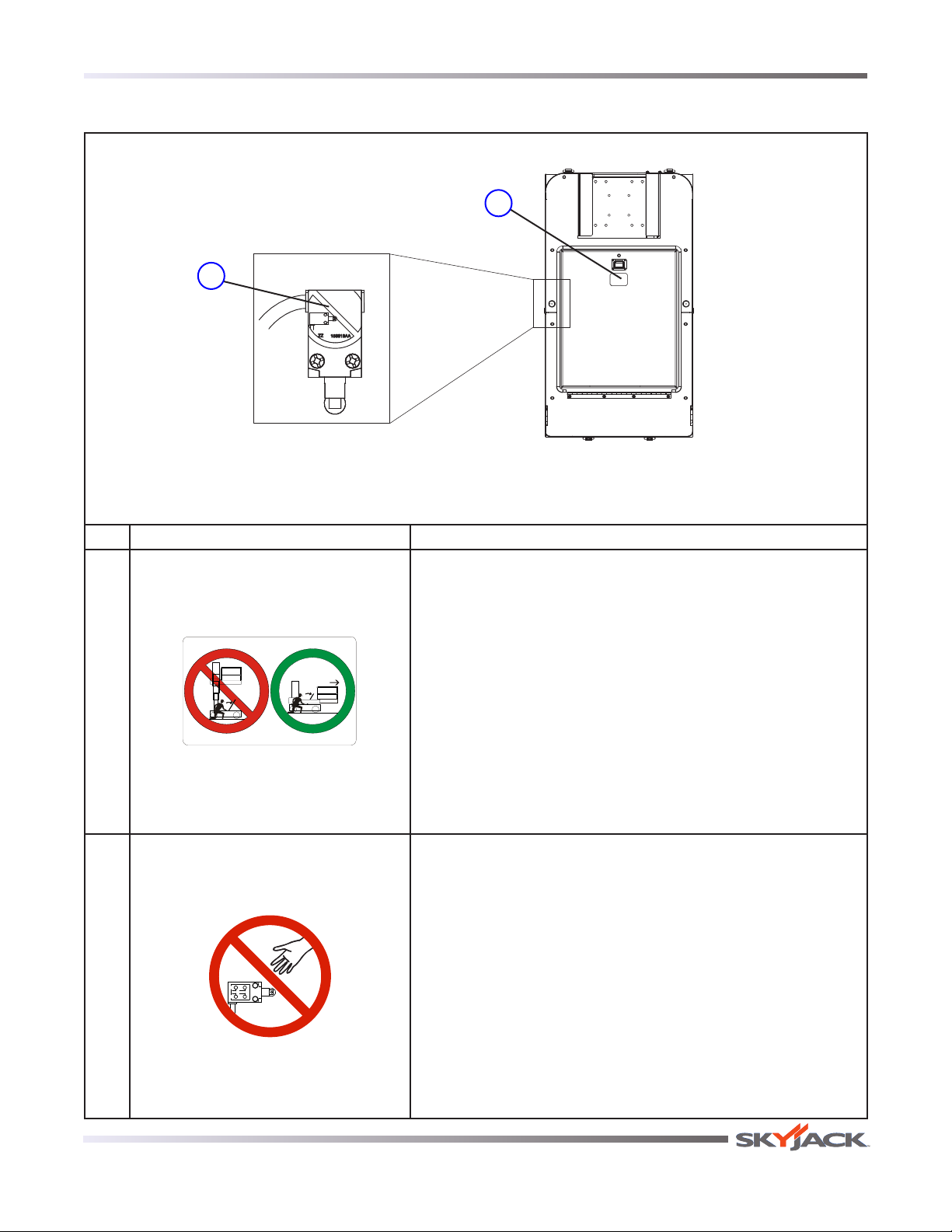

Base View - Lid Down

Nº

Label Pictorial

Description

Warning - Do Not Open

Do not access hydraulic/electrical compartment while platform is elevated.

Warning - Do Not Alter

Do not alter or disable limit switches or other safety devices.

Vertical Mast

Page 67

Page 68

Labels Section 5

Labels - Models SJ12 & SJ16

Base View - Lid Up

Nº

Inside View

Located on

side/top

limit switch

Top View

Label Pictorial

117389AB

Description

Warning - Do Not Alter

Do not alter or disable limit switches or other safety devices.

Page 68

Crushing Hazard

Danger - Crushing hazard.

Diagnostic Switch

Enables hydraulic functions for maintenance service.

Read “ ” operating manual.

Power Circuit Breaker

Push to reset power circuit breaker.

Vertical Mast

Page 69

Section 5 Labels

Labels - Models SJ12 & SJ16

Base View - Lid Up (Continued)

Nº

Inside View

Located on

side/top

limit switch

Top View

6 7

117389AB

Label Pictorial Description

Ground Circuit Breaker

Push to reset power circuit breaker.

Vertical Mast

Hydraulic Oil Level Indicator

Read “ ” operating manual. Ensure hydraulic oil level is within the minimum (red line) and maximum (blue line) range.

Hydraulic Oil ATF Dexron III

Replace hydraulic fluid with ATF Dexron III only.

Page 69

Page 70

Labels Section 5

Labels - Models SJ12 & SJ16 - Options and Attachments

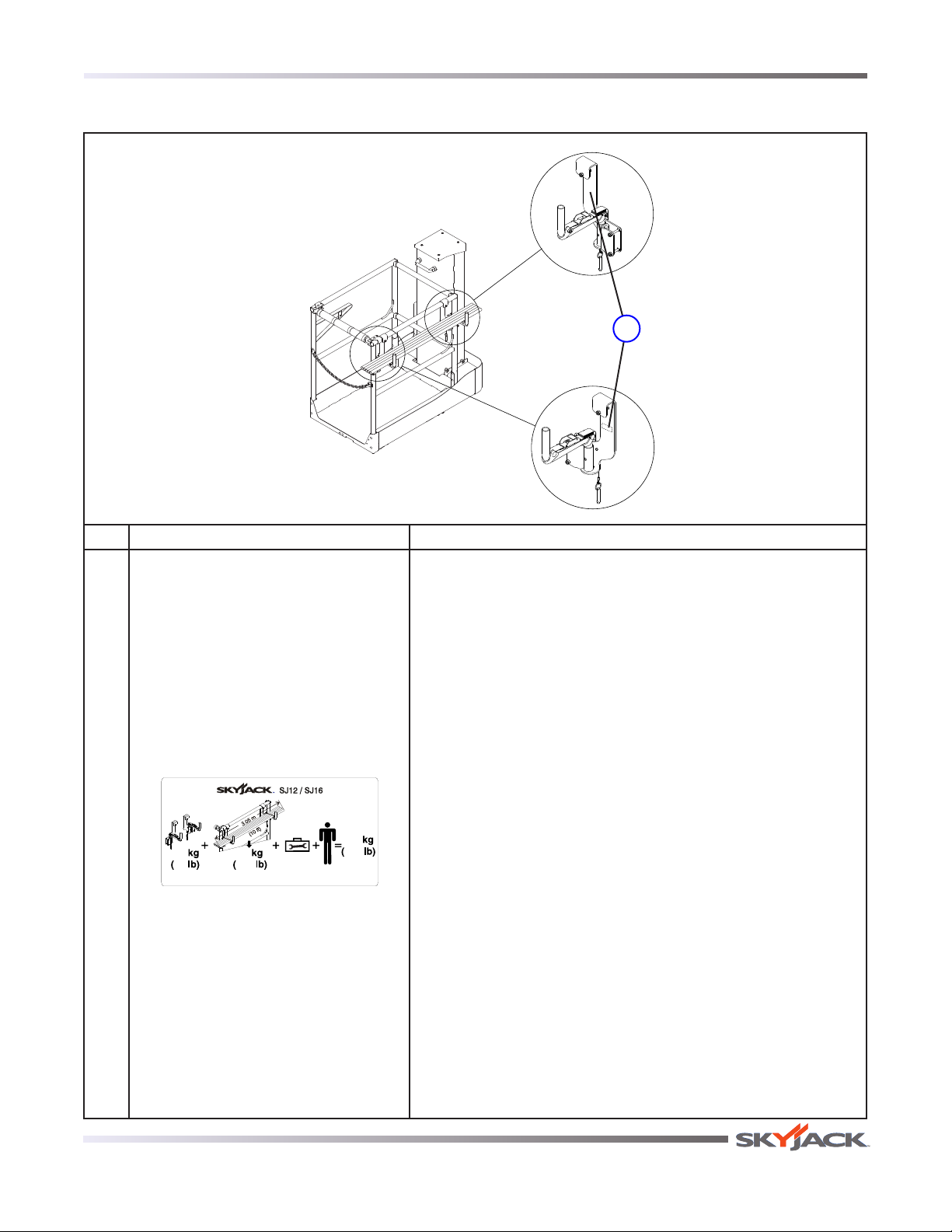

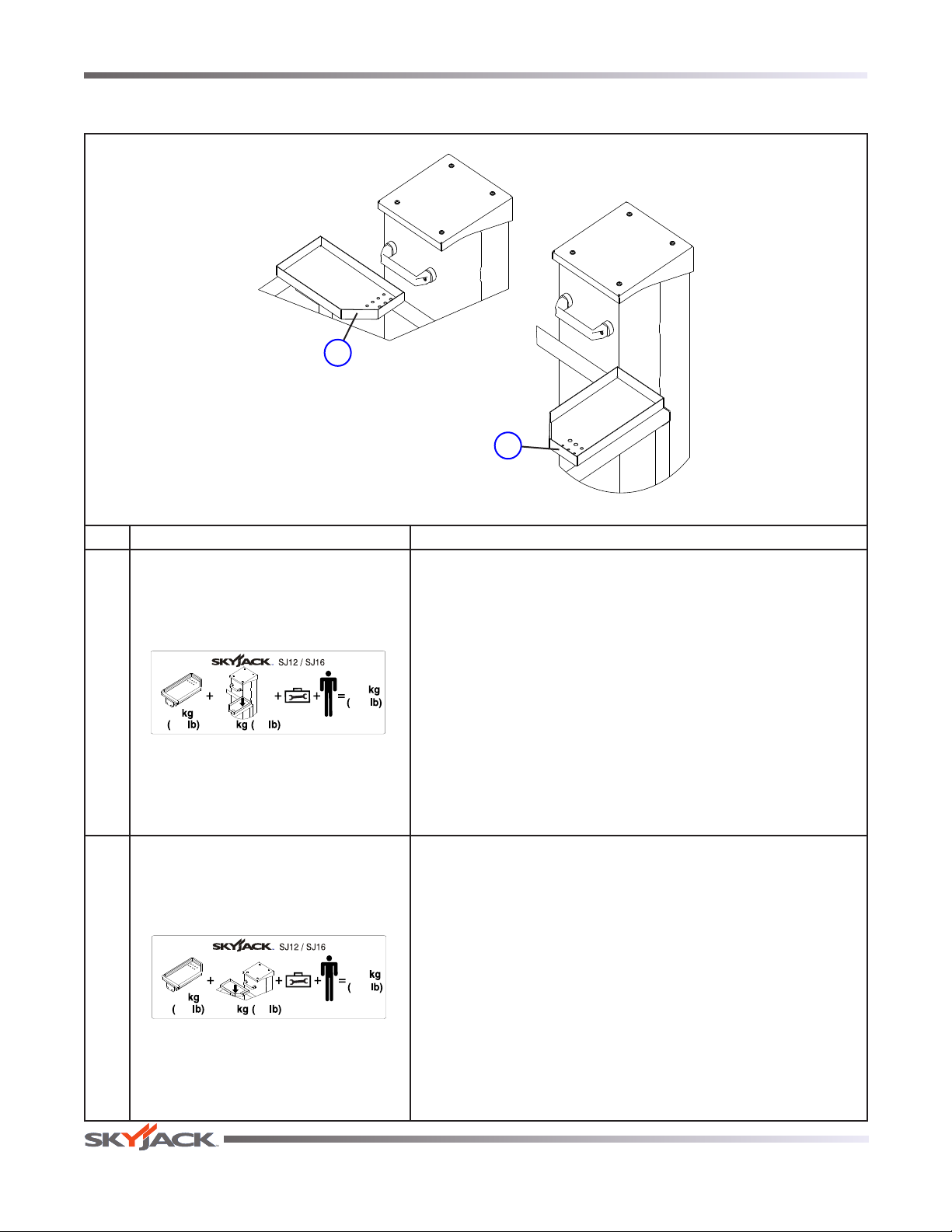

Tool Tray Attachment

Nº

Label Pictorial

Description

Tool Tray Location (1) & Capacity

Indicates tool tray location (1) and capacity.

Tool Tray Location (2) & Capacity

Indicates tool tray location (2) and capacity.

Page 70

Vertical Mast

Page 71

Section 5 Labels

Labels - Models SJ12 & SJ16 - Options and Attachments

Pipe Rack Attachment

Nº

Label Pictorial Description

Pipe Rack Capacity

Indicates pipe rack capacity.

Vertical Mast

Page 71

Page 72

Labels Section 5

Labels - Models SJ12 & SJ16 - Options and Attachments

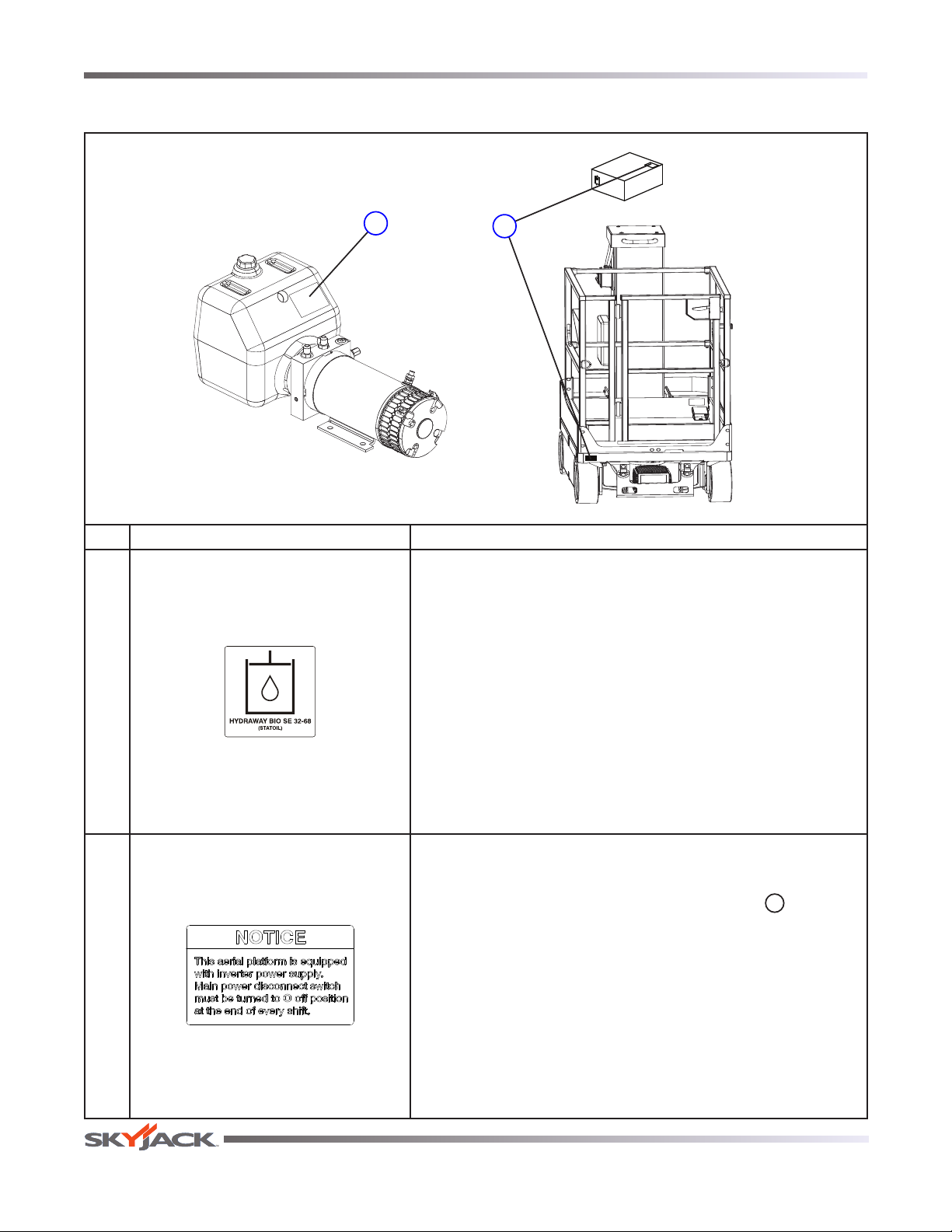

Biodegradeable Hydraulic Oil and Charger/Inverter Options

Nº

Label Pictorial

Description

Hydraway Bio SE32-68

Replace with Hydraway Bio SE32-68 only.

Page 72

Inverter Notice

This aerial platform is equipped with inverter power supply.

Main power disconnect switch must be turned to “ ”off position at the end of every shift.

Vertical Mast

Page 73

Section 5 Labels

Labels - Model SJ16 - Options and Attachments

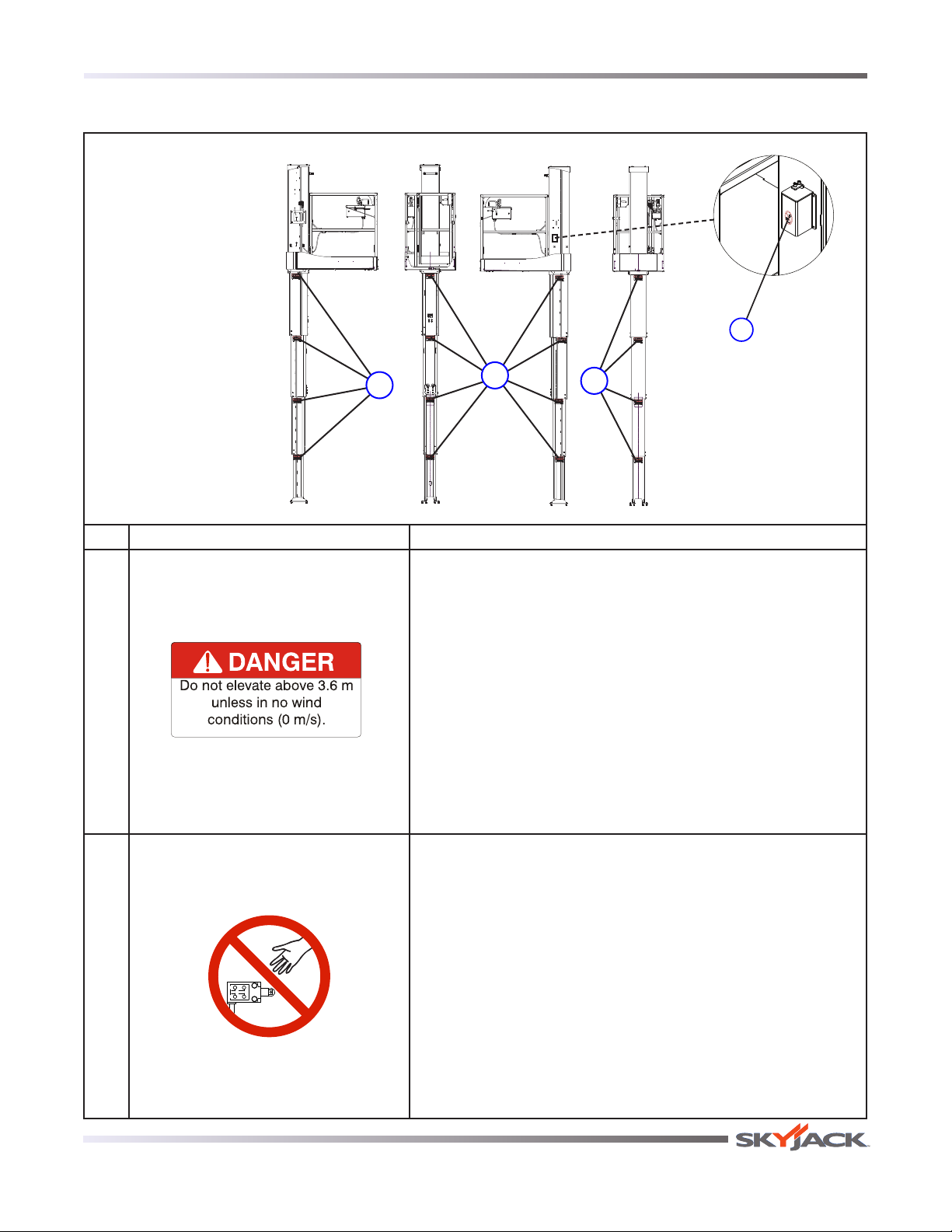

Outdoor Option Flashing Light

Nº

Label Pictorial Description

Danger

Do not elevate above 3.6 m (12 feet) unless in no wind conditions (0 m/s).

Vertical Mast

Warning - Do Not Alter

Do not alter or disable limit switches or other safety devices.

Page 73

Page 74

Labels Section 5

Labels - Model SJ16 - Options and Attachments

Outdoor Option Flashing Light

Nº

Label Pictorial Description

Horizontal Load Rating & Platform Capacity*

Operating with rated work load in each configuration below indicated wind speed only. *Label will vary, may not be as shown.

Page 74

Notice

Flashing light indicates machine is elevated above 3.6 m (12 feet).

Danger

Do not elevate above 3.6 m (12 feet) unless in no wind conditions (0 m/s).

Vertical Mast

Page 75

Page 76

www.skyjack.com
