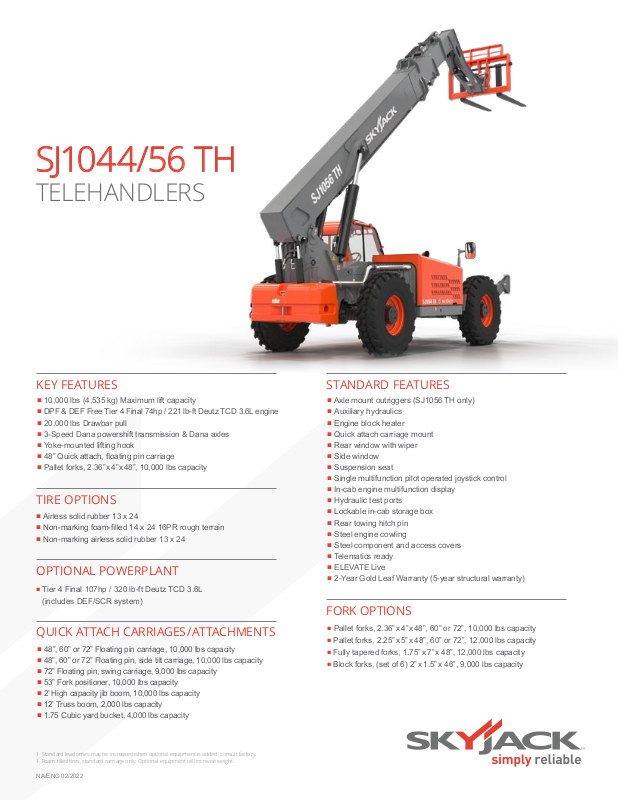

SKYJACK SJ1056THS Specifications

TELEHANDLERS

■

10,000 lbs (4,535 kg) Maximum lift capacity

■

DPF & DEF Free Tier 4 Final 74hp / 221 lb-ft Deutz TCD 3.6L engine

■

20,000 lbs Drawbar pull

■

3-Speed Dana powershift transmission & Dana axles

■

Yoke-mounted lifting hook

■

48” Quick attach, oating pin carriage

■

Pallet forks, 2.36” x 4” x 48”, 10,000 lbs capacity

TIRE OPTIONS

■

Airless solid rubber 13 x 24

■

Non-marking foam-lled 14 x 24 16PR rough terrain

■

Non-marking airless solid rubber 13 x 24

OPTIONAL POWERPLANT

■

Tier 4 Final 107hp / 320 lb-ft Deutz TCD 3.6L

(includes DEF/SCR system)

QUICK ATTACH CARRIAGES /ATTACHMENTS

■

48”, 60” or 72” Floating pin carriage, 10,000 lbs capacity

■

48”, 60” or 72” Floating pin, side tilt carriage, 10,000 lbs capacity

■

72” Floating pin, swing carriage, 9,000 lbs capacity

■

53” Fork positioner, 10,000 lbs capacity

■

2’ High capacity jib boom, 10,000 lbs capacity

■

12’ Truss boom, 2,000 lbs capacity

■

1.75 Cubic yard bucket, 4,000 lbs capacity

STANDARD FEATURESKEY FEATURES

■

Axle mount outriggers (SJ1056 TH only)

■

Auxiliary hydraulics

■

Engine block heater

■

Quick attach carriage mount

■

Rear window with wiper

■

Side window

■

Suspension seat

■

Single multifunction pilot operated joystick control

■

In-cab engine multifunction display

■

Hydraulic test ports

■

Lockable in-cab storage box

■

Rear towing hitch pin

■

Steel engine cowling

■

Steel component and access covers

■

Telematics ready

■

ELEVATE Live

■

2-Year Gold Leaf Warranty (5-year structural warranty)

FORK OPTIONS

■

Pallet forks, 2.36” x 4” x 48”, 60” or 72”, 10,000 lbs capacity

■

Pallet forks, 2.25” x 5” x 48”, 60” or 72”, 12,000 lbs capacity

■

Fully tapered forks, 1.75” x 7” x 48”, 12,000 lbs capacity

■

Block forks, (set of 6) 2” x 1.5” x 46”, 9,000 lbs capacity

† Standard lead times may be increased when optional equipment is added, consult factory.

‡ Foam-lled tires, standard carriage only. Optional equipment will increase weight.

NA/ENG 02/2022

SJ104 4/1056 TH TELEHANDLERS

SPECIFICATIONS SJ1044 TH SJ1056 TH

Maximum Lift Capacity 10,000 lbs (4,535 kg)

Maximum Lift Height 44’ 3” (13.49 m) 56’ 3” (17.14 m)

Rated Lift Capacity @ Maximum Height 7,000 lbs (3,175 kg) 4,000 lbs (1,814 kg)

Rated Lift Capacity @ Max Height w. O/R — 6,000 lbs (2,722 kg)

Maximum Forward Reach 29’ 4” (8.94 m) 42’ 2” (12.85 m)

Rated Lift Capacity @ Maximum Reach 1,800 lbs (816 kg) 400 lbs (181 kg)

Rated Lift Capacity @ Max Reach w. O/R — 3,000 lbs (1,361 kg)

O/A Length - Less Forks 21’ 2” (6.45 m) 22’ 2” (6.75 m)

Overall Height - Stowed 8’ 1” (2.47 m)

Overall Width 8’ 5” (2.56 m)

Ground Clearance 19” (48.3 cm)

Turning Radius - Outside 147” (3.73 m) 153” (3.89 m)

Operating Weight 28,226 lbs (12,803 kg) 33,336 lbs (15,121 kg)

Engine 74hp / 287 lb-ft Deutz TCD 3.6L T4F

Max Travel Speed - Forward

Drawbar Pull 20,000 lbs

Transmission Dana Powershift, 3 speeds F/R

Axles Dana

Steering 3 mode (Front Wheel, 4 Wheel, Crab)

Tires Foam-Filled 14 x 24 16PR Grip Lug

Fuel Tank Capacity 35 gal.(132 L)

Hydraulic Reservoir 43.85 gal. (166 L)

15 mph (24 km/h)

OPTIONS

■

Closed cab (adds front and top window, sliding side window, wipers,

full door, heater/defroster, operator fan)

■

Air conditioning (closed cab only)

■

Premium joystick

■

Back up sensor

■

Backup sensor and camera

■

Service convenience package (remote axle grease points &

clean drain engine oil pan valve)

■

Cold weather package (cold start engine oil, 50/50 antifreeze mix,

battery blanket & hyd. tank heater)

■

Arctic weather package (cold start engine oil, 50/50 antifreeze mix,

battery blanket, hyd. tank heater & arctic hydraulic oil)

■

Four wheel fenders

■

Road light package (2 front headlights, front & rear turn signals,

tail lights, brake lights)

■

Work light package (2 front facing & 2 rear facing halogen work lights)

■

Boom light package (2 boom mounted LED work lights)

■

Rotating beacon

■

Positive air shut-off valve

■

Pintle hitch (in lieu of standard hitch pin)

■

Non-destructive testing

■

ELEVATE telematics

■

Warranty options (3-year and 5-year options available)

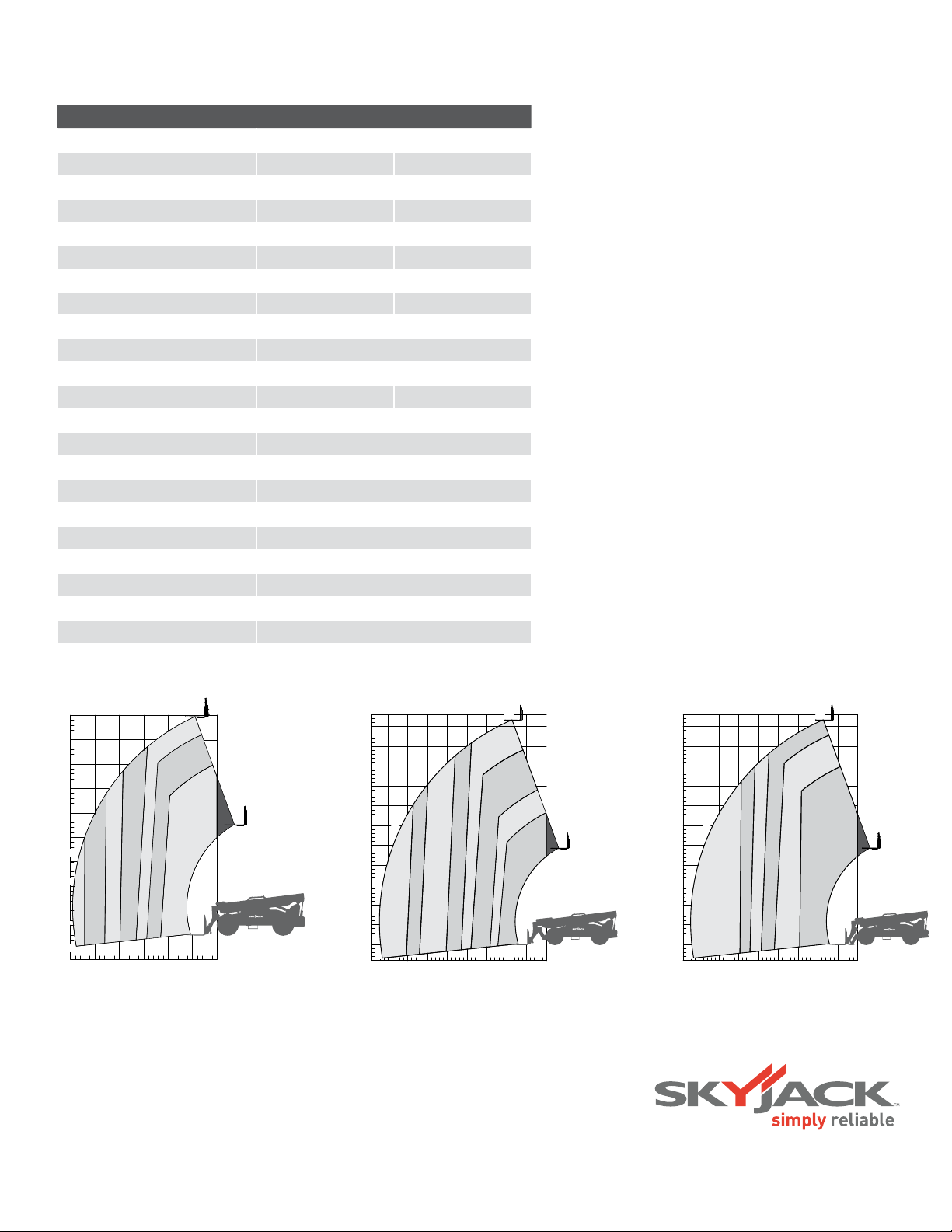

SJ104 4 TH SJ1056 TH SJ1056 TH

45’

40’

30°

1,800 lbs (816 kg)

50°

40°

3,000 lbs (1,361 kg)

2,500 lbs (1,134 kg)

5,000 lbs (2,268 kg)

LIFT HEIGHT (FT)

35’

30’

25’

20’

20°

15’

10°

10’

5’

0°

0

-6°

-5’

FORWARD REACH (FT)

Skyja ck Head Of ce

55 Campbell Rd. Guel ph, ON Canada N1H 1B9
Sales In quiries: 1- 877-755- 4387 (1-877- SJLIFTS)
Main Switchboard: 1-800-265 -2738
Phone: [phone]
Fax: [phone]
Email: [email protected]

www.skyjack.com

60°

8,000 lbs (3,629 kg)

7,000 lbs (3,175 kg)

70°

10,000 lbs (4,535 kg)

05’10’15’20’25’30’

NO OPERATION
ZONE

LIFT HEIGHT (FT)

58’

55’

50’

45’

40’

35’

30’

25’

20°

20’

15’

10°

10’

5’

0°

0

-6°

-4’

30°

400 lbs (181 kg)

40°

1,000 lbs (454 kg)

50°

1,500 lbs (680 kg)

3,000 lbs (1,361 kg)

60°

4,000 lbs (1,814 kg)

5,000 lbs (2,268 kg)

70°

8,000 lbs (3,629 kg)

10,000 lbs (4,535 kg)

FORWARD REACH (FT) FORWARD REACH (FT)

IMPORTANT - Machine design complies with ANSI/ITSDF

B56.6 -2016 stabilit y requireme nts for rough t errain for klifts.

Rated capacities show n are with machine on rm leve l

ground, s teered stra ight with fr ame level and on p roperly

inate d tires. Read boom angl e and boom extensio n, then

determ ine allowabl e load from ch art. Do not exc eed rated
loads as dangerous and unstable machine conditions will
result . Always travel w ith boom retrac ted in the lowe st
possible position.

NO OPERATION
ZONE

05’10’15’20’25’30’35’40’44’

LIFT HEIGHT (FT)

OUTRIGGERS DOWNOUTRIGGERS UP

58’

55’

50’

45’

40’

35’

30’

25’

20°

20’

15’

10°

10’

5’

0°

0

-6°

-4’

30°

40°

(1,361 kg)

3,000 lbs

50°

(1,814 kg)

(2,268 kg)

4,000 lbs

5,000 lbs

60°

(3,629 kg)

(2,722 kg)

8,000 lbs

6,000 lbs

70°

(4,535 kg)

10,000 lbs

NO OPERATION
ZONE

05’10’15’20’25’30’35’40’44’

This brochure is for il lustra tive purpose o nly and based o n the la test informati on at the time of printi ng. Skyjack Inc. reserves t he righ t to make changes a t any ti me, wit hout notice, to s pecic ations , stan dard
and opti onal equipment. Consult the Operating Mainten ance and Parts Manuals for proper proced ures. Work pla tforms have been teste d to comply wit h ANSI and CSA standards as inte rpreted by Sk yjack Inc.
