Skyhawk ST16000VE001, ST14000VE0018, ST12000VE0018, ST10000VE0018, Standard 512E User Manual

SATA Product Manual

Standard 512E model

ST16000VE001
ST14000VE0018
ST12000VE0018
ST10000VE0018

100869027, Rev. A

May 2020

Document Revision History

Revision Date Pages affected and Description of changes

Rev. A 05/12/2020 Initial release.

© 2020 Seagate Technology LLC. All rights reserved.

Publication number: 100869027, Rev. A May 2020
Seagate, Seagate Technology and the Spiral logo are registered trademarks of Seagate Technology LLC in the United States and/or other countries. SkyHawk AI, PowerChoice and
SeaTools are either trademarks or registered trademarks of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. The FIPS logo is a cer-

tification mark of NIST, which does not imply product endorsement by NIST, the U.S., or Canadian governments. All other trademarks or registered trademarks are the property of their
respective owners.

No part of this publication may be reproduced in any form without written permission of Seagate Technology LLC.
Call 877-PUB-TEK1 (877-782-8351) to request permission.
When referring to drive capacity, one gigabyte, or GB, equals one billion bytes and one terabyte, or TB, equals one trillion bytes. Your computer’s operating system may use a different
standard of measurement and report a lower capacity. In addition, some of the listed capacity is used for formatting and other functions, and thus will not be available for data storage.

Actual quantities will vary based on various factors, including file size, file format, features and application software. Actual data rates may vary depending on operating environment
and other factors. The export or re-export of hardware or software containing encryption may be regulated by the U.S. Department of Commerce, Bureau of Industry and Security (for

Contents

Seagate® Technology Support Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.0 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.1 About the Serial ATA interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.0 Drive specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.1 Specification summary tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.2 Formatted capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.2.1 LBA mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.3 Recording and interface technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.4 Start/stop times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.5 Power specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.5.1 Power consumption. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.5.2 Typical current profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.5.3 Conducted noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.5.4 Voltage tolerance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.5.5 Extended Power Conditions - PowerChoice™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.6 Environmental limits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.6.1 Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.6.2 Humidity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.6.3 Shock and Vibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.7 Acoustics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.8 Test for Prominent Discrete Tones (PDTs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.9 Electromagnetic immunity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.10 Reliability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.10.1 Annualized Failure Rate (AFR) and Mean Time Between Failures (MTBF) . . . . . . . . . . . . . 17

2.11 HDD and SSD Regulatory Compliance and Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.11.1 Regulatory Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.12 Corrosive environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.13 Reference documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.14 Product warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

2.15 Seagate® Rescue™ Data Recovery Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 2

Contents

3.0 Configuring and mounting the drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

3.1 Handling and static-discharge precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

3.2 Configuring the drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

3.3 Serial ATA cables and connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

3.4 Drive mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

3.4.1 Mechanical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

4.0 Serial ATA (SATA) interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

4.1 Hot-Plug compatibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

4.2 Serial ATA device plug connector pin definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

4.3 Supported ATA commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

4.3.1 Identify Device command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

4.3.2 Identify Device Data log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

4.3.3 Device Statistics log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

4.3.4 Set Features command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

4.3.5 S.M.A.R.T. commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 3

Seagate® Technology Support Services

For Seagate Product Support, visit: https://www.seagate.com/support

For Seagate Compliance, Safety, and Disposal, visit: https://www.seagate.com/support

For Firmware Download and Tools Download for Secure Erase, visit: https://www.seagate.com/support/downloads/

For information regarding online support and services, visit: http://www.seagate.com/contacts/

For information regarding Warranty Support, visit: http://www.seagate.com/support/warranty-and-replacements/

For information regarding data recovery services, visit: http://www.seagate.com/services-software/recover/

For Seagate OEM and Distribution partner and Seagate reseller portal, visit: http://www.seagate.com/partners

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 4

www.seagate.com Introduction

1.0 Introduction

This manual describes the functional, mechanical and interface specifications for the following:
Seagate® SkyHawk® AI Serial ATA +Rescue drive models.

Table 1: Models

Standard 512E models

ST16000VE001
ST14000VE0018
ST12000VE0018
ST10000VE0018

These drives provide the following key features:

 256 MB data buffer.
 7200 RPM spindle speed.
 Full-track multiple-sector transfer capability without local processor intervention.
 High instantaneous (burst) data-transfer rates (up to 600MB per second).
 Native Command Queuing with command ordering to increase performance in demanding applications.
 PowerChoice™ for selectable power savings
 Perpendicular recording technology provides the drives with increased areal density.
 SeaTools™ diagnostic software performs a drive self-test that eliminates unnecessary drive returns.
 State-of-the-art cache and on-the-fly error-correction algorithms.
 Support for S.M.A.R.T. drive monitoring and reporting.
 Supports latching SATA cables and connectors.
 Top Cover Attached motor for excellent vibration tolerance
 Worldwide Name (WWN) capability uniquely identifies the drive.

NOTE Seagate recommends validating the configuration with the selected HBA/RAID

controller manufacturer to ensure use of full capacity is supported.

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 5

www.seagate.com Introduction

1.1 About the Serial ATA interface

The Serial ATA interface provides several advantages over the traditional (parallel) ATA interface. The primary
advantages include:

 Easy installation and configuration with true plug-and-play connectivity.

It is not necessary to set any jumpers or other configuration options.

 Thinner and more flexible cabling for improved enclosure airflow and ease of installation.
 Scalability to higher performance levels.

In addition, Serial ATA makes the transition from parallel ATA easy by providing legacy software support. Serial ATA
was designed to allow users to install a Serial ATA host adapter and Serial ATA disk drive in the current system and
expect all of the existing applications to work as normal.

The Serial ATA interface connects each disk drive in a point-to-point configuration with the Serial ATA host adapter.
There is no master/slave relationship with Serial ATA devices like there is with parallel ATA. If two drives are attached
on one Serial ATA host adapter, the host operating system views the two devices as if they were both “masters” on two
separate ports. This essentially means both drives behave as if they are Device 0 (master) devices.

NOTE The host adapter may, optionally, emulate a master/slave environment to host software

where two devices on separate Serial ATA ports are represented to host software as a
Device 0 (master) and Device 1 (slave) accessed at the same set of host bus addresses. A
host adapter that emulates a master/slave environment manages two sets of shadow
registers. This is not a typical Serial ATA environment.

The Serial ATA host adapter and drive share the function of emulating parallel ATA device behavior to provide
backward compatibility with existing host systems and software. The Command and Control Block registers, PIO and
DMA data transfers, resets, and interrupts are all emulated.

The Serial ATA host adapter contains a set of registers that shadow the contents of the traditional device registers,
referred to as the Shadow Register Block. All Serial ATA devices behave like Device 0 devices. For additional
information about how Serial ATA emulates parallel ATA, refer to the “Serial ATA: High Speed Serialized AT Attachment”
specification. The specification can be downloaded from www.serialata.or

g.

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 6

www.seagate.com Drive specifications

2.0 Drive specifications

Unless otherwise noted, all specifications are measured under ambient conditions, at 25°C, and nominal power. For
convenience, the phrases the drive and this drive are used throughout this manual to indicate the SkyHawk AI Serial
ATA +Rescue drive models.

2.1 Specification summary tables

The specifications listed in the following tables are for quick reference. For details on specification measurement or
definition, see the appropriate section of this manual.

Table 2 Drive specifications summary

Drive specification

Formatted (512 bytes/sector)* 16TB 14TB 12TB 10TB

Guaranteed sectors (see Section 2.2)

Heads 18 16

Discs 9

Bytes per logical sector 512

Bytes per physical sector 4096

Recording density, KBPI (Kb/in max) 2426

Track density, KTPI (ktracks/in avg.) 436

Areal density, (Gb/in2 avg) 1028

Spindle speed (RPM) 7200

Internal data transfer rate (Mb/s max) 2833

Sustained data transfer rate OD (MB/s max) 250

I/O data-transfer rate (MB/s max) 600

ATA data-transfer modes supported PIO modes 0–4

Cache buffer 256MB (262,144KB)

ST16000VE001 ST14000VE0018 ST12000VE0018 ST10000VE0018

Multiword DMA modes 0–2
Ultra DMA modes 0–6

Weight: (maximum) 670g (1.477 lb)

Average latency 4.16ms

Power-on to ready (sec) (typ/max) 23/30

Standby to ready (sec) (typ/max) 23/30

Startup current (typical) 12V (peak) 2.0A

Voltage tolerance (including noise) 5V ± 5%

12V ± 10%

Operating drive temperature

Non-Operating temperature –40° to 70°C (Ambient Temperature, see sections 2.6.1 and 2.13)

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 7

*

5° to 70°C (Drive Reported Temperature)

www.seagate.com Drive specifications

Drive specification

ST16000VE001 ST14000VE0018 ST12000VE0018 ST10000VE0018

Temperature gradient (°C per hour max) 20°C (operating)

20°C (nonoperating)

Relative humidity

*

5% to 95% (operating)
5% to 95% (nonoperating)

Relative humidity gradient 20% per hour max

Altitude, operating –304.8 m to 3,048 m

(–1000 ft to 10,000+ ft)

Altitude, nonoperating
(below mean sea level, max)

–304.8 m to 12,192 m
(–1000 ft to 40,000+ ft)

Operational Shock (max at 2 ms - typical) 50 Gs

Non-Operational Shock (max at 2 ms - typical) 200 Gs

Linear Random Operating Vibration 5–500 Hz: 0.70 Grms

Random Rotary Operating Vibration 20–1500Hz: 12.5 rads/s²

Linear Random Non-Operating Vibration 2–500 Hz: 2.27 Grms

Drive acoustics, sound power (bels)

Idle 1.8 (typical)

2.0 (max)
During periods of drive idle, some offline activity may occur according to the
SMART specification, which may increase acoustic and power to operational levels.

Performance seek 2.6 (typical)

2.8 (max)

Nonrecoverable read errors 1 sector per 10

Annualized Failure Rate (AFR)

Maximum Rated Workload

*

*

0.44% based on 8760 POH

Maximum rate of <550TB/year

15

bits read

Workloads exceeding the annualized rate may degrade the drive MTBF and impact product
reliability. The Annualized Workload Rate is in units of TB per year, or TB per 8760 power on
hours. Workload Rate = TB transferred * (8760 / recorded power on hours).

Warranty To determine the warranty for a specific drive, use a web browser to access the following web

page: http://www.seagate.com/support/warranty-and-replacements/.
From this page, click on the “Is my Drive under Warranty” link. The following are required to be

provided: the drive serial number, model number (or part number) and country of
purchase.The system will display the warranty information for the drive.

Load-unload cycles 300,000

Supports Hotplug operation per

Yes

Serial ATA Revision 3.3 specification

* See Section 2.10, "Reliability" for rated MTBF device operating condition requirements.

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 8

www.seagate.com Drive specifications

2.2 Formatted capacity

ST models Formatted capacity* Guaranteed sectors Bytes per logical sector

ST16000VE001 16TB 31,251,759,104

ST14000VE0018 14TB 27,344,764,928

ST12000VE0018 12TB 23,437,770,752

ST10000VE0018 10TB 19,532,873,728

*One GB equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment and formatting.

512E

NOTE LBA Counts for drive capacities greater than 8TB are calculated based upon the

SFF-8447 standard publication.

ftp://ftp.seagate.com/sff/SFF-8447.PDF

2.2.1 LBA mode

When addressing these drives in LBA mode, all blocks (sectors) are consecutively numbered from 0 to n–1, where n is
the number of guaranteed sectors as defined above.

See Section 4.3.1, "Identify Device command" (words 60-61 and 100-103) for additional information about 48-bit
addressing support of drives with capacities over 137GB.

2.3 Recording and interface technology

Interface Serial ATA (SATA)

Recording method Perpendicular

Recording density, KBPI (Kb/in max) 2426

Track density, KTPI (ktracks/in avg) 436

Areal density (Gb/in2 avg) 1028

Spindle speed (RPM) (± 0.2%) 7200

Internal data transfer rate (Mb/s max) 2833

Sustained data transfer rate (MB/s max) 250

I/O data-transfer rate (MB/s max) 600 (Ultra DMA mode 5)

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 9

www.seagate.com Drive specifications

2.4 Start/stop times

Power-on to Ready (sec) (typ/max) 23/30

Standby to Ready (sec) (typ/max) 23/30

Ready to spindle stop (sec) (max) 20

2.5 Power specifications

The drive receives DC power (+5V or +12V) through a native SATA power connector. See Figure 2 on page 22 .

2.5.1 Power consumption

Power requirements for the drives are listed in Table 3. Typical power measurements are based on an average of
drives tested, under nominal conditions, using 5.0V and 12.0V input voltage at 25°C ambient temperature.

Table 3 DC Power Requirements

Power Dissipation Avg (25°C) (Watts) Avg 5V typical (Amps) Avg 12V typical (Amps)

Spinup (max) 2.0A

1

Idle

5.07 0.207 0.316

Operating

Standby

*

6.71 0.737 0.252

1.05 0.172 0.016

Sleep 1.05 0.172 0.016

1. During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational
levels.

* Based on IDEMA 3 Stream workload

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 10

www.seagate.com Drive specifications

2.5.2 Typical current profiles

Figure 1. Typical 5V and 12V startup and operation current profiles

2.5.3 Conducted noise

Noise is specified as a periodic and random distribution of frequencies covering a band from DC to 10 MHz. Maximum
allowed noise values given below are peak-to-peak measurements and apply at the drive power connector.

+5v = 250 mV pp from 100 Hz to 20 MHz.
+12v = 800 mV pp from 100 Hz to 8 KHz.

450 mV pp from 8 KHz to 20 KHz.
250 mV pp from 20 KHz to 5 MHz.

2.5.4 Voltage tolerance

Voltage tolerance (including noise):

5V ± 5% 12V ± 10%

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 11

www.seagate.com Drive specifications

2.5.5 Extended Power Conditions - PowerChoice™

Utilizing the load/unload architecture a programmable power management interface is provided to tailor systems for
reduced power consumption and performance requirements.

The table below lists the supported power conditions available in PowerChoice. Power conditions are ordered from
highest power consumption (and shortest recovery time) to lowest power consumption (and longest recovery time)
as follows: Idle_a power >= Idle_b power >= Idle_c power >= Standby_z power. The further users go down in the
table, the more power savings is actualized. For example, Idle_b results in greater power savings than the Idle_a
power condition. Standby results in the greatest power savings.

Power Condition Name Power Condition ID Description

Idle_a 81

Idle_b 82

Idle_c 83

Standby_z 00

H

H

H

H

Reduced electronics

Heads unloaded. Disks spinning at full RPM

Heads unloaded. Disks spinning at reduced RPM

Heads unloaded. Motor stopped (disks not spinning)

Each power condition has a set of current, saved and default settings. Default settings are not modifiable. Default and
saved settings persist across power-on resets. The current settings do not persist across power-on resets. At the time
of manufacture, the default, saved and current settings are in the Power Conditions log match.

PowerChoice is invoked using one of two methods

 Automatic power transitions which are triggered by expiration of individual power condition timers. These timer

values may be customized and enabled using the Extended Power Conditions (EPC) feature set using the
standardized Set Features command interface.

 Immediate host commanded power transitions may be initiated using an EPC Set Features “Go to Power

Condition” subcommand to enter any supported power condition. Legacy power commands Standby Immediate
and Idle Immediate also provide a method to directly transition the drive into supported power conditions.

PowerChoice exits power saving states under the following conditions

 Any command which requires the drive to enter the PM0: Active state (media access)
 Power on reset

PowerChoice provides the following reporting methods for tracking purposes

Check Power Mode Command

 Reports the current power state of the drive

Identify Device Command

 EPC Feature set supported flag
 EPC Feature enabled flag is set if at least one Idle power condition timer is enabled

Power Condition Log reports the following for each power condition

 Nominal recovery time from the power condition to active
 If the power condition is Supported, Changeable, and Savable
 Default enabled state, and timer value
 Saved enabled state, and timer value
 Current enabled state, and timer value

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 12

www.seagate.com Drive specifications

S.M.A.R.T. Read Data Reports

 Attribute 192 - Emergency Retract Count
 Attribute 193 - Load/Unload Cycle Count

PowerChoice Manufacture Default Power Condition Timer Values

Default power condition timer values have been established to assure product reliability and data integrity. A
minimum timer value threshold of two minutes ensures the appropriate amount of background drive maintenance
activities occur. Attempting to set a timer values less than the specified minimum timer value threshold will result in
an aborted EPC “Set Power Condition Timer” subcommand.

Power Condition Name Manufacturer Default Timer Values

Idle_a 100 ms

Idle_b 2 min

Idle_c 4 min

Standby_z 15 min

Setting power condition timer values less than the manufacturer specified defaults or issuing the EPC “Go to Power
Condition” subcommand at a rate exceeding the default timers may limit this products reliability and data integrity.

PowerChoice Supported Extended Power Condition Feature Subcommands

EPC Subcommand Description

00

01

02

03

04

05

H

H

H

H

H

H

Restore Power Condition Settings

Go to Power Condition

Set Power Condition Timer

Set Power Condition State

Enable EPC Feature Set

Disable EPC Feature Set

PowerChoice Supported Extended Power Condition Identifiers

Power Condition Identifiers Power Condition Name

00

H

01 - 80

81

H

82

H

83

H

84 - FE

FF

H

H

H

Standby_z

Reserved

Idle_a

Idle_b

Idle_c

Reserved

All EPC Power Conditions

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 13

www.seagate.com Drive specifications

2.6 Environmental limits

Temperature and humidity values experienced by the drive must be such that condensation does not occur on any
drive part. Altitude and atmospheric pressure specifications are referenced to a standard day at 58.7°F (14.8°C).

NOTE To maintain optimal performance drives should be run at nominal drive temperatures and

humidity.

See Section 2.10, "Reliability" for rated MTBF device operating condition requirements.

2.6.1 Temperature

a. Operating

41°F to 158°F (5°C to 70°C) temperature range with a maximum temperature gradient of 36°F (20°C) per hour as
reported by the drive.

The maximum allowable drive reported temperature is 158°F (70°C).

Air flow may be required to achieve consistent nominal drive temperature values (see Section 3.4). To confirm that
the required cooling is provided for the electronics and HDA, place the drive in its final mechanical configuration, and
perform random write/read operations. After the temperatures stabilize, monitor the current drive temperature
using the SMART temperature attribute 194 or Device Statistics log 04h page 5.

b. Non-operating

–40° to 158°F (–40° to 70°C) package ambient with a maximum gradient of 36°F (20°C) per hour. This specification
assumes that the drive is packaged in the shipping container designed by Seagate for use with drive.

2.6.2 Humidity

The values below assume that no condensation on the drive occurs. Maximum wet bulb temperature is 84.2°F (29°C).

2.6.2.1 Relative humidity

Operating: 5% to 95% non-condensing relative humidity with a maximum gradient of 20% per hour.

Nonoperating: 5% to 95% non-condensing relative humidity with a maximum gradient of 20% per hour.

2.6.2.2 Effective Altitude (sea level)

Operating: –304.8 m to 3048 m (–1000 ft. to 10,000+ ft.)

Nonoperating: –304.8 m to 12,192 m (–1000 ft. to 40,000+ ft.)

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 14

www.seagate.com Drive specifications

2.6.3 Shock and Vibration

Shock and vibration measurements specified in this document are made directly on the drive itself and applied in the X, Y, and Z axis at the drive
mounting point locations.

2.6.3.1 Shock

a. Operating

The drive will operate without error while subjected to intermittent shock pulses not exceeding 50 Gs at a maximum duration of
2ms.

b. Non-operating

The drive will operate without non-recoverable errors after being subjected to shock pulses not exceeding 200g at a maximum
duration of 2ms.

2.6.3.2 Vibration

a. Linear Random Operating Vibration

The drive will operate without non-recoverable errors while being subjected to the random power spectral density noise
specified below.

b. Random Rotary Operating Vibration

The drive will exhibit greater than 90% throughput for sequential and random write operations while subjected to the shaped
random power spectral density noise specified below.

c. Linear Random Non-Operating Vibration

The drive will not incur physical damage or have non-recoverable errors after being subjected to the power spectral density
noise specified below.

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 15

www.seagate.com Drive specifications

2.7 Acoustics

Drive acoustics are measured as overall A-weighted acoustic sound power levels (no pure tones). All measurements
are consistent with ISO document 7779. Sound power measurements are taken under essentially free-field conditions
over a reflecting plane. For all tests, the drive is oriented with the cover facing upward.

NOTE For seek mode tests, the drive is placed in seek mode only. The number of seeks

per second is defined by the following equation:
(Number of seeks per second = 0.4 / (average latency + average access time

)

Table 4 Fluid Dynamic Bearing (FDB) motor acoustics

Idle* Performance seek

All models 1.8 bels (typ)

2.0 bels (max)

*During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels.

2.6 bels (typ)

2.8 bels (max)

2.8 Test for Prominent Discrete Tones (PDTs)

Seagate follows the ECMA-74 standards for measurement and identification of PDTs. An exception to this process is
the use of the absolute threshold of hearing. Seagate uses this threshold curve (originated in ISO 389-7) to discern
tone audibility and to compensate for the inaudible components of sound prior to computation of tone ratios
according to Annex D of the ECMA-74 standards.

2.9 Electromagnetic immunity

When properly installed in a representative host system, the drive operates without errors or degradation in
performance when subjected to the radio frequency (RF) environments defined in the following table:

Table 5 Radio frequency environments

Test Description Performance level Reference standard

Electrostatic discharge Contact, HCP, VCP: ± 4

Radiated RF immunity 80 to 1000 MHz, 3 V/m,

80% AM with 1 kHz sine
900 MHz, 3 V/m, 50% pulse modulation @ 200 Hz

kV; Air: ± 8 kV B EN 61000-4-2: 95

A EN 61000-4-3: 96

ENV 50204: 95

Electrical fast transient ± 1 kV on AC mains, ± 0.5 kV on external I/O B EN 61000-4-4: 95

Surge immunity ± 1 kV differential, ± 2 kV common, AC mains B EN 61000-4-5: 95

Conducted RF immunity 150 kHz to 80 MHz, 3 Vrms, 80% AM with 1 kHz sine A EN 61000-4-6: 97

Voltage dips, interrupts 0% open, 5 seconds

0% short, 5 seconds
40%, 0.10 seconds
70%, 0.01 seconds

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 16

C
C
C
B

EN 61000-4-11: 94

www.seagate.com Drive specifications

2.10 Reliability

2.10.1 Annualized Failure Rate (AFR) and Mean Time Between Failures (MTBF)

The production disk drive shall achieve an annualized failure-rate of 0.44% (MTBF of 2,000,000 hours) over a 5 year
service life when used in Surveillance Storage field conditions as limited by the following:

 8760 power-on hours per year.
 HDA temperature as reported by the drive <= 30°C
 Ambient wet bulb temp <= 26°C
 Typical workload
 The AFR (MTBF) is a population statistic not relevant to individual units
 ANSI/ISA S71.04-2013 G2 classification levels and dust contamination to ISO 14644-1 Class 8 standards (as

measured at the device)

The MTBF specification for the drive assumes the operating environment is designed to maintain nominal drive
temperature and humidity. Occasional excursions in operating conditions between the rated MTBF conditions and
the maximum drive operating conditions may occur without significant impact to the rated MTBF. However continual
or sustained operation beyond the rated MTBF conditions will degrade the drive MTBF and reduce product reliability.

Nonrecoverable read errors

1 per 10

15

bits read, max
Load unload cycles 300,000 cycles
Maximum Rated Workload Maximum rate of <550TB/year

Workloads exceeding the annualized rate may degrade the drive MTBF and impact product
reliability. The Annualized Workload Rate is in units of TB per year, or TB per 8760 power on hours.
Workload Rate = TB transferred * (8760 / recorded power on hours).

Warranty To determine the warranty for a specific drive, use a web browser to access the following web

page: http://www.sea

gate.com/support/warranty-and-replacements/.

From this page, click on the “Is my Drive under Warranty” link. The following are required to be
provided: the drive serial number, model number (or part number) and country of purchase.
The system will display the warranty information for the drive.

Preventive maintenance None required.

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 17

www.seagate.com Drive specifications

2.10 HDD and SSD Regulatory Compliance and Safety

For the latest regulatory and compliance information see: https://www.seagate.com/support/ scroll to bottom of
page and click the Seagate HDD and SSD Regulatory Compliance and Safety link.

2.10.1 Regulatory Models

The following regulatory model number represent all features and configurations within the series:

Regulatory Model Numbers: STL006

2.11 Corrosive environment

Seagate electronic drive components pass accelerated corrosion testing equivalent to 10 years exposure to light
industrial environments containing sulfurous gases, chlorine and nitric oxide, classes G and H per ASTM B845.
However, this accelerated testing cannot duplicate every potential application environment.

Users should use caution exposing any electronic components to uncontrolled chemical pollutants and corrosive
chemicals as electronic drive component reliability can be affected by the installation environment. The silver, copper,
nickel and gold films used in hard disk drives are especially sensitive to the presence of sulfide, chloride, and nitrate
contaminants. Sulfur is found to be the most damaging. Materials used in cabinet fabrication, such as vulcanized
rubber, that can outgas corrosive compounds should be minimized or eliminated. The useful life of any electronic
equipment may be extended by replacing materials near circuitry with sulfide-free alternatives.

Seagate recommends that data centers be kept clean by monitoring and controlling the dust and gaseous
contamination. Gaseous contamination should be within ANSI/ISA S71.04-2013 G2 classification levels (as measured
on copper and silver coupons), and dust contamination to ISO 14644-1 Class 8 standards, and MTBF rated conditions
as defined in the Annualized Failure Rate (AFR) and Mean Time Between Failure (MTBF) section.

2.12 Reference documents

Supported Standards

Serial ATA Revision 3.3 specification

ANSI Documents

INCITS 522-2014ATA/ATAPI Command Set - 3 (ACS-3)

Specification for Acoustic Test Requirement and Procedures

Seagate part number: 30553-001

In case of conflict between this document and any referenced document, this document takes precedence.

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 18

www.seagate.com Drive specifications

2.13 Product warranty

Beginning on the date of shipment to the customer and continuing for the period specified in the purchase contract,
Seagate warrants that each product (including components and subassemblies) that fails to function properly under
normal use due to defect in materials or workmanship or due to nonconformance to the applicable specifications will
be repaired or replaced, at Seagate’s option and at no charge to the customer, if returned by customer at customer’s
expense to Seagate’s designated facility in accordance with Seagate’s warranty procedure. Seagate will pay for
transporting the repair or replacement item to the customer. For more detailed warranty information, refer to the
standard terms and conditions of purchase for Seagate products on the purchase documentation.

The remaining warranty for a particular drive can be determined by calling Seagate Customer Service at 1-800-468-

3472. Users can also determine remaining warranty using the Seagate web site (www.sea
number is required to determine remaining warranty information.

Shipping

When transporting or shipping a drive, use only a Seagate-approved container. Keep the original box. Seagate
approved containers are easily identified by the Seagate Approved Package label. Shipping a drive in a non-approved
container voids the drive warranty.

Seagate repair centers may refuse receipt of components improperly packaged or obviously damaged in transit.
Contact the authorized Seagate distributor to purchase additional boxes. Seagate recommends shipping by an air­ride carrier experienced in handling computer equipment.

gate.com). The drive serial

Storage

Maximum storage periods are 180 days within original unopened Seagate shipping package or 60 days unpackaged
within the defined non-operating limits (refer to environmental section in this manual). Storage can be extended to 1
year packaged or unpackaged under optimal environmental conditions (25°C, <40% relative humidity non­condensing, and non-corrosive environment). During any storage period the drive non-operational temperature,
humidity, wet bulb, atmospheric conditions, shock, vibration, magnetic and electrical field specifications should be
followed.

Product repair and return information

Seagate customer service centers are the only facilities authorized to service Seagate drives. Seagate does not
sanction any third-party repair facilities. Any unauthorized repair or tampering with the factory seal voids the
warranty.

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 19

www.seagate.com Drive specifications

2.14 Seagate® Rescue™ Data Recovery Service

3-year coverage (concurrent with bare drive warranty)

If you suffer a data loss event within the three year Seagate Rescue Data Recovery warranty period, and you are eligible to participate
in and submit a case under the Rescue program, contact SRS at (1-800-723-1183) in the US, or if you are calling from outside the US
please visit our website for numbers in your local and language: http://www.seagate.com/contacts/contact-numbers/

In addition, you may visit http://rescueandreplace.seagate.com/contact.jsp to obtain information regarding how to contact a recovery
expert online or by telephone from your location. An SRS representative will review your case to confirm your eligibility, and to assess
whether your data may be recoverable by remote recovery services or whether you will need to send your device to SRS for in-lab
servicing.

Rescue™ General Terms

These Rescue™ General Terms together with the Rescue™ FAQ’s make up the Rescue™ Program Terms. By submitting a case under the

™ program (“Program”) you agree to be bound by the Program Terms, including these General Terms and the FAQ. You must be

Rescue
a legal resident of the US to participate in the Program.

Communications. All communications relating to your request will be available on our web site in your account and sent via e-mail to
the address you provide to us unless you request, in writing, to receive such communications via regular mail.

Personal Data. You must provide true, accurate and complete information about yourself as prompted by the request form, including,
without limitation, your name, address, e-mail address, and telephone number, as applicable (collectively, “Personal Data”). You must
maintain and promptly update your Personal Data. You acknowledge that we may send you important information and notices
regarding your requests by e-mail and that we shall have no liability associated with or arising from your failure to maintain accurate
Personal Data.

Capacity; Legal Rights; Indemnity. You represent to SRS that you are of the legal age of majority in your state or country of residence,
with the full capacity to agree to these Program Terms. You warrant that you are the legal owner or the authorized representative of
the legal owner of the device you submit to SRS (the “Device”) and data. You warrant that the data on the Device is legal and that you
have the unrestricted legal right to (a) give us remote access to the data, (b) have the data recovered and reproduced on a backup
medium, (c) receive the recovered data, and (d) agree to these Program Terms. You will defend and indemnify us (including our
directors, officers, employees, agents, delegates, and contractors) from any claims or actions relating to the Device or data, or your
rights or lack of rights thereto.

Confidentiality. We will protect the confidentiality of your data against unauthorized disclosure using the same degree of care as we
use to protect our own confidential information.

Disclaimer of Warranties, Representations and Guarantees. WE PROVIDE THE PROGRAM AND ANY SERVICES PROVIDED OR
ATTEMPTED HEREUNDER “AS IS,” WITH ALL FAULTS, AT YOUR SOLE RISK. WE DO NOT EXTEND ANY EXPRESS WARRANTIES,
REPRESENTATIONS, CONDITIONS OR GUARANTEES REGARDING OUR RESCUE SERVICES OR ANY RESULTS THEREOF. TO THE
MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW AND SUBJECT TO ANY STATUTORY WARRANTIES THAT CANNOT BE
EXCLUDED, WE EXPRESSLY DISCLAIM ALL IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OR CONDITION OF
MERCHANTABILITY, WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, OR WARRANTY OF ACCURACY OR COMPLETENESS
WITH RESPECT TO THIS PROGRAM AND SERVICES. This Program and Disclaimer is unrelated to, and does not affect any warranties

relating to your Device that we or the seller may have extended to you.

Limitation of Liability. WE WILL NOT BE LIABLE FOR ANY HARM CAUSED, UNLESS YOU PROVE THAT WE CAUSED SUCH HARM
INTENTIONALLY. WITHOUT LIMITING THE GENERALITY OF THE FOREGOING, WE WILL NOT BE LIABLE FOR THE CONDITION,
EXISTENCE, OR LOSS OF THE DATA YOU SEND US OR THE DATA WE RECOVER (IF ANY), ANY LOSS OF REVENUE OR LOSS OF
PROFITS, OR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES HOWEVER CAUSED. TO THE MAXIMUM
EXTENT PERMITTED BY APPLICABLE LAW, THIS LIMITATION SHALL APPLY TO ANY AND ALL DAMAGES, REGARDLESS OF THE
LEGAL THEORY ON WHICH THEY ARE ASSERTED (INCLUDING, WITHOUT LIMITATION, CONTRACT, BREACH OF CONTRACT, AND
TORT), AND REGARDLESS OF WHETHER WE HAVE BEEN ADVISED OF THE POSSIBILITY OF LOSS OR DAMAGES - UNLESS YOU
PROVE THAT SRS CAUSED DAMAGES TO YOU INTENTIONALLY. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW,
THE AMOUNT OF OUR LIABILITY WILL NOT EXCEED THE TOTAL PRICE YOU ACTUALLY PAY FOR THE DEVICE, THE ESSENTIAL
PURPOSE OF WHICH IS TO LIMIT OUR LIABILITY ARISING FROM OR RELATED TO THE PROGRAM AND ANY DATA RECOVERY
SERVICES. THIS ALLOCATION OF RISK IS REFLECTED IN THE PRICE CHARGED FOR THIS PROGRAM OR SERVICES, IF ANY. YOU
ACKNOWLEDGE THAT THE PRICE OF THIS PROGRAM WOULD BE MUCH GREATER IF WE UNDERTOOK MORE EXTENSIVE
LIABILITY. THIS PARAGRAPH WILL APPLY NOTWITHSTANDING ANY OTHER PROVISIONS IN THESE TERMS, OR THE FAILURE OF
ANY REMEDY.

.

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 20

www.seagate.com Drive specifications

Compliance with Laws. You agree to comply with all such laws and regulations and all other applicable laws, statutes, ordinances and
regulations relating to the Program. You acknowledge that violations of these Program Terms could subject you to criminal or civil
penalties. The goods licensed or provided, or services provided, through the Program, which may include technology and software, are
subject to the customs and export control laws and regulations of the U.S. and may also be subject to the customs and export laws and
regulations of the country in which the products are manufactured or received. Further, under U.S. law, such goods may not be sold,
leased or otherwise transferred to restricted countries, or used by a restricted end-user or an end-user engaged in activities related to
weapons of mass destruction including, without limitation, activities related to designing, developing, producing or using nuclear
weapons, materials, or facilities, missiles or supporting missile projects, or chemical or biological weapons. You acknowledge you are
not a restricted end-user or involved in any of the restricted activities above, and that you will comply with and abide by these laws
and regulations. Seagate reserves the right to refuse service to or the return of any storage devices that have been determined to
violate these regulations.

Cancellation. You may cancel the Program at any time by contacting SRS at 1-800-SEAGATE (1-800-475-0143) in the US, or at such
other number available at http://services.seagate.com/contact.aspx, or you simply may refrain from submitting a request for Rescue
services. These Program Terms remain applicable to your and SRS’s rights and obligations with respect to any services requested by
you under this Program.

Assignment. You may not assign your rights or obligations under these Program Terms without SRS’ express written consent.
Dispute Resolution. The parties will attempt to resolve any dispute arising out of or related to these Program Terms or any data

recovery services requested or attempted hereunder through good faith negotiation. To the extent permitted by applicable law, if the
parties are unable to resolve the dispute through good faith negotiation, then the dispute will be submitted to final and binding
arbitration with the Judicial Arbitration and Mediation Services. Each party will bear its own costs in arbitration, provided that Seagate
reserves the right, in its discretion, to pre-pay certain fees you may incur in connection with the arbitration subject to refund if you do
not prevail. Both parties waive their rights to a jury trial. All proceedings will take place in Santa Clara County, California, USA. The
laws of the State of California will exclusively govern these Program Terms and our provision of any data recovery services, without
regard to California's conflicts of laws rules. You consent to the exclusive jurisdiction of the courts located in Santa Clara County,
California, USA.

Severability. If any provision of these Program Terms is held invalid, illegal or unenforceable, such provision shall be enforced to the
fullest extent permitted by applicable law and the validity, legality and enforceability of the remaining provisions shall not be affected
thereby.

Legal Effect. These Program Terms describe certain legal rights. You may have other rights under applicable law. These Program Terms
do not change your rights under applicable law if such laws do not permit these Program Terms to do so. Also, the Program and these
Program Terms are in addition and unrelated to any rights you may have under a Seagate warranty statement.

SRS Companies. The following SRS companies may provide the services described in these Program Terms: (a) Seagate Technology
LLC, with offices at 3101 Jay Street, Suite 110, Santa Clara, California 95054; (b) Seagate Technology Canada Inc., with offices at 2421
Bristol Circle, Suite A100, Oakville, Ontario, Canada L6H 5S9; and/or (c) Seagate Technology (Netherlands) B.V., with offices at
Koolhovenlaan 1, 1119 PA, Schiphol-Rijk, The Netherlands.

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 21

www.seagate.com Configuring and mounting the drive

3.0 Configuring and mounting the drive

This section contains the specifications and instructions for configuring and mounting the drive.

3.1 Handling and static-discharge precautions

After unpacking, and before installation, the drive may be exposed to potential handling and electrostatic discharge
(ESD) hazards. Observe the following standard handling and static-discharge precautions:

• Before handling the drive, put on a grounded wrist strap, or ground oneself frequently by touching the metal chassis of a
computer that is plugged into a grounded outlet. Wear a grounded wrist strap throughout the entire installation procedure.

• Handle the drive by its edges or frame only.

Caution

3.2 Configuring the drive

• The drive is extremely fragile—handle it with care. Do not press down on the drive top cover.

• Always rest the drive on a padded, antistatic surface until mounting it in the computer.

• Do not touch the connector pins or the printed circuit board.

• Do not remove the factory-installed labels from the drive or cover them with additional labels. Removal voids the warranty. Some
factory-installed labels contain information needed to service the drive. Other labels are used to seal out dirt and contamination.

Each drive on the Serial ATA interface connects point-to-point with the Serial ATA host adapter. There is no master/
slave relationship because each drive is considered a master in a point-to-point relationship. If two drives are attached
on one Serial ATA host adapter, the host operating system views the two devices as if they were both “masters” on two
separate ports. Both drives behave as if they are Device 0 (master) devices.

3.3 Serial ATA cables and connectors

The Serial ATA interface cable consists of four conductors in two differential pairs, plus three ground connections. The
cable size may be 30 to 26 AWG with a maximum length of one meter (39.37 in).

See Tab le 6 for connector pin definitions. Either end of the SATA signal cable can be attached to the
drive or host.

For direct backplane connection, the drive connectors are inserted directly into the host receptacle.
The drive and the host receptacle incorporate features that enable the direct connection to be hot
pluggable and blind mateable.

For installations which require cables, users can connect the drive as illustrated in Figure 2.

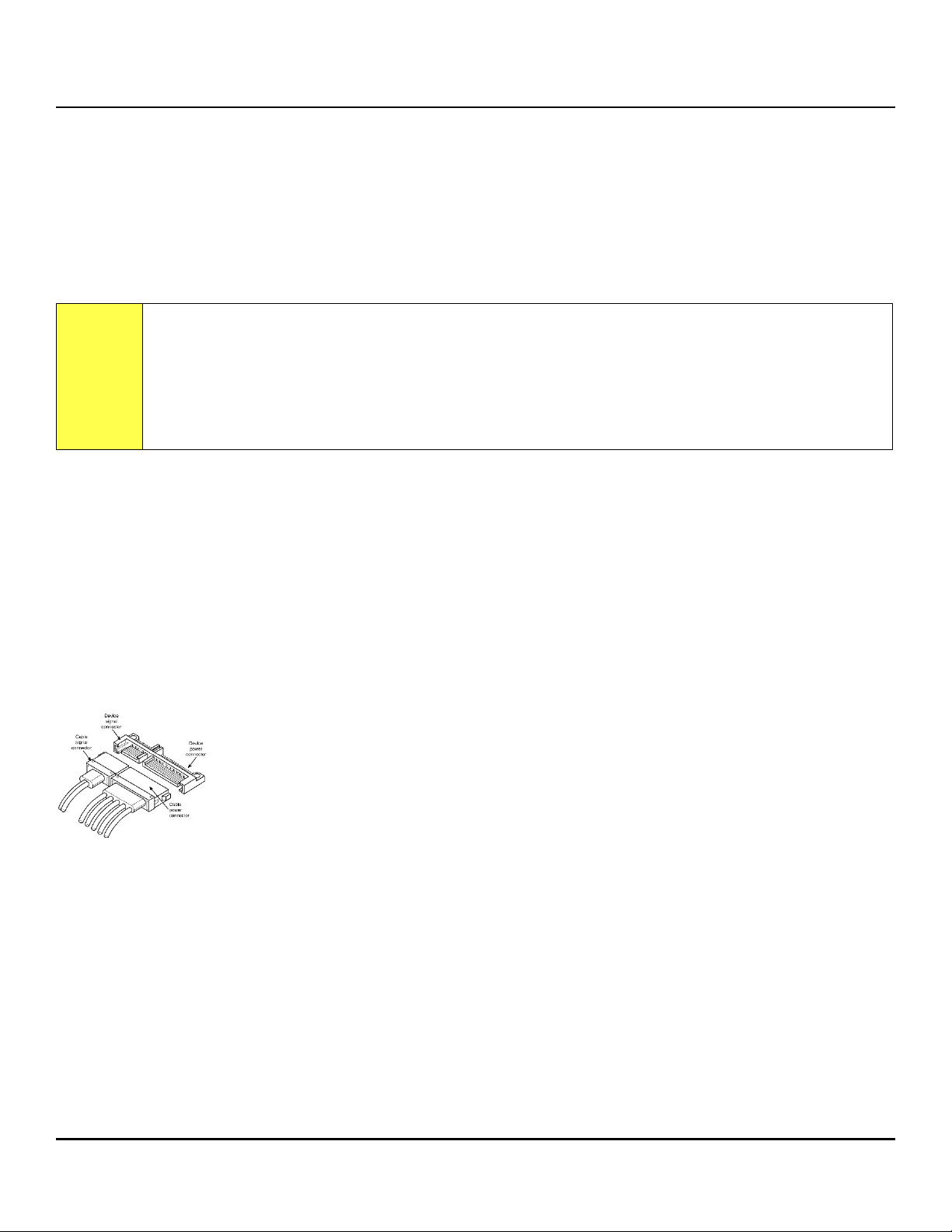

Figure 2. Attaching SATA cabling

NOTE Each cable is keyed to ensure correct orientation.

SkyHawk AI Serial ATA +Rescue drives support latching SATA connectors.

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 22

www.seagate.com Configuring and mounting the drive

2X 3.000±.010

2X 1.625±.020

1.432

.125±.010

3.750±.010

4.000±.010

.814

C

L

OF CONN

2.000

C

L

OF DRIVE

4X 6-32 UNC 2B

3 MIN THREAD DEPTH

.14 MAX FASTENER PENETRATION

MOUNTING HOLE

MAX TORQUE 6 IN/LBS

Y

B

.250±.010

5.787 MAX

[146.99MM]

4.000±.010

1.123±.020

2X 6-32 UNC 2B
3 MIN THREAD DEPTH
.14 MAX FASTENER PENETRATION
MOUNTING HOLES BOTH SIDES.

Z

Y

2.000

1.028 MAX
[26.11MM]

.140±.015

C

L

OF DRIVE

Z

0.160 ± 0.10 x 90
MAX TORQUE: 6 IN-LBS

0.169 ± 0.16 x 90

3.4 Drive mounting

Users can mount the drive in any orientation using four screws in the side-mounting holes or four screws in the
bottom-mounting holes. See Figure 3 for drive mounting dimensions. Follow these important mounting precautions
when mounting the drive:

 Allow a minimum clearance of 0.030 in (0.76mm) around the entire perimeter of the drive for cooling.
 Use only 6-32 UNC mounting screws.
 The screws should be inserted no more than 0.140 in (3.56mm) into the bottom or side mounting holes.
 Do not overtighten the mounting screws (maximum torque: 6 in-lb).

3.4.1 Mechanical specifications

Refer to Figure 3 for detailed mounting configuration dimensions. See Section 3.4, “Drive mounting.”

Weight: 1.477 lb 670 g

NOTE These dimensions conform to the Small Form Factor Standard documented in SFF-8301

and SFF-8323, found at www.snia.org/technology-communities/sff/specifications.

Figure 3. Mounting configuration dimensions

NOTE The image is for mechanical dimension reference only and may not represent the actual drive.

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 23

www.seagate.com Serial ATA (SATA) interface

4.0 Serial ATA (SATA) interface

These drives use the industry-standard Serial ATA interface that supports FIS data transfers. It supports ATA
programmed input/output (PIO) modes 0–4; multiword DMA modes 0–2, and Ultra DMA modes 0–6.

For detailed information about the Serial ATA interface, refer to the “Serial ATA: High Speed Serialized AT Attachment”
specification.

4.1 Hot-Plug compatibility

SkyHawk AI Serial ATA +Rescue drives incorporate connectors which enable users to hot plug these drives in

accordance with the Serial ATA Revision 3.3 specification. This specification can be downloaded from

www.serialata.or

Caution

The drive motor must come to a complete stop (Ready to spindle stop time indicated in Section 2.4)
prior to changing the plane of operation. This time is required to insure data integrity.

4.2 Serial ATA device plug connector pin definitions

Tabl e 6 summarizes the signals on the Serial ATA interface and power connectors.

Table 6 Serial ATA connector pin definitions

g.

Segment Pin Function Definition

Signal S1 Ground 2nd mate

S2 A+ Differential signal pair A from Phy

S3 A-

S4 Ground 2nd mate

S5 B- Differential signal pair B from Phy

S6 B+

S7 Ground 2nd mate

Key and spacing separate signal and power segments

Power P1 V33 3.3V power

P2 V33 3.3V power

P3 V33 3.3V power, pre-charge, 2nd mate

P4 Ground 1st mate

P5 Ground 2nd mate

P6 Ground 2nd mate

P7 V5 5V power, pre-charge, 2nd mate

P8 V5 5V power

P9 V5 5V power

P10 Ground 2nd mate

P11 Ground or LED signal If grounded, drive does not use deferred spin

P12 Ground 1st mate.

P13 V12 12V power, pre-charge, 2nd mate

P14 V12 12V power

P15 V12 12V power

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 24

www.seagate.com Serial ATA (SATA) interface

Notes:

1. All pins are in a single row, with a 1.27mm (0.050”) pitch.

2. The comments on the mating sequence apply to the case of backplane blindmate connector only. In this case, the
mating sequences are:

 the ground pins P4 and P12.
 the pre-charge power pins and the other ground pins.
 the signal pins and the rest of the power pins.

3. There are three power pins for each voltage. One pin from each voltage is used for pre-charge when installed in a
blind-mate backplane configuration.

4. All used voltage pins (Vx) must be terminated.

4.3 Supported ATA commands

The following table lists Serial ATA standard commands that the drive supports. For a detailed description of the ATA
commands, refer to the Serial ATA: High Speed Serialized AT Attachment specification. See “S.M.A.R.T. commands”

on page 49 for details and subcommands used in the S.M.A.R.T. implementation.

Table 7 Supported ATA commands

Command name Command code (in hex)

Accessible Max Address Configuration

Get Native Max Address Ext 78H / 0000

Set Accessible Max Address Ext 78H / 0001

Freeze Accessible Max Address Ext 78H / 0002

Check Power Mode E5

Configure Stream 51

Download Microcode 92

Execute Device Diagnostics 90

Flush Cache E7

Flush Cache Extended EA

Get Physical Element Status 12

Identify Device EC

Idle E3

Idle Immediate E1

Read Buffer E4

Read DMA C8

Read DMA Extended 25

Read FPDMA Queued 60

Read Log DMA Ext 47

Read Log Ext 2F

Read Multiple C4

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 25

www.seagate.com Serial ATA (SATA) interface

Command name Command code (in hex)

Read Multiple Extended 29

Read Sectors 20

Read Sectors Extended 24

Read Stream DMA Extended 2A

Read Verify Sectors 40

Read Verify Sectors Extended 42

Receive FPDMA Queued 65

Request Sense Data Ext 0B

Remove Element And Truncate 7C

H

H

H

H

H

H

H

H

H

Sanitize Device - Overwrite Ext B4H / 0014

Sanitize Device - Freeze Lock Ext B4H / 0020

Sanitize Device - Status Ext B4H / 0000

Security Disable Password F6

Security Erase Prepare F3

Security Erase Unit F4

Security Freeze F5

Security Set Password F1

Security Unlock F2

Seek 70

Send FPDMA Queued 64

Set Date & Time Ext 77

Set Features EF

Set Multiple Mode C6

Sleep E6

H

H

H

H

H

H

H

H

H

H

H

H

S.M.A.R.T. Disable Operations B0H / D9

S.M.A.R.T. Enable/Disable Autosave B0H / D2

S.M.A.R.T. Enable Operations B0H / D8

S.M.A.R.T. Execute Offline B0H / D4

S.M.A.R.T. Read Attribute Thresholds B0H / D1

S.M.A.R.T. Read Data B0H / D0

S.M.A.R.T. Read Log Sector B0H / D5

S.M.A.R.T. Return Status B0H / DA

S.M.A.R.T. Save Attribute Values B0H / D3

S.M.A.R.T. Write Log Sector B0H / D6

Standby E2

Standby Immediate E0

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 26

www.seagate.com Serial ATA (SATA) interface

Command name Command code (in hex)

Trusted Send 5EH (SED drives only)

Trusted Send DMA 5FH (SED drives only)

Trusted Receive 5CH (SED drives only)

Trusted Receive DMA 5DH (SED drives only)

Write Buffer E8

Write DMA CA

Write DMA Extended 35

Write DMA FUA Extended 3D

Write FPDMA Queued 61

Write Log DMA Ext 57

Write Log Extended 3F

Write Multiple C5

Write Multiple Extended 39

Write Multiple FUA Extended CE

Write Sectors 30

Write Sectors Extended 34

Write Stream DMA Extended 3A

Write Uncorrectable Extended 45

H

H

H

H

H

H

H

H

H

H

H

H

H

H

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 27

www.seagate.com Serial ATA (SATA) interface

4.3.1 Identify Device command

The Identify Device command (command code ECH) transfers information about the drive to the host following power
up. The data is organized as a single 512-byte block of data, whose contents are shown in Table 7 on page 25. All
reserved bits or words should be set to zero. Parameters listed with an “x” are drive-specific or vary with the state of
the drive. see Section 2.0 on page 7for default parameter settings.

The following commands contain drive-specific features that may not be included in the Serial ATA specification.

Table 8 Identify Device command

Word Description Value

0 Configuration information:

• Bit 15: 0 = ATA; 1 = ATAPI

0C5A

H

• Bit 7: removable media

• Bit 6: removable controller

• Bit 0: reserved

1 Obsolete 16,383

2 ATA-reserved C837

H

3 Obsolete 16

4 Retired 0000

5 Retired 0000

6 Obsolete 003F

7–9 Retired 0000

H

H

H

H

10–19 Serial number: (20 ASCII characters, 0000H = none) ASCII

20-21 Retired 0000

22 Obsolete 0000

H

H

23–26 Firmware revision (8 ASCII character string, padded with blanks to end of string) x.xx

27–46 Drive model number: (40 ASCII characters, padded with blanks to end of string) ST16000VE001

ST14000VE0018
ST12000VE0018
ST10000VE0018

47 (Bits 7–0) Maximum sectors per interrupt on Read multiple and Write multiple (16) 8010

48 Trusted computing feature set supported bit 0 (SED only) 4000

49 Standard Standby timer, IORDY supported and may be disabled 2F00

50 Capabilities 4000

51-52 Obsolete xxxx

53-56 Words 54–58, 64–70 and 88 are valid xxxx

57–58 Obsolete xxxx

59 (Bit 15: 0) Block Erase Ext Not Supported - N

(512e) / 8002

H

H

H

H

H

H

H

(512E) / 5D02

5D10

H

H

H

(4KN)

(4KN)
(Bit 14: 1) Overwrite Ext Supported - Y
(Bit 13: X) Crypto Scramble Ext Supported (SED Only) - N
(Bit 12: 1) Sanitize feature set supported - Y
(Bit 11: 1) Commands allowed during sanitize op as specified in ACS-3 - Y
(Bit 10: 1) Sanitize Antifreeze Lock Ext command supported - Y

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 28

www.seagate.com Serial ATA (SATA) interface

Table 8 Identify Device command

Word Description Value

60–61 Total number of user-addressable LBA sectors available

0FFFFFFFh*
(see Section 2.2 for related information)
*Note: The maximum value allowed in this field is: 0FFFFFFFh (268,435,455 sectors,

137GB). Drives with capacities over 137GB will have 0FFFFFFFh in this field and the
actual number of user-addressable LBAs specified in words 100-103. This is required for
drives that support the 48-bit addressing feature.

62 Obsolete 0000

63 Multiword DMA active and modes supported (see note following this table) xx07

64 Advanced PIO modes supported (modes 3 and 4 supported) 0003

65 Minimum multiword DMA transfer cycle time per word (120 ns) 0078

66 Recommended multiword DMA transfer cycle time per word (120 ns) 0078

67 Minimum PIO cycle time without IORDY flow control (240 ns) 0078

68 Minimum PIO cycle time with IORDY flow control (120 ns) 0078

69 Additional supported 0008

70–74 ATA-reserved 0000

75 Queue depth 001F

76 Serial ATA capabilities 8D0E

77 (Bit 6:1) Send/Receive FPDMA Queued Commands Supported xx4x

78 Serial ATA features supported 80CC

79 Serial ATA features enabled xxxx

80 Major version number 0FE0

81 Minor version number 005E

82 Command sets supported 306B

83 Command sets supported 7561

84 Command sets support extension (see note following this table) 6173

85 Command sets enabled 3069

86 Command sets enabled B441

87 Command sets enable extension 6173

88 Ultra DMA support and current mode (see note following this table) xx7F

89 Security erase time xxxx

90 Enhanced security erase time xxxx

92 Master password revision code FFFE

93 Hardware reset value xxxx

95–99 ATA-reserved 0000

100–103 Total number of user-addressable LBA sectors available (see Section 2.2 for related

information). These words are required for drives that support the 48-bit addressing
feature. Maximum value: 0000FFFFFFFFFFFFh.

ST16000VE001 = 31,251,759,104

ST14000VE0018 = 27,344,764,928

ST12000VE0018 = 23,437,770,752

ST10000VE0018 = 19,532,873,728

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 29

www.seagate.com Serial ATA (SATA) interface

Table 8 Identify Device command

Word Description Value

104–105 ATA-reserved 0000

H

106 Physical/Logical sector size 6003H (512E) / 5000

107 ATA-reserved 0000

108–111 The mandatory value of the world wide name (WWN) for the drive.

H

Each drive will have a unique value.
NOTE: This field is valid if word 84, bit 8 is set to 1 indicating 64-bit WWN support.

112–118 ATA-reserved 0000

119 Commands and feature sets supported 43DE

120 Commands and feature sets supported or enabled 409C

121-127 ATA-reserved 0000

128 Security status 0029

129–159 Seagate-reserved xxxx

160–167 ATA-reserved 0000

H

H

H

H

H

H

H

168 Device Nominal Form Factor 3.5“

169–205 ATA-reserved 0000

206 SCT Command Transport command set.

If bit 0 is set to one, then the device supports SCT Command Transport.

xxBD

H

H

Bits 7:2 indicate individual SCT feature support.

207-216 ATA-reserved 0000

H

217 Nominal media rotation rate 7200

H

(4KN)

218-221 ATA-reserved 0000

222 Transport Major Version 11FF

223 Transport Minor Version 0000

224-229 ATA-reserved 0000

230-233 Extended Number of User Accessible Sectors

65DE00000 - (512E)

CBBC0000 - (4KN)

234-254 ATA-reserved 0000

255 Integrity word xxA5

NOTE See the bit descriptions below for words 63, 84, and 88 of the Identify Drive

data.

H

H

H

H

H

H

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 30

www.seagate.com Serial ATA (SATA) interface

Description (if bit is set to 1)

Bit Word 63

0 Multiword DMA mode 0 is supported.

1 Multiword DMA mode 1 is supported.

2 Multiword DMA mode 2 is supported.

8 Multiword DMA mode 0 is currently active.

9 Multiword DMA mode 1 is currently active.

10 Multiword DMA mode 2 is currently active.

Bit Word 84

0 SMART error logging is supported.

1 SMART self-test is supported.

2 Media serial number is not supported.

3 Media Card Pass Through Command feature set is not supported.

4 Streaming feature set is not supported.

5 GPL feature set is supported.

6 WRITE DMA FUA EXT and WRITE MULTIPLE FUA EXT commands are supported.

7 WRITE DMA QUEUED FUA EXT command is not supported.

8 64-bit World Wide Name is supported.

9-10 Obsolete.

11-12 Reserved for TLC.

13 IDLE IMMEDIATE command with IUNLOAD feature is supported.

14 Shall be set to 1.

15 Shall be cleared to 0.

Bit Word 88

0 Ultra DMA mode 0 is supported.

1 Ultra DMA mode 1 is supported.

2 Ultra DMA mode 2 is supported.

3 Ultra DMA mode 3 is supported.

4 Ultra DMA mode 4 is supported.

5 Ultra DMA mode 5 is supported.

6 Ultra DMA mode 6 is supported.

8 Ultra DMA mode 0 is currently active.

9 Ultra DMA mode 1 is currently active.

10 Ultra DMA mode 2 is currently active.

11 Ultra DMA mode 3 is currently active.

12 Ultra DMA mode 4 is currently active.

13 Ultra DMA mode 5 is currently active.

14 Ultra DMA mode 6 is currently active.

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 31

www.seagate.com Serial ATA (SATA) interface

4.3.2 Identify Device Data log

The IDENTIFY DEVICE Data log (log 30H) transfers information about the drive. The data is organized as a set of 512­byte blocks of data, whose contents are shown in Table 2 on page 7. All reserved bits or words should be set to zero.
Parameters listed with an “x” are drive-specific or vary with the state of the drive.

The following may contain drive-specific features that may are included in the Serial ATA specification.

Table 9 Identify Device Data log

Page

QWord Offset

(hex)

(dec)

List of supported pages

Bits Description

63:24 Reserved

Value

(hex)

0..7

8 Number of entries in the following list 09

9 Page number of the 1st supported ID data log page 00

10 Page number of the 2nd supported ID data log page 01

00

11 Page number of the next supported ID data log page 02

12 Page number of the next supported ID data log page 03

13 Page number of the next supported ID data log page 04

14 Page number of the next supported ID data log page 05

15 Page number of the next supported ID data log page 06

16 Page number of the next supported ID data log page 08

17 Page number of the last supported ID data log page 00

18..511 Reserved

Copy of IDENTIFY DEVICE data

01

0..511 Copy of IDENTIFY DEVICE command data

23:16 Page number 00

15:0 Revision number 0001

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 32

www.seagate.com Serial ATA (SATA) interface

Table 9 Identify Device Data log (Continued)

Capacity

Capacity page information header (QWord)

63 Shall be set to 1 1

02

0..7

8..15

16..23

24..31

62:24 Reserved

23:16 Page number 02

15:0 Revision number 0001

Device Capacity (QWord)

63 Shall be set to 1 1

62:48 Reserved 0

47:0 accessible capacity

65DE00000 - (512E)
CBBC0000 - (4KN)

Physical/Logical Sector Size (QWord)

63 Contents of the QWord are valid 1

62 logical to physical sector relationship supported 1 (512E) / 0 (4KN)

61 logical sector size supported bit 1 (4KN) / 0 (512E)

60:22 Reserved 0

19:16 logical to physical sector relationship 0 (4KN) / 3 (512E)

15:0 logical sector offset 4000

H

Logical Sector Size (QWord)

63 Contents of the QWord are valid 1

62:32 Reserved 0

31:0 Logical Sector Size 4096b (4KN)

Nominal Buffer Size (QWord)

32..39

63 Contents of the QWord are valid 1

62:0 buffer size 256

40..511 Reserved 0

Supported Capabilities

Supported Capabilities page information header (QWord)

63 Shall be set to 1 1

0..7
62:24 Reserved

23:16 Page number 03

03

8..15 Supported Capabilities (QWord)

63 Shall be set to 1 1

62:55 Reserved 0

54 advanced background operation supported 0

53 persistent sense data reporting 0

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 33

www.seagate.com Serial ATA (SATA) interface

Table 9 Identify Device Data log (Continued)

52 sff-8447 reporting 1

51 definitive ending pattern supported 1

50 data set management xl supported 0

49 set sector configuration supported 1

48 zero ext supported 0

47 successful ncq command sense data supported 0

46 dlc supported 0

45 request sense device default supported 1

44 dsn supported 1

43 low power standby supported 0

42 set epc power source supported 0

41 amax addr supported 1

40 Reserved for CFA 0

39 drat supported 0

38 lps misalignment reporting supported 0

03

37 Reserved 0

36 read buffer dma supported 0

35 write buffer dma supported 0

34 Reserved 0

33 download microcode dma supported 0

32 28-bit supported 0

31 rzat supported 0

30 Reserved 0

29 nop supported 0

28 read buffer supported 1

27 write buffer supported 1

26 Reserved 0

25 read look-ahead supported 1

24 volatile write cache supported 1

23 smart supported 1

22 flush cache ext supported 1

21 Reserved 0

20 48-bit supported 1

19 Reserved 1

18 spin-up supported 1

17 puis supported 1

16 apm supported 0

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 34

www.seagate.com Serial ATA (SATA) interface

Table 9 Identify Device Data log (Continued)

15 Reserved for CFA 0

14 download microcode supported 1

13 unload supported 1

12 write fua ext supported 1

11 gpl supported 1

10 streaming supported 1

9 Reserved 0

8 smart self-test supported 1

7 smart error logging supported 1

6 epc supported 1

5 sense data supported 1

4 free-fall supported 0

3 dm mode 3 supported 1

2 gpl dma supported 1

1 write uncorrectable supported 1

03

16..23

24..31

32..39

0 wrv supported 1

DOWNLOAD MICROCODE Capabilities (QWord)

63 Contents of the QWord are valid 1

62:36 Reserved 0

35 dm clears nonactivated deferred data 0

34 dm offsets deferred supported 1

33 dm immediate supported 1

32 dm offsets immediate supported 1

31:16 dm maximum transfer size 0000

15:0 dm minimum transfer size 0000

Nominal Media Rotation Rate (QWord)

63 Shall be set to one 1

62:16 Reserved 0

15:0 nominal media rotation rate 7200

Form Factor (QWord)

63 Contents of the QWord are valid 1

62:4 Reserved 0

H

H

3:0 nominal form factor 3.5”

Write-Read-Verify Sector Count Mode 3 (QWord)

63 Contents of the QWord are valid 1

40..47
62:32 Reserved 0

31:0 wrm mode 3 count 0

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 35

www.seagate.com Serial ATA (SATA) interface

Table 9 Identify Device Data log (Continued)

Write-Read-Verify Sector Count Mode 2 (QWord)

03

48..55

56..71

72..79

63 Contents of the QWord are valid 1

62:32 Reserved 0

31:0 wrm mode 2 count 0

World wide name (DQWord)

127 Shall be set to one 1

126:64 Reserved 0

63:0 world wide name unique

DATA SET MANAGEMENT (QWord)

63 Shall be set to one 1

62:32 Reserved 0

31:16 max pages per dsm command 0

15:8 logical block markups supported 0

7:1 Reserved 0

0 trim supported 0

Utilization Per Unit Time (DQWord)

127 Shall be set to one 1

126:120 Reserved 0

80..95

96..103

119:112 utilization type

111:104 utilization units TB

103:96 utilization interval Per Year

95:34 Reserved 0

63:32 utilization b

31:0 utilization a 550

Utilization Usage Rate Support (QWord)

63 Contents of the QWord are valid 0

62:24 Reserved 0

23 setting rate basis supported 0

22:9 Reserved 0

8 since power on rate basis supported 0

7:5 Reserved 0

4 power on hours rate basis supported 0

3:1 Reserved 0

0 date/time rate basis supported 0

Combined
Writes and Reads

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 36

www.seagate.com Serial ATA (SATA) interface

Table 9 Identify Device Data log (Continued)

Zoned Capabilities (QWord)

03

104..111

112..119

120..127

63 Contents of the QWord are valid 0

62:2 Reserved 0

1:0 zoned 0

Supported ZAC Capabilities (QWord)

63 Contents of the QWord are valid 0

62:5 Reserved 0

4 non-data reset write pointers ext supported 0

3 non-data finish zone ext supported 0

2 non-data close zone ext supported 0

1 non-data open zone ext supported 0

0 report zones ext supported 0

Advanced Background Operations Capabilities (QWord)

63 Contents of the QWord are valid 0

62 abo foreground mode supported 0

61 abo ir mode supported 0

60:48 Reserved 0

47:16 abo minimum fraction 0

128..135

136..143

15:0 abo minimum supported timelimit 0

Advanced Background Operations Recommendations (QWord)

63 Contents of the QWord are valid 0

62:32 Reserved 0

31:16 device maintenance polling time 0

15:0 abo recommended abo start interval 0

Queue Depth (QWord)

63 Contents of the QWord are valid 0

62:5 Reserved 0

4:0 queue depth 0

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 37

www.seagate.com Serial ATA (SATA) interface

Table 9 Identify Device Data log (Continued)

Supported SCT Capabilities (QWord)

63 Contents of the QWord are valid 0

62:27 Reserved 0

26 sct write same function 103 supported 0

25 sct write same function 102 supported 0

24 sct write same function 101 supported 0

23:19 Reserved 0

18 sct write same function 3 supported 0

03

144..151

152..159

160..167

17 sct write same function 2 supported 0

16 sct write same function 1 supported 0

15:6 Reserved 0

5 sct data tables supported 0

4 sct feature control supported 0

3 sct error recovery control supported 0

2 sct write same supported 0

1 Reserved 0

0 sct supported 0

Depopulation Capabilities (QWord)

63 Contents of the QWord are valid 1

62:2 Reserved 0

1 get physical element status supported 1

0

remove
element and truncate supported

35 Depopulation Execution Time (QWord)

Bit Description:
63 Contents of the QWord are valid

1

1

62:0 DEPOPULATION TIME field (see 9.10.5.19) E62A

H

168..503 Reserved

Vendor Specific Supported Capabilities (QWord)

504..511

63 Contents of the QWord are valid 0

62:0 Vendor specific

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 38

www.seagate.com Serial ATA (SATA) interface

Table 9 Identify Device Data log (Continued)

Current Settings

Current Settings page information header (QWord)

04

0..7

63 Shall be set to 1 1

62:24 Reserved 0

23:16 Page number 04

Current Settings (QWord)

63 Shall be set to one 1

62:19 Reserved 0

18 successful ncq command sense data enabled 0

17 dlc enabled 0

16 dsn enabled 0

15 epc enabled 1

14 Reserved 0

13 volatile write cache enabled 1

12 Reserved 0

11 reverting to defaults enabled 0

8..15
10 sense data enabled 0

9 Reserved 0

8 non-volatile write cache 0

16..23

7read look-ahead 1

6smart enabled 1

5 Reserved 0

4 Reserved 0

3 puis enabled 0

2apm enabled 0

1 free-fall enabled 0

0wrv enabled 0

Feature Settings (QWord)

63 Contents of the QWord are valid 1

62:18 Reserved 0

17:16 power source 0

15:8 apm level 0

7:0 wrv mode 0

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 39

www.seagate.com Serial ATA (SATA) interface

Table 9 Identify Device Data log (Continued)

DMA Host Interface Sector Times (QWord)

04

24..31

32..39

40..47

48..55

56..63

63 Contents of the QWord are valid 1

62:16 Reserved 0

15:0 dma sector time 0

PIO Host Interface Sector Times (QWord)

63 Contents of the QWord are valid 1

62:16 Reserved 0

15:0 pio sector time 0

Streaming Minimum Request Size (QWord)

63 Contents of the QWord are valid 1

62:16 Reserved 0

15:0 stream min request size 1000

Streaming Access Latency (QWord)

63 Contents of the QWord are valid 1

62:16 Reserved 0

15:0 stream access latency 0

Streaming Performance Granularity (QWord)

63 Contents of the QWord are valid 1

62:16 Reserved 0

H

15:0 stream granularity 2710

Free-fall Control Sensitivity (QWord)

63 Contents of the QWord are valid 1

64..71
62:16 Reserved 0

15:0 free-fall sensitivity 0

Device Maintenance Schedule (QWord)

63 Contents of the QWord are valid 0

62:58 Reserved 0

72..79

57:48 minimum inactive time in milliseconds 0

47:32 time scheduled for device maintenance 0

31:16 time to performance degradation 0

15:0 minimum inactive time 0

Advanced Background Operations Settings (QWord)

63 Contents of the QWord are valid 0

80..87
62:8 Reserved 0

7:0 abo_status 0

88..511 Reserved

H

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 40

www.seagate.com Serial ATA (SATA) interface

Table 9 Identify Device Data log (Continued)

Strings

Supported Capabilities page information header (QWord)

0..7

63 Shall be set to 1 1

62:24 Reserved

23:16 Page number 05

8..27 SERIAL NUMBER (ATA String) XXXXXXXX

28..31 Reserved

05

32..39 FIRMWARE REVISION (ATA String) XXXX

40..47 Reserved

48..87

MODEL NUMBER (ATA String)

88..95 Reserved

96..103

ADDITIONAL PRODUCT IDENTIFIER (ATA String) 0

104..511 Reserved

Security

Security page information header (QWord)

63 Shall be set to 1 1

0..7
62:24 Reserved

H

H

ST16000VE001
ST14000VE0018
ST12000VE0018
ST10000VE0018

06

8..15

16..23

23:16 Page number 06

Master Password Identifier (QWord)

63 Contents of the QWord are valid 1

62:16 Reserved 0

15:0 master password identifier FFFE

Security Status (QWord)

63 Contents of the QWord are valid 1

62:7 Reserved 0

6 security supported 1

5 master password capability 0

4 enhanced security erase supported 1

3 security count expired 0

2 security frozen 0

1 security locked 0

0 security enabled 0

H

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 41

www.seagate.com Serial ATA (SATA) interface

Table 9 Identify Device Data log (Continued)

Time required for an Enhanced Erase mode SECURITY ERASE UNIT command (QWord)

63 Contents of the QWord are valid 1

06

24..31

32..39

40..47

62:16 Reserved 0

15 enhanced security erase time format 1

14:0 enhanced security erase time 245

Time required for an Normal Erase mode SECURITY ERASE UNIT command (QWord)

63 Contents of the QWord are valid 1

62:16 Reserved 0

15 normal security erase time format 1

14:0 normal security erase time 245

Trusted Computing Feature Set (QWord)

63 Contents of the QWord are valid 1

62:1 Reserved 0

0 trusted computing supported 0

Security Capabilities (QWord)

63 Contents of the QWord are valid 1

62:8 Reserved 0

7 restricted sanitize overrides security 0

6 acs-3 commands allowed by sanitize 1

H

H

48..55

5 sanitize antifreeze lock supported 1

4 block erase supported 0

3 overwrite supported 1

2 crypto scramble supported 0

1 sanitize supported 1

0 encrypt all supported 0

56..511 Reserved

Parallel ATA

07

000..511 (Not supported for SATA drives) all zeros

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 42

www.seagate.com Serial ATA (SATA) interface

Table 9 Identify Device Data log (Continued)

Serial ATA

Serial ATA page information header (QWord)

08

0..7

63 Shall be set to 1 1

62:24 Reserved

23:16 Page number 08

SATA Capabilities

63 Shall be set to one 1

62:32 Reserved 0

31 power disable feature always enabled 0

30 power disable feature supported 0

29 rebuild assist supported 0

28 dipm ssp preservation supported 0

27 hybrid information supported 0

26 devsleep to reducedpwrstate capability supported 0

8..15
25 device sleep supported 0

24 ncq autosense supported 1

23 software settings preservation supported 1

22 hardware feature control supported 0

21 in-order data delivery supported 0

20 device initiated power management supported 1

19 dma setup auto-activation supported 1

18 nonzero buffer offsets supported 0

17 send and receive queued commands supported 1

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 43

www.seagate.com Serial ATA (SATA) interface

Table 9 Identify Device Data log (Continued)

16 ncq non-data command supported 1

15 ncq streaming supported 0

14 read log dma ext as equivalent to read log ext supported 1

13 device automatic partial to slumber transitions supported 0

12 host automatic partial to slumber transitions supported 0

11 ncq priority information supported 0

10 unload while ncq commands are outstanding supported 1

9 sata phy event counters log supported 1

8 receipt of host initiated power management requests supported 0

7 ncq feature set supported 1

6:3 Reserved 0

2 sata gen3 signaling speed supported 1

1 sata gen2 signaling speed supported 1

0 sata gen1 signaling speed supported 1

08 16..23

Current SATA Settings (QWord)

63 Shall be set to one 1

62:14 Reserved 0

13 hybrid enabled 0

12 rebuild assist enabled 0

11 power disable feature enabled 0

10 device sleep enabled 0

9 automatic partial to slumber transitions enabled 0

8 software settings preservation enabled 1

7 hardware feature control is enabled 0

6 in-order data delivery enabled 0

5 device initiated power management enabled 0

4 dma setup auto-activation enabled 1

3 nonzero buffer offsets enabled 0

2:0 current negotiated serial ata signal speed (6.0, 3.0, 1.5) Gb/s

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 44

www.seagate.com Serial ATA (SATA) interface

Table 9 Identify Device Data log (Continued)

24..39 Reserved

40..41

42..43

44..47 Reserved

08

48..55

56..511 Reserved

CURRENT HARDWARE FEATURE CONTROL IDENTIFIER (Word)

SUPPORTED HARDWARE FEATURE CONTROL IDENTIFIER (Word)

Device Sleep Timing Variables (QWord)

63 devslp timing variables supported 0

62:16 Reserved 0

15:8 devsleep exit timeout (deto) 0

7:5 Reserved 0

4:0 minimum devslp assertion time (mdat) 0

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 45

www.seagate.com Serial ATA (SATA) interface

4.3.3 Device Statistics log

The Device Statistics log (log 04H) transfers information about the drive. The data is organized as a set of 512-byte
blocks of data, whose contents are shown in Table 2 on page 7. All reserved bits or words should be set to zero.
Parameters listed with an “x” are drive-specific or vary with the state of the drive.

The following may contain drive-specific features that are included in the SATA specifications.

Table 10 Device Statistics log

Page
(hex)

00 List of supported log pages Yes

General Statistics

Lifetime Power-on Resets Yes

Power-on Hours Yes

Logical Sectors Written Yes

Number of Write Commands Yes

01

02

03

04

Logical Sectors Read Yes

Number of Read Commands Yes

Pending Error Count x

Workload Utilization No

Utilization Usage Rate No

Resource Availability x

Random Write Resources Used x

Free Fall Statistics

Number of Free-Fall Events Detected No

Overlimit Shock Events No

Rotating Media Statistics

Spindle Motor Power-on Hours Yes

Head Flying Hours Yes

Head Loaded Events Yes

Number of Reallocated Logical Sectors Yes

Read Recovery Attempts Yes

Number of Mechanical Start Failures Yes

Number of Reallocation Candidate Logical Sectors Yes

Number of High Priority Unload Events Yes

General Errors Statistics

Number of Reported Uncorrectable Errors Yes

Number of Resets Between Command Acceptance and Command Completion Yes

Statistic Supported

Physical Element Status Changed x

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 46

www.seagate.com Serial ATA (SATA) interface

Table 10 Device Statistics log

Temperature Statistics

Current Temperature Yes

Average Short Term Temperature Yes

Average Long Term Temperature Yes

Highest Temperature Yes

Lowest Temperature Yes

05

06

07

08

09..FE Reserved

FF Vendor Specific Statistics

Highest Average Short Term Temperature Yes

Lowest Average Short Term Temperature Yes

Highest Average Long Term Temperature Yes

Lowest Average Long Term Temperature Yes

Time in Over-Temperature Yes

Specified Maximum Operating Temperature Yes

Time in Under-Temperature Yes

Specified Minimum Operating Temperature Yes

Transport Statistics

Number of Hardware Resets Yes

Number of ASR Events Yes

Number of Interface CRC Errors Yes

Solid State Device Statistics

Percentage Used Endurance Indicator No

Zoned Device Statistics

Maximum Open Zones No

Maximum Explicitly Open Zones No

Maximum Implicitly Open Zones No

Minimum Empty Zones No

Maximum Non Sequential Zones No

Zones Emptied No

Suboptimal Write Commands No

Commands Exceeding Optimal Limit No

Failed Explicit Opens No

Read Rule Violations No

Write Rule Violations No

TBD x

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 47

www.seagate.com Serial ATA (SATA) interface

4.3.4 Set Features command

This command controls the implementation of various features that the drive supports. When the drive receives this
command, it sets BSY, checks the contents of the Features register, clears BSY and generates an interrupt. If the value
in the register does not represent a feature that the drive supports, the command is aborted. Power-on default has the
read look-ahead and write caching features enabled. The acceptable values for the Features register are defined as
follows:

Table 11 Set Features command values

02

03

Enable write cache (default).

H

Set transfer mode (based on value in Sector Count register).

H

Sector Count register values:

Set PIO mode to default (PIO mode 2).

00

H

01HSet PIO mode to default and disable IORDY (PIO mode 2).

08HPIO mode 0

09HPIO mode 1

0AHPIO mode 2

0BHPIO mode 3

0CHPIO mode 4 (default)

20HMultiword DMA mode 0

21HMultiword DMA mode 1

22HMultiword DMA mode 2

40HUltra DMA mode 0

41HUltra DMA mode 1

42HUltra DMA mode 2

43HUltra DMA mode 3

44HUltra DMA mode 4

45HUltra DMA mode 5

46HUltra DMA mode 6

10

55

82

90

AA

F1

Enable use of SATA features

H

Disable read look-ahead (read cache) feature.

H

Disable write cache

H

Disable use of SATA features

H

Enable read look-ahead (read cache) feature (default).

H

Report full capacity available

H

NOTE At power-on, or after a hardware or software reset, the default values of the

features are as indicated above.

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 48

www.seagate.com Serial ATA (SATA) interface

4.3.5 S.M.A.R.T. commands

S.M.A.R.T. provides near-term failure prediction for disk drives. When S.M.A.R.T. is enabled, the drive monitors
predetermined drive attributes that are susceptible to degradation over time. If self-monitoring determines that a
failure is likely, S.M.A.R.T. makes a status report available to the host. Not all failures are predictable. S.M.A.R.T.
predictability is limited to the attributes the drive can monitor. For more information on S.M.A.R.T. commands and
implementation, see the Draft ATA-5 Standard.

SeaTools diagnostic software activates a built-in drive self-test (DST S.M.A.R.T. command for D4
unnecessary drive returns. The diagnostic software ships with all new drives and is also available at:

http://www.seagate.com/support/downloads/seatools/

.

This drive is shipped with S.M.A.R.T. features disabled. Users must have a recent BIOS or software package that
supports S.M.A.R.T. to enable this feature. The table below shows the S.M.A.R.T. command codes that the drive uses.

Table 12 S.M.A.R.T. commands

Code in features register S.M.A.R.T. command

D0

D2

D3

D4

D5

D6

D8

D9

DA

H

H

H

H

H

H

H

H

H

S.M.A.R.T. Read Data

S.M.A.R.T. Enable/Disable Attribute Autosave

S.M.A.R.T. Save Attribute Values

S.M.A.R.T. Execute Off-line Immediate (runs DST)

S.M.A.R.T. Read Log Sector

S.M.A.R.T. Write Log Sector

S.M.A.R.T. Enable Operations

S.M.A.R.T. Disable Operations

S.M.A.R.T. Return Status

NOTE If an appropriate code is not written to the Features Register, the command is

aborted and 0x

04 (abort) is written to the Error register.

) that eliminates

H

Seagate SkyHawk AI Serial ATA +Rescue Product Manual, Rev. A 49

Seagate Technology LLC

AMERICAS Seagate Technology LLC 47488 Kato Road, Fremont, California 94538, United States, 510-661-1000

Publication Number: 100869027, Rev. A
May 2020
