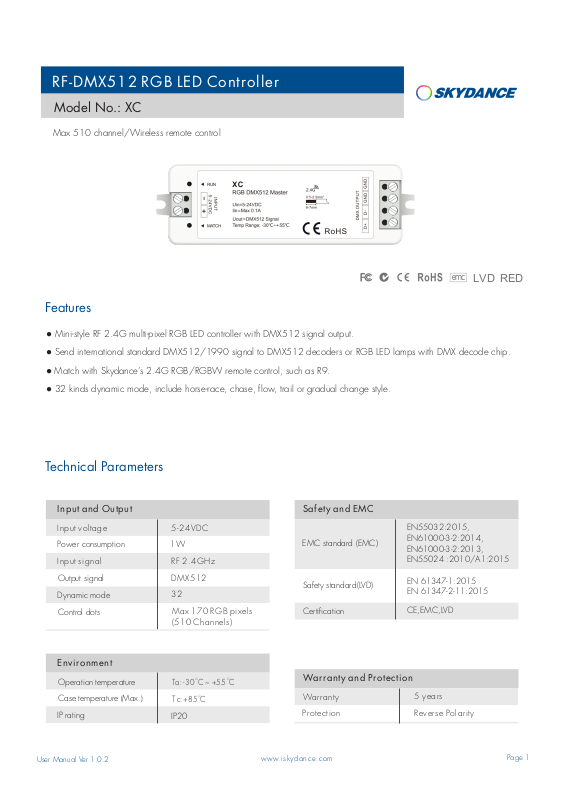

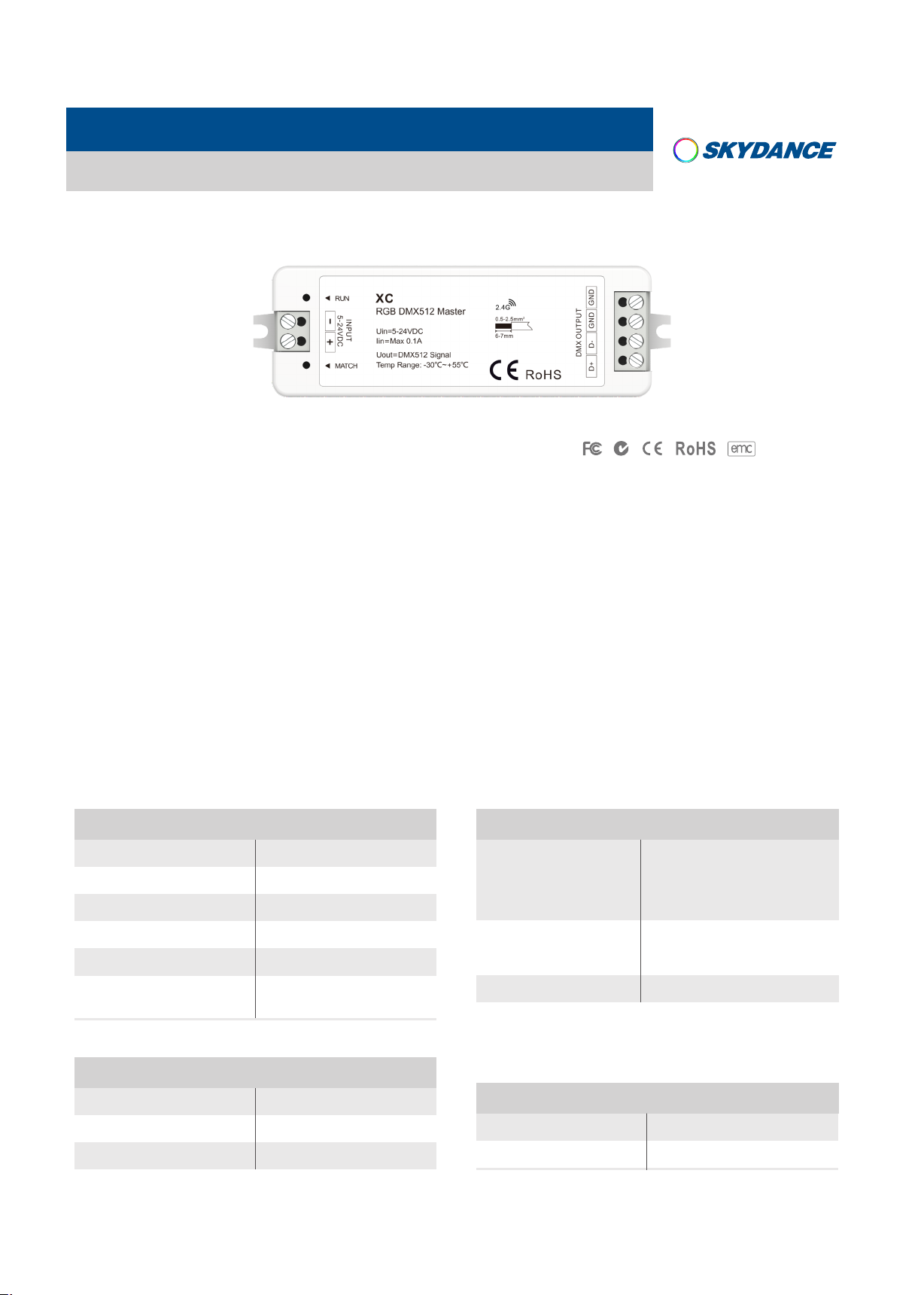

RF-DMX512 RGB LED Controller
Model No.: XC
Max 510 channel/Wireless remote control
LVD
RED
Features
● Mini-style RF 2.4G multi-pixel RGB LED controller with DMX512 signal output.
● Send international standard DMX512/1990 signal to DMX512 decoders or RGB LED lamps with DMX decode chip.
● Match with Skydance’s 2.4G RGB/RGBW remote control, such as R9.
● 32 kinds dynamic mode, include horse-race, chase, flow, trail or gradual change style.
Technical Parameters
Input and Output
Input voltage
Power consumption
Input signal
Output signal
Dynamic mode
Control dots
5-24VDC
1W
RF 2.4GHz
DMX512
32
Max 170 RGB pixels
(510 Channels)
Safety and EMC
EMC standard (EMC)
Safety standard(LVD)
Certification
EN55032:2015,
EN61000-3-2:2014,
EN61000-3-2:2013,
EN55024 :2010/A1:2015
EN 61347-1:2015
EN 61347-2-11:2015
CE,EMC,LVD
Environment
Operation temperature
Case temperature (Max.)
IP rating
User Manual Ver 1.0.2
Ta: -30OC ~ +55OC
O
+85
T c:
IP20
C
Warranty and Protection
Warranty
Protection Reverse Polarity
www.iskydance.com
5 years
Page 1
Page 2

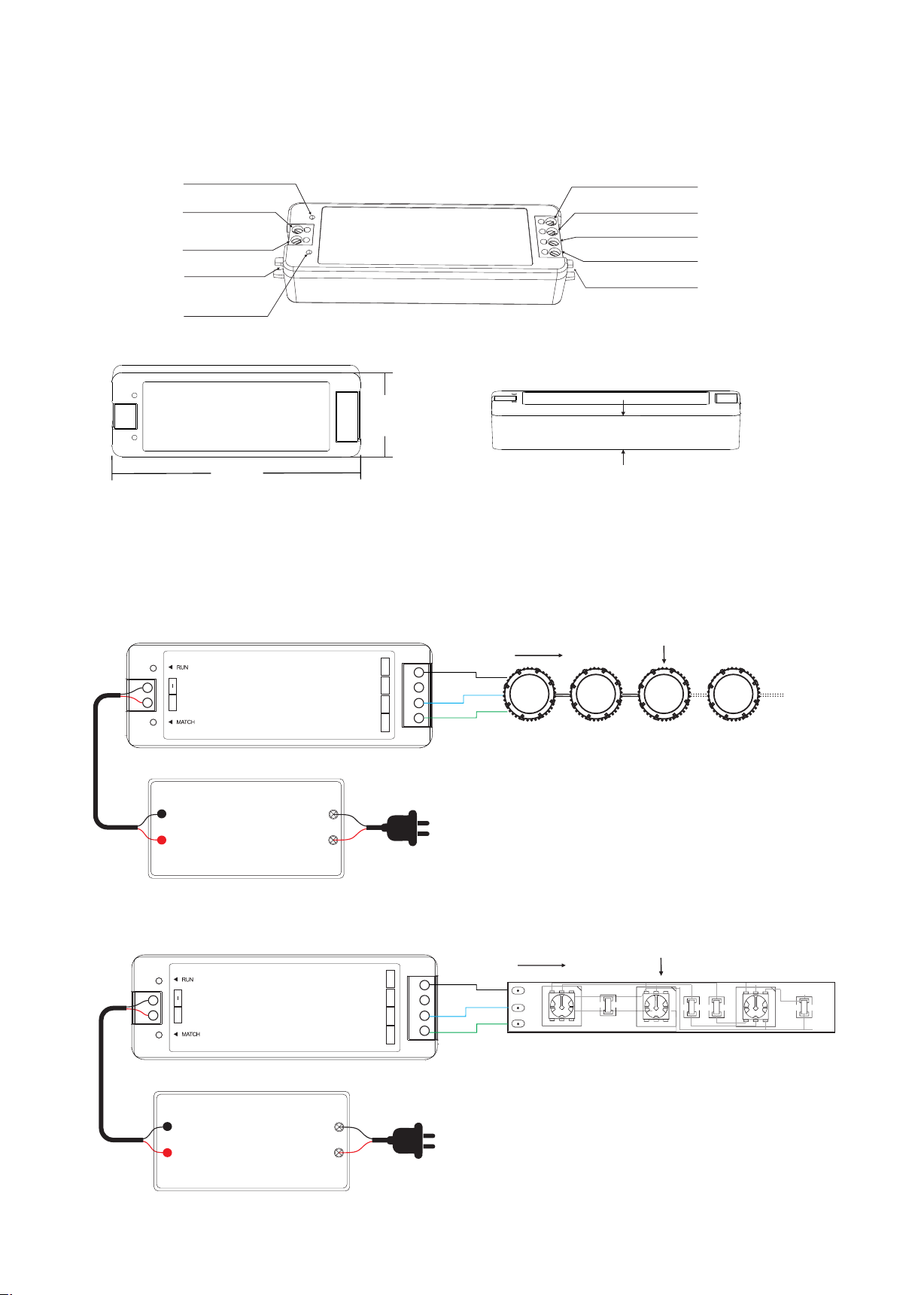

Mechanical Structures and Installations
XC RF-DMX512 RGB LED Controller
LED indicator
Power input -
Power input +
Installation rack
Match key
97mm
Wiring Diagram
● XC connect with DMX spot light
GND
GND
DMX- signal output
DMX+ signal output
Installation rack
33 mm
18 mm
INPU T
5-24 VDC
+
Power Supply
5-24VDC
Constant Voltage
● XC connect with DMX pixel strip
5-24 VDC
INPU T
+
GND
GND
DMX OU TPUT
D+ D-
AC100- 240V
GND
GND
DMX OU TPUT
D+ D-
DMX signal
G
B
A
DMX signal
G
B
A
DMX spot light
DMX digital lig ht strip
Power Supply
5-24VDC
Constant Voltage
User Manual Ver 1.0.2
AC100- 240V
www.iskydance.com
Page 2
Page 3

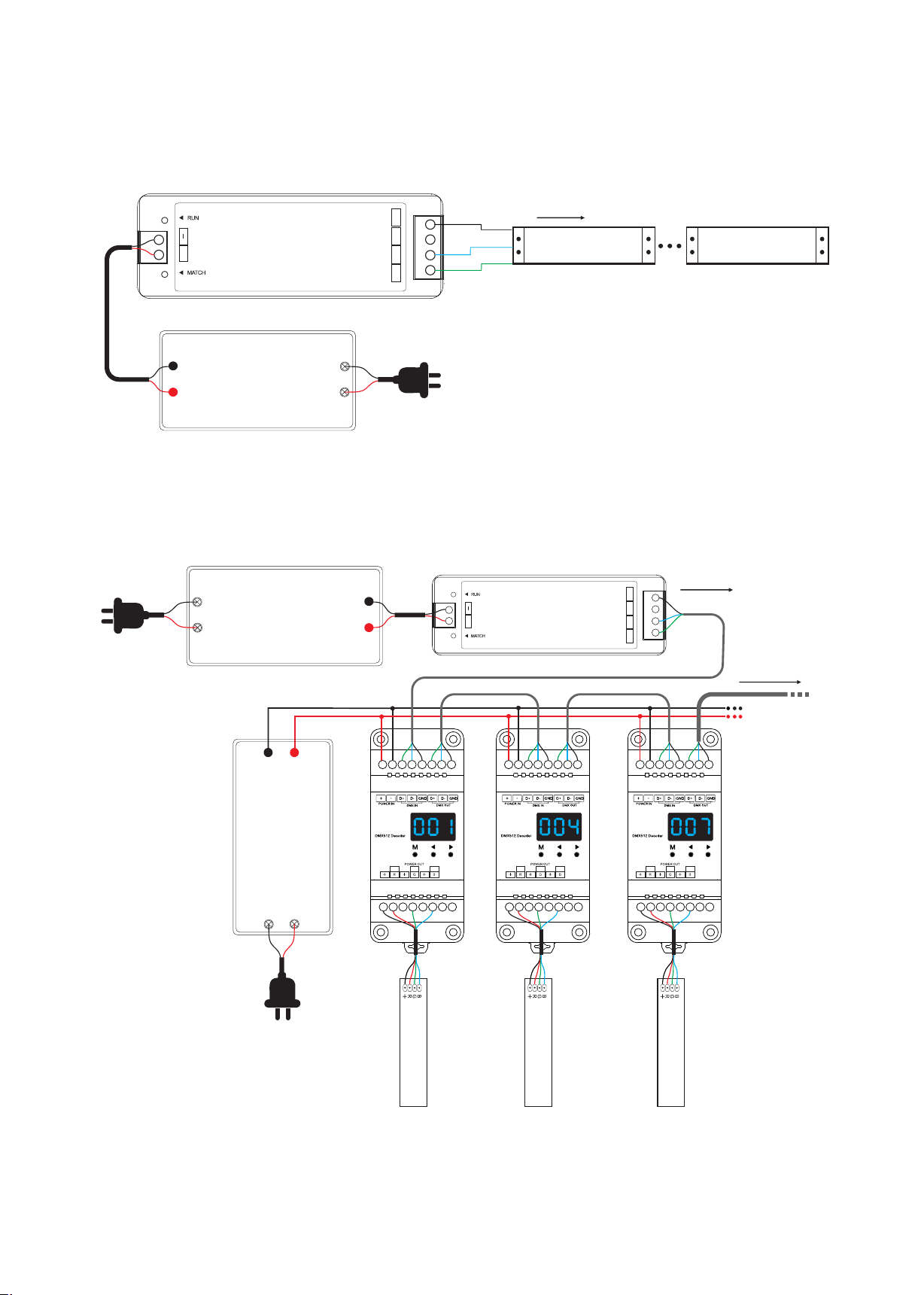

● XC connect with DMX Digital light tube
5-24 VDC
+
INPU T
GND
GND
DMX OU TPUT
D+ D-
DMX signal
G
B
DMX digital l ig ht tube
A
XC RF-DMX512 RGB LED Controller
DMX digital l ig ht tube
Power Supply
AC100- 240V
5-24VDC
Constant Voltage
● XC connect with DMX- PWM four channel decoder
AC100- 240V
Power Supply
5-24VDC
5-24V DC
+
INPUT
Constant Voltage
DMX signal
GND
GND
DMX OUT PUT
D+ D-
DMX signal
D3 D3 D3
Power Supply
12-24VDC
Constant Voltage
RGB LED s trip
RGB LED s trip
AC100- 240V
Note:
1. DMX decoder first address set in sequence as 1,4,7,10,.. .
2. For D3 decoder, CH1/CH2/CH3 channel corresponding to R/G/B channel output.
User Manual Ver 1.0.2
www.iskydance.com
1 2 31 2 31 2 3
RGB LED s trip
Page 3
Page 4
XC RF-DMX512 RGB LED Controller
Match Remote Control
Match:
Short press match key, immediately press on/off key of the remote.
Delete:
Press and hold match key for 5s to delete all match, The light blinks 5 times means all matched remotes were deleted.
Dynamic mode list
No.
P01
P02
P03
P04
P05
P06
P07
P08
P09
P10
P11
Name
Red horse race white ground
Green horse race white ground
Blue horse race white ground
Yellow horse race blue ground
Cyan horse race blue ground
Purple horse race blue ground
7 color multi horse race
7 color horse race close + open
7 color multi horse race close + open
7 color scan close + open
7 color multi-scan close + open
No.
P12
P13
P14
P15
P16
P17
P18
P19
P20
P21
P22
Name
Blue White chase
Green Cyan chase
RGB chase
7 color chase
Blue meteor
Purple meteor
White meteor
7 color meteor
Red float
Green float
Blue float
Malfunctions analysis & troubleshooting
Malfunctions
Causes
No.
P23
P24
P25
P26
P27
P28
P29
P30
P31
P32
Name
Purple float
RGBW float
Red Yellow float
Green Cyan float
Blue Purple float
Blue White float
6 color float
6 color smooth sectionally
7 color jump sectionally
7 color strobe sectionally
Troubleshooting
No light
Wrong color
No response
from the remote
User Manual Ver 1.0.2
1. No power.
2. Wrong connection or insecure.
1. DMX decoder start address error.
2. Wrong connection of R/G/B wires.
1. The battery has no power.
2. Beyond controllable distance.
3. The controller did not match the remote.
www.iskydance.com
1. Check the power.
2. Check the connection.
1. Check the DMX start address.
2. Reconnect R/G/B wires.
1. Replace batter y.
2. Reduce remote distance.
3. Re-match the remote.
