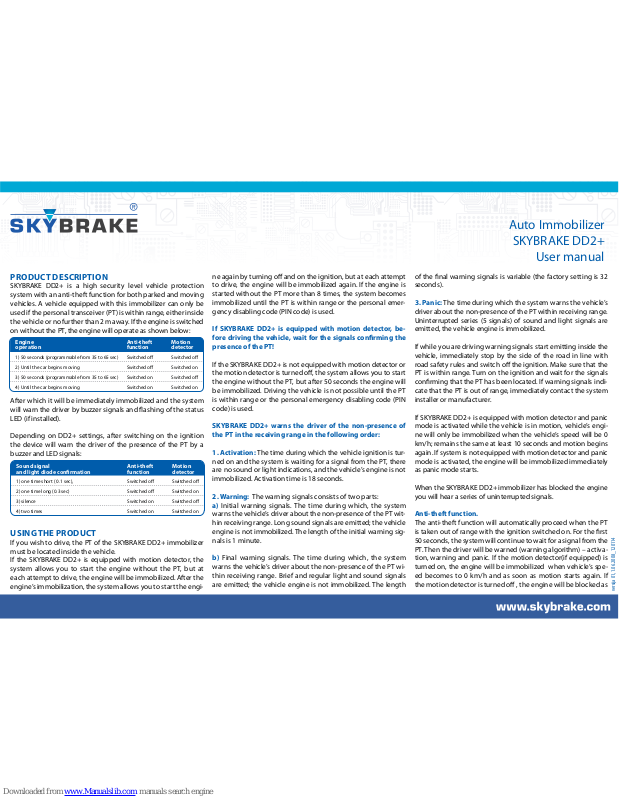

PRODUCT DESCRIPTION
SKYBRAKE DD2+ is a high security level vehicle protection
system with an anti-theft function for both parked and moving
vehicles. A vehicle equipped with this immobilizer can only be
used if the personal transceiver (PT) is within range, either inside
the vehicle or no further than 2 m away. If the engine is switched
on without the PT, the engine will operate as shown below:
After which it will be immediately immobilized and the system
will warn the driver by buzzer signals and ashing of the status
LED (if installed).
Depending on DD2+ settings, after switching on the ignition
the device will warn the driver of the presence of the PT by a
buzzer and LED signals:
USING THE PRODUCT
If you wish to drive, the PT of the SKYBRAKE DD2+ immobilizer
must be located inside the vehicle.
If the SKYBRAKE DD2+ is equipped with motion detector, the
system allows you to start the engine without the PT, but at
each attempt to drive, the engine will be immobilized. After the
engine’s immobilization, the system allows you to start the engi-
ne again by turning o and on the ignition, but at each attempt
to drive, the engine will be immobilized again. If the engine is
started without the PT more than 8 times, the system becomes
immobilized until the PT is within range or the personal emergency disabling code (PIN code) is used.
If SKYBRAKE DD2+ is equipped with motion detector, before driving the vehicle, wait for the signals conrming the
presence of the PT!
If the SKYBRAKE DD2+ is not equipped with motion detector or
the motion detector is turned o, the system allows you to start
the engine without the PT, but after 50 seconds the engine will
be immobilized. Driving the vehicle is not possible until the PT
is within range or the personal emergency disabling code (PIN
code) is used.
SKYBRAKE DD2+ warns the driver of the non-presence of
the PT in the receiving range in the following order:
1. Activation: The time during which the vehicle ignition is tur-
ned on and the system is waiting for a signal from the PT, there
are no sound or light indications, and the vehicle’s engine is not
immobilized. Activation time is 18 seconds.
2. Warning: The warning signals consists of two parts:
a) Initial warning signals. The time during which, the system
warns the vehicle’s driver about the non-presence of the PT within receiving range. Long sound signals are emitted; the vehicle
engine is not immobilized. The length of the initial warning signals is 1 minute.
b) Final warning signals. The time during which, the system
warns the vehicle’s driver about the non-presence of the PT within receiving range. Brief and regular light and sound signals
are emitted; the vehicle engine is not immobilized. The length
of the nal warning signals is variable (the factory setting is 32
seconds).
3. Panic: The time during which the system warns the vehicle’s
driver about the non-presence of the PT within receiving range.
Uninterrupted series (5 signals) of sound and light signals are
emitted, the vehicle engine is immobilized.
If while you are driving warning signals start emitting inside the
vehicle, immediately stop by the side of the road in line with
road safety rules and switch o the ignition. Make sure that the
PT is within range. Turn on the ignition and wait for the signals
conrming that the PT has been located. If warning signals indicate that the PT is out of range, immediately contact the system
installer or manufacturer.
If SKYBRAKE DD2+ is equipped with motion detector and panic
mode is activated while the vehicle is in motion, vehicle’s engine will only be immobilized when the vehicle’s speed will be 0
km/h; remains the same at least 10 seconds and motion begins
again. If system is not equipped with motion detector and panic
mode is activated, the engine will be immobilized immediately
as panic mode starts.
When the SKYBRAKE DD2+ immobilizer has blocked the engine
you will hear a series of uninterrupted signals.
Anti-theft function.
The anti-theft function will automatically proceed when the PT
is taken out of range with the ignition switched on. For the rst
50 seconds, the system will continue to wait for a signal from the
PT. Then the driver will be warned (warning algorithm) – activation, warning and panic. If the motion detector(if equipped) is
turned on, the engine will be immobilized when vehicle’s speed becomes to 0 km/h and as soon as motion starts again. If
the motion detector is turned o , the engine will be blocked as
Auto Immobilizer
SKYBRAKE DD2+
User manual
Engine Anti-theft Motion
operation function detector
1) 50 seconds (programmable from 35 to 65 sec) Switched o Switched o
2) Until the car begins moving Switched o Switched on
3) 50 seconds (programmable from 35 to 65 sec) Switched on Switched o
4) Until the car begins moving Switched on Switched on
Sound signal Anti-theft Motion
and light diode conrmation function detector
1) one time short ( 0.1 sec), Switched o Switched o
2) one time long (0.3 sec) Switched o Switched on
3) silence Switched on Switched o
4) two times Switched on Switched on
Page 2
versija 01, 1.06.2008_120114
soon as panic starts. Driving will not be possible until the PT is
within range of the system or the personal emergency disabling
code (PIN) is used.
The anti-theft function is prohibited within the territory of
the Russian Federation and the EU.
If the ANTI-THEFT FUNCTION is enabled, after you switch on the
ignition, the silence or two sound signals will conrm the presence of the PT within range.
Anti-theft function can be enabled/disabled only by certied installer.
Emergency system disabling
To use the vehicle without a PT you will require a special PIN
code consisting of four digits (for example, 3241). The system
manufacturer will give you a card with the PIN code.
l Turn on the ignition;
l Wait until the series of warning signals emits inside the vehic-
le (panic mode);
l Turn o the ignition and prepare to enter the PIN code;
l Turn on the ignition, when the warning signals series emit
start counting them, when the number of sound signal series
aligns with the rst digit of the PIN code (e.g. 3), turn o the ignition (the rst digit of the PIN code has been entered);
l Turn on the ignition and continue counting the sound signal
series until their number aligns with the second digit of the PIN
code – (e.g. 2), then turn o the ignition;
l Turn on the ignition and repeat the above steps with the third
(4) and fourth (1) digits of the PIN code;
l When turning on the ignition after entering the last PIN code
digit, you will hear a sound signal – the SKYBRAKE DD2+ system
is disabled;
l The next time you turn o and turn on the ignition, the vehic-
le engine will be immobilized and you will have to repeat the
PIN code entering procedure;
l If you make a mistake while entering the PIN code, with the
ignition turned on wait for a series of 12 sound signals, turn o/
turn on the ignition and enter the PIN code again;
l Use of the PT automatically renews the normal operating
mode of SKYBRAKE DD2+.
CHECKING THE PERSONAL TRANSCEIVER PT
AND FUNCTIONING OF THE SYSTEM
The personal transceiver (PT) consists of:
- Top and bottom casing units;
- Element plate;
- 3 V CR2430 battery.
Note the battery polarity and designations on the mounting
plate contact clamps!

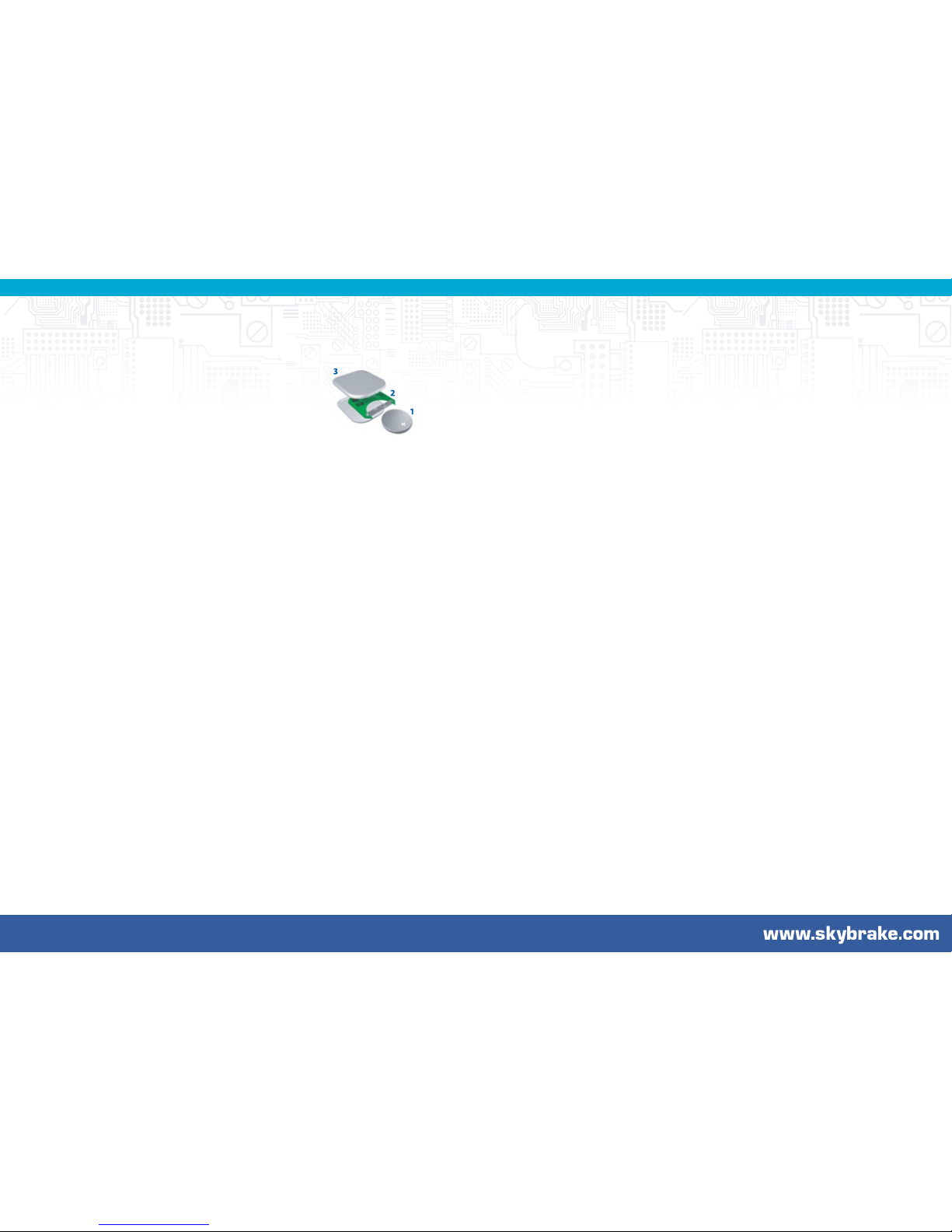

The PT is assembled in the casing in just one non-tensioned position in order not to damage the element plate. See the gure.
The SKYBRAKE DD2+ set includes two personal transceivers (PT)
and CR-2430 batteries; however, the batteries are not placed in
the PT battery contacts.
It should be taken into account that the operating time of
the PT power unit (battery CR2430) is approximately 12
months. There will be a reminder of the need to replace the
battery by a distinctive series of three dual audible signals
which will sound inside the vehicle each time after switching on the ignition.
In case the PT is inside the vehicle but the engine cannot be switched on (it is immobilized), check the condition of the SKYBRAKE DD2+ system by doing the following:
l Switch o the ignition, open the casing of the PT and remove
the battery from the element plate;
l Put the battery back in the contact holder in line with the in-
dicated polarity;
l Observe the operation of the LED on the element side of
the PT few seconds after putting in the battery. If it is ashing
4 times, this means the battery is in good condition. If the LED
doesn’t ash, replace the battery with a new one;
l Put the battery (1) in the contact holders (2) in line with the
indicated polarity;
l Switch on the ignition and wait for the light to ash again; if
it ashes, this means there is normal radio contact between the
system and the PT;
l Place the plate in the casing (3) and close it.
PLEASE NOTE!
If the vehicle is equipped with the engine remote control system,
or it is necessary just to warm up the vehicle when the driver is
not present, you must take into account the following(only with
motion detector):
l The PT must be located out of range, or you must open the ca-
sing and remove the battery from the element plate;
l The vehicle must be parked with the parking brake activated
and the gear stick must be in parking or neutral position.
Now you may start the engine.
Correct use of the SKYBRAKE DD2+ immobilizer will not lead to
the failure of the vehicle’s systems.
Keep the PT in a separate place from your car keys and cell phone.
In case you leave your car for servicing, leave the PT inside the
vehicle, for example in the glove box.
GUARANTEE PERIOD
The guarantee for the SKYBRAKE DD2+ is 24 months from the
date of installation.
The guarantee is valid in the event that the installed system
does not work due to the fault of the manufacturer or the materials used.
The guarantee is not valid in the event that the product has suffered mechanical damage, if it has been liquid cleaned, or if it
has been incorrectly installed or used.
The guarantee does not apply to the CR2430 power source.
