Smart Robot albert
Guide Book
Smart Robot albert
Guide Book
Get to Know albert
Get to Know
Get Ready to Play
Play with Albert
Service
Name and Function of Each Components
Name and Function of Each Component in Peripheral Devices
Get Ready to Play with albert
Register the Robot and Peripheral Devices
albert's Conguration
albert's Hardware
Install the Smart Robot Launcher
Get Ready to Play with albert
Contents
Play with albert
albert's Remote Control
albert's Story
Glutton Alien
Hurly-Burly Kids market
Application Overview
albert Doesn't Like This
Service
Service
Specication
Warranty Card
Precautions
04
Get to Know albert!
Get to know my robot friend, albert.
05
albert’s Configuration
06
Geniekids Touch Book 1 ~ 5
Word List 1
* Charging cable is not included. Please use Micro 5-Pin charger.
albert's Main Body
Smartphone Stand
(Big, medium, small)
Smart pen & Stand
Alien Mukkaebi Card
(56 pcs)
Smart Dice
Hurly-Burly Kids market
Name and Function of Each Components
Eye LED
Mobile phone stand (top)
Mobile phone stand
(bottom)
Battery checkrer
Right distant sensor
Autonomic Mode
The autonomic mode will begin six
seconds after turning on a power
switch of Albert. Control Albert by
blocking the left and right proximity
sensor with your hand.
Size (W x L x H): 11.5 cm x 11.6 cm x 12.8 cm / Weight: 250 g
Proximity sensor receiver
Charging
/Bluetooth indicator lamp
Side LED
Left distant sensor
Card reading sensor
Smart Installation Turn on
Lift and x
with a click Push
and x
Mount stand on albert's front side depending
on your smart phone size.
the power switch
Power goes on when power button
is moved to the right. Power goes
off when power button is moved to
the left.
Accessory xation
Front OID sensor
Power switch
USB charging slot
ON
Connect your smart phone charger (Micro 5pin charger) to
the charging terminal in the rear of robot main body and
charge.
Separate charger when red charging light in the front of robot
main body goes off.
Power wheel
Speaker
Caster
Rear OID sensor
07
How to charge robot
Charge slot
Charging
albert’s Hardware
08
Internal Sensor
Proximity Sensor x 2,
OID Sensor x 2,
Acceleration Sensor
Light Sensor, Temperature Sensor,
Battery Level Sensor
Driving Part
2 Wheels, Speaker, Buzzer,
Full-Color LED for Eye x 2,
Card reading sensor
Side LED x 2
Wireless Auto Connection
Bluetooth
Display Part
Battery Indicator (Red)
Bluetooth Indicator (Blue)
Battery Lasting Time
Battery Lasting Time,
5 hours for Continuous Operation,
7 days for Standby
(Lithium-Polymer Battery)
Cradle Function
Smart Phone Holding
Name and Function
of Each Component in Peripheral Devices
Smart Pen
Smart Pen is one of the peripheral devices of Smart Robot that
reads 65,535 invisible codes printed in books or cards by using
optical ID sensor. Smart Pen and Smart Robot are connected
through Bluetooth communication. Smart Robot sends data of
Smart Pen to the launcher and application.
Recharging Terminal
Recharging Indicator
Botton
Bluetooth Indicator
OID Sensor
Smart Dice
Smart Dice is one of the peripheral devices of Smart Robot that
recognizes the spots on the dice. Smart Dice and Smart Robot are
connected through Bluetooth communication. Smart Robot sends
data of Smart Dice to the launcher and application.
Bluetooth Indicator
Recharging Terminal
Recharging Indicator
09
10
Get Ready to Play with albert!
Get ready to make albert move!
11

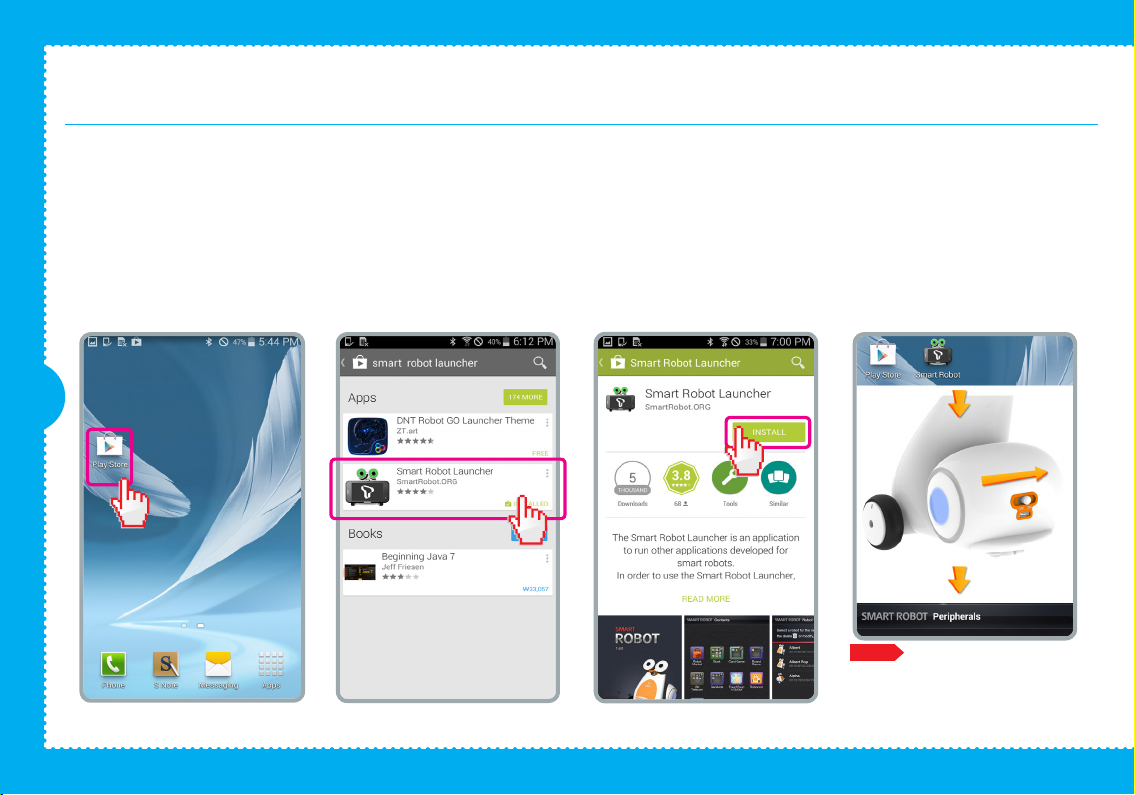

Install the Smart Robot Launcher.
Smart Robot Launcher Smart Robot Launcher
Search
Touch Google Play Store . Search and touch Smart Robot
Launcher.
12
Smart Robot Launcher
Download
Touch Installation and down-
load Launcher, and app will be
installed on screen.
Smart Robot Launcher
Start
Start Smart Robot Launcher and
turn power on, and Robot will
be recognized automatically.
TIP
Do not skip ‘Search Robot that will be
registered ‘ page.
End Launcher and Robot and make reconnection. Check if smart phone Bluetooth is
turned on.

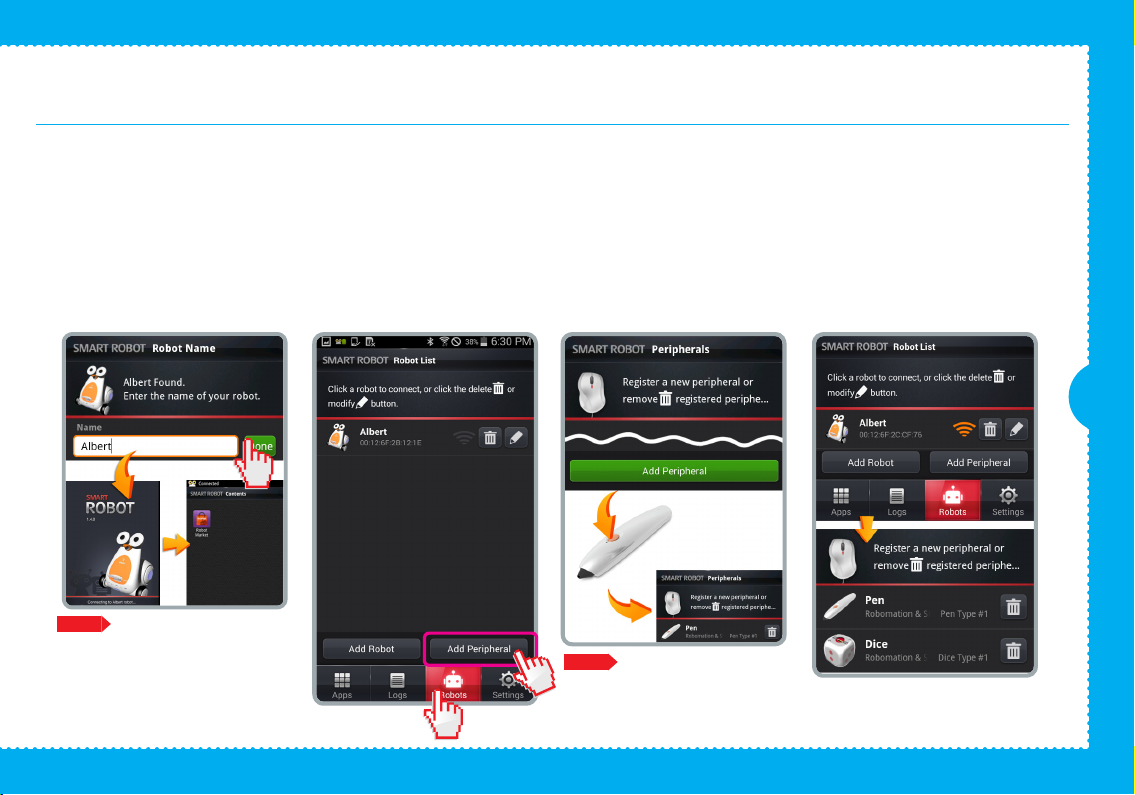

Register the Robot and Peripheral Devices.
Robot Connection Peripheral Device
Registration
Touch End after inputting the
name, and screen will be moved
to the wallpaper.
TIP
Robot makes no sound or Robot makes no
or slow movement after connection.
Disconnect Robot, turn off both Smart Phone
and Robot, and then make reconnection.
Touch Robots tab on bottom
of screen and register Smart
Dice or Smart Pen in Peripheral Device menu.
1
Smart Pen Registration Smart Dice Registration
Touch Registration button on
bottom of screen and push
Smart Pen button.
TIP
2
If red light shows up when pushing Smart
Pen button, it means that battery level is low.
Therefore, charge it before use.
Touch Registration button on bottom
of screen. It will be automatically
registered when Smart Dice is thrown
10 cm or higher in the air.
13
Get Ready to Play with albert

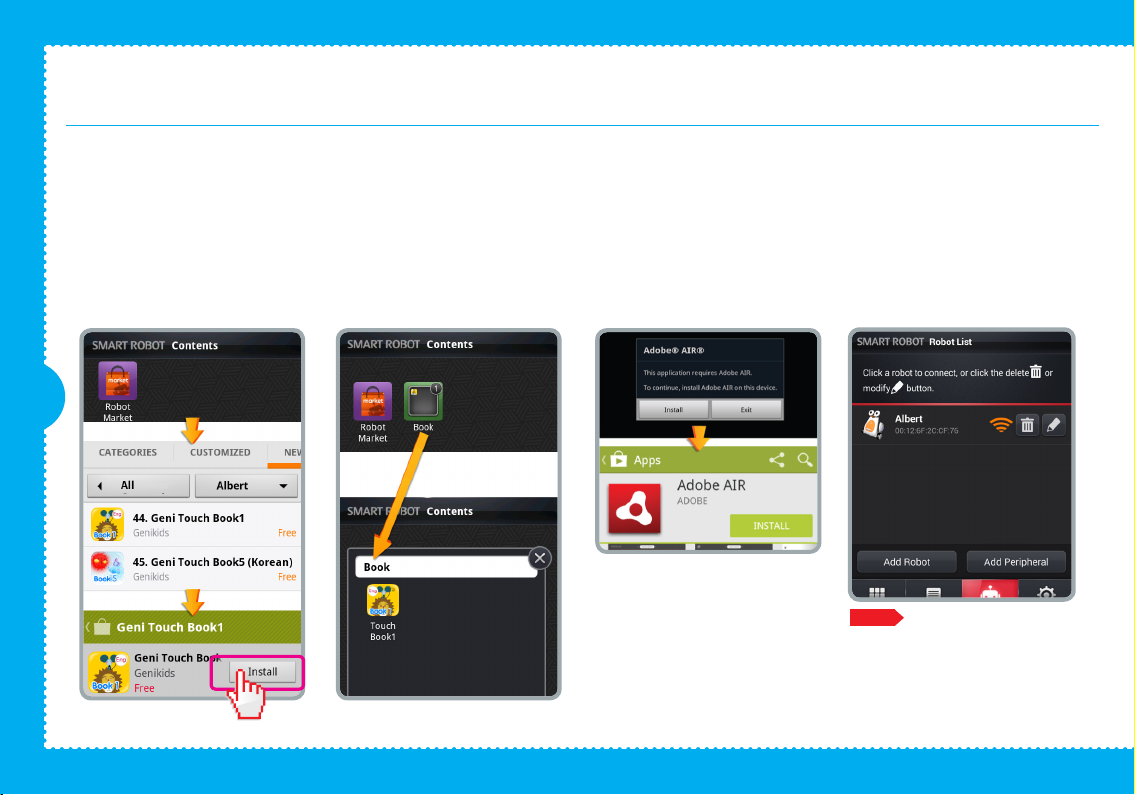

App Download
Touch ‘Smart Robot Market’ on
the wallpaper, and download and
install the app in the market.
14
Contents Use
Touch the app in the folder
created on the wallpaper, and
use contents.
Adobe AIR Installation
Search and install “Adobe AIR”
in Google Play Store.
1. Start albert app.
2. Installation page shows up automatically.
3. Start installation, and screen will move to
Google Play Store.
4. Install Adobe AIR
5. Push Back button on smart phone and return
to Smart Robot Launcher.
6. Now use the app.
Robot Deletion &
Reconnection
Touch Robot tab on bottom and
touch Recycle Bin, and Robot will
be deleted.
TIP
If Robot does not work normally,
check the battery or delete Robot
and reconnect it.
Peripherals Deletion
& Reconnection
Touch Robots tab on bottom and go
to the Peripheral device registration
menu. Touch the Recycle Bin button on the top. This will delete the
peripheral device.
Get Ready to Play with albert
Recharging
1. Connect smart phone charger with albert or peripheral device.
2. When charging the battery of albert or peripheral device, battery lamp is turned red, and
When charging is completed, the light is turned off.
albert Recharging Time
2.5 hours(for full charge)
Battery lasts 5 hours for continuous operation /
* Recharging time may differ according to operation time.
Smart Pen Recharging Time
1 hour for full charge
Battery lasts 5 hours for continuous operation / 2 months for
standby
Smart Dice Recharging Time
30 minutes for full charge
Problem Solution Tip!
1. Robot makes no or slow movement.
2. Robot make no or slow recognition of Smart Dice.
3. Smart Pen makes no recognition of books.
Check the battery of Robot or peripheral device and recharge it or make reconnection.
4. What if having a phone call when using Robot?
Set ‘Do Not Call’ in Setting menu in Launcher.
5. When Robot is connected normally, it moves with sound of
‘Hello! My name is albert of SK Telecom. I’m happy to meet you, master.’
If Robot does not make this sound, refer ‘Robot Deletion & Reconnection’ in User Manual.
2 weeks for standby / 1000-times dice throw after full charge
15
16
Play with albert!
You’re now ready to play with albert! Have fun
with albert, and get to know more about him.
17
albert’s Remote Control!
Use your smartphone
to make albert move, sing, and talk!
18

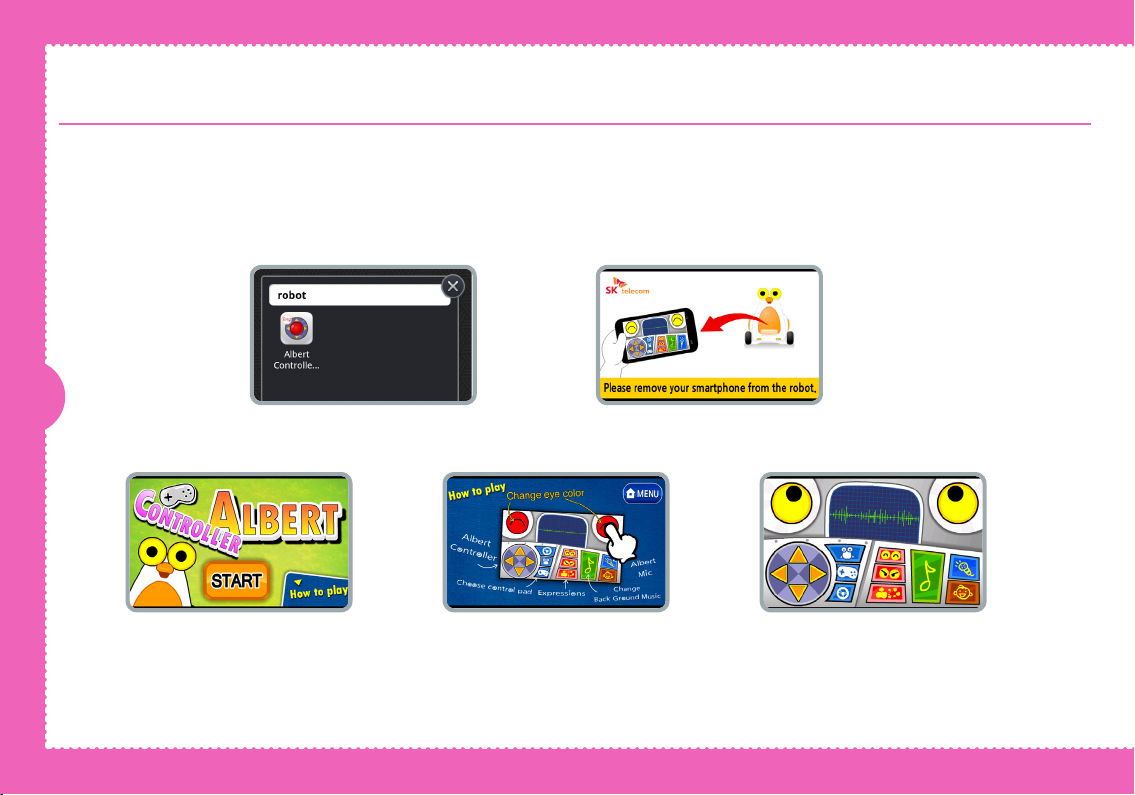

Start albert Remote Controller in
the launcher.
Take off your smart phone from albert.
Select Game Method on the main
screen and check various functions
of albert Remote Controller.
Check various functions of albert
Remote Controller such as control,
emotion, eye, color, music and microphone.
Select Start in the menu and start
albert Remote Controller~

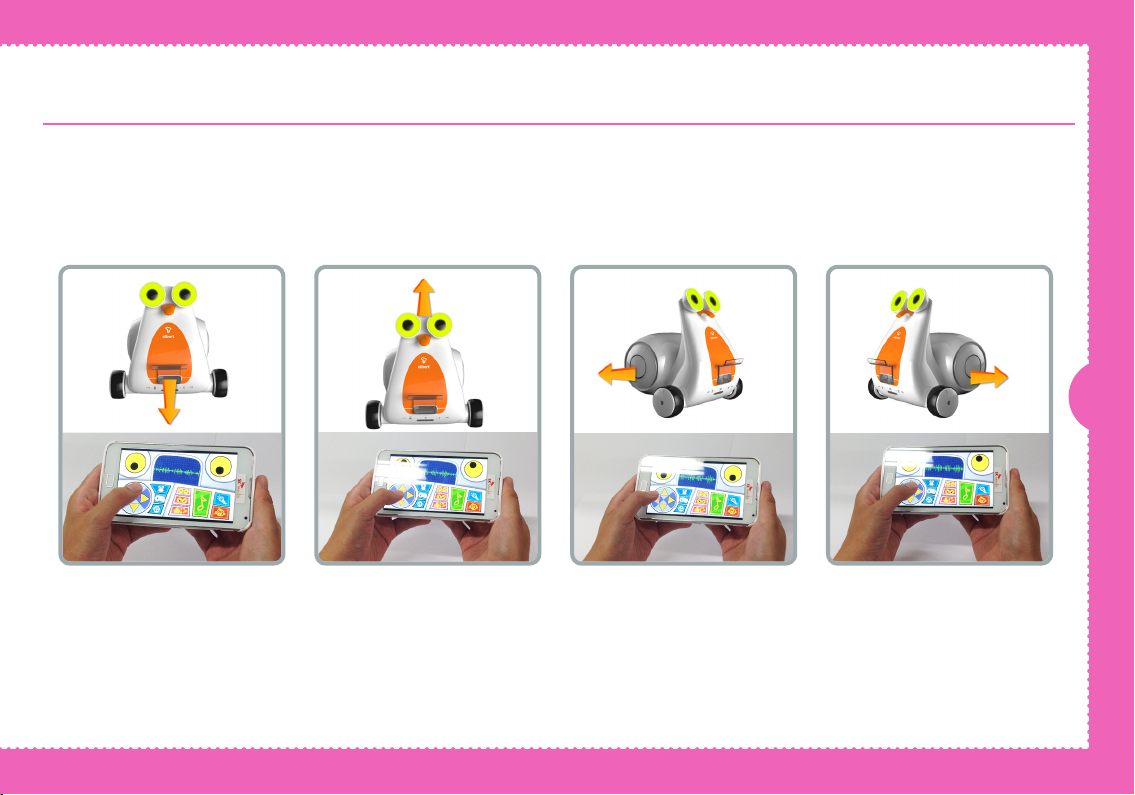

albert’s Remote Control!
Use your smartphone
to make albert move, sing, and talk!
Move albert forward. Move albert left.Move albert backward. Move albert right.
19

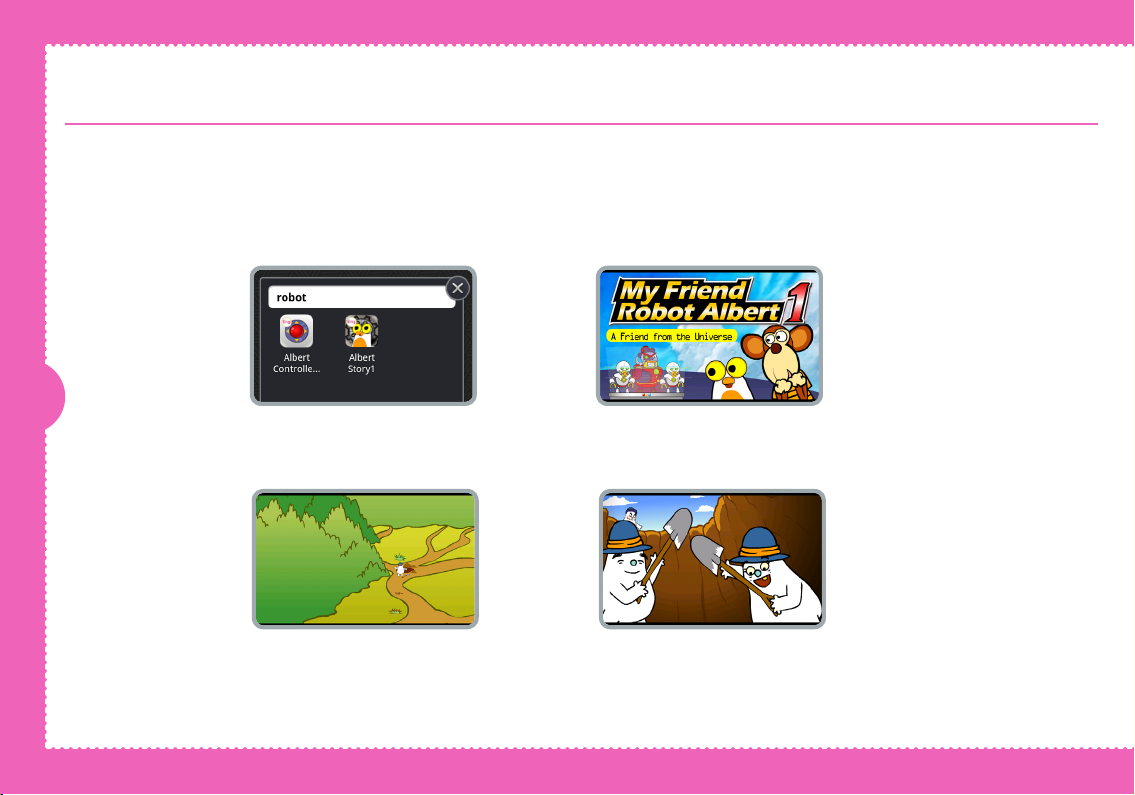

albert’s Story
Do you want to know why my friend albert came to Earth?
Enjoy various events and listen to albert’s story.
20
albert Story is composed of 5 stories of My Friend Robot albert. You can install your smart
phone on albert and check various events.
My Friend Robot albert 1 shows the reason and the background of albert’s arrival at Earth.
