Skope ActiveCore TME series, ActiveCore BME series, ActiveCore SKB series, ActiveCore SKT series User Manual

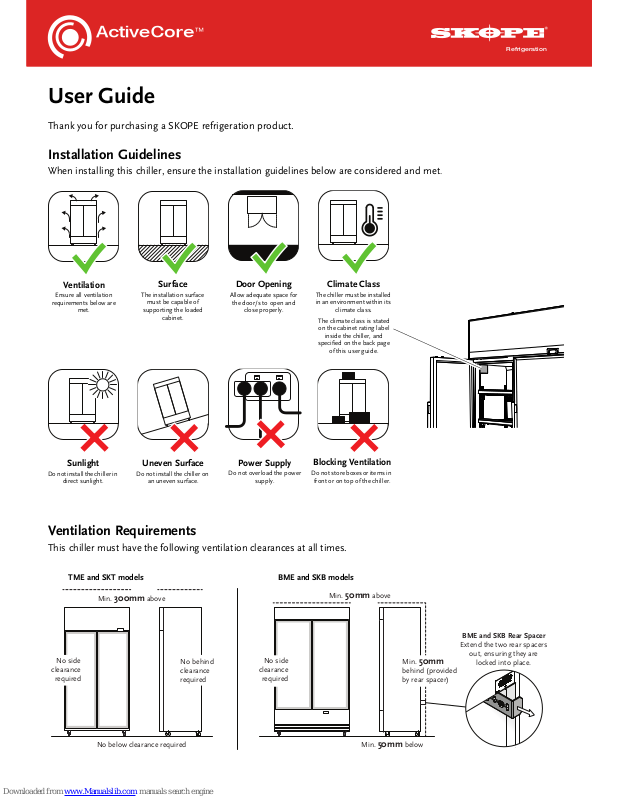

User Guide

Thank you for purchasing a SKOPE refrigeration product.

Installation Guidelines

When installing this chiller, ensure the installation guidelines below are considered and met

.

Ventilation Requirements

This chiller must have the following ventilation clearances at all times.

Ventilation

Ensure all ventilation

requirements below are

met.

Door Opening

Allow adequate space for

the door/s to open and

close properly.

Sunlight

Do not install the chiller in

direct sunlight.

Uneven Surface

Do not install the chiller on

an uneven surface.

Surface

The installation surface

must be capable of

supporting the loaded

cabinet.

Power Supply

Do not overload the power

supply.

Blocking Ventilation

Do not store boxes or items in

front or on top of the chiller.

Climate Class

The chiller must be installed
in an environment within its

climate class.

The climate class is stated
on the cabinet rating label

inside the chiller, and

specified on the back page

of this user guide.

TME and SKT models

BME and SKB models

No below clearance required

Min. 300mm above

No side

clearance

required

No behind
clearance
required

Min. 50mm above

Min.

50mm below

No side

clearance

required

Min. 50mm
behind (provided
by rear spacer)

BME and SKB Rear Spacer

Extend the two rear spacers

out, ensuring they are

locked into place.

RefrigerationRefrigeration

Door Handles

The door handles may be packed inside the chiller.

Shelves

The wire shelves sit on shelf clips. The shelf clips twist onto the shelf support strips in the cabinet interior. The shelves
may be positioned at different heights to suit various product. Use the numbers on the shelf support strips to assist with
setting the shelf clips at the same height.

BME and SKB chillers are fitted with solid bottom shelves, which must remain in place at all times.

Loading product

Let the chiller run for 30 minutes before loading it with product for the first time. When loading the shelves with
product

:

To fit door handle To remove door handle

1. A metal spring is fitted inside the
handle mounts. Ensure the springs
point up.

1. Peel back the door gasket from
behind the handle mounts on the
inside of the door frame.

2. Unscrew the handle mounts through
the holes on the inside of the door
frame, and remove the handle.
Only unscrew the top and bottom
screws. Do NOT unscrew the middle
screw.

2. Locate BOTH handle mounts

simultaneously onto both door
brackets. Then push the handle
down onto the brackets until the
handle locks in place.

3. Remove the bracket/s from the han­dle mount by pressing the bracket in
and down until it unclips from the
handle mount.

3. If the handle doesn’t lock into place,
check that the spring clips are
pointing up and try again. If only one
end of the handle locks into place,
remove the door handle and refit
with both handle mounts located
onto the brackets.

4. Fit and screw the bracket/s back
onto the door. Ensure the catches
are pointing up as pictured.

5. Clip the gasket back into place on
the inside of the door frame. If the
gasket is out of shape, a hair drier
can be used to heat and reshape it.

To fit a shelf clip:

Twist anticlockwise onto the shelf support strip.

To remove a shelf clip:

Pull the centre tab up and twist off clockwise.

To adjust the shelf clip height:

Pull the centre tab up and slide up or down as
required. Once in position, ensure it clicks into
place.

Handle

Bracket

Front of

door

Bracket

Bracket

Handle mount

Handle

Bracket

Catch

Catch

Spring clip
(pointing up)

MAX

20kg

per shelf

Max. Loading

Do not overload the

shelves

Shelf Flexing

Remove product if the

shelf is flexing

Shelf Overhang

Do not let product

overhang the shelves

Door Lock/s

The chiller may be fitted with bracket locks or key locks, located above or below each door. Bracket locks require a lock
(padlock or similar) through the brackets to lock the door. Key locks can be locked with the supplied key.

Electronic Controller

The electronic controller regulates the chiller’s temperature, signals alarms and captures operational
information. The chiller temperature is factory set for storage of perishable product (all shelves maintain
temperatures below 5°C).

To customise the chiller settings to your requirements and view historical data, download the
SKOPE-connect app from the Google Play Store or Apple App Store, and connect via Bluetooth

®

.

Lights

The chiller lights switch on and off automatically depending on chiller usage.

Cleaning

Ensure the chiller is unplugged from the power supply before cleaning.
Wipe the inside and outside of the cabinet with a damp cloth, taking care to keep moisture away from electrical parts.
The condenser coil must be kept clean. SKOPE strongly urges monthly cleaning of the condenser coil and air filter (optional

air filter available on BME only). Do

NOT

use hard or sharp tools to clean the coil as these may cause damage.

TME and SKT - Clean Coil BME and SKB - Clean Filter

1. Unplug the chiller from the power
supply.

1. Rotate the grille at the bottom of the
front kick panel out to gain access to
the filter.

2. Remove the front panel from the top
of the cabinet. Lit sign panels also
need to be unplugged.

2. To remove the filter, use the finger
loops to pull the filter up and detach
from the front kick panel.

3. Brush the condenser coil with a soft
brush to remove any dust and fluff.

3. Clean the filter with a vacuum
cleaner, wash with cold water and
shake excess water off before refit­ting. Do not apply hot water, blow
dry or place in dishwasher. If neces­sary, discard and refit new air filter.

4. To refit the filter, insert it up into the
front kick panel vent with the finger
loops facing out. Then clip the into
the slots on the bottom face of the
front kick panel vent.

4. Refit the sign assembly and
reconnect to the power supply.

Important

When refitting, ensure the tabs on
the back of the sign are located in
the notches on top of the cabinet,
and that the sign is pushed fully in
and secure.

BME and SKB - Clean Coil

1. Unplug the chiller from the power
supply.

2. Remove the front kick panel from the
front of the cabinet.

3. Brush the condenser coil with a soft
brush to remove any dust and fluff.

4. Refit the front panel and reconnect
to the power supply.

Grille

Grille

Finger loop

Coil

Tab and notch

Coil

RefrigerationRefrigeration

Safety

Always observe safety precautions when using any electrical appliance. Read these instructions carefully and retain them for future reference.

• Do not use this appliance for other than its intended use.

• Do not probe any opening.

• Only use this appliance with the voltage specified on the cabinet rating label.

• Ensure the appliance has adequate ventilation as this is essential to economical, high performance.

• Be careful not to touch moving parts and hot surfaces.

• For your own safety and that of others, ensure that all electrical work is done by authorised personnel.

• If the power supply flexible cord becomes damaged, it must be replaced by an authorised service agent or similarly qualified person in order to avoid a
hazard.

• Ensure all necessary safety precautions are observed during installation or removal of the refrigeration unit.

• The appliance is not designed to be stable while in motion. Use extreme caution when moving or transporting it.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• Please contact SKOPE for advice regarding disposal of this appliance.

SKOPE Warranty Protection

Register now for peace of mind

It’s quick and simple. Take a few minutes to register your SKOPE product and enjoy more efficient support plus other
warranty benefits. When registering, make sure you have your cabinet serial number at hand.

To register online:

Visit our website at www.skope.com/warrantyprotection then complete and submit the online registration
form.

or freephone:

1800 121 535 (Australia)
0800 947 5673 (New Zealand)

Service & Support

We know you will get years of satisfaction from your new SKOPE product when you follow a few simple preventative
maintenance guidelines.

Helpful information is available on our website
www.skope.com/serviceandsupport

WARNING

• Ensure the appliance is disconnected from the power supply before performing any cleaning or maintenance.

• Do not cover the grilles or block the entry or exhaust of airflow by placing objects up against the refrigeration unit.

• Should defrosting be necessary, turn off the refrigeration system and allow the ice to melt by air circulation. Do not use mechanical methods

to remove ice, as this may damage the refrigeration circuit.

• Do not use any electrical devices or appliances inside the food storage compartment.

This chiller is designed to operate within a specific climatic class environment.
See the cabinet rating label inside the cooler for climate class number.

The cabinet rating label includes relevant hazard symbols that may be
associated with the cooler. Refer to the information below for symbol
description.

Climate class Ambient temperature Relative humidity WARNING

The refrigeration system contains flammable R290 refrigerant.
Do not tamper with it.

The refrigeration system must only be serviced by qualified
personnel.

3 25°C 60%

4 30°C 55%

5 40°C 40%

7 (tropical) 35°C 75%

PRN80133 Rev 1.2 Oct. 2018
