Skoda Octavia COMBI 2007, Octavia 2007, Octavia COMBI 4x4 2007, Octavia SCOUT 2007 Owner's Manual
SIMPLY CLEVER
ŠkodaOctavia
OWNER´ S MANUAL
Introduction
You have opted for a Škoda - our sincere thanks for your confidence in us.
Your new Škoda offers you a vehicle featuring the most modern engineering and a wide range of equipment which
you will undoubtedly wish to use to the full during your daily motoring. That is why, we recommend that you read
this Owner's Manual attentively to enable you to become familiar with your car and all that it offers as quickly as
possible.
Please do not hesitate to contact your specialist garage or importer should you have any further questions or any
problems regarding your vehicle which may arise. He will be ready at any time to receive your questions, suggestions and criticisms.
Any national legal provisions which vary from the information contained in this Owner's Manual take precedence
over the information contained herein.
We wish you much pleasure with your Škoda and pleasant motoring at all times.
Yo ur Škoda Auto
NKO A5 20 MR08.book Page 1 Wednesday, April 11, 2007 2:54 PM
Introduction2
On-board literature
The on-board literature for your vehicle consists of this “Owner's
Manual” as well as the brochures “Quick Reference Guide”, “Service
Schedule” and “Help on the road”. There can also be a variety of other
additional operating manuals and instructions on-board (e.g. an operating manual for the radio) depending on the vehicle model and equipment.
If one of the publications listed above is missing, please contact a Škoda
Service Partner immediately, where one will be glad to assist you in such
matters.
One should note that the details given in the vehicle's papers always
take precedence over those in the Owner's Manual.
Owner's Manual
This Owner's Manual describes the current scope of equipment.
Certain items of equipment listed are only installed later on and only
envisaged for particular markets. The illustrations can differ in minor
details from your vehicle; they are only intended for general information.
In addition to information regarding all the controls and equipment, the
Owner's Manual also contains important information regarding care and
operation for your safety and also to retain the value of your vehicle. To
provide you with valuable tips and aids. You can learn how how you can
operate your vehicle safely, economically and in an environmentally
conscious way.
For safety reasons, please also pay attention to the information on
accessories, modifications and replacement of parts ⇒ page 229.
The other chapters of the Owner's Manual are also important, however,
for proper treatment of your car - in addition to regular care and maintenance - helps to retain its value and in many cases is also one of the
conditions for possible warranty claims.
The Brief instruction
includes an overview of the most important controls of your vehicle.
The Service schedule
contains:
• Vehicle data,
• Service intervals,
• Overview of the service work,
• Service proof,
• Confirmation of mobility warranty,
• important information on the warranty.
The confirmations of the carried out service work are one of the conditions for possible warranty claims.
Please always present the Service schedule when you take your car to a
Škoda Service Partner.
If the Service schedule is missing or worn, please contact your Škoda
Service Partner, where your car is serviced regularly. You will receive a
duplicate, in which the previously carried out service work are confirmed.
Help on the road
contains the addresses and telephone numbers of Škoda Importers.
NKO A5 20 MR08.book Page 2 Wednesday, April 11, 2007 2:54 PM
Contents 3
Contents
Layout of this Owner's Manual
(explanations)
. . . . . . . . . . . . . . . . . . . . . . . . . .
Using the system . . . . . . . . . . . . . . . . . . . . . .
Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instruments and Indicator/Warning Lights . . .

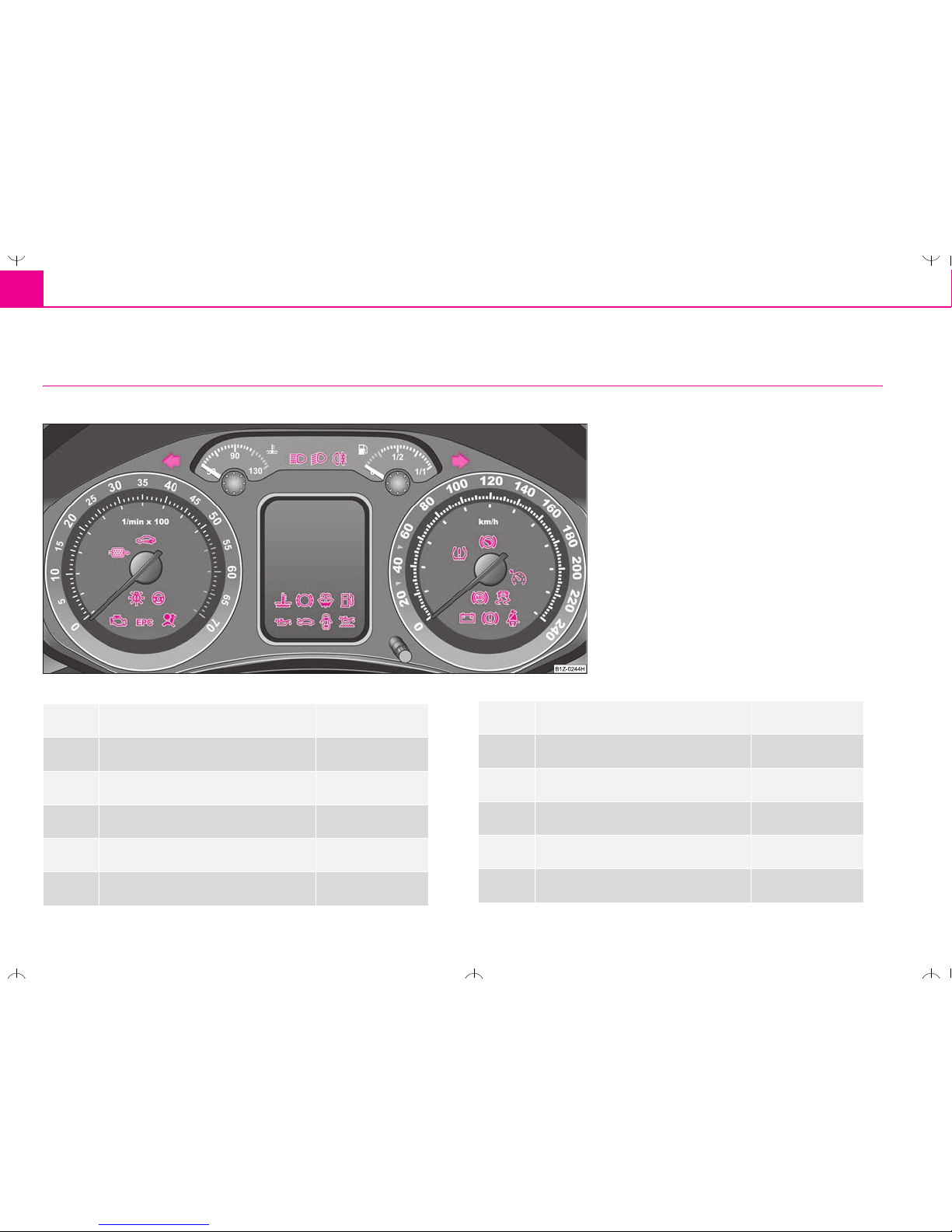

General view of the instrument cluster . . . . . . . . .
Engine revolutions counter . . . . . . . . . . . . . . . . . . . .
Coolant temperature gauge . . . . . . . . . . . . . . . . . . .
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Counter for distance driven . . . . . . . . . . . . . . . . . . .
Service Interval Display . . . . . . . . . . . . . . . . . . . . . . .
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Multi-functional indicator (onboard computer)*
Information display* . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Navigation system* . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto Check Control* . . . . . . . . . . . . . . . . . . . . . . . . . .
Set-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Unlocking and locking . . . . . . . . . . . . . . . . . . . . . . . .
Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Key with light* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing the battery of the radio remote control
Electronic immobiliser . . . . . . . . . . . . . . . . . . . . . . . .
Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Central locking system . . . . . . . . . . . . . . . . . . . . . . . .
Remote control* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Synchonisation of the remote control . . . . . . . . . .
Anti-theft alarm system* . . . . . . . . . . . . . . . . . . . . . .
Power windows* . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electric sliding/tilting roof* . . . . . . . . . . . . . . . . . . . .
Lights and Visibility . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Visibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wiper and wash system . . . . . . . . . . . .
Rear-view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seats and Stowage . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjusting front seats electrically* . . . . . . . . . . . . . .
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Middle rear head restraint* . . . . . . . . . . . . . . . . . . . .
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
luggage compartment . . . . . . . . . . . . . . . . . . . . . . . .
Net partition (Estate)* . . . . . . . . . . . . . . . . . . . . . . . .
The roof rack* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Note holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cigarette lighter*, power sockets . . . . . . . . . . . . . . .
Storage compartments . . . . . . . . . . . . . . . . . . . . . . . .
Heating and air conditioning system . . . . . . . . .
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Climatic* (semi-automatic air conditioning
system) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Climatronic* (automatic air conditioning) . . . . . .
Auxiliary heating system (auxiliary heating and
ventilation)* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting-off and Driving . . . . . . . . . . . . . . . . . . . . . .
Setting steering wheel position . . . . . . . . . . . . . . . .
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switching off the engine . . . . . . . . . . . . . . . . . . . . . .
Shifting (manual gearbox) . . . . . . . . . . . . . . . . . . . . .
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear parking aid* . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front and rear parking aid* . . . . . . . . . . . . . . . . . . . .
Cruise control system (CCS)* . . . . . . . . . . . . . . . . . .
Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . .
6-speed automatic gearbox* . . . . . . . . . . . . . . . . . .
Automatic gearbox DSG . . . . . . . . . . . . . . . . . . . . . .
Automatic gearbox DSG* . . . . . . . . . . . . . . . . . . . . .
Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Multifunction steering wheel* . . . . . . . . . . . . . . . . .
Universal telephone preinstallation with voice
control* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Phone voice phonebook* . . . . . . . . . . . . . . . . . . . . .
Bluetooth™* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mobile phones and two-way radio systems . . . . .
Input AUX-IN* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CD changer* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Passive Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Basic information . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Correct seated position . . . . . . . . . . . . . . . . . . . . . . .
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Why seat belts? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The physical principle of a frontal collision . . . . .
6
7
8
8
10
10
10
11
11
11
12
12
14
14
18
20
20
21
22
24
34
34
35
35
36
36
37
41
43
43
45
48
51
51
57
59
61
64
67
67
68
71
72
73
75
76
82
84
86
87
87
88
89
100
100
103
108
113
116
116
117
118
119
119
120
121
122
123
126
126
132
132
138
138
140
145
148
149
150
150
153
153
153
155
158
158
159
NKO A5 20 MR08.book Page 3 Wednesday, April 11, 2007 2:54 PM
Contents4
Important safety information regarding the use of seat
belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How are seat belts correctly fastened? . . . . . . . . . .
Belt tensioners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Description of the airbag system . . . . . . . . . . . . . . .
Front airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side airbags* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Head airbags* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deactivating an airbag . . . . . . . . . . . . . . . . . . . . . . . .
Transporting children safely . . . . . . . . . . . . . . . . . .
What you should know about transporting children!
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Attaching a child seat using the “ISOFIX” system .
Attaching child seat using the “Top Tether” system
Driving Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Intelligent Technology . . . . . . . . . . . . . . . . . . . . . . . .
Electronic stability programme (ESP)* . . . . . . . . . .
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake booster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antilock brake system (ABS) . . . . . . . . . . . . . . . . . . .
Brake Assist* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Uphill-Start off-Assist* . . . . . . . . . . . . . . . . . . . . . . . .
Electromechanical power steering . . . . . . . . . . . . .
Tyre inflation pressure-control system* . . . . . . . . .
Diesel particle filter* (diesel engine) . . . . . . . . . . . .
Driving and the Environment . . . . . . . . . . . . . . . . .
The first 1 500 kilometres and then afterwards . .
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Driving in an economical and environmentally
conscious manner . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Environmental compatibility . . . . . . . . . . . . . . . . . . .
Motoring abroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Avoiding damage to your vehicle . . . . . . . . . . . . . .
Towing a trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Towing a trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Detachable towing device* . . . . . . . . . . . . . . . . . . . .
General Maintenance . . . . . . . . . . . . . . .
Taking care of your vehicle and cleaning the
vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Care of the exterior of vehicle . . . . . . . . . . . . . . . . . .
Care of the interior of vehicle . . . . . . . . . . . . . . . . . .
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inspecting and Replenishing . . . . . . . . . . . . . . . . . .
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . .
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cooling system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield washer system . . . . . . . . . . . . . . . . . . . .
Wheels and Tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Accessories, changes and replacement of parts
Accessories and replacement parts . . . . . . . . . . . . .
Technical changes . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Breakdown assistance . . . . . . . . . . . . . .
Breakdown assistance . . . . . . . . . . . . . . . . . . . . . . . .
First-aid box* and Warning triangle* (Octavia) . .
First-aid box* and warning triangle* (Estate car) .
Fire extinguisher* . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle tool kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tyre repair kit* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Spare wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tow-starting and towing vehicle . . . . . . . . . . . . . . . .
Fuses and light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . .
Electric fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General comments . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Used abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . .
Performances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Identification details . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel consumption according to the regulations
(99/100/EU) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.4 ltr./59 kW - EU4 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.6 l/75 kW - EU 4, EU 2 . . . . . . . . . . . . . . . . . . . . . . .
1.6 l/85 kW FSI - EU 4 . . . . . . . . . . . . . . . . . . . . . . . . . .
1.8 l/118 kW TFSI - EU 4 . . . . . . . . . . . . . . . . . . . . . . .
2.0 l/110 kW FSI - EU 4, EU 2 . . . . . . . . . . . . . . . . . . .
2.0 ltr./147 kW - EU 4 . . . . . . . . . . . . . . . . . . . . . . . . . .
1.9 l/77 kW TDI PD - EU 4, EU 3 . . . . . . . . . . . . . . . .
2.0 l/103 kW TDI PD - EU 4 . . . . . . . . . . . . . . . . . . . . .
2.0 l/100 kW TDI PD - EU 4 . . . . . . . . . . . . . . . . . . . . .
2.0 l/125 kW TDI PD DPF - EU 4 . . . . . . . . . . . . . . . .
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
159
160
162
163
163
165
167
169
171
173
173
176
179
180
181
181
181
184
185
185
185
186
186
187
188
189
189
190
190
194
194
195
196
196
198
199
199
199
199
204
206
206
206
207
209
209
212
214
217
218
221
223
223
229
229
229
231
231
231
231
231
232
232
233
233
238
239
243
243
248
255
255
255
255
255
255
255
256
257
258
260
262
264
266
268
270
272
274
276
279
NKO A5 20 MR08.book Page 4 Wednesday, April 11, 2007 2:54 PM
Contents 5
NKO A5 20 MR08.book Page 5 Wednesday, April 11, 2007 2:54 PM
Layout of this Owner's Manual (explanations)6
Layout of this Owner's Manual (explanations)
The Owner's Manual has been systematically designed, in order to make it easy for
you to find and absorb the information you require.
Chapters, table of contents and subject index
The text of the manual are divided into relatively short sections which are combined
into easy-to-read chapters. The chapter you are reading at any particular moment
is highlighted at the bottom right of the page.
The Table of contents is arranged according to the chapters and the detailed
Subject index at the end of the Owner's Manual helps you to rapidly find the information you are looking for.
Sections
The majority of Sections apply to all models.
Since there is a wide range of different equipment and options available it is clearly
unavoidable, despite dividing the contents into sections, that mention may be
made of equipment which is not fitted to your vehicle.
Equipment which is marked * is only standard on certain vehicle model versions or
only suppliable as optional equipment for certain models.
Brief information and instructions
Each section has a Heading.
This is followed by Brief information (in large italic lettering), which tells you the
subject which is dealt with in this section.
Most of the illustrations are accompanied by an Instruction (in relatively large
letters) which explains to you in a straightforward way the action you have to take.
Work steps which have to be carried out are illustrated with a hyphen.
Notes
All four kinds of notes, which are used in the text, are always stated at the end of the
respective section.
WARNING
The most important notes are marked with the heading WARNING. These
WARNING notes draw your attention to a serious risk of accident or injury.
While reading the text you will frequently encounter a double arrow
followed by a small warning symbol. This symbol is intended to draw your
attention to a WARNING note at the end of the section to which you must pay
careful attention.
Caution
A Caution note draws your attention to the possibility of damage to your vehicle
(e.g. damage to gearbox), or points out general risks of an accident.
For the sake of the environment
An Environmental note draws your attention to environmental protection aspects.
This is where you will, for example, find tips aimed at reducing your fuel consumption.
Note
A normal Note draws your attention in a general way to important information.
Direction indications
All direction indications such as “left”, “right”, “front”, “rear” relate to the direction
of travel of the vehicle.
NKO A5 20 MR08.book Page 6 Wednesday, April 11, 2007 2:54 PM
Cockpit 7
Using the system
Fig. 1 Certain items of equipment shown in the illustration are only fitted to particular model versions or are optional items of equipment.
NKO A5 20 MR08.book Page 7 Wednesday, April 11, 2007 2:54 PM
Cockpit8
Cockpit
Overview
This general view is designed to help you to quickly become familiar
with the instruments, gauges and controls.
Electric power-operated window* . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electric exterior mirror adjustment* . . . . . . . . . . . . . . . . . . . . . . . . . .
Air outlet vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lever for the multi-functional switch:
− Turn signal light, headlight and parking light, headlight flasher
− Speed regulating system* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Steering wheel:
− with horn
− with driver airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
− with pushbuttons for radio and mobile phone* . . . . . . . . . . . . .
Instrument cluster: Instruments and indicator lights . . . . . . . . . . .
Lever for the multi-functional switch:
− Multi-functional indicator* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
− Windshield wiper and wash system . . . . . . . . . . . . . . . . . . . . . . . .
Control dial for heating on the driver's seat* . . . . . . . . . . . . . . . . . .
Air outlet vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switch for hazard warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage compartment on the dash panel . . . . . . . . . . . . . . . . . . . . .
Radio*
Control dial for heating on the front passenger seat* . . . . . . . . . .
Storage compartment on the front passenger side . . . . . . . . . . . . .
Switch for the front passenger airbag* (in front passenger stowage
compartment) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front passenger airbag* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse box (on side of dash panel) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Light switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Control dial for the instrument lighting and control dial for the head-
light beam range regulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bonnet release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage compartment on the driver's side . . . . . . . . . . . . . . . . . . . .
Lever for adjusting the steering wheel . . . . . . . . . . . . . . . . . . . . . . . .
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Depending on equipment fitted:
− Operating controls for the heating . . . . . . . . . . . . . . . . . . . . . . . .
− Operating controls for Climatic* . . . . . . . . . . . . . . . . . . . . . . . . . .
− Operating controls for Climatronic* . . . . . . . . . . . . . . . . . . . . . . .
Depending on equipment fitted:
− Switch for the ESP* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
− Switch for TCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front and rear parking aid* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Depending on equipment fitted:
− Gearshift lever (manual gearbox) . . . . . . . . . . . . . . . . . . . . . . . . . .
− Selector lever (6-speed automatic gearbox)* . . . . . . . . . . . . . . .
− Selector lever (automatic DSG)* . . . . . . . . . . . . . . . . . . . . . . . . . .
Tyre inflation pressure-control system* . . . . . . . . . . . . . . . . . . . . . .
Depending on equipment fitted:
− Rear ashtray - high centre console* . . . . . . . . . . . . . . . . . . . . . . .
− Storage compartment* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator light for a switched off front seat passenger airbag* . .
Note
• Equipment which is marked * is only standard on certain vehicle model
versions or only suppliable as optional equipment for certain models.
• Vehicles with factory-fitted radio, mobile phone, navigation system, CD player
etc. are supplied with separate instructions for operating such equipment.
A
1
45
A
2
65
A
3
102
A
4
56
123
A
5
165
138
A
6
10
A
7
14
61
A
8
75
A
9
102
A
10
55
A
11
91
A
12
A
13
75
A
14
90
A
15
172
A
16
165
A
17
243
A
18
51
A
19
54, 55
A
20
209
A
21
91
A
22
116
A
23
117
A
24
100
103
108
A
25
181
183
A
26
122
A
27
119
127
133
A
28
187
A
29
88
89
A
30
172
NKO A5 20 MR08.book Page 8 Wednesday, April 11, 2007 2:54 PM
Cockpit 9
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
• The arrangement of the controls and switches and the location of some items
on right-hand drive models may differ from that shown in ⇒ page 7, fig. 1. The
symbols on the controls and switches are the same as for left-hand drive models.
NKO A5 20 MR08.book Page 9 Wednesday, April 11, 2007 2:54 PM
Instruments and Indicator/Warning Lights10
Instruments and Indicator/Warning Lights
General view of the instrument cluster
Engine revolutions counter ⇒ page 10
Coolant temperature gauge ⇒ page 11
Fuel gauge ⇒ page 11
Speedometer
Display:
− with counter for distance driven ⇒ page 12
− with Service Interval Display ⇒ page 12
− with digital clock ⇒ page 14
− with Multi-functional indicator* ⇒ page 14
− with Information display* ⇒ page 18
Clock-set button / reset button
When the lights are switched on, the instrument cluster is illuminated.
Engine revolutions counter
The start of the red zone in the revolutions counter ⇒ fig. 2 indicates the
maximum permissible engine speed for all gears for an engine which has been run
in and operating at a normal temperature. You should shift into the next highe r gear
before this red zone is reached, or move the selector lever into position D if your
car is fitted with an automatic gearbox.
One should shift to the next lower gear at the latest when the engine is no longer
running “smoothly”.
Avoid high engine speeds during the running-in period ⇒ page 189.
Fig. 2 Instrument cluster
A
1
A
2
A3A
4
A
5
A6A
1
NKO A5 20 MR08.book Page 10 Wednesday, April 11, 2007 2:54 PM
Instruments and Indicator/Warning Lights 11
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
Caution
The needle of the revolutions counter must on no account move into the red zone
of the scale - risk of engine damage!
For the sake of the environment
Shifting up early helps you save fuel and reduce the operating noise of your
vehicle.
Coolant temperature gauge
The coolant temperature gauge ⇒ page 10, fig. 2 operates only when the ignition is switched on.
In order to avoid any damage to the engine, please pay attention to the following
notes regarding the temperature ranges:
Cold range
If the pointer is in the left-hand area of the scale it means that the engine has not
yet reached its operating temperature. Avoid running at high engine speeds, at full
throttle and at severe engine loads.
The operating range
The engine has reached its operating temperature as soon as the pointer moves
into the mid-range of the scale. The pointer may also move further to the right at
high engine loads and high outside temperatures. This is not critical provided the
warning symbol in the instrument cluster does not flash.
If the symbol in the instrument cluster flashes it means that either the coolant
temperature is too high or the coolant level is too low. Please refer to the guidelines ⇒ page 28, “Coolant temperature/ Coolant quantity ”.
WARNING
Pay attention to the warning notes ⇒ page 210, “Working in the engine
compartment” before opening the bonnet and inspecting the coolant level.
Caution
Additional headlights and other attached components in front of the fresh air inlet
impair the cooling efficiency of the coolant. There is then a risk of the engine overheating at high outside temperatures and high engine loads!
Fuel gauge
The fuel gauge ⇒ page 10, fig. 2 only operates when the ignition is switched on.
The fuel tank has a capacity of about 55 litres (on vehicles with four-wheel drive
approx. 60 litres). The warning symbol in the instrument cluster lights up when
the pointer reaches the reserve marking. There are now about 8 litres of fuel
remaining in the tank. This symbol is a reminder for you, that you must refuel.
The following will be displayed in the information display*:

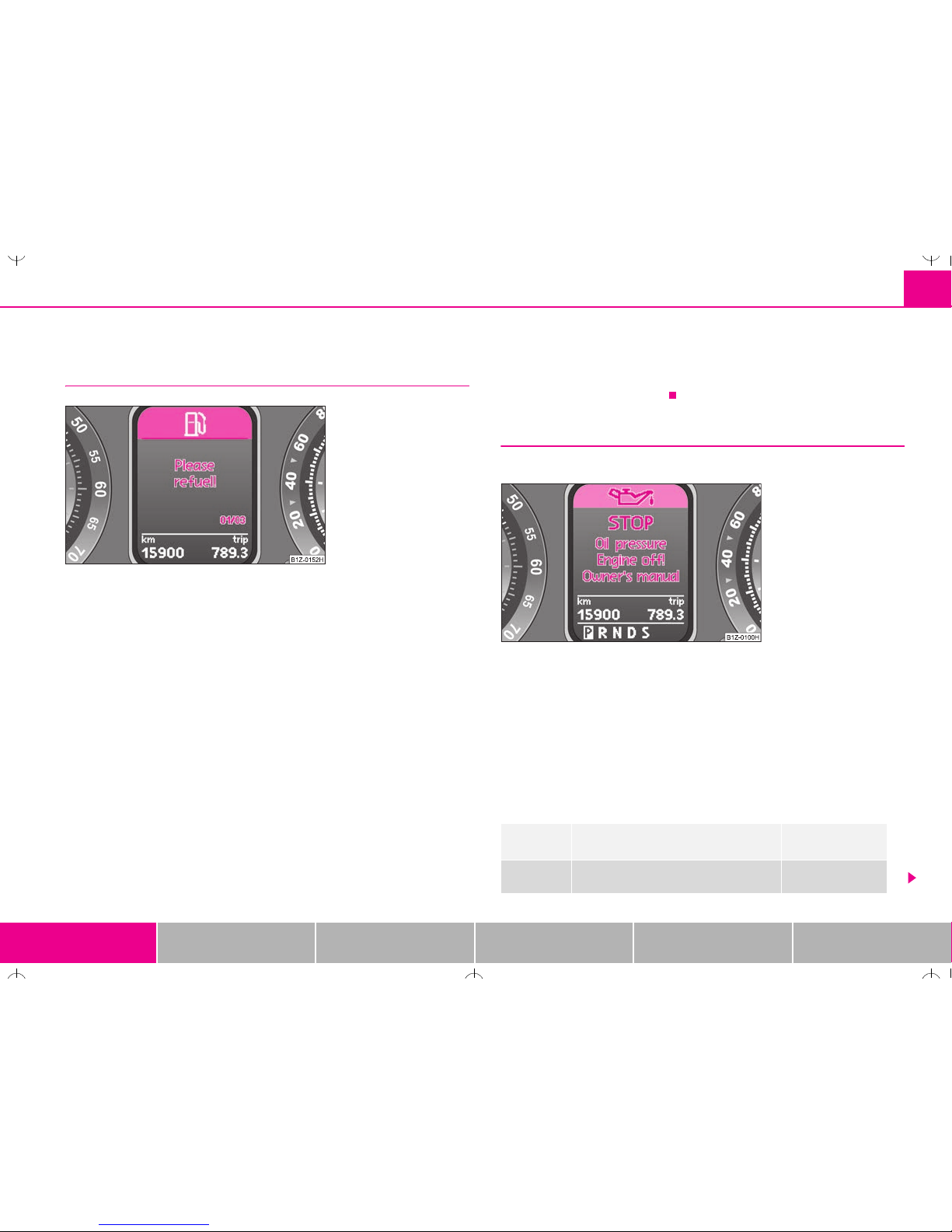

Please refuel! (Please refuel!)
A peep sounds as an additional warning signal.
Caution
Never run the fuel tank completely empty! An irregular fuel supply can result in
poor ignition or misfiring. Unburnt fuel may get into the exhaust system and
damage the catalytic converter.
Speedometer
Warning against excessive speeds*
An acoustic warning signal will sound when the vehicle speed exceeds 120 kilometres per hour. The acoustic warning signal will switch off again when the vehicle
speed goes below this speed limit.
Note
This function is only valid for some countries.
A2A
3
NKO A5 20 MR08.book Page 11 Wednesday, April 11, 2007 2:54 PM
Instruments and Indicator/Warning Lights12
Counter for distance driven
The distance which you have driven with your vehicle is shown in kilometres (km).
On certain model versions, the readout is shown in “miles”.
The kilometer counter for distance driven is shown on the displa y when the ignition
is switched off. The trip counter for distance driven is shown on the display after
switching on the ignition. You can then switch over to the counter display with the
reset button.
Reset button
By briefly pressing the reset button ⇒ page 10, fig. 2 you can switch over from
the trip counter to the kilometer counter. In order to recognize which counter for
the distance driven is shown on the display at that moment, trip ⇒ fig. 3appears
after the trip counter.
If you hold the reset button pressed for about 1 second, the trip counter is set
back to zero.
If you hold the reset button pressed for longer than 2 seconds when the ignition
is switched on, a display regarding the kilometers still to be driven a nd the days until
the following service interval (for this the trip counter is not set back) appears
⇒ page 12.
Counter for distance driven
The counter for distance driven indicates the total distance in kilometers or miles
which the vehicle has been driven.
Trip counter for distance driven
The trip counter indicates the distance which you have driven since this counter
was last reset - in steps of 100 metres or 1/10 of a mile.
Fau lt dis play
dEF will appear as a constant text in the display if there is a fault in the instrument
cluster. Have the fault rectified as soon as possible by a specialist workshop.
WARNING
Never seek to adjust the trip counter for distance driven while driving for
safety reasons!
Note
On vehicles without multi-functional indicator or information display, both counts
of the counters are shown simultaneously on the display.
Service Interval Display
Depending on the equipment installed in the vehicle, the text can differ slightly on
the display.
Fig. 3 Display: Trip
counter for distance
driven
A6A6A
6
Fig. 4 Service Interval
Display: Note
NKO A5 20 MR08.book Page 12 Wednesday, April 11, 2007 2:54 PM
Instruments and Indicator/Warning Lights 13
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
Service Interval Display
A key symbol appears in the counter display for distance driven about 15 days
before reaching the due date for the service ⇒ page 12, fig. 4. The remaining
distance to be driven will be indicated for 10 seconds next to the key symbol and
then the remaining number of days to the due date for the service inspection.
The following will be displayed in the information display*:
Service in ... km or... days
The kilometre indicator or the days indicator reduces in steps of 100 km. or days
until the service due date is reached.
The following text appears as a flashing key symbol as soon as the due date for
the service is reached.
The following will be displayed in the information display*:
Service now!
The display disappears within 20 seconds after switching on the ignition. The trip
counter is also displayed after pressing the reset button for the trip counter (for
more than 1 second).
Display regarding the distance and days until the following service interval
You can have the distance still to be driven and the days until the following service
interval displayed at any time as follows:
• Switch on the ignition and press the reset button ⇒ page 10, fig. 2 for more
than 2 seconds.
A key symbol is displayed on the display of the counter for the distance driven.
The remaining distance to be driven will be indicated for 10 seconds next to the key
symbol and then the remaining number of days to the due date for the service
inspection.
Resetting Service Interval Display
It is only possible to reset the Service Interval Display, if a service message or at least
a pre-warning is shown on the display of the instrument cluster.
We recommend having this resetting performed by a specialist garage.
The specialist garage:
• resets the memory of the display after the appropriate inspection,
• makes an entry in the Service schedule,
• affix the sticker with the entry of the following service interval to the side of the
dash panel on the driver's side.
Reset the service interval displays as follows by using the reset button
⇒ page 10, fig. 2 on the trip counter:
• Switch off the ignition, press the reset button of the trip counter for distance
driven and hold it down.
• Switch the ignition on and release the reset button. Now turn the reset button
to the right. The service interval display is reset.
Caution
We recommend that you do not reset the Service Interval Display yourself otherwise this can result in the service interval display being incorrectly set, which may
also result in problems with operation of your vehicle.
Note
• Never reset the display between service intervals otherwise this may result in
incorrect readouts.
• information is retained in the Service Interval Display also after the battery of
the vehicle is disconnected.
• it is necessary to re-code the Service Interval Display if a new instrument cluster
is installed during repair work. This work is carried out by a specialist garage.
• The data displayed is the same after resetting the display with flexible service
intervals (QG1) using the reset button as that for a vehicle with fixed service intervals (QG2). We therefore recommend having the Service Interval Display reset only
by a Škoda Service Partner who is familiar with the procedure for resetting the
display with a vehicle system tester.
• Please refer to the brochure Service schedule for extensive information about
the service intervals.
A6A
6
NKO A5 20 MR08.book Page 13 Wednesday, April 11, 2007 2:54 PM
Instruments and Indicator/Warning Lights14
Digital clock
A clock-set button is installed on the bottom left beside the speedometer for adjusting the clock ⇒ page 10, fig. 2.
Set hours
– Turn the reset button to the left.
Setting minutes
– Turn the reset button to the right.
WARNING
The clock should not be adjusted while driving for safety reasons but only
when the vehicle is stationary!
Multi-functional indicator (onboard computer)*
Introduction
The multi-functional indicator appears in the display ⇒ fig. 5 or in the information
display ⇒ page 18, fig. 10 depending on the equipment fitted to your vehicle.
The multi-functional indicator offers you a range of useful information.
Note
In certain national versions the displays appear in the Imperial system of
measures.
Memory
The multi-functional indicator is equipped with two automatic memories. The
selected memory is displayed in the middle of the display field ⇒ fig. 5.
The data of the single-trip memory (memory 1) is shown if a 1 appears in the
display. A 2 shown in the display means that data relates to the total distance
memory (memory 2).
Switching of the memory takes place when the button ⇒ page 15, fig. 6.
Single-trip memory (memory 1)
The single-trip memory collates the driving information from the moment the ignition is switched on until it is switched off. New data will also flow into the calculation of the current driving information if the trip is continued within 2 hours after
The outside temperature ⇒ page 16
Current fuel consumption ⇒ page 16
Average fuel consumption ⇒ page 16
Range ⇒ page 16
Distance driven ⇒ page 16
A
6
Average speed ⇒ page 17
Driving time ⇒ page 17
Warning against excessive speeds* ⇒ page 17
Fig. 5 Multi-functional
indicator
A
B
NKO A5 20 MR08.book Page 14 Wednesday, April 11, 2007 2:54 PM
Instruments and Indicator/Warning Lights 15
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
switching off the ignition. The memory will be is automatically erased, on the other
hand, if the trip is interrupted for more than 2 hours.
Total-trip memory (memory 2)
The total distance driven memory gathers data from any number of individual journeys up to a total of 99 hours and 59 minutes driving or 9.999 kilometres driven.
The memory is deleted when either of these limits is reached and the calculation
starts from anew.
The total-trip memory will not, contrary to the single-trip memor y, be deleted after
a period of interruption of driving of 2 hours.
Note
All information in the memory is erased if the battery of the vehicle is
disconnected.
Using the system

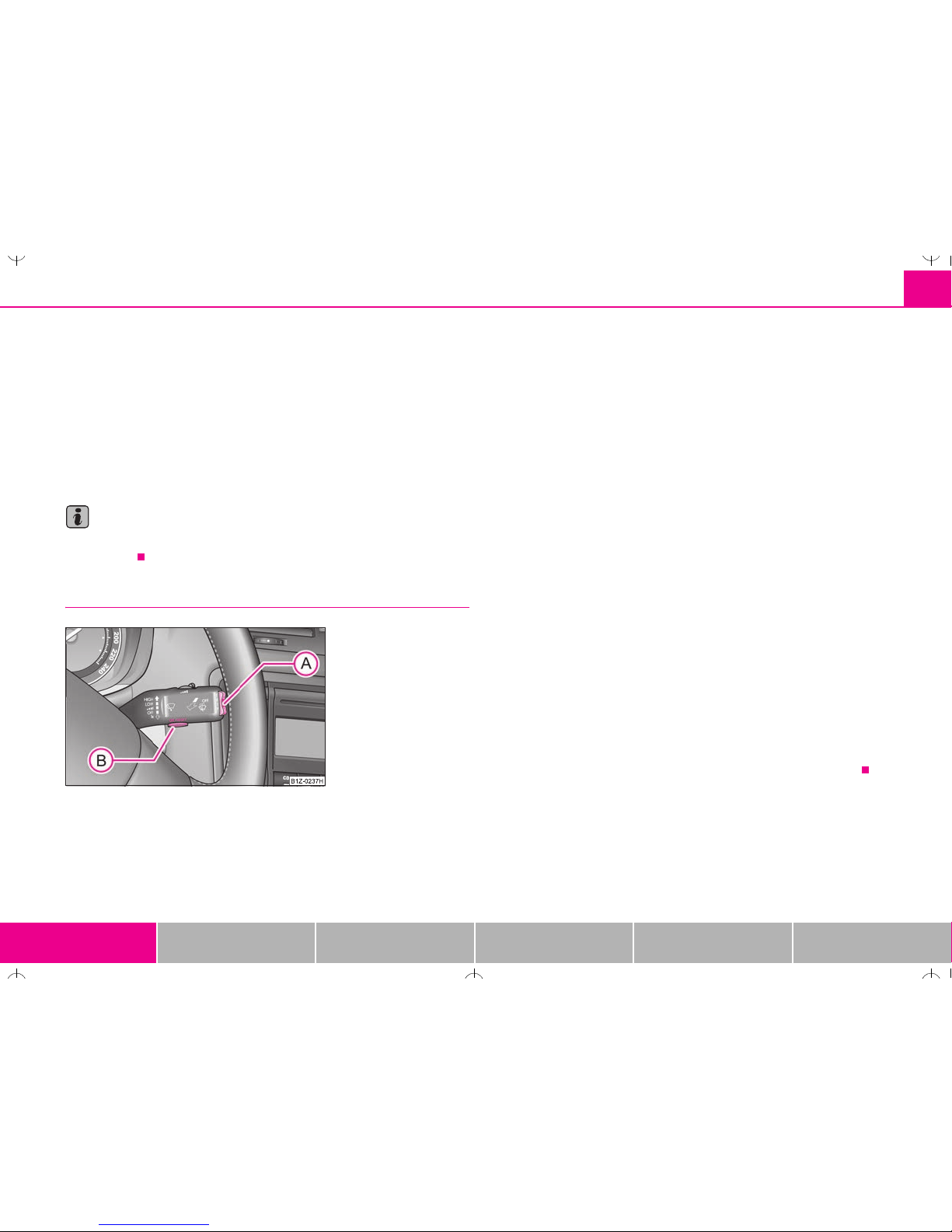

The rocker switch and the button are located in the grip of the
window wiper lever ⇒ fig. 6.
Selecting the memory
– Repeated short-term pressing of the button allows one to select
the individual memories.
Selecting the functions
– Press the rocker switch up or down. This will cause the individual
functions of the multi-functional indicator to appear in the display
one after the other.
Setting function to zero
– Select the memory you want.
– Press button for more than 1 second.
The following readouts of the selected memory will be set to zero by button :
• average fuel consumption,
• distance driven,
• average speed,
• driving time.
You can only operate the multi-functional indicator when the ignition is switched
on. After the ignition is switched on, the function displayed is the one which you last
selected before switching off the ignition.
If the outside temperature drops below +4 °C, the outside temperature indicator
with a snow flake symbol appears. The symbol warns the driver of the possible
danger of ice on the road. After the rocker switch is pressed, the function
displays the one which you last selected before switching off the ignition.
Fig. 6 Multi-functional
indicator: Control
elements
AAABABA
A
A
B
A
B
A
A
NKO A5 20 MR08.book Page 15 Wednesday, April 11, 2007 2:54 PM
Instruments and Indicator/Warning Lights16
Outside temperature
The outside temperature appears in the display when the ignition is switched on.
The correct outside temperature will be indicated with a delay of 5 minutes. If the
vehicle is stationary (or driven at a very low speed) the temperature indicated may
be slightly higher than the actual outside temperature because of heat radiated by
the engine.
If the outside temperature drops below +4 °C, a snow flake symbol (warning signal
for ice on the road) appears before the temperature indicator ⇒ fig. 7 and a
warning signal sounds.
WARNING
Do not only rely upon the information given on the outside temperature
display that there is no ice on the road. Please note that black ice may also be
present on the road surface even at temperatures around +4 °C - warning,
drive with care!
Current consumption
The current fuel consumption level is shown in the display in litres/100 km. This
information can help you to adapt your style of driving to the fuel consumption you
wish to achieve.
The display appears in litres/hour if the vehicle is stationary or driving at a low
speed.
Average fuel consumption
The average fuel consumption since the memory was last erased is shown in the
display in litres/100 km ⇒ page 14. This information can help you to adapt your
style of driving to the fuel consumption you wish to achieve.
If you wish to determine the average fuel consumption over a certain period of time
you must first erase the memory at the start of the new measurement using the
button ⇒ page 15, fig. 6. A zero appears in the display for the first 100 m you
drive after erasing the memory.
The indicated value will be updated every 5 seconds while you are driving.
Note
The amount of fuel consumed will not be indicated.
Range
The estimated range in kilometres is shown on the display. It indicates the distance
you can still drive with your vehicle based on the present level of f uel in the tank for
the same style of driving. The readout is shown in steps of 10 km.
The fuel consumption for the last 50 km is taken as a basis for calculating the range.
If you drive in a more economical manner from this moment on, the range will be
increased accordingly.
You first drive 50 km if the readout is reset (after disconnecting the battery) before
a new readout for the range is displayed.
Distance driven
The distance driven since the memory was last erased appears in the display
⇒ page 14. If you wish to calculate the distance driven from a particular time of day
Fig. 7 Multi-functional
indicator: the outside
temperature
A
B
NKO A5 20 MR08.book Page 16 Wednesday, April 11, 2007 2:54 PM
Instruments and Indicator/Warning Lights 17
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
you must first erase the memory at this moment in time by pressing the button
⇒ page 15, fig. 6.
The maximum distance indicated in both switch positions is 9999 km. The indica tor
is set back to null if this period is exceeded.
Average speed
The average speed since the memory was last erased is shown in the display in
km/hour ⇒ page 14. If you wish to determine the average speed over a certain
period of time you must first erase the memory at the start of the new measurement using the button ⇒ page 15, fig. 6.
A zero appears in the display for the first 100 m you drive after erasing the memory.
The indicated value will be updated every 5 seconds while you are driving.
Driving time
The driving time which has elapsed since the memory was last erased, appears in
the display ⇒ page 14. If you wish to calculate the driving time from a particular
time of day you must first erase the memory at this moment in time by pressing the
button ⇒ page 15, fig. 6.
The maximum distance indicated in both memories is 99 hours and 59 minutes.
The indicator is set back to null if this period is exceeded.
Warning against excessive speeds*
Warning against excessive speeds
1)
This function enables you to set a speed limit, e.g. if you drive in town. A text in the
display is intended to draw your attention to the fact that you have exceeded the set
speed limit.
You can set the desired speed limit as follows:
• Select the menu Speed warning --- km/h (warning at --- km/h).
• You can drive at the desired speed, e.g. 50 km/h
ABABA
B
1)
Valid for vehicles with information display.
Fig. 8 Speed setting
Fig. 9 Multi-functional
indicator: Control
elements
NKO A5 20 MR08.book Page 17 Wednesday, April 11, 2007 2:54 PM
Instruments and Indicator/Warning Lights18
• Press the button ⇒ page 17, fig. 9 - Speed warning 50 km/h (warning at
50 km/h) is shown on the display.
If you now exceed the set speed limit, Speed 50 km/h exceeded (speed 50 km/h
exceeded) will be shown on the display. This display will be shown until you have
reduced the speed to the set speed limit.
A peep sounds as an additional warning signal.
The set speed limit remains stored in the memory, also when the ignition is
switched off and on; it can only be erased by pressing the button for more than
1 second.
Information display*
Introduction
The information display provides you with information in a convenient way
concerning the current operating state of your vehicle. The information system
also provides you with data (depending on the equipment installed in the vehicle)
relating to the radio, mobile phone, multi-functional indicator, navigation system
and automatic gearbox.
Certain functions and operating conditions are always being checked on the
vehicle when the ignition is switched on and also while driving.
Functional faults, if required repair work and other information are indicated by red
symbols ⇒ page 21 and yellow symbols ⇒ page 22.
Lighting up of these symbols is combined with an acoustic warning signal.
Information and texts giving warnings are also shown in the display ⇒ page 24.
The display of text is possible in the following languages:
Czech, English, German, French, Italian, Spanish, Portuguese.
You can select the desired language in the setting menu ⇒ page 22.
The following information can be shown in the display (depending on the equipment installed on the vehicle):
A
B
A
B
Fig. 10 Instrument
cluster: Information
display
Main menu ⇒ page 19
Door, luggage compartment door and bonnet ajar
warning
⇒ page 20
Service Interval Display ⇒ page 12
Selector lever positions of the 6-speed automatic
gearbox
⇒ page 127
Selector lever positions of the automatic DSG ⇒ page 133
NKO A5 20 MR08.book Page 18 Wednesday, April 11, 2007 2:54 PM
Instruments and Indicator/Warning Lights 19
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
Main menu
– You can activate the MAIN MENU by pressing the rocker switch
⇒ fig. 12 for more than 1 second.
– You can select the menu through the rocker switch . When the
pushbutton is briefly pressed, the information you have selected is
displayed.
You can select the following information (depending on the equipment installed on
the vehicle):
MFD (Onboard computer) ⇒ page 14
The outside temperature
Current consumption
Average fuel consumption
Range
Distance driven
Average speed
Driving time
Warning against excessive speeds
Audio ⇒ page 20
Navigation ⇒ page 20
Te le p h o n e ⇒ page 142
Vehicl e status ⇒ page 21
Setup ⇒ page 22
Time
Winter tyres
Language
Units
Lights & Vision&
Aux. Heating (auxiliary heating)
Back
Display off
After selecting the menu Display off the display is switched off. Press rocker switch
for at least 1 second to switch the display on again.
The menu Audio is only displayed when the Radio* is switched on.
The menu Navigation is only displayed when the Navigation* is switched on.
Aux. Heating (auxiliary heating) is only then displayed, if the vehicle is fitted with
auxiliary heating*.
Fig. 11 Information
display: Menu
Fig. 12 Information
display: Control
elements
A
A
AAA
B
A
A
NKO A5 20 MR08.book Page 19 Wednesday, April 11, 2007 2:54 PM
Instruments and Indicator/Warning Lights20
Note
If you do not activate the information display at that moment, the menu shifts to
one level higher every 10 seconds.
Door, luggage compartment door and bonnet ajar warning
The door, luggage compartment door and bonnet ajar warning lights up when at
least one of the three items door, luggage compartment or bonnet are not closed
when the ignition is turned on. The symbol indicates which door is still open or
whether the luggage compartment door or bonnet is not closed ⇒ fig. 13.
The symbol goes out as soon as the doors, luggage compartment door and bonnet
are completely closed.
As an additional warning signal, a 3 time peep sounds if the car is driven at a speed
of more than 6km/hour and if the door, engine or luggage compartment door is
open.
Audio
These displays appear in addition to the normal information in the radio display.
Operation of the radio system is described in separate operating instructions to be
found in the on-board literature.
Navigation system*
The controls for the navigation system, radio, CD player are located in the centre
console on both sides of the monitor screen. Navigation data is also shown in the
information display of the instrument cluster.
Information and warning texts are displayed preferentially when the navigation
system is switched on.
Operation of the navigation system is described in separate operating instructions
to be found in the on-board literature.
Fig. 13 Information
display: Door warning
Fig. 14 Information
display: Radio display
NKO A5 20 MR08.book Page 20 Wednesday, April 11, 2007 2:54 PM
Instruments and Indicator/Warning Lights 21
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
Auto Check Control*
Car state
The Auto Check Control carries out a check of certain functions and vehicle components. The check is performed constantly when the ignition is switched on, both
when the vehicle is stationary, as well as when driving.
Operational faults, urgent repairs, service work or other information appear in the
display of the instrument cluster. The displays are shown with a red or yellow light
symbol depending on the priority of the message.
The red symbols indicate danger (priority 1) while the yellow symbols indicate a
warning (priortity 2). Information for the driver may also appear in addition to the
symbols ⇒ page 24.
There is at least one error message to be read when the term Vehicle status is
flashing in the main menu. After selecting this menu the first of the error messages
is displayed. If there are several error messages, they are shown on the display
under the message e.g. 01/03 ⇒ fig. 15. This display indicates that the first of a total
of three error messages should be displayed. The respective symbols light up one
after the other in an interval of 5 seconds. Investigate the displayed faults as soon
as possible.
As long as the operational faults are not rectified, the symbols are always indicated
again. After the first display, the symbols are indicated without information for the
driver.
If a fault occurs, a warning signal will also sound in addition to the symbol and text
in the display:
• Priority 1 - three warning signals
• Priority 2 - one warning signal
Red symbols
A red symbol signals danger.
Proceed as follows if a red symbol is displayed:
– Stop the vehicle.
– Switch the engine off.
– Investigate the function indicated.
– Obtain professional assistance.
Meaning of the red symbols:
Fig. 15 Information
display: Display of operational fault
Coolant level too low/coolant temperature too high
⇒ page 28
Engine oil pressure too low ⇒ page 29
Fig. 16 Information
display: Oil pressure is
low
NKO A5 20 MR08.book Page 21 Wednesday, April 11, 2007 2:54 PM
Instruments and Indicator/Warning Lights22
Three successive warning signals will sound if a red symbol appears.
If several operational faults of priority 1 exist, the symbols appear one after the
other and are each illuminated for about 5 seconds.
Yellow symbols
A yellow symbol signals a warning.
Check the relevant function as soon as possible.
The meaning of the yellow symbols:
One warning signal will sound if a yellow symbol appears.
If several operational faults of priority 2 exist, the symbols appear one after the
other and are each illuminated for about 5 seconds.
Set-up
You can change certain settings by means of the information display. The current
setting is shown on the information display in the respective menu at the top below
the line ⇒ fig. 18.
You can select the following information (depending on the equipment installed on
the vehicle):
• Time
• Winter tyres
• Language
• Units
• Lights & Vision&
• Aux. Heating (auxiliary heating)
• Back
After selecting the menu Back you will reach one level higher in the menu.
Set hours
Here you can set the time, the time format (12 or 24 hour indicator) and the time
change summer/winter time.
Fuel level low ⇒ page 29
Check engine oil level,
engine oil sensor faulty
⇒ page 30
Brake pad worn ⇒ page 29
Washer fluid level low ⇒ page 29
Fig. 17 Information
display: Fuel level low
Fig. 18 Setting the clock
NKO A5 20 MR08.book Page 22 Wednesday, April 11, 2007 2:54 PM
Instruments and Indicator/Warning Lights 23
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
Setting for winter tyre speed
Here you can set at which speed a warning signal should sound. These functions are
used for e.g on winter tyres with the permissible maximum speed less than the
maximum speed of the vehicle ⇒ page 225.
When exceeding the speed, the following is displayed on the information display*:
Speed warning
Language setting
Here you can set in which language the warning and information texts should be
displayed. After selecting the language, e.g. English, the following is displayed on
the information display:
Language: english set
Setting units
Here you can set the units for temperature, consumption and distance driven.
Setting lights
Here you can switch on or off the function convenience turn signal ⇒ page 56.
Furthermore you can set how long the light should stay on for the function
Coming/Leaving Home ⇒ page 53.
After selecting the menu Fac tory setti ng the factory setting is established again.
Convenience setting*
You can set the following functions (depending on the equipment installed on the
vehicle):
Door open Here you can switch on or off the functions for open-
ing a single door and automatic closing ⇒ page 37.
ATA confirm
Here you can set if a signal tone should sound additionally when activating or deactivating the anti-theft
alarm system ⇒ page 43.
Conv. mode Here you can set the convenience mode only for the
driver window or for all the windows ⇒ page 47.
Mirror adjust.
Here you can switch on or off the function for mirror
adjustment on the front passenger side when engaging the reverse gear ⇒ page 65.
Mirror adjust.
Here you can switch on or off the function for left and
right exterior mirror setting simultaneously
⇒ page 65.
Rain-closing
On vehicles with rain sensor you can switch on or off
the function for automatic closing of the sliding/tilting
roof in case of rain. If it is not raining and the function
is set, the windows including the sliding/tilting roof
are closed automatically after approx. 12 hours.
Facto ry se ttin g
After selecting this menu the convenience setting is
reset to factory setting. The following is displayed in
the information display:
Factory setting for convenience is set
.
NKO A5 20 MR08.book Page 23 Wednesday, April 11, 2007 2:54 PM
Instruments and Indicator/Warning Lights24
Warning lights
Overview
The warning lights indicate certain functions or faults.
Fig. 19 Instrument cluster with warning lights
Turn signal lights (to the left) ⇒ page 25
Turn signal lights (to the right) ⇒ page 25
Main beam ⇒ page 26
Low beam ⇒ page 26
Rear fog light ⇒ page 26
Electronic immobiliser ⇒ page 26
Diesel particle filter (diesel engine) ⇒ page 26
Bulbs ⇒ page 27
Electromechanical power steering ⇒ page 27
Control system for exhaust ⇒ page 27
EPC fault light (petrol engine) ⇒ page 27
Glow plug system (diesel engine) ⇒ page 27
NKO A5 20 MR08.book Page 24 Wednesday, April 11, 2007 2:54 PM
Instruments and Indicator/Warning Lights 25
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
WARNING
• If you do n ot pay attention to the warning lights coming on and the corre-
sponding descriptions and warning notes, this may result in severe body
injuries or major vehicle damage.
• The engine compartment of your car is a hazardous area. There is a risk
of injuries, scalding, accidents and fire when working in the engine
compartment, e.g. inspecting and replenishing oil and other fluids. It is also
essential to observe all warnings ⇒ page 210.
Note
• Arrangement of the indicator lights depends on the model and model version.
The symbols shown in the following functional description are to be found as indicator lights in the instrument cluster.
• Operational faults are shown in the instrument cluster as red symbols (priority
1 - danger) or yellow symbols (priority 2 - warning).
Turn signal system
Either the left or right indicator light flashes depending on the position of the
turn signal lever.
The indicator light flashes at twice its normal rate if a turn signal light fails. This does
not apply when towing a trailer.
Switching off the hazard warning light system is switched on will cause all of the
turn signal lights as well as both indicator lights to flash.
Further information about the turn signal system ⇒ page 56.
Airbag system ⇒ page 28
Coolant temperature/coolant level ⇒ page 28
Brake pad wear* ⇒ page 29
Fluid level in windshield washer system* ⇒ page 29
Fuel reserve ⇒ page 29
Engine oil pressure ⇒ page 29
Bonnet ⇒ page 30
Open door* ⇒ page 30
Engine oil level* ⇒ page 30
Tyre pressure* ⇒ page 30
Selector lever lock* ⇒ page 31
*
Speed regulating system* ⇒ page 31
Antilock brake system (ABS) ⇒ page 31
Traction control system (TCS) ⇒ page 31
Electronic stability programme (ESP)* ⇒ page 32
Dynamo ⇒ page 32
Brake system ⇒ page 32
Seat belt warning light* ⇒ page 33
NKO A5 20 MR08.book Page 25 Wednesday, April 11, 2007 2:54 PM
Instruments and Indicator/Warning Lights26
Main beam
The indicator light comes on when the main beam is selected or also when the
headlight flasher is operated.
Further information about the main beam ⇒ page 56.
Low beam
The indicator light comes on when low beam is selected ⇒ page 51.
Rear fog light
The warning light comes on when the rear fog lights are operating ⇒ page 53.
Electronic immobiliser
Data is compared between the ignition key and the control unit when switching on
the ignition. The indicator light will light up for a few seconds when ignition key
authorisation is confirmed.
The warning light will start flashing continuously if a non-authorised ignition key
(for example the wrong ignition key) has been used. The engine cannot be started
⇒ page 36.
It is only possible to start the engine of the vehicle with a Genuine Škoda key with
the matching code.
The following text will be displayed in the information display*:
Immobilizer active
Diesel particle filter* (diesel engine)
If the warning light comes on, this means that soot has accumulated in the diesel
particle filter because of the frequent short distances.
In order to clean the diesel particle filter, the vehicle should be driven at an even
speed of at least 60 km/h at engine speeds of 1 800 - 2 500 rpm for at least 15
minutes or until the warning light goes out with the 4th or 5th gear engaged (automatic gearbox: position S) when the traffic situation permits it. This increases the
exhaust temperature and the soot deposited in the diesel particle filter is burnt.
Always pay attention to the valid speed limits ⇒ .
The warning light goes out after the successful cleaning of the diesel particle
filter.
If the filter is not properly cleaned, the warning light does not go out and the
warning light begins to flash. Engine fault Workshop! is shown in the information display*. Afterwards the engine control unit shifts the engine into the emergency mode, which only has a reduced power output. After switching the ignition
off and on again the warning light comes on.
Have the vehicle inspected without delay by your specialist garage.
WARNING
• If you do not pay attention to the warning light coming on and the corre-
sponding descriptions and warning notes, this may result in injuries or
major vehicle damage.
• Always adjust your speed to suit weather, road, region and traffic condi-
tions. The route indicated by the warning light must not tempt you to disregard the national regulations for road traffic.
Caution
As long as the warning light lights up, one must take into account an increased
fuel consumption and in certain circumstances a power reduction of the engine.
Note
Further information about diesel particle filter ⇒ page 188, “Diesel particle filter*
(diesel engine)”.
NKO A5 20 MR08.book Page 26 Wednesday, April 11, 2007 2:54 PM
Instruments and Indicator/Warning Lights 27
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
Light bulbs
The warning light comes on if a light bulb is damaged:
• brakes applied (brake light),
• when switching on lighting (low beam and/or rear light).
The following text e.g will be displayed in the information display*:
Dipped beam front left defective! (Dipped beam front left defective!)
A peep sounds as an additional warning signal.
Electromechanical power steering
The warning light comes on for a few seconds when the ignition is switched on.
If the warning light after switching on the ignition or when driving lights up continuously, a fault exists in the electromechanical power steering.
• If the yellow warning light lights up, this indicates a partial failure of the power
steering and the steering forces can be greater.
• If the red warning light lights up, this indicates a complete failure of the power
steering and the steering assist has failed (significantly higher steering forces).
If the red warning light lights up, three peeps sound as an additional warning signal.
Further information ⇒ page 186, “Electromechanical power steering”.
WARNING
Contact your specialist garage if the power steering is defective.
Note
• If the yellow warning l ight goes out after starting the engine again and a short
drive, it is not necessary to visit a specialist garage.
• If the battery has been disconnected and reconnected, the yellow warning light
comes on after switching on the ignition. The warning light must go out after
driving a short distance.
Control system for exhaust
The warning light comes on after the ignition has been switched on.
If the warning light does not go out after starting the engine or it lights up or flashes
when driving, a fault exists in an exhaust relevant component. The engine management system selects an emergency programme which enables you to drive to the
nearest specialist garage by adopting a gentle style of driving.
The following text will be displayed in the information display*:
Emissions workshop! (Emissions workshop)!
EPC fault light (petrol engine)
The (Electronic Power Control) warning light comes on for a few seconds when
the ignition is switched on.
If the warning light does not go out or lights up after starting the engine, a fault
exists in the engine control. The engine management system selects an emergency
programme which enables you to drive to the nearest specialist garage by adopting
a gentle style of driving.
The following text will be displayed in the information display*:
Engine fault Workshop! (Engine fault workshop!)
Glow plug system (diesel engine)
The indicator light lights up for a cold engine when switching on the ignition
(pre-heat position) 2 ⇒ page 117. Start the engine just as soon as the indicator light
goes out.
The glow plug indicator light will come on for about 1 second if the engine is at a
normal operating temperature or if the outside temperature is above +5°C. This
means that you can start the engine right away.
There is a fault in the glow plug system if the indicator light doe s not co me on
at all or lights up continuously. Contact a specialist garage as soon as possible to
obtain assistance.
NKO A5 20 MR08.book Page 27 Wednesday, April 11, 2007 2:54 PM
Instruments and Indicator/Warning Lights28
If the warning light begins to flash while driving, a fault exists in the engine
control. The engine management system selects an emergency programme which
enables you to drive to the nearest specialist garage by adopting a gentle style of
driving.
The following text will be displayed in the information display*:
Engine fault Workshop! (Engine fault workshop!)
Airbag system
Monitoring the airbag system
The warning light comes on for a few seconds when the ignition is switched on.
There is a fault in the system if the warning light does not go out or comes on or
flashes while driving ⇒ . This also applies if the warning light does not come on
when the ignition is switched on.
The following text will be displayed in the information display*:
Airbag fault!
The functionality of the airbag system is also monitored electronically, when one
airbag has been switched off
Front, side or head airbags which have been switched off using the vehicle
system tester:
• The warning light lights up for 4 seconds after switching on the ignition and
then flashes again for 12 seconds afterwards in 2 second intervals.
The following text will be displayed in the information display*:
Airbag belt tensioner deactivated!
Front passenger airbags switched off using the switch for front passenger
airbags* in stowage compartment on the front passenger side:
• The warning light comes on for 4 seconds after the ignition has been
switched on.
• Switching off airbags is indicated in the middle of the dash panel by the lighting
up of the indicator light (airbag switched off) ⇒ page 172.
WARNING
Have the airbag system checked immediately by a specialist garage if a fault
exists. Otherwise, there is a risk of the airbag not being activated in the event
of an accident.
Note
Further information about switching off airbags ⇒ page 171.
Coolant temperature/ Coolant quantity
The warning light comes on for a few seconds 2) when the ignition is switched on.
The coolant temperature is too high or the coolant level too low if the warning light
does not go out or flashes while driving.
3 peeps sound as an additional warning signal.
In this case stop and switch the engine off and check the coolant level; top up the
coolant as necessary.
Do not continue your journey if for some reason it is not possible under the
conditions prevailing to top up with coolant. Keep the engine switched off and
obtain professional assistance from a specialist garage, otherwise it could lead to
severe engine damage.
If the coolant is within the specified range, the increased temperature may be
caused by an operating problem at the coolant fan. Check the fuse for the coolant
fan, replace it if necessary ⇒ page 244, “Fuse assignment in engine compar tment version 1” or ⇒ page 246, “Fuse assignment in engine compartment - version 2”.
Do not continue driving if the warning light does not go off although the fluid is at
the correct level and also the fuse of the fan is in proper order. Contact a specialist
garage to obtain assistance.
Please also refer to the additional instructions ⇒ page 214, “Cooling system”.
2)
The warning light on vehicles fitted with information display does not come on after
switching the ignition on, but only if the coolant temperature is too high or the coolant level
is too low.
NKO A5 20 MR08.book Page 28 Wednesday, April 11, 2007 2:54 PM
Instruments and Indicator/Warning Lights 29
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
The following text will be displayed in the information display*:
STOP Check coolant! Owner's manual (STOP! Check coolant! Owner's
manual)
WARNING
• If you must stop for technical reasons, then park the vehicle at a safe
distance from the traffic and switch off the engine and switch on the hazard
warning light system ⇒ page 55.
• Take care when opening the coolant expansion bottle. If the engine is hot,
the cooling system is pressurized - risk of scalding! It is best to allow the
engine to cool down before removing the cap.
• Do not touch the coolant fan The coolant fan may switch on automati-
cally even if the ignition is off.
Thickness of the brake pads*
The warning light comes on for a few seconds 3) when the ignition is switched
on.
If the warning light
comes on, contact a specialist garage immediately and have
the brake pads on all of the wheels inspected.
A peep sounds as an additional warning signal.
The following text will be displayed in the information display*:
Check brake pads!
Windshield washer fluid level*
The warning light comes on when the ignition is switched on if there is insufficient fluid in the windshield washer system. Top up with liquid ⇒ page 221.
A peep sounds as an additional warning signal.
The following text will be displayed in the information display*:
Top up was h flu id!
Fuel reserve
The warning light comes on, if the fuel level is still below 8 litres.
A peep sounds as an additional warning signal.
The following text will be displayed in the information display*:
Please refuel! (Please refuel!)
Note
The Text in the information display* goes out only after refuelling and driving a
short distance.
Engine oil pressure
The warning light comes on for a few seconds 4) when the ignition is switched
on.
Stop the vehicle and switch the engine off if the warning light does not go off
after the engine has started or flashes while driving. Check the oil level and top up
with oil as necessary ⇒ page 213.
3 peeps sound as an additional warning signal.
Do not continue your journey if for some reason it is not possible under the
conditions prevailing to top up with oil. Keep the engine switched off and obtain
professional assistance from a specialist garage, otherwise it could lead to severe
engine damage.
Do not drive any further if the warning light flashes even if the oil is at the correct
level. Do not run the engine not at idling speed either. Contact the nearest specialist
garage to obtain professional assistance.
3)
The warning light on vehicles fitted with information display does not come on after
switching the ignition on, but only if a fault exists.
4)
The warning light on vehicles fitted with information display does not come on after
switching the ignition on, but only if a fault exists or the engine oil level is too low.
NKO A5 20 MR08.book Page 29 Wednesday, April 11, 2007 2:54 PM
Instruments and Indicator/Warning Lights30
The following text will be displayed in the information display*:
STOP! Oil Pressure Engine off! Owner's manual
WARNING
• If you must stop for technical reasons, then park the vehicle at a safe
distance from the traffic and switch off the engine and switch on the hazard
warning light system ⇒ page 55.
• The red oil pressure light is not an oil level indicator! One should
therefore check the oil level at regular intervals, preferably after every refueling stop.
Bonnet
The warning light comes on if the bonnet is unlocked.
The warning light comes on even when the ignition is switched off. The warning
light goes out about 15 seconds after locking the vehicle.
Open door*
The warning light comes on if one or several doors are opened or if the boot lid
is opened.
The warning light on vehicles fitted with information display comes on when
switching the ignition off. The warning light goes out about 15 seconds after locking
the vehicle.
The warning light on vehicles fitted with information display goes out after
switching the ignition off.
Engine oil level*
Warning light lights up
If the warning light lights up, the quantity of oil in the engine is probably too low.
Check as soon as possible the oil level or top up ⇒ page 213 with engine oil.
A peep sounds as an additional warning signal.
The following text will be displayed in the information display*:
Check oil level!
The warning light will go out if the bonnet is left open for more than 30 seconds. If
no engine oil has been replenished, the warning light will come on again after
driving about 100 km.
Warning light flashes
A fault on the engine oil level sensor is indicated additionally by an audible signal
and the warning light coming on several times after the ignition has been switched
on.
In this case have the engine inspected without delay by a specialist garage.
The following text will be displayed in the information display*:
Oil sensor workshop!
Tyre inflation pressure*
The warning light lights up, if there is a substantial drop in inflation pressure in
one of the tyres. Reduce the speed and check or correct as soon as possible the
inflation pressure in the tyres ⇒ page 223.
A peep sounds as an additional warning signal.
If the warning light flashes, there is a system fault. Visit the nearest specialist garage
and have the fault rectified.
Further information about tyre pressure-control system ⇒ page 187.
NKO A5 20 MR08.book Page 30 Wednesday, April 11, 2007 2:54 PM
Instruments and Indicator/Warning Lights 31
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
WARNING
• When the warning light lights up, immediately reduce the speed and
avoid sudden steering and brake manoeuvres. Please stop the vehicle
without delay at the nearest possible stop and inspect the tyres and their
inflation pressures.
• Under certain circumstances (e.g. sporty style of driving, wintry or
unpaved roads) the warning light can be delayed or does not light up at
all.
Note
If the battery has been disconnected, the warning light comes on after switching
on the ignition. The warning light must go out after driving a short distance.
Selector lever lock*
If the warning light lights up, operate the brake pedal. This is necessary, in order
to be able to move the selector lever out of the position P or N.
Cruise control system* *
The warning light lights up, when operating the speed regulating system.
Antilock brake system (ABS)
The warning light shows the functionality of the ABS.
The warning light comes on for a few seconds after the ignition has been switched
on or when starting the engine. The warning light goes out after an automatic check
sequence has been completed.
A fault in the ABS
The system is not functioning properly if the ABS warning light does not go out
within a few seconds after switching on the ignition, does not light up at all or lights
up while driving. The vehicle will only be braked by the normal brake system. Visit
a specialist garage as quickly as possible and adjust your style of driving in the
meantime since you will not know how great the damage is.
Three additional warning tones will sound if there is a major fault in the ABS.
Further information about ABS ⇒ page 185, “Antilock brake system (ABS)”.
A fault in the entire brake system
If the ABS warning light comes on together with the brake system warning light
(handbrake must be released), there is a fault not only in the ABS but also in
another part of the brake system ⇒ .
WARNING
• If the brake system warning light comes on together with the ABS
warning light stop the vehicle immediately and check the brake fluid
level in the reservoir ⇒ page 217, “Brake fluid”. If the fluid level has dropped
below the MIN marking, do not drive any further - risk of accident! Contact
a Škoda dealer to obtain professional assistance.
• Pay attention to the following instructions ⇒ page 210, “Working in the
engine compartment” before checking the brake fluid level and opening the
bonnet.
• If the brake fluid is at the correct level, the ABS control function has
failed. The rear wheels may then block very rapidly when braking. In certain
circumstances, this can result in the rear end of the car breaking away - risk
of skidding! Drive carefully to the nearest specialist garage and have the
fault rectified.
Traction control system (TCS)
The warning light comes on for a few seconds when the ignition is switched on.
The warning light comes on when driving when a control cycle is activated.
The warning light will come on and remains on if the TCS is switched off or if there
is a fault in the system.
NKO A5 20 MR08.book Page 31 Wednesday, April 11, 2007 2:54 PM
Instruments and Indicator/Warning Lights32
The fact that the TCS system operates together with the ABS means that the TCS
warning light will also come on if the ABS system is not operating properly.
If the warning light comes on immediately after starting the engine, the TCS
system can be switched off for technical reasons. In this case, the TCS system can
be switched on again by switching the ignition on and off. If the warning light goes
out, the TCS system is fully functional again.
Further information about the TCS ⇒ page 183, “Traction control system (TCS)”.
Note
If the battery has been disconnected and reconnected, the warning light comes
on after switching on the ignition. The warning light must go out after driving a short
distance.
Electronic stability programme (ESP)*
The warning light comes on for a few seconds when the ignition is switched on.
Components of the ESP system also include the Traction Control System (TCS),
Electronic Differential Lock (EDL), and the Antilock Brake System ABS (ABS).
The warning light comes on when driving when a control cycle is activated.
The warning light will come on and remains on if the ESP is switched off or if there
is a fault in the system.
The fact that the ESP system operates together with the ABS means that the ESP
warning light will also come on if the ABS system is not operating properly.
If the warning light comes on immediately after starting the engine, the ESP
system can be switched off for technical reasons. In this case, the ESP system can
be switched on again by switching the ignition on and off. If the warning light goes
out, the ESP system is fully functional again.
Further information on the ESP ⇒ page 181, “Electronic stability programme
(ESP)*”.
Electronic Differential Lock (EDL)*
The EDL is a part of the ESP. A fault in the EDL is indicated by the ESP warning light
in the instrument cluster. Have the vehicle inspected without delay by a Škoda
Service Partner. Further information on the EDL ⇒ page 182, “Electronic Differential Lock (EDS)*”.
Note
If the battery has been disconnected and reconnected, the warning light comes
on after switching on the ignition. The warning light must go out after driving a short
distance.
Alternator
The warning light comes on after the ignition has been switched on. It should go
out after the engine has started.
If the warning light does not go out after the engine has started, or comes on when
driving, drive to the nearest specialist garage. The vehicle batter y will be discharged
in this case so switch off all non-essential electrical components.
Caution
If the warning light comes on when driving and in addition the warning light
(cooling system fault) also comes on in display, you must then stop the car immediately and switch the engine off - risk of engine damage!
Brake system
The warning light flashes or comes on if the brake fluid level is too low, if there
is a fault in the ABS or if the handbrake is applied.
If the warning light flashes (handbrake is not applied), stop and check the brake
fluid level ⇒ .
The following text will be displayed in the information display*:
STOP Brake fluid Owner's manual
NKO A5 20 MR08.book Page 32 Wednesday, April 11, 2007 2:54 PM
Instruments and Indicator/Warning Lights 33
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
If there is a fault in the ABS which also influences the function of the normal brake
system (e.g. distribution of brake pressure), the ABS warning light comes on
together with the brake system warning light . Be aware that not only the ABS but
also another part of th brake system is defective ⇒ .
3 peeps sound as an additional warning signal.
One should get used to high pedal forces, long braking distances and long free play
of the brake pedal when driving to the next specialist garage.
For further information on the brake system ⇒ page 184, “Brakes”.
Handbrake applied
The warning light also comes on if the handbrake is applied. An audible warning
is also given if you drive the vehicle for at least 3 seconds at a speed of more than 6
km/h.
The following text will be displayed in the information display*:
Handbrake on!
WARNING
• Pay attention to the following instructions ⇒ page 210, “Working in the
engine compartment” before checking the brake fluid level and opening the
bonnet.
• If the brake system warning light does not go out a few seconds after
switching on the ignition or comes on when driving, stop immediately and
check the brake fluid in the reservoir ⇒ page 217, “Brake fluid”. If the fluid
level has dropped below the MIN marking, do not drive any further - risk of
accident! Contact a Škoda dealer to obtain professional assistance.
Seat belt warning light*
The warning light comes on after the ignition is switched on as a reminder to
fasten the seat belt. The warning light only goes out if the driver has fastened his
seat belt.
If the seat belt has not been fastened, a permanent warning signal sounds at vehicle
speeds greater than 20 km/h and simultaneously the warning light flashes.
If the seat belt is not fastened during the next 90 seconds, the warning signal is
deactivated and the warning light lights up permanently.
The following text will be displayed in the information display*:
Please fasten seatbelt!
For further information on the seat belts ⇒ page 158, “Seat belts”.
NKO A5 20 MR08.book Page 33 Wednesday, April 11, 2007 2:54 PM
Unlocking and locking34
Unlocking and locking
Key
The vehicle is supplied with two keys. Depending on the equipment fitted, your
vehicle can be equipped with keys without remote control ⇒ fig. 20; with keys with
light* ⇒ page 35, fig. 22 or with keys with radio remote control* ⇒ fig. 21.
Key ri ng
The key ring ⇒ fig. 20 only has the key number on it which is essential for producing
other keys. This number can be used to order replacement keys from the Škoda
Service Partners.
The key ring with the number should be separately and securely kept in safe
keeping since keys can only be replaced if they are lost or damaged by giving this
number. You should also therefore give this key ring to the purchaser when selling
the vehicle.
WARNING
• Always withdraw the key whenever you leave the vehicle - even if it is
only for a short time. This is particularly important if children are left in the
vehicle. The children might otherwise start the engine or operate electrical
equipment (e.g. power windows) - risk of injury!
• Do not withdraw the ignition key from the ignition lock until the vehicle
has come to a stop. The steering lock might otherwise engage unintentionally - risk of accident!
Caution
• Each key contains electronic components; therefore protect them against mois-
ture and severe shocks.
• Keep the groove of the keys absolutely clean as impurities (textile fibres, dust
etc.) have a negative effect on proper operation of the keys and the ignition lock.
Note
Please approach a Škoda Service Partner if you lose a key since he can obtain a new
one for you.
Fig. 20 Set of keys
without remote control
Fig. 21 Radio-operated
key
NKO A5 20 MR08.book Page 34 Wednesday, April 11, 2007 2:54 PM
Unlocking and locking 35
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
Key with light*
Switching on the light
– Press the button in the middle in the direction of arrow .
Replacing battery or bulb
– Insert a coin into the slot of the key housing (arrow ) and press off
the upper part through a rotary movement of the coin.
– Replace the battery or bulb.
– Place the upper and lower part above each other and press the parts
together.
You can obtain replacement batteries and replacement bulbs at a specialist garage.
For the sake of the environment
Dispose of an old battery in accordance with environmental regulations.
Note
The replacement battery must have the same specification as the original battery.
Changing the battery of the radio remote control
Each radio-operated key contains a battery which is housed in the cover
of the transmitter housing ⇒ fig. 23. We recommend that you have
the batteries of the key replaced by a Škoda Service Partner. You should,
however, proceed as follows if you wish to replace the battery yourself:
– Fold open the key.
– Use a thin screwdriver to carefully lever off the front part of the key
⇒ fig. 23 from the transmitter housing .
– Take off the cover of the transmitter housing ⇒ fig. 24 in direction of
arrow.
Fig. 22 Key with light
A1A
2
Fig. 23 Disconnect key
with radio remote
control
Fig. 24 Cover of the
transmitter housing
A
B
AAA
B
NKO A5 20 MR08.book Page 35 Wednesday, April 11, 2007 2:54 PM
Unlocking and locking36
– Take the used battery out of the housing cover.
– Insert the new battery. Ensure that the “+” symbol on the battery is
facing downwards. The correct polarity is also shown on the cover of
the transmitter housing.
– Insert cover with battery in place at the rear of the transmitter housing
and press both parts together.
– Insert the transmitter housing into the front part of the key so that the
two parts lock into each other.
For the sake of the environment
Dispose of an old battery in accordance with environmental regulations.
Note
• The replacement battery must have the same specification as the original
battery.
• If it is still not be possible to unlock or lock the vehicle with the remote control
even after replacing the battery this means that the system has to be synchronised
⇒ page 43.
Electronic immobiliser
The electronic immobiliser prevents the vehicle being operated by an
unauthorised person.
An electronic chip is integrated in the head of the key. The immobiliser is deactivated with the aid of this chip when the key is inserted in the ignition lock. The electronic immobiliser is automatically activated when you withdraw the ignition key
from the lock.
Note
It is only possible to start the engine of your car with a Genuine Škoda key with the
matching code ⇒ page 26.
Child safety lock
The child safety lock prevents the rear door from being opened from
the inside.
The rear doors are equipped with a child safety lock. You can switch the
child safety lock on and off using the vehicle key.
Switching child safety lock on
– Use the vehicle key to turn the slit in the rear door to the left in the
direction of the arrow ⇒ fig. 25.
Switching child safety lock off
– Use the vehicle key to turn the slit to the right against the direction of
the arrow.

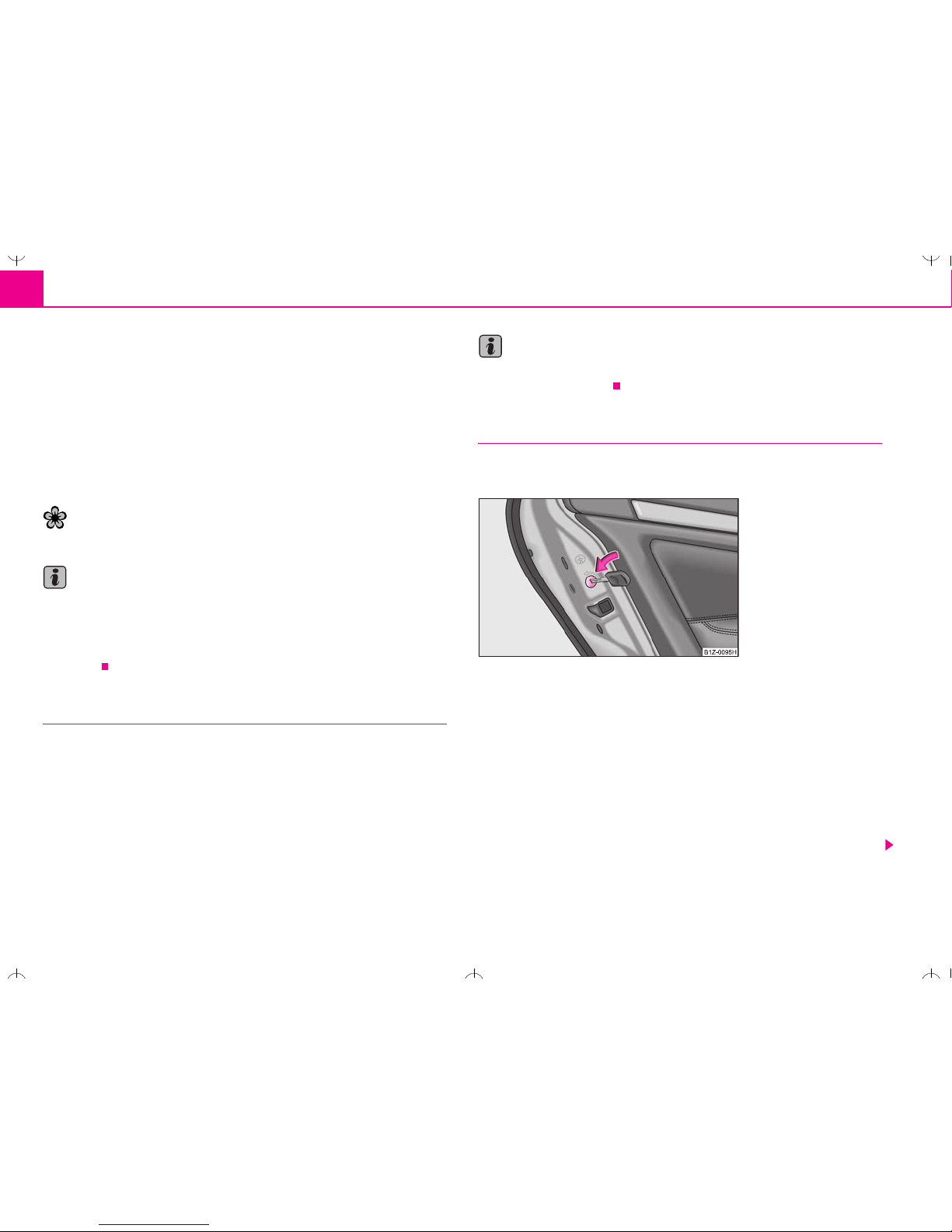

Fig. 25 Child safety locks
on the rear doors
NKO A5 20 MR08.book Page 36 Wednesday, April 11, 2007 2:54 PM
Unlocking and locking 37
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
So long as the child safety lock is switched on it is not possible to open the door
from the inside with the door opening lever. In this case the door can be opened
only from the outside.
Central locking system
Description
Unlocking or locking the vehicle causes all the doors and the fuel filler flap* to be
unlocked or locked at the same time by the central locking system. The boot lid is
unlocked when opening. It can be opened by pressing the hand grip above the
licence plate ⇒ page 40, fig. 29.
Operation of the central locking system is possible:
• from the outside using the vehicle key ⇒ page 38,
• using the buttons for the central locking system ⇒ page 39,
• by using the remote control ⇒ page 42.
Indicator light in the driver's door on vehicles without anti-theft alarm system
After the car is locked, the indicator light flashes after 2 seconds.
After the car is locked with the deactivated safe securing system, the indicator light
flashes only after 30 seconds.
Indicator light in the driver's door on vehicles with anti-theft alarm system
After locking the vehicle the indicator light flashes for 2 seconds fast, then more
slowly.
If the vehicle is locked and the safe securing system ⇒ page 38 is not operating, the
indicator light in the driver door flashes for about 2 seconds fast, goes out and starts
to flash slowly after about 30 seconds.
If the indicator light first of all flashes fast for about 2 seconds, afterwards lights up
for about 30 seconds and then flashes slowly, there is a fault in the system of the
central locking or the interior monitor* ⇒ page 44. Contact a specialist garage to
obtain assistance.
Convenience operation of windows
One can open and close the electrically powered windows when unlocking and
locking the vehicle ⇒ page 47, “Window convenience operation”.
Opening a single door*
This function allows one to just unlock the driver's door. The other doors and the
fuel filler flap* remain locked and are only unlocked after repetitive unlocking.
If you wish, you can have your Škoda Dealer activate the function of the single door
opening mode.
Automatic locking*
All the doors and the boot lid are locked automatically once the car reaches a speed
of about 15 km/h.
If the ignition key is withdrawn, the car is then automatically unlocked again. In
addition, it is possible for the driver to unlock the car by pressing the central locking
button or by pulling the door opening lever.
If you wish, your Škoda Dealer can activate the function of the automatic locking
mode.
WARNING
Locking the doors prevents involuntary opening in an exceptional situation
(an accident). Locked doors prevent unwanted entry into the vehicle from
outside, for example at road crossings. Locked doors do, however, make it
more difficult for rescuers to get into the vehicle in an emergency - danger to
life!
Note
• In the event of an accident in which the airbags are deployed, the locked doors
are automatically unlocked in order to enable rescuers to gain access to the vehicle.
• Only the front doors can be unlocked and locked using the key if the central
locking system fails. You can lock or unlock manually the other doors and the boot
lid.
− Emergency locking of the door ⇒ page 40.
NKO A5 20 MR08.book Page 37 Wednesday, April 11, 2007 2:54 PM
Unlocking and locking38
− Emergency unlocking of the boot lid ⇒ page 41.
Safe securing
The central locking system is equipped with a safe securing system. Locking the
vehicle from the outside causes the door locks to be automatically blocked. It is not
possible to open the doors with the door handle either from the inside or from the
outside. This acts as an effective deterrent for attempts to break into your vehicle.
You can deactivate the safe securing system. This is done by locking the vehicle with
the key or radio-operated key twice within 2 seconds.
If the safe securing system is not operating:
• the indicator light in the driver door flashes for about 2 seconds fast, goes out
and starts to flash slowly after about 30 seconds,
• is the fuel filler flap unlocked.
The safe securing system is again activated the next time the vehicle is unlocked and
locked again.
The doors can be opened from the inside if the vehicle is locked and the safe
securing system is deactivated:
• The door is unlocked by actuating the door-opening lever.
• The door opens upon actuating the door-opening lever again.
WARNING
If the vehicle is locked from the outside and the safe securing system is activated, there must not be any person and animals in the vehicle as it is then
not possible to open either a door or a window from the inside. The locked
doors make it more difficult for rescuers to get into the vehicle in an emergency - hazard!
Note
The anti-theft alarm system* is also activated with the deactivated safe securing
system when locking the vehicle. The interior monitor* is however not activated.
Unlocking the vehicle using the key
– Turn the key in the lock of the driver's door to the left into the opening
position ⇒ fig. 26.
– Pull on the door handle and open the door.
• All the doors (only the driver's door on vehicles with anti-theft alarm system)
and the fuel filler flap* are unlocked.
• The boot lid is then unlocked.
• The switched on interior lights come on over the door contact.
• The safe securing system is deactivated.
• The windows are opened provided the key is held in the opening position*. On
vehicles fitted with anti-theft alarm system the window operation is only possible
45 seconds after deactivation of the warning system.
• The indicator light in the driver's door stops flashing if the vehicle is not fitted
with an anti-theft alarm system* ⇒ page 43.
Note
If the vehicle is equipped with an anti-theft alarm system*, you must unlock the
vehicle by inserting the key into the driver door you then have to insert the key into
the ignition lock and switch the ignition on within 15 seconds after opening the
Fig. 26 Turning the key
for unlocking and locking
the vehicle
A
A
NKO A5 20 MR08.book Page 38 Wednesday, April 11, 2007 2:54 PM
Unlocking and locking 39
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
door. The alarm will be triggered if you do not switch on the ignition within 15
seconds.
Closing the vehicle with the key
– Turn the key in the lock of the driver door to the right into the closing
position ⇒ page 38, fig. 26.
• The doors, the boot lid and the fuel filler flap* are locked.
• The switched on interior lights will switch off over the door contact.
• The windows and the electric sliding/tilting roof* are closed provided the key is
held in the locking position.
• The safe securing system is activated immediately.
• The indicator light in the driver door begins flashing.
Note
The opened driver door cannot be locked. It must be locked separately after closing
it.
Buttons for the central locking system
If the vehicle was not locked from outside, you can also unlock and lock
it with the rocker switch on the centre console without the ignition
switched on.
Locking all doors and the boot lid
–Press button ⇒ fig. 27. The symbol
in the button comes on.
Unlocking all doors and the boot lid
–Press button ⇒ fig. 27. The symbol
goes out in the button.
The following applies if you have locked your vehicle using the button :
• It is not possible to open the doors or the boot lid from the outside (safety
feature, e.g. when stopping at traffic lights etc.).
• You can unlock the doors individually from the inside and open them by pulling
the door opening lever.
• If the driver door is opened, it cannot be locked, in order to avoid inadvertently
being locked out of the vehicle You then have to lock a door separately after closing
it.
• In the event of an accident in which the airbags are deployed, the locked doors
are automatically unlocked from the inside in order to enable rescuers to gain
access to the vehicle.
If the ignition is switched off, you can conveniently close or open the windows by
pressing and holding the button or ⇒ page 47.
WARNING
The central locking system also operates if the ignition is switched off. All the
doors and the boot lid are locked. Children should never be left unattended
in the vehicle since it is difficult to provide assistance from the outside when
the doors are locked. Locked doors make it difficult for rescuers to get into
the vehicle in an emergency - hazard!
A
B
Fig. 27 Centre console:
Buttons for central
locking
A1A
2
A
1
A1A
2
NKO A5 20 MR08.book Page 39 Wednesday, April 11, 2007 2:54 PM
Unlocking and locking40
Note
The door opening lever and the buttons for the central locking system do not
operate if the safe securing system is activated.
Emergency locking of the doors
An emergency locking mechanism is located on the rear side of the doors
which have no locking cylinder; it is only visible after opening the door.
Locking
– Remove the panel ⇒ fig. 28.
– Insert the key into the opening under the panel and press the stopping
lever as far as the stop toward the inside.
– Re-insert the panel.
After closing the door, you can no longer open it from outside. If the child safety
lock is not switched on, it is possible to open the door from the inside by pulling
twice on the door handle. If the child safety lock is switched on, it is necesary to also
open the door from outside besides pulling twice on the inner door handle.
Boot lid
Open the boot lid by pressing the hand grip above the licence plate after
unlocking the vehicle using the key or the radio remote control.
Opening the boot lid
– Press on the handle ⇒ fig. 29 and at the same time raise the boot lid.
Closing the boot lid
– Pull the boot lid down and close it with a slight swing ⇒ .
A handle which makes the closing easier is located on the inner paneling of the
boot lid.
WARNING
• Ensure that the lock is properly engaged after closing the boot lid. Other-
wise, the boot lid might open suddenly when driving even if the boot lid lock
is closed - risk of accident!
• Never drive with the boot lid fully opened or slightly ajar otherwise
exhaust gases may get into the interior of the vehicle - risk of poisoning!
• Do not press on the rear window when closi ng the boot lid, it could crack
- risk of injury!
Fig. 28 Rear door: Emergency locking of the door
A
A
A
B
Fig. 29 Handle of boot
lid
NKO A5 20 MR08.book Page 40 Wednesday, April 11, 2007 2:54 PM
Unlocking and locking 41
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
Note
• After closing the boot lid, it is automatically locked within 2 seconds and
the anti-theft alarm system* is activated. This applies only if the vehicle was
locked before closing the boot lid.
• The function of the hand grip above the licence plate is deactivated when
starting off or as of a speed of more than 5 km/hour for vehicles with central
locking. The function of the hand grip is activated again when the vehicle has
stopped and a door is opened.

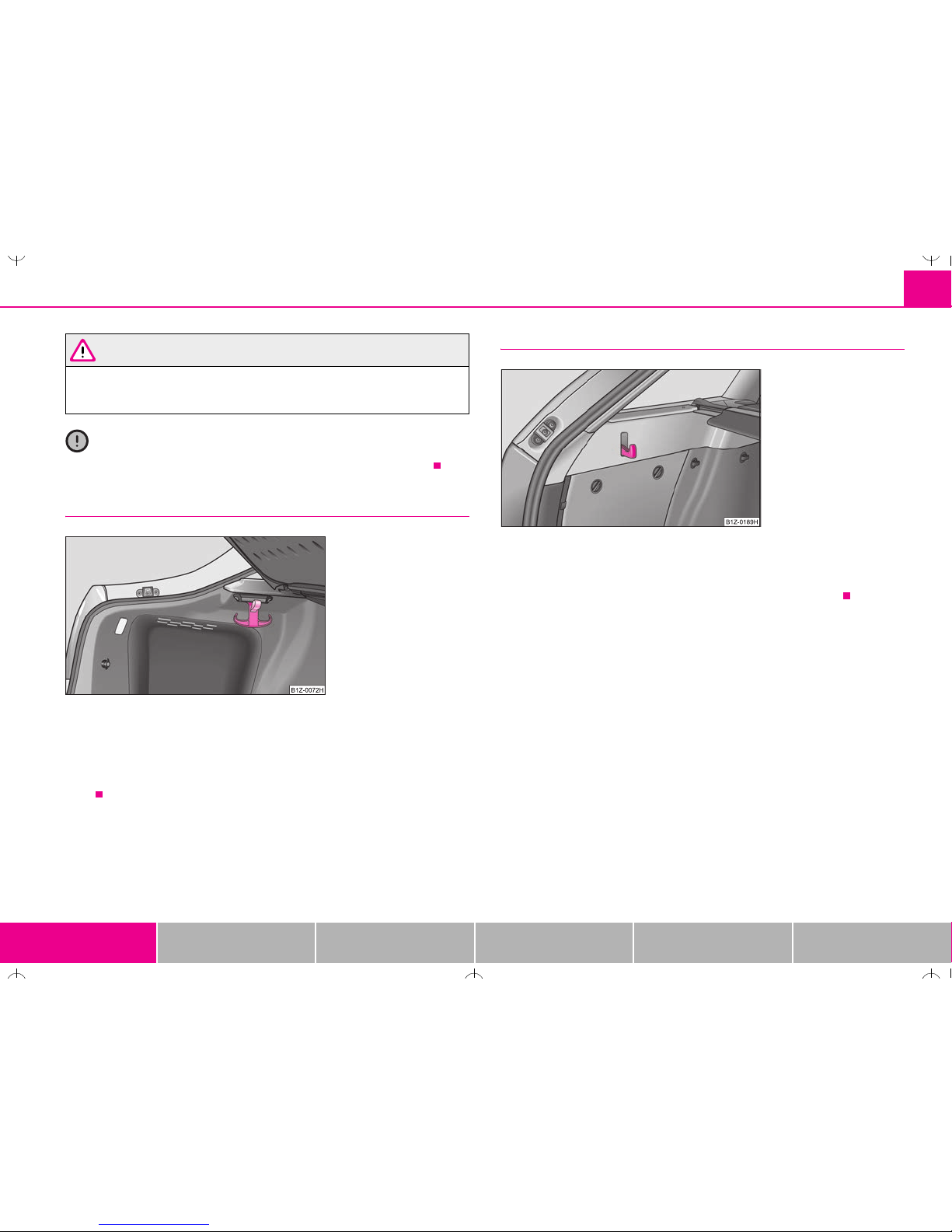

Emergency unlocking of the boot lid (Octavia)
If there is a fault in the central locking, you can open the boot lid as
follows:
– Fold the rear seats forwards ⇒ page 73.
– Take out the warning triangle* ⇒ fig. 30.
– Press the operating lever in the direction of arrow in order to unlock
the boot lid. The operating lever is located under the panel .
– Open the boot lid/luggage compartment door from outside.
Emergency unlocking of the boot lid (Estate car)
If there is a fault in the central locking, you can open the boot lid as
follows:
– Fold the rear seats forwards ⇒ page 73.
– Open up the cover of the lock upwards ⇒ fig. 31.
– Move the operating lever with the aid of a narrow object e.g.
screwdriver up to the stop in the direction of arrow; the boot lid is then
unlocked.
– Open the boot lid/luggage compartment door from outside.
Remote control*
Description
You can use the remote control:
• to unlock and lock the car,
• unlocking boot lid,
• opening and closing window.
Fig. 30 Emergency
unlocking of the boot lid
A
A
A
B
Fig. 31 Emergency
unlocking of the boot lid
A
A
NKO A5 20 MR08.book Page 41 Wednesday, April 11, 2007 2:54 PM
Unlocking and locking42
The transmitter with the battery is housed in the handle of the master key. The
receiver is located in the interior of the car. The operating range of the remote
control is 10 metres but this range can be reduced if the batteries are weak.
The master key has a fold-open key bit which can be used for unlocking and locking
the car manually and also for starting the engine.
If a lost key is replaced or if the receiver unit has been repaired or a new unit
installed, it is then necessary for a Škoda Dealer to initialise the system. Only after
this is it possible to again use the remote control.
Note
• The remote control is automatically deactivated when the ignition is switched
on.
• The operation of the remote control may temporarily be affected by interfer-
ence from transmitters close to the car and which operate in the same frequency
range (e.g. mobile phone, TV transmitter).
• The battery must be replaced, ideally by a Škoda Service Partner, if the central
locking or anti-theft alarm system does react to the remote control at less than 3
metres away.
Unlocking and locking car
Unlocking the vehicle
– Press button for about 1 second.
Locking the vehicle
– Press button for about 1 second.
Deactivating safe securing system
– Press button twice in 3 seconds. Further information ⇒ page 38.
Boot lid remote release
– Press button for about 2 second ⇒ fig. 32. Further information
⇒ page 40.
Folding out of the key
– Press button .
Folding up of the key
– Press button and collapse the key bit in the housing.
The turn signal lights flash twice as confirmation that the vehicle has been
unlocked. The vehicle will lock again automatically if you unlock the vehicle using
button but do not open a door or the boot lid within the next 30 seconds. This
function is intended to prevent the car being unlocked unintentionally.
In addition, when the car is unlocked, the power seats and exterior mirrors* move
into the position assigned to this key. The stored setting of driver seat and exterior
mirrors is retrieved.
The turn signal lights flash once to confirm that the vehicle has been correctly
locked. If the turn signal lights do not flash, check the doors, bonnet and boot lid
again to ensure that they are closed. If the doors, the bonnet or the boot lid remain
open when the anti-theft alarm system is activated, the turn signal lights do not
flash until after they have been closed.
When the vehicle is unlocked or locked, the interior lights in the door contact are
automatically switched on or off.
Fig. 32 Radio-operated
key
A1A3A2A2A4A
4
A
1
NKO A5 20 MR08.book Page 42 Wednesday, April 11, 2007 2:54 PM
Unlocking and locking 43
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
WARNING
If the vehicle is locked from the outside and the safe securing system is activated, there must not be any person in the vehicle as it is then not possible
to open either a door or a window from the inside. The locked doors make it
more difficult for rescuers to get into the vehicle in an emergency - hazard!
Note
• Operate the radio remote control only when the doors and boot lid are closed
and you have visual contact with the vehicle.
• Once in the car, you must not press the lock button of the radio remote
control before inserting the key into the ignition lock in order to avoid the car being
inadvertently locked and, in addition, the anti-theft alarm system* being switched
on. Should this happen, press the unlock button of the radio remote control.
Synchonisation of the remote control
If the vehicle cannot be unlocked by actuating the remote control system then it is
possible that the code in the key and the control unit in the vehicle are no longer
synchronised. This can occur when the buttons on the radio-operated key are actuated a number of times outside of the operative range of the equipment or the
battery on the remote control was replaced.
This means it is necessary to synchronise the code as follows:
• Press any button on the remote control.
• pressing of the button means that the door will unlock with the key within 1
minute.
Anti-theft alarm system*
Description
The anti-theft alarm system increases the level of protection against people seeking
to break into the vehicle. The system triggers audible and visual warning signals if
an attempt is made to break into the vehicle.
How is the alarm system activated?
The anti-theft alarm system is activated automatically when the vehicle is locked
with the key on the closed driver's door or by using the radio remote control. It is
activated 30 seconds after closing the door.
How is the alarm system deactivated?
The anti-theft alarm system is deactivated if the vehicle is unlocked by only using
the radio remote control. The vehicle is automatically locked again if the vehicle is
not opened within 30 seconds after reactivating the anti-theft alarm system.
Once you unlock the vehicle by inserting the key into the driver door you then have
to insert the key into the ignition lock and switch the ignition on within 15 seconds
after opening the door in order to deactivate the anti-theft alarm system. The
alarm will be triggered if you do not switch on the ignition within 15 seconds.
When is the alarm triggered?
The following security areas of the locked vehicle are monitored:
• Bonnet,
• Boot lid,
• Doors,
• Ignition lock,
• Angle of the vehicle* ⇒ page 44,
• Vehicle interior* ⇒ page 44,
• A drop in voltage of the on-board power supply.
An alarm is immediately triggered if either of the two battery terminals is disconnected while the anti-theft alarm system is activated.
NKO A5 20 MR08.book Page 43 Wednesday, April 11, 2007 2:54 PM
Unlocking and locking44
How is the alarm switched off?
You switch the alarm off if you unlock the car with the radio remote control in the
key or if you switch the ignition on.
Note
• The working life of the alarm siren is 6 years. More detailed information is avail-
able from your Škoda Service Partner.
• Before leaving the car, check that all the doors, windows and the electric
sliding/tilting roof* are properly closed in order to ensure that the anti-theft alarm
system is fully operational.
• Coding of the radio remote control and the receptor part precludes the use of
the radio remote control from other vehicles.
Interior monitor*
The interior monitor detects movements inside the car and then triggers the alarm.
You must switch the interior monitor off if, for example, a child or an
animal inside the car might trigger the alarm.
Deactivation of interior monitor
– Switch off the ignition.
– Press the button
at the c entre c olumn on the driv er sid e ⇒ fig. 33,
the symbol
which lights up in the button changes from red to
orange.
– Lock the vehicle within 30 seconds.
The interior monitor is switched on again automatically the next time the car is
locked.
Note
• You can also switch off the interior monitor, by deactivating the safe securing
system ⇒ page 38.
• The version of the button can differ depending on the equipment installed in
the vehicle.
• For vehicles, which are equipped with towing protection monitoring*, this func-
tion is also deactivated ⇒ page 44 by the button on the center column at the
driver's side.
Towing protection monitoring*
The towing protection monitoring should be switched off, if the vehicle is
transported (e.g. by rail or by ship) or should be towed.
Switching off the towing protection monitoring
– Switch off the ignition.
– Press the button
on the centre column at the driver's side
⇒ fig. 33, the symbol
lights up red in the button.
– Lock the vehicle within 30 seconds.
The towing protection monitoring is switched on again automatically the next time
the car is locked.
Fig. 33 Interior monitor
pushbutton
NKO A5 20 MR08.book Page 44 Wednesday, April 11, 2007 2:54 PM
Unlocking and locking 45
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
Note
The interior monitor* is also switched off ⇒ page 44, “Interior monitor* ” by
switching the towing protection monitoring off.
Power windows*
Buttons on the driver's door
The power windows operate only when ignition is switched on.
Opening a window
– A wind ow is o pene d by pre ssing ligh tly on the res pect ive bu tton in the
door. The process stops when one releases the button.
– Additionally you can open the window automatically (fully opened) by
pressing the button up to the stop. Renewed pressing of the button
causes the window to stop immediately.
Closing a window
– A window is closed through pulling lightly on the respective button in
the door. The closing process stops when one releases the button.
– Additionally you can close the window automatically (fully closed) by
pulling the button up to the stop. Renewed pulling of the button
causes the window to stop immediately.
The button for the individual windows is located in the armrest of the driver's door
⇒ fig. 34, front passenger door and in the rear doors* ⇒ page 46, fig. 35.
Buttons for the power window in the armrest of the driver's door
Button for the power window in the driver's door
Button for the power window in the front passenger's door
Button for the power window in the rear door on the right*
Button for the power window in the rear door on the left*
Safety pushbutton*
Safety pushbutton*
You can deactivate the switches for power windows at rear doors by pressing the
safety pushbutton ⇒ fig. 34. The buttons for power windows at rear doors are
activated again by pressing the safety pushbutton again.
If the buttons for the rear doors are deactivated, the indicator light in the safety
switch lights up.
WARNING
• If you lock the vehicle from the outside, do not leave any person in the
vehicle since it is no longer possible to open the windows from the inside in
an emergency.
• The system is fitted with a force limiter ⇒ page 46. The closing process
will be stop if an obstruction is detect ed and the window will open again. You
should then take particular care when closing the windows! You may otherwi se s uff er s eve re i nju rie s a s a re sul t o f ge tti ng a n ar m, for exa mpl e, j amm ed
in the window!
• It is recommended to deactivate the electrically operated power
windows in the rear doors (safety pushbutton) ⇒ fig. 34 when children
are being transported on the rear seats.
Fig. 34 Buttons on the
driver's door
AAABACADA
S
A
S
A
S
ASA
S
NKO A5 20 MR08.book Page 45 Wednesday, April 11, 2007 2:54 PM
Unlocking and locking46
Note
• After switching the ignition off, it is still possible to open or close the windows
for a further 10 minutes. The automatic window closing will not operate during this
time. The power windows are switched off completely once you open the driver or
front passenger door.
• When driving always use the existing heating, air conditioning and ventilation
system for ventilating the interior of the vehicle. If the windows are opened, dust as
well as other dirt can get into the vehicle and in addition the wind noise is more at
certain speeds.
Button in front passenger door and in rear doors
A button for the relevant window is provided in these doors.
Opening a window
– Lightly press the appropriate switch down and hold it until the
window has moved into the desired position.
– Additionally you can open the window automatically (fully opened) by
pressing the switch down up to the stop. Renewed pressing of the
button causes the window to stop immediately.
Closing a window
– Lightly press the appropriate switch up and hold it until the window
has moved into the desired position.
– Additionally you can close the window automatically (fully closed) by
pressing the switch up up to the stop. Renewed pressing of the button
causes the window to stop immediately.
WARNING
The system is fitted with a force limiter ⇒ page 46. The closing process will
be stop if an obstruction is detected and the window will open again. You
should then take particular care when closing the windows! You may otherwise suffer severe injuries as a result of getting an arm, for example, jammed
in the window!
Note
• After switching the ignition off, it is still possible to open or close the windows
for a further 10 minutes. The automatic closing and opening functions will not
operate during this time. The power windows are switched off completely once you
open the driver or front passenger door.
• If the child safety lock is switched on, the lighting of the switch for the window
lifter in the rear doors* is not activated.
Force limiter of the power windows
The electrically operated power windows are fitted with a force limiter. It reduces
the risk of bruises or injuries when closing the windows.
If there is an obstacle, the closing process is stopped and the window goes down by
several centimeters.
If the obstacle prevents the window from being closed during the next 10 seconds,
the closing process is interrupted once again and the window goes down by several
centimeters.
Fig. 35 Position of
button in front passenger
door
NKO A5 20 MR08.book Page 46 Wednesday, April 11, 2007 2:54 PM
Unlocking and locking 47
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
You must try to close the window once again within 10 seconds after the window
has gone down twice, even if the obstacle was not yet removed, the closing p rocess
is stopped. During this time it is not possible to automatically close the window. The
force limiter is still switched on.
The force limiter is only switched off, if you attempt to close the window within the
next 10 seconds - the window closes now with full strength!
If you wait longer than 10 seconds, the force limiter is switched on again.
WARNING
You should take particular care when closing the windows! You may otherwi se s uff er s eve re i nju rie s a s a re sul t of getting an arm, for example, jammed
in the window!
Window convenience operation
You can open and close the electrically powered windows as follows
when unlocking and locking the vehicle (just closing of the sliding roof).
Opening a window
– Turn the key in the lock of the driver door into the opening position or
press the opening button of the radio remote control until all the
windows are open.
Closing a window
– Turn the key in the lock of the driver door into the closing position or
press the closing button of the radio remote control until all the
windows are closed.
You can interrupt the opening or closing operation of the windows immediately by
releasing the key or the closing button.
WARNING
The system is fitted with a force limiter ⇒ page 46. The closing process will
be stop if an obstruction is detected and the window will open again. You
should then take particular care when closing the windows! You may otherwi se s uff er s eve re i nju rie s a s a re sul t o f ge tti ng a n ar m, for exa mpl e, j amm ed
in the window!
Note
• On vehicles fitted with anti-theft alarm system the convenience window
opening is possible by means of the key in the lock only 45 seconds after deactivating the warning system or after activating the anti-theft alarm system.
Operational faults
Electrically operated power windows do not operate
If the battery of the car has been disconnected and then reconnected, the electrically operated power windows do not operate. The system must be activated.
Proceed as follows in order to re-establish the function:
• Turn the key in the lock of the driver door into the closing position and hold it
there until all of the windows are closed.
• Release the key.
• Once again insert the key and turn it into the closing position for about 3
seconds.
Operation in winter
Ice accumulating on the surface of the windows during the winter may result in a
greater resistance when closing the windows and the window may stop and move
back several centimetres
Proceed as follows to close the window fully:
• Turn the key in the lock of the driver door into the closing position and hold it
there until all of the windows are closed.
• repeat this operation until the window stops.
NKO A5 20 MR08.book Page 47 Wednesday, April 11, 2007 2:54 PM
Unlocking and locking48
WARNING
The system is fitted with a force limiter ⇒ page 46. The closing process will
be stop if an obstruction is detected and the window will open again. You
should then take particular care when closing the windows! You may otherwi se s uff er s eve re i nju rie s a s a re sul t o f ge tti ng a n a rm, for exa mpl e, j amm ed
in the window!
Electric sliding/tilting roof*
Description
The sliding/tilting roof is operated by means of the control dial ⇒ fig. 36 and only
functions when the ignition is switched on. The control dial has a number of fixed
positions.
After switching the ignition off, it is still possible to open or close the sliding/tilting
roof for a further 10 minutes. It is no longer possible to operate the sliding/tilting
roof after opening or closing one of the front doors, however.
Note
• If the battery has been disconnected and reconnected, it is possible that the
sliding/tilting roof does not close fully. Here you have to set the control dial to the
switch position and press it forward for about 10 seconds.
• It is necessar y after each emergency operation (using crank handle) to move the
sliding/tilting roof into the basic position. Here you have to set the control dial to
the switch position and press it forward for about 10 seconds.
Opening and tilting
Comfort position
– Turn the switch to position ⇒ fig. 36.
Opening roof fully
– Turn the switch to position and hold it in this position (spring-
tensioned position).
Tilting roof
– Turn the switch to position .
The wind noise in the comfort position is less than when the roof is fully opened.
The sun screen is also opened automatically when the roof slides open. You can
slide the sun screen into the opened or closed position by hand when the
sliding/tilting roof is closed.
Caution
It may be necessary during winter to remove any ice and snow in the area of the
sliding/tilting roof before opening it in order to prevent damaging the opening
mechanism.
Fig. 36 Control dial for
the power sliding/ti lting
roof
A
A
A
A
ACABA
D
NKO A5 20 MR08.book Page 48 Wednesday, April 11, 2007 2:54 PM
Unlocking and locking 49
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
Closing
Sliding closed/closing the sliding/tilting roof
– Turn the switch to position ⇒ page 48, fig. 36.
Safety closing
The sliding/tilting roof is equipped with an overload protection system. If an
obstacle (e.g. ice) prevents closing, the sliding/tilting roof stops and opens
completely. You can close the sliding/tilting roof completely without overload
protection by pressing the switch to the position ⇒ page 48, fig. 36 at the front
for as long as it takes for the sliding/tilting roof to shut completely ⇒ .
WARNING
Close the sliding/tilting roof carefully - risk of injury!
Convenience operation
You can also close an open sliding/tilting roof from the outside.
– Turn the key in the lock of the driver door into the closing position or
press the closing button of the remote control until the sliding/tilting
roof is closed ⇒ .
The closing process stops when one releases the key or the closing button.
WARNING
Close the sliding/tilting roof carefully - risk of injury! The overload protection system does not function with the convenience closing.
Emergency operation
You can close and/or open the sliding/tilting roof by hand if the system is
defect.
– Position the flat blade of a screwdriver carefully against the rear edge
of the cover of the electrical drive ⇒ fig. 37.
– Pull the cover down.
– Insert an Allen key, Group 4, up to the stop into the opening and close
and/or open the sliding/tilting roof ⇒ fig. 38.
A
A
A
A
Fig. 37 Detail of the
headliner: point for positioning screwdriver
Fig. 38 Detail of the
headliner: Emergency
operation
NKO A5 20 MR08.book Page 49 Wednesday, April 11, 2007 2:54 PM
Unlocking and locking50
– Press on the cover again by first of all inserting the plastic lugs and
then pushing the cover up.
– Have the fault rectified by a specialist workshop.
Note
It is necessary after each emergency operation (using Allen key) to move the
sliding/tilting roof into the basic position. Here you have to press the control dial
forward to switch position ⇒ page 48, fig. 36 for about 10 seconds.
A
A
NKO A5 20 MR08.book Page 50 Wednesday, April 11, 2007 2:54 PM
Lights and Visibility 51
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
Lights and Visibility
Lights
Switching lights on and off
Switching on side lights
– Turn the light switch into position
.
Switching on the low beam and main beam
– Turn the light switch into position
.
– Press the main beam lever forward in order to switch on the main
beam ⇒ page 56, fig. 45.
Switching off all lights
– Turn the light switch into position.
Low beam comes on only if the ignition is switched on. After switching off the ignition, the low beam is switched off automatically and only the side lights come on.
For vehicles which are equipped with the function Coming/Leaving-Home*
⇒ page 53, the side lights also go out.
On models fitted with right-hand steering the position of certain switches differs
from that shown in ⇒ fig. 39. The symbols which mark the switch positions are
identical, however.
In certain countries, the low beam is on a reduced brightness as well as the side
lights, when the ignition is switched on.
WARNING
Never drive with side lights on - risk of accident! The side lights are not
bright enough to light up the road sufficiently in front of you or to be seen by
other oncoming traffic. In this case, always switch on the low beam when it
is dark or if visibility is poor.
Note
• An audible warning will sound if you withdraw the ignition key and open the
driver's door when the vehicle lights are still on.
• The acoustic warning signal is switched off over the door contact when the
driver's door is closed (ignition off). The vehicle can be parked with the side lights
on.
• If you park the car for a lengthy period, we recommend switching off all lights,
or leaving only the side lights switched on.
• The switching on of the described lights should only be undertaken in accord-
ance with the legal requirements.
• If a fault occurs in the light switch, the low beam comes on automatically
• In the event of cool or humid weather conditions, the headlights can be misted
up from inside.
− The temperature difference between interior and external area of the head-
light lenses is decisive.
− When the driving lights are switched on, the light outlet surfaces are free
from mist after a short period. The headlight lenses can possibly mist up at the
border areas.
Fig. 39 Dash panel: Light
switch
NKO A5 20 MR08.book Page 51 Wednesday, April 11, 2007 2:54 PM
Lights and Visibility52
− It also concerns reverse light and turn signal lights.
− This mist has no influence on the life of the lighting system.
Automatic driving lamp control*
Switching on automatic driving lamp control*
– Turn the light switch ⇒ page 51, fig. 39 into position
.
Switching off automatic driving lamp control*
– Turn the light switch into position.
If the light comes on when the driving lamp control is switched on, the side lights
and low beam as well as licence plate light light up at the same time.
You can also switch on the side lights, fog lights and rear fog light with the light
switch .
If the automatic driving lamp control* is switched on, the light is controlled by a
light sensor in the mount of the interior rear mirror. If the light intensity drops below
the set value, e.g when driving during the day into a tunnel, the low beam and the
side lights as well as the licence plate light come on automatically. If the light intensity increases again, the lights switch off automatically.
Motorway lights
If the automatic driving lamp control* has been switched on and the vehicle speed
is over 140 km/h for at least 10 seconds, the side lights and low beam are switched
on automatically.
If the vehicle speed is below 65 km/h for at least 2 minutes, the lights are switched
off.
Rain lights
If you move the windshield wiper lever in the position slow wipe for more than 5
seconds, the side lights and low beam are automatically switched on. The light is
switched off when the windshield wiper lever is no longer than 4 minutes in the
position for slow or intermittent wipe.
WARNING
The automatic driving lamp control only operates as a support. The driver is
not released from his responsibility to inspect the light and if necessary to
switch on the light depending on the light conditions. The light sensor
cannot detect for example rain or snow. Always switch on the low beam
under these conditions as well as when driving in the dark!
Note
• Do not affix any stickers in front of the light sensor, so that you do not impair its
function or put it out of operation.
• The same principles as for using the automatic driving lamp control also apply
to the light which is switched on manually ⇒ page 51.
Fig . 40 Das h pa nel : Lig ht
switch
NKO A5 20 MR08.book Page 52 Wednesday, April 11, 2007 2:54 PM
Lights and Visibility 53
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
Fog lights*
Switching on the fog lights
– First of all turn the light switch into position
or ⇒ fig. 41.
– Pull the light switch into position .
When the fog lights are operating, the symbol next to the light switch is illuminated more intensely.
Fog lights with integrated turning light*
The turning light is intended for a better illumination of the vehicle
close range when turning, parking etc.
The turning light is controlled in line with the steering angle or by switching on the
turn signal light in the following circumstances:
• Vehicle speed max. 40 km/h,
• low beam switched on,
• no reverse gear engaged,
• no hazard warning light system switched on.
Note
If the fog lights are switched on, the function of the turning light is not active.
Rear fog light
Switching on the rear fog light
– First of all turn the light switch into position
or ⇒ fig. 41.
– Pull the switch into position .
The rear fog light warning light ⇒ page 24 lights up in the instrument cluster
when the fog light is switched off.
Only the rear fog light of the trailer lights up automatically when you are towing a
trailer using a factory-fitted towing device which is fitted with the rear fog light.
The rear fog light is located in the rear light array on the driver's side.
Caution
The rear fog light should only be switched on if visibility is particularly poor
(conform with any varying legal provisions) to avoid dazzling vehicles behind your
vehicle.
Coming/Leaving Home Function*
This function makes it possible to switch on the lights for a short time after
leaving the vehicle or when approaching the vehicle.
Switching on Coming Home Function
– Switch off the ignition once the low beam is switched on.
– Leave the light switch in the position for low beam
.
– Close all the doors and the boot lid.
Fig. 41 Dash panel: Light
switch
A
1
A
2
NKO A5 20 MR08.book Page 53 Wednesday, April 11, 2007 2:54 PM
Lights and Visibility54
Switching on Leaving Home Function
– Unlock the vehicle with the radio remote control - the lights come on.
Depending on equipment fitted the function Coming/Leaving Home switches on
the following lights:
• Parking lights,
• Low beam,
• Entry lighting in the exterior mirrors,
• Licence plate light.
Coming Home Function
The function Coming Home is only switched on, if the low beam was switched on
when the ignition is on.
The lights go out 30 seconds after closing all the doors and the boot lid.
If a door or the boot lid remains open, the lights go out 30 seconds after switching
off the ignition.
The light switch remains in the position for low beam also after switching off the
Coming Home Function, all lights are automatically switched off.
On vehicles fitted with automatic driving lamp control you can also switch the light
switch in the position ⇒ page 51, fig. 39. The function Coming Home is
controlled with the light sensor in the mount of the interior rear mirror. If the light
intensity is higher than the set value of the light sensor, the Coming Home Function
is not switched on after switching off the ignition.
Leaving Home Function
The function Leaving Home is controlled with the light sensor in the mount of the
interior rear mirror. If the light intensity is higher than the set value of the light
sensor, the Leaving Home Function is not switched on after unlocking the vehicle
with the radio remote control.
After unlocking the vehicle with the radio remote control, the lights come on for 30
seconds. The Leaving Home Function is also switched off after the ignition is
switched on and after locking the vehicle.
If no door is opened within 30 seconds, the lights go out and the vehicle is locked
automatically.
Note
• If the Coming/Leaving Home Function is switched on constantly, the battery will
be heavily discharged particularly in short-haul traffic.
• The switching on of the described lights should only be undertaken in accord-
ance with the legal requirements.
• You can change the illumination period for the Coming/Leaving Home Function
by means of the information display* ⇒ page 22.
Instrument lighting*
You can adjust the brightness of the instrument lighting.
Instrument lighting
– Switch on the light.
– Turn the control dial ⇒ fig. 42 to the desired intensity of the instru-
ment lighting
5)
.
5)
For the information display* ⇒ page 18 the intensity of the lighting is automatically set. The
setting using the control dial ⇒ fig. 42 is only possible when driving in the dark.
Fig. 42 Dash panel:
Instrument lighting
NKO A5 20 MR08.book Page 54 Wednesday, April 11, 2007 2:54 PM
Lights and Visibility 55
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
Headlamp range adjustment
Once the low beam is switched on you can then adapt the range of
the headlights to the load of the vehicle.
– Turn the control dial ⇒ fig. 43 until you have adjusted the low beam
so that oncoming traffic is not dazzled.
Settings
The positions correspond approximately to the following vehicle loads:
Front seats occupied, luggage compartment empty.
All seats occupied, luggage compartment empty.
All seats occupied, luggage compartment laden.
Driver seat occupied, luggage compartment laden.
Caution
Set the headlight beam adjustment in such a way as to avoid dazzling oncoming
traffic.
Note
Headlights fitted with Xenon bulbs* adapt automatically to the load and driving
state of the vehicle (e.g. accelerating, braking) when the ignition is switched on and
when driving. Vehicles which are not equipped with Xenon bulbs* do not have a
headlight beam adjustment control.
Switch for hazard warning lights
–Press switch ⇒ fig. 44 to switch the hazard warning light system on
or off.
All the turn signal lights on the vehicle flash at the same time when the hazard
warning light system is switched on. The indicator light for the turn signals and the
indicator light in the switch also flash at the same time. You can also switch on the
hazard warning light system if the ignition is switched off.
The hazard warning light system is switched on automatically if an airbag is
deployed in the event of an accident.
Please comply with any legal requirements when using the hazard warning light
system.
Fig. 43 Dash panel:
Lights and Visibility
A
-
A1A
2
A
3
Fig. 44 Dash panel:
Switch for hazard
warning lights
NKO A5 20 MR08.book Page 55 Wednesday, April 11, 2007 2:54 PM
Lights and Visibility56
Note
Switch on the hazard warning light system if, for example:
• you encounter traffic congestion,
• your vehicle breaks down or an emergency situation occurs.
The turn signal and main beam lever
The parking lights and headlight flasher are also switched on and off
using the turn signal and main beam lever.
The turn signal and main beam lever perform the following functions:
Right
and left turn signal light
– Push the lever upwards or downwards ⇒ fig. 45.
– If you only wish to flash three times* (the so-called convenience turn
signal), push the lever briefly up to the upper or lower pressure point
and release it. This function can be activated/deactivated in the information display* ⇒ page 22.
– Turn signal for changing lanes - in order to only flash briefly, move the
lever up or down to the pressure point and hold it in this position.
Main beam
– Switch on the low beam.
– Push the lever forwards.
– Pull the lever back into the initial position in order to switch the main
beam off again.
Headlight flasher
– Pull on the lever of the steering wheel (sprung position) - the main
beam and warning light in the instrument cluster come on.
Parking light
– Switch off the ignition.
– Push the lever up or down - the right-hand or left-hand parking light
is switched on.
Information concerning the function of the lights.
• The turn signal system only operates when the ignition is switched on. The
corresponding indicator light or in the instrument cluster also flashes.
• The turn signal is automatically cancelled after negotiating a curve.
• The indicator light flashes at twice its normal rate if a bulb of the turn signal light
fails.
• The side light and rear light on the appropriate side of the vehicle are switched
on when the parking light is selected. The parking light function only operates if
the ignition is switched off.
• An acoustic warning signal will sound when the driver's door is opened if the
lever is not in the middle position after removing the ignition key. The acoustic
warning signal will stop just as soon as the driver's door is closed.
Caution
Use main beam or the headlight flasher only if this does not risk dazzling other road
users.
Fig. 45 Turn signal and
main beam lever
NKO A5 20 MR08.book Page 56 Wednesday, April 11, 2007 2:54 PM
Lights and Visibility 57
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
Note
• Use only in accordance with the legal requirements the described lighting and
signal systems.
Interior lighting
Front interior lighting and lighting of storage compartment on
front passenger side
Switching the interior light on
– Press the switch to the left, the symbol
⇒ fig. 46 appears.
Switching the interior light off
– Press the switch into the middle position O.
– On the version without reading lights press the switch to the right,
the symbol O appears.
Door contact setting
– Press the switch to the right, the symbol
appears.
– On the version without reading lights press the switch into the
middle position
.
Reading lights*
– Press on one of the switches in order to switch the right or left
reading light on or off.
Lighting of storage compartment on the front passenger side*
– When opening the flap of the storage compartment on the front
passenger side the lighting in the storage compartment comes on.
– The light switches on automatically when the parking light is switched
on and goes out when the flap is closed.
The interior light comes on as soon as you unlock the car or open a door or when
the ignition key has been removed. The light goes out again about 30 seconds after
all the doors have been closed. The interior lighting is switched off when you lock
the car or switch the ignition on. This only applies when the switch for the corresponding interior lights is standing n the door contact setting.
The interior lighting goes off after about 10 minutes when a door has been left open
in order to avoid discharging the battery of the vehicle.
If the switch is in the position (permanent lights), the interior lighting goes off at
the latest after 10 minutes in order to avoid discharging the battery of the vehicle.
Note
We recommend having these bulbs replaced by a specialist garage.
Fig. 46 Detail of the
headliner: front interio r
lighting
AAA
A
AAA
A
AAA
B
NKO A5 20 MR08.book Page 57 Wednesday, April 11, 2007 2:54 PM
Lights and Visibility58
Rear interior lighting*
The rear interior lighting ⇒ fig. 47 is actuated by moving the switch to the symbol
, O or to the middle position .
The same principles apply for the interior lighting at the rear as for the for the interior lighting at the front ⇒ page 57.
Note
We recommend having the bulb replaced by a specialist garage.
Front door warning light*
The warning light is located in the door trim panel below ⇒ fig. 48.
The warning light goes on every time the door is opened. The light goes out about
10 minutes after opening the door in order to avoid discharging the battery of the
vehicle.
There is a reflector installed on some vehicles instead of the warning light.
Luggage compartment light*
The lighting comes on automatically when the boot lid is opened. The luggage
compartment lighting will switch off again automatically if the boot lid remains
open for more than about 30 minutes.
Entry lighting*
The lighting is positioned on the bottom edge of the exterior mirror.
The light beam is directed towards the entry area of the front door.
The light comes on after the doors have been locked or on opening the boot lid. The
light goes out after switching on the ignition or up to 30 seconds after closing all the
doors, the bonnet and the boot lid.
If a door, the bonnet or the boot lid remains open, the light goes out within 2
minutes if the ignition is switched off.
WARNING
If the entry light comes on, do not touch its cover - risk of burns!
Fig. 47 Roof liner light at
the rear
Fig. 48 Front door:
Warning light
NKO A5 20 MR08.book Page 58 Wednesday, April 11, 2007 2:54 PM
Lights and Visibility 59
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
Visibility
Rear window heater
– You can switch the rear window heater on or off by pressing the switch
⇒ fig. 49 - the indicator light in the switch comes on or goes out.
The rear window heater only operates when the engine is running.
The rear window heater switches off automatically after 10 minutes.
For the sake of the environment
You should switch off the rear window heater as soon as the rear window is clear.
The reduced current consumption will have a favourable effect on fuel economy
⇒ page 193, “Saving electricity”.
Note
• The position and the shape of the switch can differ depending on equipment
installed in the vehicle.
• If the on-board voltage drops, the rear window heater is switched off automat-
ically, in order to provide sufficient electrical energy for the engine control.
Sun visors
You can pull the sun visor for the driver or front passenger out of the fixture and
swivel it toward the door in the direction of the arrow ⇒ fig. 50.
The vanity mirrors* in the sun visors are provided with covers. Push the cover in
direction of arrow .
On vehicles which are equipped with double sun visor*, you can also unfold the
auxiliary visor after swivelling the sun visor⇒ fig. 51.
Fig. 49 Switch for rear
window heater
Fig. 50 Sun visor: swivelling out
Fig. 51 Double sun visor
A
1
A
2
NKO A5 20 MR08.book Page 59 Wednesday, April 11, 2007 2:54 PM
Lights and Visibility60
WARNING
The sun visors must not be swivelled to the side windows into the deployment area of the head airbags if any objects, such as ball-point pens etc. are
attached to them. This might result in injuries to the occupants if the head
airbag is deployed.
Sun screen*
The sun screen is located in a housing on the luggage compartment
cover. If required, you can remove the housing with the sun screen from
the luggage compartment cover.
Unrolling
– Pull the sun screen at the loop and hang it in the brackets
⇒ fig. 52.
Rolling up
– Take the sun screen out of the brackets and hold it at the loop
so that it can roll up slowly and without damage into the housing on
the luggage compartment cover.
Removing
– Unhook the fastening elements from the luggage compartment cover
.
– Roll up the sun screen again into the housing on the luggage compart-
ment cover.
– Press the locking button in the direction of arrow and take out the
sun screen in the direction or arrow ⇒ fig. 53.
Fig. 52 Unroll the sun
screen
Fig. 53 Remove the sun
screen
AAABABAAA
C
A1A
2
NKO A5 20 MR08.book Page 60 Wednesday, April 11, 2007 2:54 PM
Lights and Visibility 61
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
Windshield wiper and wash system
Windshield wiper
You can operate the windscreen wipers and automatic wipe/wash
using the windscreen wiper lever.
The windscreen wiper lever ⇒ fig. 54 has the following positions:
Finger-operated wiping
– If you wish to wipe the windscreen only briefly, push the lever into the
sprung position . If you hold the lever in the lower position for more
than 1 second, the wiper wipes faster.
Intermittent wiping
– Position the lever up into position .
– Set with the switch the desired break between the individual wiper
strokes
Slow wipe
– Position the lever up into position .
Fast wi pe
– Position the lever up into position .
Automatic wipe/wash for windscreen
– Pull the lever towards the steering wheel into sprung position , the
wash system sprays immediately, the windscreen wiper starts wiping
a little later. The wash system and the windscreen wiper operate
simultaneously at a speed of more than 120 km/h.
– Release the lever. The windscreen wash system stops and the wiper
continues for another 3 - 4 wiper strokes (depending on the period of
spraying of the windscreen). At a speed of more than 2 km/h, the wiper
wipes once again* 5 seconds after the last wiper stroke in order to
wipe the last drops from the windscreen. This function can be acti-
vated/deactivated by a specialist garage.
Rain sensor*
– Move the lever into position .
– You can set the sensitivity of the sensor individually with switch .
Wiping the rear window pane*
– Push the lever away from the steering wheel into position - the
widescreen wiper will operate every 6 seconds.
Automatic wipe/wash for the rear window pane*
– Press the lever from the steering wheel forward into the sprung posi-
tion , the wash system sprays immediately, the windscreen wiper
starts wiping a little later. As long as you hold the lever in this position,
the wiper operates as well as the wash system.
– Letting go of the lever will cause the windscreen wash system to stop
and the wiper to continue for another 2 - 3 wiper strokes (depending
on the period of spraying of the windscreen). The lever will stay in
position after releasing it .
Fig. 54 Windscreen
wiper lever
A
4
A1AAA2A3A
5
A
1
A
A
A
6
A7A
6
NKO A5 20 MR08.book Page 61 Wednesday, April 11, 2007 2:54 PM
Lights and Visibility62
Switching windscreen wipers off
– Move the lever back into its home position .
After the windscreen wiper switches off for the second time or the ignition swit ches
off for the fifth time, the rest position of the windscreen wiper changes - this counteracts an early fatigue of the wiper rubbers.
The windscreen wipers and the wash system only operate if the ignition is switched
on and the bonnet is closed.
If the intermittent wipe is switched on, the intervals are also controlled depending
on speed.
The rain sensor* automatically regulates the break between the individual wiper
strokes depending on the intensity of the rain.
The rear window will be wiped again if the front window wipers are on when
reverse gear is selected.
The windscreen washer nozzles are heated* when the ignition is switched on.
Top up with wash liquid ⇒ page 221.
Winter position
If the windscreen wipers are in rest position, they cannot be folded out from the
windscreen. For this reason we recommend adjusting the windscreen wipers in
winter so that they can be folded out from the windscreen easily. You can set this
rest position as follows:
• Switch on the windscreen wipers.
• Switch off the ignition. The windscreen wipers remain in the position in which
they were when switching off the ignition.
You can also use the service position ⇒ page 63 as a winter position.
WARNING
• Properly maintained windscreen wiper blades are essential for clear visi-
bility and safe driving ⇒ page 63, “Replacing wiper blades for the windscreen wipers”.
• Do not use the windscreen washer system at low temperatures, without
heating the windscreen beforehand. Otherwise the window cleaner could
freeze on the windscreen and restrict the view to the front.
• The rain sensor only operates as a support. The driver is not released
from the responsibility to set the function of the windscreen wipers manually depending on the visibility conditions.
Caution
In frosty weather, please first of all check whether the windscreen wiper blades are
not frozen to the windscreen before switching them on. Switching on windscreen
wipe rs when the bla des are f rozen to the windsc reen may resu lt in damag e both to
the blades and the motor of the windscreen wipers!
Note
• If the slower or the faster wiper setting is switched on ⇒ page 61, fig. 54
and the vehicle speed decreases to below 4 km/h, the lower wiper step is switched
on automatically. At a speed increase of more than 8 km/h the previous wiper
setting is established again.
• If there is an obstacle on the windscreen, the wiper will try to push away the
obstacle. If the obstacle continues to block the wiper, the wiper stops after 5 cycles,
in order to avoid a damage to the wiper. Remove the obstacle and and switch on
the wiper again.
Headlight cleaning system*
The headlights are being cleaned after the windscreen has been sprayed for the first
time and fifth time, the low beam or main beam are switched on and the windscreen wiper lever was held in the position ⇒ page 61, fig. 54 for about 1
second.
The headlight washer nozzles are moved forward out of the bumper by the water
pressure for cleaning the headlights.
A
0
WARNIN G (continued )
A2A
3
A
5
NKO A5 20 MR08.book Page 62 Wednesday, April 11, 2007 2:54 PM
Lights and Visibility 63
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
You should remove stubborn dirt (such as insect residues) from the headlight
lenses at regular intervals, for example when refuelling. Please refer to the following
guidelines ⇒ page 202, “The headlight lenses”.
You should remove any snow from the fixtures of the washer nozzles and clear ice
in winter with a de-icing spray in order to ensure proper operation of the cleaning
system.
Replacing wiper blades for the windscreen wipers
One cannot fold out the wiper arms in the rest position from the windscreen. Before replacing the wiper arms you must put them into the
service position.
Service position for changing wiper blades
– Close the bonnet.
– Switch the ignition on and then again off.
– Then press the windscreen wiper lever in the position ⇒ page 61,
fig. 54 within 20 seconds - the wiper arms move into the service posi-
tion.
Taking off the wiper blade
– Fold windscreen wiper arm out from the windscreen and position the
wiper blade at right angles to the wiper arm ⇒ .
– Take off the wiper blade in direction of arrow ⇒ fig. 55 ⇒ .
Attaching a wiper blade
– Push the new wiper blade over the wiper arm and turn the wiper blade
into the vertical position.
– Check whether the wiper blade is correctly attached.
– Fold the windscreen wiper arms onto the window and switch on the
ignition - the windscreen wiper arms move back into the rest position.
Wiper blades in proper condition are essential to obtain good visibility. Wiper
blades should not be allowed to become dirtied by dust, insect remains and
preserving wax.
Juddering or smearing of the wiper blades could then be due to wax residues left
on the windscreen by vehicle washing in automatic vehicle wash systems. It is
therefore important to degrease the lips of the wiper blades after every pass
through an automatic vehicle wash system.
WARNING
• The ignition must not be switched on if the front windscreen wiper arms
are folded out. The wiper blades would move back into their rest position
and while doing so damage the paintwork of the bonnet.
• If the windscreen wipers are handled carelessly, there is a risk of damage
to the windscreen.
• You should clean the wiper blades regularly with a windscreen cleaner in
order to avoid any smears. Clean a wiper blade with a sponge or cloth if it is
very dirty, for example from insect residues.
• Replace the wiper blades once or twice a year for safety reasons. The
wiper blades are available from Škoda Service Partners.

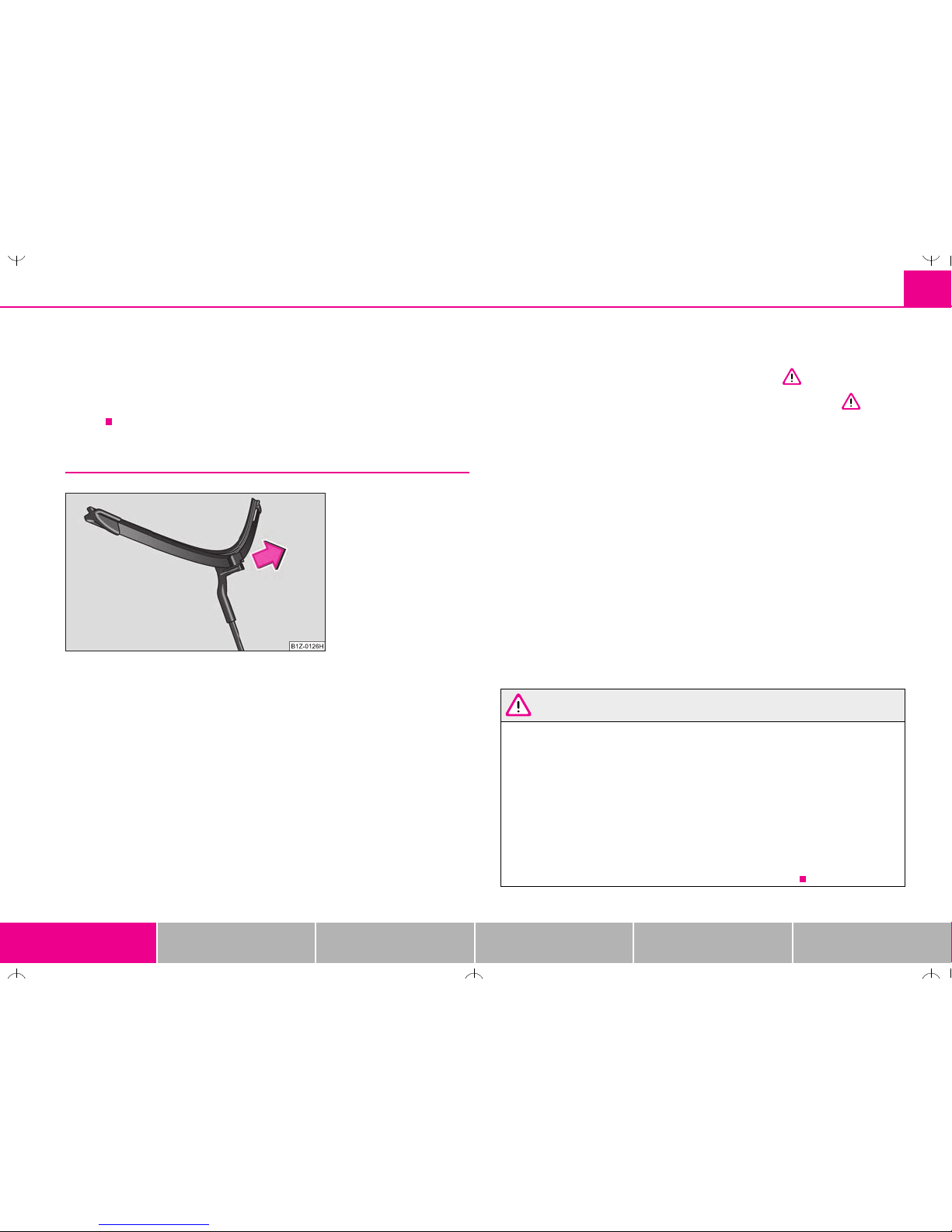

Fig. 55 Wiper blade for
the windscreen wiper
A
4
NKO A5 20 MR08.book Page 63 Wednesday, April 11, 2007 2:54 PM
Lights and Visibility64
Replacing the wiper blade on the rear window wiper
Taking off the wiper blade
– Fold windscreen wiper arm out from the windscreen and position the
wiper blade at right angles to the wiper arm ⇒ fig. 56.
– Hold the window wiper arm at the top end with one hand.
– With the other hand unlock the locking button in the direction of
arrow and remove the wiper blade.
Attaching a wiper blade
– Position the wiper blade onto the wiper arm and lock the locking
button .
– Check whether the wiper blade is correctly attached.
The same remarks apply here as for ⇒ page 63, “Replacing wiper blades for the
windscreen wipers”.
Rear-view mirror
Manual dimming interior rear-view mirror
Basic setting
– Pull the lever on the bottom edge of the mirror forward.
Dimming mirror
– Pull the lever on the bottom edge of the mirror back.
The vehicle can also be equipped with a second rear mirror*, which is attached
above the inner main rear mirror. The second rear mirror* enables an extensive
look into the area of the rear seats, e.g. to check on the seated passengers. You can
adjust it in the horizontal as well as vertical direction regardless of the inner main
rear mirror.
Automatic dimming interior mirror*
Switching on the automatic dimming
– Press the button - the warning light lights up ⇒ fig. 57.
Fig. 56 Wiper blade for
rear w indow
AAA
A
Fig. 57 Automatic
dimming interior mirror
ABA
A
NKO A5 20 MR08.book Page 64 Wednesday, April 11, 2007 2:54 PM
Lights and Visibility 65
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
Switching off the automatic dimming
– Press again the button - the warning light goes out .
If the automatic dimming is switched on, the mirror dims automatically
depending on the light striking the mirror from the rear. The mirror has no lever on
the bottom edge of the mirror. When the interior lights are switched on or the
reverse gear is engaged, the mirror always moves back into the basic position.
Note
• Automatic mirror dimming operates only properly if the sun screen* for the rear
window is not in use or the light striking the rear of the interior rear-view mirror is
not affected by other objects.
• Do not affix any stickers in front of the light sensor, so that you do not impair the
automatic dimming function or put it out of operation.
• If you switch off the automatic dimming interior rear-view mirror, also the exte-
rior mirror dimming is switched off.
Exterior mirror
You can adjust the exterior mirrors electrically*.
The exterior mirror heater only operates when the engine is running and
up to an outside temperature of +20 °C.
Heating of the external mirror
– Turn the rotary knob to position
⇒ fig. 58.
Adjusting left and right exterior mirrors simultaneously
– Turn the rotary knob to position
. The movement of the mirror surface
is identical to the movement of the rotary knob.
Adjusting the right-hand exterior mirror
– Turn the rotary knob to position
. The movement of the mirror
surface is identical to the movement of the rotary knob.
Switching off operating control
– Turn the rotary knob to position
.
Tilting surface of front passenger exterior mirror*
When the rotary knob is in position ⇒ fig. 58 and the reverse gear is engaged, the
su rfa ce o f th e mi rror til ts down sl igh tly. Thi s pro vid es a n a id i n se ein g th e ker b of the
pavement when parking the car.
The mirror returns back into its initial position, after the rotary knob is moved out
of the position and put into another position or if the speed is more than 15 km/h.
Memory for exterior mirrors*
On vehicles fitted with a memory for the driver seat, the relevant setting of the exterior mirror is also stored automatically when the seat position is stored ⇒ page 67.
WARNING
• Convex (curved outward) or a spherical exterior mirrors increase the
vision field. They do, however, make objects appear smaller in the mirror.
These mirrors are only of limited use, therefore, for estimating distances to
the following vehicles.
• Use whenever possible the interior rear mirror, for estimating the
distances to the following vehicles.
ABA
A

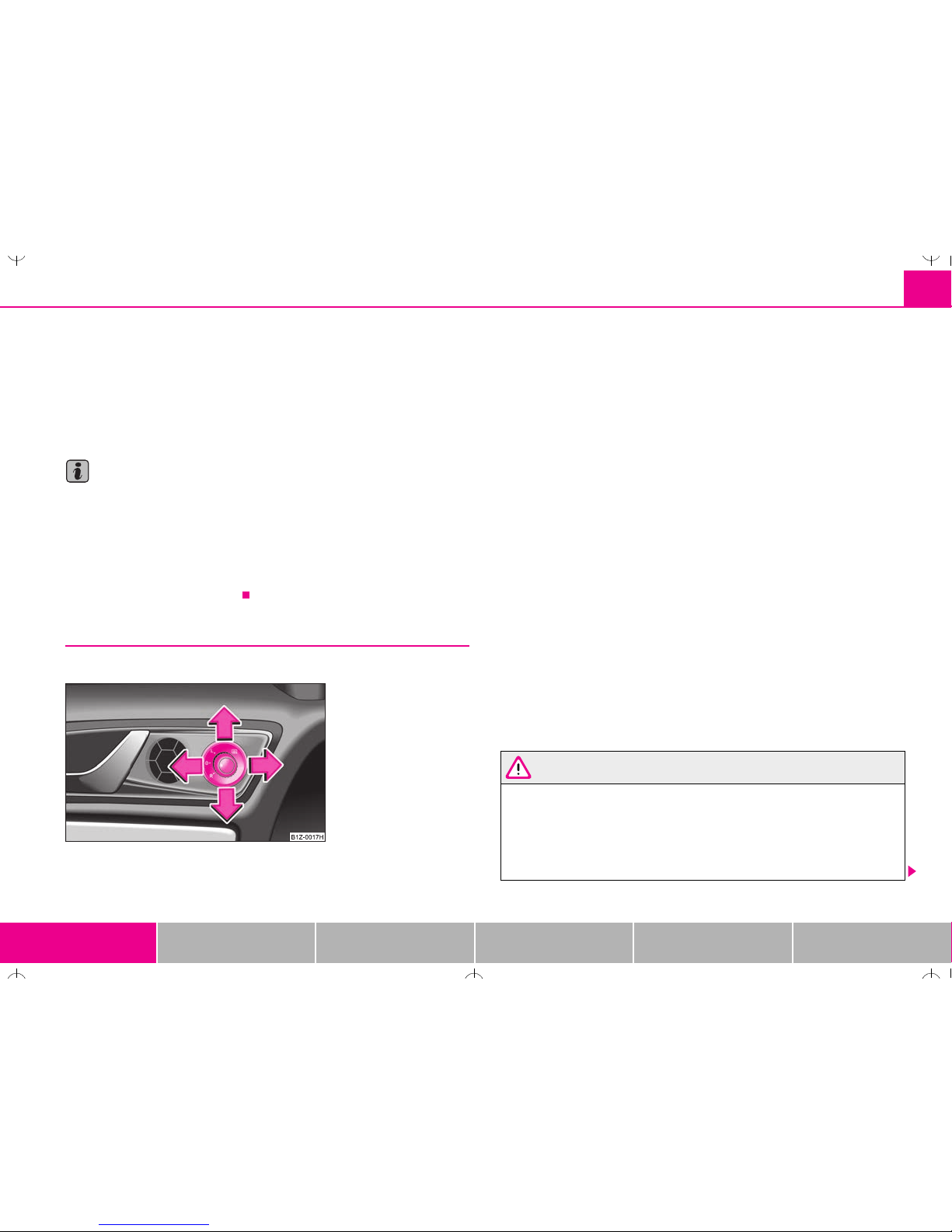

Fig. 58 Inner part of
door: Rotary knob
NKO A5 20 MR08.book Page 65 Wednesday, April 11, 2007 2:54 PM
Lights and Visibility66
Note
• Do not touch the surfaces of the exterior mirrors if the exterior mirror heater is
switched on.
• You can set the exterior mirrors by hand, if the power setting function fails at any
time, by pressing on the edge of the mirror surface.
• Contact your specialist garage if a fault exists with the power setting of the exte-
rior mirrors.
Automatic dimming exterior mirror*
The exterior mirrors are dimmed together with the automatic dimming interior
mirror. If the automatic dimming is switched on, the mirror dims automatically
depending on the light striking the mirror from the rear.
When the interior lights are switched on or the reverse gear is engaged, the mirror
always moves back into the basic position (not dimmed).
Note
• Automatic mirror dimming operates only properly if the sun screen* for the rear
window is not in use or the light striking the rear of the interior rear-view mirror is
not affected by other objects.
• Do not affix an y stickers in front of the light sensor, so that you do not impair the
automatic dimming function or put it out of operation.
• If you switch off the automatic dimming interior rear-view mirror, also the exte-
rior mirror dimming is switched off.
NKO A5 20 MR08.book Page 66 Wednesday, April 11, 2007 2:54 PM
Seats and Stowage 67
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
Seats and Stowage
Front seats
Basic information
The front seats have a wide range of different settings and can thus be matched to
the physical characteristics of the driver and front passenger. Correct adjustment of
the seats is particularly important for
• safely and quickly reaching the controls,
• a relaxed, fatigue-free body position,
• achieving the maximum protection offered by the seat belts and the airbag
system.
WARNING
• Never transport more occupants than the maximum seating in the
vehicle.
• Each occupant must correctly fasten the seat belt belonging to the seat.
Children must be fastened ⇒ page 173, “Transporting children safely” with
a suitable restraint system.
• The front seats and the head restraints must always be adjusted to match
the body size of the seat occupant as well as the seat belts must always be
correctly fastened in order to provide an optimal protection for you and your
occupants.
• Always keep your feet in the footwell when the car is being driven - never
place your feet on the instrument panel, out of the window or on the
surfaces of the seats. This is particularly important for the front seat
passenger. You will be exposed to increased risk of injury if it becomes
necessary to apply the brake or in the event of an accident. If an airbag is
deployed, you may suffer fatal injuries when adopting an incorrect seated
position!
• It is important for the driver and front passenger to maintain a distance
of at least 25 cm from the steering wheel or dash panel. Not maintaining this
minimum distance will mean that the airbag syste m wil l not b e abl e to pr operly protect you - hazard! The front seats and the head restraints must
always also be correctly adjusted to match the body size of the occupant.
• Ensure that there are no objects in the footwell as any objects may get
behind the pedals during a driving or braking manoeuvre. You would then
no longer be able to operate the clutch, to brake or accelerate.
Adjusting the front seats
Adjusting a seat in a forward/back direction
–Pull the lever ⇒ fig. 59 up and push the seat into the desired posi-
tion.
– Release the lever and push the seat further until the lock is heard
to engage.
Adjusting height of seat*
– Lift the seat if required by pulling or pumping lever upwards.
WARNIN G (continued )
Fig. 59 Controls at seat
A1A
1
A
2
NKO A5 20 MR08.book Page 67 Wednesday, April 11, 2007 2:54 PM
Seats and Stowage68
– Lower the seat if required by pushing or pumping lever down-
wards.
Adjust the angle of the seat backrest
– Relieve any pressure on the backrest (do not lean on it) and turn the
handwheel ⇒ page 67, fig. 59 to adjust the desired angle of the
backrest.
Adjusting lumbar support*
– Turn the handwheel until you have set the most comfortable
curvature of the seat upholstery in the area of your spine.
The driver's seat should be adjusted in such a way that the pedals can be pressed
to the floor with slightly bent legs.
The backrest on the driver's seat should be adjusted in such a way that the upper
point of the steering wheel can be easily reached with slightly bent arms.
WARNING
• Only adjust the driver seat when the vehicle is stationary - risk of injury!
• Take care when adjusting the seat! Adjusting the seat without care can
lead to bruises or injuries.
• The backrests must not be angled too far back when driving otherwise
this will affect proper operation of the seat belts and of the airbag system risk of injury!
Adjusting front seats electrically*
Adjusting seats
Adjusting seat
– Adopt the correct seated position ⇒ page 67.
– Press switch or ⇒ fig. 60 in the direction of the desired setting.
Adjusting lumbar support
– Press the switch front ⇒ fig. 60 in order to enlarge the curvature of
the lumbar support.
– Press the switch rear in order to reduce the curvature of the lumbar
support.
– Press the switch top in order to adjust the curvature of the lumbar
support higher.
– Press the switch bottom in order to adjust the curvature of the
lumbar support lower.
Switch is operated in order to move the seat up/down and forward/back, while
switch is operated in order to move the backrest forward or back.
A2A3A
4
Fig. 60 Side view:
Controls for adjusting the
seat
AAABA
C
A
C
A
C
A
C
A
A
A
B
NKO A5 20 MR08.book Page 68 Wednesday, April 11, 2007 2:54 PM
Seats and Stowage 69
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
WARNING
• Only adjust the driver seat when the vehicle is stationary - risk of injury!
• Caution when adjusting the seat! You may suffer injuries or bruises as a
result of adjusting the seat without paying proper attention.
• In view of the fact that the seats can also be adjusted when the ignition is
switched off (even when ignition key withdrawn), you should never leave
children unattended in the car.
• The backrests must not be angled too far back when driving otherwise
this will affect proper operation of the seat belts and of the airbag system risk of injury!
Note
If the movement of the seat is inadvertent ly interrupted during an adjustment, once
again press the switch in the appropriate direction and continue with the adjustment of the seat to the end.
Storing setting
Storing seat and exterior mirror settings for driving forward
– Switch on the ignition.
– Adjust the seat ⇒ page 68.
– Adjust both exterior mirrors ⇒ page 65.
–Press button SET ⇒ fig. 61.
– Press one of the memory buttons within 10 seconds after pressing
the button SET - an acknowledgement signal confirms that the seat
setting is stored.
Storing exterior mirror setting for reversing*
– Switch on the ignition.
– Turn the exterior mirror control to position
⇒ page 65.
– Engage reverse gear.
– Move the right exterior mirror into the desired position ⇒ page 65.
– Take the vehicle out of gear. The set position of the exterior mirror is
stored.
Memory buttons
Memory for the seat offers the possibility to store the individual driver seat and
external mirror position. An individual position can be allocated to each of the three
memory buttons ⇒ fig. 61, that is three in total. After pressing the corre-
sponding memory button , the seat and the exterior mirror are automatically
moved into the positions which have been allocated to this button ⇒ page 70.
Emergency Off
You can interrupt the setting operation at any time, if you operate any button of the
driver seat.
Note
• When storing setti ngs with the memory buttons, we recommend that you begin
with the front button and assign a memory button to each additional driver.
• Each new setting stored with the same button erases the previous setting.
Fig. 61 Driver seat:
Memory buttons and SET
button
A
A
A
B
A
B
A
B
NKO A5 20 MR08.book Page 69 Wednesday, April 11, 2007 2:54 PM
Seats and Stowage70
• Each time you store the seat and ex terior mirror settings for driving forward you
also have to re-store the individual setting of the exterior mirror on the passenger
side for reversing.
Assigning remote control to the memory buttons
After storing the settings of the seat and exterior mirrors, you have 10
seconds in order to assign the remote control to the appropriate memory
button.
– Withdraw the ignition key.
– Press the button for unlocking the vehicle ⇒ page 42. The setting is
stored with the memory button which you have selected.
If you wish to be able to retrieve the settings which are stored in the memory by also
using the remote control, you have to assign the remote control to a memory
button in each case.
If you wish, you can obtain an additional key with radio remote control from a
Škoda dealer and then assign the radio remote control to another memory button.
Note
• If the remote control had previously been assigned to another memory button,
this setting is then erased by the new assignment.
• If you assign the remote control to a memory button which has already been
assigned to a remote control, the old assignment is also replaced by a new assignment in this case.
• T he a ssi gnm ent of t he r emo te c ont rol to a mem ory but ton is r eta ine d, h owe ver,
after reassigning the seats and exterior mirrors.
Retrieving settings of the seat and mirrors
You can retrieve the stored settings either with the memory buttons
or with the remote control*.
Retrieving settings with memory buttons
– In order to retrieve the stored setting, you have two possibilities:
– One-touch automatic memory: Briefly press the desired memory
button ⇒ page 69, fig. 61. The seat and exterior mirror are moved
automatically into the stored positions (this applies only if the ignition
is switched on and the speed is less than 5 km/h).
– Memory keying: Press and hold the desired memory button
pressed long enough until the seat and the exterior mirror are moved
into the stored positions.
Retrieving settings with remote control
– If the driver door is closed and the ignition is switched off, briefly press
the unlock button of the remote control ⇒ page 42 and then open the
driver door.
– The seat and exterior mirrors now move automatically into the stored
positions.
Retrieving setting of exterior mirror for reversing*
– Turn the rotary knob for the exterior mirror setting into the position
⇒ page 65 before engaging the reverse gear.
The mirror returns back into its initial position, after the rotary knob is moved out
of the position and put into another position or if the speed is more than 15 km/h.
Emergency Off
You can interrupt the setting operation at any time, if you operate any button of the
driver seat.
A
B
A
B
NKO A5 20 MR08.book Page 70 Wednesday, April 11, 2007 2:54 PM
Seats and Stowage 71
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
Head restraints
Best protection is achieved if the top edge of the head restraint is at the
same level as the upper part of your head.
Adjusting the height of a head restraint
– Grasp the side of the head restraint with both hands and push it up or
down in direction of arrow ⇒ fig. 62.
– If you wish to push the head restraint of the front seat downwards, you
must additionally press the safety button ⇒ fig. 63.
– If you wish to set the rear head restraint in the lower position, you
must additionally press the safety button.
Adjusting the angle of a head restraint
– You can adapt the head restraint by adjusting its angle to your head
⇒ fig. 62. Adjusting the angle of the head restraint provides enhanced
comfort for the user.
Removing and installing a head restraint
– Pull the head restraint up out of the backrest of the seat as far as the
stop (on the rear head restraints fold forward the seat backrest).
– Press the locking button in the direction of arrow ⇒ fig. 63 and pull
the head restraint out.
– To re-insert the head restraint, push it down into the backrest of the
seat far enough until you hear the locking button engage.
The head restraints of the front seats can be adjusted for angle and height. The
outer head restraints at the rear can only be adjusted for height. The middle rear
head restraint* is adjustable in two positions.
The head restraints must be adjusted to match the size of the seat occupant.
Correctly adjusted head restraints together with the seat belts offer effective
protection for the occupants ⇒ page 155.
Active head restraints*
The front seats can be equipped with active head restraints, which protect the occupants from injury to the cervical vertebra in the event of a rear impact
WARNING
• The head restraints must be correctly adjusted in order to offer effective
protection for the occupants in the event of an accident.
• Do not drive under any circumstance with removed head restraints - risk
of injury!

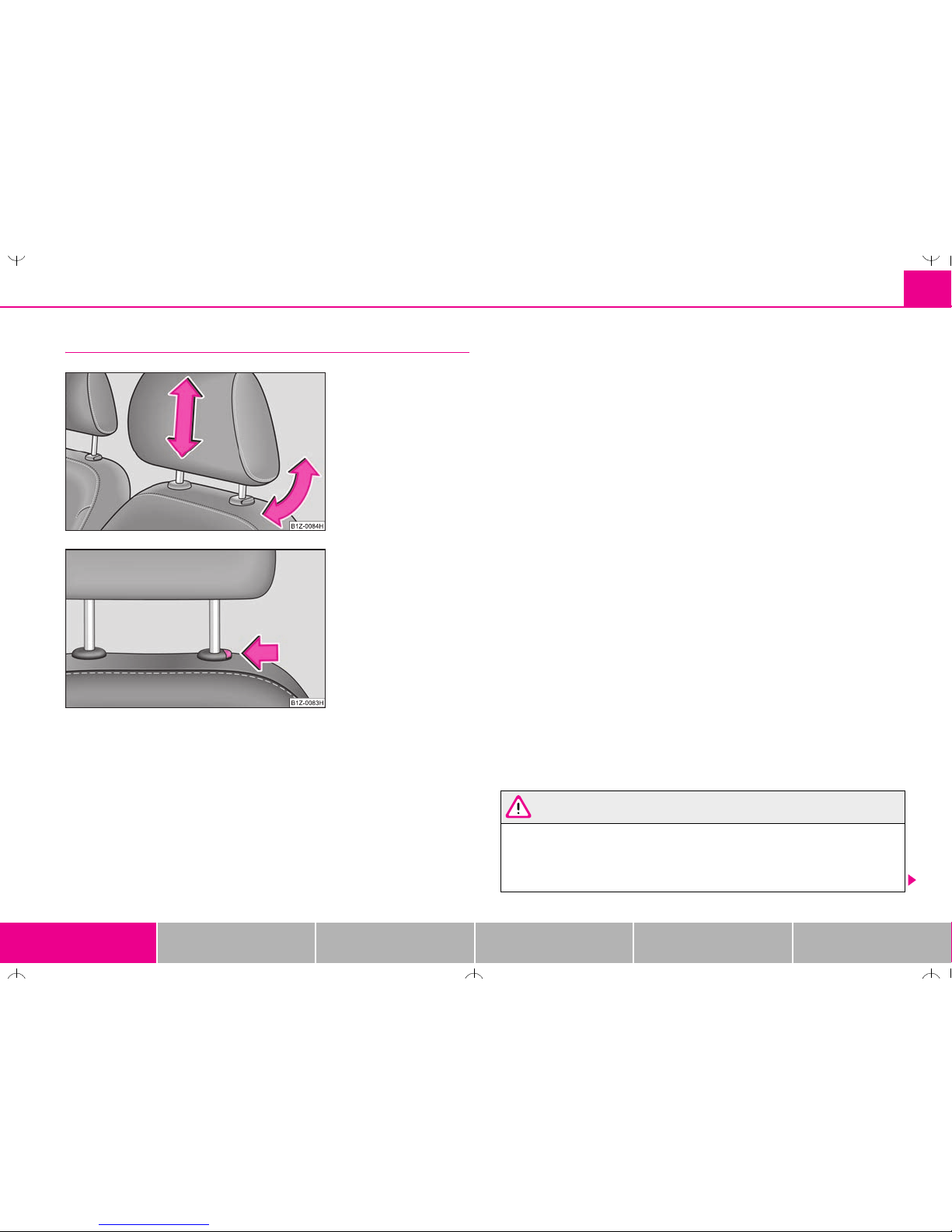

Fig. 62 Adjusting head
restra int
Fig. 63 Removing a head
restra int
NKO A5 20 MR08.book Page 71 Wednesday, April 11, 2007 2:54 PM
Seats and Stowage72
• If the rear seats are occupied, the rear head restraint must not be in the
lower position.
Middle rear head restraint*
IIn certain countries national legal provisions also require the equipment
of the rear seat with fixing eyes for child seat using the “Top Tether” system
⇒ page 180. For vehicles, which are equipped with such fixing eyes, a
deviating sequence for removing the middle head restraint must be
observed.
Removing and installing the rear middle head restraint
– Pull the head restraint out of the backrest of the seat as far as the stop.
– Press the locking button in the direction of arrow , press simultane-
ously the locking button into the opening using a flat screwdriver
with a width of maximum 5 mm and pull out the head restraint.
– To re-insert the head restraint, push it down into the backrest of the
seat far enough until you hear the locking button engage.
WARNING
• The head restraints must be correctly adjusted in order to offer effective
protection for the occupants in the event of an accident.
• D o not dr ive un der any circums tance with rem oved h ead rest raints - risk
of injury!
• If the rear seats are occupied, the rear head restraint must not be in the
lower position.
WARNIN G (continued )
Fig. 64 Rear seats:
midd le head res traint
AAA
B
NKO A5 20 MR08.book Page 72 Wednesday, April 11, 2007 2:54 PM
Seats and Stowage 73
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
Rear seats
Folding the rear seats forwards
To enlarge the luggage compartment, the rear seats can be folded
forwards, if necessary remove the rear seats. The rear seats can be folded
forward individually on vehicles with divided rear seats*.
Folding the rear seats forwards
– Before folding the rear seats forward adjust the front seats in such a
way that they are not damaged when folding forward the rear seats.
– Pull up the rear seats in the direction of arrow and fold forwards in
direction of arrow ⇒ fig. 65.
– Press the unlocking knob and fold the rear seat backrest forwards
⇒ fig. 66.
If the front seats are too far back, we recommend that you have the rear head
restraints removed before the seat backrests are folded forward. Store the removed
head restraints in such a way that they cannot be damaged or soiled. Please refer to
the guidelines ⇒ page 76, “luggage compartment”.
Folding the rear seats back into position
Folding the rear seats back into position
– Install the head restraint in the slightly lifted rear seat backrest.
– Place the rear lateral seat belt behind the edge of the side trim
panel ⇒ fig. 67.
– Then push the seat backrest back into the upright position until the
securing knob clicks into place - check by pulling on the rear seat
backrest.
– Make sure that the red pin is covered ⇒ fig. 66.
Fig. 65 Folding the rear
seat forwards
Fig. 66 Unlock the seat
backrest
A1A
2
A
A
Fig. 67 Lock the seat
backrest
A
C
A
B
NKO A5 20 MR08.book Page 73 Wednesday, April 11, 2007 2:54 PM
Seats and Stowage74
– Fold the rear seat back into its original position.
WARNING
• The belts and the belt locks must be in their original pos ition after folding
back the rear seats and seat backrests - they must be ready to use.
• The seat backrests must be securely interlocked in position so that no
objects in the luggage compartment can slide into the passenger compartment if there is sudden braking - risk of injury!
• Pay attention that the rear seat backresst are correctly interlocked. It is
only then that the three-point seat belt for the middle seat can reliably fulfil
its function.
• Before folding the seat backrest back into the secure position, place the
rear lateral seat belt behind the edge of the side trim panel. Take suitable
measures to prevent that the seat belt is jammed between the seat backrest
and the side trim panel is thus damaged.
Remove the rear seat
You can enlarge the luggage compartment on vehicles with divided rear
seats* by removing the rear seat.
Removing
– Fold the rear seat forwards.
– Press the wire clamps in the direction of the arrow ⇒ fig. 68 and
remove the rear seat from its holder.
Installing
– Press the wire clamp in the direction of the arrow and place the seat
upholstery in its holder.
– Fold the rear seat back into its original position.
Caution
For vehicles with heated rear seats* it is necessary to disconnect the plug connection for the power supply before removing the rear seat bench. For re-installation it
is necessary to re-connect the plug connection.
Rear seat armrest*
– You can fold down the armrest at the loop to enhance occupant
comfort ⇒ fig. 69.
Fig. 68 Remove the rear
seats
Fig. 69 Rear seats:
Armrest
NKO A5 20 MR08.book Page 74 Wednesday, April 11, 2007 2:54 PM
Seats and Stowage 75
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
Seat heaters*
You can heat the surfaces of the seats and of the backrests of the front
seats and the two outer rear seats.
Front seats
– Heating on the driver's and front pasenger's seat can be switched on
and regulated by turning the control dial ⇒ fig. 70.
– The system is switched off by turning the control dial to the home
position “0”.
Rear seats
– You can switch on and adjust the heaters of the left and right rear seats
by turning the control ⇒ fig. 71.
– The system is switched off by turning the control dial to the home
position “0”.
WARNING
If you have a subdued pain and/or temperature sensitivity, e.g. through
medication, paralysis or because of chronic illness (e.g. diabetes), we
recommend not to use the seat heating. This can lead to burns on the back,
the posterior and the legs which are difficult to heal. If the seat heating is
used, we recommend to make regular breaks in your journey when driving
long distances, so that in specific cases as mentioned above the body can
recuperate from the stress of the journey. Please consult your doctor, who
can evaluate your specific condition.
Caution
• You should not kneel on the seats or otherwise apply pressure at specific points
in order to avoid damaging the heating elements of the seat heaters.
• Do not clean the seats moist ⇒ page 204.
Note
• The seat heating should only be switched on when the engine is running. This
has a significant effect of saving on the battery capacity.
• If the on-board voltage drops, the seat heating is switched off automatically, in
order to provide sufficient electrical energy for the engine control.
Pedals
Concerning a secure depressing of the pedal, you should use only footmats from
the Škoda genuine accessories.
Fig. 70 Dash panel:
Control dial for heating
the front seats
Fig. 71 Centre console at
rear: R otary con trols for
heaters of rear seats
NKO A5 20 MR08.book Page 75 Wednesday, April 11, 2007 2:54 PM
Seats and Stowage76
Operation of the pedals must not be hindered!
WARNING
• Greater pedal distances may be needed when there is a fault in the brake
system.
• Do not place any footmats or other additional floor coverings in the area
of the pedals in order to ensure that all the pedals can be fully depressed and
are able to return unobstructed to their initial position - risk of accident!
• There must be no objects on the floor which could roll under the pedals.
You would then no longer be able to apply the brakes, operate the clutch or
accelerator - risk of accident!
luggage compartment
Loading the luggage compartment
Please observe the following in the interest of having good handling characteristics of your vehicle:
– Distribute the items of luggage as evenly as possible.
– Place heavy objects as far forward as possible.
– Attach the items of luggage to the lashing eyes or the safety net*
⇒ page 77.
In the event of an accident, there is such a high kinetic energy which is produced by
small and light objects that they can cause severe injuries. The magnitude of the
kinetic energy depends on the speed at which the vehicle is travelling and on the
weight of the object. The speed at which the vehicle is travelling is in this case the
more significant factor.
Example: In the event of a frontal collision at a speed of 50 km/h, an unsecured
object with a weight of 4.5 kg produces an energy, which corresponds to 20 times
its own weight. This means that it results in a weight of approx. 90 kg. You can
imagine the injuries that can occur, if this “bullet” is flying through the interior
compartment and hits an occupant.
WARNING
• Store the objects in the luggage compartment and attach them to the
lashing eyes.
• Loose objects in the passenger compartment can be thrown forward
during a sudden manoeuvre or in case of an accident and can injure the
occupants or other oncoming traffic. This risk is still increased, if the objects
which are flying around are hit by a deployed airbag. In this case, the objects
which are thrown back can injure the occupants - hazard.
• Please note that the handling properties of your vehicle may be affected
when transporting heavy objects as a result of the displacement of the
centre of gravity. The speed and style of driving must be adjusted accordingly.
• The items carried in the luggage compartment should be stored in such
a way that no objects are able to slip forward if there are any sudden driving
or braking manoeuvres undertaken - risk of injury!
• Never drive with the boot lid fully opened or slightly ajar otherwise
exhaust gases may get into the interior of the vehicle - risk of poisoning!
• On no account exceed the permissible axle loads and the permissible
gross weight of the vehicle - risk of accident!
• Never transport occupants in the luggage compartment!
Caution
Please ensure that the heating elements of the rear window heater are not
damaged as a result of objects sliding in this area.
Note
Tyre pressure must be adjusted to the load ⇒ page 223, fig. 204.
NKO A5 20 MR08.book Page 76 Wednesday, April 11, 2007 2:54 PM
Seats and Stowage 77
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
Lashing eyes
Eyes are located on the sides of the loading area for lashing the goods to be loaded.
You can also attach a floor fixing net* to these eyes for lashing small objects.
The floor fixing net* and the installation instruction are located in a container under
the floor covering of the luggage compartment behind the spare wheel.
WARNING
• The load to be transported must be fixed in place in such a way that it
cannot move during the journey and when braking.
• If the items of luggage or objects are attached to the lashing eyes with
unsuitable or damaged lashing straps, injuries can occur in the event of
braking manoeuvres or accidents. In order to prevent the items of luggage
being thrown forward, always use suitable lashing straps which are firmly
attached to the lashing eyes.
Note
On vehicles in the version Octavia, the top front lashing eyes are located behind the
seat backrest ⇒ fig. 72.
Fig. 72 Luggage
compartment: Lashing
eyes (Octavia)
Fig. 73 Luggage
compartment: Lashing
eyes (Estate car)
WARNIN G (continued )
NKO A5 20 MR08.book Page 77 Wednesday, April 11, 2007 2:54 PM
Seats and Stowage78
Fixing nets - Net programme Octavia*
Fixing examples of the fixing net as horizontal pocket ⇒ page 78, f ig. 74 and vertical
pocket ⇒ page 78, fig. 75.
The fixing net and the installation instruction are located in a container under the
floor covering of the luggage compartment behind the spare wheel.
WARNING
The whole strength of the net makes it possible to load the pocket with
objects of up to 1.5 kg in weight. Heavy objects are not secured sufficiently risk of injury and net damage!
Caution
Do not place any objects with sharp edges in the nets - risk of net damage.
Fixing nets - Net programme Combi*
Fixing examples of the fixing net as pocket ⇒ fig. 76 and as division of the luggage
compartment ⇒ fig. 77.
The fixing net and the installation instruction are located in a container under the
floor covering of the luggage compartment behind the spare wheel.
Fig. 74 Fixing net: Horizontal pocket
Fig. 75 Fixing net:
Vert ical p ocket
Fig. 76 Fixing net: Pocket
Fig. 77 Fixing net: Division of the luggage
compartment
NKO A5 20 MR08.book Page 78 Wednesday, April 11, 2007 2:54 PM
Seats and Stowage 79
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
WARNING
The whole strength of the net makes it possible to load the pocket with
objects of up to 1.5 kg in weight. Heavy objects are not secured sufficiently risk of injury and net damage!
Caution
Do not place any objects with sharp edges in the nets - risk of net damage.
Folding double hooks* (Octavia)
Folding double hooks for attaching small items of luggage, such as bags etc.
⇒ fig. 78 are provided on one or both sides of the luggage compartment
depending on the equipment installed in the vehicle.
An item of luggage weighing up to 5 kg can be attached to each side of the double
hook.
Folding hooks (Combi)
Folding hooks for attaching small items of luggage, such as bags etc., are provided
on both sides of the luggage compartment ⇒ fig. 79.
An item of luggage weighing up to 10 kg can be attached to the hook.
Fig. 78 Luggage
compartment: Folding
double hooks
Fig. 79 Luggage
compartment: folding
hooks
NKO A5 20 MR08.book Page 79 Wednesday, April 11, 2007 2:54 PM
Seats and Stowage80
Fixing floor covering of the luggage compartment
There is a loop (Octavia) or there are hooks (estate car) located on the floor
covering of the luggage compartment. You can fix the raised floor cover with a hook
to the luggage compartment cover (Octavia) ⇒ fig. 80 as if one needs to reach the
spare wheel or to the frame of the boot lid (estate car) ⇒ fig. 81.
Luggage net* (Octavia)
The luggage net is designed for the tranportation of lighter objects.
WARNING
• In the luggage net you must only store objects (up to a total weigh t of 1.5
kg). Heavy objects are not secured sufficiently - risk of injury!
• No objects with sharp edges should be stored in the luggage net, because
they can damage the luggage net.
Fig. 80 Luggage
compartment: Fixing of
the floor covering
(Octavia)
Fig. 81 Luggage
compartment: Fixing of
the floor covering (Estate
car)
Fig. 82 Luggage
compartment: Luggage
net
NKO A5 20 MR08.book Page 80 Wednesday, April 11, 2007 2:54 PM
Seats and Stowage 81
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
Luggage compartment cover* (Octavia)
You can use the luggage compartment cover behind the head
restraints for storing light and soft items.
The luggage compartment cover can be removed as required if one must
transport bulky goods.
– Unhook the support straps on the boot lid ⇒ fig. 83.
– Place the cover on the side supports.
– Pull the cover out of the holder horizontally to the rear.
– Install again by pushing the luggage compartment cover forwards into
the holder and hanging the support straps on the boot lid.
You can stow the removed luggage compartment cover behind the rear seat backrest.
WARNING
No objects should be placed on the luggage compartment cover, the vehicle
occupants could be endangered if there is sudden braking or the vehicle
collides with something.
Caution
Please ensure that the heating elements of the rear window heater are not
damaged as a result of objects placed in this area.
Note
Opening the tailgate also lifts up the luggage compartment cover.
Luggage compartment cover (estate car)
Fig. 83 Removing the
luggage compartment
cover
A1A
2
A2A
1
Fig. 84 Luggage
compartment: The
luggage compartment
cover
Fig. 85 Luggage
compartment: Removing
the luggage compartment cover
NKO A5 20 MR08.book Page 81 Wednesday, April 11, 2007 2:54 PM
Seats and Stowage82
Unrolling
– Pull the luggage compartment cover in direction of arrow as far as
the stop into the secured position ⇒ fig. 84.
Rolling up
– Press the cover in the handle area in direction of arrow , the cover
rolls up automatically.
Removing
– Have the luggage compartment cover removed to transport bulky
goods. Press the slider from the side in the direction of arrow and
remove the luggage compartment cover in the direction of arrow
⇒ fig. 85.
WARNING
No objects should be placed on the luggage compartment cover.
Caution
Please ensure that the heating elements of the rear window heater and luggage
compartment cover are not damaged as a result of objects placed in this area.
Net partition (Estate)*
Use behind the rear seats
Unrolling
– Fold down the stowage compartment cover behind the rear seats
⇒ fig. 86.
– Pull the net partition at the bracket out of the housing in direc-
tion of the holders ⇒ fig. 86.
– Insert the cross rod into one of the mounts and push the cross rod
forward.
A1A2A3A
4
Fig. 86 Folding down the
stowage compartment
cover
Fig. 87 Unrolling net
partition
AAABACA
C
NKO A5 20 MR08.book Page 82 Wednesday, April 11, 2007 2:54 PM
Seats and Stowage 83
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
– In the same way, fix the cross rod to the other side of the vehicle,
mount .
– Fold the stowage compartment cover downwards.
Rolling up
– Fold down the stowage compartment cover behind the rear seats
⇒ fig. 86.
– Pull the cross rod back slightly, first on the one side then on the other
side and take the cross rod out of the mount ⇒ fig. 87.
– Hold the cross rod in such a way that the net partition can roll up
slowily and without damage into housing .
– Fold the stowage compartment cover downwards.
If you wish to use the entire luggage compartment, you can remove the luggage
compartment cover ⇒ page 81, fig. 84.
WARNING
• First check for yourself that the cross road is inserted into the mounts
in the front position!
• Pay attention that the rear seat backrest is correctly interlocked. It is only
then that the three-point seat belt for the middle seat can reliably fulfil its
function.
Use behind the front seats
Unrolling
– Fold the rear seats forwards ⇒ page 73
– Pull the net partiton net at the plate out of the housing
⇒ fig. 88.
– Insert the cross rod into the mount first on the one side and push
the cross rod forward.
– In the same way, fix the cross rod to the other side of the vehicle,
mount .
Rolling up
– Pull the cross rod back slightly, first on the one side then on the other
side and take the cross rod out of the mount ⇒ fig. 88.
– Hold the cross rod in such a way that the net partition can roll up
slowily and without damage into housing .
– Fold the rear seats back into its original position.
A
C
A
C
A
B
A
C
Fig. 88 Unrolling net
partition
AAABA
C
A
C
A
C
A
B
NKO A5 20 MR08.book Page 83 Wednesday, April 11, 2007 2:54 PM
Seats and Stowage84
WARNING
• The belt locks and the belts must be in their original pos ition after folding
back the rear seats and seat backrests - they must be ready to use.
• The seat backrests must be securely interlocked in position so that no
objects in the luggage compartment can slide into the passenger compartment if there is sudden braking - risk of injury!
• Pay attention that the rear seat backrest is correctly interlocked. It is only
then that the three-point seat belt for the middle seat can reliably fulfil its
function.
• First check for yourself that the cross road is inserted into the mounts
in the front position!
Removing and installing net partition housing
Removing
– Fold the rear seats forwards ⇒ page 73
– Open the right rear door.
– Push the net partition housing ⇒ fig. 89 in the direction of arrow
and take it out of the mounts of the rear seat backrests in the direc-
tion of the arrow .
Installing
– Position the net partition housing into the mounts of the seat backrest.
– Push the net partition housing in the opposite direction of arrow
as far as the stop.
– Fold the rear seats back into its original position.
The roof rack*
Description
Pay attention to the following points if you wish to transport luggage or other items
on the roof of your vehicle:
• A special roof luggage rack system was developed for the vehicle, that is why
you should only use a roof luggage rack which has been released for use by Škoda
Auto a.s.
• The base carrier is the basis for a complete roof luggage rack system. Separate
additional holders are required for safety reasons for transporting luggage, bikes,
surfboards, skis and boats.
• The basic version of the roof luggage rack system and further components are
obtainable as accessories from Škoda Service Partners.
Caution
• If you use other roof rack systems or if the roof bars are not properly fitted, then
any damage which may result to your car is not covered by the warranty agreements. It is therefore essential to pay attention to the fitting instructions supplied
with the roof luggage rack system.
• On models fitted with a power sliding/tilting roof, ensure that the opened
sliding/tilting roof does not strike any items of luggage transported on the roof.
• Ensure that the opened boot lid does not collide with the roof load.
A
C

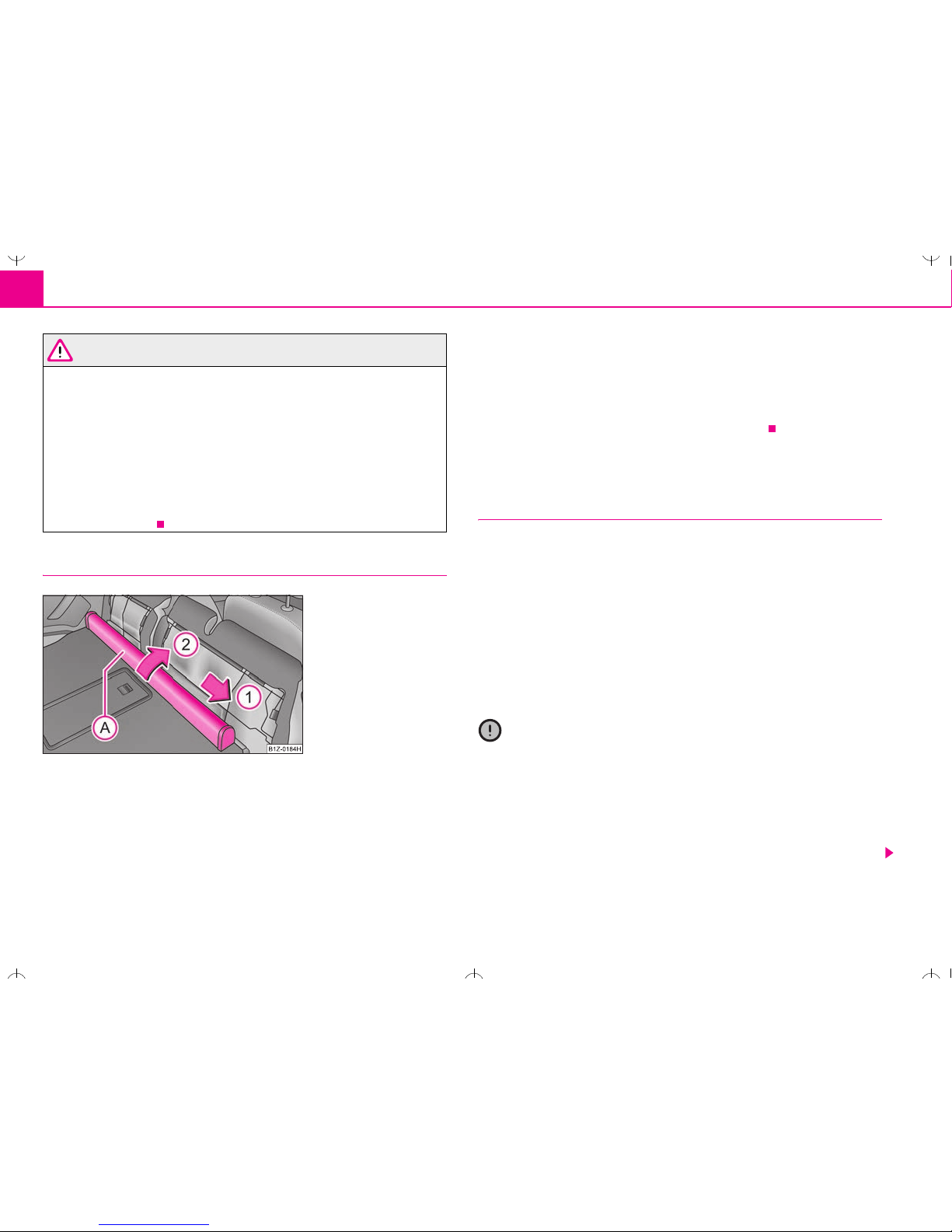

Fig. 89 Rear seats: Net
partition housing
AAA1A2A
1
NKO A5 20 MR08.book Page 84 Wednesday, April 11, 2007 2:54 PM
Seats and Stowage 85
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
For the sake of the environment
The increased aerodynamic drag results in a higher fuel consumption. One should
therefore take off the roof bar system after use.
Note
A roof rail is obtainable from a specialist garage if hasn't been fitted onto an estate
car at the works.
Lashing points (Octavia)
Fitting
– Insert the attachment points of the roof rack into the mounts of the
body so that the pins of the attachment points grasp into the holes of
the body.
Note
• Pay attention to the information regarding assembly and disassembly in the
attached instructions.
• If you have any questions, please contact a specialist garage.
• The figure is not valid for an estate car.
Roof load
Distribute weight evenly over the roof luggage rack system. The maximum permissible roof load (including roof rack system) of 75 kg and the maximum permissible
total weight of the vehicle should not be exceeded.
You cannot make full use of the permissible roof load if you use a roof luggage rack
system with a lower load carrying capacity. The load transported on the roof
luggage rack system must not exceed the weight limit which is stated in the fitting
instructions.
WARNING
• The items which you transport on the roof bar system must be reliably
attached - risk of accident!
• You must on no account exceed the permissible roof load, the permis-
sible axle loads and the permissible gross weight of your vehicle - risk of
accident!
• Please note that the handling properties of your vehicle change when
you transport heavy or bulky items on the roof bar system as a result of the
displacement of the centre of gravity and the increased wind attack area risk of accident! You must absolutely adapt your style of driving and the
speed of the vehicle to the specific circumstances.
Fig. 90 Attachment
points for base roof
carrier
NKO A5 20 MR08.book Page 85 Wednesday, April 11, 2007 2:54 PM
Seats and Stowage86
Cup holder
Cup holder in front centre console
You can place two cups or beverage cans into the recesses ⇒ fig. 91.
WARNING
• Do not place any ho t beverages into the cup holder. If the vehicle moves,
the hot beverages may spill - risk of scalding!
• Do not use any cups or beakers which are made of brittle material (e.g.
glass, porcelain). You might be injured by them in the event of an accident.
Caution
Do not open the beverages in the cup holder while driving. They may spill when
braking and while doing so damage the vehicle.
Cup holder in rear centre console*
– Press on the panel in the area ⇒ fig. 92 - the cup holder comes out.
– Pull the cup holder out as far as the stop.
– Adjust the cup holder by moving the locking plate .
WARNING
• Do not place any hot beverages into the cup holder while the car is
moving. The hot beverages may spill - risk of scalding!
• Do not use any cups or beakers which are made of brittle material (e.g.
glass, porcelain). You might be injured by them in the event of an accident.
Fig. 91 Front centre
console: Cup holder
Fig. 92 Centre console at
rear: C up holder
AAA
B
NKO A5 20 MR08.book Page 86 Wednesday, April 11, 2007 2:54 PM
Seats and Stowage 87
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
Note holder
The note holder is designed e.g. for attaching a car park ticket in parking areas.
The attached note has to always be remove d before starting off in order not to
restrict the driver's vision.
Ashtray
Front ashtray
Opening ashtray
– Press on the bottom part of the cover of the ashtray - refer to
⇒ page 87, fig. 94.
Removing ashtray insert
– Press on the ashtray insert in the area (the insert comes out) and
you can take it out.
Insert ashtray insert
– Insert the ashtray insert into the mount and press it in.
WARNING
Never lay flammable objects in the ashtray basin - risk of fire!
Rear ashtray - low centre console
Opening ashtray
– Grasp the ashtray cover at the lower edge and fold it open in the
direction of arrow ⇒ fig. 95.
Fig. 93 Windscreen:
Note holder
Fig. 94 Centre console:
Front ashtray
AAA
B
Fig. 95 Low centre
console: Rear ashtray
A
A
NKO A5 20 MR08.book Page 87 Wednesday, April 11, 2007 2:54 PM
Seats and Stowage88
Removing ashtray
– Grasp the ashtray at the handle and pull it out in an upward direc-
tion.
Replacing ashtray
– Insert the ashtray into the console and press it in.
WARNING
Never lay flammable objects in the ashtray basin - risk of fire!
Rear ashtray - high centre console*
Opening ashtray
– Press on the top part of the cover of the ashtray in area ⇒ fig. 96.
Removing ashtray insert
– Press the cover of the ashtray down slightly as far as the stop.
– Grasp the ashtray insert at the cover and pull it out.
Insert ashtray insert
– Insert the ashtray insert into the mount and press it in.
There is a drinks can holder attached to the inner side of the ashtray cover.
WARNING
Never lay flammable objects in the ashtray basin - risk of fire!
Cigarette lighter*, power sockets
Cigarette lighter
You can also use the socket on the cigarette lighter for other electrical appliances.
Using the cigarette lighter
– Press in the button of the cigarette lighter ⇒ fig. 97.
– Wait until the button jumps forward.
– Remove the cigarette lighter immediately and use it.
– Insert the cigarette lighter again into the socket.
A
B
Fig. 96 High centre
console: Rear ashtray
A
A
A
B
Fig. 97 Centre console:
Cigarette lighter
NKO A5 20 MR08.book Page 88 Wednesday, April 11, 2007 2:54 PM
Seats and Stowage 89
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
Using the power socket
– Take out the cigarette lighter.
– Insert the plug of the electrical appliance into the socket of the ciga-
rette lighter.
The 12 volt power socket can also be used to supply power to electrical accessories
with a power uptake up to 180 watts.
WARNING
• Take care when using the cigarette lighter! Not paying proper attention
or incorrect use the cigarette lighter in an uncontrolled manner may result in
burns.
• The cigarette lighter and the power socket also operates when the igni-
tion is switched off or the ignition key withdrawn. You should therefore
never leave children unattended in the vehicle.
Caution
Always use matching plugs to avoid damaging the power sockets.
Note
• Connecting electrical components when the engine is not running will
drain the battery of the vehicle - risk of battery draining!
• Further information ⇒ page 229, “Accessories, changes and replacement of
parts”.
Power socket in the luggage compartment (estate car)
– Open the cover of the power socket ⇒ fig. 98.
– Connect the plug of the electrical appliance to the socket.
You can only use the power socket for the connection of approved electrical accessories with a power uptake up to 180 watts. The vehicle battery will be discharged
in the process if the engine is stationary.
The same remarks apply here as for ⇒ page 88.
Further information ⇒ page 229, “Accessories, changes and replacement of
parts”.
Storage compartments
Overview
You will find the following storage facilities in your vehicle:
Storage compartment on the front passenger side ⇒ page 90
Storage compartment on the driver's side ⇒ page 91
Storage compartment on the dash panel ⇒ page 91
Fig. 98 Luggage
compartment: Power
socket
NKO A5 20 MR08.book Page 89 Wednesday, April 11, 2007 2:54 PM
Seats and Stowage90
WARNING
• Please do not place anything on top of the dash panel. Such objects
might slide or fall down when driving (when accelerating or cornering) and
may distract you from concentrating on the traffic situation - risk of accident!
• Ensure that when driving no objects from the centre console of from
other storage possibilities may get into the footwell of the driver. You would
then no longer be able to apply the brakes, operate the clutch or accelerator
- risk of accident!
Storage compartment on the front passenger side
Opening and closing the storage compartment on the front
passenger side
– Press the handle of the lid ⇒ fig. 99 - the lid folds down.
– Raise the lid and press it until the catch is heard to engage.
There is a holder for a pen and note book on the inside of the lid.
WARNING
• The storage compartment must always be closed when driving for safety
reasons.
• Do not place any beverages into the cup holder while driving. Spilled
beverages can damage the electrical system and the upholstery. Hot beverages may result in burns.
Stowage compartment in front centre console* ⇒ page 92
Stowage compartment for spectacles* ⇒ page 92
Storage compartment in the front doors ⇒ page 93
Stowage compartment below front passenger
seat*
⇒ page 93
Front seat armrest with stowage compartment* ⇒ page 93
Stowage compartment in rear centre console* ⇒ page 94
Seat backrest with opening for skis* ⇒ page 95
Through-loading bag* ⇒ page 97
Side compartment* ⇒ page 98
Stowage compartment behind the rear seats
(estate car)
⇒ page 98
Clothes hooks* ⇒ page 98
Fig. 99 Dash panel:
Storage compartment on
the front passenger side
NKO A5 20 MR08.book Page 90 Wednesday, April 11, 2007 2:54 PM
Seats and Stowage 91
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
Cooling of storage compartment on front passenger side*
The storage compartment is for vehicles fitted with an air-conditioning system with a closable inlet for cooled air.
– You can switch the cooling system on or off using the control dial
⇒ fig. 100.
Opening the air inlet when the air conditioni ng system is on causes fresh or interior
air to flow into the storage compartment.
The storage compartment is only cooled in the cooling mode. We recommend that
you switch off the cooling (opening concealed) if it is operating in the heating mode
or if you are not using the cooling system for the storage compartment.
Storage compartment on the driver's side
– The storage compartment is opened by lifting the handle and folding
open in the direction of arrow ⇒ fig. 101.
WARNING
The storage compartment must always be closed when driving for safety
reaso ns.
Storage compartment on the dash panel
Fig. 100 Storage
compartment: Using
cooling system
Fig. 101 Dash panel:
Storage compartment on
the driver's side
Fig. 102 Dash panel:
Storage compartment
NKO A5 20 MR08.book Page 91 Wednesday, April 11, 2007 2:54 PM
Seats and Stowage92
– Press in the middle of the storage compartment ⇒ fig. 102 - the lid
folds open
Certain model versions are equipped without lid for the storage compartment.
WARNING
• The storage compartment is not a substitute for the ashtray and must
also not be used for such purposes - risk of fire!
• The pull-out storage compartment must always be kept closed when
driving for safety reasons.
• Do not put any highly inflammable objects or objects which are sensitive
to heat (e.g. lighters, sprays or carbonated drinks) in the storage
compartment.
Stowage compartment in front centre console*
– Press on the bottom part of the storage compartment in the area
⇒ fig. 103 - the lid opens.
WARNING
The storage compartment is not a substitute for the ashtray and must also
not be used for such purposes - risk of fire!
Stowage compartment for spectacles*
– Press on the lid of the stowage compartment, the stowage compart-
ment opens downwards ⇒ fig. 104.
WARNING
The compartment must only be opened when removing or inserting objects
and otherwise must be kept closed.
Fig. 103 Front centre
console: Storage
compartment
A
A
Fig. 104 Detail of the
headliner: Stowage
compartment for spectacles
NKO A5 20 MR08.book Page 92 Wednesday, April 11, 2007 2:54 PM
Seats and Stowage 93
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
Storage compartment in the front doors
A bottle holder is located in the area of the storage compartment for the front
doors.
WARNING
Use the area ⇒ fig. 105 of the storage compartment only for storing
objects which do not project so that the effectiveness of the side airbag is not
impaired.
Stowage compartment below front passenger seat*
The storage compartment is foreseen for storing small objects of up to 1,5
kg. in weight.
– Tilt the lock to open the flap and pull out the flap ⇒ page 93, fig. 106.
– Tilt the lock to close the flap and press flap close.
Front seat armrest with storage compartment*
The armrest is adjustable for height and length.
Opening stowage compartment
– Open the lid of the armrest in the direction of arrow ⇒ fig. 107.
Fig. 105 Storage
compartment in the front
doors
ABA
A
Fig. 106 Front passenger
seat: Storage compartment
Fig. 107 Armrest:
Storage compartment
Fig. 108 Armrest:
Cooling of storage
compartment
NKO A5 20 MR08.book Page 93 Wednesday, April 11, 2007 2:54 PM
Seats and Stowage94
Closing stowage compartment
– Open the lid up to the stop, then you can fold it downwards.
Setting height
– First of all fold the lid to the bottom and lift it in the direction of arrow
into one of the 4 fixed positions.
Adjusting in forward/back direction
– Push the lid into the desired position.
Opening air inlet
– Pull the lock in upward direction ⇒ fig. 108.
Closing air inlet
– Push the lock as far as the stop downwards.
On vehicles fitted with air conditioning, the storage compartment is equipped with
a lockable inlet for thermally treated (warmed-up) air.
At open air supply, air flows into the storage with a temperature which is as high as
the one out of the air outlet nozzles, depending on temperature setting.
The air inlet in the storage compartment is connected to position through
adjustment of the control dial for air distribution. This position causes the
maximum amount of air to flow into the storage compartment (depending on the
rotary regulator position for the fan).
You can use the storage compartment, for example, to temper drinks cans, etc.
If you do not use the air inlet in the storage compartment, the end cover
should always be kept closed.
Note
Push the lid of the armrest up to stop to the rear before operating the handbrake.
Stowage compartment in rear centre console*
The storage compartment is equipped with a removeable insert.
– Open the storage compartment by pulling on the upper edge of the
storage compartment in the direction of arrow ⇒ fig. 109.
WARNING
The storage compartment is not a substitute for the ashtray and must also
not be used for such purposes - risk of fire!
AAA
A
Fig. 109 Centre console
at rear: Storage compartment
A
A
NKO A5 20 MR08.book Page 94 Wednesday, April 11, 2007 2:54 PM
Seats and Stowage 95
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
Seat backrest with opening for skis*
After folding open the armrest and the lid, an opening in the seat backrest
becomes visible through which you can push long objects e.g. skis etc.
You can fold open the armrest and the lid from the passenger or luggage
compartment.
Opening from passenger compartment
– Fold down the armrest of the rear seat at the loop ⇒ page 74, fig. 69.
– Pull the handle up to the stop in upward direction and fold open the
lid downwards ⇒ fig. 110.
Opening from luggage compartment
– Push the unlock button downwards ⇒ page 95, fig. 111 and fold
the lid (with armrest) to the front.
Closing
– Fold the lid and the armrest up to the stop in upward direction - the lid
must click into place audibly.
Ensure that the armrest is always locked into place after closing. You can recognize
this on the fact that the red field above the unlocking button of the luggage
compartment is not visible.
Fig. 110 Rear seats:
Handle of lid
Fig. 111 Luggage
compartment: Unlock
button
A
A
A
A
NKO A5 20 MR08.book Page 95 Wednesday, April 11, 2007 2:54 PM
Seats and Stowage96
Storage box*
The storage box is foreseen for storage of small objects of up to 5 kg in
weight and can also be used as an armrest. You can place 2 cups or
beverage cans into the recess on the storage box.
Installing storage box
– Fold the seat backrest forwards completely.
– In the space between the folded forward seat backrest and seat
cushion of the middle seat, move the fixing holder and fold it in the
horizontal position ⇒ fig. 112.
– Move the seat backrest into the vertical position.
– Move the fixing arms of the storage box into the locking eyes of the
fixing holder until they lock in place ⇒ fig. 113.
– Check the interlock of both fixing arms by pulling on the storage
box.
Removing storage box
– Simultaneously press on each side of the storage box the red button in
direction opposite the seat backrest. The storage box releases.
– Fold the seat backrest forwards and remove the fixing holder, then
move the seat backrest into the original position.
WARNING
• Do not place any hot beverages into the cup holder. If the vehicle moves,
the hot beverages may spill - risk of scalding!
• Do not use any cups or beakers which are made of brittle material (e.g.
glass, porcelain). You might be injured by them in the event of an accident.
• While driving, the storage box can only be used as an armrest in its closed
position.
Caution
Do not open the beverages in the cup holder while driving. There is a risk of spilling
e.g. when braking and therefore the electrical components or the seat upholstery
can be damaged.
Fig. 112 Holder for
attachment
Fig. 113 Storage box
NKO A5 20 MR08.book Page 96 Wednesday, April 11, 2007 2:54 PM
Seats and Stowage 97
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
Through-loading bag*
Load ing
– Open the boot lid/luggage compartment door.
– Push the unlock button downwards ⇒ fig. 114 and fold the lid
(with armrest) to the front.
– Place the empty through-loading bag in such a way that the end of the
bag with the zip lies in the boot.
– Push the objects into the through-loading bag from the boot ⇒ .
Securing
– Insert the securing belt of the through-loading bag into the middle
seat belt buckle ⇒ fig. 115.
– Place the securing belt on ski sport articles in the middle between the
bindings ⇒ .
– Pull the securing belt tight at the free end of the belt .
Stowing
– Fold the lid and the armrest up to the stop in upward direction - the lid
must click into place audibly. You can recognize this on the fact that
the red field above the unlocking button of the luggage compart-
ment is not visible ⇒ fig. 114.
– Carefully fold the empty (dry) through-loading bag together, place it in
the luggage compartment and secure it to prevent it slipping.
WARNING
• After placing items into the through-loading bag, you must secure the
bag with the securing belt .
• The securing belt must hold the items tight.
• Ensure that the securing belt on ski sport articles lies in the middle
between the bindings (see imprint on the through-loading bag).
Note
• Place the skis with the tips facing the front, snowboards and ski sticks with the
tips facing the rear into the through-loading bag.
• If there are several pairs of skis in the through-loading bag, ensure that the bind-
ings are positioned at the same height.
• The through-loading bag must never be folded together or stowed when
moist.
Fig. 114 Luggage
compartment: Unlock
button
Fig. 115 Attaching
through-loading bag to
middle seat belt buckle
of rear seats
AAAAA
C
ABA
A
A
A
NKO A5 20 MR08.book Page 97 Wednesday, April 11, 2007 2:54 PM
Seats and Stowage98
Side compartment*
– You can open the compartment by turning the locks in the direction of
arrow.
The CD changer* is housed in this compartment.
Stowage compartment behind the rear seats (estate car)
Removing
– First remove the luggage compartment cover ⇒ page 81.
– Grasp the compartment with both hands and remove it by pulling in
direction of arrow ⇒ fig. 117.
Installing
– Push the compartment up to the stop into the catch.
– Re-insert the luggage compartment cover.
WARNING
Only place small and light objects up to a total weight of 3 kg into the
stowage compartment. In the event of a vehicle collision heavy objects
could be thrown out of the compartment - risk of injuries! For this reason,
the front part of the luggage compartment cover must always cover ov er the
stowage compartment.
Clothes hooks*
Clothes hooks are located above the rear doors ⇒ fig. 118.
Fig. 116 Luggage
compartment: Side
compartment
Fig. 117 Removing the
stowage compartment
Fig. 118 Rear door:
Clothes hooks
NKO A5 20 MR08.book Page 98 Wednesday, April 11, 2007 2:54 PM
Seats and Stowage 99
Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical Data
WARNING
• Ensure that any clothes hanging from the hooks do not impair your
vision to the rear.
• Use the hooks for hanging only light items of clothing and ensure that
there are no heavy or sharp-edged objects in the pockets.
• Do not use clothes hangers for hanging up items of clothing otherwise
this will interfere with the protection offered by the head airbag*.
