Skipper EML224, DL1 Operation And Installation Manual

Operation and Installation Manual

EML224 / DL1

Compact Speed Log System

Document no: DM-M001-SA
Rev:0702
For soware ver 1.20
Date: 2017-01-12

SKIPPER Electronics AS Telephone: [phone]
Enebakkveien 150 Telefax: [phone]
P. O. Box 151, Manglerud E-mail: [e-mail]
0612 Oslo, Norway Co. reg. no: NO-965378847-MVA
www.skipper.no

OpInMan EML224/DL1 Compact Speed Log System

Page 2 of 68

Date: 2017-01-12

Electronics AS

OPERATION AND

INSTALLATION MANUAL

Weitergabe sowie vervielfältigung dieser
unterlage, verwertung und mitteilung ihres
Inhaltes nicht gestattet, soweit nicht ausdrücklich

zugestanden. Zuwiderhandlungen verpichten zu

schadenersatz.

Toute communication ou reproduction de ce
document, toute Exploitation ou communication de
ou son contenu sont interdites, sauf autorisation
expresse. Tout manquement à cette règle est
illicite et expose son auteur au versement de
dommeges et intèrèts.

Copying of this document, and giving it
to others and the use or communication
of contents thereof, are forbidden without
express authority. Offenders are liable to the
payment of damages.

Sin nuestra expresa autorización, queda
terminantemente prohibida la reproducción
total o parcial de este documento, asì
como su uso indebido y/o su exhibición o
comunicación a terceros. De los infractores
se exigirá el correspondiente resarcimiento
de daños y perjuicios.

DL1

1 AXIS DOPPLER SPEED LOG

COMPACT VERSION

EML 224

1 OR 2 AXIS ELECTROMAGNETIC
SPEED LOG

COMPACT VERSION

Date: 2017-01-12

Page 3 of 68

OpInMan EML224/DL1 Compact Speed Log System

Electronics AS

____________________________________________________________________________

COMMUNICATING WITH US

If you need more information, support or other assistance from us, do not
hesitate to contact us:

SKIPPER Electronics AS
P. O. Box 151, Manglerud
0612 Oslo
Norway

Phone: [phone], Fax: [phone]
E-mail: [e-mail]

SOFTWARE UPDATES AND TECHNICAL SUPPORT

Find us on the internet: www.skipper.no

YOUR FEEDBACK IS APPRECIATED

If you nd errors, misspellings or poorly explained sections in this document, we

are happy to receive your feedback at:

[e-mail]

Electronics AS

OpInMan EML224/DL1 Compact Speed Log System

Page 4 of 68

Date: 2017-01-12

Electronics AS

OVERVIEW

Content of the manual

___________________________________________________________________________

terminology

Terms, units and abbreviations used in this manual.

introduCtion

This part introduces you to the Compact speed log family.

Chapter 1 – physiCal installation

Correct installation of the system will ensure problem free service for many
years. This section explains the main steps to get your system working.

Chapter 2 – setting up the CompaCt display

The Compact display is a exible, yet intuitive display allowing data to be

displayed in a user friendly way. It is also a primary system and can be integrated
into the navigation system as required by the regulations. This chapter explains
how to set up the unit.

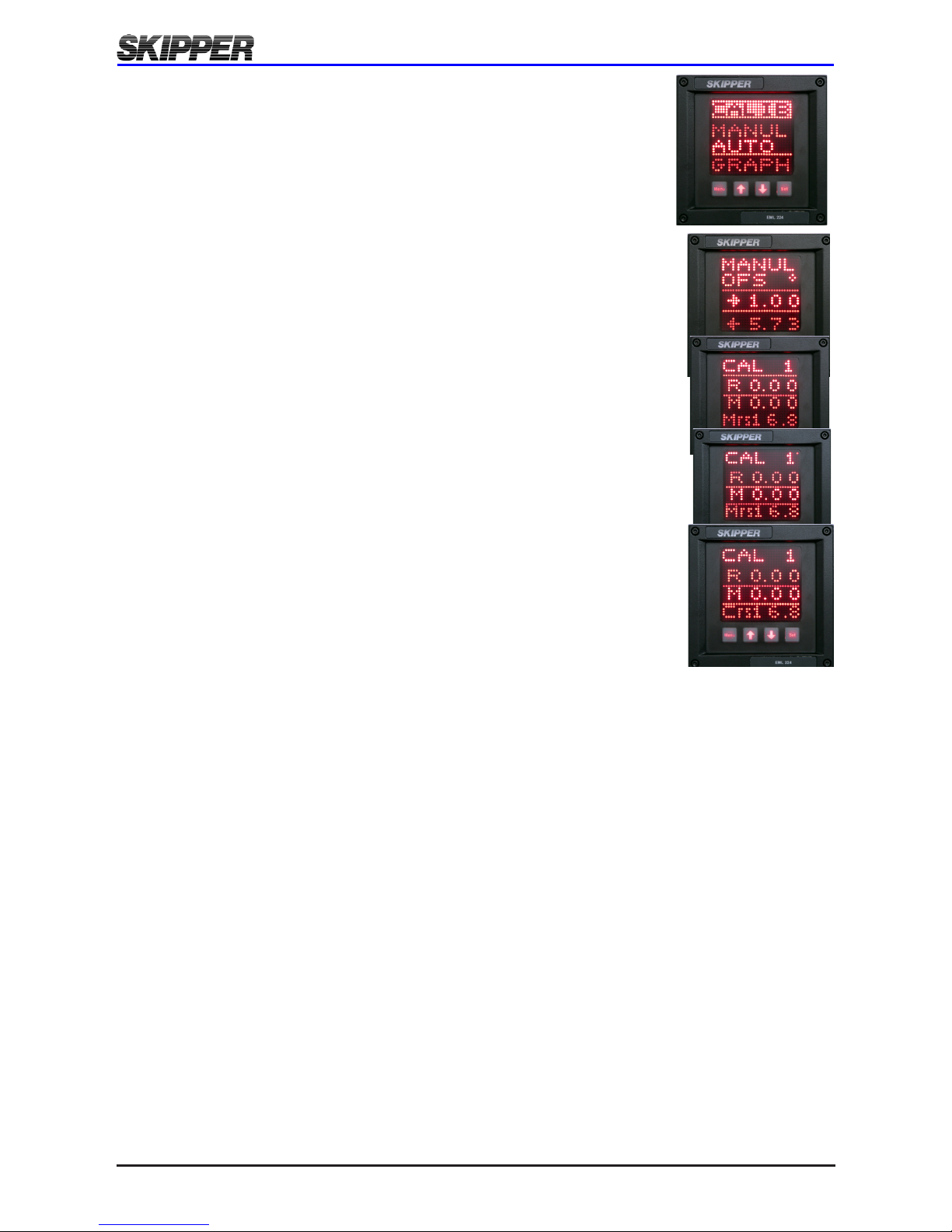

Chapter 3 – Calibration

Each new installation is unique and the system must be matched to the

vessel. Calibration is required to avoid inuence of mounting errors and that

hydrodynamics of the vessel are compensated for. This chapter explains the
procedure in a step by step guide.

Chapter 4 – runtime operation

Once the system is installed and operational, the user can change the screen to
show the data of interest at any particular time. This section explains the basic
operation of the system.

Chapter 5 – CheCking out your system

It is a good idea to verify your systems performance from time to time. This
chapter describes how to check interfaces and other issues. In the event of
mailfunction, this is a good place to start for trouble shooting.

Chapter 6 – maintenanCe

To keep your Compact speed log system in order, regular maintenance is
important. To take advantages of new features and performance enhancements,
you may need to update software. This section shows how.

appendix 1 – baCkground information

Here you will nd more details of how the system works and which factors are

Date: 2017-01-12

Page 5 of 68

OpInMan EML224/DL1 Compact Speed Log System

Electronics AS

important to know when using it.

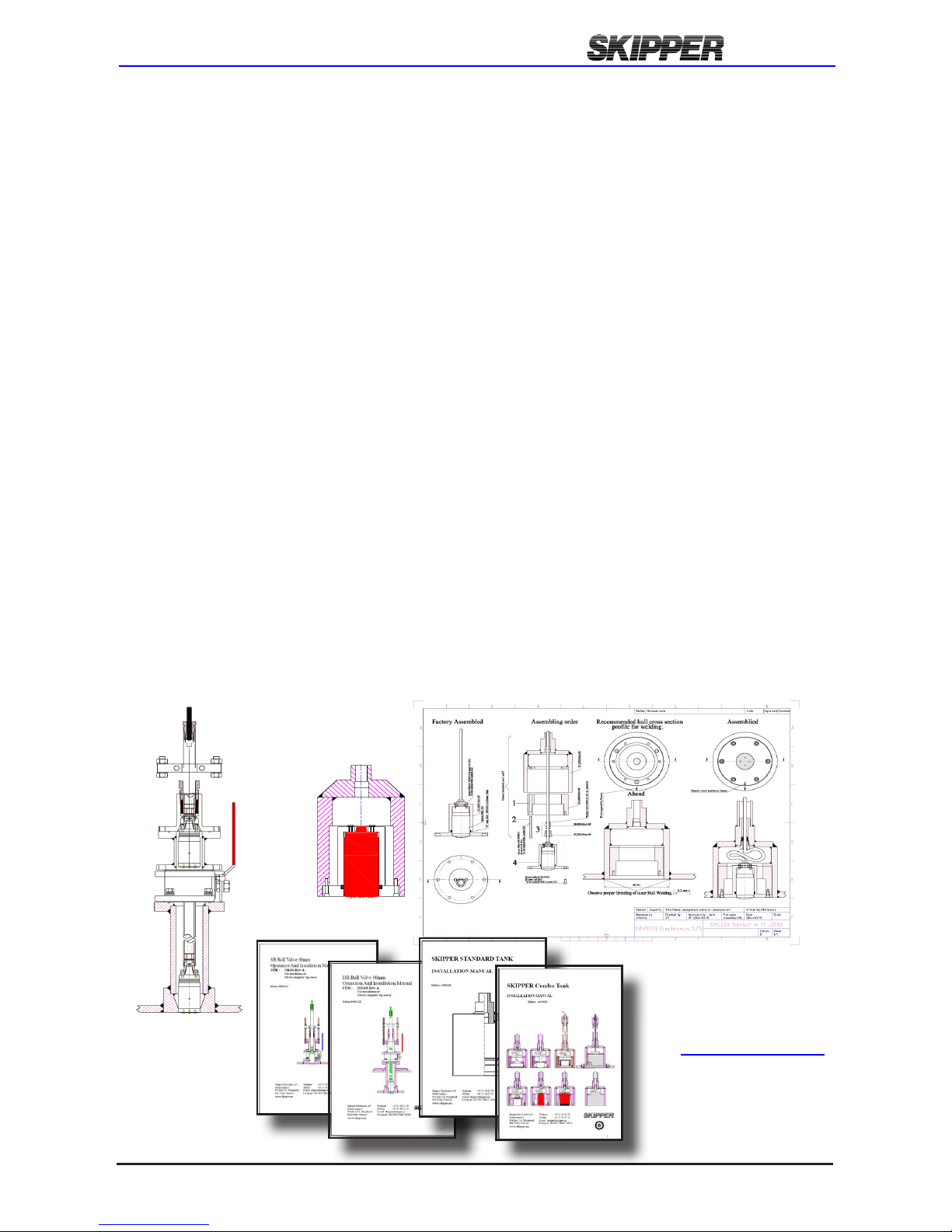

appendix 2 – meChaniCal drawings

A picture is worth more than 1000 words! In addition to the text describing
installation, the mechanical drawings are included to allow correct installation.

appendix 3 – output formats

The system uses primarily NMEA 0183 standard. This section describes the
format of the messages used. It also describes the other digital signals in use.

appendix 4 - sending the system for repair

In the unfortunate case of a failure that requires a factory repair, the return
sequence described, should be followed.

appendix 5 - other options with the CompaCt display

The Compact speed log can be used in a number of different systems both as
a repeater and a speed log. This section explains what is available and how to
activate the options. The Compact speed log also contains a diagnostics port,
from which the user can obtain diagnostic information using hyperterm. This is
described here.

appendix 6 - support software

The Compact display is alphanumeric and as such, is restricted in the amount of
information it can display. SKIPPER Electronics AS is continuously developing
support tools to ease use of its products. The Compact system allows for the
user to extract additional information about the systems condition. This appendix
describes the software tools available that will aid this process.

OpInMan EML224/DL1 Compact Speed Log System

Page 6 of 68

Date: 2017-01-12

Electronics AS

TABLE OF CONTENTS

Overview 4

Content of the manual 4

Terminology 9

Terms used in this manual 9

Units 9
Abbreviations 9

Introduction 11

The Compact speed log family 11

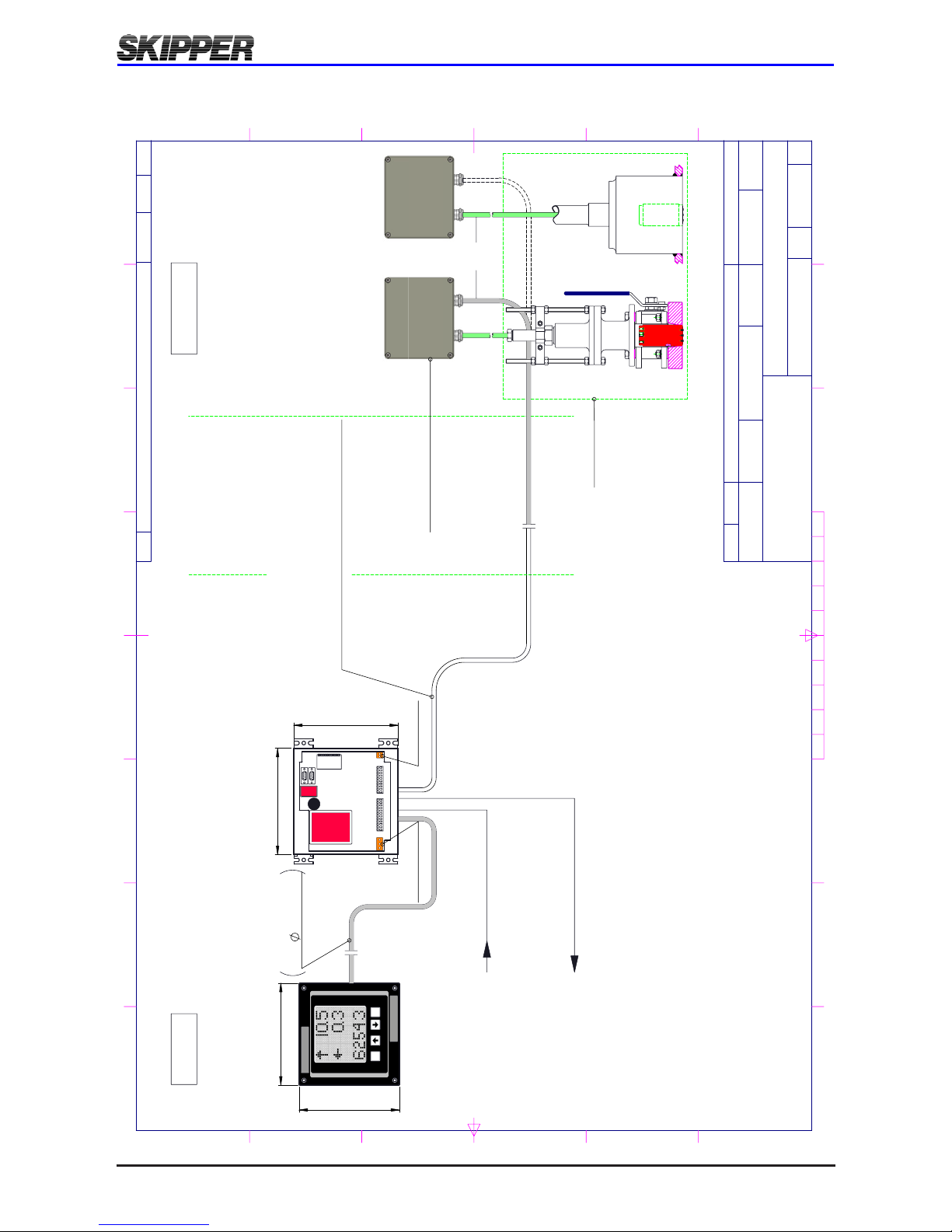

Interconnection diagram 12

Chapter 1 13

Physical installation 13

Mounting the hull metalwork 13
Mounting the sensor 14
Part positioning and welding 15
Sensor installation 15
Cabling 15
Power 16

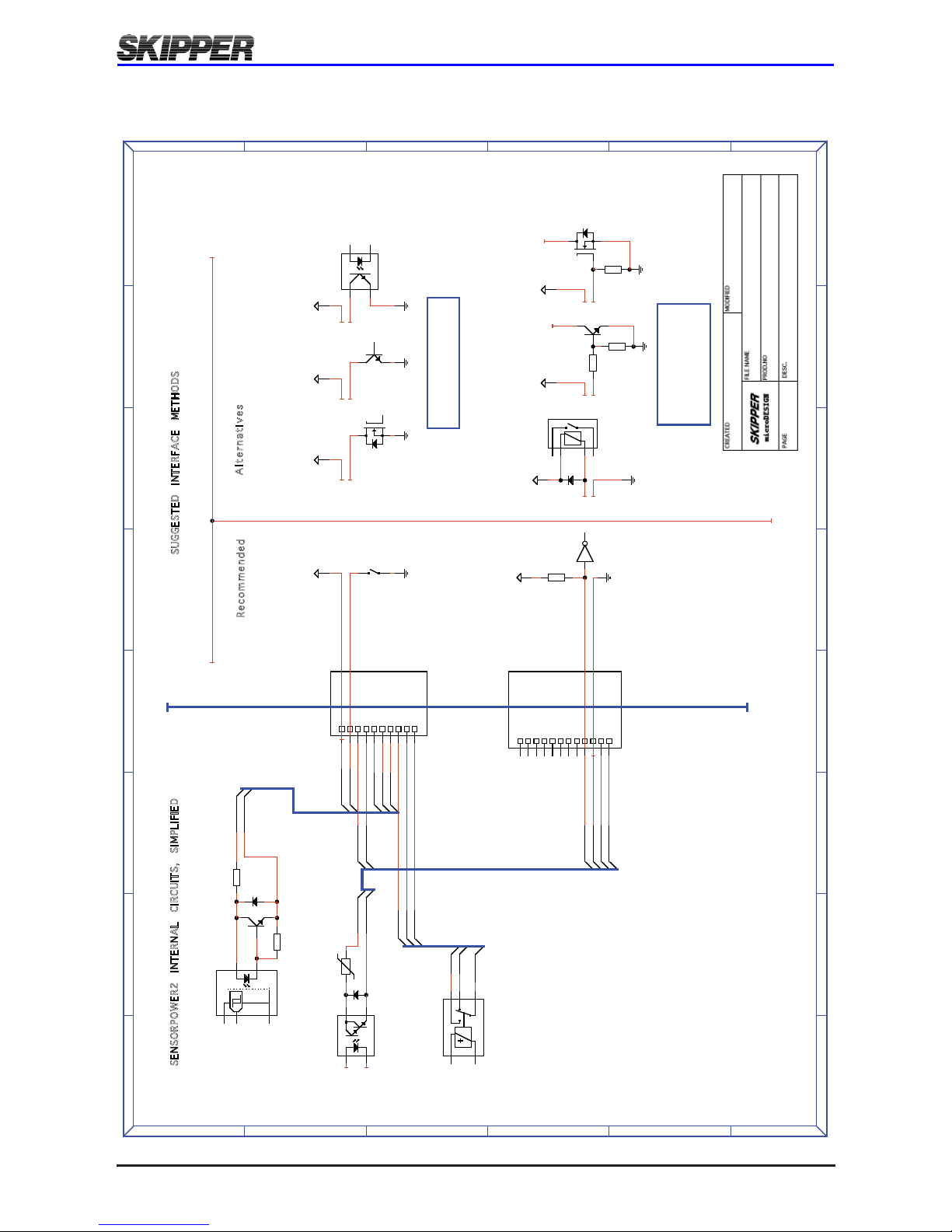

The digital inputs and outputs 16
The pulse output 17
The dimming inputs 17

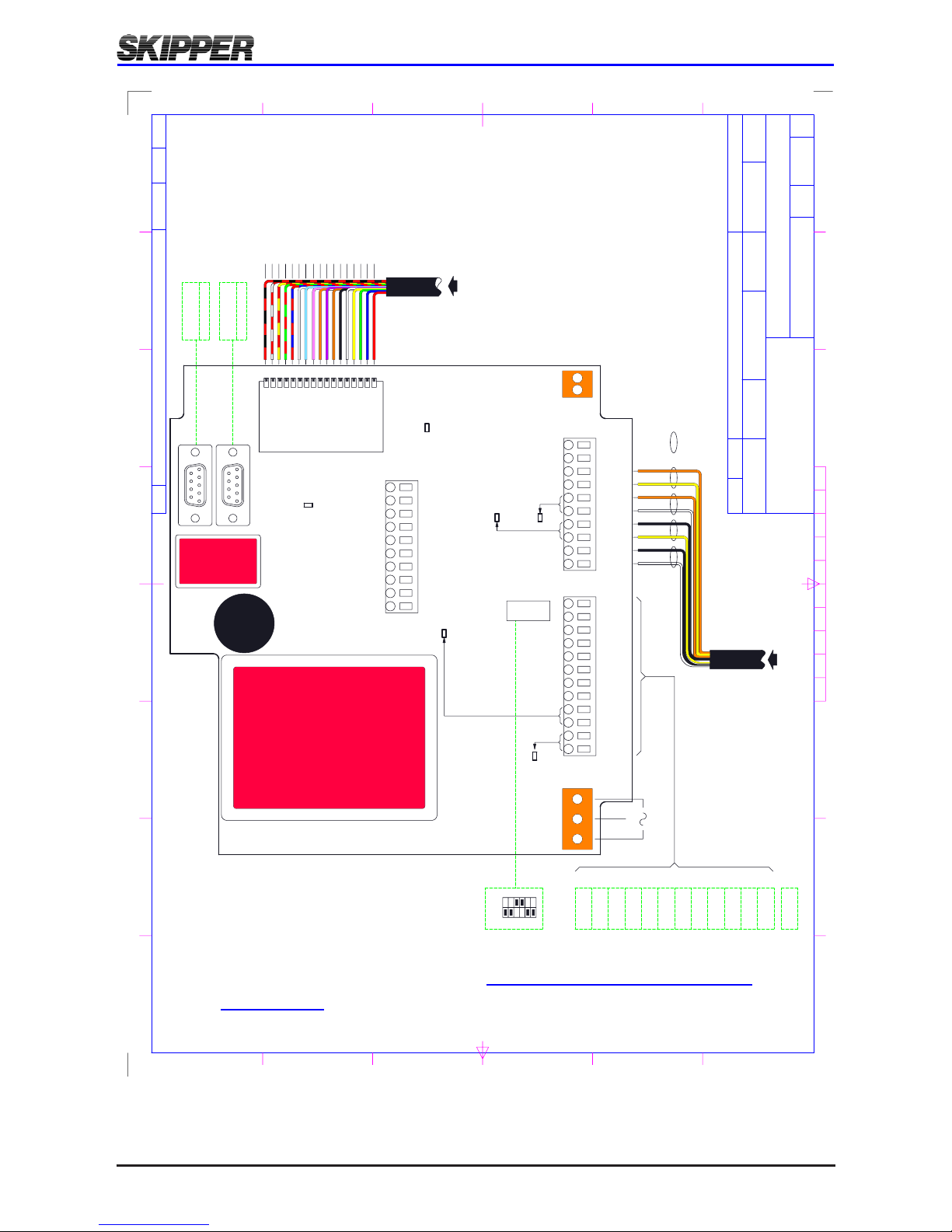

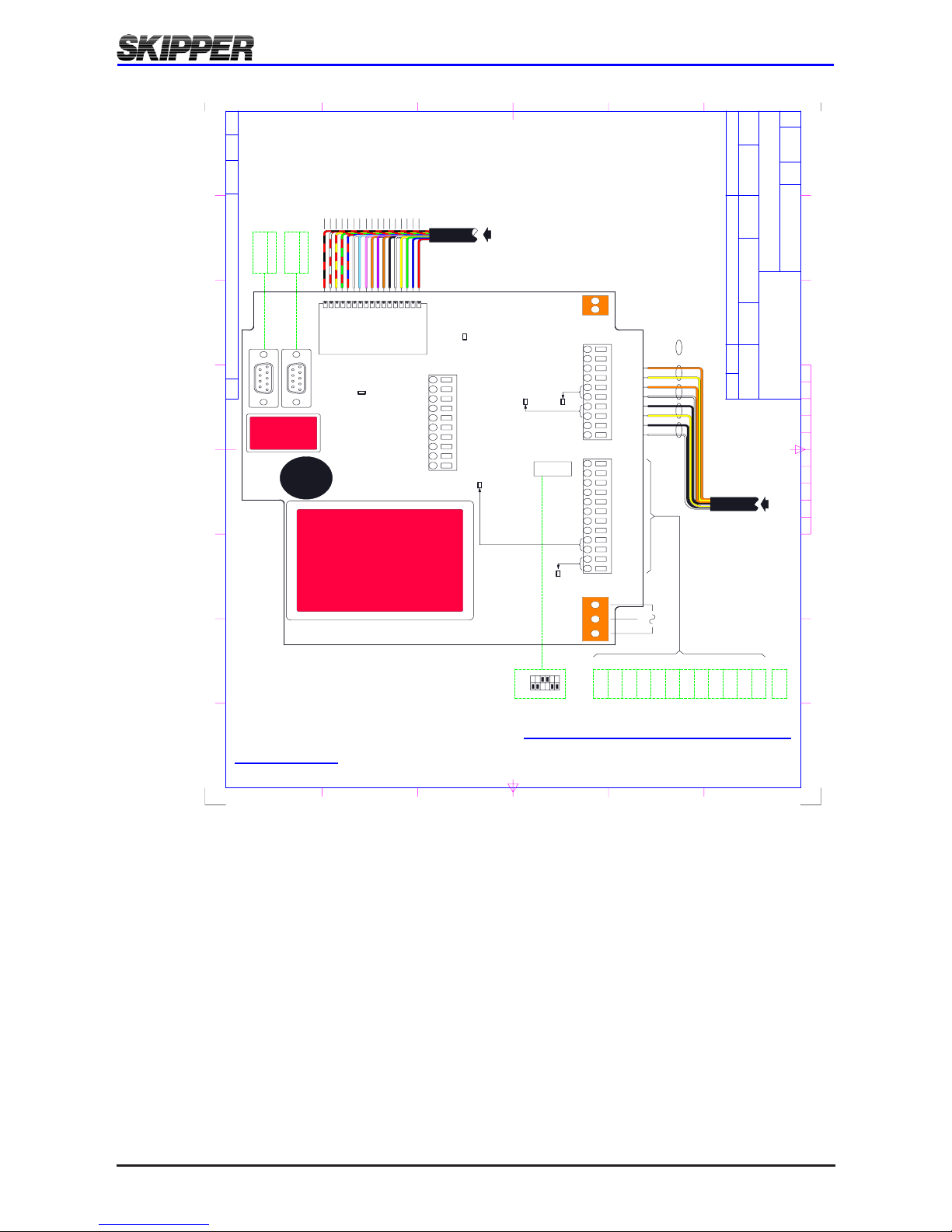

JB60CD Interconnection Diagram 18
JB60CD Connection methods 20
JB60CD-SA Connection methods 21
Speed direction (CD401EB/CD401DB only) 22

Chapter 2 23

Setting up the Compact display 23

Principles 23
Run screens 23
Setup screens 23
Activating the runtime screens 23

Conguring of data screens 24

Setup of inputs and outputs 25
Averaging 25
Changing the baud rate 26
DL1 modes of operation 26

Date: 2017-01-12

Page 7 of 68

OpInMan EML224/DL1 Compact Speed Log System

Electronics AS

Demo mode 26
Setup of alarms 26
Menu diagram 28

Chapter 3 30

Calibration 30

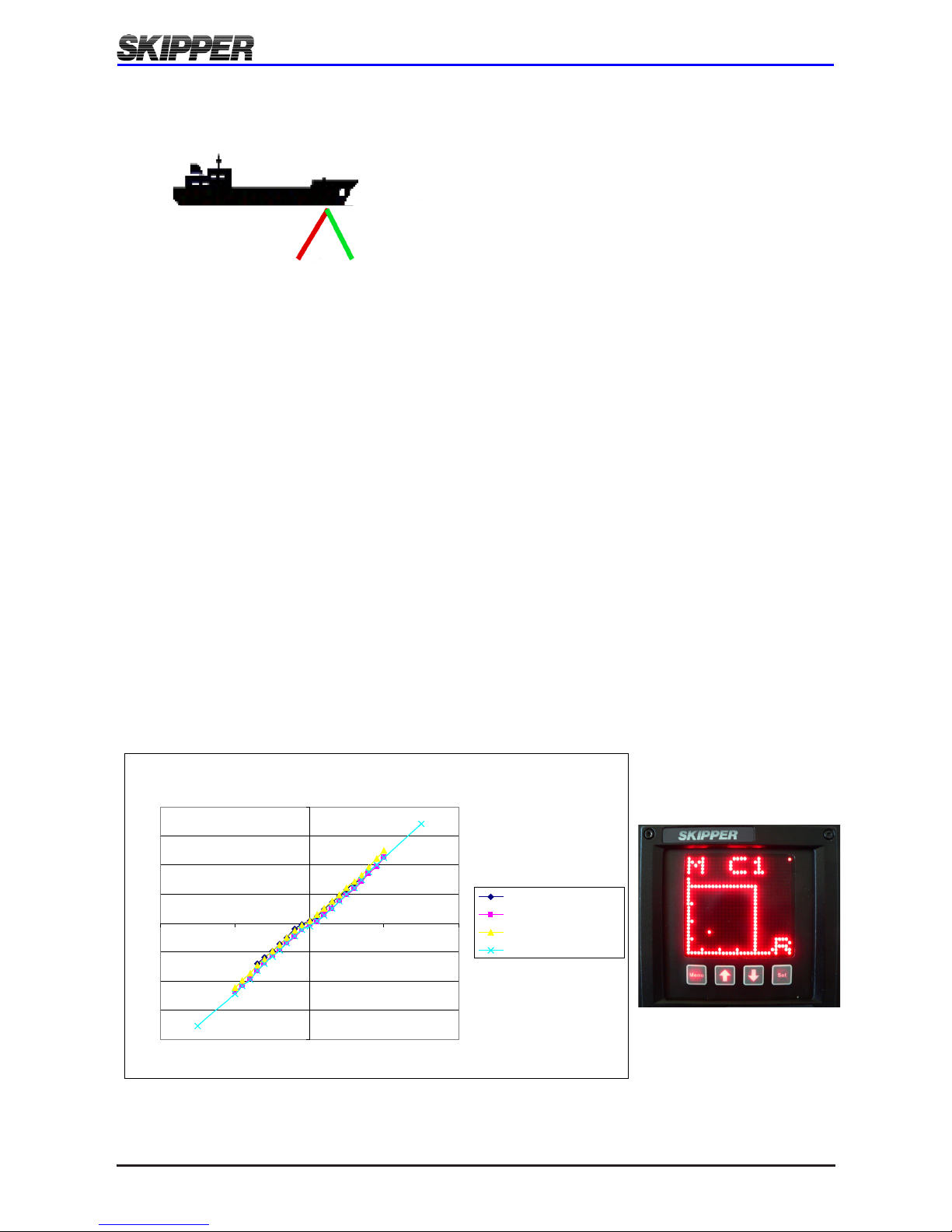

The principles 30
Speed calibration modes 31
Checking the speed calibration 33
Water temperature offset 34

Chapter 4 35

Runtime operation 35

Runtime screens 35
Alarms 35
Adjusting the alarms 35

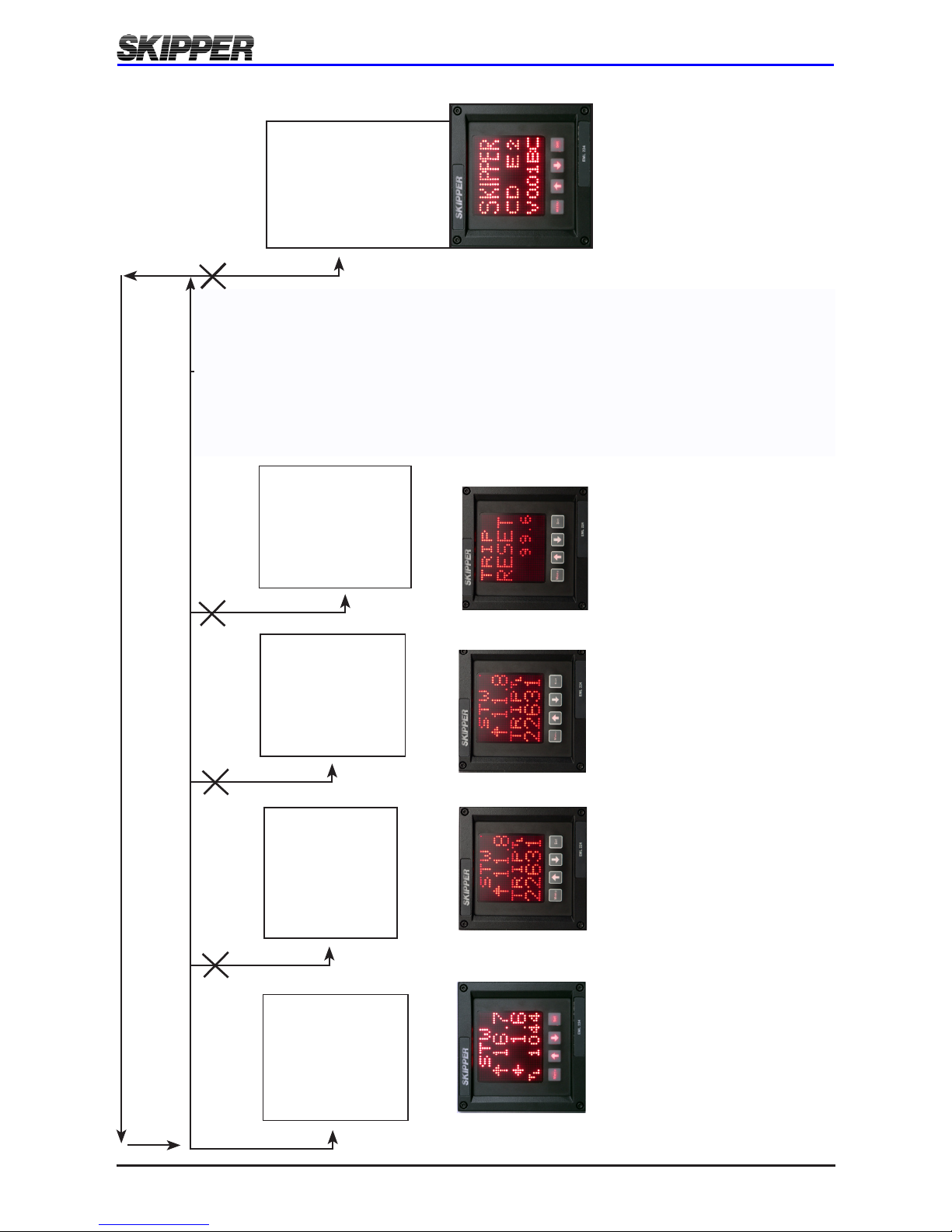

Runtime diagram 36

Chapter 5 37

Checking out your system 37

Self diagnostics 37
Test points within the system 39
Logging data 39

Chapter 6 41

Maintenance 41

Routine maintenance EML 41
Routine maintenance DL1 41
Checking your version 41
Software upgrade 41
Master reset (Factory Default Settings) 42

Appendix 1 43

Background information 43

Appendix 2 45

Mechanical drawings 45

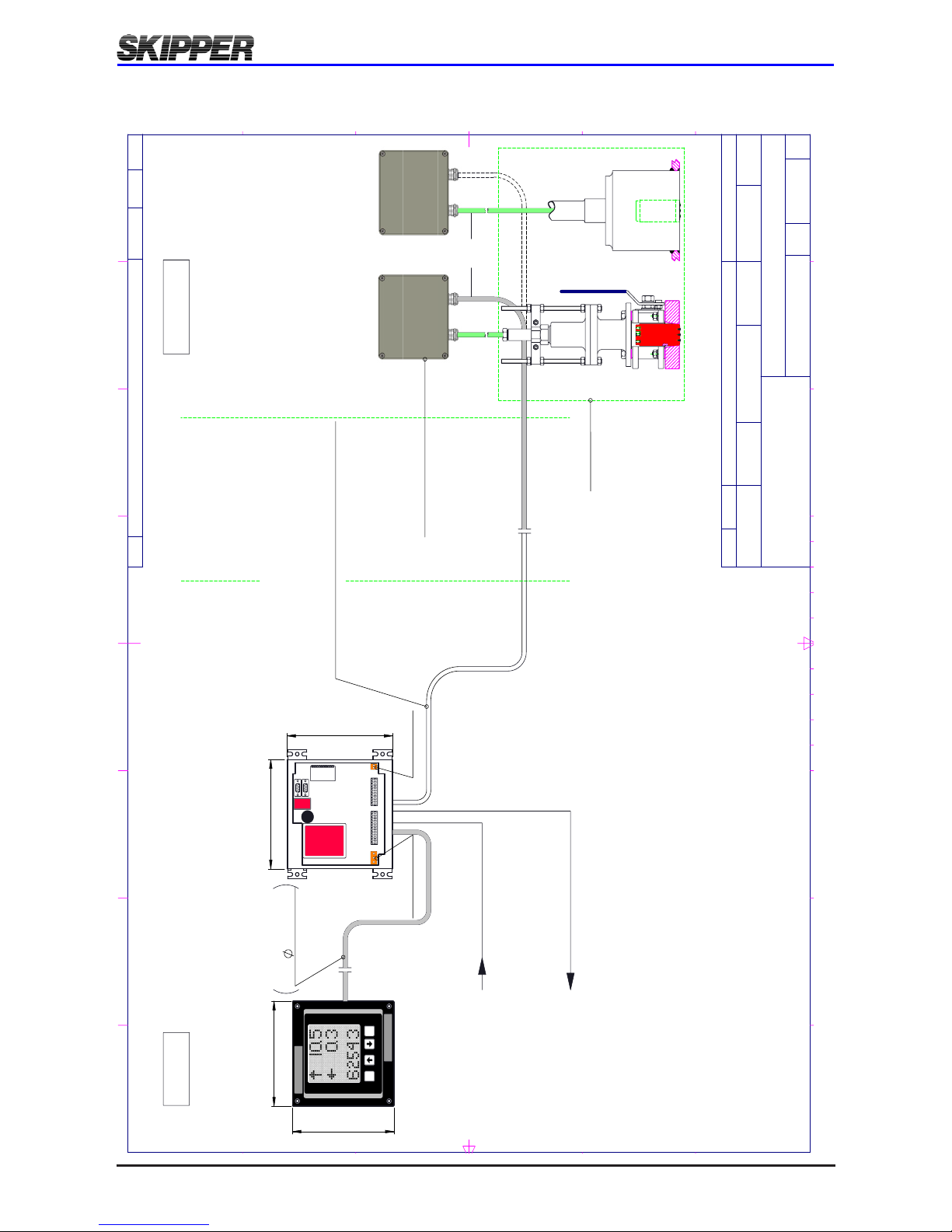

1) System overview diagram 46

2) System specications 47

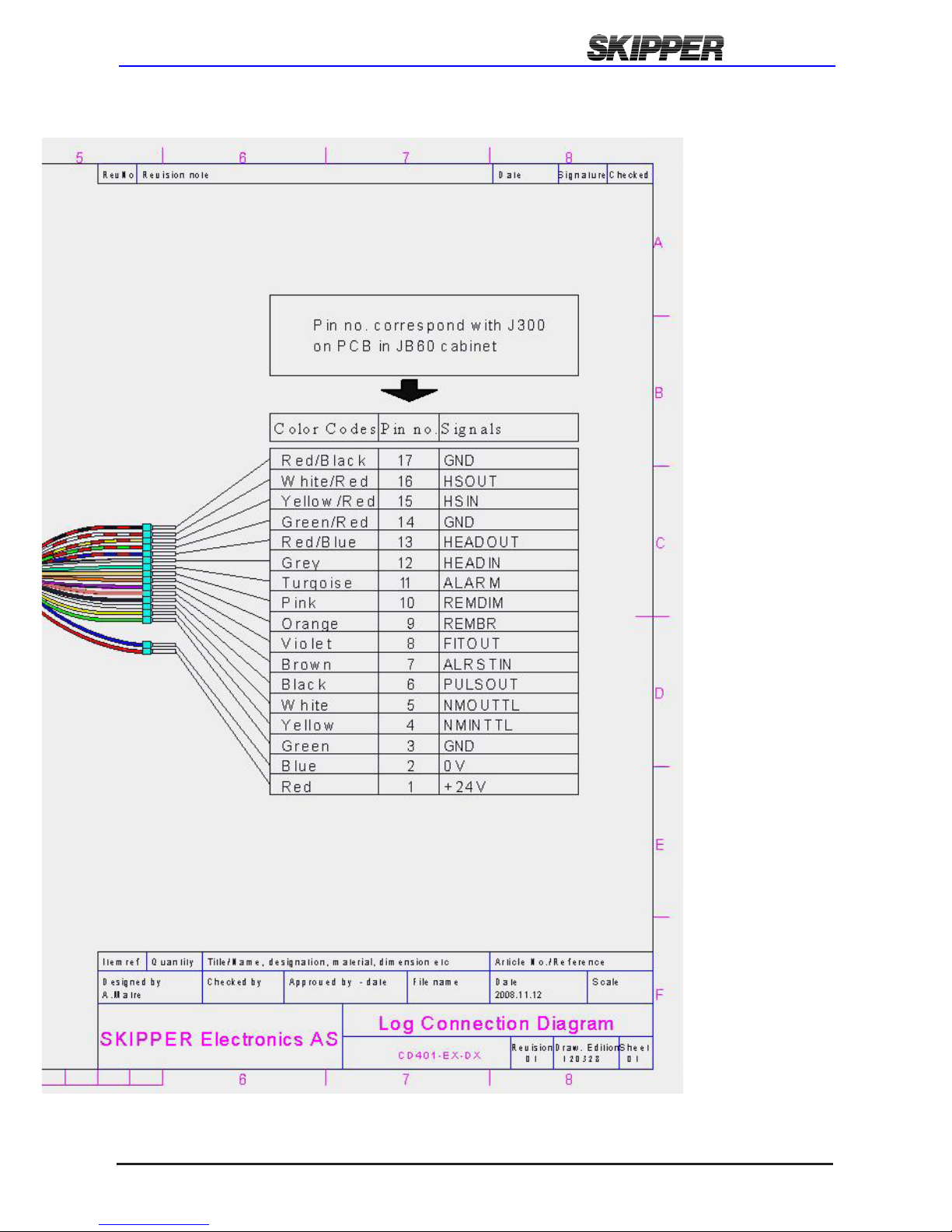

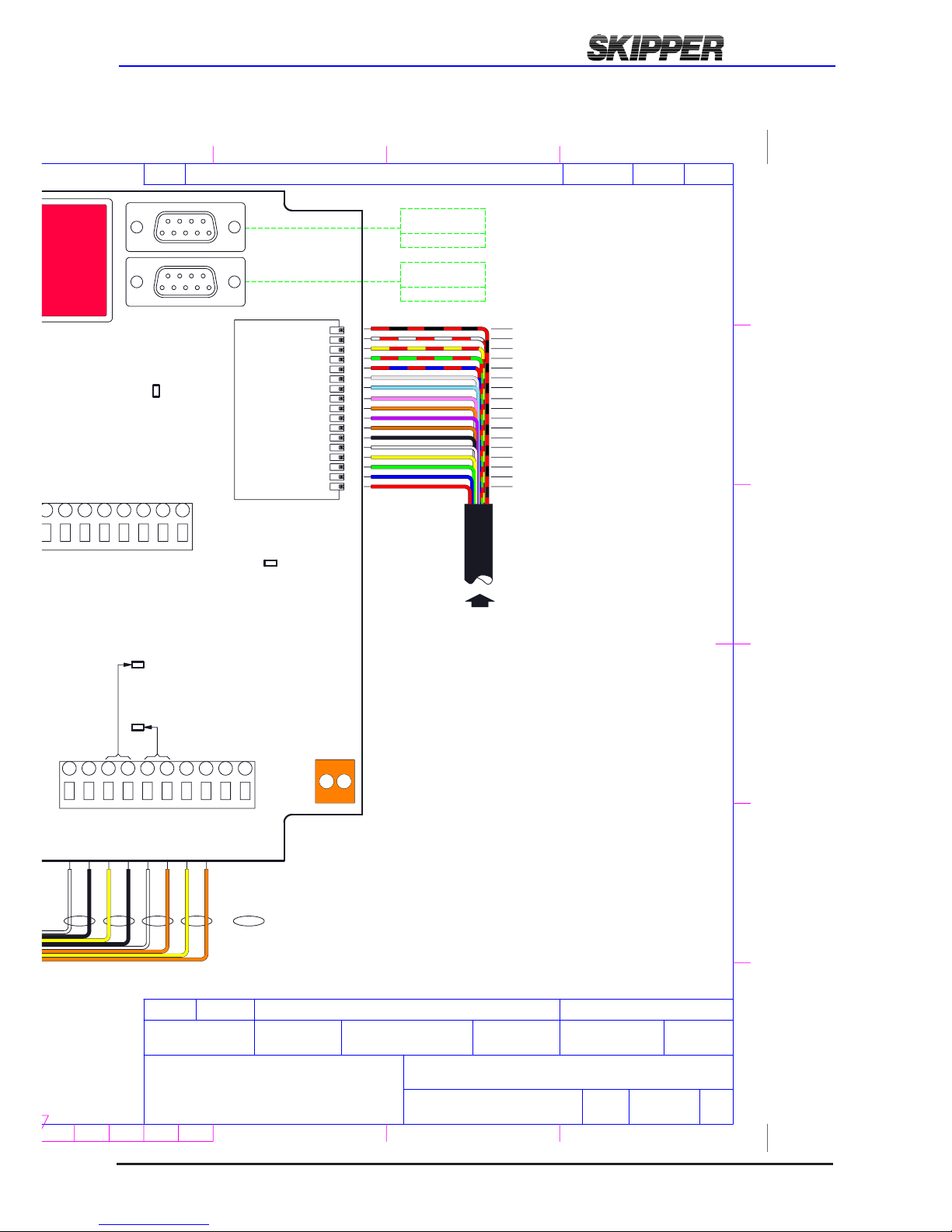

3) JB60CD Cabling diagram 50

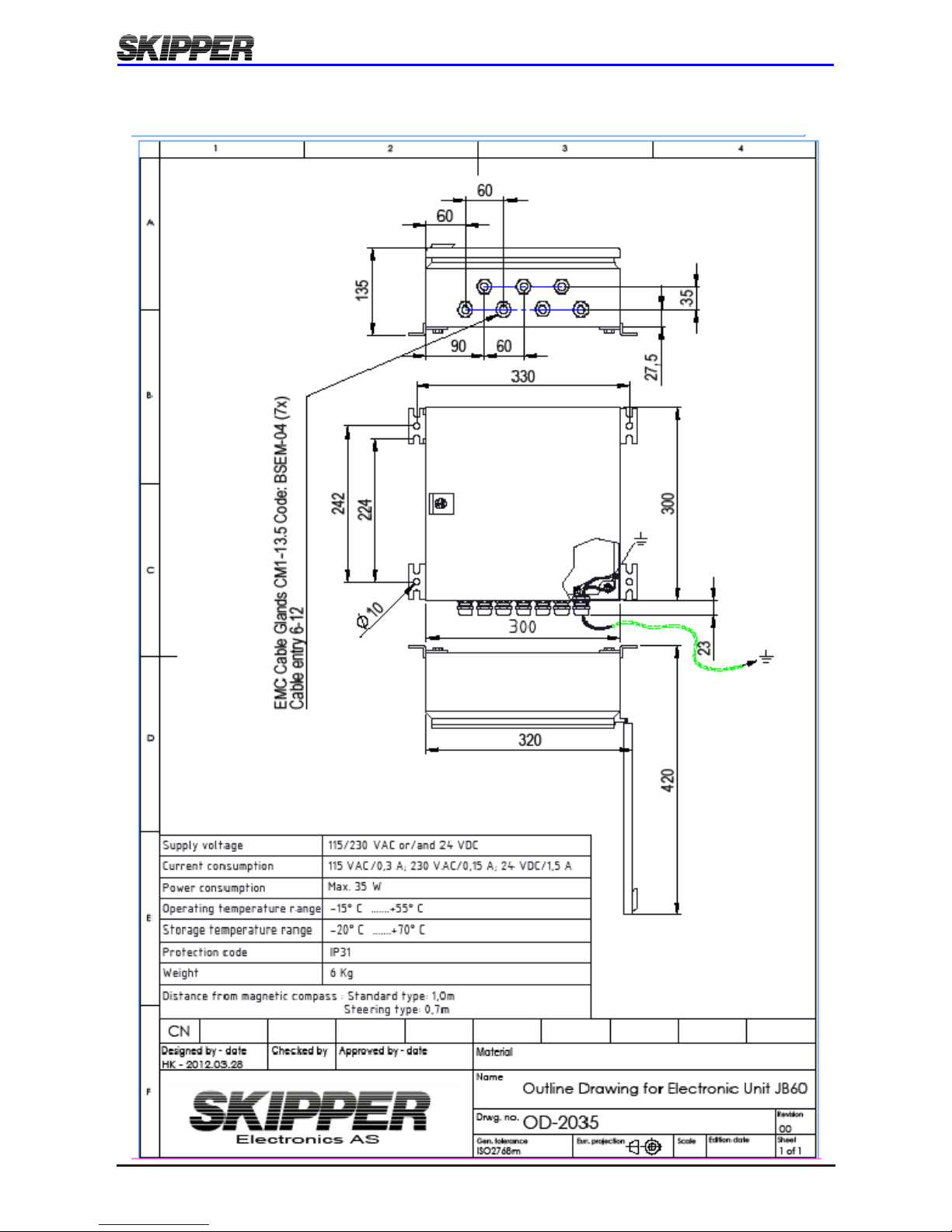

4) JB60CD Mounting diagram 52

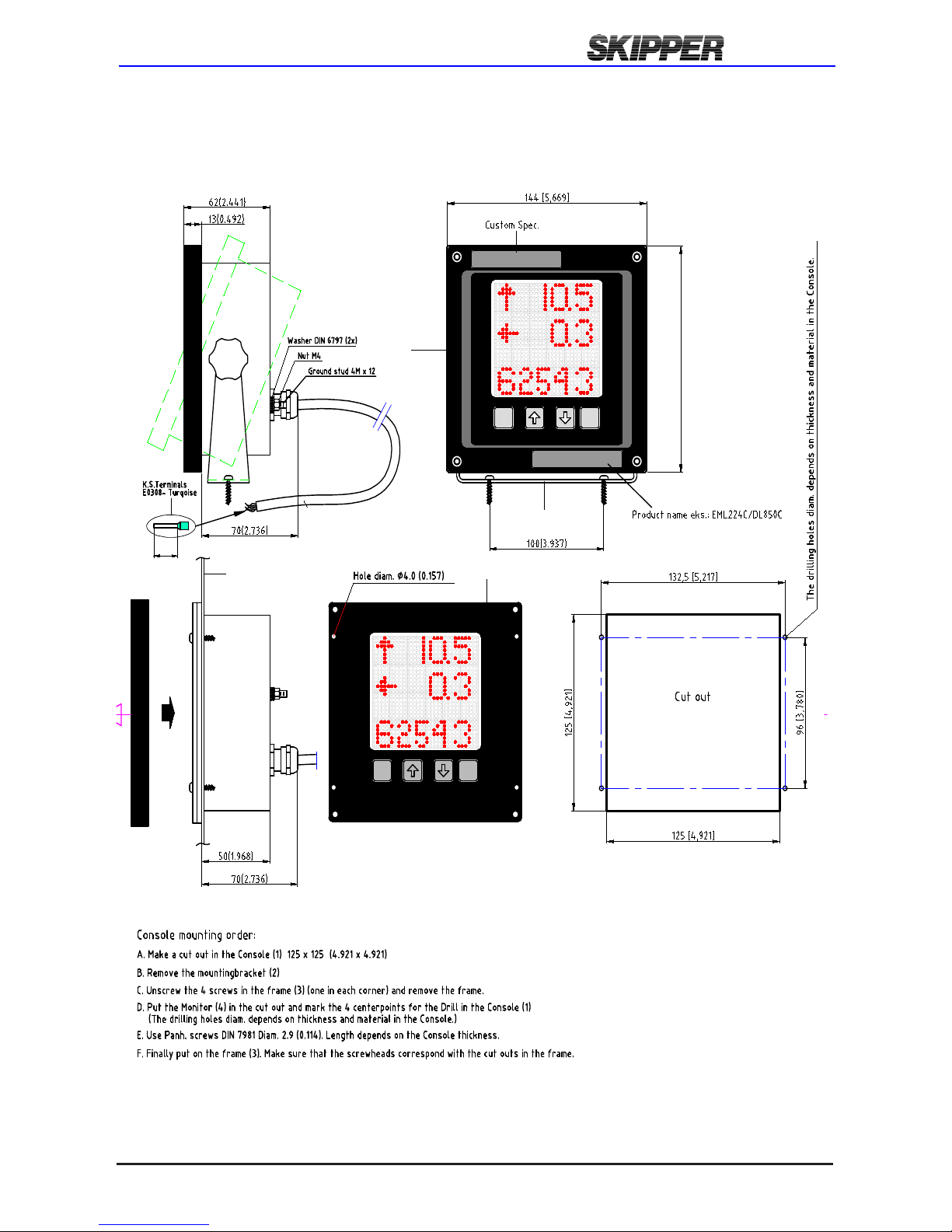

5) Compact display mounting diagram 53

OpInMan EML224/DL1 Compact Speed Log System

Page 8 of 68

Date: 2017-01-12

Electronics AS

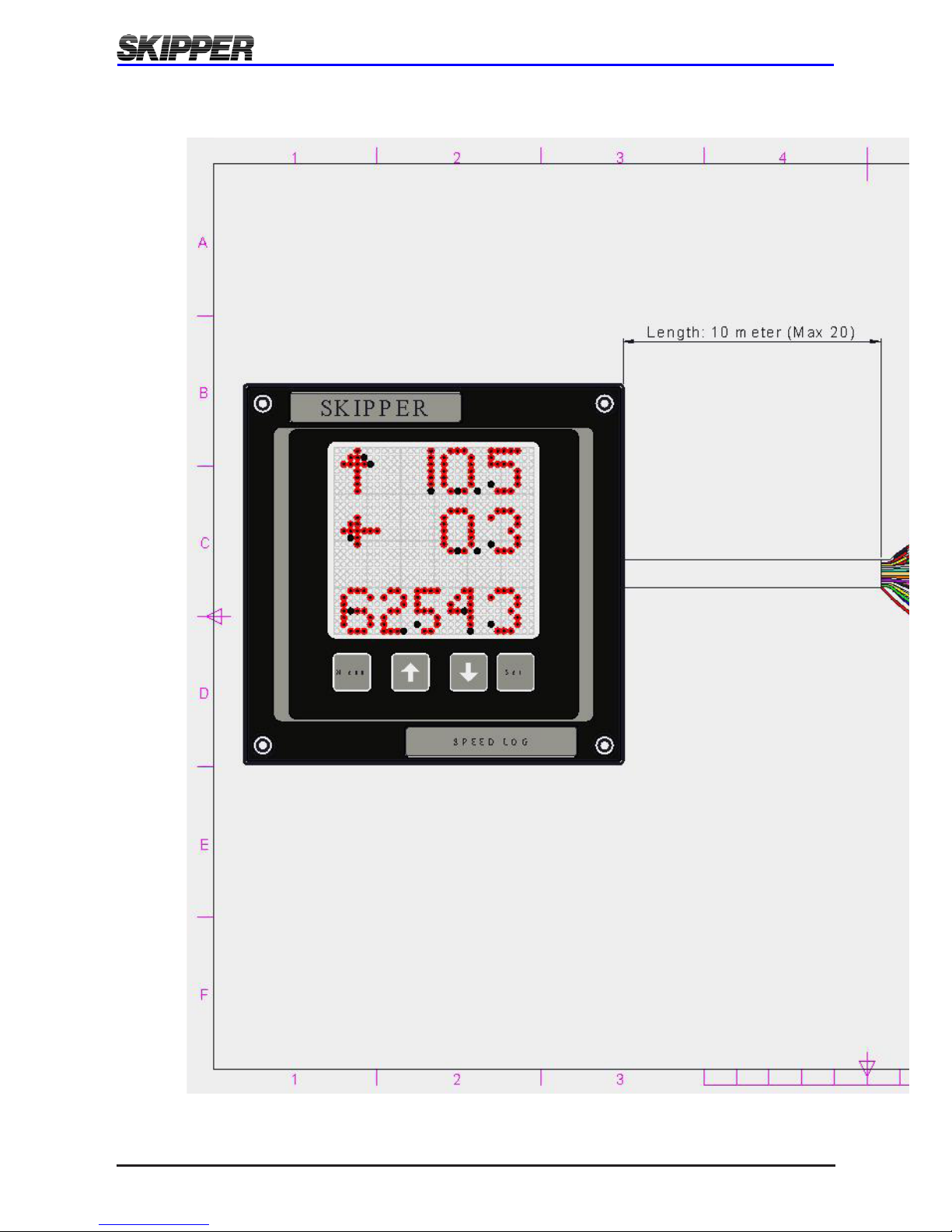

6) Compact display connection diagram 54

Appendix 3 56

Output formats 56

Pulse outputs 56
NMEA outputs 56
NMEA inputs 57
NMEA alarm 57

Appendix 4 57

Sending the system for repair 57

Appendix 5 58

Other options with the Compact display 58

Compact display options 58
Changing the system / adding options 58
Interfacing with your display 59
Error messages 60

Appendix 6 64

Support software 64

The SKIPPER service software 64
Installation/Commisioning of the Compact speed log 65

Date: 2017-01-12

Page 9 of 68

OpInMan EML224/DL1 Compact Speed Log System

Electronics AS

TERMINOLOGY

terms used in this manual

____________________________________________________________________________

UNITS

Unless otherwise stated, all values shown on the display are as follows:

Distance Nautical miles (nm)
Speed Nautical miles per hour (kn)
Pulse indication Pulses per nautical mile (p/nm)
Temperature Degrees Celsius (oC)

ABBREVIATIONS

In addition, the following symbols are used on the runtime screens:

Tp Daily trip (in nm)

TL Total measured distance travelled

o

Degrees centigrade
STW Speed through water
TRIP Text for trip/total
SOG Speed over ground
TEMP

o

Text for TEMPerature

In menu / setup screens, the following abbreviations are used:

STWWL Speed through water – water track – longitudinal value
STWWT Speed through water – water track – transversal value
SOGBL Speed over ground – bottom track – longitudinal value
SOGBT Speed over ground – bottom track – transversal value
SOGBA Speed over ground – bottom track – aft value
PULSE Pulse settings
OFS

o

Angular offset in degrees (o)
R Real resultant speed at a specic point (kn)
M Measured resultant speed at a specic point (kn)
C

rs

Calibrated resultant speed
M

rs

Instantaneous uncalibrated measured resultant speed
DIAG Diagnostics menu

OpInMan EML224/DL1 Compact Speed Log System

Page 10 of 68

Date: 2017-01-12

Electronics AS

Outgoing NMEA messages follows:

VMVLW / VDVLW $VMVLW,.…,Trip and total
VMMTW / VDMTW $VMMTW,…,Water temperature
VMVHW / VDVHW $VMVHW,…,Relative speed through water

VMVBW / VDVBW $VMVBW,....,Multiple speed

VMXDR / VDXDR $VMXDR,....,Speed direction

VMALR / VDALR $VMALR,....,Cause

Date: 2017-01-12

Page 11 of 68

OpInMan EML224/DL1 Compact Speed Log System

Electronics AS

INTRODUCTION

the CompaCt speed log family

___________________________________________________________________________

The SKIPPER Compact speed log family is a set of speed logs designed to have
a minimal footprint on the bridge consoles, but still keeping full functionality. This
manual covers two systems, built up of the same electronic units and wiring
methodology, with one of two sensor technologies.

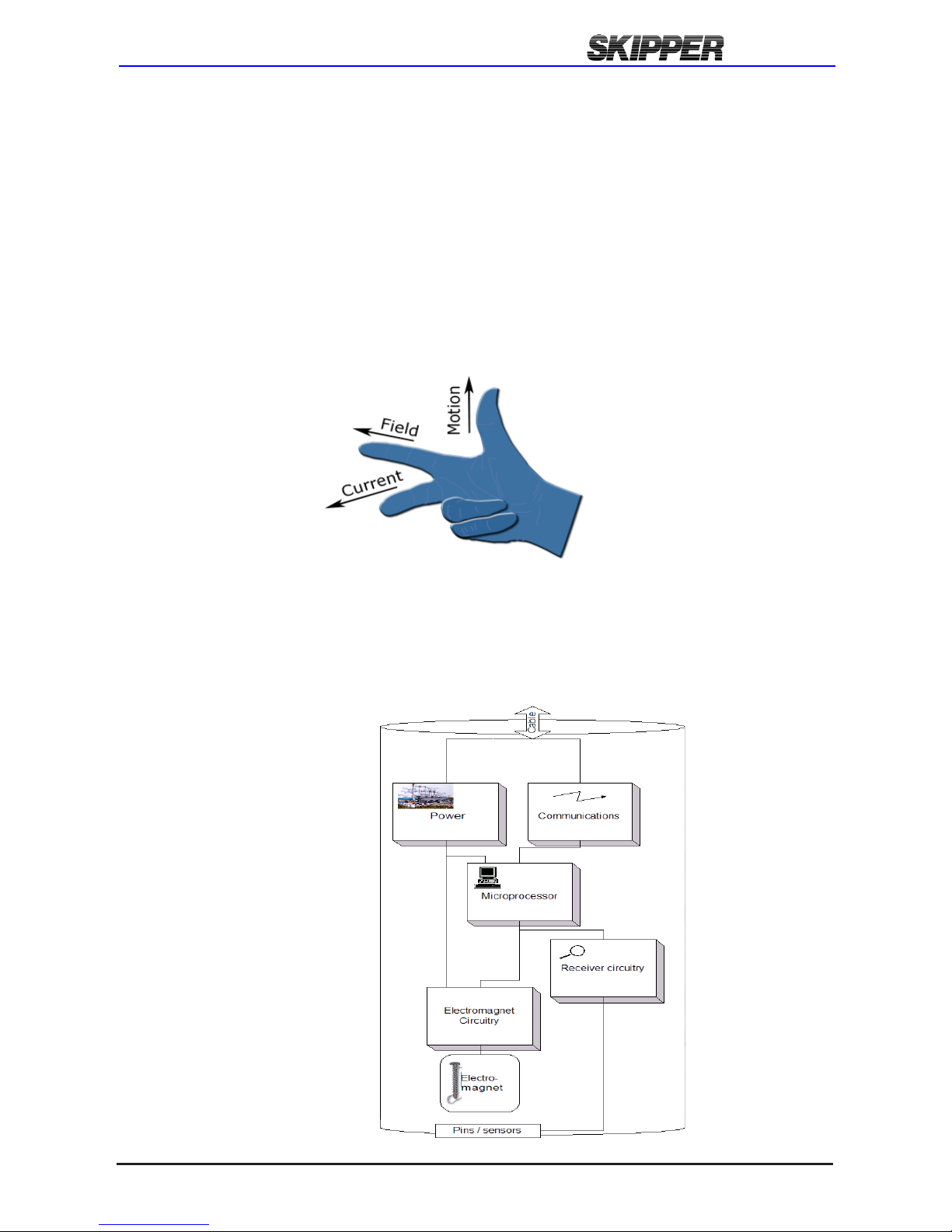

a) EML224 is a system using electromagnets to generate a current
proportional to speed in the water, in one or two axis.

b) DL1 is a system using a small Doppler sensor, working in the ships axis
to provide speed through water. It use acoustic signals and measures the
Doppler shift of the particles in the water.

The hardware is compatible between systems (excluding sensor) while CD401
displays its version CD401XX-XB or later. However the code (code = software

activation code) will be different and can be supplied from SKIPPER for retrot.

1. The mounting; Either a sea valve or tank. Welded to the bottom of the hull
with the correct orientation.

2. The sensor; A speed sensor device designed to t into the mountings.

3. The Electronic unit (JB60CD); The JB60CD allowing the EML 224

Compact (EML224 Compact = Compact speed log) to be powered and
interfaced to the other navigation systems using digital standards.

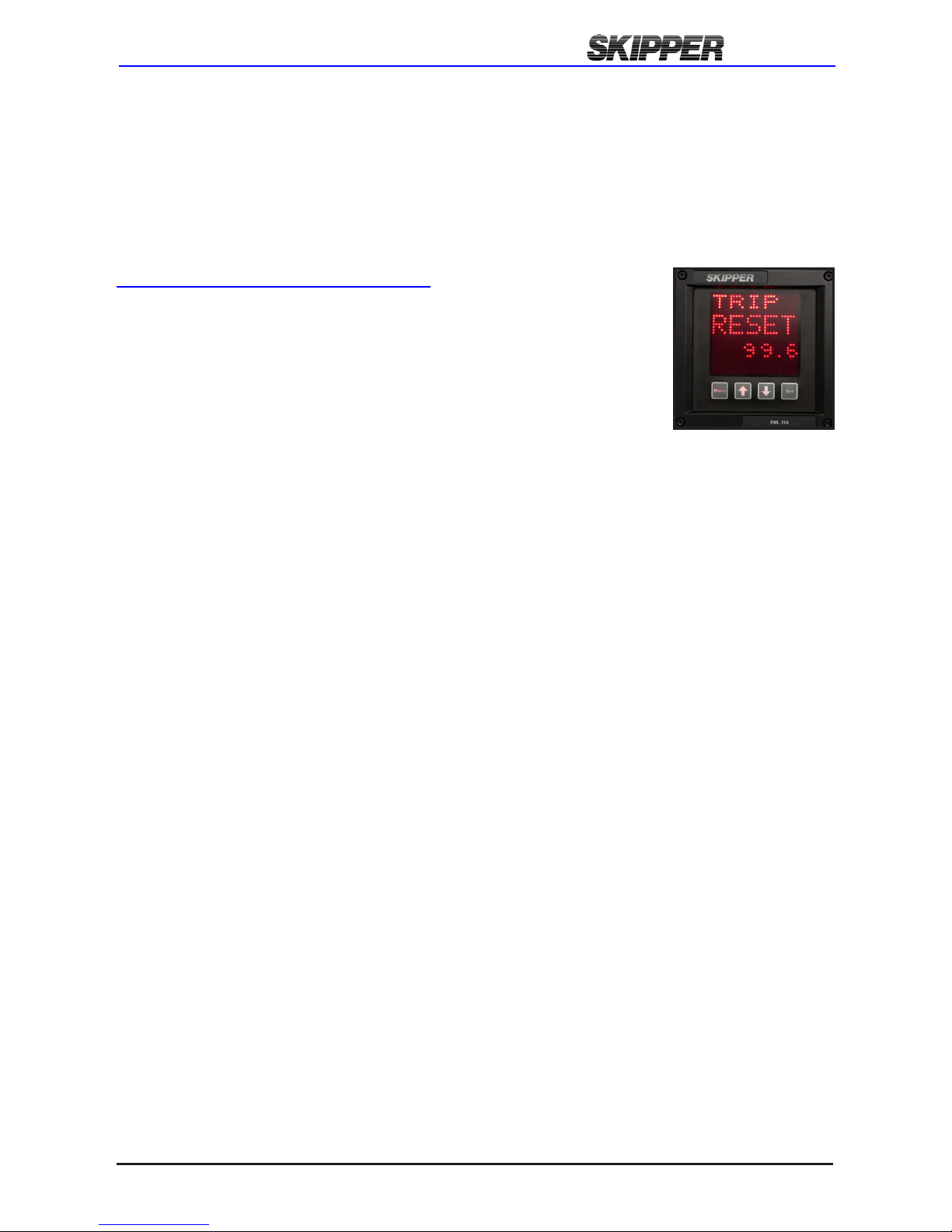

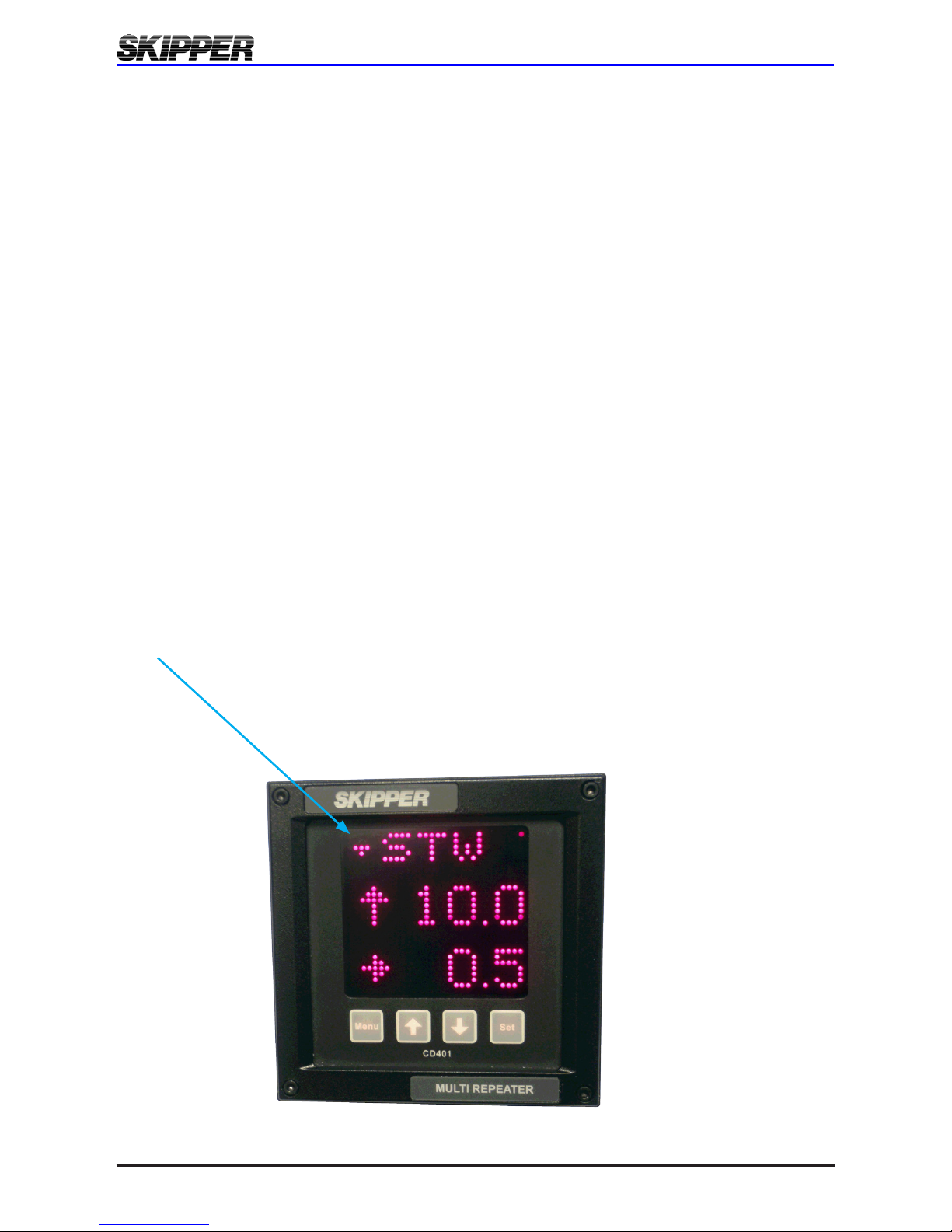

4. The CD401XX Compact display; An alphanumeric display unit allowing
the bridge staff to view the data.

The EML 224 Compact (EML224 Compact = Compact speed log) is unique in

its simple, yet exible way to display vital data in almost all conditions.

OpInMan EML224/DL1 Compact Speed Log System

Page 12 of 68

Date: 2017-01-12

Electronics AS

INTERCONNECTION DIAGRAM

F

1

E

D

32

C

B

A

1

2 3

4

File name

Title/Name, designation, material, dimension etc

Checked by

Itemref

Designed by

Quantity

76

Approved by - date

8

Article No./Reference

Date

Draw.edition

Sheet

Scale

F

E

D

5

RevNo

Revision note

6 7

C

B

Checked

8

Date

Signature

A

Revision

CD-2024

SKIPPER Electronics AS

VF

A.Matre

2009.05.14

Compact System Drawing

144

144

300

300

Menu

Set

COMPACT DISPLAY

SKIPPER

Compact

Display

Electronic Unit

JB60CD

Fore peak

Bridge

CD401E/DX

NMEA (IEC 61162-1)

Alarm- RST

Dimming

NMEA x 2 (IEC 61162-1)

Alarm

Pulse

Fitness (Power Alarm)

40 meter supplied (OD: Ø11)

Compass safe distance: 30cm

*) Specification limitation is for the 24 volt pair. 24 V is supplied by JB60CD,

The Junction box should have at least 16 V. It is acceptable to parallel pairs on the power

to improve sq.mm, thereby reducing the voltage drop.

4x2 twisted pair. Recommended specification *)

0.5sq.mm(AWG20), max 100 meter

1.5sq.mm(AWG15), max 300 meter

2.5sq.mm(AWG13), max 600 meter

(Yard supply)

Sea valve

Tank

10 meter (max 20)

17 Cores Screened.

OD:

8.3mm

110-240 V/AC

20-36 V/DC

Junction box

min. 8 terminals

JB12 or (Yard supply)

01

2012.04.27

01

Date: 2017-01-12

Page 13 of 68

OpInMan EML224/DL1 Compact Speed Log System

Electronics AS

CHAPTER 1

physiCal installation

___________________________________________________________________________

Installation usually takes place in two/three phases:

1. Mounting of the hull metalwork

2. Cabling and mounting of the electronics and sensor

3. Initialisation and calibration of the system

MOUNTING THE HULL METALWORK

This must happen in dock and care should be taken to mount the valve/tank

such that the sensor will be ush with nothing to cause turbulence near the

sensor. The sensor should be mounted forward in the vessel, preferably just
behind the bulb.

Important: Tank mountings have an orientation (an arrow that must point
forward).

The sensor is fully water tight and can be mounted in wet areas such as ballast
tanks. Please see the separate mounting user guide for more details.

Manuals available
from www.skipper.no

OpInMan EML224/DL1 Compact Speed Log System

Page 14 of 68

Date: 2017-01-12

Electronics AS

MOUNTING THE SENSOR

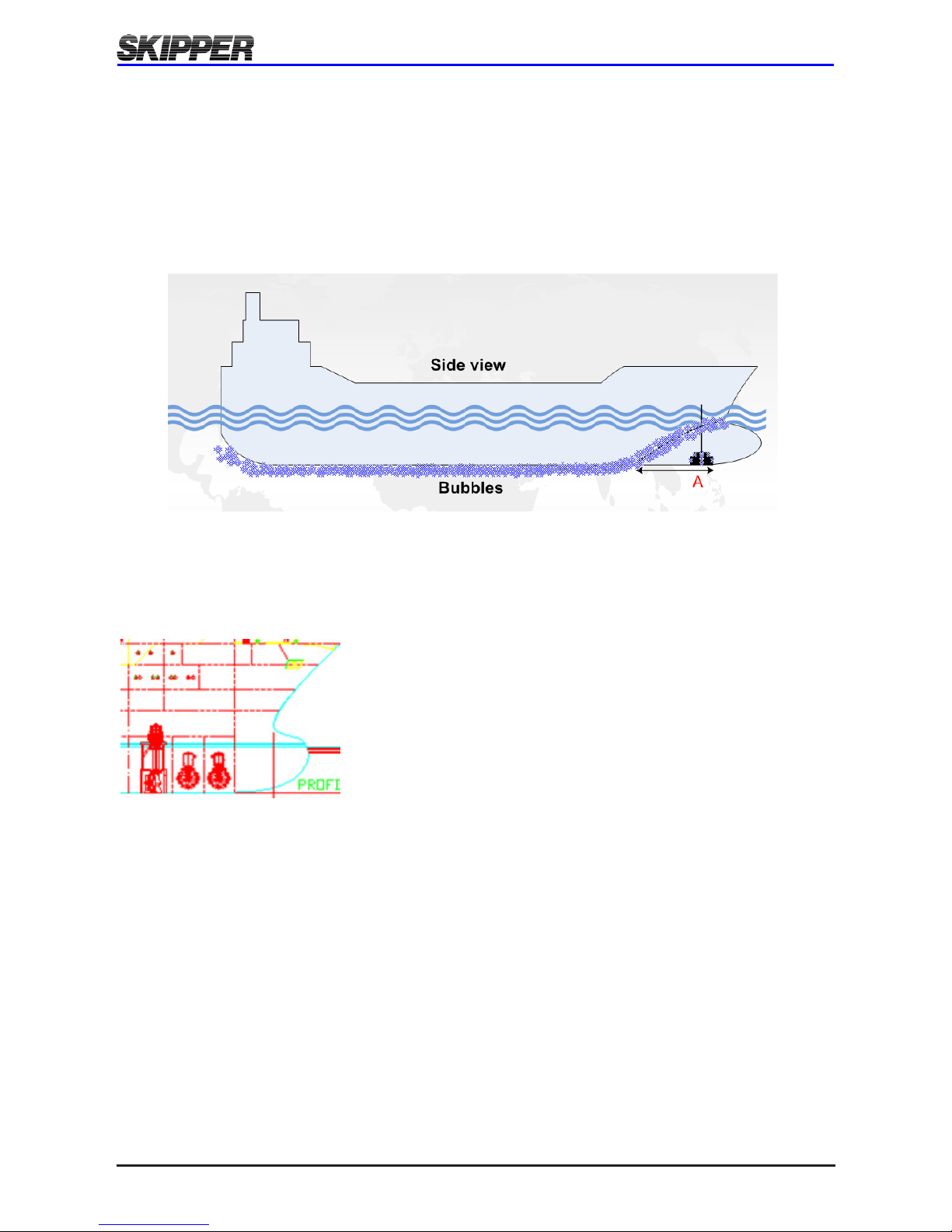

Sensor location.

For proper operation, the sensor should be installed close to the bulb or the
bow of the ship, avoiding areas where it may be damaged by the anchor chain.
It is, of course, necessary to select a part of the hull that is submerged under all
load and speed conditions.

For 2 axis speed logs the transducer should be positioned as deep as possible
on the hull. The transmitting surface of the transducer must be installed
horizontally.

A typical recommended area for installation is fore part of the bow thruster
room.

The sea valve with sensor can be installed in a balast tank, but it is not
recommended. It is necessary to position the sensor on a hull section which will

ensure a laminar water ow for all angles of measurement. If such a at section

is not available, the shipyard must construct a suitable bed. If the vessel is
designed with a box keel, this can be used for installation of the sensor. In this

case, special length hull tting and sensor may be ordered from SKIPPER.

Before hull tting installation procedure is initiated, always check that the hull
tting valve can be properly operated and that the sensor can be removed in

the selected location. See installation manual for the valve solution for more
information.

Date: 2017-01-12

Page 15 of 68

OpInMan EML224/DL1 Compact Speed Log System

Electronics AS

PART POSITIONING AND WELDING

Please see the installation manual for the valve or tank. Installation may differ
between the different solutions available.

Paint the hull tting as well as the hull itself with a suitable anti-corrosion/anti-

fouling product, but do not paint :

• the protruding part of the sensor and electrodes.

• Inside of sea valve

• Moving mechanical components

SENSOR INSTALLATION

Please see the installation manual for the valve. Installation may differ between
the different valve solutions available.

The sensor can be mounted and powered in air and water. Briskly rubbing the
face of the sensor will show changes in values in the speed. It is very important
that the sensor is mounted in the correct orientation, (especially single axis

units). In a tank, the arrows should point forward. On a ball valve, the at area

should point on the port side.

Tip: Placing a large at straight pole on the at area will allow accurate

adjustment. Alternatively a laser level can be used to get accurate orientation
on a remote bulkhead.

Small errors in angle can be calibrated in the 2 axis verson, but care should
be taken to get this as accurate as possible. Each time the sensor is lifted or
repositioned, the angular offset should be checked. The orientation should be as
accurate as possible in the 1 axis version, as it cannot be adjusted electronically.

The JB60CD electronic unit has to be installed in a dry place on the bridge.

CABLING

System elements should be placed as in ”Interconnection diagram” on page

12. The sensor is supplied with 40 m of cable. This should be guided to a

dry area where a junction box (yard supply or SKIPPER part JB12) should
be used to extend the cable to the bridge. The sensor is a smart sensor and
outputs propriety NMEA messages. This standard is based on RS-422, so
cable lengths should not be a problem. The cable can be cut or extended.
However, power is sent down the cable and the sensor should have at least
16 V at the sensor junctions box to function normally. The cable should be as
follows:

OpInMan EML224/DL1 Compact Speed Log System

Page 16 of 68

Date: 2017-01-12

Electronics AS

Up to 40 m Use supplied cable
Up to 100 m 4 twisted pairs min 0.5 mm

2

Up to 300 m 4 twisted screen pairs 1.5 mm

2

Up to 600 m 4 twisted screen pairs 2.5 mm

2

Over 600 m Local 24 V supply to sensor at junction box is recommended

Although the signals on the cable are digital, it is recommended to avoid
electrically noisy areas such as pneumatics and generators.

The JB60CD electronic unit is mounted on the bridge. The Compact display is
supplied with 10 m of cable which can be extended to max. 20 m. This cable is
connected to the JB60CD electronic unit connector J300. The sensor cable is
connected to the JB60CD electronic unit connector J200. External inputs and
outputs are connected to the connectors J301 and J400 as shown in diagram
on next page ”JB60CD Interconnection Diagram” on page 18.

POWER

Power to the electronic unit (JB60CD) supplies power to the whole system.
The user has the option to use either or both AC 110-240 V, or DC 20-36
V supplies. Both can be connected at the same time. The JB60CD has
automatic fuses which, if tripped, will reset when the fault is removed.

THE DIGITAL INPUTS AND OUTPUTS

(alarm, pulse, dimming)

The digital inputs and outputs of the system meet the standard requirements
for IEC 61162-1. Inputs and pulse outputs are optoisolated as shown in

“JB60CD Connection methods” on page 20. To make these work, it is

necessary to apply a voltage and a resistance in series to the (XXXXX)A pin,
as shown. The nature of this type of connection is such that the installation
requires an external voltage (5-24 V) to function. A positive voltage is required
on pin marked (XXXXX)A. GND or negative on pin (XXXXX)B. Common alarm
output uses a standard relay are COM (8), NO (9), NC (10), on J400.

Date: 2017-01-12

Page 17 of 68

OpInMan EML224/DL1 Compact Speed Log System

Electronics AS

THE PULSE OUTPUT

A single pulse output is available. This pulses at a rate proportional to the
longitudinal speed. (This is the required output for RADAR systems). The pulse
is active high and the pulse length is 60 ms. This output is located on pin 9 and
10 on connector J301 and is attached to an optocoupler. To get a signal from
this port, a voltage must be applied to pin (XXXXX) A (5-24 V). (The same as

t-out).

THE DIMMING INPUTS

Pulses of at least 60 ms on the dimming up and dimming down inputs (J400
pins 5, 6, 7) will cause the dimming to change by one level. The inputs are
optocoupled and therefore require an external voltage to operate, (4 Volt -30
Volt (typically 12/24 Volt)).

Note: If the system is set up as CD401EB/DB, the dimming input (DIMUP/COM)
are used for changing the speed direction and remote dimming is not possible.

OpInMan EML224/DL1 Compact Speed Log System

Page 18 of 68

Date: 2017-01-12

Electronics AS

JB60CD INTERCONNECTION DIAGRAM

F

1

E

D

32

C

B

A

1

2 3

4

File name

Title/Name, designation, material, dimension etc

Checked by

Itemref

Designed by

Quantity

76

Approved by - date

8

Article No./Reference

Date

Draw. edition

Sheet

Scale

F

E

D

5

RevNo

Revision note

6 7

C

B

Checked

8

Date

Signature

A

Revision

XXX

JB60

SKIPPER Electronics AS

PC

A.Matre

OIN

2008.11.04

Electronic Unit Connection diagram

J301

NIA

NIB

NO1A

123456789

10111314151617

12

NO1B

NO2A

NO2B

GND

+5V

PLS1A

PLS1B

NO2

P2

A

NO2

P2

B

1

2

3

4

5

6

7

8

9

10

11

12

J200

+24V

-24V

RXA

RXB

TX1A

TX1B

HSOA

HSOB

1

2

3

4

5

6

7

8

9

10

HSI
TX2

A

B

HSI
TX2

110-240VAC

20-36VDC

1

2

3

4

5

6

7

8

9

10

J400

ON
OFF

SW300

J300

RS 232

COMPACT

DIAGNOSTICS

RS 232

SENSOR

COMPACT ONLY

ALRSTA

ALRSTB

FITOUTA

FITOUTB

DIMCOM

DIMUP

DIMDWN

ALARMCOM

ALARMNO

ALARMNC

NMEA

IN A

NMEA

IN B

NMEA 1

OUT

PULS 1B

A

B

NMEA 2ANMEA 2BGND

+5V

PULS 1A

PULS 2B

PULS 2A

1234567891011

12

WHITE

BLACK

YELLOW

BLACK

WHITE

ORANGE

YELLOW

ORANGE

FROM

SENSOR HEAD

FROM

SKIPPER COMPACT

RED/BLACK

WHITE/RED

YELLOW/RED

GREEN/RED

RED/BLUE

GREY

TURQOISE

PINK

ORANGE

VIOLET

BROWN

BLACK

WHITE

YELLOW

GREEN

BLUE

RED

= PAIR

LD301

GREEN

LD300

RED

LD302

RED

LD200

GREEN

LD100

GREEN

POWER

GND

DIAGNOSTICS

NMEA

IN

NMEA

OUT

DATA TO SENSOR

DATA FROM SENSOR

+

-

JP400

JUMPER

OFF

(JB60CD)

J201

J202

To the bridge

00 120430 02

Large version in Appendix 2, on “3) JB60CD Cabling diagram”

on page 50

Compact

Head

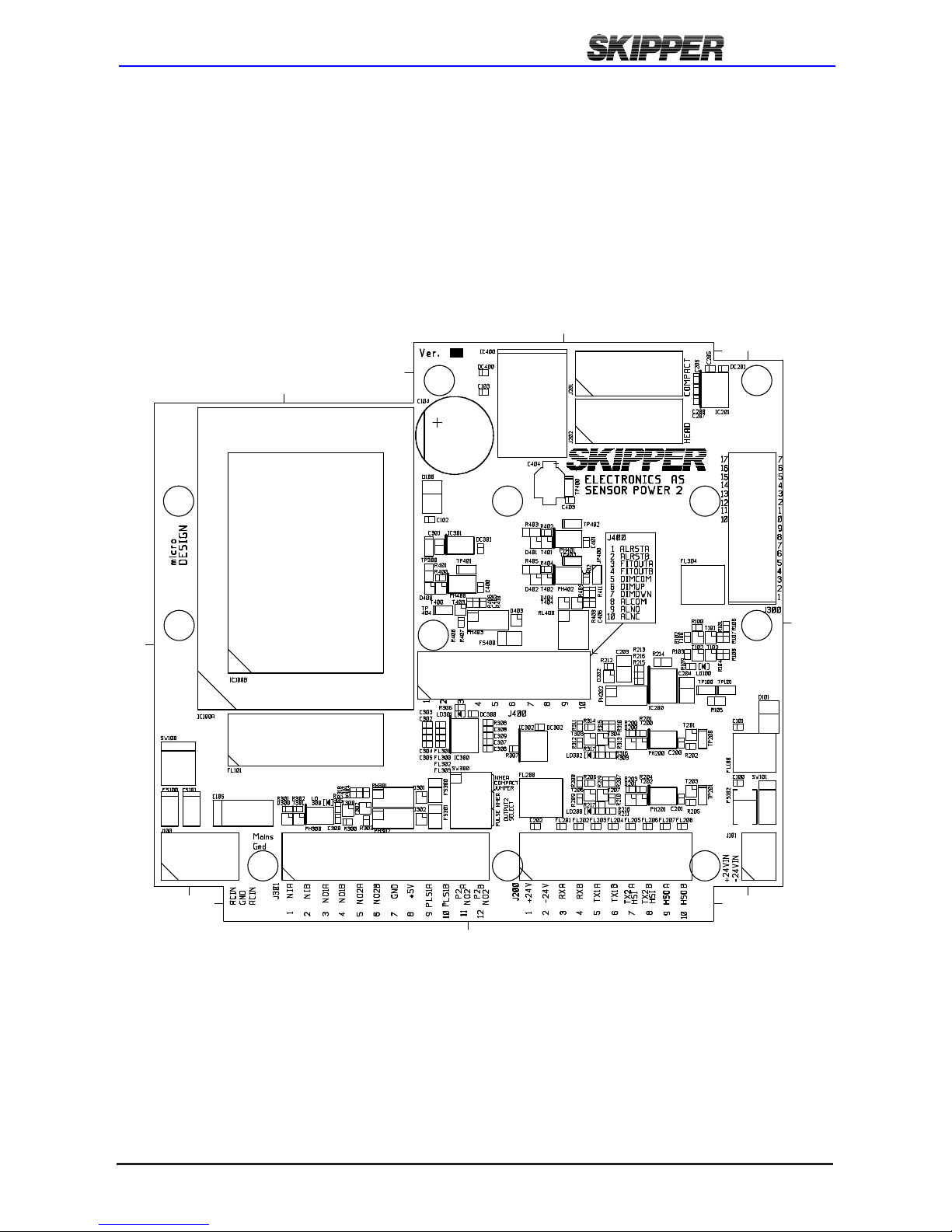

Date: 2017-01-12

Page 19 of 68

OpInMan EML224/DL1 Compact Speed Log System

Electronics AS

OpInMan EML224/DL1 Compact Speed Log System

Page 20 of 68

Date: 2017-01-12

Electronics AS

A

A

B

B

C

C

D

D

E

E

F

F

G

G

H

H

1 1

2 2

3 3

4 4

5 5

6 6

All Pulse Outputs PULSA/B_x

Optocoupler Outputs:

Max 30 V

Max 150 mA

All Digital Inputs 24VINPA/B_x

Input Voltage VCC 5 - 24 V

SENSORPOW ER 2 INTERNAL CIRCUITS, SIMPLIFIED

A l t e r n a t i ve s

Re c o m m e nde d

SUG GE ST ED INT ER FA CE METHO DS

2008.11.13 ØK 2010.05.14 ØK

Misc_IO_ExamplesNASensorPower23/5

A

DIMDWN

ALARMCOM

ALRSTA

DIMCOM

DIMUP

ALARMNC

ALARMNO

ALRSTB

FITOUTA

FITOUTB

123456789

10

J400

5*COB5_2

B

E

C

BC847A

T400

0805

21

100R

R400

A

CA

a

BAV99

D400

2

3

8

7

5

HCPL0201

PH400

1

2

4

3

PC853XI

PH403

CA

C

b

BAV99

D403

PTC

FS400

miniSMDC014

24VINPA_3

24VINPA_2

24VINPB_2+3

+

1

8

423

FU_FTRB3_GA45Z

RL400

ALNC

ALNO

ALCOM

ALCOM

ALNO

ALNC

1206

1K0

R401

24VINPB_x

24VINPA_x

24VINPB_1

24VINPA_1

PULS1A

+5VREF

NMEAINA

NMEAOUT1A

GNDREF

NMEAINB

NMEAOUT1B

NMEAOUT2A

NMEAOUT2B

PULS1B

PULS2A/NMEA

PULS2B/NMEA

123456789

101112

J301

6*COB5_2

PULSB_1

PULSA_1

PULSB_x

PULSA_x

PULSB_2

PULSA_2

PULSB_3

PULSA_3

B

E

C

G

D

S

0805

B

E

C

G

D

S

VCC

0805

0805

0805

VCC VCC

1

2

4

3

VCC VCC VCC VCC

512

6

VCC

A

C

JB60CD CONNECTION METHODS

Date: 2017-01-12

Page 21 of 68

OpInMan EML224/DL1 Compact Speed Log System

Electronics AS

A

A

B

B

C

C

D

D

E

E

F

F

G

G

H

H

1 1

2 2

3 3

4 4

5 5

6 6

TYP ICAL NMEA 0 183 C IRC UITS

Typical NMEA 0183 Input

Galvanically separated.

Revision 2.30 (1998):

Max Load Current = 2 mA at 2 V

Revision 1.9 (1985):

Must withstand ± 15 V

Typical NMEA 0183 Output

Revision 2.30 (1998):

RS422 Signal levels and

Drive Capabilities.

Balanced Outputs 0 - 5 V nominal.

Balanced Outputs 0 - 3.5 V @ 30 mA.

Output current 30 mA.

A

4/5 NMEA I/O

NA

Misc_IO_Examples

2010.05.14 ØK2008.11.13 ØK

B

E

C BC847A

A

CA

BAV99

2

3

8

7

5

HCPL0201

0805

12

100R

0805

X7R

1

2

100n

21

0805

C0G

2

1

100p

21

BLM21A10

0805

C0G

2

1

100p

ENA

ENA

INA

INB

OUTA+

Q

uad 422

D ri ve r _ a

OUTA-

OUTB+

OUTB-

VCC

VSS

4

12

1

7

236

5

16

8

DS26C31TM

0805

12

300R

+5V

NMEA_IN_B

NMEA_IN_A

NMEA_OUT_B

NMEA_OUT_A

JB60CD-SA CONNECTION METHODS

OpInMan EML224/DL1 Compact Speed Log System

Page 22 of 68

Date: 2017-01-12

Electronics AS

SPEED DIRECTION (CD401EB/CD401DB ONLY)

CD401EB and CD401DB are speed log displays developed for vessels going in
both directions, like ferry boats.
On these systems the NMEA signal out to repeaters are reversable. The wanted
speed direction can be switched by connecting the DIMUP-input to Vcc and
connect a switch between the DIMCOM-input and ground. The screen will
show the same direction but NMEA VBW will change polarity. The NMEA output
sentence VMXDR is used to indicate the speed direction for the CD401EB/
CD401DB system. The VMXDR NMEA output sentence is sent if the VMVBW
NMEA sentence output is enabled.

Note: Only multi repeater should be used in this mode. These read the XDR
message and rotate the axis when requred.

If DIMCOM is left open the VMXDR output will be (backward direction):
$VMXDR,A,180,D,SPDD*hh<CR><LF>
If DIMCOM is grounded the VMXDR output will be (forward direction):
$VMXDR,A,0,D,SPDD*hh<CR><LF>

A small arrow symbol is used in front of the STW text on the screen to indicate

the congured vessel direction.

Date: 2017-01-12

Page 23 of 68

OpInMan EML224/DL1 Compact Speed Log System

Electronics AS

CHAPTER 2

setting up the CompaCt display

____________________________________________________________________________

PRINCIPLES

The CD401XX Compact display is a exible dot matrix LED display designed

to display navigation data. The display can be user programmed to show most
kinds of numerical data, from NMEA messages or self generated. It can also
be used as a primary sensor display for speed logs showing the speed values
produced by the sensor or as a simple repeater. The Compact speed log system
with its electronic unit (JB60CD) meets all the requirements of a primary device,
both functionally and electrically. On its own, it meets the requirements as a

repeater. The Compact display has three user denable alphanumeric displays,

each allowing up to 4 parameters to be displayed. When the device is used as

a primary device, some of these screens will be xed.

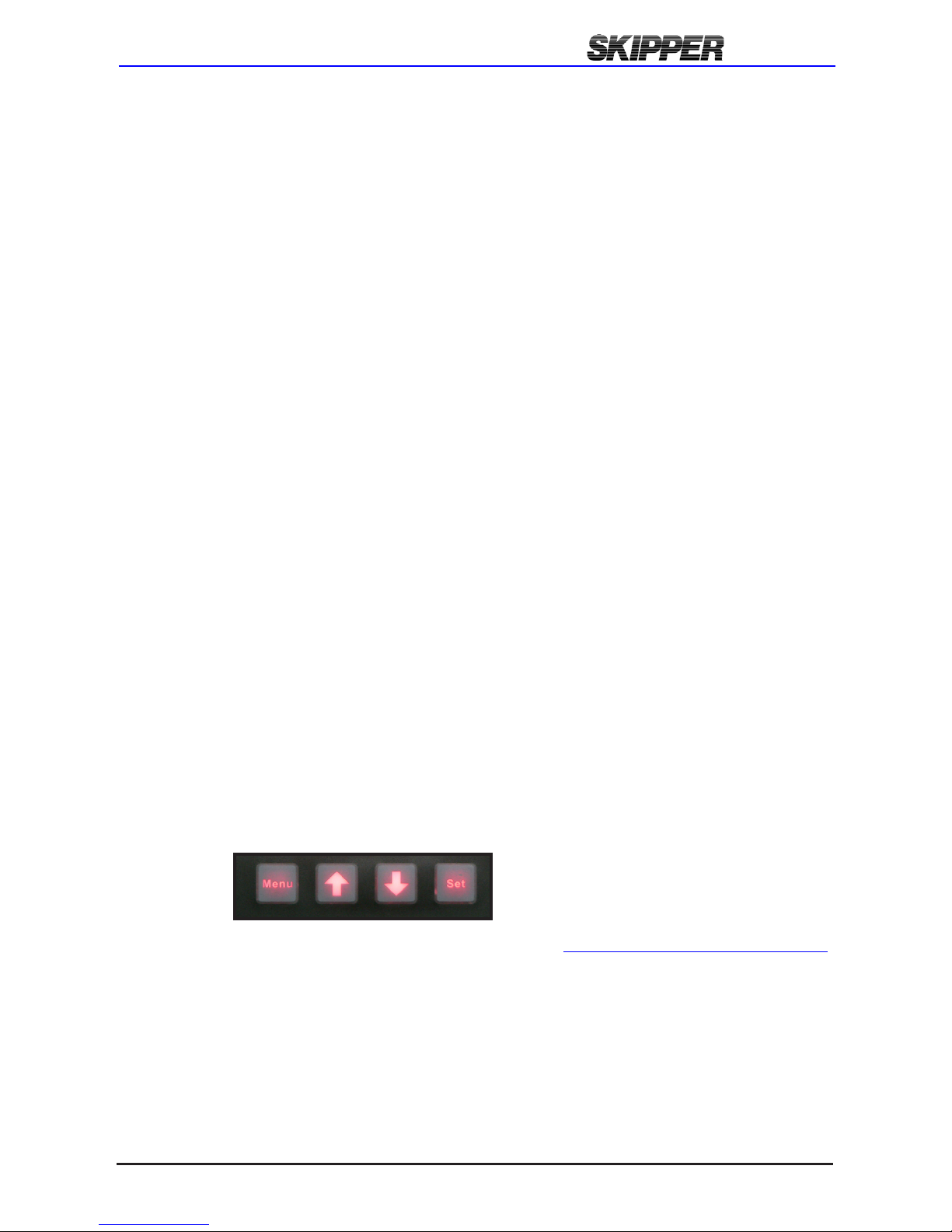

RUN SCREENS

The unit starts up in run mode. By pressing MENU button, the preset user
screens can be selected. Some of the menu screens (i.e alarms) are also
available in the run mode. The unit can be dimmed in any of the run screens

using the up (↑) and down (↓) buttons. If Trip/Total are selected as a displayed

parameter, they can be toggled using the SET button.

SETUP SCREENS

To change the setup of the Compact display, the user must simultaneously
press MENU and SET. This will give access to a menu system allowing the

user to scroll up and down the sub-menus and functions using up (↑) and down
(↓), and SET to select. To move to the previous menu, the MENU button must

be pressed. The middle underlined line is the selected line, the other lines are
dimmed.

The menu structure is shown in the diagram “Menu diagram” on page 28.
The menus are product dependant, only the relevant menus are accessible.
However, some menus are always available. To leave the menu screens and
return to the runtime screens press and hold the MENU button.

ACTIVATING THE RUNTIME SCREENS

The system has three user denable screens. Screen 1 may be locked in
some congurations. In addition, the user can make the most common setup

OpInMan EML224/DL1 Compact Speed Log System

Page 24 of 68

Date: 2017-01-12

Electronics AS

screens available. The screen menu allows the user to congure and choose
which runtime screens to be included in normal operation. UP (↑) and DOWN
(↓) buttons will scroll to the available screens. By using the SET button, the

user can control each individual screen to ON or OFF. Screens set to ON are
available to be displayed by pressing the MENU button. Screens set to OFF will
not be displayed.

ON

OFF

CONFIGURING OF DATA SCREENS

The three user programmable screens can be set up using the conguration

(CONFG) menu. This submenu allows the user to select one of the three
displays. On entering the CONFG screen, the user can change the data type to

be displayed in each of the 4 screen positions. Up (↑) and down (↓) will change

the data type, SET will move to the next screen
position. The screen layout will depend on the
selected data type. Up to 4 lines of text and data
can be displayed on each screen. Placing TXT in
the bottom 4th line or 3rd and 4th line will cause the
data to spread out showing fewer data points. The
system will not allow you to mix speed data from
different sources on the same screen. Having 2
TXT lines after each other will also rearrange the
positioning.

Note: The Compact speed log system needs one screen which indicates

just the primary data. This screen is xed and cannot be adjusted.

The non-active parameters will continue showing the dimmed title data, when
not selected.

Date: 2017-01-12

Page 25 of 68

OpInMan EML224/DL1 Compact Speed Log System

Electronics AS

Example:

= =

SETUP OF INPUTS AND OUTPUTS

The system will allow many NMEA formats to be displayed:

VMVBW Speed long, trans, forward water speed
VMMTW Temperature (water)
VMVLW Trip/Total (distance sailed)
VMVHW Speed through water (resultant)
DIAG Diagnostic output (all others deactivited)

VMXDR Vessel (sensor) direction (CD401EB only)

VMALR Alarm messages

Denitions of sentences are available in “Appendix 3”

on page 56.

The system will automatically update recognised
formats. If the user wishes to output NMEA, the user
can select the NMEA sub menu in the SETUP menu and

move to the different formats using the up (↑) and down
(↓) buttons. Each format can be activated/deactivated

using the SET button.

AVERAGING

Each speed log type has some lters to ensure stable
and correct data. The averaging lter takes a number

of measurement pulses and makes a rolling average of
these values. The longer the averaging is, more stable
the data will be. However, the slower the system will
respond to changes.
The Compact speed logs have a minimum value of
10 seconds. If the system seems unstable at times, increasing the average

time will reduce the uctuations. However, the ltering is time based and as it

increases, the response time of the system will decrease.

Conguration screen Runtime screen Conguration screen Runtime screen

OpInMan EML224/DL1 Compact Speed Log System

Page 26 of 68

Date: 2017-01-12

Electronics AS

CHANGING THE BAUD RATE

The NMEA 0183 (IEC61162-1) standard is 4800 baud. Some vessels run with
higher baud rates. 4800, 9600, 19200, 38400, 57600 and 115200 baud rates
can be selected in the baud page of the setup menu. This page contains two sub
menus, one for the sensor and one for the NMEA port. It is recommended that
the sensor is kept to 4800, as this speed is robust with longer cables. To switch
between sub pages, the SET button is used. The baud rates become active
when you leave the baud page.

DL1 MODES OF OPERATION

(DL1 only)

The default mode of operation is designed to work in nearly all conditions. Other
modes are available to give better accuracy in deeper water or to measure water

without bottom inuence in very shallow water (down to 2 m), standard is 3 m.

Setting 1 is for shallowest data, and the higher settings gradually increase the
depth (max 12.5 m).

NOTE: Wheelmark requires measurement possibility to 3 m depth.

Date: 2017-01-12

Page 27 of 68

OpInMan EML224/DL1 Compact Speed Log System

Electronics AS

DEMO MODE

A demo mode is available, and can be activated in the diagnostics menu. Three/
four modes are available:

Mode 1; is a dynamic demo mode taking the present value as the start point
and slowly varying all the available values.
Mode 2; is a static demo mode taking the present values and keeping
them active.

Mode 3; is a xed speed longitudinal 5 kn, transversal 1 kn.
Mode 4; (DL1 only) Adjusting the speed in this mode will cause the

DL sensor to transmit acoustics with a frequency offset equivalent to
the speed you enter. The second channel will receive that signal and
process the data proving the system is working. This will test the whole
system. To activate/deactivate or change speed in this mode you must
press SET.
When the demo mode 1-3 are active, the sensor signal is ignored, and the
screen will indicate the demo state with a blinking S in the upper right corner
of the screen. The user can turn off the demo mode from the demo screen by

pressing down (↓) button until OFF is shown in the screen, or the demo mode

will turn off automatically after 10 hours.

ALARMS

The Compact speed log does not contain any alarms except for Common Alarm
(Power failure) That is connected to the Relay output J400 pins 8,9 &10. As
there is no requirement for any other alarms, these have been removed to
conform to recent changes in standards

OpInMan EML224/DL1 Compact Speed Log System

Page 28 of 68

Date: 2017-01-12

Electronics AS

Calibration (CALIB)

Calibration of Speed Log
Systems

▲ Next sub menu
▼ Prev sub menu

SET Select sub menu
MENU Return

Manual calibration

(MANUL)**

▲ Increment underlined digit

▼ Decrement underlined digit

SET Move to next parameter
10 available speed parameters
and 1 offset

Semi automatic calibration

(AUTO)**

▲ Increment underlined digit

▼ Decrement underlined digit

SET Move to next parameter/
action

Graph (GRAPH)

▲ Increment cal point
▼ Decrement cal point

SET view/change parameter

System setup (SETUP)

Setup the system parameters

▲ Next sub menu
▼ Prev sub menu

SET Select sub menu
MENU Return

MENU DIAGRAM

NMEA outputs (NMEA)*

▲ Move to next message
▼ Move to previous message

SET Turn on/off current
message

Pulse outputs (PULSE)

▲ Next preset value
▼ Previous preset value

Changes the number of pulses
per nautical mile (longitudinal)

Time averaging (AVRGE)

▲ Increment pulses

▼ Decrement pulses

Changes the number of pulses
to be averaged over

Baud settings (BAUD)

▲ Higher value
▼ Lower value

SET Move to next port

* One option in the NMEA settings is DIAG. This turns on some of the diagnostics
outputs. These are proprietry messages that occur if an error occurs or if
requested. Setting this to ‘ON’ will stop all other messages.

** Offset calibration not available in single axis system.

*** DL conguration: only available on DL1 system.

Menus

Scrollable menu system. Accessed with
SET and MENU pressed simultaneously
▲ Next sub menu

▼ Prev sub menu

SET Select sub menu
MENU Return

Water temperature offset

(TEMP)

▲ Increment temperature

offset

▼ Decrement temperature

offset

DL conguration

(DL-CFG)***

▲ Higher (deeper) preset
▼ Lower (shallower) preset

(default is 2)

Date: 2017-01-12

Page 29 of 68

OpInMan EML224/DL1 Compact Speed Log System

Electronics AS

Screen conguration

(CONFG)

Change the messages being
displayed on each user screen

▲ Next sub menu
▼ Prev sub menu

SET Select sub menu
MENU Return

Cong (CPNFG)

▲ Change display message

▼ Change display message

SET Move to next position on
screen

Screens (SCRN)

Activate/deactivate user

denable and runtime

screens

▲ Next sub menu
▼ Prev sub menu

SET Select sub menu
MENU Return

Diagnostics advanced

setup (DIAG)

Diagnose and adjust less
used parameters

▲ Next sub menu
▼ Prev sub menu

SET Select sub menu
MENU Return

Upgrade mode

Allow the system to upgrade
from cable

Demo (DEMO)

▲ Increment mode
▼ Decrement mode

SET Accept mode
Mode 1 = Dynamic
Mode 2, 3 (4) = Static

Splash screen (INFO)

▲ Dimming
▼ Dimming

Serial number
Option info. Software version

Calibration graph (GRAPH)

▲ Increment cal point
▼ Decrement cal point

SET view/change parameter

Screens (SCRNS)

▲ Next message
▼ Prev message

SET Activate/deactivate
message
SCR2
SCR3
TRIP
ALRM
INFO

Code option activation

Shows serial no. (dimmed)
Code number with active
digit underlined
▲ Increment underlined digit

▼ Move to next digit

SET Activates/deactivates
the displayed code

Self Diagnostic DIAG

▲ Next test
▼ Prev test

SET Activate test

OpInMan EML224/DL1 Compact Speed Log System

Page 30 of 68

Date: 2017-01-12

Electronics AS

CHAPTER 3

Calibration

___________________________________________________________________________

THE PRINCIPLES

Calibration of a speed log involves nding the

mounting angle of the sensor (heading offset)
and the speed error at various speeds.

If the vessel has a laminar water ow near

the sensor, a single calibration point will be

sufcient. If the ow changes with speed,

(due to the friction of the hull, or nearby
constructions) then extra calibration points will
be required. The sensor is mounted on a pole
that can be turned to adjust the angle. This may result in a small angular error.
This can be calibrated away in the 2 axis version, but not in a single axis version.
This should be done before the main calibration procedure is performed.

Full calibration is designed to ignore water current effects. The procedure

requires the vessel to sail a xed length track at a constant speed. To remove

the current and wind effects, the same track should then be sailed in the
opposite direction at the same speed. The average of these tracks will be used
to calculate the speed difference between the real speed (measured using the
actual distance and the time it took), and the measured speed (using distance
from the sensor and the time it took). This procedure must be performed at least
once and then other speeds checked with the GPS.

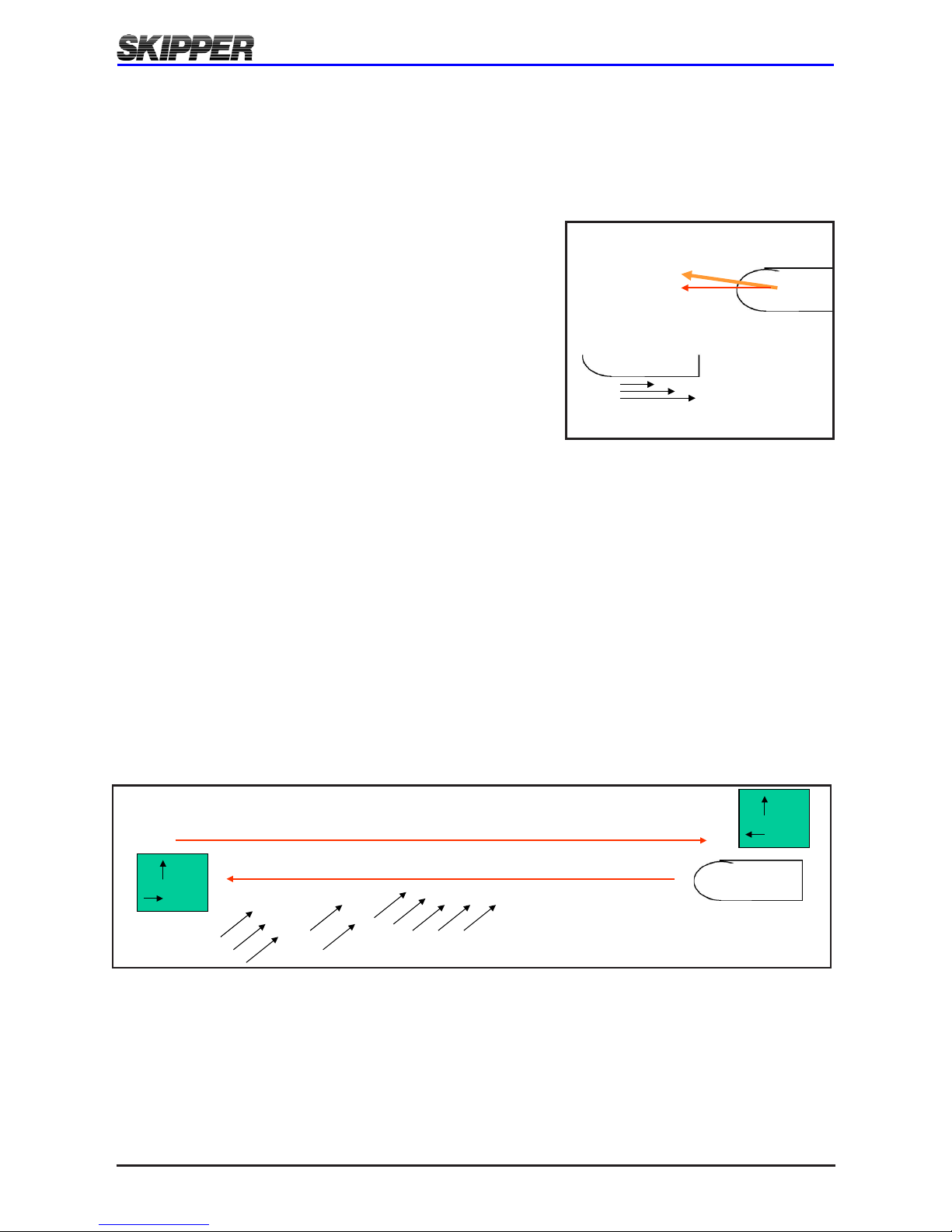

Figure 3.1

If necessary, the procedure should be repeated at different speeds. SKIPPER
recommend that calibration is performed at a low speed and a high speed. If the
user is not able to turn the vessel and is sure there is no current, the calibration

procedure can be stopped after the rst leg and saved as a calibration point.

This will give values that are correct for that particular condition. (If current is
present, the speed through water will contain an error).

Boat

Speed of water

Forward

Mounting offset

Callibration parameters

5.0

0.2

1st leg

2nd leg

4.0

0.2

Callibration procedure

A

B

Date: 2017-01-12

Page 31 of 68

OpInMan EML224/DL1 Compact Speed Log System

Electronics AS

Reducing heading errors. New generation sea valves can be manually
adjusted to ensure the sensor is correctly aligned. Alignment and heading
offset are directly connected. To minimize the offset, the sensor should be
mounted pointing ahead.

• Tank mountings have ahead marks on both the tank and the sensor
insert.

• Sea valves have either a mark on the top ange or a at mark on the port
side of the pole which when a at object is placed against this, will point
fore/aft (gure 3.3).

Figure 3.3

A

B

Figure 3.2
Shows plotting a
calibration path on
the chart.

The leg should take
at least 5 minutes to
sail (distance can be
shorter when sailing
slowly).

DB-2039

Nut M28

DB-2037

Washer (2x)

Gasket
DB-2038

Final Assembly

1. Tighten the Nut M50 (DB-2036). Torque : 98 Nm

2. Push down the Clamp Unit (DB-2033) onto the Nut M50.
and tighten the 2 screws M8 (with lock washer).Torque : 40Nm

3. Screw the 2 Nuts M16 sligtly up to the Clamp Unit.

4. Tighten the 2 Nuts M16 (with lock washer) on

1

2

3

4

Mounting order Nut M50 and Clamp Unit :

the opposite side: Torque : 98 Nm

The Clamp Unit must be fitted on Top of Nut M50
to lock the Nut.
(This is done to give extra security.)

Extention TubeCente Line

Guide Bar Ship

A at object points fore/aft. The at side should be on the port side.

OpInMan EML224/DL1 Compact Speed Log System

Page 32 of 68

Date: 2017-01-12

Electronics AS

SPEED CALIBRATION MODES

The EML224/DL1 Compact has two modes of speed
calibration:

1. Manual

2. Semi-automatic

Manual mode

The calibration – (MANUL) menu will allow the user to
adjust the heading offset (*see note below), and the speed

calibrations individually. Up (↑) and down (↓) adjust the

highlighted parameter. SET moves to the next parameter.
The data showing the result of the change will be displayed
dimmed on the same screen (offset or speed). On the 3rd
press, the lower value will change from Measured or Raw
resultant value (Mrs) to Calibrated resultant (Crs) to allow the
user to check the result of the change.

Procedure

When entering the manual mode, you will be presented with
the offset value. This is the mounting angle of the sensor. The
bottom line shows the measured offset at this moment. Adjust
the midlle value until the bottom value is near zero. Note the
bottom value has a long average, and you may have to wait
for up to a minute for the value to stabilise.

*Note: This function is only available in dual axis systems.

Hint: Pressing down (↓) and SET together will change the current selected

value to the resultant value, or to zero, saving time when adjusting.

Pressing SET moves you to the next speed calibration. Enter the real (R) speed
and measured (M) speed, (the measured speed can be seen on the bottom
line). The calibrated value can be checked by pressing SET one more time.
Repeat this process at as many different speeds as necessary.

Semi-automatic mode

The calibration – AUTO menu will take the user step by step through the
calibration menu. The user may follow the steps presented on screen. First

drawing a line on the chart system, as shown in gure 3.1 and 3.2.

*Note

Date: 2017-01-12

Page 33 of 68

OpInMan EML224/DL1 Compact Speed Log System

Electronics AS

• The line should be sailed at constant stable speed and
the line should represent at least 5 minutes of sailing at
the current speed.

• Leg length setting. (Adjust the length to match the line
drawn on the chart).

• Start rst leg. (The vessel crosses point A at the
calibration speed, towards point B).

• Stop rst leg. (The vessel reaches point B on the chart
and turns to sail the line in the other direction).

• Save rst leg.(If the presented speeds look correct,
save the leg and continue).

• Second leg, option. (If you do not have the possibility

to turn the vessel, you can use the rst leg data directly.
If the rst leg data is of poor quality, you may not be

given the option to continue).

• Start second leg. (The vessel crosses point B sailing
towards point A, sailing at the same speed as leg 1).

• Stop second leg. (Press as the vessel passes point B)

• Calibration result and save option. (The user can

decide to accept or reject this calibration, and in which
memory position to save it).

The user may decide which of the 10 calibration points the calibration will be

saved in. The screen will display the rst available position on the table, or

overwrite from zero upwards.

*Note: The single axis version (CD401E1/D1) of this product does not have the
transversal axis available and will not require offset calibration. However, it is
highly important that the sensor is mounted pointing forward. If mounted in a
valve, the pole can be rotated whilst moving the vessel against any current to
maximize the longitudinal speed. This should be ahead.

*Note

OpInMan EML224/DL1 Compact Speed Log System

Page 34 of 68

Date: 2017-01-12

Electronics AS

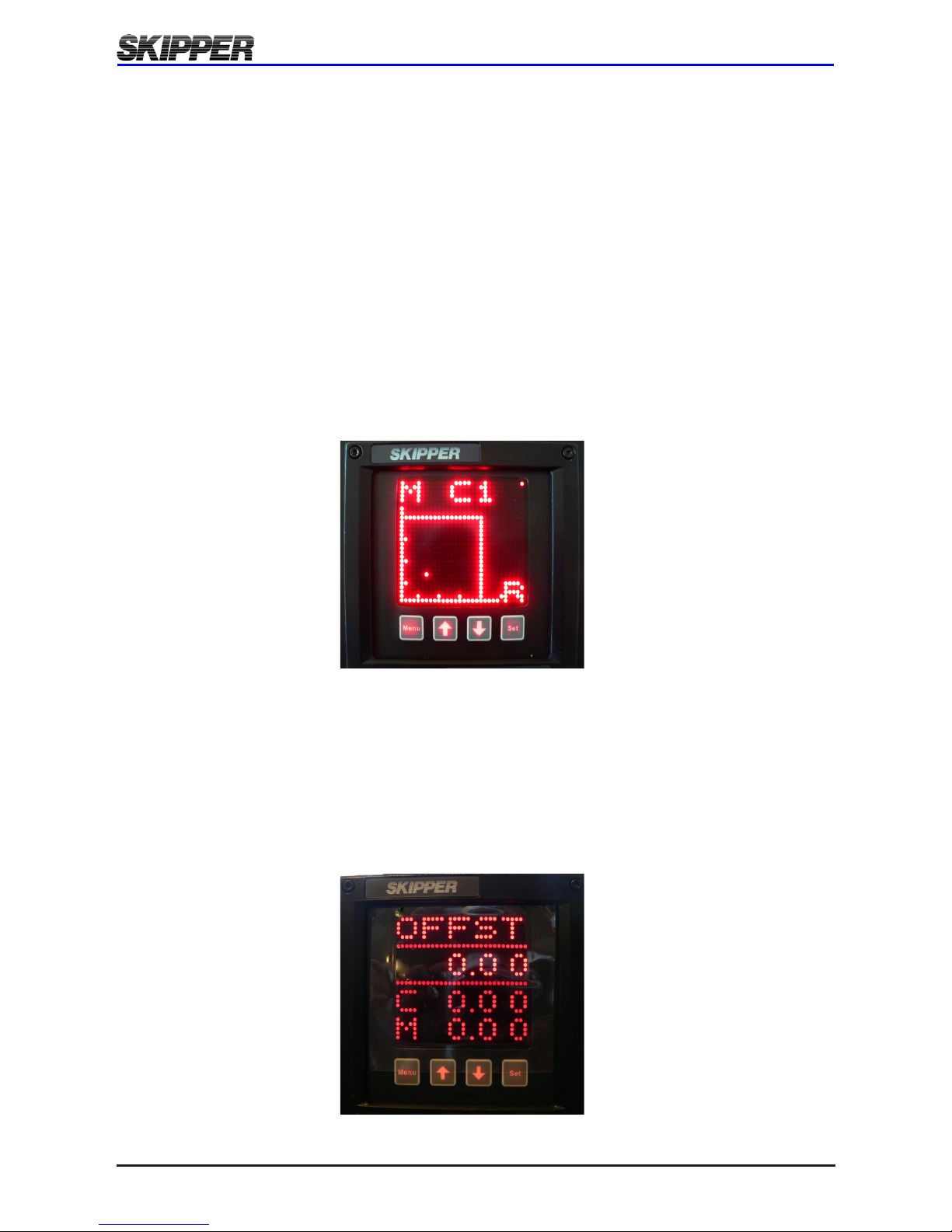

CHECKING THE SPEED CALIBRATION

To check that the calibration points are not too far from the ideal linearity, the
Calibration – GRAPH menu will plot the calibration points on the screen. The

user may use up (↑) and down (↓) to select a calibration point and then adjust

that value by pressing SET on the relevant point. The MENU button will return
you to the GRAPH menu again.

Calibration should occur or be checked whenever the sensor is moved, or a
new sensor is mounted. If there is growth on the sensor over time, the speed
may be reduced slightly. The system should then be re-calibrated.

Note: If a new sensor is mounted, the calibration in the Compact speed
log may be useable. However, it should be checked.

WATER TEMPERATURE OFFSET

An offset can be added to the measured water temperature from the DL1
sensor. The calibration is a linear offset to the measured value. The calibration
– (TEMP) menu will allow the user to adjust the water temperature with an
offset value. Both calibrated (C) and measured (M) temperature are shown on
the screen.

Date: 2017-01-12

Page 35 of 68

OpInMan EML224/DL1 Compact Speed Log System

Electronics AS

CHAPTER 4

runtime operation

___________________________________________________________________________

RUNTIME SCREENS

The Compact speed log system starts up in run mode. By pressing the MENU
button, the preset user screens can be selected. (See

“Runtime diagram” on page 36). Some of the menu

screens (i.e alarms) are also available in the run mode.

The EML224 Compact can be dimmed in any of the run

screens using the up (↑) and down (↓) buttons.

If trip/total are selected as a displayed parameter, they can
be toggled using the SET button.

OpInMan EML224/DL1 Compact Speed Log System

Page 36 of 68

Date: 2017-01-12

Electronics AS

Operational 1

3 or 4 Lines of

Values

▲ Dimming

▼ Dimming

SET trip/total

Operational 2

3 or 4 Lines of

Values

▲ Dimming

▼ Dimming

SET trip/total

Operational 3

3 or 4 Lines of

Values

▲ Dimming

▼ Dimming

SET trip/total

Trip reset

Shows present trip

value

▲ Dimming

▼ Dimming

SET resets the

value, (press and

hold)

Splash screen

▲ Dimming

▼ Dimming

Option info

Software version

Alarm setup

Speed Hi

▲ Speed up

▼ Speed down

Deactivates at zero

speed

Speed low

▲ Speed up

▼ Speed own

Deactivates at zero

speed

Fitness/power failure

alarm

▲ Fitness

▼ Power

Sensor failure

▲ On

▼ Off

RUNTIME DIAGRAM

X = possible to
switch off display

SET

SET

SET

Date: 2017-01-12

Page 37 of 68

OpInMan EML224/DL1 Compact Speed Log System

Electronics AS

CHAPTER 5

CheCking out your system

___________________________________________________________________________

Certain conditions may effect the results of your system. The EML may with
time, reduce in speed due to growth on the metal pins. This can be calibrated
away (should be cleaned regularly).
The DL1 system requires less maintanance.
The DL1 system, by default, measures the speed through the water from depth

0.25 m to 3 m. If the water is shallower than 3 m, an element of the bottom speed

may inuence the results. This may be improved by changing the settings to

position 1. The Doppler measurements in the DL1 will be affected by water
temperature. However, this is compensated internally. Both systems may suffer
from reduced performance in high seas or in water containing many bubbles.
The EML may see a slightly reduced speed in area of extreme fresh water
<5 ppt salinity.
If you suspect something may be wrong with your Speed Log, the system has
possibilities to perform self diagnostics. This is available in the diagnostics
menu. In addition, an up to date diagnostics guide can be downloaded from
the support pages of www.skipper.no. Also, a SKIPPER service software is
available for download providing diagnostic support.

SELF DIAGNOSTICS

The Compact speed log contains some diagnostic features to enable the user
to decide which part of the system is failing. The last 20 errors are stored in
the system and can be downloaded using the diagnostics port. If the error is
serious, the system will cause a general alarm (if activated), and restart itself.
Error numbers can be found in “Appendix 5” on page 58.

Test No. What it does What is wrong?

0 All LEDs dimming

SET = on/off

Check for LEDs not working. Check
normal screens for rows or LEDs
sticking.

1 Check internal memory. If fail, the system is not able to

communicate with the internal ash

memory.

2 Send out a command

to sensor and wait
for response or same
message back.

If fail, either the output or the input
to the sensor is not working or the
sensor is failing.

OpInMan EML224/DL1 Compact Speed Log System

Page 38 of 68

Date: 2017-01-12

Electronics AS

Test No. What it does What is wrong?

3 Write out 80 characters

to NMEA, ask user to
press if ok, or read back.

Manually check the output. If fail, try
to restart.

4 Write out 80 characters

to SENSOR, ask user to
press if ok, or read back.

Manually check the output. If fail, try
to restart.

5 - loop Turn on alarm - wait for

reset or loopback.

The user or loopback should reply to
the alarm by pressing the alarm reset,

(works only in test conguration).

6 - loop Pulse out sends a

pulse. If looped back to
dimming up, this test will
pass.

Fail implies the pulse out or dimming
up is not working. Try individually,

(works only in test conguration).

7 - loop Fitness out sends a

pulse. If looped to
dimming down, this test
will pass.

Fail implies the tness out or dimming

up is not working. Try individually,

(works only in test conguration).

8 - loop Test NMEA baud 4800,

38400, 115200. (Only
passes if looped to the
input).

Fail implies one of the speeds is not
working correctly. (Works only in test

conguration).

9 - loop Test sensor baud 4800,

38400, 115200. (Only
passes if looped to the
input).

Fail implies one of the speeds is not
working correctly.

10 Status of transducers

(Doppler only).

Tests 5 - 9 are designed to be smart by sending and recieving information at the
same time. They require loopback or the user to enter the expected reply. These
tests are primarily for factory use.

Date: 2017-01-12

Page 39 of 68

OpInMan EML224/DL1 Compact Speed Log System

Electronics AS

TEST POINTS WITHIN THE SYSTEM

In addition to the internal system testing, it is also possible to connect a PC with
a COM port to the 9 pin RS-232 ”COMPACT” DSUB in the JB60CD electronic
unit. By using hyperterminal, many additional features can be checked.

It is also possible to see what is happening within the system by observing the
LEDs inside the JB60CD electronic unit. (See diagram on ”3) JB60CD Cabling

diagram” on page 50).

Here you can check if the sensor is operational.

LED Colour Description

LD 100 Green Flickers with each measurement.
LD 200 Green Flickers with data coming from the EML sensor.
LD 302 Red Flickers with data being sent to the sensor (not so

common).

LD 301 Green Flashes with each NMEA out transmission to navigation

system.

LD 300 Red Flashes with data arriving from the navigation systems.

NOTE: The LEDs will work even if the NMEA inputs are connected with the

wrong polarity. In the correct conguration, they are typically on and icker.

LOGGING DATA

No internal data logging is available, however, a diagnostics NMEA can be
logged on the standard NMEA port, or on the COMPACT plug in the electronic
unit (JB60CD).

OpInMan EML224/DL1 Compact Speed Log System

Page 40 of 68

Date: 2017-01-12

Electronics AS

JB60CD-XX

F

1

E

D

32

C

B

A

1

2 3

4

File name

Title/Name, designation, material, dimension etc

Checked by

Itemref

Designed by

Quantity

76

Approved by - date

8

Article No./Reference

Date

Draw. edition

Sheet

Scale

F

E

D

5

RevNo

Revision note

6 7

C

B

Checked

8

Date

Signature

A

Revision

XXX

JB60

SKIPPER Electronics AS

PC

A.Matre

OIN

2008.11.04

Electronic Unit Connection diagram

J301

NIA

NIB

NO1A

123456789

10111314151617

12

NO1B

NO2A

NO2B

GND

+5V

PLS1A

PLS1B

NO2

P2

A

NO2

P2

B

1

2

3

4

5

6

7

8

9

10

11

12

J200

+24V

-24V

RXA

RXB

TX1A

TX1B

HSOA

HSOB

1

2

3

4

5

6

7

8

9

10

HSI
TX2

A

B

HSI
TX2

110-240VAC

20-36VDC

1

2

3

4

5

6

7

8

9

10

J400

ON
OFF

SW300

J300

RS 232

COMPACT

DIAGNOSTICS

RS 232

SENSOR

COMPACT ONLY

ALRSTA

ALRSTB

FITOUTA

FITOUTB

DIMCOM

DIMUP

DIMDWN

ALARMCOM

ALARMNO

ALARMNC

NMEA

IN A

NMEA

IN B

NMEA 1

OUT

PULS 1B

A

B

NMEA 2ANMEA 2BGND

+5V

PULS 1A

PULS 2B

PULS 2A

1234567891011

12

WHITE

BLACK

YELLOW

BLACK

WHITE

ORANGE

YELLOW

ORANGE

FROM

SENSOR HEAD

FROM

SKIPPER COMPACT

RED/BLACK

WHITE/RED

YELLOW/RED

GREEN/RED

RED/BLUE

GREY

TURQOISE

PINK

ORANGE

VIOLET

BROWN

BLACK

WHITE

YELLOW

GREEN

BLUE

RED

= PAIR

LD301

GREEN

LD300

RED

LD302

RED

LD200

GREEN

LD100

GREEN

POWER

GND

DIAGNOSTICS

NMEA

IN

NMEA

OUT

DATA TO SENSOR

DATA FROM SENSOR

+

-

JP400

JUMPER

OFF

(JB60CD)

J201

J202

To the bridge

00 120430 02

Larger version in Appendix 2, “3) JB60CD Cabling diagram”

on page 50

Compact

Head

Date: 2017-01-12

Page 41 of 68

OpInMan EML224/DL1 Compact Speed Log System

Electronics AS

CHAPTER 6

maintenanCe

___________________________________________________________________________

ROUTINE MAINTENANCE EML

If the EML 224 sensor begins to underestimate the vessels speed, there may
be growth forming on the pins. These pins are made of a resistant, anti-rust
metal. If the unit is powered off, or the vessel is stationary for longer periods of
time (particularly in warm water), the growth may occur. This can be carefully
removed by lifting the sensor if a valve is installed, or by divers or in dock.
The pins must have electrical contact with the sea water, and MUST NOT be
painted. The system may be unstable for up to 6 hours after the pins have been
cleaned while a new oxide coat forms. The pins of the EML sensor should be
typically cleaned every 6-18 months depending on conditions.

ROUTINE MAINTENANCE DL1

The DL1 Doppler system requires virtually no maintenance except cleaning
when docked, and occasional greasing / testing of the moving parts of the valve.

CHECKING YOUR VERSION

If the info screen is activated on the run screens, the system type and software
version can be read from there. Otherwise the same screen can be obtained in
the diagnostics menu. The system type will be one of the following:

CD E1 EML 124 compact display 1 axis
CD E2 EML 224 compact display 2 axis
CD EB EML 124/224 compact display ”Reversible” mode
CD LR Log repeater compact display
CD MR Multi repeater compact display
CD MB Multi repeater compact display ”Backwards” mode
CD D1 Doppler Compact display 1 axis

The system will be locked to one of these setups, but can be changed to one
of the other systems (with an additional cost) using a code (see ”Appendix 5”

on page 58).

SOFTWARE UPGRADE

The system is undergoing continuously improvement, and periodically new
software will be released. These can be found at the download area of the

OpInMan EML224/DL1 Compact Speed Log System

Page 42 of 68

Date: 2017-01-12

Electronics AS

SKIPPER website (www.skipper.no) and may be downloaded and the system
upgraded using a PC connected to the ’Compact’ COM port in the electronic
unit (JB60CD). Alternatively a chip can be supplied (with an additional cost)
with the new software. This is changed by removing the backplate of the
display unit.

To upgrade the software, select which com port is to be used (for JB60CD
electronic unit ’Compact’ DSUB use ’COMPACT’ port, and select SENSR for
upgrade). Ensure the line is clear by removing power from the EML sensor.

Press set and restart the system. The unit will wait for new rmware for two

minutes. After that it will start with the existing code. You may then start the
SKIPPER service software (downloadable from the SKIPPER website), select
the Compact display window, and then use the upgrade button to upgrade the
unit.

MASTER RESET (FACTORY DEFAULT SETTINGS)

The factory default settings can be restored by performing the following
operations:

1. Select CODE in diagnostic (DIAG) menu.

2. Press the SET button (Note: Do not change code value, just press the SET
button.)

The unit will now restart with factory default settings.

Note. On Compact speed log systems, this will also reset the stored
calibration values. We therefore recommend to write down the values before
attempting this.

Date: 2017-01-12

Page 43 of 68

OpInMan EML224/DL1 Compact Speed Log System

Electronics AS

APPENDIX 1

baCkground information

____________________________________________________________________________

EML224.

The EML224 Compact system works using Kirchoffs right hand rule (based
upon Faradays law of generators) which states that a conductor (sea water)

moving through a magnetic eld (generated in sensor) will produce a current
orthogonal to both eld and movement. So movement of the vessel through

sea water with at least 5 ppt salinity will produce a current across the pins
orthogonal to the ships motion.

This minute current is measured and converted to a speed. This is formated into
proprietry NMEA VBW format and sent to the EML 224 Compact display which
applies an angular correction for both transversal and longitudinal speed, and
then a scaling factor is applied for the resultant speed.

Inside the EML224
smart sensor.

OpInMan EML224/DL1 Compact Speed Log System

Page 44 of 68

Date: 2017-01-12

Electronics AS

The Doppler system operates by sending a known frequency sound into the

water, and listening to the reected echo from the minute particles in the water.

If the particles are moving towards the sensor, the frequency goes up, if away,
the frequency goes down. By having two beams at 30 degrees from the vertical
we get 2 frequency values, one plus, one minus, and these can be adjusted to
show the speed of the vessel in the horizontal plane.
As the amount of particles in the water can vary, the system ensures it has
optimal signal return by adjusting the power and length of the sample, depending
on depth.

How calibration works.

Calibration is piecewise linear, i.e. a linear line is plotted from calibration point
to calibration point (sorted by size) and this linearity is applied to the incoming
values. This can be seen on the graph screen.

Response of EML224

-2

-1.5

-1

-0.5

0

0.5

1

1.5

2

-2

-1

0 1 2

Referance Velocity

Averaged measured velocity

5 sample average long

5 sample average trans

1 sample average long

1 sample average trans

Callibration graph

Doppler DL1.

Date: 2017-01-12

Page 45 of 68

OpInMan EML224/DL1 Compact Speed Log System

Electronics AS

APPENDIX 2

meChaniCal drawings

___________________________________________________________________________

To help planning and installation, the following diagrams are supplied.

1. System overview diagram

2. System specications

3. JB60CD Cabling diagram

4. JB60CD Mounting diagram

5. Compact display mounting diagram

6. Compact display connection diagram

In addition, further guides for mounting of your particular hull mounting can be
found at www.skipper.no.

OpInMan EML224/DL1 Compact Speed Log System

Page 46 of 68

Date: 2017-01-12

Electronics AS

1) SYSTEM OVERVIEW DIAGRAM

1

32

1

2 3

4

File name

Title/Name, designation, material, dimension etc

Checked by

Itemref

Designed by

Quantity

76

Approved by - date

8

Article No./Reference

Date

Draw.edition

Sheet

Scale

F

E

D

5

RevNo

Revision note

6 7

C

B

Checked

8

Date

Signature

A

Revision

CD-2024

SKIPPER Electronics AS

VF

A.Matre

2009.05.14

Compact System Drawing

144

144

300

300

Menu

Set

COMPACT DISPLAY

SKIPPER

Compact

Display

Electronic Unit

JB60CD

Fore peak

Bridge

CD401E/DX

NMEA (IEC 61162-1)

Alarm- RST

Dimming

NMEA x 2 (IEC 61162-1)

Alarm

Pulse

Fitness (Power Alarm)

40 meter supplied (OD: Ø11)

Compass safe distance: 30cm

*) Specification limitation is for the 24 volt pair. 24 V is supplied by JB60CD,

The Junction box should have at least 16 V. It is acceptable to parallel pairs on the power

to improve sq.mm, thereby reducing the voltage drop.

4x2 twisted pair. Recommended specification *)

0.5sq.mm(AWG20), max 100 meter

1.5sq.mm(AWG15), max 300 meter

2.5sq.mm(AWG13), max 600 meter

(Yard supply)

Sea valve

Tank

10 meter (max 20)

17 Cores Screened.

OD:

8.3mm

110-240 V/AC

20-36 V/DC

Junction box

min. 8 terminals

JB12 or (Yard supply)

01

2012.04.27

01

Date: 2017-01-12

Page 47 of 68

OpInMan EML224/DL1 Compact Speed Log System

Electronics AS

2) SYSTEM SPECIFICATIONS

SY­EML124C
Single axis

SY­EML224C
Dual axis

SY-DL1
Single axis

Log

Number of axis

1 2 1

Speed range long (knots)

±40 ±40 ±50

Speed range trans (knots)

na ±40 na

Water track (from) (meters)

0 0 0.25 m

Accuracy (better than)
(knots)

0.2 or 2 %
(whichever is
greater)

0.2 or 2 %
(whichever
is greater)

0.2 or 2 %
(whichever
is greater)

Speed resolution

0.1 0.1 0.1

Temperature accuracy (°C)

< 1 < 1 < 1

Temperature resolution

0.1 0.1 0.1

Mounting

SY-EML124C /
SY-DL1.
Single axis

SY-EML224C.
Dual axis

Sea Valve

Single bottom Yes Yes
Double bottom Yes Yes

Tank

Steel Yes Yes
Aluminium Yes Yes

Display

SY-EML124C /
SY-DL1.
Single axis

SY-EML224C.
Dual axis

Weight (display) 1.3 kg 1.3 kg
Cable length display to JB60CD 10 m 10 m

(Max) 20 m 20 m

Compass safe distance (min) 30 cm 30 cm

Alarms

Speed alarms High and low speed alarm

OpInMan EML224/DL1 Compact Speed Log System

Page 48 of 68

Date: 2017-01-12

Electronics AS

System alarms System error alarm
Other alarms Fitness (deadman) out or power failure
On screen indication of lost/

corrupt data

User denes inputs/outputs

Outputs 2 x NMEA (IEC61162-1)

1 x contact closure (pulse)

Inputs 1 NMEA (opto isolated)

External dimming (pulse)
Time

Accepted NMEA (IEC61162-1) formats

Outputs

Speed VBW, VHW*, XDR**
Distance VLW
Others MTW (temp)

Inputs

Time, Dimming ZDA, DDC

Power Supply AC: 110 to 240 V 50/60 Hz. (Automatic detect)

DC: 20-36 V

Power Consumption Max. 35 W

Display 28 x 30 pixel alphanumeric LED (red) with

dimming.
Languages English.
Accessories IR300 Speed, CD401LR, CD401MR

Dimming control
Classication IMO MED D, MED B,

Also meets OSV requirements
Service Available in most major harbours world-wide

through extensive dealer network.

*The Compact EML124/DL1, has only longitudinal output and will therefore only
give that information within the NMEA outputs.

**The Compact EML224 Backwards uses a XDR sentence with an angular
displacement of either 0 or 180 degrees for transducer no. 1 to indicate the
direction. The transducer ID is SPDD.

Date: 2017-01-12

Page 49 of 68

OpInMan EML224/DL1 Compact Speed Log System

Electronics AS

This page intentionally left blank

OpInMan EML224/DL1 Compact Speed Log System

Page 50 of 68

Date: 2017-01-12

Electronics AS

3) JB60CD CABLING DIAGRAM

F

1

E

D

32

C

B

A

1

2 3

4

Title/Name, designation, material, dimension etc

Checked by

Itemref

Designed by

Quantity

5

RevNo

Revision note

SKIPPER Electronics AS

PC

A.Matre

J301

NIA

NIB

NO1A

NO1B

NO2A

NO2B

GND

+5V

PLS1A

PLS1B

NO2

P2

A

NO2

P2

B

1

2

3

4

5

6

7

8

9

10

11

12

J200

+24V

-24V

RXA

RXB

TX1A

TX1B

HSOA

HSOB

1

2

3

4

5

6

7

8

9

10

HSI

TX2

A

B

HSI

TX2

110-240VAC

1

2

3

4

5

6

7

8

9

10

J400

ON

OFF

SW300

COMPACT ONLY

ALRSTA

ALRSTB

FITOUTA

FITOUTB

DIMCOM

DIMUP

DIMDWN

ALARMCOM

ALARMNO

ALARMNC

NMEA

IN A

NMEA

IN B

NMEA 1

OUT

PULS 1B

A

B

NMEA 2

A

NMEA 2

B

GND

+5V

PULS 1A

PULS 2B

PULS 2A

1

2

3

4

5

6

7

8

9

10

11

12

WHITE

BLACK

YELLOW

BLACK

WHITE

ORANGE

YELLOW

ORANGE

FROM

SENSOR HEAD

LD301

GREEN

LD300

RED

LD302

RED

LD200

GREEN

LD100

GREEN

POWER

GND

NMEA
IN

NMEA
OUT

DATA TO SENSOR

DATA FROM SENSOR

JP400

JUMPER

OFF

(JB60CD)

J201

J202

To the bridge

Date: 2017-01-12

Page 51 of 68

OpInMan EML224/DL1 Compact Speed Log System

Electronics AS

File name

Title/Name, designation, material, dimension etc

Checked by

Itemref

Designed by

Quantity

76

Approved by - date

8

Article No./Reference

Date

Draw. edition

Sheet

Scale

F

E

D

5

RevNo

Revision note

6 7

C

B

Checked

8

Date

Signature

A

Revision

XXX

JB60

SKIPPER Electronics AS

PC

A.Matre

OIN

2008.11.04

Electronic Unit Connection diagram

1

2

3

4

5

6

7

8

9

10

11

13

14

15

16

17

12

J200

+24V

-24V

RXA

RXB

TX1A

TX1B

HSOA

HSOB

1

2

3

4

5

6

7

8

9

10

HSI

TX2

A

B

HSI

TX2

20-36VDC

3

4

5

6

7

8

9

10

J400

J300

RS 232

COMPACT

DIAGNOSTICS

RS 232

SENSOR

FITOUTA

FITOUTB

DIMCOM

DIMUP

DIMDWN

ALARMCOM

ALARMNO

ALARMNC

WHITE

BLACK

YELLOW

BLACK

WHITE

ORANGE

YELLOW

ORANGE

FROM
SKIPPER COMPACT

RED/BLACK
WHITE/RED
YELLOW/RED
GREEN/RED
RED/BLUE
GREY
TURQOISE

PINK
ORANGE
VIOLET
BROWN
BLACK
WHITE
YELLOW
GREEN
BLUE
RED

= PAIR

LD302

RED

LD200

GREEN

LD100

GREEN

POWER

DIAGNOSTICS

DATA TO SENSOR

DATA FROM SENSOR

+

-

JP400

JUMPER

J201

J202

00 120430 02

Compact

Head

OpInMan EML224/DL1 Compact Speed Log System

Page 52 of 68

Date: 2017-01-12

Electronics AS

4) JB60CD MOUNTING DIAGRAM

Date: 2017-01-12

Page 53 of 68

OpInMan EML224/DL1 Compact Speed Log System

Electronics AS

5) COMPACT DISPLAY MOUNTING DIAGRAM

Menu

Menu Set

1

2

3

4

144 [5,669]

Power consuption: 24 VDC/ 3W
Protection code: IP56

COMPACT DISPLAY

SKIPPER

8

.....

Set

OpInMan EML224/DL1 Compact Speed Log System

Page 54 of 68

Date: 2017-01-12

Electronics AS

6) COMPACT DISPLAY CONNECTION DIAGRAM

Date: 2017-01-12

Page 55 of 68

OpInMan EML224/DL1 Compact Speed Log System

Electronics AS

OpInMan EML224/DL1 Compact Speed Log System

Page 56 of 68

Date: 2017-01-12

Electronics AS

APPENDIX 3

output formats

___________________________________________________________________________

PULSE OUTPUTS

There is one output channel with possibility for two galvanically separated
output drivers. It is possible to set number of pulses per nautical mile (p/nm)
for the optocoupled outputs.

• Number of pulses per nautical mile: 10, 100, 200 or 400.

NMEA OUTPUTS

EML 224 Compact Transmitted (Originated) NMEA 0183 (IEC61162-1)
Messages

VBW Multiple Speed

Commands

EML: $VMVBW,x.x,y.y,A,,,
V,,V,,V*hh<CR><LF>
DL1: $VDVBW,x.x,,A,,,
V,,V,,V*hh<CR><LF>

Where x.x is longitudinal
speed in knots, y.y is
transversal speed in knots in 2
axis systems.

VLW Distance

Travelled
through the
Water

EML: $VMVLW,x.x,N,y,N,,
N,,N*hh<CR><LF>
DL1: $VDVLW,x.x,N,y,N,,
N,,N*hh<CR><LF>

x.x is daily trip, y.y is total trip
in NM

MTW Temperature EML: $VMMTW,x.x,C,

*hh<CR><LF>
DL1: $VDMTW,x.x,C,
*hh<CR><LF>

x.x is temperature in Celsius.

All data elds are free format.

Values will be presented with
sign as needed ( e.g “-“ =
astern, port)

VHW Water speed

and heading,
relative

EML: $VMVHW,,,,x.x.N,
x.x,K *hh<CR><lf>
DL1: $VDVHW,,,,x.x.N,
x.x,K *hh<CR><lf>

Resultant speed in knots and
km/h.

XDR Speed

direction

EML: $VMXDR,A,x.x,D,
SPDD *hh<CR><LF>
DL1: $VDXDR,A,x.x,D,
SPDD *hh<CR><LF>

The angular displacement
(x.x) is set to 0 in forward
direction and 180 in reverse
direction.

*hh = Checksum
In addition, some proprietry sentences are available. These can be obtained
by turning on DIAG. (This disables all other NMEA outputs).

Date: 2017-01-12

Page 57 of 68

OpInMan EML224/DL1 Compact Speed Log System

Electronics AS

NMEA INPUTS

The following inputs are accepted

Dimming control DDC Remote dimming

GPS ZTG, ZDA

GGA

Time and date
Time and position

NMEA ALARM

This system has no requirement for alarms other than power failure. To
simplify cabling and use ithese previously avalable functions have been

removed in this version. THis ensures that IMO MSC302 is fulllled. If these
alarms are required the new generation Multi SKIPPER products fulll all

requirements

APPENDIX 4

sending the system for repair

__________________________________________________________________________

In the unlikely chance that a system fails, it may be necessary to send a part
of the system back for repair. Make contact with your local dealer or SKIPPER
for Returns Materials Authorisation number (RMA). (A list of service centres is
available on www.skipper.no).
For normal service/support, please contact SKIPPER Electronics AS on e-mail:

[e-mail], or contact our local dealer.

(List available on www.skipper.no).

OpInMan EML224/DL1 Compact Speed Log System

Page 58 of 68

Date: 2017-01-12

Electronics AS

APPENDIX 5

other options with the CompaCt display

____________________________________________________________________________

COMPACT DISPLAY OPTIONS

The EML 224 Compact display can be used in the following modes:

Log Repeater Compact CD401LR A simple repeater for speed

in 1 or 2 axis and trip. Limited
functionality.

Multi Repeater Compact CD401MR A comprehensive repeater for

many of the common NMEA
messages. Also functions for

user dened messages.

Multi Repeater Backwards CD401MB Same as CD401MR but

all speeds are in opposite
direction.

Single axis EML 124 Compact CD401E1 With Electronic unit (JB60CD),

sensor and cable.

Dual axis EML 224 Compact CD401E2 With Electronic unit (JB60CD),

sensor and cable.

EML 224 Compact Backwards CD401EB With Electronic unit (JB60CD),

sensor and cables.

Single axis DL1 Doppler CD401D1 With Electronic unit (JB60CD),

sensor and cables.

The software for all these options are stored in the system and the options can
be changed using a security code. This code can be obtained from

[e-mail] or by sending an order to SKIPPER together with the

systems serial number. (Obtained by opening the code screen in diagnostics).
On entering the supplied code number, the system options will be set.
However, please note that the cabling is different for the repeaters and the
main Compact speed log systems, so these are not compatible without
replacing the back plate.

CHANGING THE SYSTEM / ADDING OPTIONS

The Compact speed log is being developed as a low cost display alternative
to full graphics displays. Most extra features are available for the EML 224
Compact and these can be activated using the CODE page in the setup menu.
On this page, the systems unique ID is displayed. The new options can be
purchased from the SKIPPER retailer to add extra functions. You will receive

Date: 2017-01-12

Page 59 of 68

OpInMan EML224/DL1 Compact Speed Log System

Electronics AS

an activation code and, if necessary, a software upgrade.
Entering the code on the CODE page will activate/deactivate the option.

NOTE: It is important to note that option codes are unique for each
individual unit and will not work on other units.

INTERFACING WITH YOUR DISPLAY

It is possible to retrieve conguration and diagnostic data from the Compact.

This can be performed by connecting to the electronic unit (JB60CD) ‘compact’
port, or directly through the NMEA port. In this way, error messages can be
retrieved when required.
The SKIPPER Service software are available if required.

The following messages exists:

• $PSKPVMPCGTER,x if x = 0 = Last error, other = whole table

• $PSKPVMPCDEMO,mm,lw.ll,tw,ta,lb,tb,ab,tmp,trip,total

where:

• mm = 0, auto.

• mm = 1, uses the following values: (see table)

• mm = 2, turn off.

Table showing mm = 1 values

lw longitudinal water value <xx.xx>
tw transversal water value <xx.xx>
ta aft transversal water value <xx.xx>
lb longitudinal bottom value <xx.xx>
tb transversal bottom value <xx.xx>
ab aft transversal bottom value <xx.xx>
tmp temperature <xx.xx>
trip trip distance value <xxxx>
total total distance value <xx.xx>

It may be necessary to remove other inputs on the same line (i.e remove power
from the sensor).

OpInMan EML224/DL1 Compact Speed Log System

Page 60 of 68

Date: 2017-01-12

Electronics AS

ERROR MESSAGES

Symptom: Screen shows error instead of data.
Reason: If no data is received from the sensor, the screen will show ‘ERROR’.
Fix: Check the LEDs are ashing in the Electronic unit. LD 100, LD 200.

• Connect a PC to the RS-232 Diagnostics Sensor/‘HEAD’ connector in the

electronic unit. If the system is sending $PSKP.....ERRBOR or similar, the

voltage to the sensor is too low.

• Check if the Voltage on J200 p1 p2 is 18-25 V.

• Check if the voltage in junction box is >15 V, if not, twin pairs to get higher

voltage. (If yellow/orange pair is not required and can be disconnected and
used to parallel the power).

• If no, or garbled data, check that the pairs are connected correctly (A/B).

If you suspect you have a problem within the CD401 unit, an error message table
can be retrieved from the unit by sending the message $PSKPCPPCERROR
<CR><LF> from the ‘compact’ connector of the JB60CD or the NMEA input on

repeater. The returned format is in the form: ID, number of errors, last error, rst

18 errors.

$ PSKPERRORTABLE,19,32,100,<Error18>,…,<Error1>

< Identier >,<Number of errors(19)>,<Last Error after 18 errors(32)>,<rst 18

error>,

This format shows a table of 20 numbers, where position 1 shows the number

of errors stored. The errors are stored on the ash memory and will be retained.

If you suspect an error, download the messages, then reset the error messages
and try to perform the same error condition again. If successful, download the
errors again and then check the list below. In addition, the self test values 0-4
can be used to check the main peripherals of the unit.

Date: 2017-01-12

Page 61 of 68

OpInMan EML224/DL1 Compact Speed Log System

Electronics AS

Error
codes

Failure
message

What it means What to do

1 Can not open

SPI

The internal
communications are
not giving the expected
response

Restart

100 Can not open

com 0 (NMEA)

Com port is having
problems initialising

Restart
Disconnect the
inputs and restart,
check baudrates

101 Com 0 NMEA

failure

The port is busy Restart

Disconnect the
inputs and restart,
check baudrates

103 Com message

too long

Check the input strings
are correct

Restart

150-158 Self diagnostic

errors

Self tests not working Run through the

individual self tests

and nd out which

part is not working.

2 Sensor com

failure

Com port is busy Restart

Disconnect the
inputs and restart,
check baudrates

200 Can not open

com 1 (sensor)

Com port is having
problems initialising

Restart
Disconnect the
inputs and restart,
check baudrates

201 USART initialise

failure com 1

The port is busy,
restart.

Disconnect the
inputs and restart,
check baudrates

211 Can not transmit

on Com 1

Com port is having
problems initialising

212, 252 Can not transmit

on com 1

3 Security can not

save

Problem with security
settings / options

OpInMan EML224/DL1 Compact Speed Log System

Page 62 of 68

Date: 2017-01-12

Electronics AS

Error
codes

Failure
message

What it means What to do

31 Security save

failed

Could not save
the new security
settings

32 Error table

conrmation

failed – port not
replying

Can not save the error
log.
Flash memory failure

Check soldering
on components
on rear of the
processor board in
the CD401 unit.

4 Cong retrieve

failed

Could not read the

last cong settings,

defaults will be used

Cal will be wrong

40 SSC lost coms The Communication

between the screen/
keyboard and
processor is not
performing correctly.

Buttons may not
work, and the
screen may not
update. Check
activity dot.
Reboot. Check
cables and circuit
boards in CD401
unit.

41 DMA write

overow

Data coming too fast?

42 Cong

conrmation

failed

Could not write the

new cong – Probably
ash memory problem

Try diagnostics
test nr 1. Check

soldering of ash

chip on rear of
processor board of
CD401 unit.

5 Boot retrieve

failed

Could not nd the boot

information – probably
a memory failure

Restart.

52 Boot cong

conrmation

failed

Date: 2017-01-12

Page 63 of 68

OpInMan EML224/DL1 Compact Speed Log System

Electronics AS

Error
codes

Failure
message

What it means What to do

6 Reply failure –

no contact with
EML

The EML is not
responding

Check the
connection is
correct.
Restart, check the
options are correct

61 Bad

communication
with EML sensor

The CD401 has failed
in an attempt to get a
response from the EML
224S sensor

Check connections
to the sensor,
check the
baudrates are the
same.

All other
messages

Some other
codes exist,
however will
not assist in
diagnostics.

If you have a problem
– contact SKIPPER
development
(development@
skipper.no)

OpInMan EML224/DL1 Compact Speed Log System

Page 64 of 68

Date: 2017-01-12

Electronics AS

APPENDIX 6

support software

____________________________________________________________________________

THE SKIPPER SERVICE SOFTWARE

SKIPPER has developed support software allowing the user to use a single
package to maintain the system. The software can be downloaded from the
SKIPPER website www.skipper.no. When opening the software, the user should
select the correct hardware, and then follow the instructions.

The sensor and display rmware can be upgraded using this software.

Connect a PC com port (RS-232) to the Head Compact 9 pin D-type connector
in the electronic unit, and select CD401 in the software or connect to the sensor
connector and select the EML 224 / DL1 sensor.

5

RevNo

Revision note

6 7

C

B

Checked

8

Date

Signature

A

1

2

3

4

5

6

7

8

9

10

11

13

14

15

16

17

12

2

34567

8910

J400

J300

RS 232

COMPACT

DIAGNOSTICS

RS 232

SENSOR

ALRSTB

FITOUTA

FITOUTB

DIMCOM

DIMUP

DIMDWN

ALARMCOM

ALARMNO

ALARMNC

FROM
SKIPPER COMPACT

RED/BLACK
WHITE/RED
YELLOW/RED
GREEN/RED
RED/BLUE
GREY
TURQOISE
PINK
ORANGE
VIOLET
BROWN
BLACK
WHITE
YELLOW
GREEN
BLUE
RED

LD302

LD100

GREEN
POWER

DIAGNOSTICS

JP400

JUMPER

J201

J202

Compact

Head

Date: 2017-01-12

Page 65 of 68

OpInMan EML224/DL1 Compact Speed Log System

Electronics AS

INSTALLATION/COMMISIONING OF THE COMPACT SPEED LOG

Boat/Build Name Date: Bridge Manufacturer:

Equipment Summary:

Display: CD401 - E1 E2 LR MR EB MB D1 Serial

No:

Electronic
Unit

JB60 - CD N2 Serial No.:

Cable
type:

Length:

Sensor: EML

224

DL1 Sea

valve

Tank Serial

No.:

Bottom
part:

Tank Valve Serial

No.:

Equipment Details:

Bottom
part:

Bolts
checked

Alignment correct Sensor fully inserted

Electronic
unit:

Mounted
where?

NMEA out
going to?

PULSE
connected
to?

NMEA IN
connected
to?

Power
connected

24 V 115 V 230 V

Alarms System

alarm to?

Relay
(NO or
NC

Power
Fitness
alarm to?

Display Cable

length?

NMEA
Outputs

VBW VLW VHW MTW

Calibration Data:

Heading offset (CD401 E2 only)
Point ____(low speed) Real: Measured:
Point ___(high speed) Real: Measured:
Point_____ Real: Measured:

Commisioned by: Company: Email:

OpInMan EML224/DL1 Compact Speed Log System

Page 66 of 68

Date: 2017-01-12

Electronics AS

This page intentionally left blank

Date: 2017-01-12

Page 67 of 68

OpInMan EML224/DL1 Compact Speed Log System

Electronics AS

This page intentionally left blank

SKIPPER Electronics AS Telephone: [phone]
Enebakkveien 150 Telefax: [phone]
P. O. Box 151, Manglerud E-mail: [e-mail]
0612 Oslo, Norway Co. reg. no: NO-965378847-MVA
www.skipper.no
