SKIPIO
Commercial Refrigerators & Freezers
User Manual
REACH-IN (UPRIGHT)
SRT, SFT & SRFT series
Chiller, Freezer & Dual Temperature
SKIPIO Warranty
WARRANTY CLAIMS – The user must report to its dealership, hence the dealer
can accumulate all pertinent information supporting the existence of the alleged
defect.
TWO YEARS PARTS & LABOUR WARRANTY
SKIPIO warrants to the original purchaser of every new SKIPIO refrigerated unit, the cabinet and
all parts thereof, to be free from defects in material or workmanship, under normal use and service,
for a period of two (2) year from the date of original installation.
Any parts covered by this warranty that are examined and determined by SKIPIO to have been
defective within two (2) year of original installation shall be repaired or replaced as stated below.
SKIPIO shall be deemed to have full complied with its obligation under the foregoing warranties
by electing either one of the following procedures, at the sole discretion of SKIPIO:
(a) Furnishing a replacement part, freight collect, in even exchange for the returned part,
freight collect;
(b) Receiving the defective part, freight collect; repairing it, freight collect.
Warranty Terms and Conditions
1. The Warranty applies if and only if the Customer has used the Product in accordance with the
directions given by SKIPIO and strictly for the purpose to which the Product is intended.
2. The warranty Period begins on the original date of purchased and used within Australia.
3. The warranty is valid only for Products originally purchased and used within Australia.
4. The Customer must provide to SKIPIO the details of the Invoice (including serial number and
model code) when making a claim under the Warranty. Incorrect or incomplete details may
delay the processing of the claim. SKIPIO reserves the right to charge the Customer for all
reasonable expenses if the information provided by the Customer is incorrect of the Product
was in fact not originally purchased by the Customer directly from SKIPIO.
5. SKIPIO or its authorized agent has the right to assess the Product to determine the cause of
the defect. The Customer must make the product accessible for SKIPIO or its authorized
agent to assess and, if applicable, to repair including removing all personal items in the way.
If required, the Customer must at the Customer’s own cost unless otherwise prescribed by
law, return the Product to SKIPIO or its authorized agent. The Product must be returned with
all original components including but not limited to manual, keys and bracket.
6. The Warranty does not apply:
i) If notice of the defect has not been given by the Customer within the Warranty Period;
or
ii) If the defect arises from or in the reasonable opinion of SKIPIO or its authorized agent,
is likely to arise from one or more of the following:
iii) Connection to improper, inadequate or faulty electricity;
iv) Damage or failure as a consequence of not removing the packaging or transportation
material before use;
v) Natural wear and tear including but not limited to filters, fuses, lamps, voltage/power
surges, irregular electric power supply, natural events or disasters such as flooding
and earthquake, riots and sabotage;
vi) Improper use of cleaning agents, detergents, bleaches or another chemical additives
or agents of corrosive nature;
vii) Breakage, either intentionally or accidently, to any part of the Product;
viii) Any modification to, tampering with or repair or servicing of the Product except by
SKIPIO or its authorized agent or using parts not approved or authorized by SKIPIO.
ix) Improper, reckless, negligent or unsuited use of the Product including but not limited
to:
a) Use for an unspecified purpose;
b) Use in an environment where the ambient temperature and relative humidity are
outside the operating parameters specified for the Product;
c) Movement of the Product when in operation (for clarity, the Products are designed
for stationary operation only and must be connected directly to fixed wall supply);
d) Improper adjustment made such as to the analogue thermostat or digital controller
when the Product is in operation;
x) Corrosion or damage caused by foreign object externally or internally;
xi) Engine mechanical or technical failure (but not limited to compressor failure) due to
one or more of the following;
xii) Inadequate and/or irregular maintenance (of the type specified or recommended by its
manufacturer/SKIPIO) of components including but not limited to condensers and
filters;
xiii) Inadequate and/or irregular cleaning of the condenser (fortnightly or more frequently if
required);
xiv) Failure to provide adequate ventilation for the Product as specified or recommended
by its manufacturer/SKIPIO;
xv) Fail wear and tear.
7. Any repair must be undertaken either by SKIPIO or an agent authorized by SKIPIO. Otherwise,
SKIPIO is entitled to avoid the Warranty.
8. The Warranty Period is not extended or renewed by any successful claim whereby the Product
is replaced or Repaired
9. SKIPIO makes no representation as to the time frame within which any repair can or will be
carried out. In general, any repair will be restricted to normal business hours Monday to Friday
(9am – 5pm) excluding public holidays and weekends, SKIPIO is not liable for the cost of the
authorized service agents other than the time specified in this point.
10. Warranty back to base apply to any items that can be carried and place into standard vehicle
(eg; SIM50A) is/are to be returned (or sent via pre-paid freight) to SKIPIO or its authorised
service agent. The customer shall agree to arrange pick up the goods after it is being serviced.
11. Where SKIPIO elects to replace rather than repair a Product but no identical replacement is
available, SKIPIO has the right to replace the Product with one of a similar standard and
design then available from its range. SKIPIO is not responsible for the re-packing and
installation of any replacement.
1 YEAR OPTIONAL WARRANTY PLAN
SKIPIO is providing customers the opportunity to extend their existing two-year warranty, by an
additional 1 year, totaling 3 years of warranty. Send this application form and payment to SKIPIO
Australia PTY LTD. Customers are expected 1-2 weeks for processing. If not having received the
Optional Warranty Plan certificate within this period, please contact us directly at SKIPIO. Please
refer to the application form for types of payment. One application form is to be completed per
product.
What is NOT covered by SKIPIO’s warranty?
SKIPIO’s sole obligation under this warranty is limited to either repair or replacement of parts,
subject to the additional limitations below. This warranty neither assumes nor authorizes any
person to assume obligations other than expressly covered by this warranty.
1. Warranty is NOT TRANSFERABLE. This warranty is not assignable and applies only in favour
of the original purchaser/user to whom delivered. ANY SUCH ASSIGNMENT OR TRANSFER
SHALL VOID THE WARRANTIES HEREIN MADE AND SHALL VOID ALL WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE.
2. NO CONSEQUENTIAL DAMAGES, SKIPIO IS NOT RESPONSIBLE FOR ECONOMIC
LOSS; PROFIT LOSS OR SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES,
INCLUDING WITHOUT LIMITATION, LOSSES OR DAMAGES ARISING FROM FOOD OR
PRODUCT SPOILAGE CLAIMS WHETHER OR NOT ON ACCOUNT OF REFRIGERATION
FAILURE.
3. ALTERATION, NEGLECT, ABUSE, MISUSE, ACCIDENT, DAMAGE DURING TRANSIT OR
INSTALLATION, FIRE, FLOOD, ACTS OF GOD, SKIPIO is not responsible for the repair or
replacement of any parts that SKIPIO determines have been subjected after the date of
manufacture to alteration, neglect, abuse, misuse, accident, damage during transit or
installation, fire, flood, or an Act of God.
4. TRANSPORTANTION COSTS – SKIPIO will accept parts covered under this warranty freight
collect, provided that shipment has received prior approval. SKIPIO is not responsible for any
other transportation costs, but will ship freight collect parts either repaired or replaced under
this warranty.
5. Any services from an unauthorized person including owner – SKIPIO will not accept misuse
of display controller which is not mentioned on user manual.
6. Cabinets must be accessible and removable from the kitchen for service.
7. Consumable parts such as door gaskets, castors, legs, etc. are excluded from the warranty.
Contents
1. MODELS ............................................................................................................................................. 7
2. INSTALLATION ................................................................................................................................ 8
Warning & Safety Instructions ................................................................................................. 8
Installing the Unit ........................................................................................................................... 9
1. Avoid heat source ....................................................................................................................... 9
2. Brake on castor ............................................................................................................................ 9
3. Ventilation .................................................................................................................................... 10
Shelving .............................................................................................................................................. 10
Loading Product ............................................................................................................................. 11
3. OPERATION .................................................................................................................................... 12
Start Up .............................................................................................................................................. 12

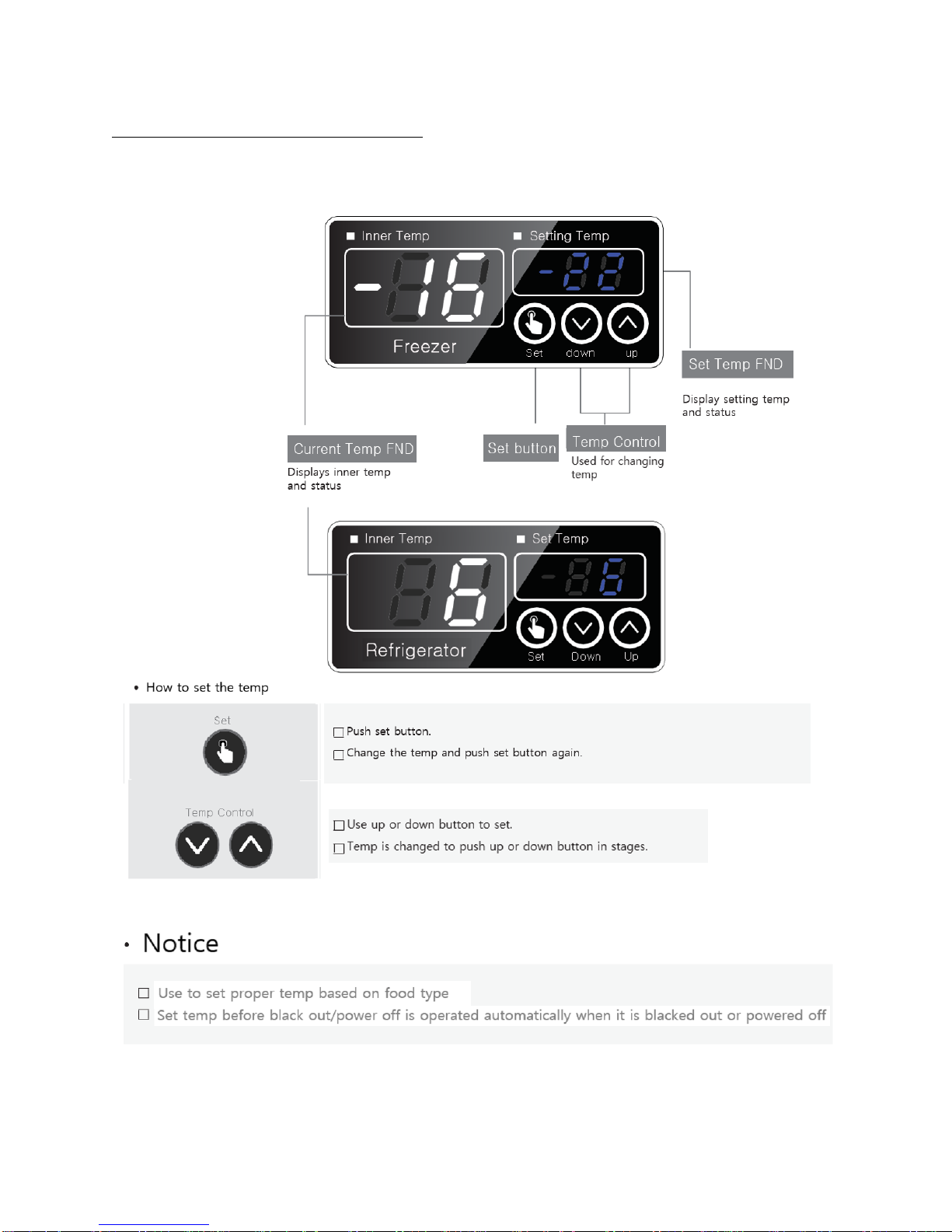

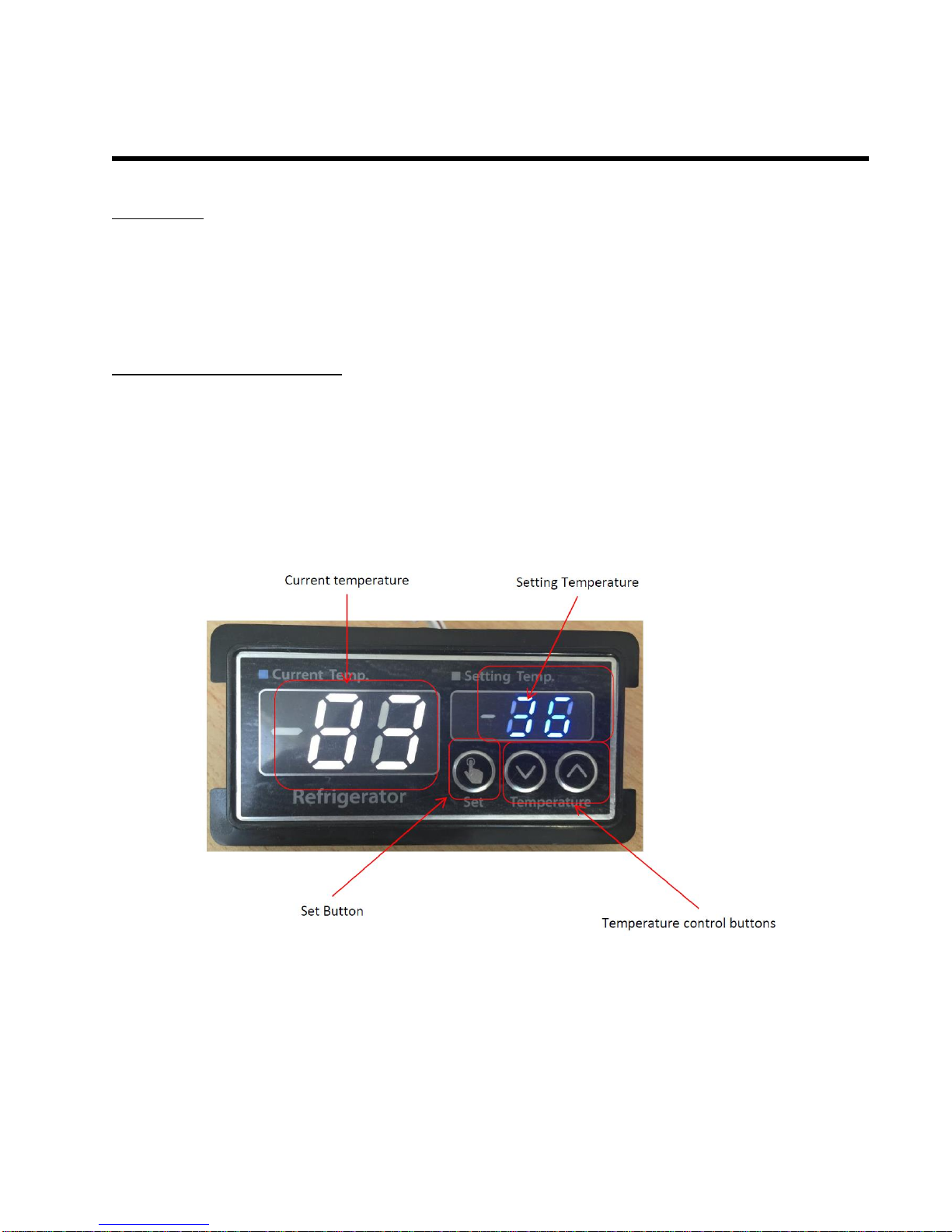

Electronic Controller ................................................................................................................... 12
How To Adjust Temperature ................................................................................................... 14
Power On/Off .................................................................................................................................... 15
Controller Alarms for users ...................................................................................................... 15
4. SERVICING ...................................................................................................................................... 16
Cleaning Cabinet ........................................................................................................................... 16
Cleaning Condenser ..................................................................................................................... 16
Access To Condenser ................................................................................................................. 16
Troubleshooting ............................................................................................................................. 18
1.MODELS
UPRIGHT SOLID DOOR
Model
Type
Config.
Doors
Operating temperature range
SRT25-1
Refrigerator
Solid Door
1
+1°C to +8°C up to 38°C ambient
SRT25-2
Refrigerator
Solid Door
2
SRT45-2
Refrigerator
Solid Door
2
SRT45-4
Refrigerator
Solid Door
4
SRT65-3
Refrigerator
Solid Door
3
SRT65-6
Refrigerator
Solid Door
6
SFT25-1
Freezer
Solid Door
1
-21°C to -12°C up to 38°C ambient
SFT25-2
Freezer
Solid Door
2
SFT45-2
Freezer
Solid Door
2
SFT45-4
Freezer
Solid Door
4
SFT65-3
Freezer
Solid Door
3
SFT65-6
Freezer
Solid Door
6
UPRIGHT SOLID DOOR – Dual Temperature
Model
Type
Config.
Doors
Operating temperature range
SRFT25-2
Dual Temp
Solid Door
2
R-Compartment
+1°C to +8°C up to 38°C ambient
F-Compartment
-21°C to -12°C up to 38°C ambient
SRFT45-2
Dual Temp
Solid Door
2
SRFT45-4
Dual Temp
Solid Door
4
SRFT65-3
Dual Temp
Solid Door
3
SRFT65-6
Dual Temp
Solid Door
6
UPRIGHT GLASS DOOR
Model
Type
Config.
Doors
Operating temperature range
SRT25-1G
Refrigerator
Glass Door
1
+1°C to +8°C up to 38°C ambient
SRT45-2G
Refrigerator
Glass Door
2
SRT65-3G
Refrigerator
Glass Door
3
SRT25-2G
Refrigerator
Glass Door
2
SRT45-4G
Refrigerator
Glass Door
4
SRT65-6G
Refrigerator
Glass Door
6
SFT25-1G
Freezer
Glass Door
1
-21°C to -12°C up to 38°C ambient
SFT25-2G
Freezer
Glass Door
2
SFT45-2G
Freezer
Glass Door
2
SFT45-4G
Freezer
Glass Door
4
2. INSTALLATION
Warning & Safety Instructions
This appliance conforms to current safety requirements. However, inappropriate use can cause
injury and damage to property.

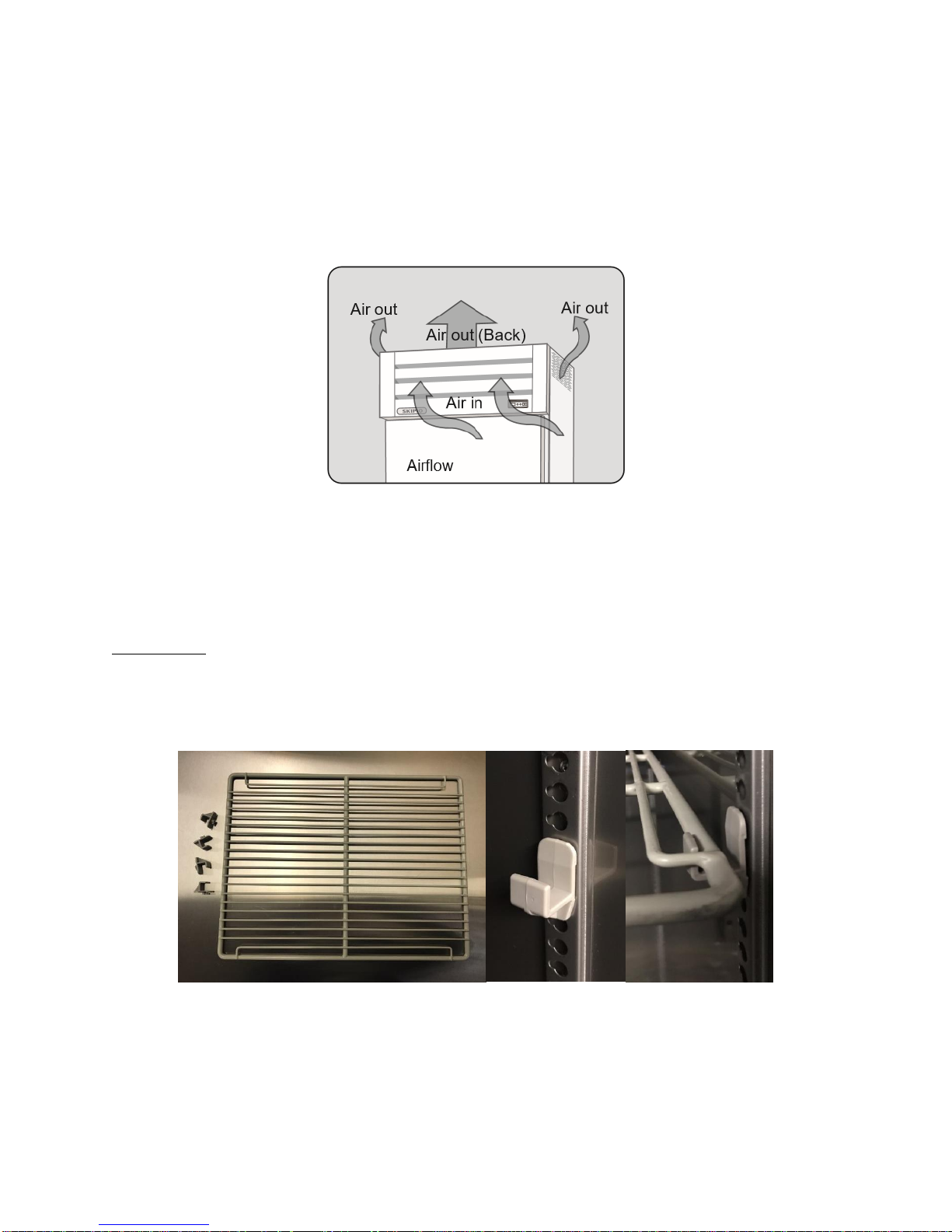

Do not cover the grilles or block the entry of airflow (condenser) or exhaust of airflow by
placing objects up against the refrigeration unit;
Ensure adequate ventilation provided for the appliance as this is essential to
performance, at least 300 mm from the ceiling;
Ensure the safe power supply and current draw for the appliance as overload of the
power supply can damage the entire unit;
Ensure to install the appliance indoor;
Avoid damp and dusty environment which may cause electric shock;
Use casters or legs for the unit;
Must disconnect the unit from the power supply prior to cleaning or maintenance;
Ensure not to put hot food in the unit;
Preferred to use the leakage protector to prevent the short circuit;
Ensure not to store volatiles and combustibles inside cabinet.
Installing the Unit
1. Avoid heat source
Avoid direct sunlight, uneven surface, hot environment beyond recommended ambient
temperature of the cabinet.
The unit must NOT be situated where it is affected by hot air from adjacent equipment as this will
compromise the airflow and performance of the cabinet.
2. Brake on castor
Rear castors come with brakes for SKIPIO upright cabinets to secure the position.
The brake acts like see-saw, pressing down on the left side of brake or rotating (anti-clockwise)
locks the castor. Likewise, the brake can be unlocked by pressing down on the right side of brake
or rotating (clockwise).
3. Ventilation
Providing an environment with good ventilation prolongs the life of compressor and performance.
Air flows into condenser (front) and the outflow of the used air is exhausted via outlets. For efficient
operation of the cabinet, providing adequate ventilation and ambient temperature (below 38°) is
essential.
Prior to installation of the unit, a gap of at least 300 mm must be left from the ceiling as outlets of
the used air are located at the top of the unit.
Shelving
Inside the cabinet, there is a shelf package. Remove all packaging material. Each shelf is paired
with 4 support brackets (shelf clips).
The shelves can be positioned at different heights for customer’s preference. Always ensure that
the support brackets are securely engaged in each of the shelf support rail.
It is recommended that the cabinet operates for 30 minutes prior to loading product.
Loading Product
Do not overload products: a maximum loading of 20kg per shelf
Do not allow products to overhang the front of the shelf which may prevent the door from
shutting
Place products with air space for even cooling and efficient operation.
Load products below “LOAD LINE” as shown below.
3.OPERATION
Start Up
Plug into the main power supply and check operation of the unit, front display and lighting. The
compressor and the condenser and evaporator fans should all operate within 2 minutes from the
moment the unit is plugged in. The cabinet light (inside) will go on when a door is opened.
Electronic Controller
SKIPIO electronic controller controls and displays the internal cabinet temperature. For general
operation, no initial setup or additional programing is required. When the cabinet is connected to
the power supply, the current cabinet temperature will be displayed on the electronic controller.
Generally, the compressor and evaporator fan will operate within 2 minutes after power is supplied
to the cabinet.
1. Electronic controller for refrigerators/freezers (SUR/SUF-series and its drawer models)
Factory setup temperature of SUF-series is - 18°C and ranged from -21°C to -12°C. For SURseries, factory setup temperature is 2°C and ranged from 1°C to 8°C.
2. Electronic controller for dual temperature (SURF-series)
SURF-series comes with a combined controller for both R and F compartments. Factory setup
temperature of SUF-series is - 18°C and ranged from -21°C to -12°C. For SUR-series, factory
setup temperature is 2°C and ranged from 1°C to 8°C.
How To Adjust Temperature
In order to prevent mistouch or undesired temperature adjustment, “Set” button has been
implemented.
Power On/Off
Plugging into the power automatically turns on the cabinet. There are several ways manually
power on and off while pugging in.
1. There is a power switch located at the top of the cabinet (near condenser).
Controller Alarms for users
Electric controller When the inside temperature is lower than - 45°C, the panel will display ‘LO’,
and higher than +18°C, ‘HI’ will be displayed.
Defrost starts when the icing on the evaporator occurs: usually 4 ~ 6 times a day.
It will take 20 ~ 30 minutes to finish defrost. The compressor drops the cabinet temperature down
to further – 7°C on the current setting temperature.
4. SERVICING
Cleaning Cabinet
Using a damp cloth for cleaning both the interior and exterior of the cabinet is recommended when
it requires. Before cleaning, the cabinet should be disconnected from the power supply.
Cleaning Condenser
Cleaning condenser coils is the most important thing a customer’s can do to maintain a
freezer/refrigerator’s longevity. The condenser coil is located behind the top grile. The condenser
coil must be maintained clean for reliable and efficient operation. Condenser blockage may cause
shortening the life of the compressor and, increasing power consumption.
To ensure trouble free performance, the condenser coil should be brushed once a month. Easy
access to the condenser from the top will allow simple and quick cleaning environment.
Access To Condenser
Open fridge doors and locate screws under top grille. Left screw is found under logo, right screw
is found under the front display unit (Front Controller). Unscrew both screws found on either side
of the grille.
Lift top grille upwards and fix with prop. The prop is found within it’s housing, in front of condenser
grille. The images below demonstrate how the grill should be supported during maintenance.
Using the included brush, gently clean the condenser coil, maintaining caution.
As shown the picture above, condenser is located at the top of the unit. A ladder is required to
access to the top of the unit. On the top of the unit there is a cover which can be removed by a
screw driver or a hand drill. Once, open up the top cover, brush the condenser and reassemble
the cover.
Over time, dust may accumulate within the condenser that cannot be removed with a brush. If
this occurs, contact SKIPIO to arrange for a SKIPIO authorized service agent to clean the
condenser with compressed air.
Troubleshooting
Issue
Possible cause
Resolution
Warm cabinet temperature
High temperature setting
Condenser blockage
Poor ventilation environment
Adjust temperature setting
Clean condenser
Provide good ventilation around the side
and back of the unit
Power consumption is higher
than supposed to be
Dirty Condenser
Unit operating in high temperatures
Cabinet doors are opened excessively
Clean condenser
Provide good ventilation around the side
and back of the unit
Keep door/s open for minimum time
Water leakage inside cabinet
Unit is not levelled properly
Level the unit
(Ref: 2 Installation – Levelling)
No power to unit
Unplugged
Power switch off in the condensing unit
(Ref: 3 Operation – Power On/Off)
Plug in
Power switch on in the condensing unit
(Ref: 3 Operation – Power On/Off)
Noise
Unit is not levelled properly
Level the unit
(Ref: 2 Installation – Levelling)
