Skil F 012 286 700 User Manual

Page 1 of 3

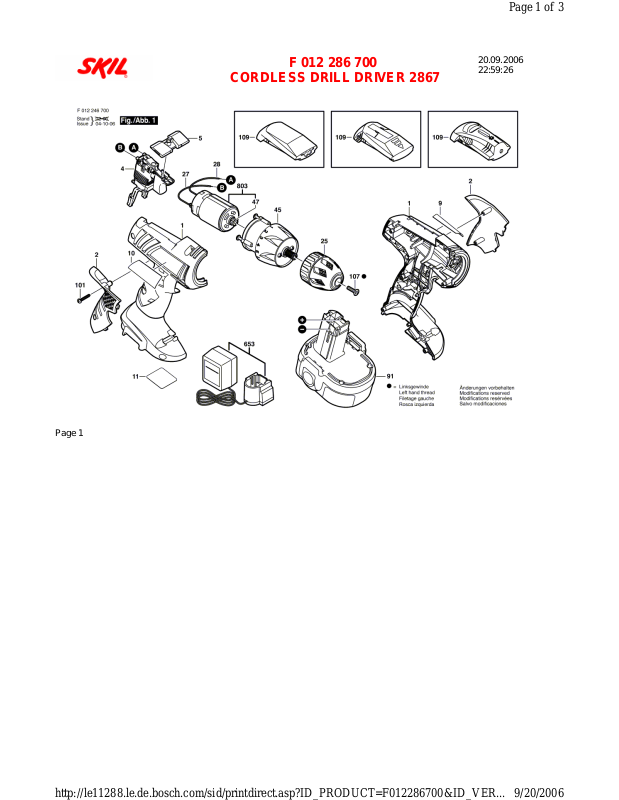

F 012 286 700

CORDLESS DRILL DRIVER 2867

20.09.2006
22:59:26

Page 1

9/20/2006http://le11288.le.de.bosch.com/sid/printdirect.asp?ID_PRODUCT=F012286700&ID_VER...

Page 2 of 3

Item Quantity Order No. Designation Price group Page

1 1 2 609 100 158 HOUSING COVER 1
2 1 2 609 100 149 CAP-HANDLE 1
4 1 2 607 200 465 ON-OFF SWITCH 1
5 1 2 609 100 167 REVERSE-TRANSFER LEVER 1
9 1 2 609 130 459 REFERENCE PLATE 1
10 1 2 609 130 477 NAMEPLATE 1
11 1 2 609 130 462 PLATE 1
25 1 2 610 912 703 KEYLESS CHUCK 1
27 1 2 609 120 085 CONNECTING CABLE 1
28 1 2 609 120 086 CONNECTING CABLE 1
45 1 2 609 110 194 EPICYCLOIDAL GEAR TRAIN 1
47 1 2 609 110 097 PINION 1
91 1 2 607 335 513 BATTERY PACK \ 18V,1,2Ah,NiCd 1
101 8 2 609 110 201 TORX FLAT-HEAD SCREW 1
107 1 2 603 421 228 COUNTERSUNK-HEAD SCREW \ M 5x20 MM 1
109 1 2 609 100 190 SUPPORT 1
109 1 2 610 916 434 METAL DETECTOR 1
109 1 2 610 924 650 SPIRIT LEVEL 1
653 1 2 607 224 633 CHARGER \ USA/CAN 120/18V, 5h 1
653 1 2 607 224 995 CHARGER \ USA/CAN 120/18V, 5h 1
803 1 2 609 120 031 ALTERNATING-CURRENT MOTOR \ 18V 1
