Skil 0570 Instruction Manual

SKIL Europe BV - Konijnenberg 60 12/07 2610397953 4825 BD Breda - The Netherlands

360° AUTOMATIC LEVELING LASER 570 (F0150570 . . )

INSTRUCTIONS page 10 INSTRUCTIONS page 11 HINWEISE Seite 13 INSTRUCTIES bladz. 15 INSTRUKTIONER sida 17 INSTRUKTION side 19 ANVISNINGEN side 21 OHJEET sivu 23 INSTRUCCIONES pág. 25 INSTRUÇÕES pág. 27 ISTRUZIONI pag. 29 LEÍRÁS oldal 31

POKYNY strana 33

KILAVUZ sayfa 34

INSTRUKCJA strona 36

ИНСТРУКЦИИ страница 38

ІНСТРУКЦІЯ страница 41

O∆ΗΓΙΕΣ σελίδα 43

INSTRUCØIUNI pagina 45

УKA3AНИЕ страница 47

POKYNY strana 49

UPUTE stranica 51

UPUTSTVA stranica 53

NAVODILA stran 55

KASUTUSJUHEND lehekülg 57

INSTRUKCIJA lappuse 58

INSTRUKCIJA puslapis 60

www.skileurope.com

FIN

SRB

SLO

EST

ME77

A C

E D

DC input + 6V 0,8 A

4x AA/LR6

2x AAA/LR03

Max. 100 m

(Ø 200 m)

5/8"-11 UNC

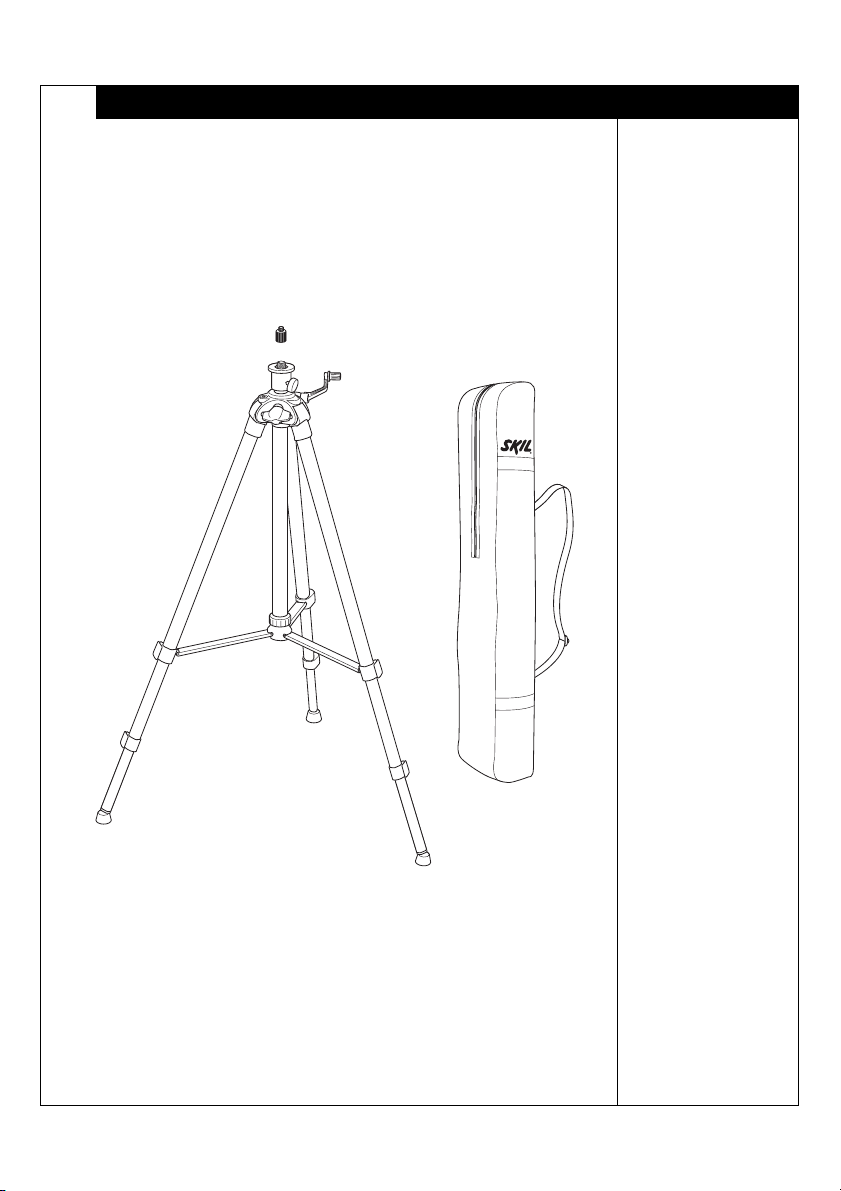

ACCESSORIES SKIL Nr.

2610398078

1,80 m

ACCESSORIES SKIL Nr.

2610395906

2610398094

2610395907

AAA/LR03

1,20 m

360° Automatic leveling laser 570 INTRODUCTION

• This tool is intended for projecting and checking horizontal and vertical lines/planes as well as (plumb) points

• Carefully read this instruction manual as well as the warning label on the tool, before you use the tool 1

• Pay special attention to the safety instructions and warnings; failure to follow these may result in serious (eye) injury

• Save this instruction manual for future reference

TECHNICAL SPECIFICATIONS

Laser type 635 nm Laser class 2 Power output < 1 mW Self-leveling range ± 3º Accuracy (horizontal) ± 0,3 mm/m Leveling time 5 seconds Rotating speed 300 / 500 / 700 rpm Working range without receiver 15 m* (Ø 30 m*) Working range with receiver 100 m (Ø 200 m) Operating temperature -10ºC to 45°C Storage temperature -20ºC to 60°C Tripod junction (horizontal/vertical) 5/8”-11 UNC Dust/water protection IP54 Estimated battery life (tool) 20 hours Power supply tool 4 x AA (LR6) /

1,5V battery

Power supply receiver 2 x AAA (LR03) /

1,5V battery

Weight 1,7 kg

* depending on ambient light intensity

TOOL ELEMENTS 3

A Button for on/off B Indicator “Power On” C Button for setting rotational speed D Rotational speed indicators E Bubble level for vertical lines/planes F Rotary head G Laser light opening H Warning label J Battery compartment cover K Base-plate L Side-plate M Knob for (un)locking self-leveling system N Adjustment knob for vertical use P Mains adapter connection

Q Receiver R Clamp for receiver S Button for on/off T LED-lights V Bubble level

SAFETY

• Do not look into the laser beam (laser radiation) 2

• Do not point the laser beam at persons or animals

• Do not place the tool in a position that may cause anyone to look into the laser beam intentionally or unintentionally

• Do not use any magnifying optical tools (such as magnifying glasses, telescopes, or binoculars) to view the laser beam

• Do not remove or damage the warning label on the tool

• Do not operate the tool in the presence of ﬂ ammable liquids, gases or dust

• Do not operate the tool with children around

• This tool should not be used by people under the age of 16 years

• Do not use the tool for any purpose other than those mentioned in this instruction manual

• Only use the original accessories which are intended for this tool

• Always lock the self-leveling system after use

USE

• Mounting of batteries 4

- open cover J

- insert 4 x AA (LR6) / 1,5V batteries (pay attention to

correct polarisation)

- close cover J

- always remove the batteries from the tool, if the tool

is not used for a long period

- replace the batteries when indicator B starts blinking

- always replace the complete set of batteries

• Operating the tool 5

- place the tool in horizontal position (with base-

plate K beneath) on a ﬂ at surface

- unlock the self-leveling system by turning knob M

clockwise into position “ON”

- switch on the tool by pressing button A

- when switching on, light B lights up indicating that

the tool is in the projecting mode

- if the surface inclines more than ± 3º, an acoustic

warning signal indicates that the tool is out of its self-leveling range (rotary head F stops rotating)

- the tool immediately starts projecting a horizontal

line/plane as well as a plumb point on the ceiling

- select desired rotational speed by repeatedly

pressing button C

1) high speed (lower indicator D lights up)

2) medium speed (middle indicator D lights up)

3) low speed (upper indicator D lights up)

- make measurements using the projected line as reference

- switch off the tool by pressing button A

! always lock the self-leveling system after use by

turning knob M counter-clockwise into position “OFF”

! do not look into the laser beam ! do not point the laser beam at persons or animals

• Leveling of tool in vertical position 7

- place the tool in horizontal position (with base-plate K beneath) on a ﬂ at surface

- lock the self-leveling system by turning knob M counter-clockwise into position “OFF”

- place the tool in vertical position (with side-plate L beneath) on a ﬂ at surface

- level the tool by turning adjustment knob N in such a way that the bubble in level E is centered

• Aligning objects horizontally 6

• Aligning objects vertically 7

• Projecting plumb points 8

• Working with wall-mounted tool 9 For work exceeding the extension height of tripods,

the tool can be mounted to the wall as illustrated

! ensure the tool is mounted properly and cannot

fall down

• Working with receiver 0 For working at a long distance when the laser line is no

longer visible (e.g. outdoors)

- insert 2 x AAA/LR03 batteries (pay attention to correct polarisation)

- maximum working range is 100 (Ø 200) metres

- switch on receiver by pressing button S (middle light T ﬁ rst lights up red and then green while an acoustic signal sounds simultaneously)

- detect laser beam with receiver (ensure that the bubble in level V is centered)

- when green light T lights up and an acoustic signal sounds continuously, the laser beam is received correctly

- when upper red light T lights up and an acoustic signal sounds intermittently, the receiver is positioned too high

- when lower red light T lights up and an acoustic signal sounds intermittently, the receiver is positioned too low

- switch off receiver by pressing button S again (middle light T ﬁ rst lights up green and then red while an acoustic signal sounds simultaneously )

- the receiver automatically switches off after 5 minutes of inactivity

- be aware that the receiver only functions with leveling lasers that thave pulsating laser beams (no line laser beams)

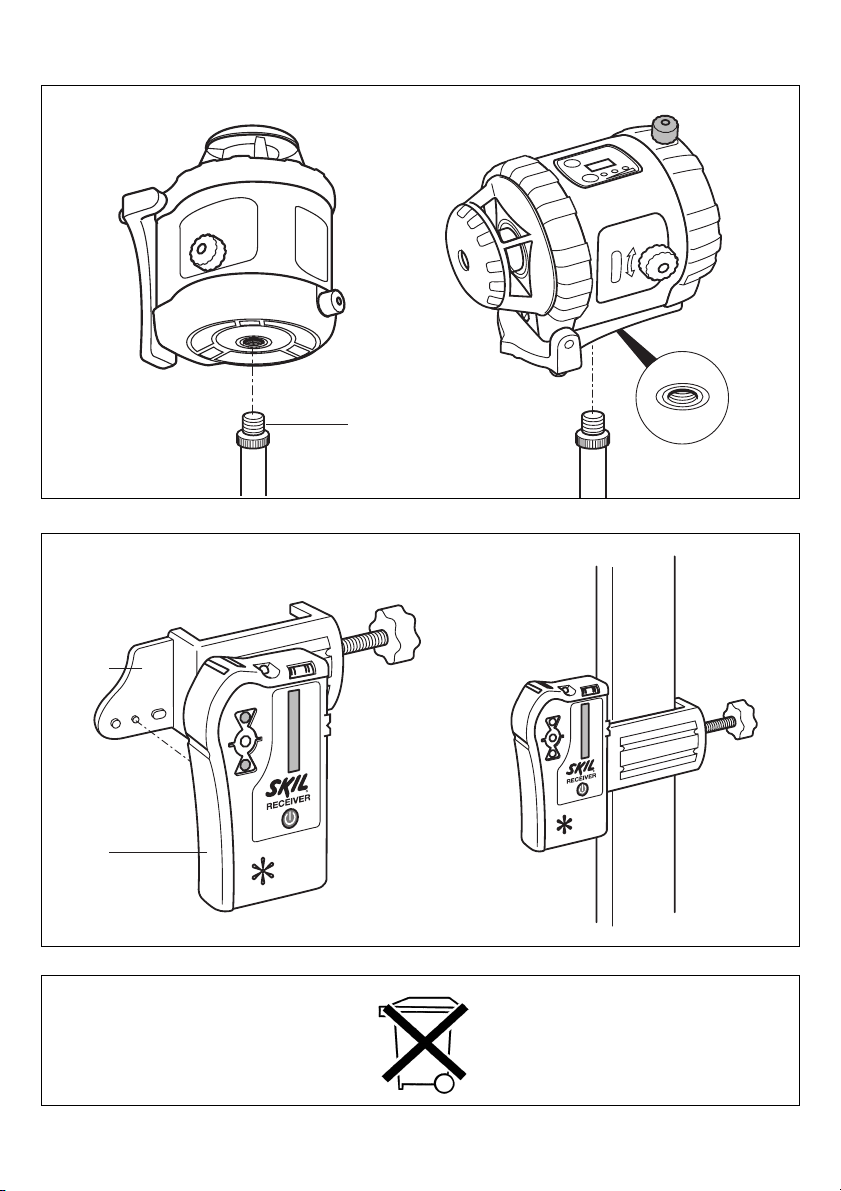

• For using the tool in combination with a tripod (5/8”-11 UNC) !

APPLICATION ADVICE

• Use low rotational speed for increasing the visibility of the laser line (e.g. when ambient light is too bright)

• When using the receiver in combination with an adjustable measuring rod, ﬁ rst mount receiver Q on clamp R as illustrated @

MAINTENANCE / SERVICE

• Do not expose the tool to vibration or extremely hot or cold temperatures

• Always keep the tool free of dust, moisture and direct sunlight

• Do not disassemble or modify the tool in any way

• Do not attempt to change any part of the laser lens

• Always store the tool indoors in its protective bag

• Clean the tool with a damp cloth

• If the tool should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for SKIL power tools

- send the tool undismantled together with proof of

purchase to your dealer or the nearest SKIL service station (addresses as well as the service diagram of the tool are listed on www.skileurope.com)

ENVIRONMENT

• Do not dispose of electric tools, batteries, accessories and packaging together with household waste material (only for EU countries)

- in observance of European Directive 2002/96/EC on

waste of electric and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility

- symbol # will remind you of this when the need for

disposing occurs

360° Niveau laser automatique 570 INTRODUCTION

• Cet outil sert à la projection et au contrôle des plans horizontaux et verticaux, ainsi que des points (perpendiculaires) de projection

• Lisez soigneusement ce mode d’emploi ainsi que l’étiquette d’avertissement située sur l’outil avant d’utiliser l’outil 1

• Prêtez attention aux consignes de sécurité et aux avertissements; sinon, vous risquez d’endommager gravement vos yeux

• Conservez ce mode d’emploi pour vous y reporter à l’avenir

✎

CE DECLARATION OF CONFORMITY We declare under our sole responsibility that this product is in conformity with the provisions of the directive 98/37/EC (until Dec. 28, 2009), 2006/42/EC (from Dec. 29, 2009 on).

NOISE Measured in accordance with EN 50 144 the sound pressure level of this tool is < 70 dB(A). Technical file at: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.

CE DÉCLARATION DE CONFORMITÉ Nous déclarons sous notre propre responsabilité que ce produit est en conformité avec la

réglementation 98/37/CE (jusqu’au 28.12.2009), 2006/42/CE (à partir du 29.12.2009).

BRUIT Mesuré selon EN 50 144 le niveau de la pression sonore de cet outil est < 70 dB(A). Dossier technique auprès de: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.

CE KONFORMITÄTSERKLÄRUNG Wir erklären in alleiniger Verantwortung, daß dieses Produkt mit den Bestimmungen der

Richtlinie 98/37/EG (bis 28.12.2009), 2006/42/EG (ab 29.12.2009) übereinstimmt.

GERÄUSCH Gemessen gemäß EN 50 144 beträgt der Schalldruckpegel dieses Gerätes < 70 dB(A). Technische Unterlagen bei: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.

CE CONFORMITEITSVERKLARING Wij verklaren op eigen verantwoording, dat dit product voldoet aan de bepalingen van de

richtlijn 98/37/EG (tot 28-12-2009), 2006/42/EG (vanaf 29-12-2009).

GELUID Gemeten volgens EN 50 144 is het geluidsdrukniveau van deze machine < 70 dB(A). Technisch dossier bij: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.

CE KONFORMITETSFÖRKLARING Vi intygar och ansvarar för, att denna produkt överensstämmer med riktlinjen 98/37/EG

(till 28.12.2009), 2006/42/EG (from 29.12.2009).

LJUD Ljudtrycksnivån som uppmätts enligt EN 50 144 är på denna maskin < 70 dB(A). Teknisk tillverkningsdokumentation finns hos: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.

CE KONFORMITETSERKLÆRING Vi erklærer under almindeligt ansvar, at dette produkt er i overensstemmelse med direktiver

98/37/EF (indtil 28.12.2009), 2006/42/EF (fra 29.12.2009).

STØJ Måles efter EN 50 144 er lydtryknivå af dette værktøj < 70 dB(A). Teknisk dossier hos: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.

CE SAMSVARSERKLÆRING Vi erklærer at det er under vårt ansvar at dette produktet er i samsvar med regulering 98/37/EF

(frem til 28.12.2009), 2006/42/EF (fra 29.12.2009).

STØY Målt ifølge EN 50 144 er lydtrykknivået av dette verktøyet < 70 dB(A). Tekniske underlag hos: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.

CE VAATIMUSTENMUKAISUUSVAKUUTUS Vakuutamme, että tämä tuote on direktiivin 98/37/EY (28.12.2009 asti), 2006/42/EY

(29.12.2009 alkaen) määräysten mukainen.

MELU Tämän laitteen EN 50 144 -standardin mukaisesti mitattu melutaso on < 70 dB(A). Tekninen tiedosto kohdasta: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.

CE DECLARACION DE CONFORMIDAD Declaramos bajo nuestra sola responsabilidad que este producto está en conformidad

con la regulación 98/37/CE (hasta el 28.12.2009), 2006/42/CE (a partir del 29.12.2009).

RUIDO Medido según EN 50 144, el nivel de la presión acústica de esta herramienta se eleva a < 70 dB(A). Expediente técnico en: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.

CE DECLARAÇÃO DE CONFORMIDADE Declaramos sob nossa exclusiva responsabilidade que este produto cumpre as

disposições da directiva 98/37/CE (até 28.12.2009), 2006/42/CE (a partir de 29.12.2009).

RUÍDO Medido segundo EN 50 144 o nível de pressão acústica desta ferramenta é < 70 dB(A). Processo técnico em: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.

FIN

06 SKIL Europe B.V. A. v.d. Kloot

CE DICHIARAZIONE DI CONFORMITÀ Dichiaramo, assumendo la piena responsabilità di tale dichiarazione, che il prodotto è conforme alle prescrizioni del direttivo 98/37/EG (fino al 28.12.2009), 2006/42/EG (a partire dal 29.12.2009).

RUMOROSITÀ Misurato in conformità al EN 50 144 il livello di pressione acustica di questo utensile è < 70 dB(A). Fascicolo tecnico presso: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.

CE MINÃSÉGI TANÚSÍTVÁNY Teljes felelŒsségünk tudatában kijelentjük, hogy jelen termék a következŒ a 98/37/EK (2009.12.28-ig), 2006/42/EK (2009.12.29-tŒl kezdve) elŒírásoknak felel meg.

ZAJ Az EN 50 144 alapján végzett mérések szerint ezen készülék hangnyomás szintje < 70 dB(A). A mıszaki dokumentáció a következŒ helyen található: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.

CE PROHLÁ·ENÍ O SHODù Potvrzujeme na vlastní odpovûdnost, Ïe tento v˘robek odpovídá ustanoveni smûrnice 98/37/ES (do 28.12.2009), 2006/42/ES (od 29.12.2009).

HLUâNOSTI Mûﬁenim podle EN 50 144 ãiní tlak akustického signálu tohoto pﬁístroje < 70 dB(A).

Technická dokumentace u: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.

CE STANDARDIZASYON BEYANI Ye¤ane sorumlu olarak, bu ürünün aﬂa¤ıdaki yönetmeli¤i hükümleri uyarınca 98/37/EG (28.12.2009 tarihine kadar), 2006/42/EG (29.12.2009 tarihinden itibaren).

GÜRÜLTÜ Ölçülen EN 50 144 göre ses basıncı bu makinanın seviyesi < 70 dB(A). Teknik belgelerin bulundu¤u merkez: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.

06 SKIL Europe B.V. A. v.d. Kloot

ЗАЯВЛЕНИЕ О СООТВЕТСТВИИ Мы с полной ответственностыо заявляем, что это изделие соответствует положениями директивы 98/37/EC (до 28.12.2009), 2006/42/EC (начиная с 29.12.2009). ШУМOСТИ При измерении в соответствии co стандартoм EN 50 144 уровень звукового давления для этого инструмента составляет < 70 дБ (A). Техническая документация у: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.

CE ВІДПОВІДНІСТЬ Ми заявляємо, що відповідність даного продукту наступним відповідно до положень директив 98/37/EG до 28.12.2009 p.), 2006/42/EG (після 29.12.2009 p.).

ШУМ Зміряний відповідно до EN 50 144 рівень тиску звуку даного інструменту < 70 дБ(А). Технічні документи в: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.

CE ∆ΗΛΩΣΗ ΣΥΜΜΟΡΦΩΣΗΣ ∆ηλώνουµε φέροντας την αποκλειστική ευθύνη τι το προϊν αυτ συµµορφώνεται µε τις διατάξεις της οδηγίας 98/37/EK (έως 28.12.2009), 2006/42/EK (απ 29.12.2009).

ΘΟΡΥΒΟΣ Η στάθµη ηχητικής πίεσης του παρντος εργαλείου έχει µετρηθεί, σύµφωνα µε το EN 50 144, τι είναι < 70 dB(A). Τεχνικς φάκελος απ: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.

DECLARAØIE DE CONFORMITATE CE Declaråm pe proprie råspundere cå acest produs este conform cu regulile 98/37/CE (pânå la 28.12.2009), 2006/42/CE (începând cu 29.12.2009).

ZGOMOT Måsurat în conformitate cu EN 50 144 nivelul de presiune a sunetului generat de acest instrument este de < 70 dB(A). Documentaøie tehnicå la: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.

CE ДЕKЛАPAЦИЯ ЗA CЪOTВETCTBИE Декларираме изцяло на наша отговорност, че това изделие отговаря на изискваниятаа на директива 98/37/EG (до 28.12.2009), 2006/42/EG (от 29.12.2009).

ШУМ Измерено в съответствие с EN 50 144, нивото на звуково налягане на този инструмент е < 70 dB(A). Подробни технически описания при: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.

CE IZJAVA O USKLAĐENOSTI Izjavljujemo uz punu odgovornost da je ovaj proizvod usklađen prema odredbama smjernica 98/37/EG (do 28.12.2009), 2006/42/EG (od 29.12.2009).

BUKA Mjereno prema EN 50 144, prag zvuãnog tlaka ovog elektriãnog alata iznosi < 70 dB(A). Tehniãka dokumentacija se moÏe dobiti kod: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.

CE IZJAVA O USKLAĐENOSTI Pod punom odgovorno‰çu izjavljujemo da je ovaj proizvod usklađen sa odredbama smernica 98/37/EG (do 28.12.2009), 2006/42/EG (od 29.12.2009).

BUKA Mereno u skladu sa EN 50 144, nivo pritiska zvuka ovog alata iznosi < 70 dB(A). Tehniãka dokumentacija kod: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.

SRB

IZJAVA O USTREZNOSTI CE Odgovorno izjavljamo, da je ta izdelek v skladu s predpisi navodil 98/37/ES (do 28.12.2009), 2006/42/ES (od 29.12.2009).

HRUP Izmerjeno v skladu s predpisom EN 50 144 je raven zvoãnega pritiska za to orodje < 70 dB(A). Tehniãna dokumentacija se nahaja pri: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.

SLO

CE VASTAVUSDEKLARATSIOON Kinnitame ainuvastutajana, et see toode vastab direktiivi 98/37/EÜ (kuni 28.12.2009), 2006/42/EÜ (alates 29.12.2009) nõuetele.

MÜRA Vastavalt kooskõlas normiga EN 50 144 tehtud mõõtmistele on antud seadme helirõhk < 70 dB(A). Tehniline toimik saadaval aadressil: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.

EST

CE DEKLARÅCIJA PAR ATBILST±BU STANDARTIEM Mïs ar pilnu atbild¥bu pazi¿ojam, ka ‰is izstrÇdÇjums atbilst direkt¥vÇm 98/37/ES (l¥dz 28.12.2009) un 2006/42/ES (no 29.12.2009).

TROKSNIS Saska¿Ç ar standartu EN 50 144 noteiktais instrumenta rad¥tÇ trok‰¿a ska¿as spiediena l¥menis ir < 70 dB(A). TehniskÇ lieta no: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.

CE KOKYBñS ATITIKTIES DEKLARACIJA Mes atsakingai parei‰kiame, kad ‰is gaminys atitinka EEB reglament˜ 98/37/EB (iki 2009-12-28), 2006/42/EB (nuo 2009-12-29) nuostatas.

TRIUK·MINGUMAS Matuojant pagal EN 50 144 reikalavimus prietaiso keliamo triuk‰mo garso slògio lygis yra < 70 dB(A). Techninò byla laikoma: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.

CE PREHLÁSENIE O ZHODE V˘hradne na na vlastnú zodpovednosÈ prehlasujeme, ﬁe tento v˘robok zodpovedá nasledujúcim v súlade s predpismi 98/37/EG (do 28.12.2009), 2006/42/EG (od 29.12.2009). HLUKU Meraním podæa EN 50 144 ãiní úroveÀ akustického tlaku tohto prístroja < 70 dB(A).

Súbor technickej dokumentácie sa nachádzajú na adrese: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.

OÂWIADCZENIE ZGODNOÂCI CE Niniejszym oÊwiadczamy ponoszàc wy∏àcznà odpowiedzialnoÊç, ˝e produkt wykonany jest zgodnie z wytycznymi dyrectywy 98/37/EU (do 28.12.2009), 2006/42/EU (od 29.12.2009).

HA¸ASU Pomiarów dokonano zgodnie z normà EN 50 144, ciÊnienie akustyczne narz´dzia wynosi < 70 dB(A). Dokumentacja techniczna: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.
