Multi-surface leveling laser 502
INTRODUCTION
● This tool is intended for aligning objects and/or marking
desired cutting lines by means of a straight laser line
projection; with the accessories supplied the tool can be
used on a variety of surfaces
● Carefully read this instruction manual as well as the
warning label on the tool, before you use the tool 1
● Pay special attention to the safety instructions and
warnings; failure to follow these may result in
serious (eye) injury
● Before using the tool for the first time, paste the supplied
sticker in your national language over the English text of
warning label F 3
● Save this instruction manual for future reference
TECHNICAL SPECIFICATIONS
Laser type 635 nm
Laser class 2
Maximum power output 1 mW
Power supply 3 x AG13 button cell battery
Operating temperature -10°C to 40°C
Storage temperature -20°C to 60°C
Weight 0,05 kg
Accuracy deviation of +/- 10 mm at
5 metres' distance
SAFETY
● Do not look into the laser beam (laser radiation) 2
● Do not point the laser beam at persons or animals
● Do not place the tool in a position that may cause
anyone to look into the laser beam intentionally or
unintentionally
● Do not use any magnifying optical tools (such as
magnifying glasses, telescopes, or binoculars) to view
the laser beam
● Do not remove or damage the warning label on the tool
● Do not operate the tool in the presence of flammable
liquids, gases or dust
● Do not operate the tool with children around
● This tool should not be used by people under the age of
16 years
● Do not use the tool for any purpose other than those
mentioned in this instruction manual
● Only use the original accessories which are intended for
this tool
● Always switch off the tool when not in use
TOOL ELEMENTS 3
A On/off switch
B Bubble level for horizontal lines
C Bubble level for vertical lines
D Laser light opening
E Battery compartment cover
F Warning label
G Suction accessory
H Clamp accessory
J Pin accessory
K Magnet accessory
L Screw accessory
M Pivot accessory
N Belt clip accessory
USE
● On/off
- before first use, remove protective insert as
illustrated 4
- switch on/off the tool by pushing switch A
! do not look into the laser beam
! do not point the laser beam at persons or animals
! always switch off the tool after use
● Changing batteries 5
! ensure that the tool is switched off
- remove cover E
- insert 3 x AG13 button cell battery (pay attention to
correct polarisation)
- mount cover E
- always remove the batteries from the tool, if the tool
is not used for a long period
- always replace the complete set of batteries
● Operating the tool 6
- when projecting a horizontal line, ensure that the
bubble in level B is centered
- when projecting a vertical line, ensure that the bubble
in level C is centered
- make measurements using the projected line as
reference
- when projecting a laser line at a longer distance, you
may increase its visibility by placing an object at the
end of the desired distance 7
● Suction accessory G 8
For projecting lines on smooth surfaces
- slide tool on accessory G
- place accessory G onto surface
- level the tool (ensure that the bubble in the relevant
level is centered)
- push 2 knobs
- use projected line as reference

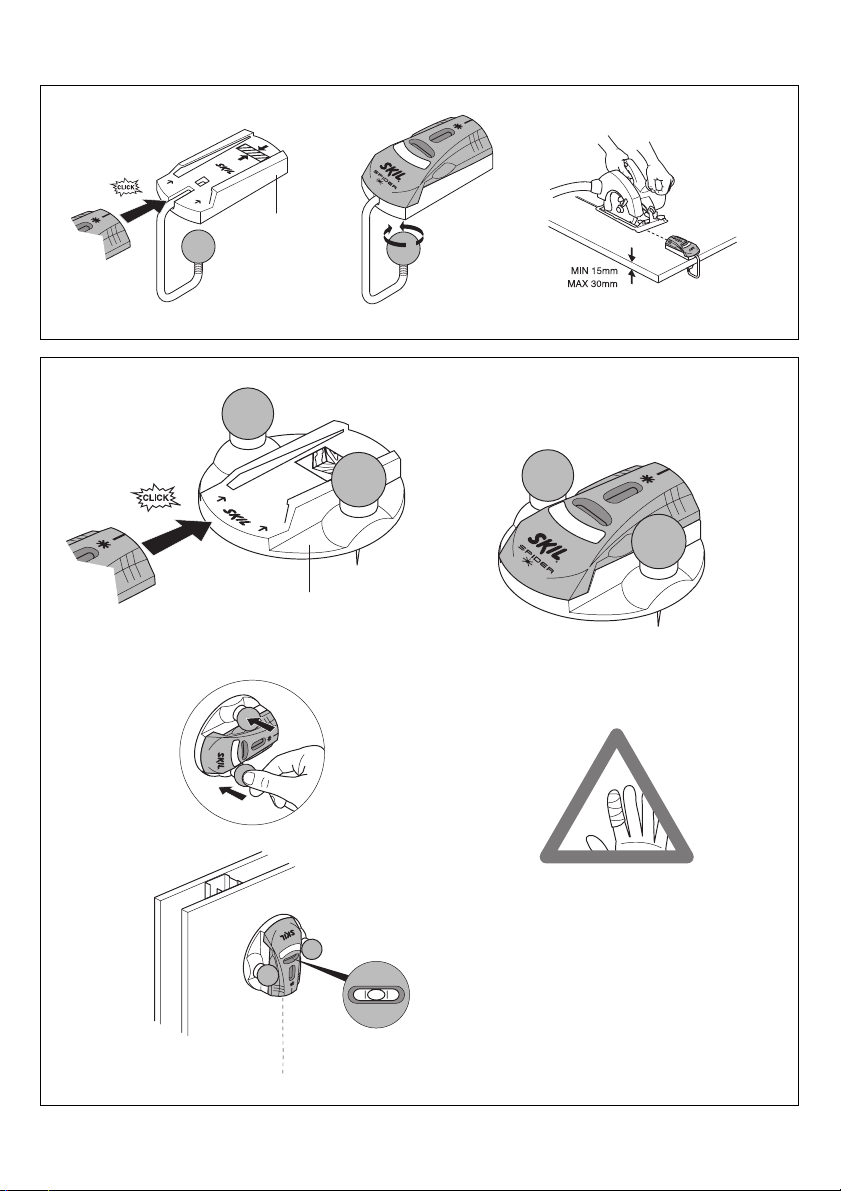

● Clamp accessory H 9
For projecting lines on board materials (thickness 15 30 mm)
- slide tool on accessory H
- fasten accessory H onto board by turning knob
clockwise
- use projected line as reference
● Pin accessory J 0
For projecting lines on plasterboard, soft wood, and
other soft materials
- slide tool on accessory J
- place accessory J onto surface
- level the tool (ensure that the bubble in the relevant
level is centered)
- push 2 knobs
- use projected line as reference
! be aware of the sharp pins

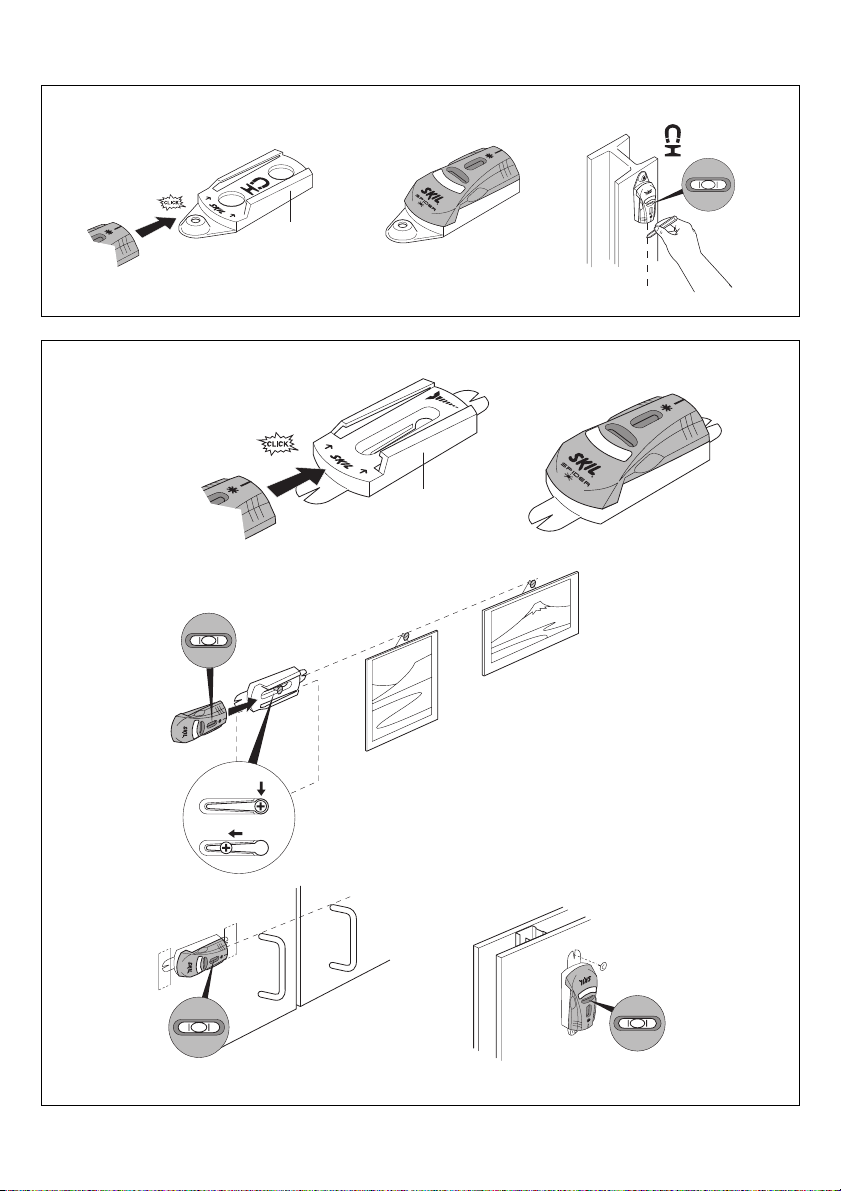

● Magnet accessory K !
For projecting lines on any ferrous metal surface or profile
- slide tool on accessory K
- place accessory K onto surface
GB
7
- level the tool (ensure that the bubble in the relevant
level is centered)
- use projected line as reference
● Screw accessory L @
For projecting lines at the same level as already
mounted screw
- place accessory L over already mounted screw
- slide accessory L to the left/right, so that screw ends
up firmly in tapered end of peg
- slide tool on accessory L
- level the tool (ensure that the bubble in the relevant
level is centered)
- use projected line as reference for mounting other
screw(s)
Screw accessory L can also be used in combination with
tape or drawing-pins
● Pivot accessory M #
For projecting lines at an angle (for rough indication only)
- remove knob by turning it counter-clockwise
- slide tool on magnet accessory K
- fasten magnet accessory K on accessory M by
turning knob clockwise
- move tool over graduated arc by loosening/fastening
knob
Pivot accessory M can also be used in combination with
tape or drawing-pins
● Belt clip accessory N $
For easy and convenient storage
MAINTENANCE
● Do not expose the tool to continuous vibration or
extremely hot or cold temperatures
● Always store the tool indoors in its protective
carton/case
● Always keep the tool free of dust, moisture and direct
sunlight
● Clean the tool with a damp cloth and mild soap
! always remove the batteries before cleaning the
lens
● Do not disassemble or modify the tool in any way
● Do not attempt to change any part of the laser lens
GUARANTEE / ENVIRONMENT
● This Skil product is guaranteed in accordance with
statutory/country-specific regulations; damage due to
normal wear and tear, overload or improper handling will
be excluded from the guarantee
● In case of a complaint, send the tool undismantled together
with proof of purchase to your dealer or the nearest Skil
service-station (addresses as well as the service diagram
of the tool are listed on www.skileurope.com)
● Do not dispose of electric tools, batteries,
accessories and packaging together with household
waste material (only for EU countries)
- in observance of European Directive 2002/96/EC on
waste of electric and electronic equipment and its
implementation in accordance with national law,
electric tools that have reached the end of their life
must be collected separately and returned to an
environmentally compatible recycling facility
- symbol % will remind you of this when the need for
disposing occurs
Niveau laser toutes surfaces 502
INTRODUCTION
● Cet outil est conçu pour aligner des objets et/ou
marquer des lignes de coupe par projection d’un
faisceau laser; les accessoires fournis permettent de
l’utiliser sur les surfaces les plus diverses
● Lisez soigneusement ce mode d'emploi ainsi que
l'étiquette d'avertissement située sur l'outil avant
d'utiliser l'outil 1
● Prêtez attention aux consignes de sécurité et aux
avertissements; sinon, vous risquez d'endommager
gravement vos yeux
● Avant d’utiliser cet outil pour la première fois, collez
l’autocollant fourni dans votre langue sur le texte anglais
de l’étiquette d’avertissement F 3
● Conservez ce mode d'emploi pour vous y reporter à
l'avenir
SPECIFICATIONS TECHNIQUES
Type de laser 635 nm
Catégorie de laser 2
Puissance de sortie maximale 1 mW
Alimentation 3 piles plates AG13
Température en fonctionnement -10°C à 40°C
Température d’entreposage -20°C à 60°C
Poids 0,05 kg
Exactitude déviation de +/- 10 mm
à une distance de
5 mètres
SECURITE
● Ne projetez pas le rayon laser dans vos yeux
(rayonnement laser) 2
● Ne dirigez pas le rayon laser vers des personnes ou
des animaux
● Ne placez pas cet outil dans une position où le rayon
laser pourrait atteindre l'œil d'une personne,
volontairement ou non
● N'utilisez pas d'outils optiques grossissants (loupes,
télescopes ou jumelles) pour voir le rayon laser
● Veillez à ne pas enlever l'étiquette d'avertissement de
l'outil ni à l'endommager
● N'utilisez pas cet outil en la présence de liquides
inflammables, de gaz ou de poussière
● N'utilisez pas cet outil en la présence d'enfants
● Cet outil ne doit pas être utilisé par des personnes de
moins de 16 ans
● N'utilisez pas cet outil dans un but autre que ceux
mentionnés dans ce mode d'emploi
● Utilisez seulement les accessoires d'origine prévus pour
cet outil
● Mettez toujours l'outil hors tension lorsqu'il n'est
pas utilisé
F
8
