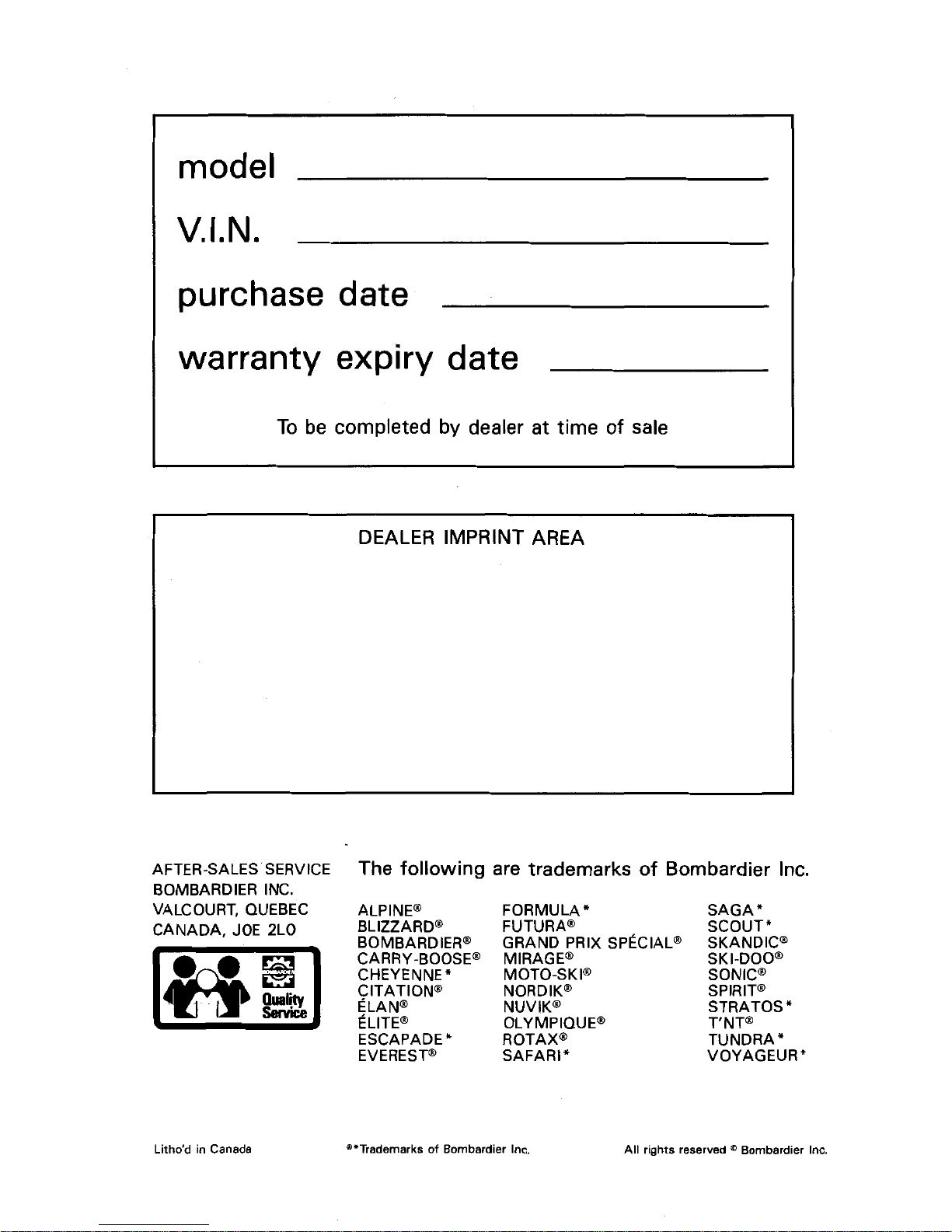

model
V.I.N.
purchase date
warranty
expiry date
To
be completed by dealer
at
time
of
sale
DEALER IMPRINT AREA
AFTER-SALES SERVICE
BOMBARDIER INC.
VALCOURT, QUEBEC
CANADA,
JOE 2LO
The following are trademarks
of
Bombardier Inc.
Litho'd
in
Canada
ALPINE®
BLIZZARD®
BOMBARDIER®
CARRY -BOOSE®
CHEYENNE*
CITATION®
ELAN®
ELITE®
ESCAPADE•
EVEREST®
FORMULA*
FUTURA®
GRAND
PRIX SPECIAL®
MIRAGE®
MOTO-SKI®
NORDIK®
NUVIK®
OLYMPIOUE®
ROT
AX®
SAFARI*
SAGA*
SCOUT*
SKANDIC®
SKI-DOO®
SONIC®
SPIRIT®
STRATOS*
T'NT®
TUNDRA*
VOYAGEUR*
®*Trademarks
of
Bombardier Inc.
All
rights reserved " Bombardier Inc.
FOREWORD
__________________
_
The operator manual
and
the Snowmobile
Safety Handbook have been prepared to
acquaint the owner/operator or passenger
of
a new snowmobile
with
the various
vehicle controls, maintenance and safe
operating instructions.
Each
is
indispens-
able
for
the proper use
of
the product,
and should
be
kept
with
the vehicle at
all times.
Should you
have
any
questions pertaining
to the warranty and its application,
please
consult the
II
Often Asked Question'' sec-
tion
of
this manual, or your authorized
dealer.
This manual uses the following symbols.
A WARNING: Identifies
an
instruc-
T tion which,
if
not followed, could
cause
serious
personal
injuries
including
possibility of death.
.,.,
CAUTION: Denotes
an
instruction
T which, if not followed, could se-
verely damage vehicle components.
0
NOTE:
Indicates supplementary in-
formation needed to fully complete
an instruction.
Although the mere reading
of
such infor-
mation does
not
eliminate the hazard,
your understanding
of
the information
will promote its correct
use.
A WARNING: The engines and the
T corresponding components iden-
tified
in
this manual should not be uti-
lized
on
product(s) other than those
mentioned
on
the cover page of this
manual.
A WARNING: Maintenance proce-
T
dures
and
tightening torques must
be strictly adhered to, never
attempt
repairs unless the appropriate tools
are
available. ·
The
information and components/system
descriptions contained
in
this manual
are
correct at time of publication. Bombardier
Inc. however, maintains a policy
of
continuous improvement of its products without
imposing upon itself any obligation
to
install them on products previously
manufactured.
Bombardier
Inc.
reserves the right at any
time to discontinue or change specifications{ designs, features, models or equipment
without
incurring obligation.
The illustrations
show
the typical construction of the different assemblies and,
in
all cases, may
not
reproduce the full
detail or exact shape
of
the parts shown,
however, they represent parts which
have
the same or a similar function.
Most specifications
are
given
in
both metric and customary units. Where precise
accuracy
is
not
required, some conver-
sions are rounded to even numbers
for
easier
use.
A shop manual can
be
obtained for complete service, maintenance and repair information.
.,.,
CAUTION:
Most
components of
T this vehicle are built
with
parts
dimensioned
in
the metric system.
Most
fasteners are metric and must
not
be
replaced
by
customary fasteners or vice versa. Mismatched or incorrect fasteners could cause damage
to the vehicle
or
possible personal in-
jury.
SAFETY
MEASURES
________________________
__
Observe
the
following
precautions:
• Throttle mechanism
shou~d
be
check-
ed
for free movement before starting
engine.
•
Do
not operate vehicle
near
snow mak-
ing equipment.
• Engine should
be
running only when
belt guard and/or pulley guard
is
se-
cured
in
place.
•
Never
run
the engine without drive belt
installed. Running
an
unloaded engine
can prove to
be
dangerous.
• Never run the engine when the track
is
raised
off
the ground.
• It
can
be
dangerous to
run
engine with
the hood removed.
• Gasoline
is
flammable and explosive
under certain conditions. Always manipulate
in
a well ventilated area.
Do
not
smoke or allow open flames or
sparks
in
the vicinity. If gasoline fumes
are noticed while driving, the cause
should
be
determined and corrected
without
delay.
• Maintain your vehicle
in
top mechan-
ical condition at all times.
• Your snowmobile
is
not designed
to
be
driven or operated on black top,
bare
earth, or other abrasive surfaces.
On
such surfaces abnormal and ex-
cessive wear
of
critical parts
is
inevi-
table.
• Your snowmobile
is
not designed
to
be
operated on public streets, road
or highways.
In
most States and
Provinces, it
is
considered an illegal
operation.
• Installation of other than standard
equipment
including ski-spreaders/
bumpers, pack racks, etc., could se-
verely affect the stability and safety
of your vehicle. Avoid adding on accessories that alter the basic vehicle
configuration.
• The snowmobile engine can
be
stop-
ped
by
activating the emergency cut-
out switch, tether switch or
by
turning
off
the
key.
• Whenever the vehicle
is
parked outdoors, overnight or for a long period,
it
is
suggested to protect it against
the inclemency
of
the weather with a
snowmobile cover.
• Do not lubricate throttle and/or brake
cables and housings.
• Only perform procedures
as
detailed
in
this manual. Unless otherwise specified, engine should
be
turned
OFF
for
all lubrication and maintenance procedures.
•
Clean
and
check operation of the head-
light, taillight and brake light.
• These vehicles are designed for the
driver only. No provisions have been
made for a passenger.
• Should removal
of
a locking device
be required when undergoing repairs/
disassembly, always replace
by
new
ones. Tighten fasteners
as
specified
in
the applicable Shop Manual.
PLEASE
READ
AND UNDERSTAND ALL
WARNINGS AND CAUTIONS
IN
THIS
MANUAL AND
ON
THE
VEHICLE
THIS
MANUAL
SHOULD
REMAIN
WITH
THE
VEHICLE
AT
THE
TIME
OF RESALE
2

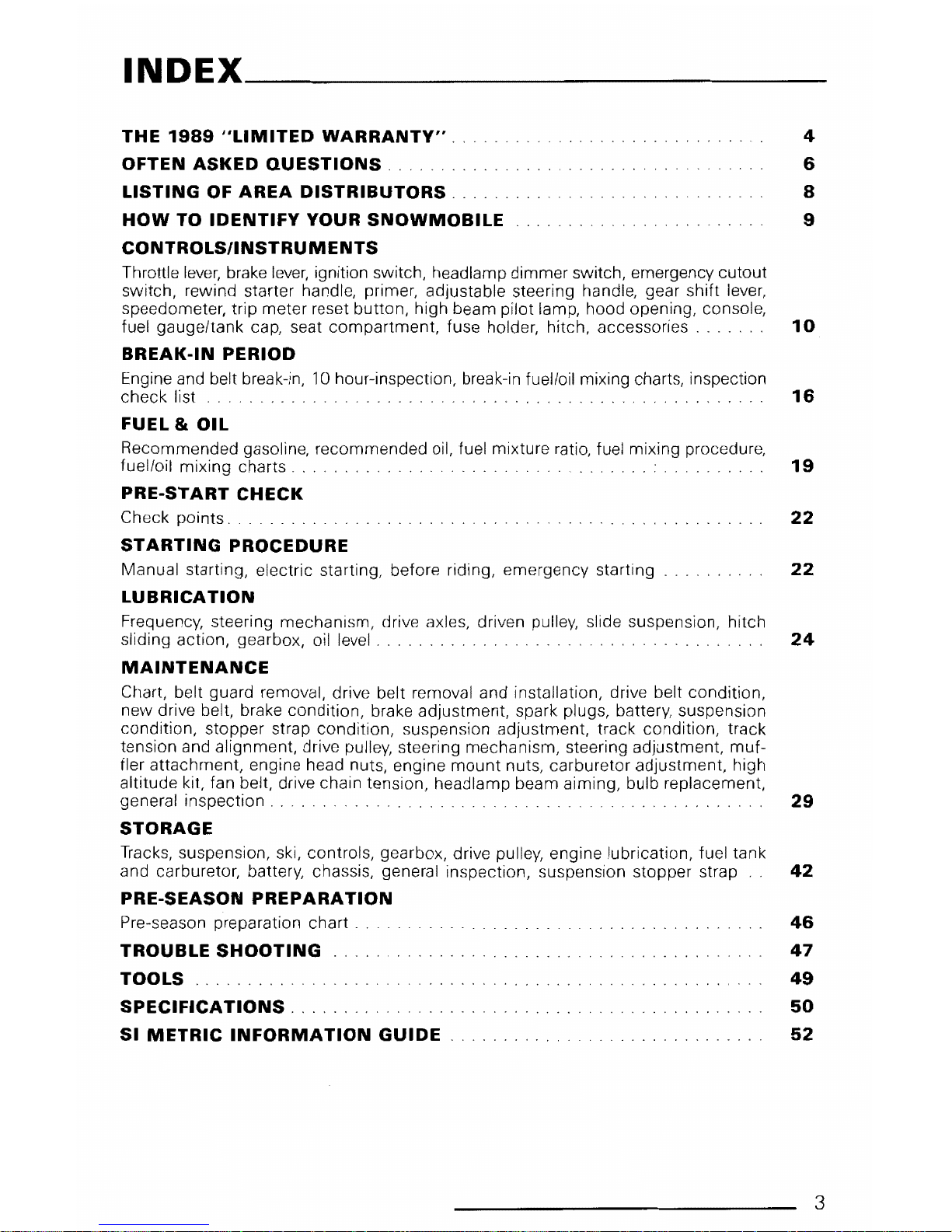

INDEX
______________________
_
THE
1989
,.LIMITED
WARRANTY"
..

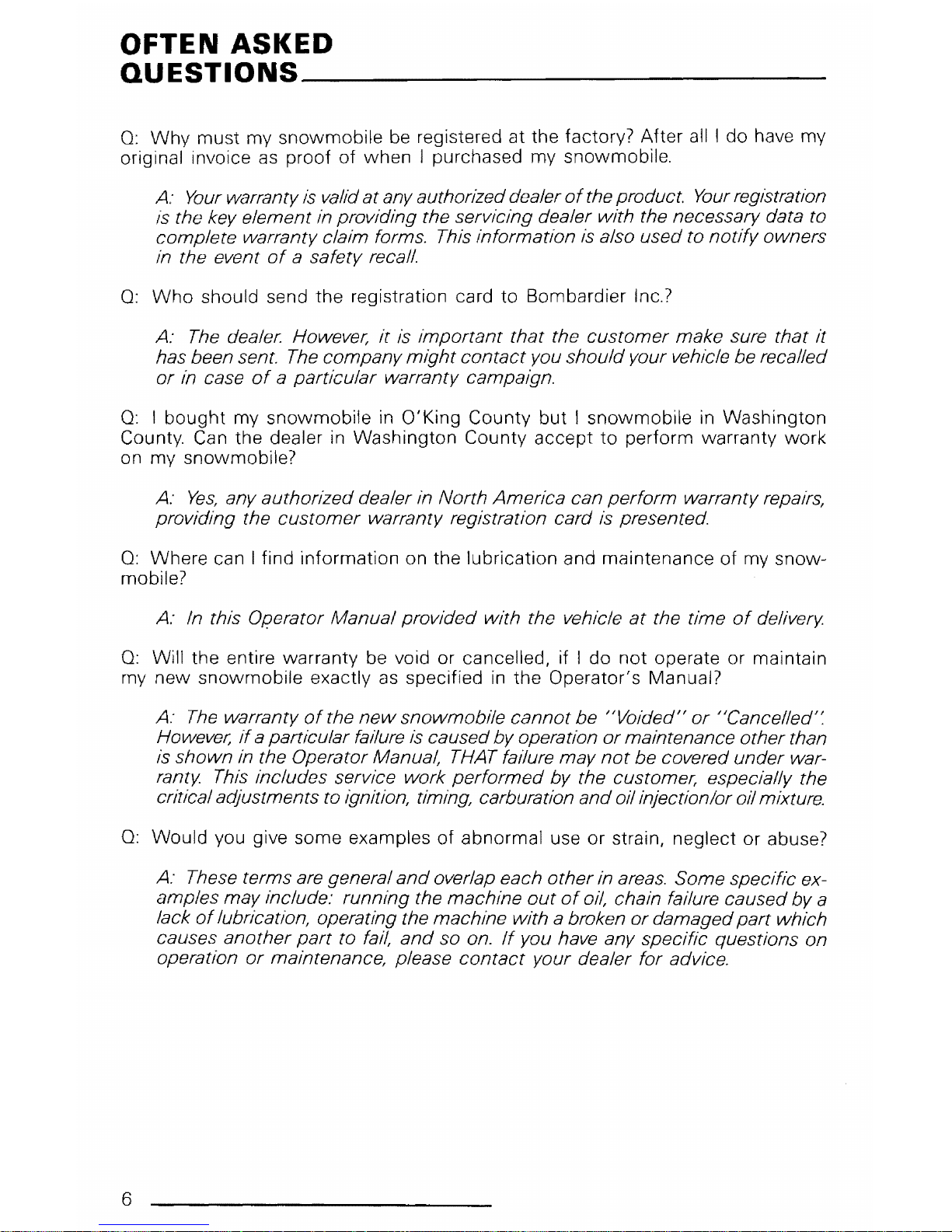

OFTEN
ASKED
QUESTIONS
.
LISTING
OF
AREA
DISTRIBUTORS
...

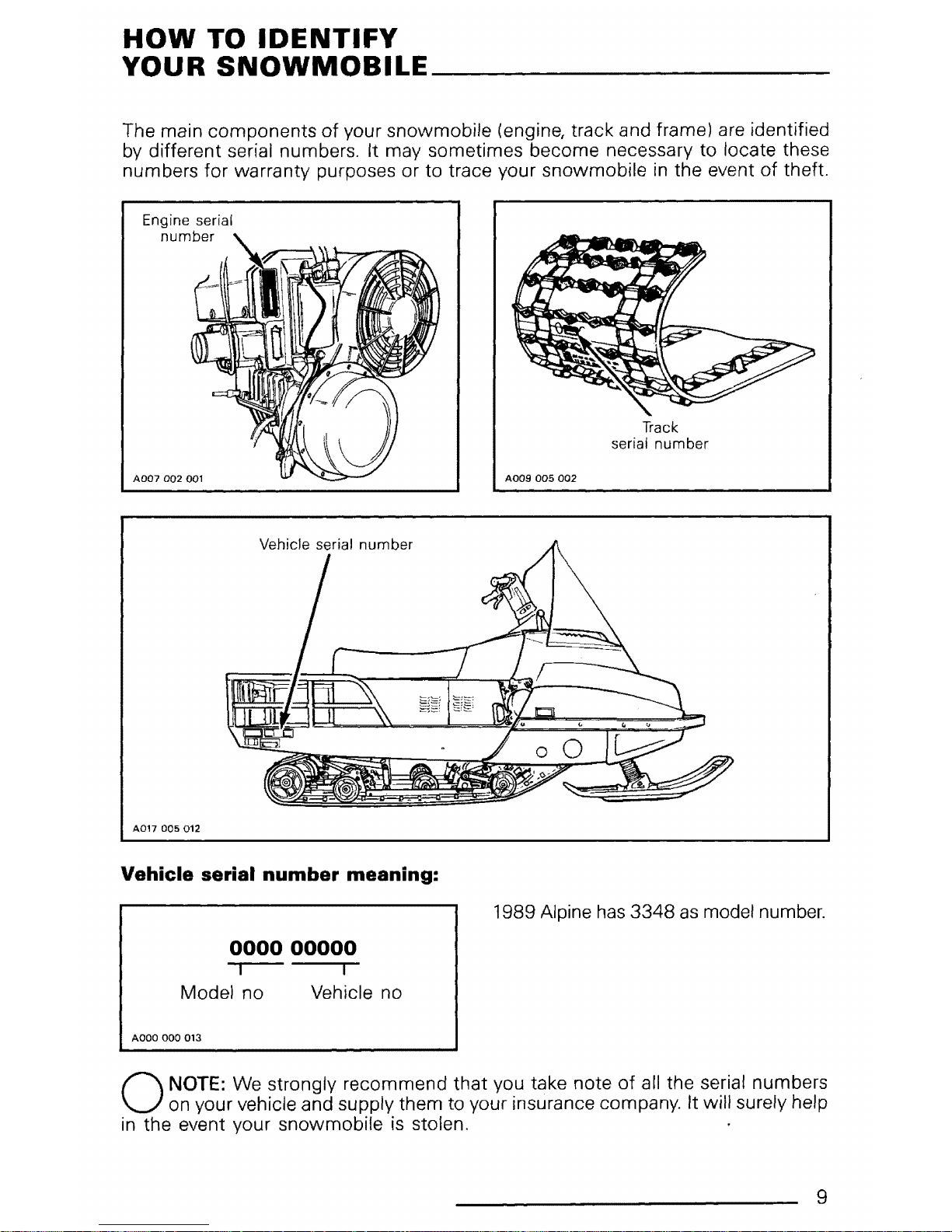

HOW
TO
IDENTIFY
YOUR
SNOWMOBILE
CONTROLS/INSTRUMENTS
Throttle
lever,
brake
lever,

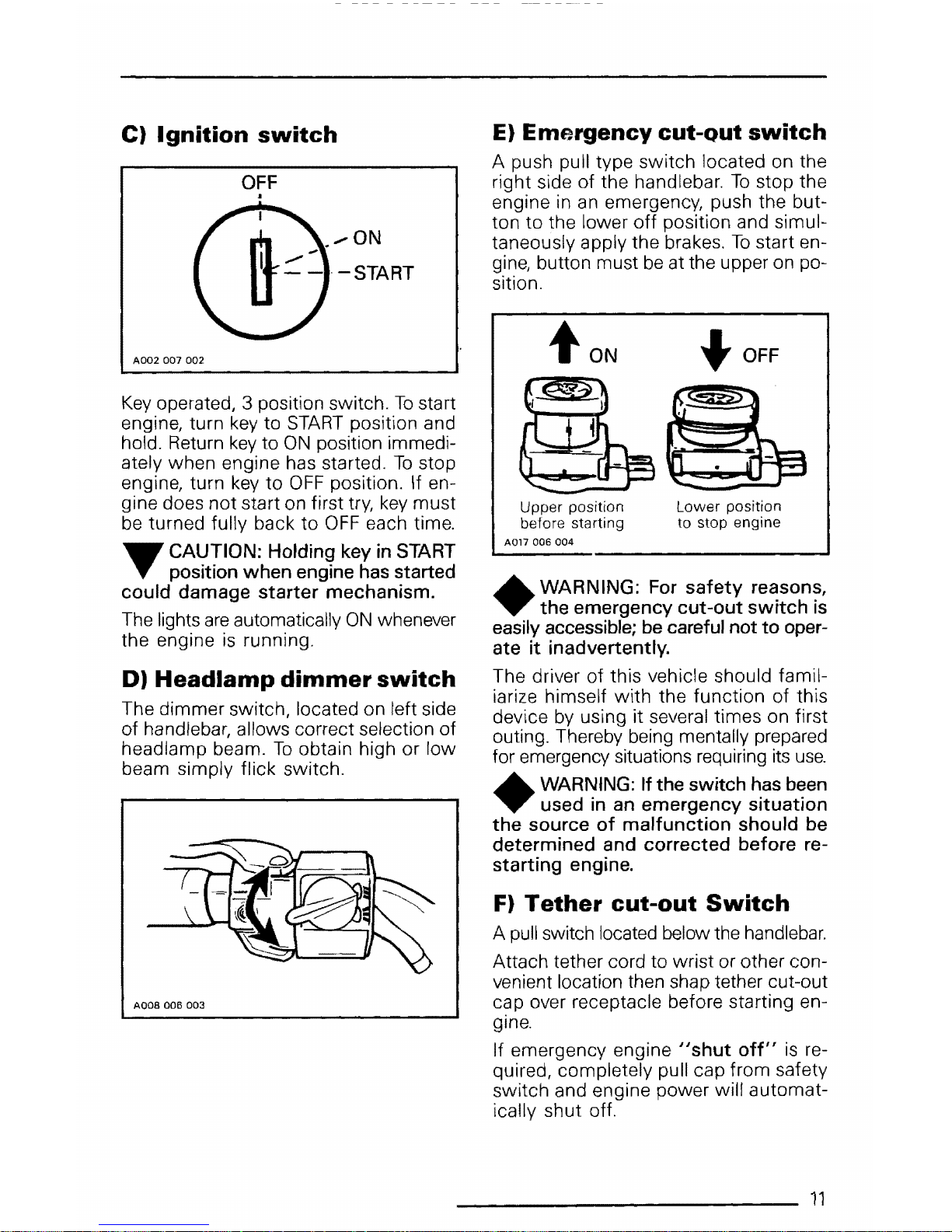

ignition switch, headlamp dimmer switch, emergency cutout
switch, rewind starter handle, primer, adjustable steering handle, gear shift lever,

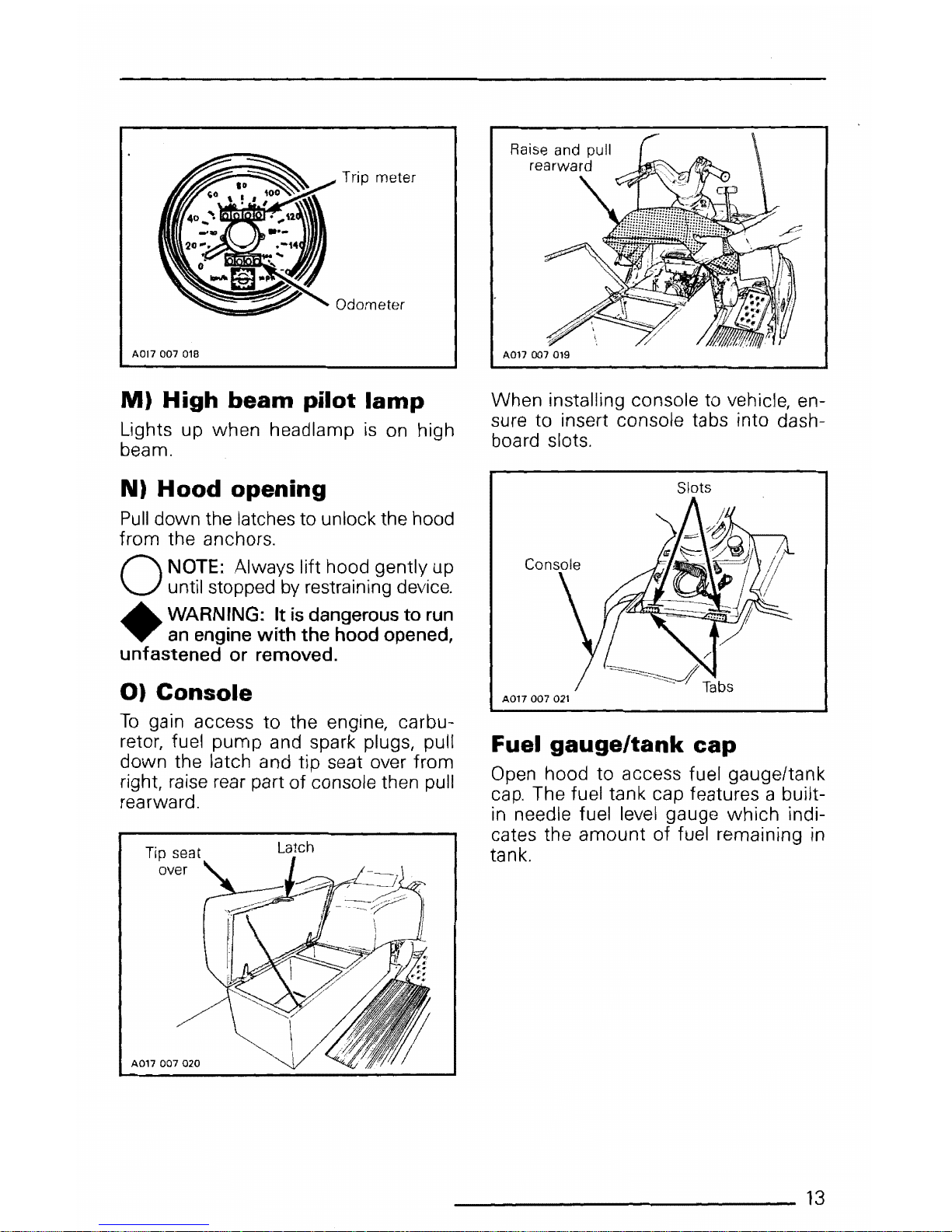

speedometer, trip meter reset button, high beam pilot lamp, hood opening, console,
4
6
8
9
fuel gauge/tank cap, seat compartment, fuse holder, hitch, accessories .
10

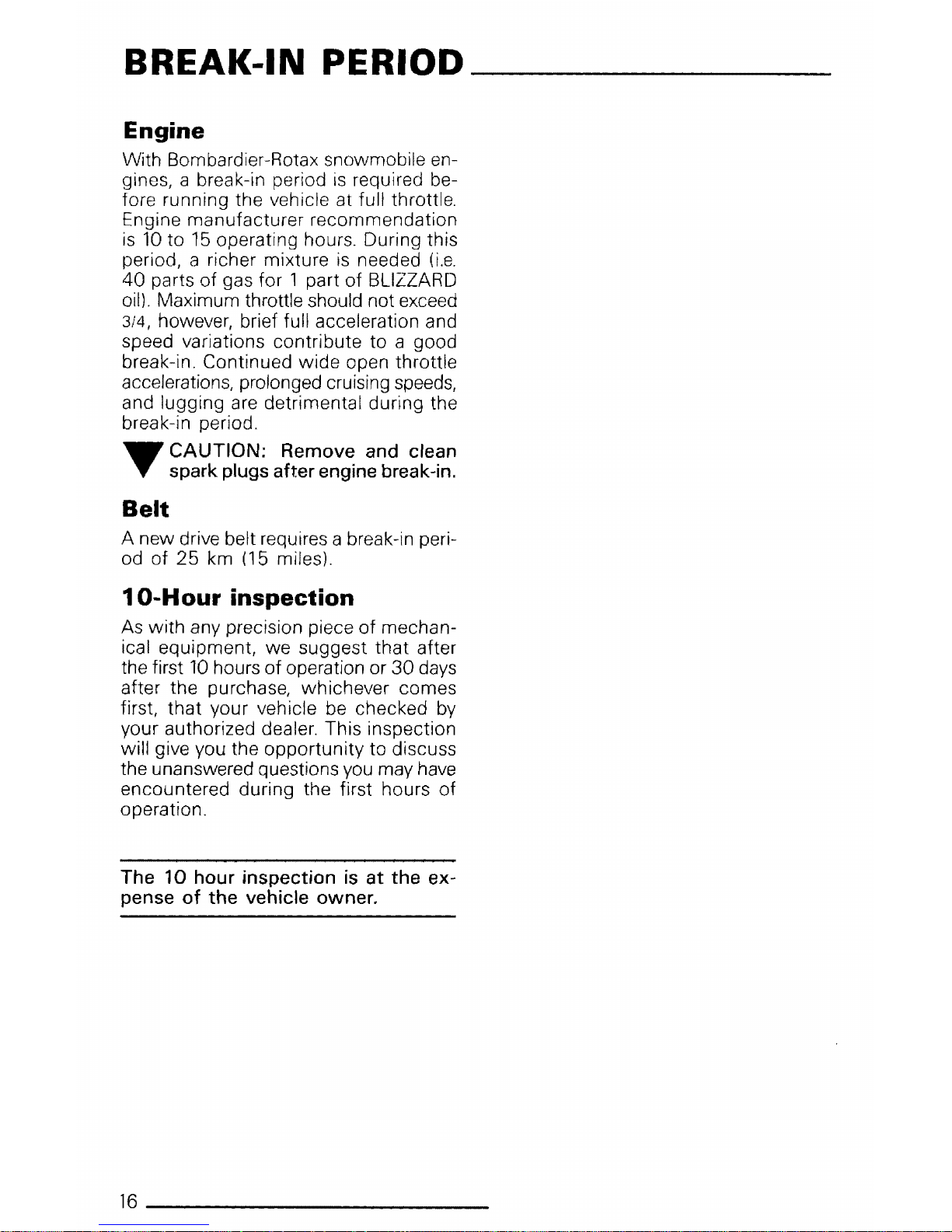

BREAK-IN
PERIOD
and
belt break-in, 10 hour-inspection, break-in fuel/oil mixing charts, inspection
list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
16
FUEL &
OIL
Recommended gasoline, recommended oil, fuel mixture ratio, fuel mixing procedure,
fuel/oil mixing charts . . . . . . . . . . . . . . . . . . . .
19
PRE-START
CHECK
Check points
......................
.
22
STARTING
PROCEDURE
Manual starting, electric starting, before riding, emergency starting
....
22
LUBRICATION
Frequency, steering mechanism, drive axles, driven pulley, slide suspension, hitch
sliding action, gearbox, oil level . . . . . . . . . . . . . . . . . . .
24
MAINTENANCE
Chart, belt guard removal, drive belt removal and installation, drive belt condition,
new drive belt, brake condition, brake adjustment, spark plugs, battery, suspension
condition, stopper strap condition, suspension adjustment, track condition, track
tension and alignment, drive pulley, steering mechanism, steering adjustment, muffler attachment, engine head nuts, engine mount nuts, carburetor adjustment, high
altitude kit, fan belt, drive chain tension, headlamp beam aiming, bulb replacement,
general inspection . . . . . . . . . . . . . . . . . . . . . . . .
29
STORAGE
Tracks,
suspension, ski, controls, gearbox, drive pulley, lubrication, fuel tank
and carburetor, battery, chassis, general inspection, suspension stopper strap
42
PRE-SEASON
PREPARATION
Pre-season preparation chart
..........
.
TROUBLE
SHOOTING
. .
............
.
TOOLS
..........................
.
SPECIFICATIONS
......
.
Sl
METRIC
INFORMATION
GUIDE
46
47
49
50
52
3
THE
1989
SNOWMOBILE
LIMITED
WARRANTY
_________
_
1
-PERIOD
BOMBARDIER INC. as manufacturer, warrants FROM
THE
DATE
OF
DELIVERY
TO
THE
FIRST CONSUMER, every
1989
BOMBARDIER® snowmobile, sold
as
NEW AND UNUSED,
and predelivered by an authorized BOMBARDIER® dealer
for
a period of:
• 12
consecutive
months.
2-
WHAT
BOMBARDIER
INC.
WILL
DO
BOMBARDIER INC.
will
repair and/or replace,
at
its
option,
components
defective
in
material
and/or
workmanship
{under
normal
use
and
service),
with a genuine
BOMBARDIER®
component
without
charge
for
parts or labour,
at
any authorized
BOMBARDIER® dealer during said
warranty
period.
3-
CONDITION
TO
HAVE
WARRANTY
WORK
PERFORMED
Present
to
the servicing dealer, the hard copy
of
the BOMBARDIER® Warranty Registration
card
or
proof
of
purchase received by
the
customer
from
the
selling dealer
at
time
of
delivery.
4 -
WARRANTY
TRANSFER
This
warranty
is transferable
to
subsequent
owner(s)
for
remainder
of
warranty
period
from
original date
of
delivery.
5 -
EXCLUSIONS
- ARE
NOT
WARRANTED
• Normal
wear
on
all
items
such as,
but
not
limited
to:
- drive belts - bulbs
slider shoes
spark plugs
runners on skis
• Replacement
parts
and/or accessories
which
are
not
genuine BOMBARDIER®
parts
and/or accessories.
• Damage resulting
from
installation
of
parts
other
than
genuine BOMBARDIER® parts.
• Damage caused by failure
to
provide proper maintenance
as
detailed in
the
Operator's
Manual. The labour, parts and
lubricants
costs
of
all maintenance services, including
tune-ups and
adjustments
will
be charged
to
the
owner.
• Vehicles designed and/or used
for
racing purposes.
• All optional accessories installed on
the
vehicle. (The normal
warranty
policy
for
parts
and accessories,
if
any, applies).
• Damage resulting
from
accident, fire
or
other
casualty, misuse, abuse
or
neglect.
• Damage resulting
from
operation
of
the
snowmobile
on surfaces
other
than
snow.
• Damage resulting
from
modification
to
the
snowmobile
not
approved in
writing
by
BOMBARDIER INC.
• Losses incurred by
the
snowmobile
owner
other
than
parts and labour,
such
as/
but
not
limited
to,
transportation,
towing,
telephone calls, taxis,
or
any
other
incidental
or consequential damage.
4
6
..

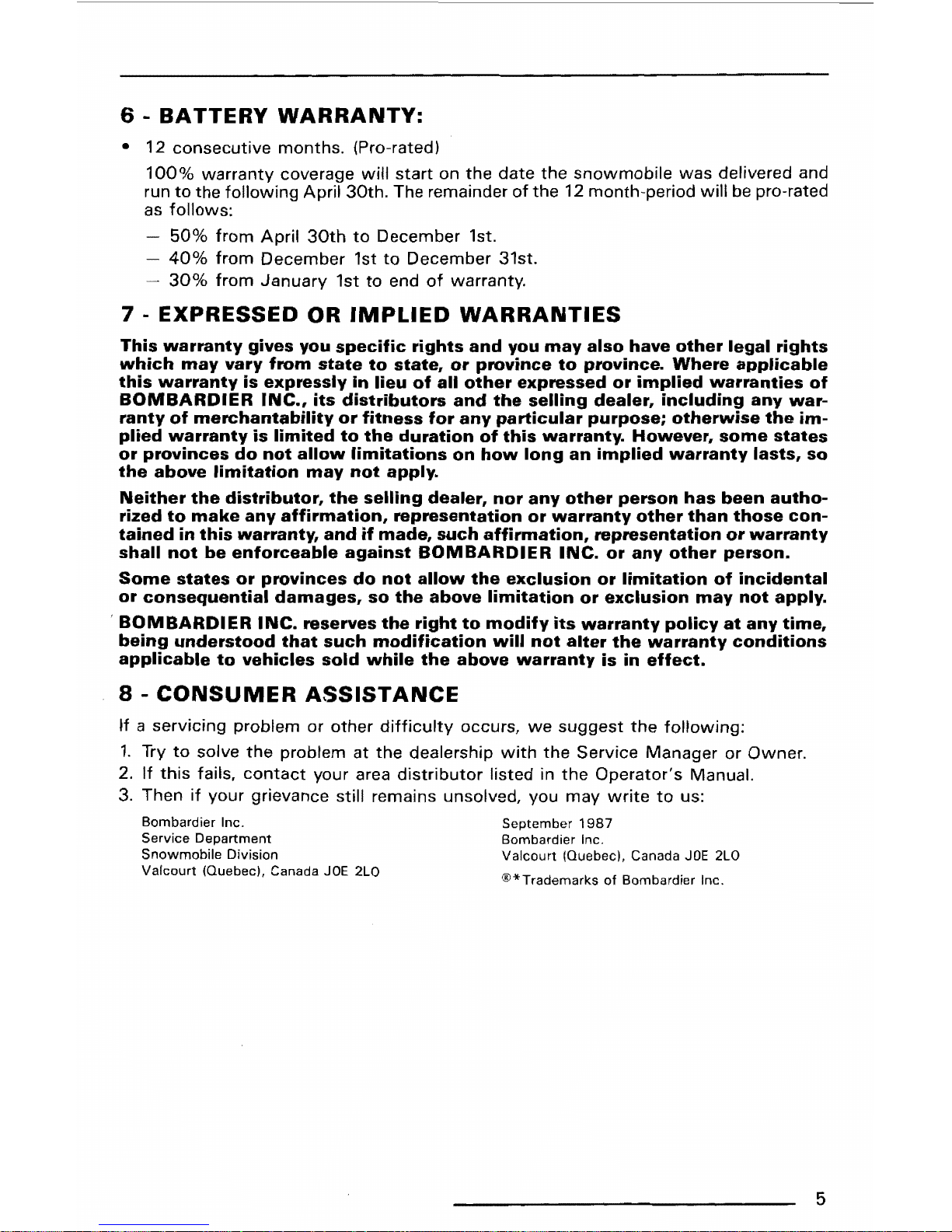

BATTERY
WARRANTY:
• 12
consecutive
months. {Pro-rated)
100%
warranty
coverage
will
start
on
the
date
the
snowmobile
was delivered and
run
to
the
following April
30th.
The remainder
of
the
12 month-period
will
be pro-rated
as
follows:
50%
from
April
30th
to
December 1st.
40%
from
December
1st
to
December 31st.
30%
from
January
1st
to
end
of
warranty.
7
..
EXPRESSED OR
IMPLIED
WARRANTIES
This
warranty
gives
you
specific
rights
and
you
may
also
have
other
legal
rights
which
may
vary
from
state
to
state,
or
province
to
province.
Where
applicable
this
warranty
is
expressly
in
lieu
of
all
other
expressed
or
implied
warranties
of
BOMBARDIER
INC.,
its
distributors
and
the
selling
dealer,
including
any
war-
ranty
of
merchantability
or
fitness
for
any
particular
purpose;
otherwise
the
im-
plied
warranty
is
limited
to
the
duration
of
this
warranty.
However,
some
states
or
provinces
do
not
allow
limitations
on
how
long
an
implied
warranty
lasts,
so
the
above
limitation
may
not
apply.
Neither
the
distributor,
the
selling
dealer,
nor
any
other
person
has
been
autho-
rized
to
make
any
affirmation,
representation
or
warranty
other
than
those
con-
tained
in
this
warranty,
and
if
made,
such
affirmation,
representation
or
warranty
shall
not
be
enforceable
against
BOMBARDIER
INC.
or
any
other
person.
Some
states
or
provinces
do
not
allow
the
exclusion
or
limitation
of
incidental
or
consequential
damages,
so
the
above
limitation
or
exclusion
may
not
apply.
'BOMBARDIER
INC.
reserves
the
right
to
modify
its
warranty
policy
at
any
time,
being
understood
that
such
modification
will
not
alter
the
warranty
conditions
applicable
to
vehicles
sold
while
the
above
warranty
is
in
effect.
8
..
CONSUMER
ASSISTANCE
If
a servicing problem
or
other
difficulty
occurs,
we
suggest
the
following:
1.
Try
to
solve
the
problem
at
the
dealership
with
the
Service Manager
or
Owner.
2.
If
this
fails,
contact
your
area
distributor
listed in
the
Operator's
Manual.
3. Then
if
your
grievance still remains unsolved, you
may
write
to
us:
Bombardier Inc.
Service Department
Snowmobile
Division
Valcourt
(Quebec), Canada
JOE
2LO
September
1987
Bombardier Inc.
Valcourt
IOuebec), Canada
JOE
2LO
®*Trademarks
of
Bombardier Inc.
5
OFTEN
ASKED
QUESTIONS
__________________________
_
0:
Why must my snowmobile
be
at the factory? After
all
I do have my
original invoice
as
proof
of
when I purchased my snowmobile.
A:
Your
warranty is valid
at
any authorized dealer
of
the product.
Your
registration
is
the key element in providing the servicing dealer with the necessary data to
complete warranty claim forms. This information
is
also used to
notify
owners
in the event
of
a safety recall.
0:
Who
should send the registration card to Bombardier Inc.?
A:
The
dealer. However,
it
is
important
that the customer make sure that
it
has been sent.
The
company
might
contact you should your vehicle be recalled
or
in case
of
a particular warranty campaign.
0:
I bought my snowmobile
in
O'King County but I snowmobile
in
Washington
County.
Can
the dealer
in
Washington County to perform warranty work
on my snowmobile?
A:
any authorized dealer in North America can perform warranty repairs,
providing the customer warranty registration card is presented.
0:
Where can I find information on the lubrication and maintenance of my snow-
mobile?
A:
In
this Operator Manual provided with the vehicle
at
the time
of
de/iverv
0:
Will the entire warranty
be
void or cancelled, if I do not operate or maintain
my new snowmobile exactly
as
specified
in
the Operator's Manual?
A:
The
warranty
of
the
new
snowmobile
cannot
be
"Voided"
or
"Cancelled'~
However,
if
a particular failure is caused
by
operation
or
maintenance other than
is
shown in the Operator Manual, THAT failure may
not
be covered under war-
rantv This includes service work
performed
by
the customer, especially the
critical adjustments to ignition, timing, carburation
and
011
injection/or oil mixture.
0:
Would you
some examples
of
abnormal use or strain, neglect or abuse?
6
A:
These terms are general
and
overlap each
other
in
areas.
Some specific ex-
amples may include: running the machine
out
of
oil, chain failure caused
by
a
lack
of
lubrication, operating the machine with a broken
or
damaged
part
which
causes another
part
to fail,
and
so
on.
If
you have any specific questions on
operation
or
maintenance, please
contact
your dealer for advice.
0:
What
costs are my responsibility during the warranty period?
A:
The
customer's responsibtlity includes
all
costs
of
normal
maintenance ser-
vices, non-warranty repairs, accidents
and
collision damage, as well
as
oils,
and
spark plugs,
and
incidental
or
consequential damages costs as explained
in the warranty
0:
Are
"Genuine/'
Bombardier
by
warranty?
parts used in warranty repairs covered
A:
Yes.
When installed
by
an authorized dealer, any
"Genuine"
Bombardier
part
used in warranty repairs assumes the remaining warranty that exists on
the machine.
0:
If I sell my snowmobile within the warranty period, will the new owner qualify
for the balance of the warranty?
A:
Yes,
provided the
unit
has already been registered
with
the manufacturer.
Note that the change
of
ownership card in this
manual
should
be
completed
and
sent to Bombardier
Inc.
0:
How
can I receive the best owner assistance?
A:
The
satisfaction
and
goodwtll
of
the owners
of
Bombardier products are
of
primary
concern to your dealer
and
Bombardier
Inc.
Normally, any problems
that arise in connection with the sales transaction
or
the operation
of
your snow-
mobile wlf/ be handled by your Dealers Sales
or
Service Departments.
It
is
recog-
nized however, that despite the best intentions
of
everyone concerned misun-
derstandings will sometimes occur.
If
you have a problem that has
not
been
handled to your satisfaction through
normal
channels,
we
suggest that you dis-
cuss your problem with a
member
of
dealership management. Frequently, com-
plaints are the result
of
a breakdown in communications
and
can quickly be
resolved
by a member
of
the dealership management.
If
the problem already
has been reviewed
with
the Sales Manager
or
Service Manager,
contact
the
Dealer
himself
or
the General Manager.
7
LISTING
OF
AREA
DISTRIBUTORS
________________________
_
CANADIAN
DISTRIBUTORS
PROVINCE
OF
QUEBEC
SERVICE OFFICE
BOMBARDIER INC.
1 de
Ia
Montagne
Valcourt (Quebec)
JOE
2LO
(514) 532-2211
SALES OFFICE
BOMBARDIER INC.
1350
Nobel Street
Boucherville (Quebec}
J4B
1A1
(514} 655-6121
PROVINCE
OF
ONTARIO
SERVICE
AND
SALES OFFICE
BOMBARDIER
INC.
230
Bayview Drive
Barrie !Ontario) L4N 5E9
(705)
728-8600
ALTLANTIQUE REGION
SERVICE OFFICE
BOMBARDIER
INC.
P.O.
Box
7060
Riverview
(New
Brunswick)
E1B
1VO
(506)
386-6117
SALES OFFICE
BOMBARDIER
INC.
1350
Nobel Street
Boucherville {Quebec)
J4B
1A1
(514) 655-6121
ALBERTA, BRITISH COLUMBIA, MANITOBA,
SASKATCHEWAN,
YUKON
SERVICE
AND
SALES OFFICE
BROOKS EQUIPMENT LIMITED
1616 Edward Street
P.O.
Box
Winnipeg
(Manitoba) R3C
2V8
(204)
633-7247
NEWFOUNLAND, LABRADOR
SERVICE
AND
SALES OFFICE
CHARLES
R.
BELL LIMITED
Riverside Drive
P.O.
Box
1050
Corner Brook
(Newfoundland)
A2H
6J7
(709)
634-3533
8
NORTH-WEST TERRITORIES,
FRANKLIN DISTRICT & KEEWATIN
SERVICE
AND
SALES OFFICE
HUDSON'S
BAY
CO.
LIMITED
165
Hymus
Blvd
Pointe-Claire (Quebec) H9R
1G2
(514)
630-5279
AMERICAN
DISTRIBUTORS
EAST-CENTRAL, CENTRAL,
WESTERN REGION
SALES OFFICE
BOMBARDIER CORPORATION
75
75
Packer Drive
Wausau,
Wisconsin
54401
U.S.A.
(715)
842-8886
EAST-CENTRAL, CENTRALE REGION
SERVICE OFFICE
BOMBARDIER CORPORATION
4505
West
Superior Street
PO.
Box 16106
Duluth, Minnesota
55816-0106
(218)
628-2881
WESTERN
REG
ION
SERVICE OFFICE
BOMBARDIER CORPORATION
PO.
Box
1569
Idaho Falls, Idaho
83403
(208)
529-9510
EASTERN REGION
SERVICE
AND
SALES OFFICE
BOMBARDIER CORPORATION
East Main Street Road
Malone,
New
York
12953
(518) 483-4411
ALASKA
SERVICE
AND
SALES OFFICE
THE BRYANT CORPORATION
NE. 190th
& Woodinville
Snohomish
Road
P.O.
Box
389
Woodinville, Wa
98072
U.S.A.
(206)
482-0110
HOW
TO
IDENTIFY
YOUR
SNOWMOBILE
_________
_
The main components
of
your snowmobile (engine, track and frame)
are
identified
by
different serial numbers. It may sometimes become necessary to locate these
numbers for warranty purposes or to trace your snowmobile
in
the event
of
theft.
Engine serial
number
A017
005
012
Vehicle serial
number
meaning:
0000
00000
-r-
Model no
Vehicle no
AOOO
000
013
A009
005 002
Track
serial number
1989 Alpine
has
3348
as
model number.
0
NOTE:
We strongly recommend
that
you take note
of
all the serial numbers
on your vehicle and supply them to your insurance company. It will surely help
in
the event your snowmobile
is
stolen.
9
CONTROLS/INSTRUMENTS
___
_
M
A0l7
007
016
A ) Throttle lever
B
J Brake lever
C
J Ignition switch
D
D J Head/amp dimmer switch
E)
Emergency cut-out switch
F
J Tether cut-out switch
G ) Rewind starter handle
H
J Primer
A)
Throttle
Lever
Located on the right side
of
handlebar.
When
compressed, it controls the en-
gine speed and the engagement
of
the
transmission. When engine
speed returns automatically
to
idle.
L E
A
H
J
c
~~~---N
~;;;........_,_...;;;,;;..;.;;..;...o....
__
G
I J Adjustable steering handle
J
J Gear shift lever
K ) Speedometer
L
J
Trip
meter reset button
M)
High beam pHot lamp
N
J
Hood
opening
0)
Console
8)
Brake
Lever
Located on the left side
of
handlebar.
When compressed, the brake
is
applied.
When released, it automatically returns
to
its original position. Braking effect
is
proportionate to the pressure applied on
the lever and
to
the type
of
terrain and
its
snow
coverage.
10
________________________
__
C)
Ignition
switch
OFF
J
A002
007 002
Key
operated, 3 position switch.
To
start
engine, turn
key
to
START
position and
hold. Return
key
to
ON
position immedi-
ately when engine has started.
To
stop
engine, turn
key
to
OFF
position. If en-
gine does not start on first try,
key
must
be turned fully back
to
OFF
each time.
,.,-
CAUTION: Holding key
in
START
T position when engine
has
started
could damage starter mechanism.
The
lights
are
automatically
ON
whenever
the engine
is
running.
D)
Headlamp
dimmer
switch
The dimmer switch, located on left side
of handlebar, allows correct selection of
head/amp beam.
To
obtain high or low
beam simply flick switch.
A008
006 003
E)
Emergency cut-Qut
switch
A push pull type switch located on the
right side of the handlebar.
To
stop the
engine in
an
emergency, push the but-
ton
to
the lower
off
position and simul-
taneously apply the brakes.
To
start en-
gine,
button must
be
at the upper
on
po-
sition.
Upper position
before starting
A017
006
004
+OFF
Lower
position
to
stop
engine
+
WARNING:
For
safety reasons,
the emergency cut-out switch
is
easily
accessible;
be
careful not to oper-
ate it inadvertently.
The driver
of
this vehicle should famil-
iarize himself
with
the function
of
this
device by using it several times on first
outing. Thereby being mentally prepared
for emergency situations requiring
its
use.
+
WARNING: If the switch
has
been
used
in
an
emergency situation
the source of malfunction should
be
determined and corrected before re-
starting engine.
F)
Tether
cut-out
Switch
A
pull
switch located below the
handlebar.
Attach tether cord to wrist or other convenient location then shap tether cut-out
cap over receptacle before starting engine.
If emergency engine
11
Shut
off"
is
required, completely pull cap from safety
switch and engine power will automatically shut off.
11
0
NOTE: The cap must
be
installed
on the safety switch at
all
times
in
order to operate the vehicle.
+
WARNING: If
the
switch
is
used
in
an emergency situation the
source
of
malfunction should
be
determined and corrected before restarting
engine.
G)
Rewind
Starter
Handle
Auto rewind type located on right hand
side
of
vehicle.
To
engage
mechanism,
pull handle.
H)
Primer
A push-pull button. Pull and push but-
ton ( 2-3 times) to activate primer. The
primer should always
be
used for cold
engine starts. After engine
is
warm how-
ever,
it
is
not
necessary to use primer
when starting.
I) Adjustable Steering
Handle
Remove steering pad.
- Loosen the four (4) retaining screws.
Adjust the handle to the desired posi-
tion.
- Lock the steering handle in place
by
tightening the four
(4)
retaining screws
to 26
N•m
{19
lbf•ft}.
- Reinstall steering pad.
J)
Gear
shift
lever
The gear shift lever
is
located right side
of
the dashboard. It
is
a 3-position
lever:
2 forward and 1
reverse.
12
__________________________
_
Gear shift
+
WARNING: This snowmobile
is
capable of a fast reverse. On first
outing, operator
should
become familiar
with this operation
by
practicing
on
level
ground. Always apply the brake before
shifting and come
to
a complete stop
then, while holding brake on, change
gear.
This
is
particularly important while
on a slope. Ensure
the
path behing
is
clear
of
obstacles or bystanders. Fast
reverse, while turning, could result
in
loss
of
stability.
K)
Speedometer
The speedometer
is
linked to the gearbox. Direct-reading dial indicates the
speed
of
the vehicle in kilometers per
hour. Odometer records the total num-
ber
of
kilometers travelled. A trip meter
is
also combined with speedometer.
L)
Trip
meter
reset
button
The trip meter button
is
located
in
dash-
board right to speedometer.
To
reset,
turn
black knob clockwise until all numbers
read
zero.
Odometer
A017
007
018
M)
High
beam
pilot
lamp
Lights up
when
headlamp is on high
beam.
N)
Hood
opening
Pull
down the latches
to
unlock the hood
from
the
anchors.
0
NOTE: Always lift hood gently up
until stopped by restraining device .
..A. WARNING: It is dangerous to
run
T
an
engine with the hood opened,
unfastened or removed.
0)
Console
To
gain access
to
the engine, carbu-
retor, fuel
pump
and spark plugs, pull
down
the latch and
tip
seat over from
right, raise rear part
of
console then pull
rearward.
Tip seat
over
A017
007
020
Latch
Raise and
pull
rearward
A017
007
019
When
installing console
to
vehicle, en-
sure to insert console tabs into dash-
board slots.
Slots
Fuel
gauge/tank
cap
Open hood
to
access fuel gauge/tank
cap. The fuel tank cap features
a built-
in needle fuel level gauge
which
indi-
cates the
amount
of
fuel remaining in
tank.
--------------------------
13
.A.
WARNING:
Remove fuel
tank
T cap slowly. Fuel may be under
pressure and spray may cause fire and
injuries.
Seat
compartment
Pull
down
the latch and tip seat over
from right
side.
Ideal location for spare
spark plugs/ belt/ rope etc.
Latch
A017
007 020
0
NOTE:
Emergency
materials should
be
wrapped
in
foam or similar material. This will prevent possible damage
to breakable items when travailling over
rough or bumpy terrain.
0
NOTE:
The battery
is
located
in
the seat compartment.
Fuse holder
Starting system
is
protected vvith
30
amperes rated fuse.
Fuse
holder
is
located near starter and gearbox. If starter
does not operate/ check fuse condition
and replace
by
the same rate
if
nec-
essary.
A017
004 004
Fuse holder
Hitch
A hook-type hitch
is
provided to pull
most equipments.
The
hitch may
be
used
fixed or floating depending the type of
equipment towed. This allows smooth
operation when towing a load.
While towing a trailer with a fixed draw
bar,
keep
the hitch locked. With a float-
ing draw
bar,
allow the hitch to move up
and down
by
removing its locking pin.
A017
007 022
Remove for
floating use
14
--------------
hitch
A017
007 052
The locking pin can
be
installed into hair
pin when the hitch
is
used floating.
Locking pin ring
closed over hair pin
0
NOTE:
To
maintain the hitch locked,
install the locking pin into hitch post
and place its flat side against the hitch
plate.
A hair pin
is
provided to lock the hook
of
the hitch.
A017
007 022
Hair pin
+
WARNING: When towing any
sled
or trailer, always ensure
to
lock
the hook type attachment with the hair
pin.
Trailers
or
sleds towed behing a snow-
mobile should always
be
loaded with the
lowest possible center
of
gravity. Use a
sled
with
a rigid draw
bar.
When pulling
passengers
in
a tower vehicle, drive at
moderate speed and avoid rough terrain
for their safety. Besides,
have
all
passen-
gers get
out
of
the towed vehicle and
walk across all roads.
Accessories
Some optional accessories might
be
add-
ed
to your vehicle such
as
speedometer,
tachometer, hitch, electric starter, etc, if
not
standard on your vehicle. Ask your
authorized dealer for more information.
---------------------------15
BREAK-IN PERIOD
______
_
Engine
With Bombardier-Rotax snowmobile engines, a break-in period
is
required be-
fore running the vehicle at full throttle.
manufacturer recommendation
is
to
15
operating hours. During this
period, a richer mixture
is
needed
(i.e.
40
parts of gas for 1 part
of
BLIZZARD
oil).
Maximum throttle should not exceed
3/4,
however, brief full acceleration and
speed variations contribute to a good
break-in. Continued wide open throttle
accelerations, prolonged cruising speeds,
and lugging are detrimental during the
break-in period.
-,.r
CAUTION: Remove and
dean
T spark
plugs
after engine break-in.
Belt
A new drive belt requires a break-in peri-
od of
25
km ( 15 miles).
1
0-Hour
inspection
As with any precision piece
of
mechan-
ical equipment, we suggest
that
after
the first
10
hours of operation or
30
days
after the purchase, whichever comes
first, that your vehicle be checked
by
your authorized dealer. This inspection
will give you the opportunity to discuss
the unanswered questions you may have
encountered during the first hours
of
operation.
The
10
hour inspection
is
at the ex-
pense of the vehicle owner.
16
--------------
Loading...
