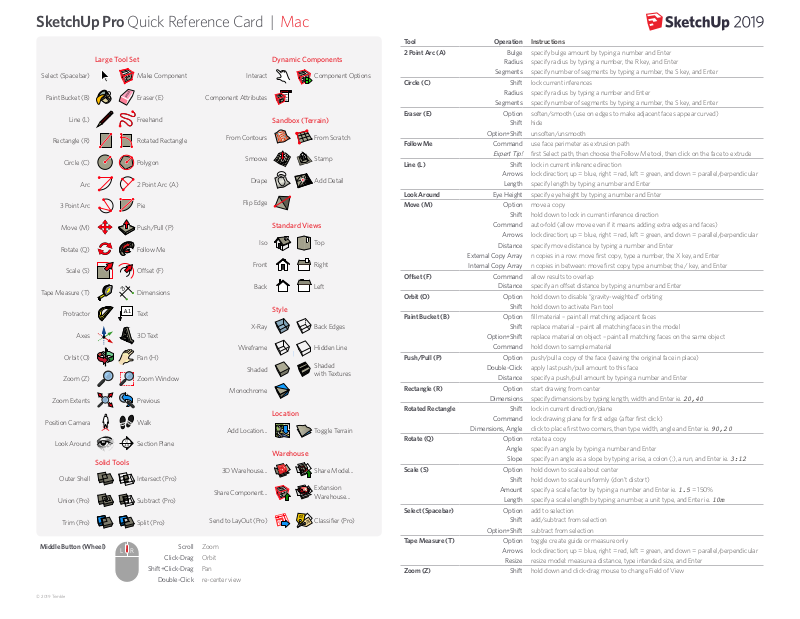

SketchUp Pro Quick Reference Card | Mac
Large Tool Set
Select (Spacebar)
Paint Bucket (B)
Line (L)
Rectangle (R)
Circle (C)
Arc
3 Point Arc Pie
Move (M)
Rotate (Q)
Scale (S)
Tape Measure (T)
Protractor
Axes
Orbit (O)
Zoom (Z)
Zoom Extents
Position Camera
Look Around
Make Component
Eraser (E)
Freehand
Rotated Rectangle
Polygon
2 Point Arc (A)
Push/Pull (P)
Follow Me
Oset (F)
Dimensions
Tex t
3D Text
Pan (H)
Zoom Window
Previous
Walk
Section Plane
Solid Tools
Outer Shell
Union (Pro)
Trim (Pro)
Middle Button (Wheel) Scroll Zoom
© 2019 Trimble
Intersect (Pro)
Subtract (Pro)
Split (Pro)
Click-Drag Orbit
Shift+Click-Drag Pan
Double-Click re-center view
Component Attributes
From Contours
Wireframe
Monochrome
Add Location... Toggle Terrain
3D Warehouse...
Share Component...
Send to LayOut (Pro) Classifier (Pro)
Dynamic Components
Interact
Sandbox (Terrain)
Smoove
Drape
Flip Edge
Standard Views
Iso
Front Right
Style
X-Ray
Shaded
Location
Warehouse
Component Options
From Scratch
Stamp
Add Detail
Top
LeftBack
Back Edges
Hidden Line
Shaded
with Textures
Share Model...
Extension
Warehouse...
Tool Operation Instructions
2 Point Arc (A) Bulge specify bulge amount by typing a number and Enter
Circle (C) Shift lock current inferences
Eraser (E) Option soften/smooth (use on edges to make adjacent faces appear curved)
Follow Me Command use face perimeter as extrusion path
Line (L) Shift lock in current inference direction
Look Around Eye Height specify eye height by typing a number and Enter
Move (M) Option move a copy
External Copy Array n copies in a row: move first copy, type a number, the X key, and Enter
Internal Copy Array n copies in between: move first copy, type a number, the / key, and Enter
Oset (F) Command allow results to overlap
Orbit (O) Option hold down to disable “gravity-weighted” orbiting
Paint Bucket (B) Option fill material – paint all matching adjacent faces
Push/Pull (P) Option push/pull a copy of the face (leaving the original face in place)
Rectangle (R) Option start drawing from center
Rotated Rectangle Shift lock in current direction/plane
Dimensions, Angle click to place first two corners, then type width, angle and Enter ie. 90,20
Rotate (Q) Option rotate a copy
Scale (S) Option hold down to scale about center
Select (Spacebar) Option add to selection
Tape Measure (T) Option toggle create guide or measure only
Zoom (Z) Shift hold down and click-drag mouse to change Field of View
Radius specify radius by typing a number, the R key, and Enter
Segments specify number of segments by typing a number, the S key, and Enter
Radius specify radius by typing a number and Enter
Segments specify number of segments by typing a number, the S key, and Enter
Shift hide
Option+Shift unsoften/unsmooth
Expert Tip!
Command auto-fold (allow move even if it means adding extra edges and faces)
Distance specify move distance by typing a number and Enter
Distance specify an oset distance by typing a number and Enter
Option+Shift replace material on object – paint all matching faces on the same object
Command hold down to sample material
Double-Click apply last push/pull amount to this face
Distance specify a push/pull amount by typing a number and Enter
Dimensions specify dimensions by typing length, width and Enter ie. 20,40
Command lock drawing plane for first edge (after first click)
Amount specify a scale factor by typing a number and Enter ie. 1.5 = 150%
Option+Shift subtract from selection
first Select path, then choose the Follow Me tool, then click on the face to extrude
Arrows lock direction; up = blue, right = red, left = green, and down = parallel/perpendicular
Length specify length by typing a number and Enter
Shift hold down to lock in current inference direction
Arrows lock direction; up = blue, right = red, left = green, and down = parallel/perpendicular
Shift hold down to activate Pan tool
Shift replace material – paint all matching faces in the model
Angle specify an angle by typing a number and Enter
Slope specify an angle as a slope by typing a rise, a colon (:), a run, and Enter ie. 3:12
Shift hold down to scale uniformly (don’t distort)
Length specify a scale length by typing a number, a unit type, and Enter ie. 10m
Shift add/subtract from selection
Arrows lock direction; up = blue, right = red, left = green, and down = parallel/perpendicular
Resize resize model: measure a distance, type intended size, and Enter
