Low Boy®
Quick Reference Guide
This card is not meant to replace
product user manual. For complete
manual, contact Sizewise.
800-814-9389
sizewise.com
Page 2
Components
Hand control
Brake
casters
Head angle
indicator
Adjustable side rail
Lock and
steer casters
Foot controls
Side Rails

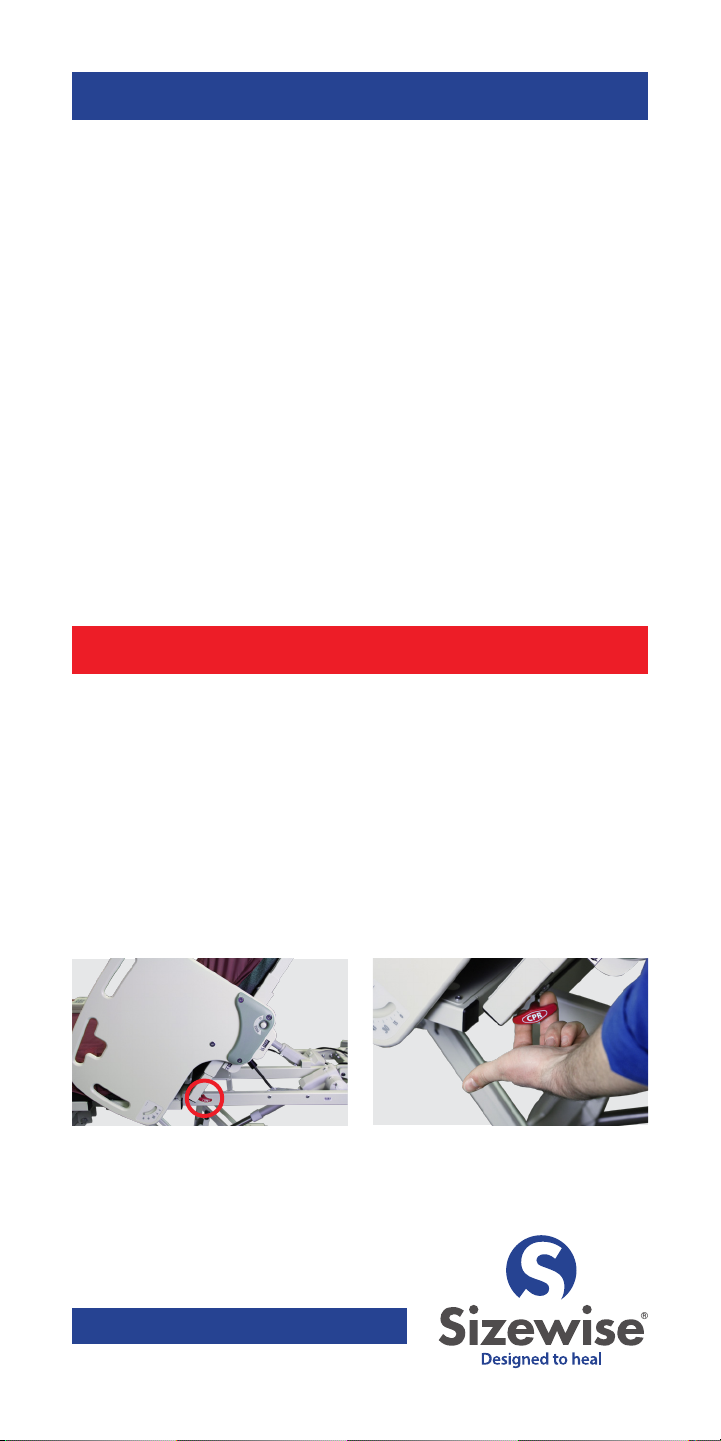

Installation and Removal: pull pin and pull rail away from frame.
To lower rail: push button and rotate away from center of bed.
Casters
Swivel point
Front and rear casters lock and swivel
— To LOCK, press down on lever
— To UNLOCK, raise lever
Lever
Page 3

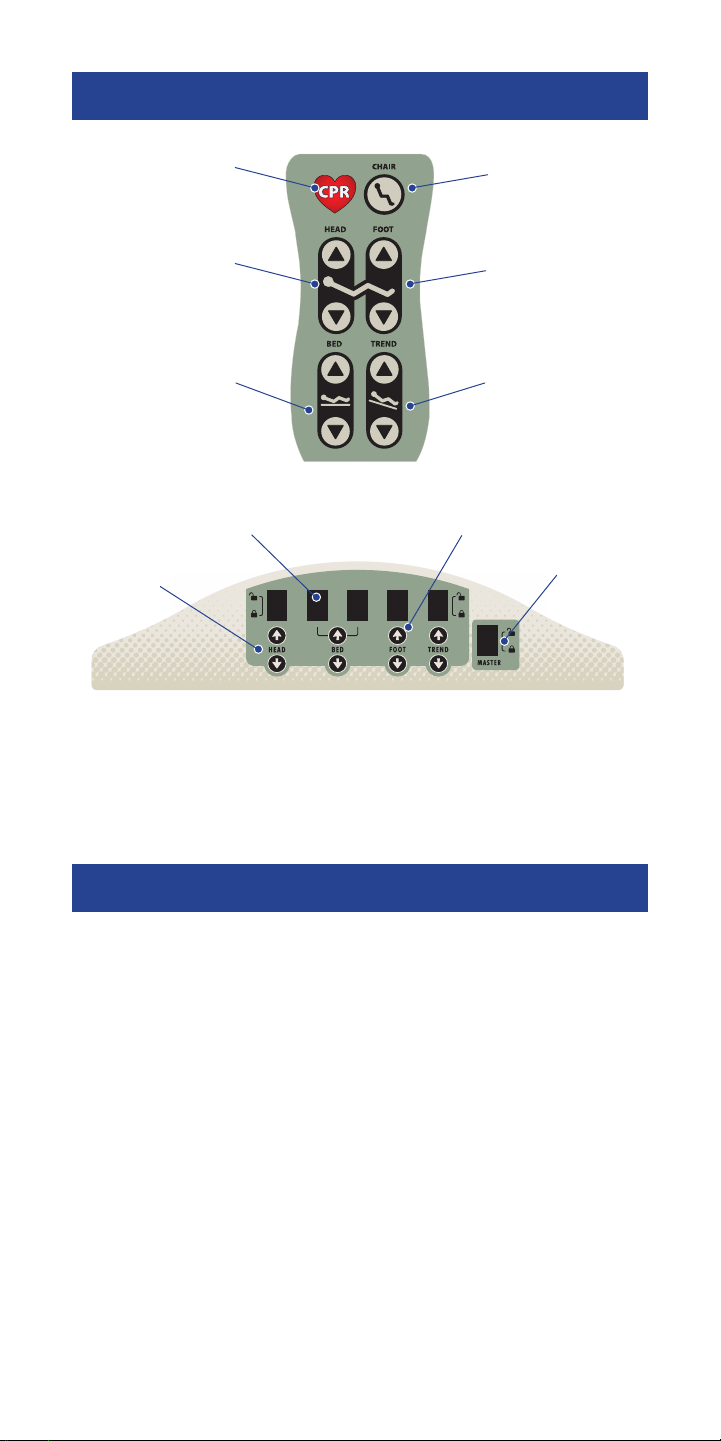

Controls
Hold to atten
bed for CPR
Head section
Bed height
Lockout switches Illuminated buttons
Control Buttons
Located at foot end of bed. Controls include individual lockout
functions as well as master lockout switch.
Cardiac Chair
position
Foot section
Trend/ Reverse
Trend
Master lockout
switch
Locking out specic or all functions will disable aected functions
on both hand and foot control.
Battery Backup
This bed is equipped with an emergency battery backup that will
charge when plugged into an AC outlet.
Page 4
Troubleshooting
If bed fails to function:
1. Verify all functions on footboard control panel are unlocked
2. Verify master switch is unlocked
3. Verify power cord is plugged into working AC outlet and not
cut, frayed, or damaged
4. Inspect patient control pendant for damage and ensure it is
properly connected to pendant connection port
If individual function does not operate:
1. Verify all functions on footboard control panel are unlocked
2. Verify master switch is unlocked
If bed will not operate on battery power:
Verify patient control pendant cable is properly connected to
pendant connection port
If bed continues to fail:
Contact Sizewise at 1-800-814-9389.
Code Situation
1. Unlock casters and pull bed from wall.
2. Engage brakes, remove headboard, and lower side rails for patient
access
3. For LAL Support Surfaces: press CPR button or turn CPR dial on
blower and/or open CPR valve at head of mattress if installed.
4. All beds: press and hold CPR button on hand control to atten bed.
New beds: pull and hold CPR handle located between side rails
(both sides of bed).
5. Proceed with facility protocols for resuscitation.
sizewise.com 800-814-9389
OPS-0020-0518 27650001
