SixThreeZero REACH YOUR DESTINATION Assembly Manual

Download

Page 1

ASSEMBLY GUIDE

REACH YOUR DESTINATION - 1, 3, & 7 SPEED

sixthreezero

Page 2

We want you to love your bike as much as we do.

If you run into any issues, no matter how small,

let us know and we’ll take care of it.

OUR COMMITMENT

SIXTHREEZERO

[email protected]

310.982.2877

Page 3

Need assembly, repair, or installation assistance? He’s your guy!

Want live help? Call or email to schedule an appointment.

MEET JACOB,

OUR MECHANIC

[email protected]

310.982.2877

Welcome to the sixthreezero experience. Now for the fun

part... the assembly.

I know, I know, we’ve all had to assemble something we’ve

bought before - a tv stand, coffee table, possibly a grill or

even a bike a time or two before. It’s never fun, it never goes

well, you always lose a nut or a screw and by the time you’re

done, you’d rather destroy whatever it is you’ve bought

than actually use it. Well, I’m here to make sure that doesn’t

happen.

Assembly of a bike can be a fun, engaging, learning

experience. Call up a friend, ask your spouse or child, don’t

rush, and enjoy the process. Part of the fun in building your

bike is telling people “I built it all by myself.” I build bikes

almost everyday and I always learn something new. I enjoy

the process of building something from the ground up, and

I hope you will too.

The instructions were written and designed by me, so if you

have any suggestions please let me know!

Good luck,

MECHANIC / SIXTHREEZERO

A NOTE FROM

OUR MECHANIC

Page 4

4, 5, AND 6MM

ALLEN KEY

Creating something wonderful with your own hands is basically the

best feeling ever. We want you to have fun building your new bike,

so there’s only a few things you need to get started.

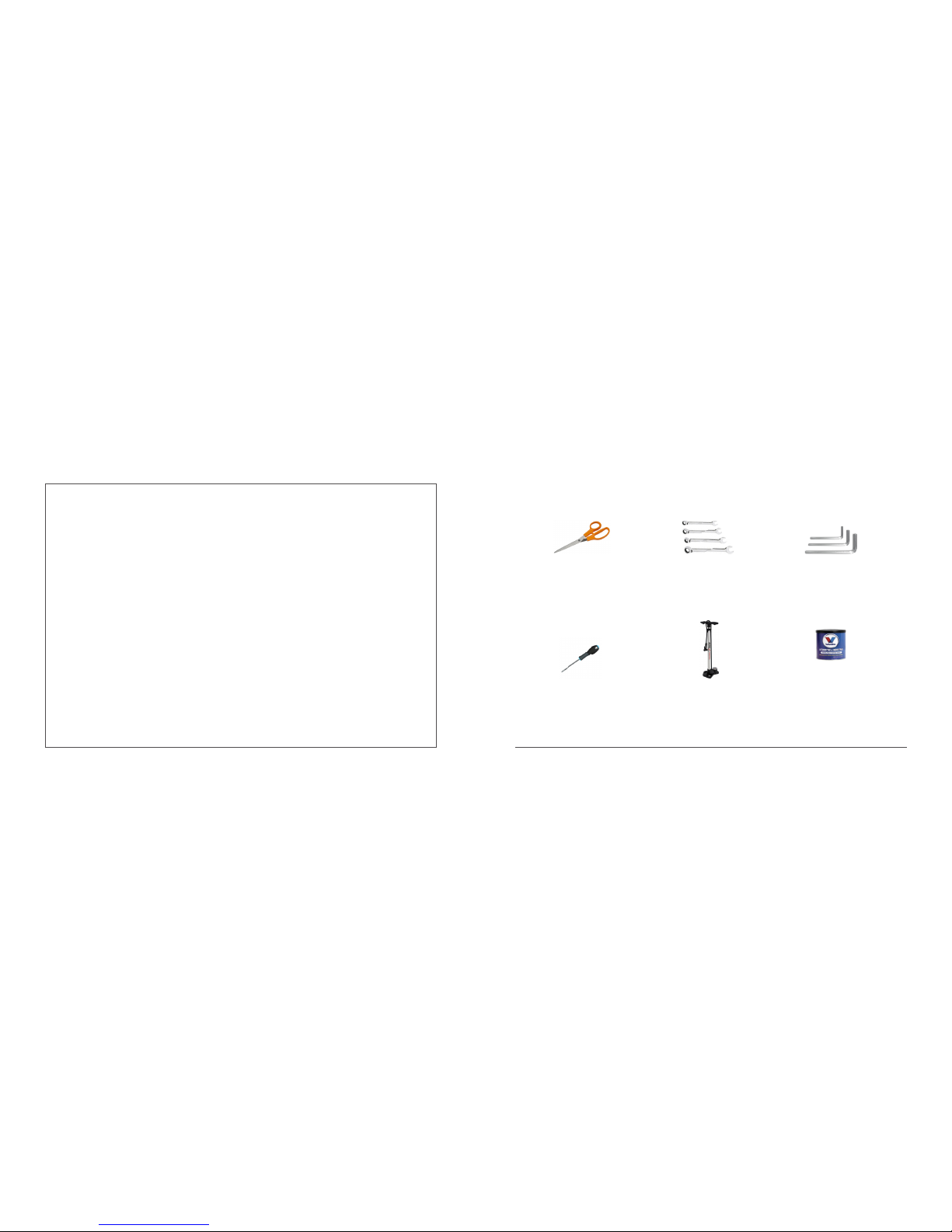

TOOLS

YOU’LL NEED

PHILLIPS HEAD

SCREWDRIVER

SCISSORS

(Use to cut zip ties)

SCHRADER VALVE

BICYCLE PUMP

8, 10, 13, AND 15MM

CRESCENT WRENCHES

Or use the multi-tool

provided

BICYCLE OR

AUTO GREASE

Recommended

Page 5

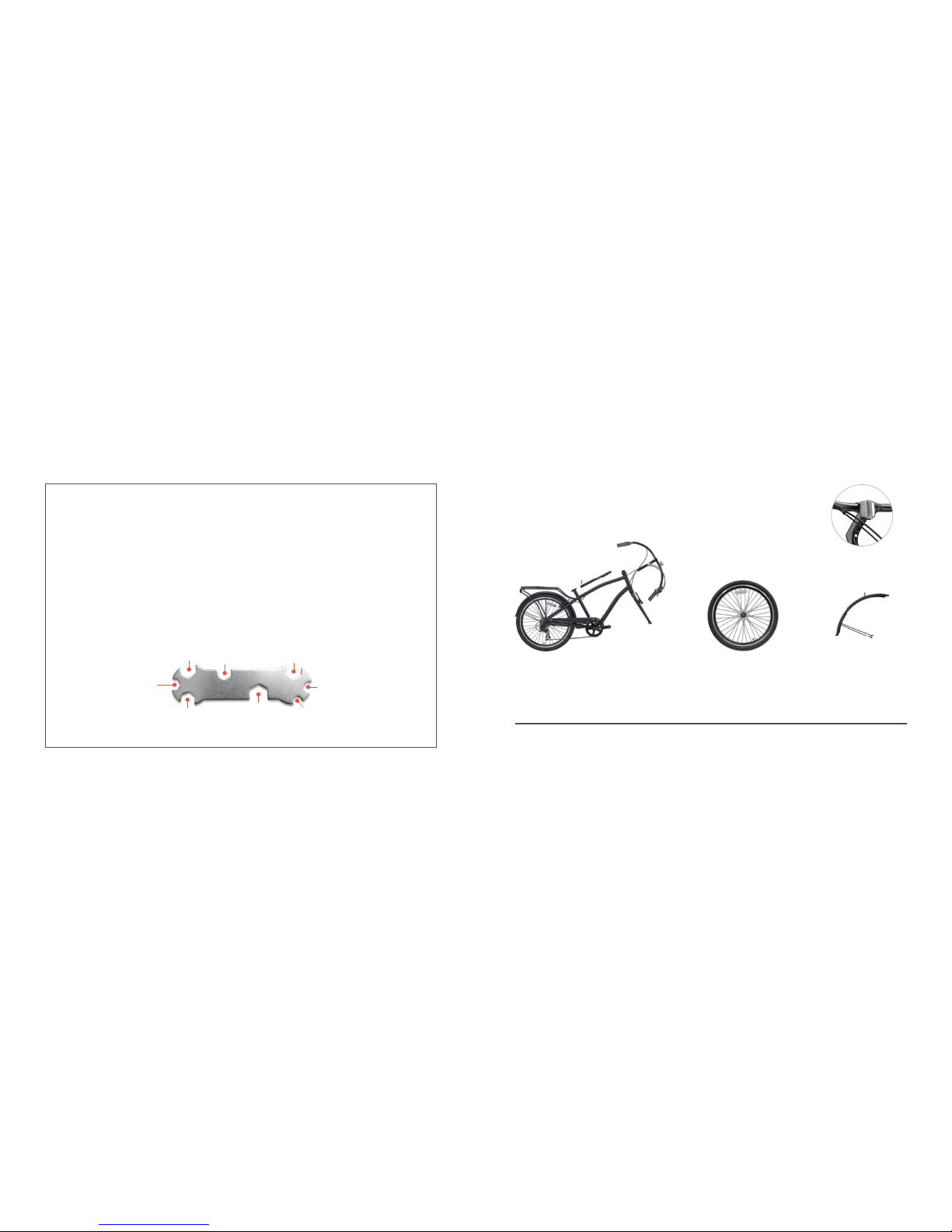

Lay out all the parts in front of you.

Make sure you have all the parts before getting started.

WHAT’S IN

EACH BOX?

12MM

14MM

17MM

FRONT

FENDER BOLT

10MM

FRONT + REAR EYELET BOLTS

8MM

PEDALS + REAR AXEL

15MM

13MM

9MM

pre-installed

FRONT REFLECTOR

fender strut usually comes pre-installed

FRONT FENDER

+ STRUT

QUICK RELEASE

FRONT WHEEL

Seat post is zip-tied to frame

HANDLE BAR / FRAME / REAR

WHEEL AND REAR RACK SET-UP

Seat Post

BOX 1

Page 6

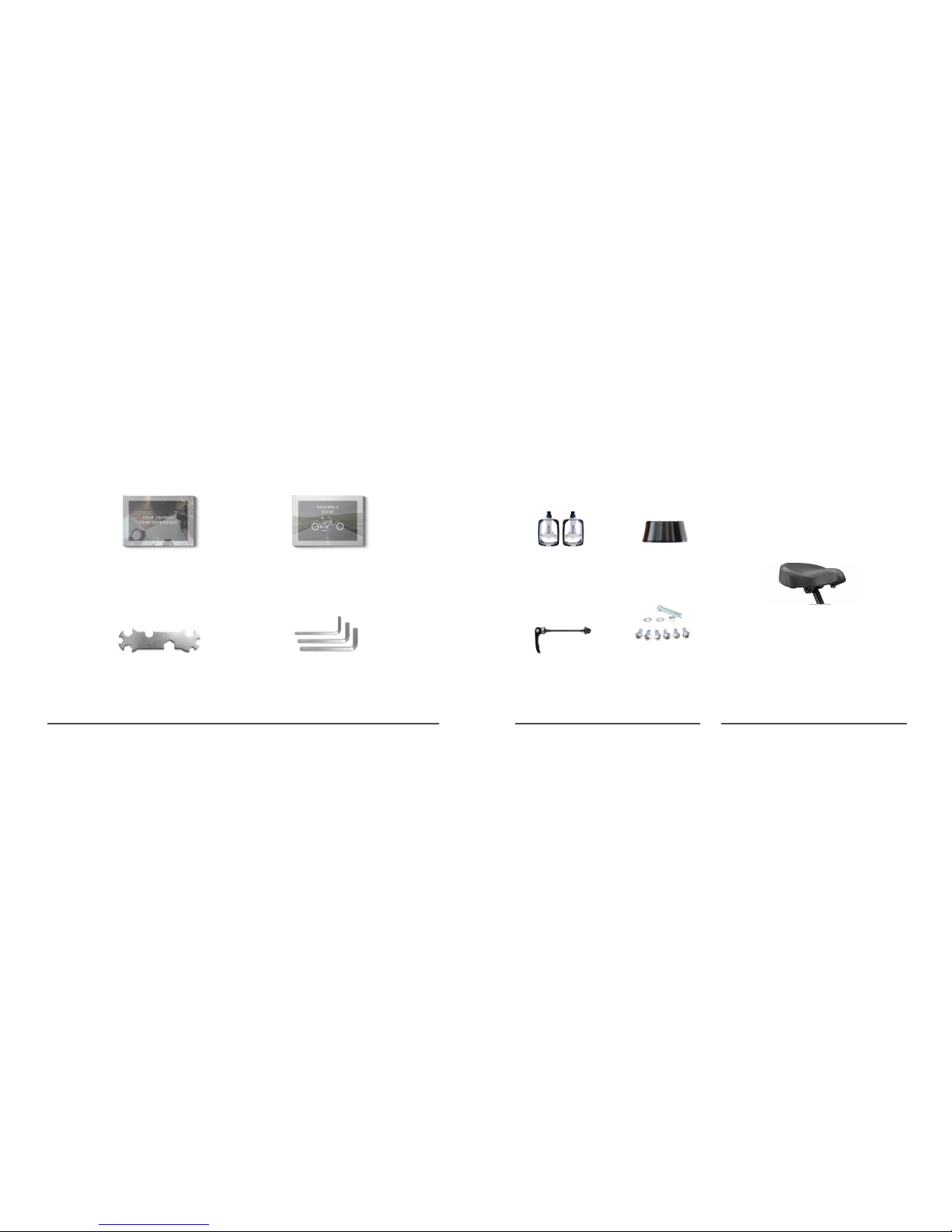

PEDALS

QUICK RELEASE

SKEWER

HARDWARE

In the box or

attached the frame

SEAT

BOX 3 BOX 4

ASSEMBLY

GUIDE

4, 5, AND 6MM

ALLEN KEYS

EXPERIENCE

BOOKLET

MULTI-TOOL

BOX 2

LOCK NUT CAP

Page 7

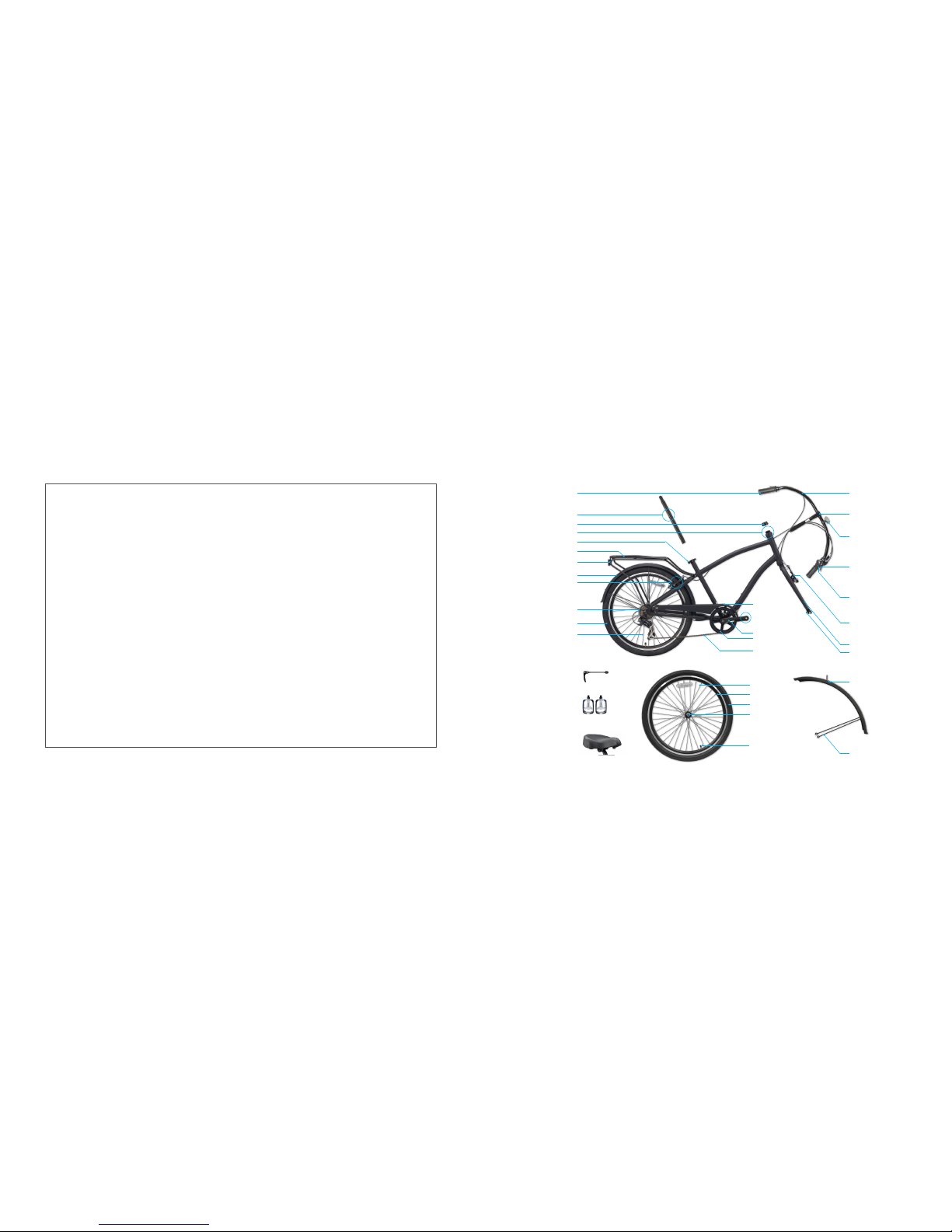

All the names of all the parts for your bike, all in one place.

Keep this handy during assembly, and everything will go just ﬁne.

Note:

The bicycle in the diagram may not be the model you purchased.

Use diagram for bicycle part reference only.

BIKE PARTS REFERENCE

LOCK NUT CAP

LOCK NUT

SEATPOST

SEATPOST CLAMP

REFLECTOR

FENDER

REAR BRAKE

CASSETTE

DERAILLEUR

WHEEL

REAR RACK

HANDLEBAR

GRIPS

HANDLEBARS

HANDLEBAR STEM

BRAKE LEVER

FRONT FENDER

REFLECTOR

SHIFTER

FRONT BRAKE ARMS

CHAIN GUARD

CRANK

CHAIN

CRANK WHEEL

CRANK ARMS

EYELET SCREWS

FORK

FENDER STRUT

PEDALS

QUICK RELEASE

SKEWER

SEAT

SPOKE

RIM

TIRE

AXLE

TIRE VALVE

Page 8

HAVING TROUBLE? CALL 310.982.2877 OR EMAIL [email protected].

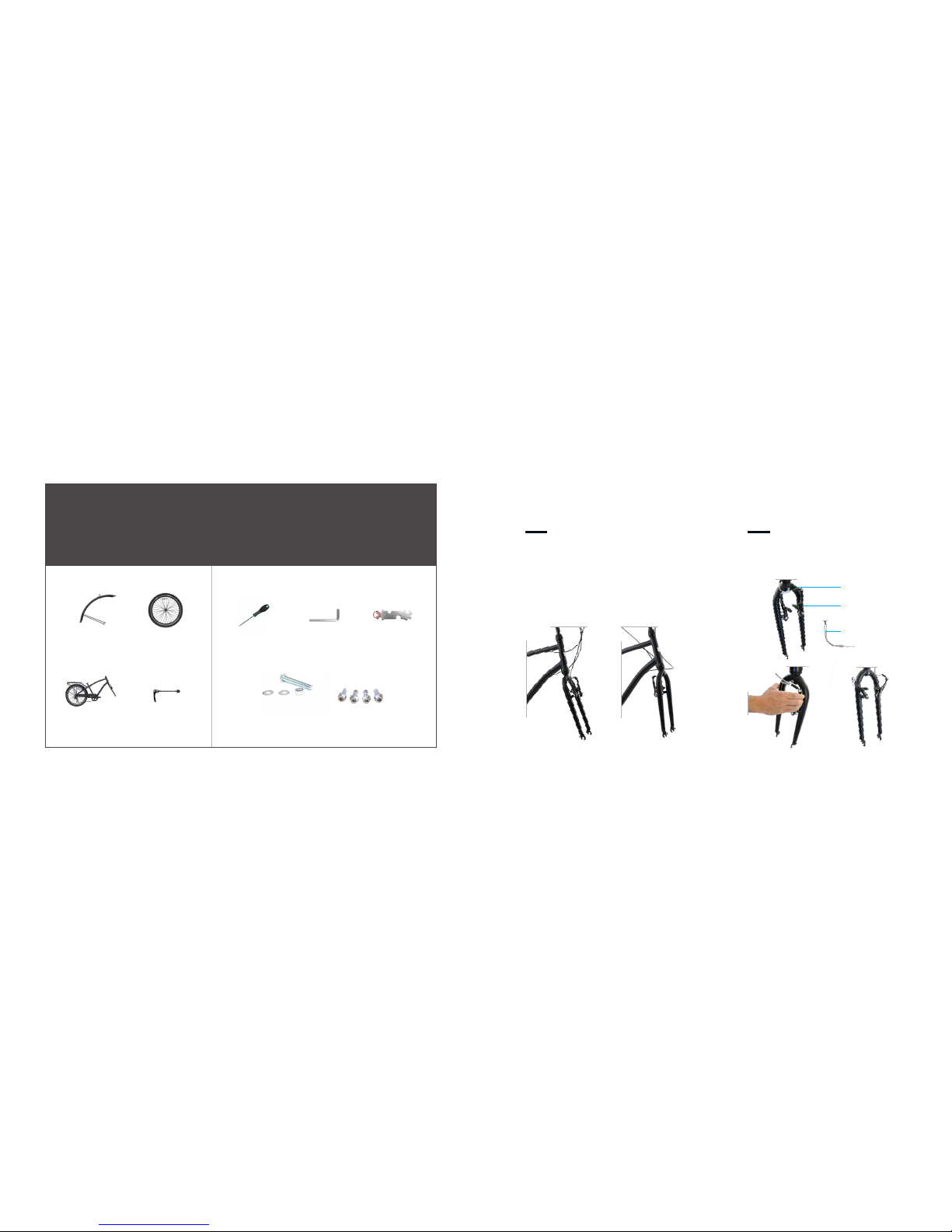

Tools you’ll need:Parts required:

10MM

MULTI-TOOL

(2) WASHERS, NUT

AND LONG BOLT

(pre-installed)

FRONT FENDER

+ STRUT

PHILLIPS

SCREWDRIVER

4MM

ALLEN KEY

QUICK RELEASE

FRONT WHEEL

QUICK

RELEASE SKEWER

FRAME, REAR RACK

+ REAR WHEEL

(6) 4MM ALLEN

KEY SCREWS

(pre-installed)

BRAKE ARMS

METAL TUBE

METAL TUBING

The front brake is facing away from the bike body.

CORRECT

The brakes are behind the fork.

INCORRECT

Spin the front fork so that the the handlebars are pointing inwards.

Pinch front brake arms, pulling the metal tubing up and out until it is disengaged and the brake arms are open.

FRONT WHEEL,

FENDER + REAR RACK

Page 9

HAVING TROUBLE? CALL 310.982.2877 OR EMAIL [email protected].WE STRIVE FOR PERFECT, ALTHOUGH IT’S NOT ALWAYS POSSIBLE, WE NEVER LEAVE A RIDER BEHIND.

FORK DROPOUTS

AXLE NUTS

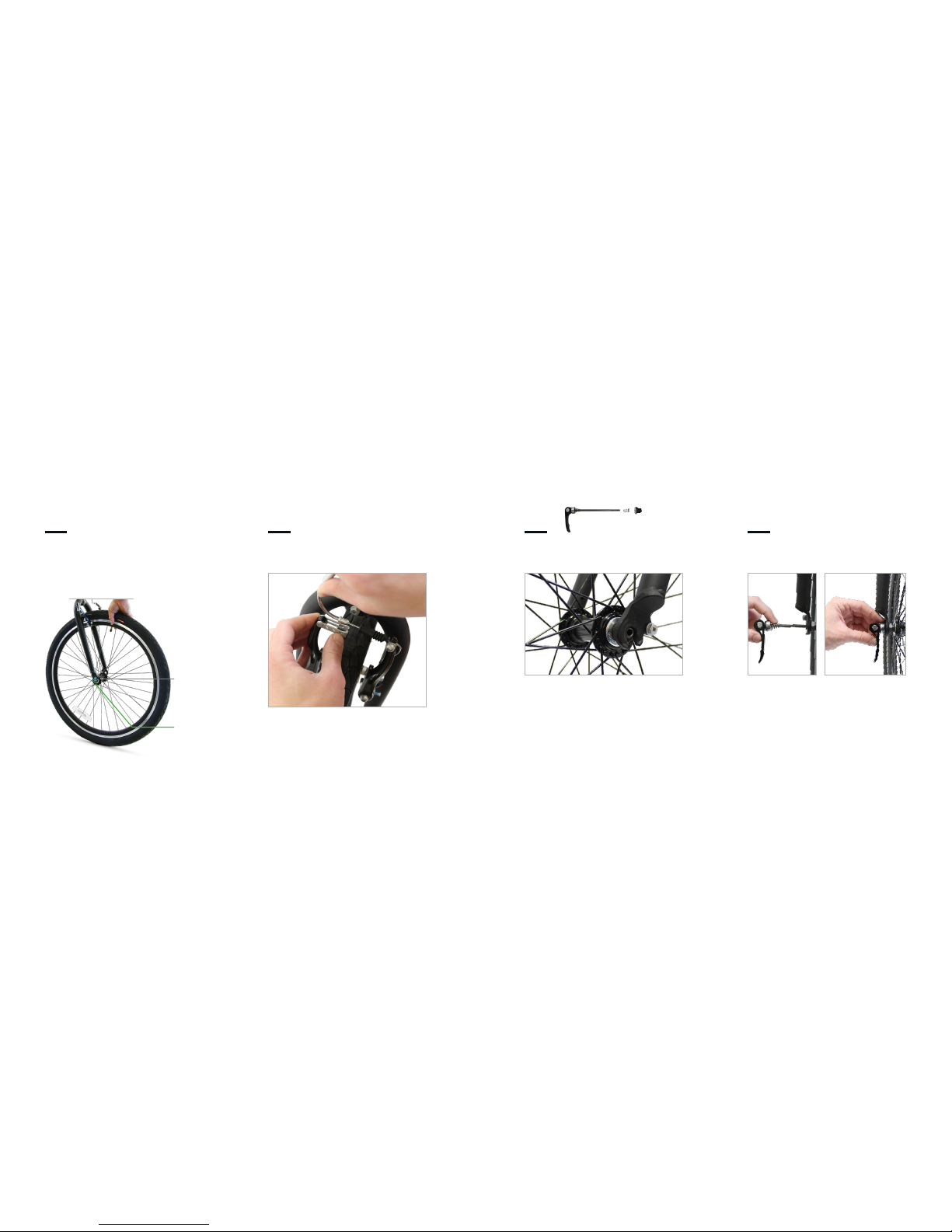

Locate the arrow on the wall of the tire and position the tire like the image below. With the arrow pointing forward, insert the wheel into the fork dropouts. The axle nuts will fall inside the fork entry.

DO NOT untighten axle nuts on the front wheel.

CAUTION

03 04

Reattach the brake arms by connecting the metal tube as shown.

All of the components for the quick release skewer are attached out of the box.

Unscrew QR5 and remove QR4. Do not remove QR2 and

QR3 from the quick release handle QR1.

- QR1

QR4QR2 QR3 QR5

----

Quick release skewer must be installed correctly to avoid bicycle damage and/or injuries.

NOTE

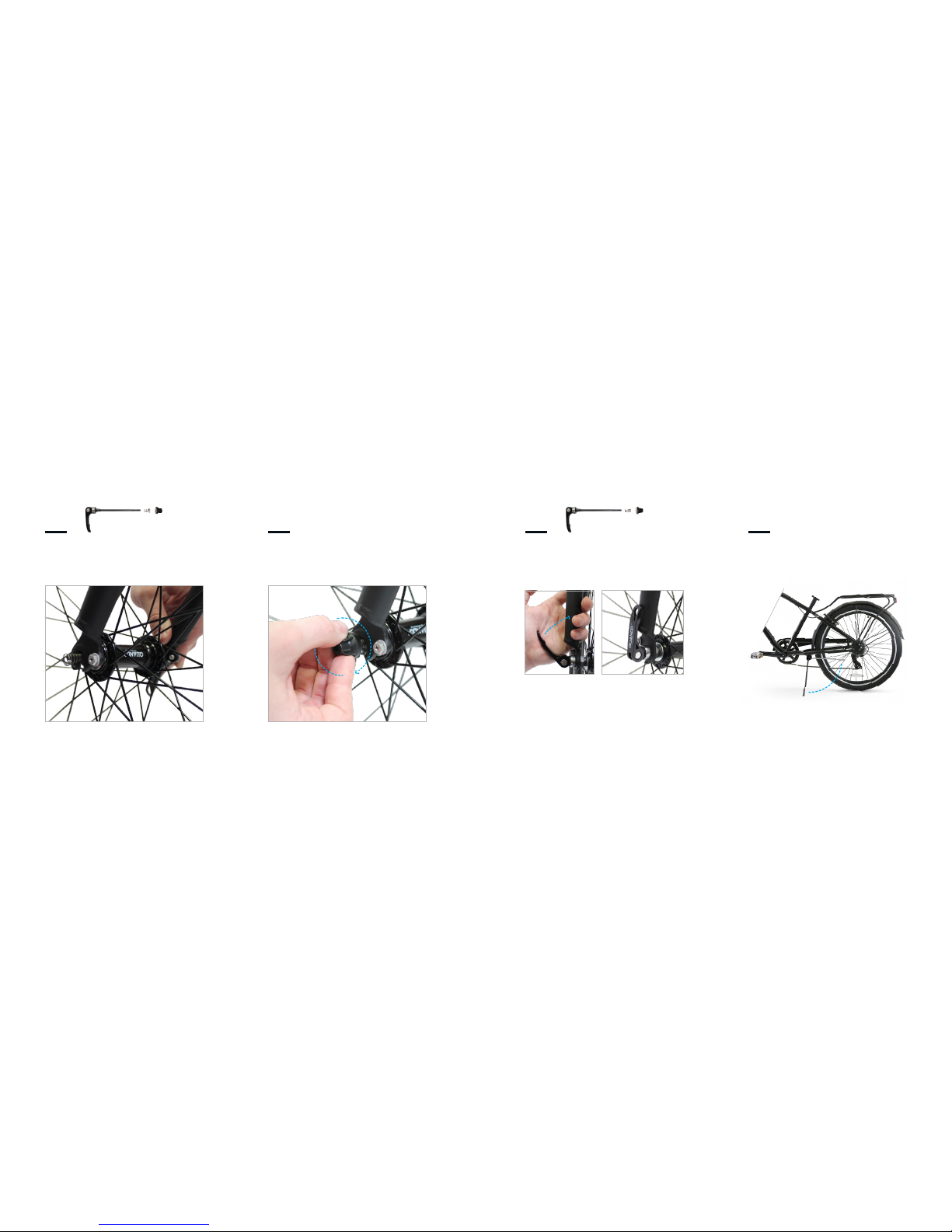

Insert the quick release skewer through the hub opening on either side of the wheel, as shown below.

Slide quick release skewer completely through the hub.

Page 10

HAVING TROUBLE? CALL 310.982.2877 OR EMAIL [email protected].WE STRIVE FOR PERFECT, ALTHOUGH IT’S NOT ALWAYS POSSIBLE, WE NEVER LEAVE A RIDER BEHIND.

Making sure the wheel is straight, attach QR5 to QR1 by compressing the spring completely. Hold the quick release lever in place and tighten QR5 lightly.

Place QR4 on the open side of the quick skewer, with the smaller end pointing inward.

- QR1

QR4 QR5

----

The lever should be tight enough to feel resistance at a 90º angle. Make sure the front wheel is securely tightened and properly aligned so there are no issues when you assemble the brakes.

NOTE

Lift the lever up towards the fork. If the lever does not lock in place smoothly, loosen QR5 slightly and try again. It will take a small amount of strength, but that is normal.

QR5

----

Once the front wheel is secured, lower the kickstand and locate the front fender.

Page 11

HAVING TROUBLE? CALL 310.982.2877 OR EMAIL [email protected].WE STRIVE FOR PERFECT, ALTHOUGH IT’S NOT ALWAYS POSSIBLE, WE NEVER LEAVE A RIDER BEHIND.

(2) WASHERS, NUT

AND LONG BOLT

(pre-installed)

FRONT FENDER

+ STRUT

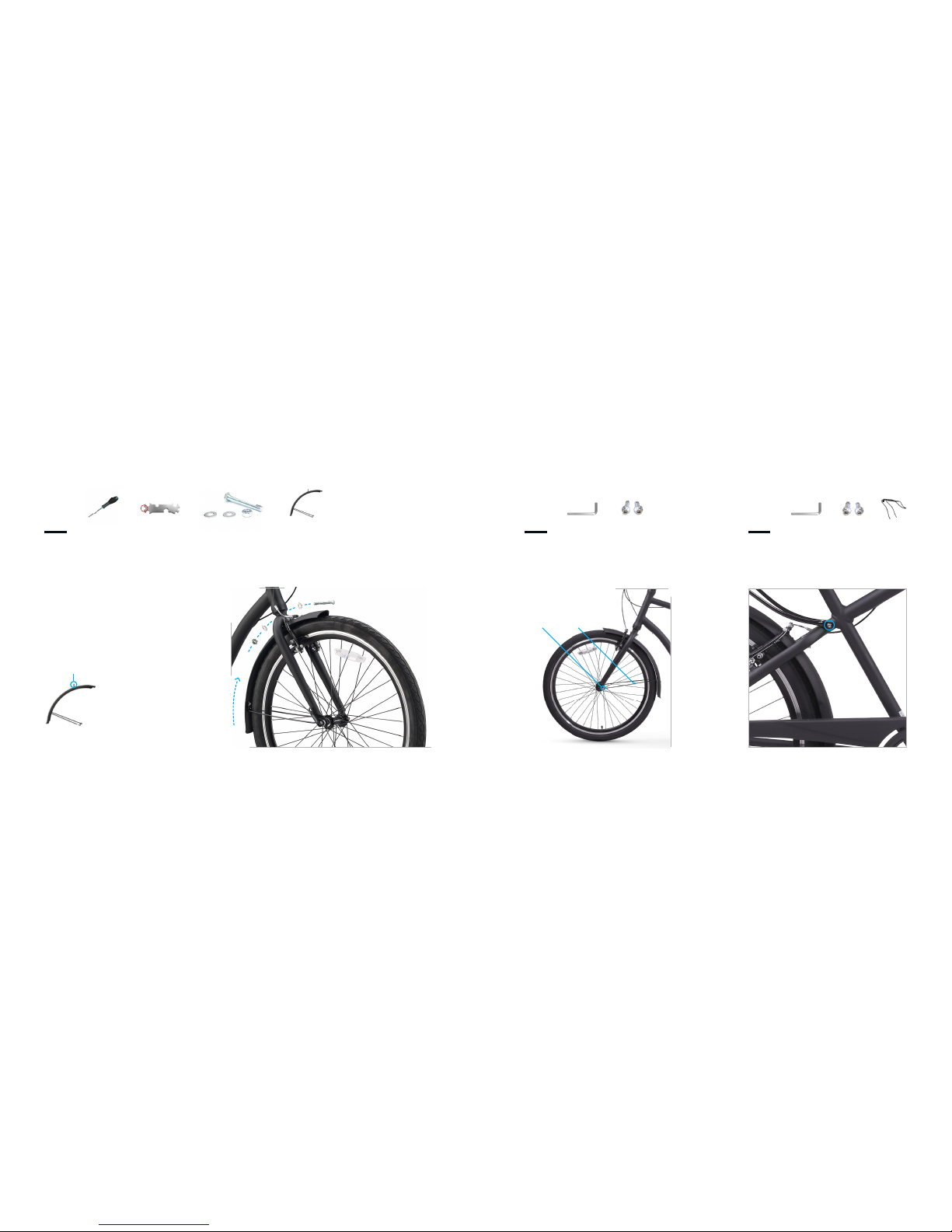

Order from front to back: LONG BOLT, WASHER, FORK, FENDER TAB, WASHER, NUT.

Remove the screws from the fork eyelets.

NOTE

PHILLIPS

SCREWDRIVER

10MM

MULTI-TOOL

Align the fender struts with the eyelets on the fork, so that the fender tab is pointing upwards. Slide the fender up through the back of the front tire.

Use a Phillips head screwdriver and the 10mm multi-tool to remove then install the fender tab screw and nut.

FENDER TAB

FENDER STRUTS

FORK EYELETS

Align the front rear rack arms to the eyelets on the frame below the seat. Use a 4mm allen key to tighten the screws and attach the rear rack to the frame.

4MM

ALLEN KEY

4MM

ALLEN KEY

REAR RACK

(2) 4MM ALLEN

KEY SCREWS

(pre-installed)

Attach the screws into the struts and eyelets. Use a 4mm allen key to tighten the screws and attach thefender strut to the fork eyelet.

(2) 4MM ALLEN

KEY SCREWS

(pre-installed)

Page 12

HAVING TROUBLE? CALL 310.982.2877 OR EMAIL [email protected].WE STRIVE FOR PERFECT, ALTHOUGH IT’S NOT ALWAYS POSSIBLE, WE NEVER LEAVE A RIDER BEHIND.

Install the angled rear fender strut to the frame in this order (from the frame out): Frame, fender strut, and phillips head screws. Tighten with a 4mm allen key.

4MM

ALLEN KEY

4MM

ALLEN KEY

(2) 4MM ALLEN

KEY SCREWS

(pre-installed)

(2) 4MM ALLEN

KEY SCREWS

(pre-installed)

Install the bottom rear rack arms to the frame in this order (from the frame out): Frame, fender strut, rear rack arms, and 4mm allen screws. Tighten with a 4mm allen key.

Seat Post

HANDLEBAR,

SEAT + PEDALS

HANDLEBAR

LOCK

NUT CAP

SEAT

6MM

ALLEN KEY

PHILLIPS

SCREWDRIVER

13MM + 15MM

MULTI-TOOL

BICYCLE OR

AUTO GREASE

PEDALS BICYCLE

PUMP

2. FENDER STRUT

1. FENDER STRUT

3. REAR RACK ARM

2. 4MM ALLEN KEY SCREW

4. 4MM ALLEN KEY SCREW

1. FRAME

ORDER: ORDER:

124

Repeat on both sides. Repeat on both sides.

NOTE NOTE

Page 13

HAVING TROUBLE? CALL 310.982.2877 OR EMAIL [email protected].WE STRIVE FOR PERFECT, ALTHOUGH IT’S NOT ALWAYS POSSIBLE, WE NEVER LEAVE A RIDER BEHIND.

HANDLEBAR

STEM BOLT

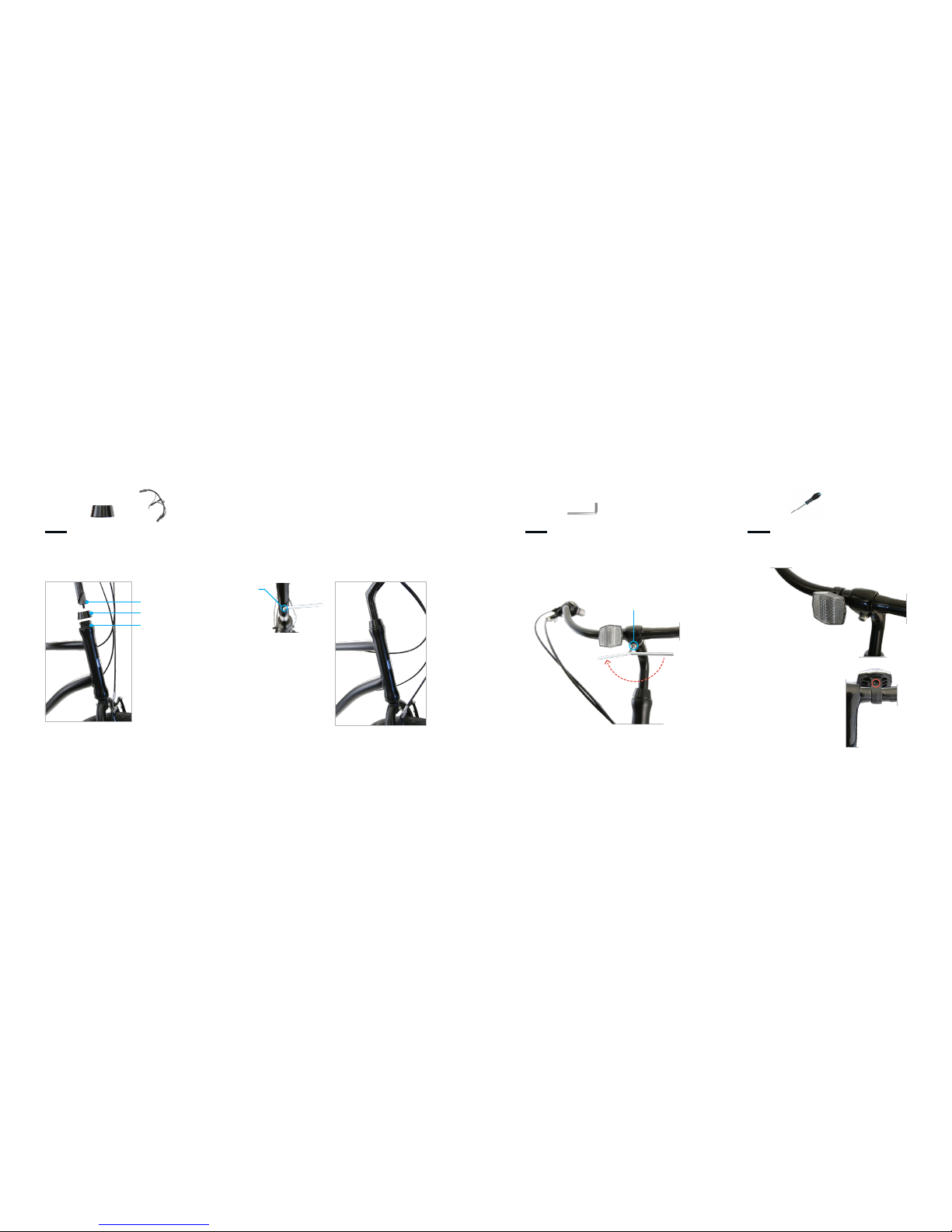

Line up the stem, frame, and front wheel, then tighten the handlebar stem bolt.

Seat Post

LOCK NUT CAP

ST1 STEM

ST2 LOCK NUT/

HEAD TUBE

Place the lock nut cap in between ST1 and ST2.

HANDLEBARLOCK NUT CAP

Straightening the stem, frame, and front wheel will ensure that your handlebars and wheel are properly aligned.

NOTE

ADJUSTMENT BOLT

Loosen handlebar adjustment bolt using the 6mm Allen key. Change the angle of the handlebars to your liking. Riders typically prefer their grips parallel to the ground.

6MM

ALLEN KEY

Straighten the reﬂector so that it points forward.

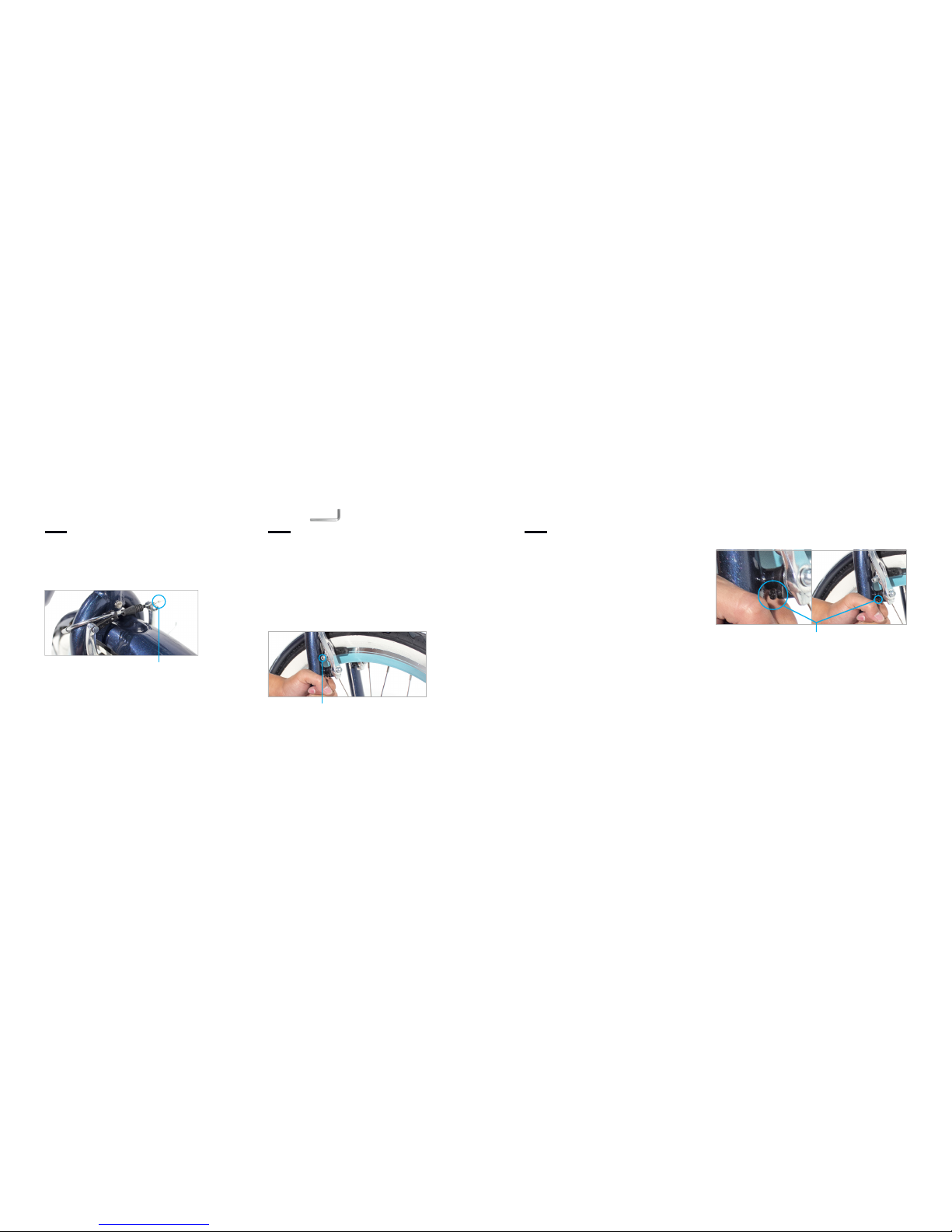

Adjust the position of the front reﬂector by loosening the screw on the bracket.

PHILLIPS

SCREWDRIVER

Page 14

HAVING TROUBLE? CALL 310.982.2877 OR EMAIL [email protected].WE STRIVE FOR PERFECT, ALTHOUGH IT’S NOT ALWAYS POSSIBLE, WE NEVER LEAVE A RIDER BEHIND.

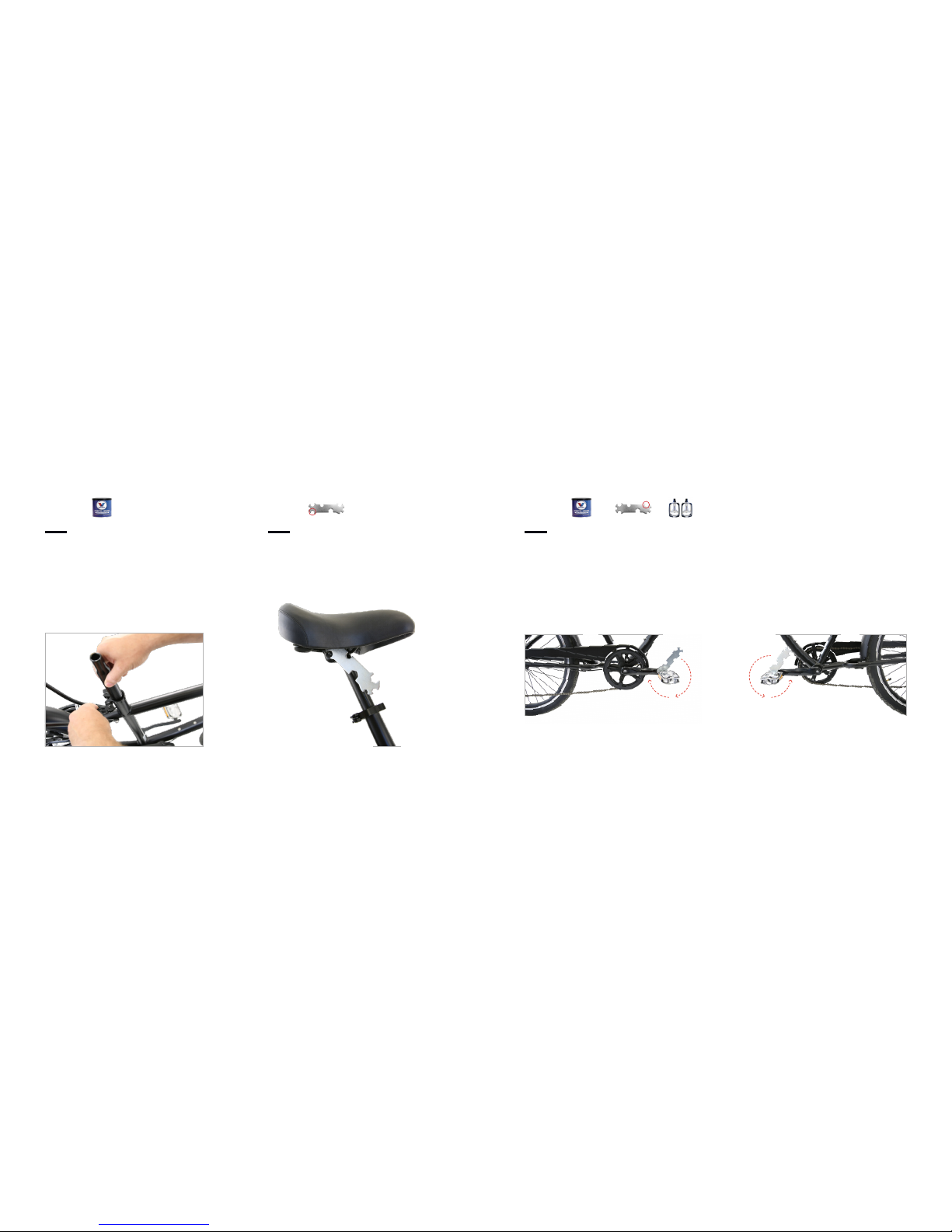

Apply great to seat lever, then open seat post clamp. Holding the seat post ﬁrmly, insert into seat post tube until the top is level with your waist.

Close the seat post clamp lever.

Make sure not to drop seat post into the frame.

CAUTION

BICYCLE OR

AUTO GREASE

Place the seat onto the seat post, using the 13mm multitool to tighten the nuts under the seat.

13MM

MULTI-TOOL

LEFT PEDAL RIGHT PEDAL

Apply grease to threading on both pedals.

Select the pedal stamped R and locate the right side of the bike (with the chain and chain guard). Align threading with the right crank arm, turning the pedal clockwise to tighten it.

BICYCLE OR

AUTO GREASE

15MM

MULTI-TOOL

PEDALS

Locate the pedal stamped L and align with the left crank arm. The left side pedal is reverse-threaded, tightening in a counterclockwise direction.

Hand tighten accordingly, then follow up by tightening both pedals with the 15mm multi-tool or crescent wrench.

Page 15

HAVING TROUBLE? CALL 310.982.2877 OR EMAIL [email protected].WE STRIVE FOR PERFECT, ALTHOUGH IT’S NOT ALWAYS POSSIBLE, WE NEVER LEAVE A RIDER BEHIND.

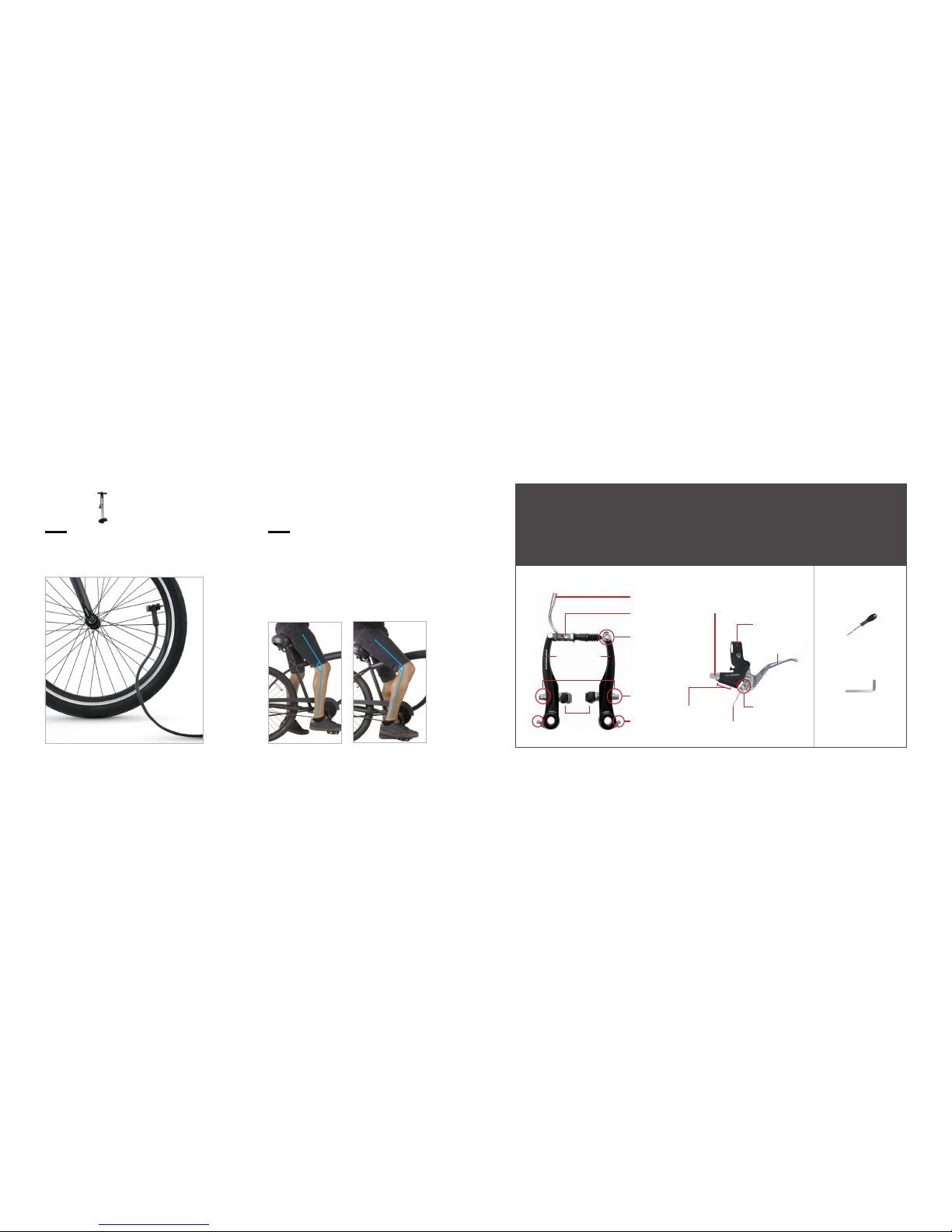

Pump air into the tires to the recommended PSI on the sidewall of the tire.

BICYCLE PUMP

Sit on the bike and check the angle formed by your knee.

If your knee forms the incorrect angle, use the seat post clamp lever to raise the seat until you have a subtle bend or achieve a comfortable height.

CORRECT

INCORRECT

BRAKE

ASSEMBLY

FRONT BRAKE ARMS + PADS

BRAKE LEVERS

METAL TUBE

CABLE HOUSING

BRAKE ADJUSTMENT SCREW

BRAKE LEVER

BARREL HANGER

CABLE

BRAKE HOUSING

BARREL

ADJUSTER

BRAKE LEVER CREVICE

SPRING TENSION SCREWS

BRAKE PAD SCREW

BRAKE ARMS

PADS

PHILLIPS

SCREWDRIVER

TOOLS REQUIRED

5MM

ALLEN KEY

DIAGRAM

Page 16

HAVING TROUBLE? CALL 310.982.2877 OR EMAIL [email protected].WE STRIVE FOR PERFECT, ALTHOUGH IT ’S NOT ALWAYS POSSIBLE, WE NEVER LEAVE A RIDER BEHIND.

ATTACHED

BRAKE CABLE

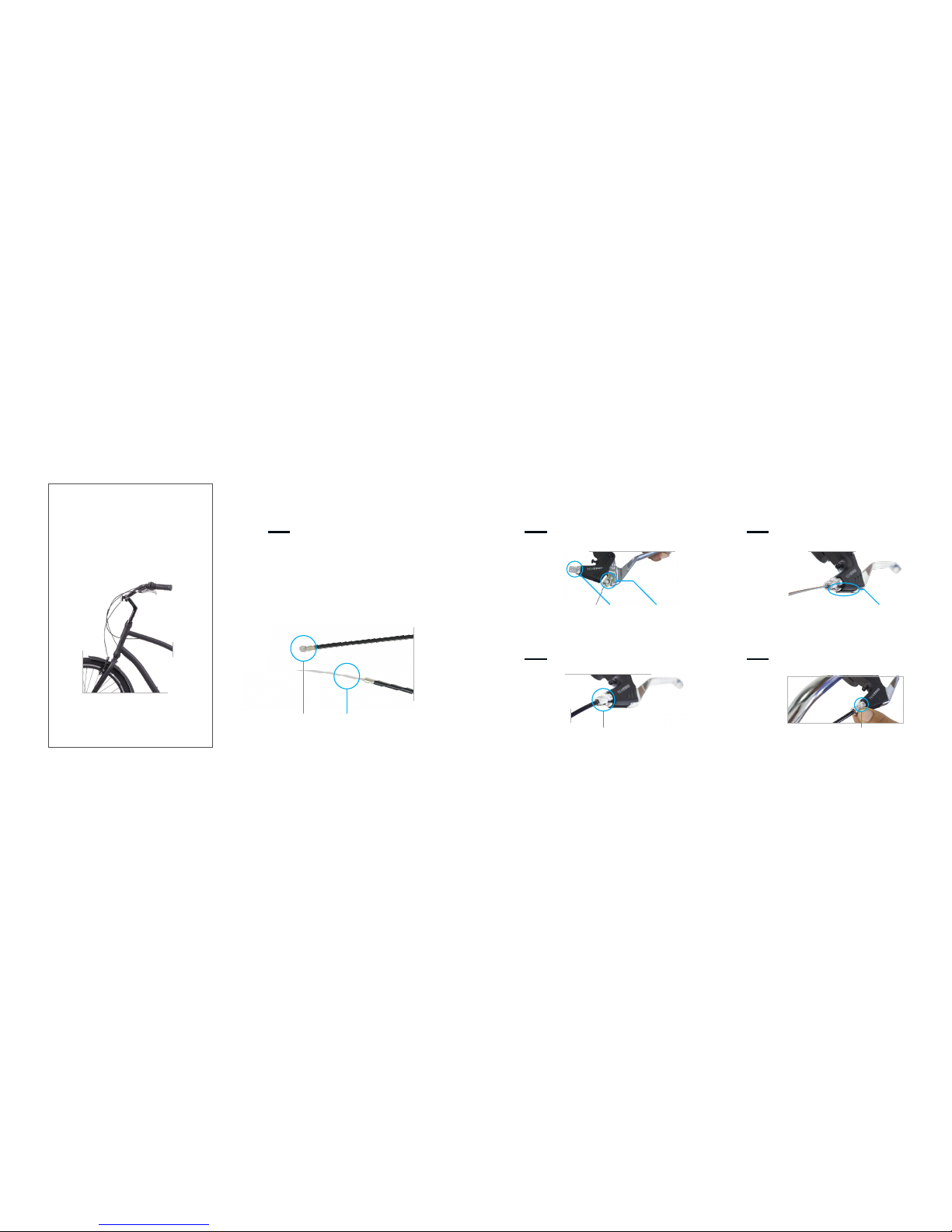

Only follow steps 1-9 if your brake cable is not attached to the bicycle.

If your brake cable is attached, skip to step 10.

NOTE

BARREL CABLE

There are two ends to the brake cable.

One end has a barrel attached, while the other end has an open piece of cable.

Slide the cable housing up toward the brake lever until it ﬁts snug inside the barrel adjuster.

Turn the lock ring on the barrel adjuster clockwise, tightening the barrel to prevent any loose movement.

LOCK RING

Pull on the cable and slide it through the narrow crevice that runs along the brake lever.

BRAKE

LEVER CREVICE

BARREL HANGER

BARREL ADJUSTER

Attach the brake cable to the brake lever by squeezing the lever and inserting the barrel into the barrel hanger.

Page 17

HAVING TROUBLE? CALL 310.982.2877 OR EMAIL [email protected].WE STRIVE FOR PERFECT, ALTHOUGH IT ’S NOT ALWAYS POSSIBLE, WE NEVER LEAVE A RIDER BEHIND.

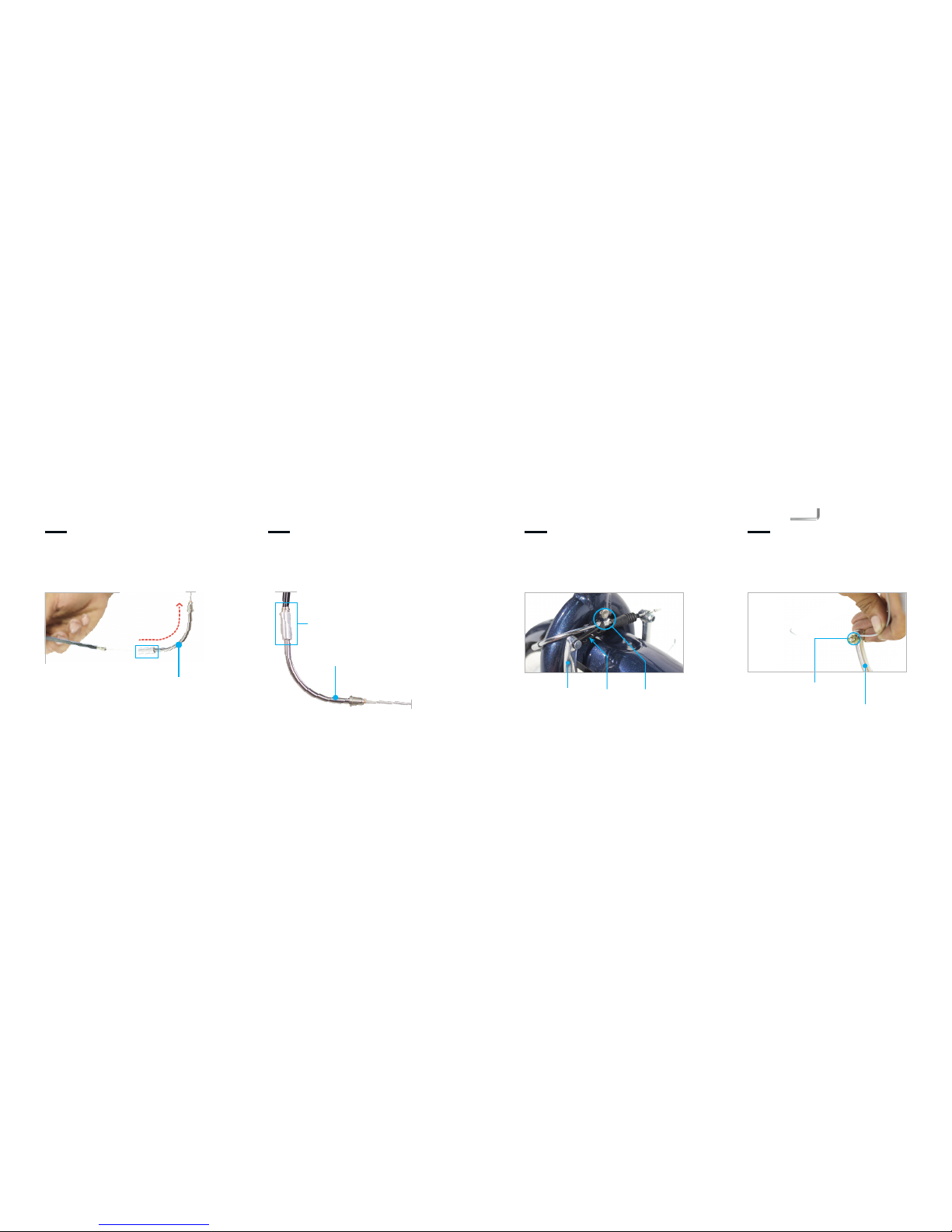

Slide the metal tube up the brake cable until the housing ﬁts snugly into the cable housing.

CABLE GUIDE

METAL TUBE

Insert the open end of the brake cable into the larger end of the metal tube.

Slide the exposed end of the metal into the metal tube hanger, located on the left brake arm. Make sure the metal tube is hooked securely inside the hanger.

LEFT

BRAKE ARM

METAL TUBE

HANGER

END OF

METAL TUBE

Using a 5mm Allen key, loosen the brake cable adjustment screw. Slide remaining brake cable between the right brake arm and the adjustment screw.

BRAKE ADJUSTMENT SCREW

RIGHT BRAKE ARM

5MM ALLEN KEY

Page 18

HAVING TROUBLE? CALL 310.982.2877 OR EMAIL [email protected].WE STRIVE FOR PERFECT, ALTHOUGH IT ’S NOT ALWAYS POSSIBLE, WE NEVER LEAVE A RIDER BEHIND.

Pull the cable outward, reducing the distance between the brake pads and the rim by about 1/4 inch on both sides. Retighten the adjustment screw.

CABLE

Make sure the pads are evenly lined up with the rim. If the pads rub against the tire, they are too high; if they don’t make full contact with the rim when braking, they are too low.

Adjust the positions by holding the brake pad with one hand and loosening the nut on the back with a 5mm Allen key.

5MM

ALLEN KEY

ADJUST WITH

5MM ALLEN KEY

If one pad seems to run against the rim while the other still has plenty of space, you will need to center the brakes. To do this, adjust the spring tensioner screws located at the base of each brake arm.

Tightening the screw on the right brake arm pushes the right brake pad away from the rim, and the left brake pad towards the rim.

Loosening the right screw allows the right brake pad to move closer to the rim, and the left brake pad away from the rim.

SPRING

TENSIONER SCREW

Page 19

HAVING TROUBLE? CALL 310.982.2877 OR EMAIL [email protected].WE STRIVE FOR PERFECT, ALTHOUGH IT ’S NOT ALWAYS POSSIBLE, WE NEVER LEAVE A RIDER BEHIND.

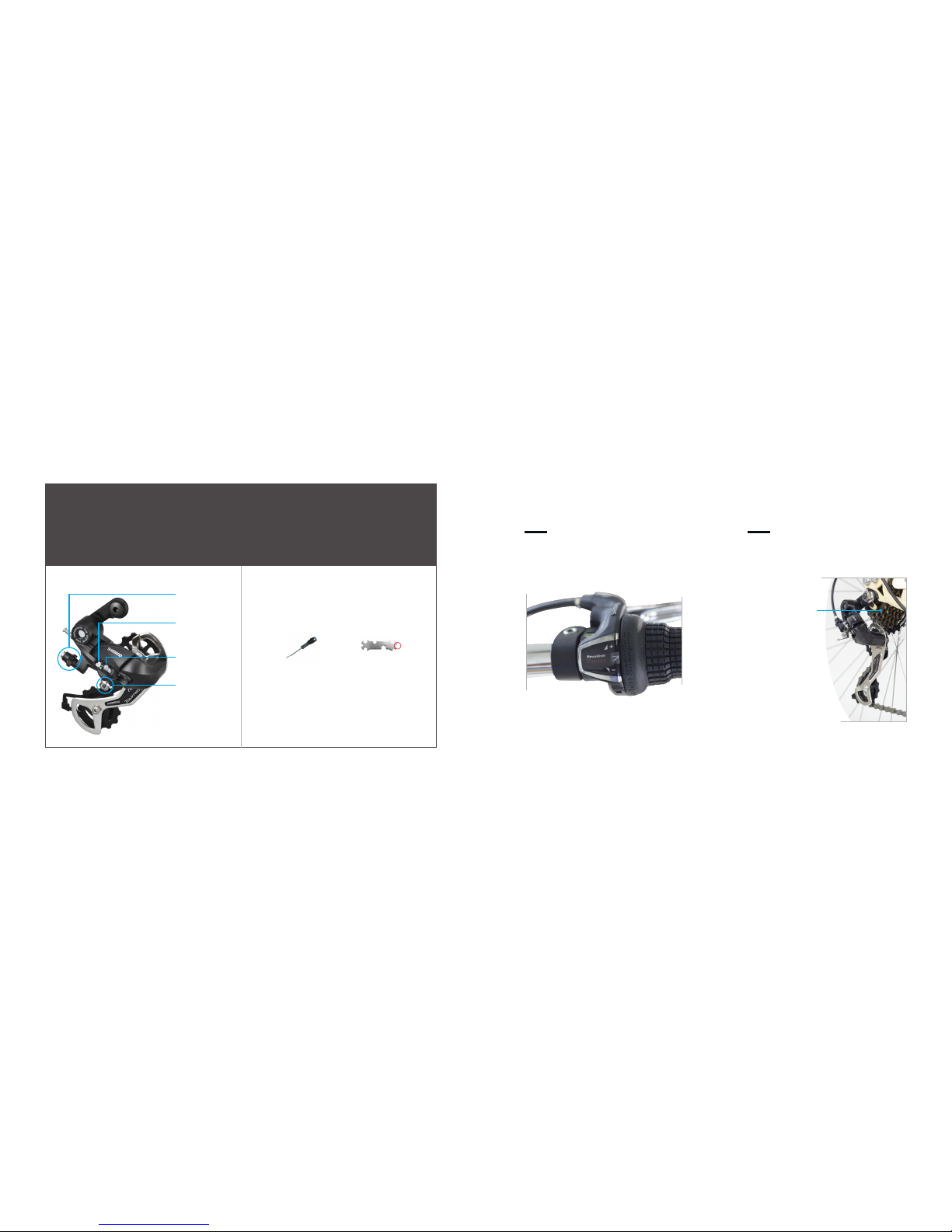

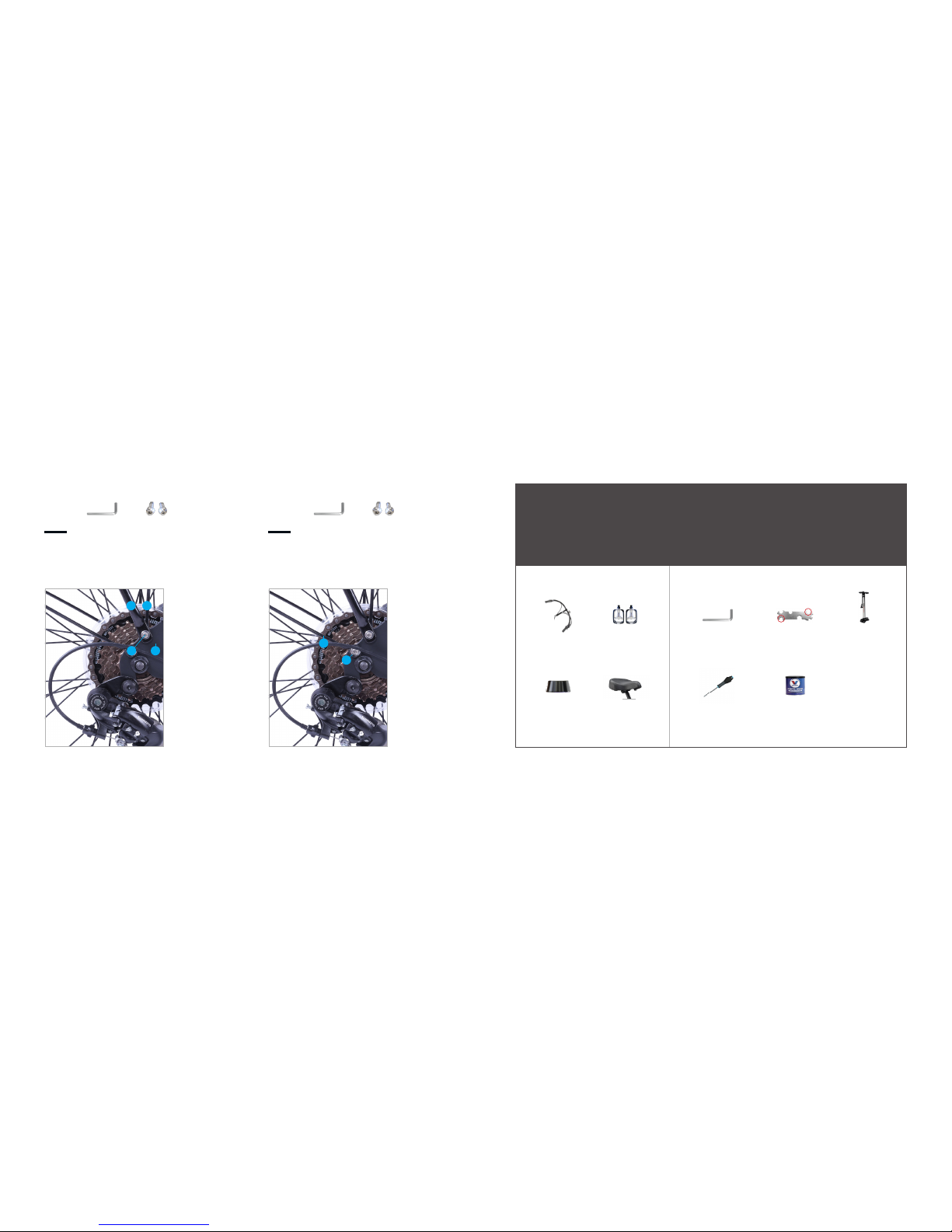

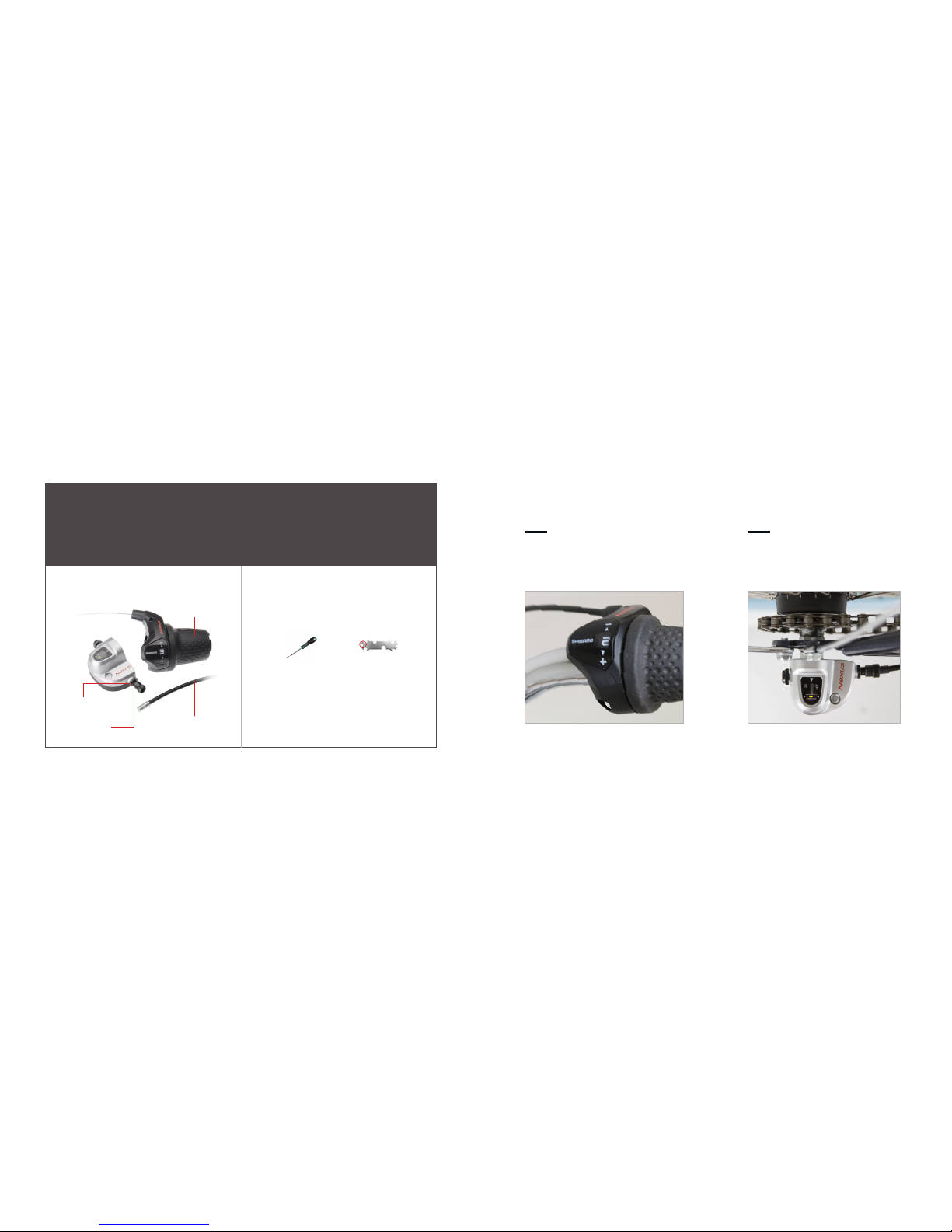

3 SPEED

DERAILLEUR TUNING

10MM

MULTI-TOOL

PHILLIPS

SCREWDRIVER

DIAGRAM TOOLS REQUIRED

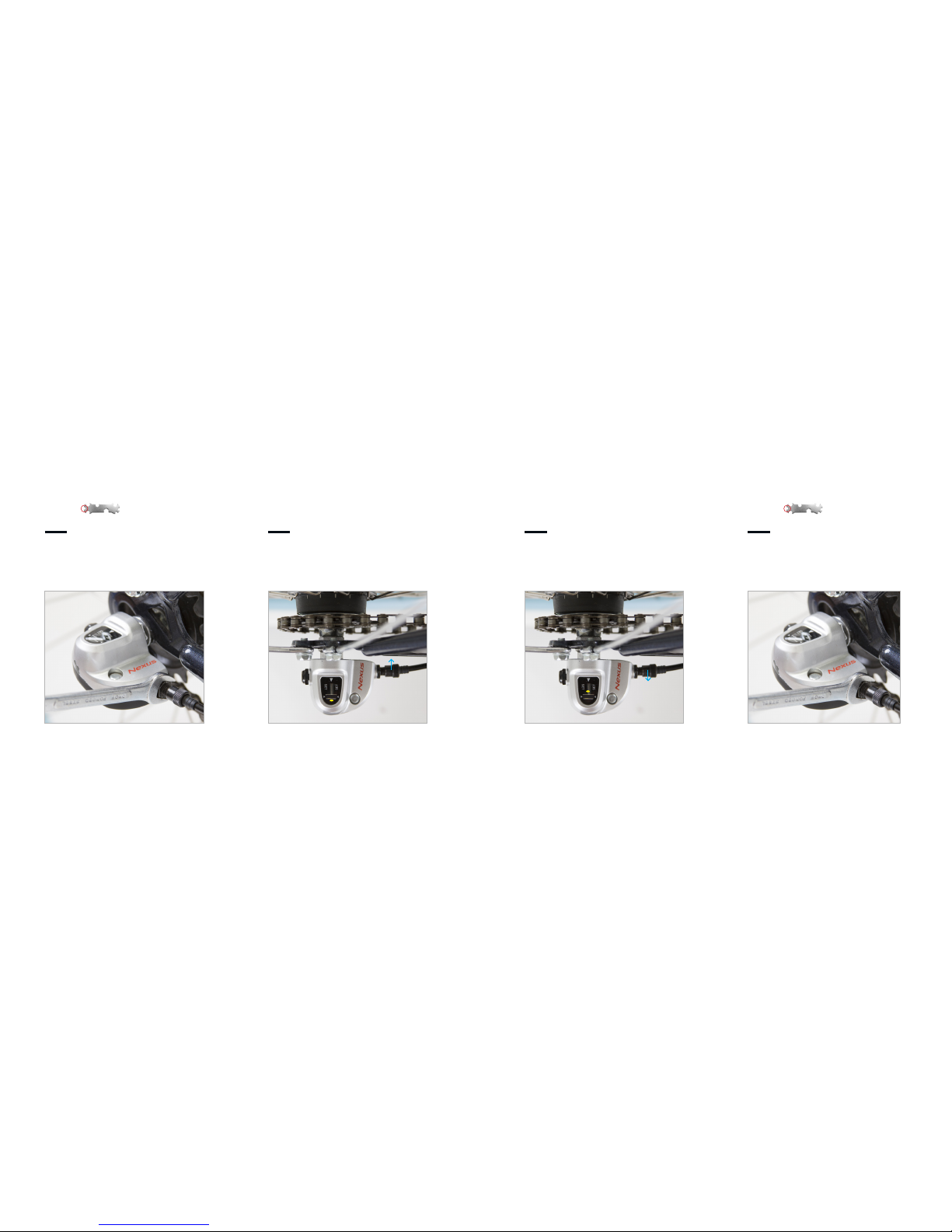

Check and adjust gears. Shift into 2nd gear by twisting the shifting unit. The shifter has an outer exterior that resembles a gold ball, that us the part that turns.

Look through the window in the back of the rear hub. If the yellow dot is within the parallel lines and arrows, your bike is properly adjusted.

LOCK NUT

BARREL CABLE ADJUSTER

CABLE

SHIFTER

Page 20

HAVING TROUBLE? CALL 310.982.2877 OR EMAIL [email protected].WE STRIVE FOR PERFECT, ALTHOUGH IT ’S NOT ALWAYS POSSIBLE, WE NEVER LEAVE A RIDER BEHIND.

03 06

If not adjusted correctly, loosen the lock nut with a 10mm cresent wrench, and turn the adjustment barrel in either direction. The yellow dot will start to move.

Tightening the adjustment barrel in, moves the yellow dot away from the rear wheel.

10MM

MULTI-TOOL

10MM

MULTI-TOOL

Untightening the adjustment barrel out moves the yellow dot in towards the rear wheel.

Center the yellow dot within the parallel lines. Once the yellow dot is within range, tighten down the nut using the 10mm crescent wrench.

Page 21

HAVING TROUBLE? CALL 310.982.2877 OR EMAIL [email protected].WE STRIVE FOR PERFECT, ALTHOUGH IT ’S NOT ALWAYS POSSIBLE, WE NEVER LEAVE A RIDER BEHIND.

7 SPEED

DERAILLEUR TUNING

9MM

MULTI-TOOL

PHILLIPS

SCREWDRIVER

H LIMIT SCREW

DIAGRAM TOOLS REQUIRED

L LIMIT SCREW

CABLE ADJUSTMENT BOLT

BARREL CABLE ADJUSTER

To adjust the rear derailleur, ﬁrst twist the shifter until the number 7 is highlighted on the shift knob.

Rotate pedals until the chain falls into the smallest cog.

SMALLEST COG

Page 22

HAVING TROUBLE? CALL 310.982.2877 OR EMAIL [email protected].WE STRIVE FOR PERFECT, ALTHOUGH IT ’S NOT ALWAYS POSSIBLE, WE NEVER LEAVE A RIDER BEHIND.

BARREL

ADJUSTER

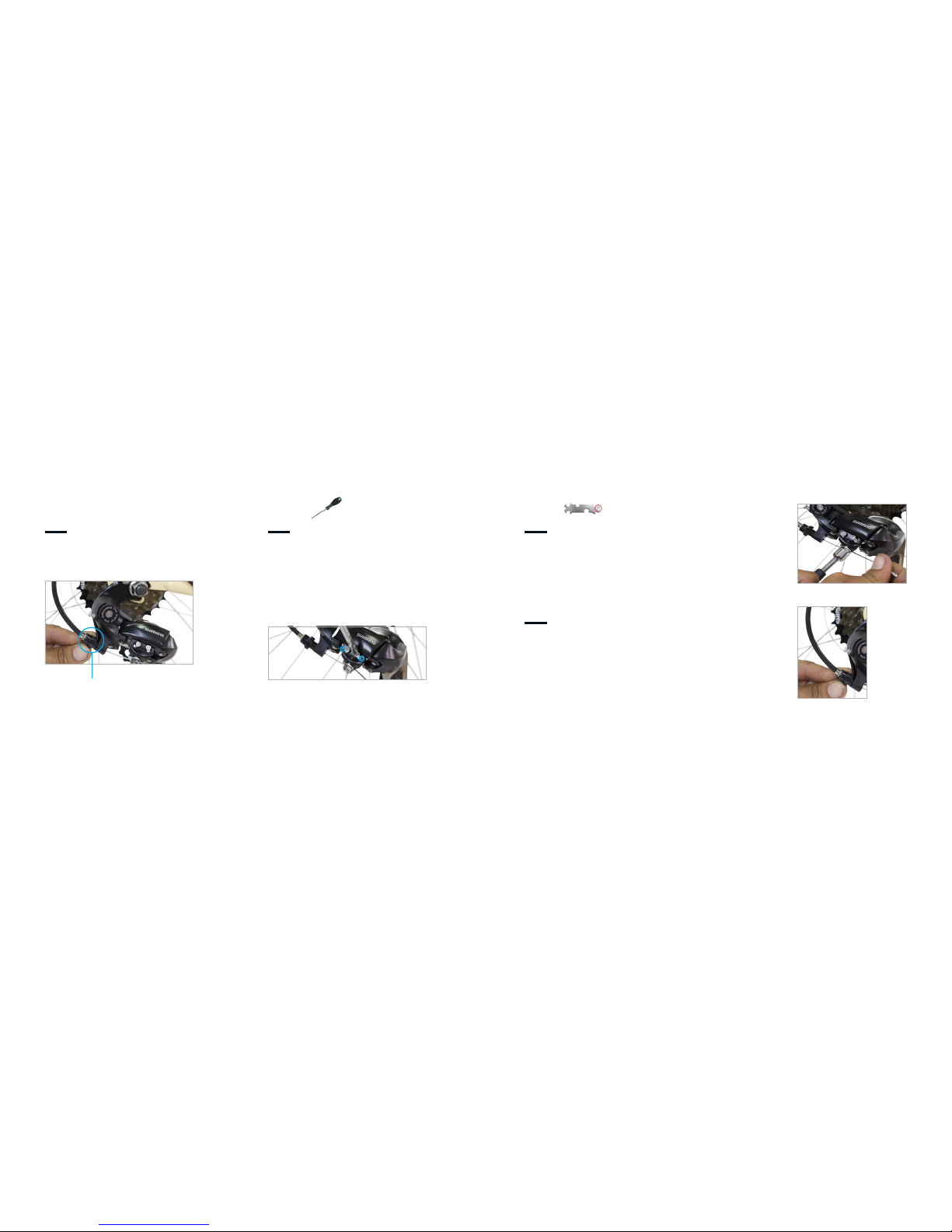

Turn the barrel adjuster located on the rear derailleur clockwise until it stops.

If the chain still hasn’t reached the smallest cog, then you will need to adjust the “High Gear” limiting screw located on the derailleur (indicated by the letter H).

With a Phillips screwdriver, gradually turn the screw counterclockwise 1/4 turn at a time while rotating the pedal until the chain falls onto the smallest cog.

PHILLIPS

SCREWDRIVER

The “High Gear” limiting screws are very sensitive. We recommend using only 1/4 turn at a time, in case you have to revert back to it’s original position.

NOTE

Each gear should shift with a corresponding “click” sound.

NOTE

Now adjust the cable tension, which controls how your bike will shift. Using a 9mm crescent wrench or the multi-tool, loosen the cable adjustment screw and pull on the cable. While keeping tension on the cable, tighten the cable adjustment screw.

Rotate the pedals and try to shift between gears. If it doesn’t shift from 7th to 6th gear in one click, then the cable needs to be tightened. To tighten the cable, twist the barrel adjuster counterclockwise 1/4 turn at a time until it is able to shift from 7th to 6th gear in one click.

Shift through the gears from 7th to 1st, then back from 1st to 7th. If the gears feel sluggish when shifting from 7th to 1st, tighten the cable by turning the barrel adjuster counterclockwise. If shifting feels ﬁne from 7th to 1st, but sluggish from 1st to 7th, loosen the cable by turning the barrel adjuster clockwise.

Continue to adjust the derailleur cable until you are able to shift between each gear with a single click.

9MM

MULTI-TOOL

Page 23

HAVING TROUBLE? CALL 310.982.2877 OR EMAIL [email protected].WE STRIVE FOR PERFECT, ALTHOUGH IT ’S NOT ALWAYS POSSIBLE, WE NEVER LEAVE A RIDER BEHIND.

Tell us about your assembly experience. If you have/had any trouble at all or didn’t, and would like to leave feedback and help us improve our assembly instructions you can.

Type this URL into your browser:

goo.gl/6enZji

SURVEY

Page 24

You did it! Time to take your brand new bike for a spin.

Still have questions? We’re happy to help.

Want to share your journey with us? We’re happy about that, too.

CONGRATULATIONS

SIXTHREEZERO

[email protected]

310.982.2877

Page 25

[email protected]

310.982.2877

SIXTHREEZERO

LOS ANGELES, CA
