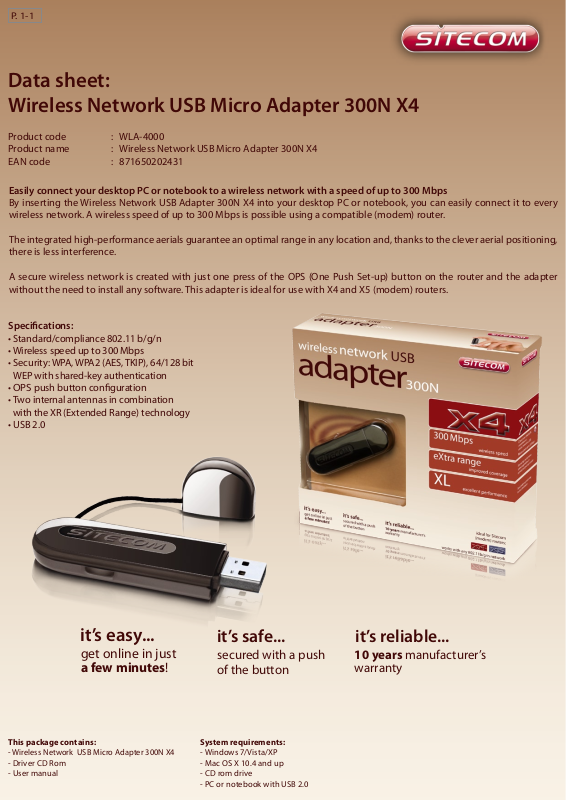

P. 1-1
Data sheet:
Wireless Network USB Micro Adapter 300N X4
Product code :
Product name :
EAN code :
Easily connect your desktop PC or notebook to a wireless network with a speed of up to 300 Mbps
By inserting the Wireless Network USB Adapter 300N X4 into your desktop PC or notebook, you can easily connect it to every
wireless network. A wireless speed of up to 300 Mbps is possible using a compatible (modem) router.
The integrated high-performance aerials guarantee an optimal range in any location and, thanks to the clever aerial positioning,
there is less interference.
A secure wireless network is created with just one press of the OPS (One Push Set-up) button on the router and the adapter
without the need to install any software. This adapter is ideal for use with X4 and X5 (modem) routers.
Specications:
• Standard/compliance 802.11 b/g/n
• Wireless speed up to 300 Mbps
Security: WPA, WPA2 (AES, TKIP), 64/128 bit
•
WEP with shared-key authentication
OPS
push button conguration
•
• Two internal antennas in combination
with the XR (Extended Range) technology
• USB 2.0
WLA-4000
Wireless Network USB Micro Adapter 300N X4
871650202431
it’s easy...
get online in just
a few minutes!
This package contains:
- Wireless Network USB Micro Adapter 300N X4
- Driver CD Rom
- User manual
it’s safe...
secured with a push
of the button
System requirements:
- Windows 7/Vista/XP
- Mac OS X 10.4 and up
- CD rom drive
- PC or notebook with USB 2.0
it’s reliable...
10 years manufacturer’s
warranty
P. 1-2
X4X4
X1
150 Mbps
100 Mbps
2.4 GHz
1
-
out of the box WPA2
X2
300 Mbps
100 Mbps
2.4 GHz
2
-
out of the box WPA2
* The coverage can be inuenced by environmental factors * * The speed of your internet connection inuences the nal performance
Model
wireless speed
wired speed
wi- frequency
no. of internal antennas
StreamEngine
security /
Sitecom Cloud Security
X3
300 Mbps
100 Mbps
2.4 GHz
3
-
out of the box WPA2
optimized for 3 oors
& garden
optimized for 3 oors
& garden
optimized for 3 oors
& garden
optimized for 3 oors
& garden
optimized for 3 oors
& garden
optimized for 3 oors
& garden
X4
300 Mbps
1000 Mbps
2.4 GHz
3
-
out of the box WPA2
X5
300 Mbps
1000 Mbps
2.4 GHz + 5 GHz
4
-
out of the box WPA2
X6
450 Mbps
1000 Mbps
2.4 GHz + 5 GHz
5
-
out of the box WPA2
Standard Gigabit
Internet applications**
e-mailing, chatting and calling (VoIP)
downloading & streaming
simultaneous AV downloading/streaming
multiplayer gaming
high speed internet
Network applications
sharing documents
network streaming
local network gaming
sharing large media les
Media
300 Mbps
1000 Mbps
2.4 GHz + 5 GHz
4
out of the box WPA2
Gaming
300 Mbps
1000 Mbps
2.4 GHz + 5 GHz
2
(+2 external
dualband antennas)
out of the box WPA2
Premium
Product line
optimized for 1 oor optimized for 2 oors
wireless coverage*
Modem Router Only
wireless
adapter
network USB
300N
300 Mbps
eXtra range
wireless speed
improved coverage
XL
excellent performance
