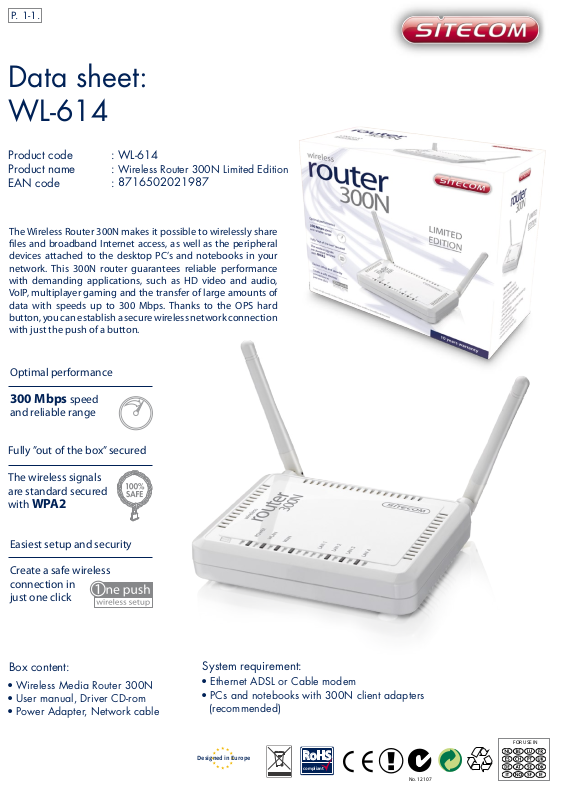

P. 1-1.
RoHS
compliant
Designed in Europe
Data sheet:
WL-614
Product code :
Product name :
EAN code :
The Wireless Router 300N makes it possible to wirelessly share
les and broadband Internet access, as well as the peripheral
devices attached to the desktop PC’s and notebooks in your
network. This 300N router guarantees reliable performance
with demanding applications, such as HD video and audio,
VoIP, multiplayer gaming and the transfer of large amounts of
data with speeds up to 300 Mbps. Thanks to the OPS hard
button, you can establish a secure wireless network connection
with just the push of a button.
WL-614
Wireless Router 300N Limited Edition
8716502021987
Optimal performance
300 Mbps speed
and reliable range
Fully ”out of the box” secured
The wireless signals
are standard secured
with
WPA2
Easiest setup and security
Create a safe wireless
connection in
just one click
Box content:
• Wireless Media Router 300N
• User manual, Driver CD-rom
• Power Adapter, Network cable
System requirement:
• Ethernet ADSL or Cable modem
• PCs and notebooks with 300N client adapters
(recommended)
FOR USE IN
No. 12107
P. 1-2.
Technical specifications:
WL-614
• 802.11n (draft 2.0), backwards compatible with 802.11 b+g
• Wireless Standard Protocol
• Wireless speeds up to 300 Mbps
• 802.3u 802.3i
• Security: WEP 64 & 128 bits, WPA-TKIP, WPA-AES, WPA2, WPA-Radius
• Compatible with Dynamic IP, Static IP, PPPoE and PPTP internet connections
• Quality of Service (QoS)
• Universal Plug & Play (UPnP)
• Application Layer Gateway (ALG)
