1: Introduction
The Wireless Acc ess P oi nt Rou ter co mbi n es t he t echn ol og y of Fas t Ether n et a nd IEEE
802.11b Wireless LAN, prov i ding the home or smal l office users the Cable/DSL access
to the Internet via cord and cordless connection. At the same time, integrated with the
firewall and 128-bit WEP (Wired Equivalent Privacy) Encryption, the Wireless Access
Point Router allows multiple users to share one Internet connection while ensuring the
safety and security of the packet flow.
Throughout this guide, the Wireless Access Point Router may be referred to as the
Router.
1.1 Before You Start
Check the package of the router before you start. The package contents come with:
One Wireless Access Point Router
One AC/DC Power Adapter
CD
- User Guide
1.2 System Requirement
Before you getting started, make sure you meet the following requirements.
One RJ-45 Cable/DSL network connection
One PC with installed 10/100 Mbps Ethernet Adapter
UT P network cable with RJ-45 connector
Windows 95/98/2000 or Windows NT for the Web-based Configuration
Either Microsoft Internet Explorer 4 .0 (or ab ov e v ersion) or Net scape N avi gator 4.0
(or above version)
For Wireless Connection
One PC with installed Wireless Network Adapter
4
Wireless Acccess Point Router
1.3 How to Use this Guide
This guide is structured as follows:
Chapter 2, Hardware Installation explains the function of the router and how to
physically install it.
Chapter 3, Configuration explains how to set up and modify the configuration of
the router with its Web-based utility. In addition, the configuration of the PCs that
you want to connect to the Router can be found within this chapter.
Chapter 4, Specifications contains information about the cables, environment and
the technical specifications of the router.
Appendices include the information of Static IP address and Dynamic IP address,
comparison table and warranty Statement. Read them as necessary.
5
Wireless Acccess Point Router
2: Hardware Installation
2.1 Product Description
This chapter describes the features and functions of the router and shows how to
physically install it.
2.1.1 Overview
As the interface between WAN and LAN, the Wireless Access Point Router combines
the technology of Fast Ethernet and IEEE 802.11b Wireless LAN, providing the home
and small office users the broadband access to the internet via cord and cordless
connection. Meanwhile with the integration-the firewall and 128-bit WEP (Wired
Encrypted Privacy) Encr y pti on, the Wireless Access Poi nt Router all ow s multi ple users
to share one Internet connection while ensuring the safety and security of the packet
flow. Also, the design of one antenna will enhance the reception of signals transmitting
from wireless adapters.
Strictly compliant with IEEE 802.11b, the Wireless Access Point Router features the
transmission rate up to 11 Mbps and 2.4 GHz frequency band, easily building up the
wireless communication with other Wireless LAN devices. The local users' IP address
masking and specific port blocking offer two levels of security. Also, the Wireless
Access Point Router serves as a DHCP server that aut omatically assig ns IP address to
the devices on your local area network (LAN).
2.1.2 Features
Interoperable with IEEE 802.11b (DSSS) 2.4GHz compliant equipment
Transmission speeds adjustable at 1, 2, 5.5, and 11 Mbps.
Features 2.4 GHz frequency band.
Capable of up to128-bit W EP (Wired Equivalent Privacy) Encryption secures the
network connection.
MAC address filtering
Supports PPPoE, PPTP Client, and Dynamic DNS
Connects to a Cable/DSL modem or to an Ethernet backbone
Equipped with a 4-port 10/100 Mbps Switch
Creates a firewall to protect your PCs from outside intruders
Configurable through any networked PC’s web browser
Speeds up the gaming and multimedia connections dramatically
Simultaneously act as either a DHCP server on the LAN or a DHCP client on the
6
Wireless Acccess Point Router
WAN
Enables outside users to access the internal IP servers via Internet. Compatible
with virtually all standard Internet applications
Compatible with all standard internet application
Enables administrators to block specific interior users’ Internet access
2.1.3 Front Panel
The front panel of t he router has 3 LEDs for e ach 10/1 00 M bps por ts , an d thr ee M odule
Status LEDs at the left. The Internet LEDs are at the right. Figure 2-1, Figure2-2, and
show front panels of these routers.

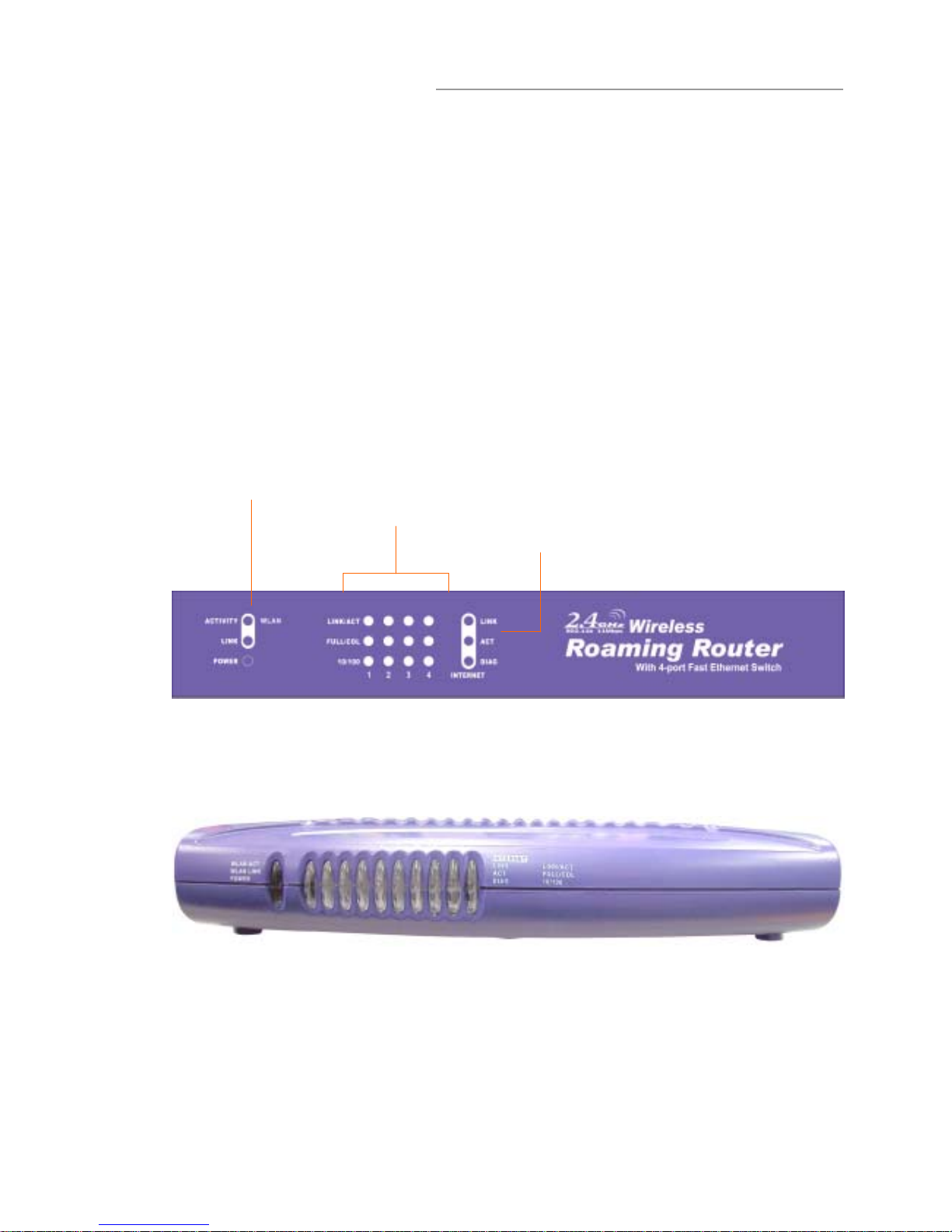

Figure 2-1 Front panel of Wireless Access Point Routers with One Optional PCMCIA
Card, One Fixed Antenna, and One Reverse SMA Antenna
WAN Status LED
10/100 Port Status LEDs
Internet Status LEDs
Figure 2-2 Front panel of Wireless Access Point Router
with Built-in PCMCIA and One Antenna
7
Wireless Acccess Point Router
2.1.4 LEDs and Reset Button
The LEDs are explained in the following tables.
Table 2-1 WAN Status LED Functionality
LED Color Function
WLAN Act
Green
Lights to indicate the router is activated.
WLAN Link
Green
Lights to indicate that the Router’s wireless functions
have been enabled through the Web-based utility.
Power
Green
Lights to indicate the router has power.
Table 2-2 10/100 Port Status LED Functionality
LED Color Function
Link/Act
Green
Lights to i ndicat e a function al netw ork link throug h the
corresponding port with an attached device.
Blinks to indicate that the router is actively sending or
receiving data over that port.
FULL/COL
Green
Lights to indicate that the connection made through
the corresponding port is running in Full Duplex mode.
Blinks periodically to indicate that the connection is
experiencing collisions.
100
Orange
Lights for any port to i ndicat e that t he port is operati ng
at 100 Mbps.
Off to indicate that the port is operating at 10 Mbps
while the network is still operating.
Table 2-3 Internet LED Functionality
LED Color Function
Link
Green
Lights to indicate a successful connection between
the Router and your broadband device or network.
Act
Green
Blinks to indicate that the Router is sending or
receiving data over the broadband (Internet) port.
Diag
Red
Lights to indicate the Router’s self-diagnosis mode is
running during boot-up and restart. It will turn off when
completing the diagnosis.
8
Wireless Acccess Point Router
2.1.5 Rear Panel
The rear panel of the router has one Reset button at the left. At the right area are the
Internet and LAN ports and a power connector. Figure 2-3, Figure 2-4, and Figure 2-5
shows rear panels of these routers. Table 2-4 explains the function of the port.

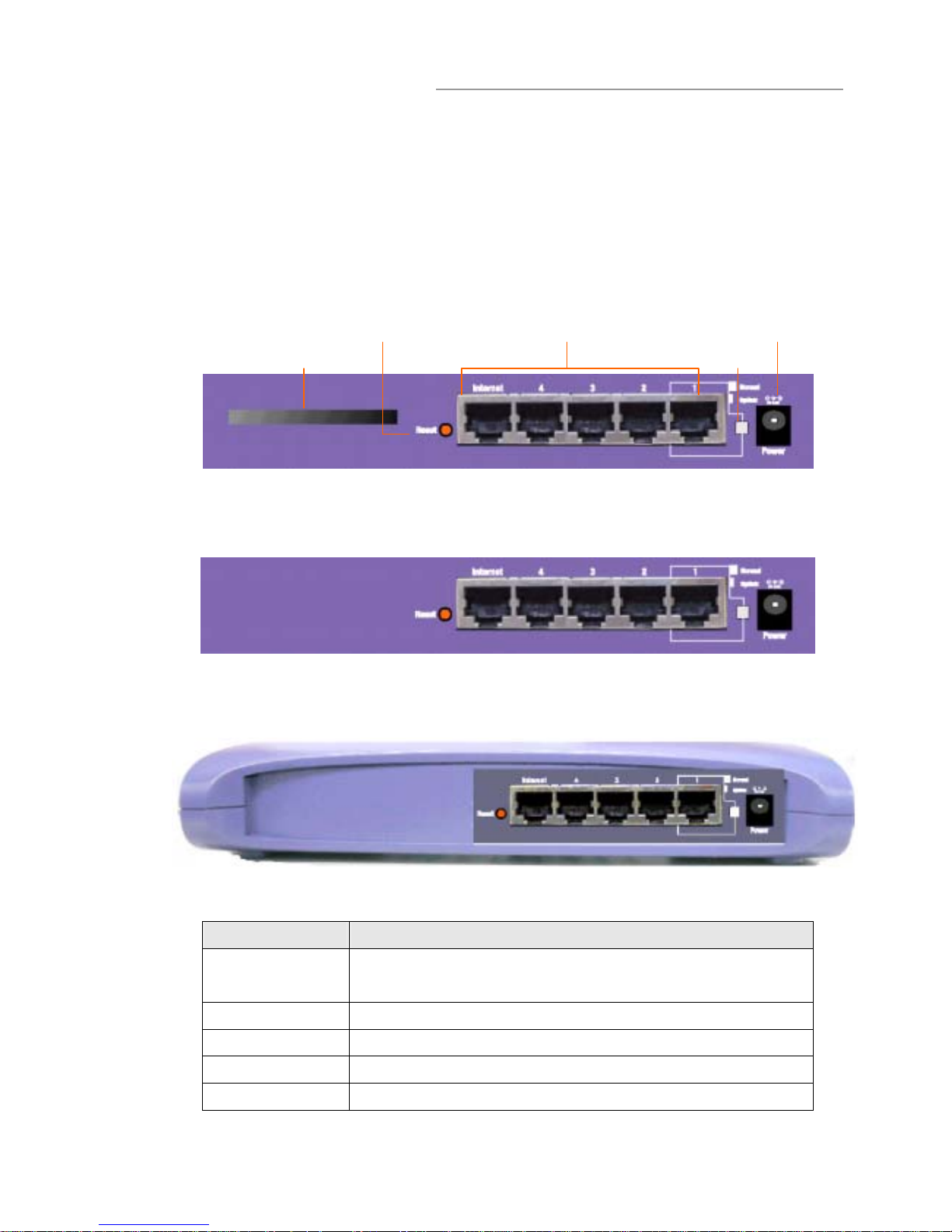

Figure 2-3 Rear panel of the Wireless Access Point Router
with One Optional PCMCIA Card
Reset Button Internet & LAN Ports DC Input Port
PCMCIA Slot Uplink/Normal Switch
Figure 2-4 Rear panel of the Wireless Access Point Router with
Fixed Antenna and one Reverse SMA Antenna
Figure 2-5 Front panel of Wireless Access Point Router
with Built-in PCMCIA and One Antenna
Table 2-4 All Port Functionality
Port Function
Reset
Pressing the Reset button for more than 3 seconds to
restore to the factory default setting.
LAN port
This is where you connect to the PC.
Internet port
This is where you connect to the Cable/DSL modem.
PCMCIA slot
This is where you connect to the PCMCIA adapter.
DC Input Port
To connect the adapter to receive power.
9
Wireless Acccess Point Router
Caution: Reset Button
Pressing the Reset button for more than 3 seconds while the router powers up will
restore to factory de fault setting. Note that this should be d one o nl y when you had tried
all the troubleshooting options. Pressing the Reset button during operation may bring
you into the risk of creating IP addr ess con flict betw een y our PC and the rout er. In such
a case, you may be compelled to reboot your entire system(s).
Caution: Uplink/Normal Switch
If you press down this switch, Port 1 will become the Uplink port. If you press it again,
Port 1 will become a normal LA N port.
10
Wireless Acccess Point Router
2.2 Installing the Router
This section will discuss what you should do before connecting your router to the
network and how to physically install it.
2.2.1 Preparing for Installation
Before you start to connect your router to any network device, make sure you get the
following values from your ISP. You will need those values to setup the Router and
configure you networked PCs to accept the IP address the Router chooses to assign
them.
PPPoE User Name and Password
or
Fixed Internet IP Address assigned by your local ISP
Your Subnet Mask
Your Default Gateway
Your Primary DNS IP address
or
Other values may be needed for Cable Modem users, please confirm with your
ISP
You are supposed to have all those information mentioned above from your ISP. If not,
contact your ISP and they will be able to supply all the information you need.
11
Wireless Acccess Point Router
2.2.2 Getting Started
You may complete the following steps to install your Wireless Access Point Router
when you have all the information mentioned above on hand.
Step 1. Power all devices down. This should include your PCs, Cable or DSL modem
and the Router.
Step 2. Connect the Router to your PCs.
A. Connect one end of a standard network cable to the 10/100 RJ-45 LAN ports
on the back of the Wireless Access Point Router.
B. Connect the other end of the cable to the PC.
Step 3. Connect the Router to your Cable or DSL modem.
A. Connect one end of a standard network cable to the RJ-45 WAN port on the
back of the Wireless Access Point Router.
B. Connect the other end of the cable to either a Cable or DSL modem
Step 4. Supply the power to the Router.
A. Connect one end of the power cable to the Wireless Access Point Router.
B. Connect the power cube end of the power cable to a standard wall outlet.
When the Router receives power, the Power LED should remain solid Green.
Step 5. Supply the power to either your Cable or DSL modem.
Step 6. Press the Reset button to restore the Wireless Access Point Router‘s default
settings. Hold the button in for three seconds, or until the Diag LED illuminates red.
12
Wireless Acccess Point Router
3: Configuration
3.1 Configuring the Wireless Access Point Router
Once you’ve done with the hardware installation, you may start to configure your
system. Note that this high-speed Wireless Router has an internal integrated-circuit
chip that programs all the administrative utility. The utility can be accessed by any PC
on the network at http://192.168.1.1 .
Typing http://192.168.1.1 into the PC’s browser address windows. (See Figure 3-1)
Then, you will receive a pop-up password request page. (See Figure 3-2) Type
“admin” into the Password field and leave the User Name field empty.
After you access the Utility, you can find detailed instructions and explanations by
clicking each page’s Help button. To apply any settings you’ve altered on any page,
click the Apply button, and then click Continue. To clear any values you’v e enter e d on
any page, click Cancel.
Figure 3-1 Http://192.168.1.1
Figure 3-2 A Password Request Page
13
Wireless Acccess Point Router
Note: If you have completed the basic configuration of the router, you may refer to
Section 3.6 Configuring your PCs to Connect to the Router to configure the PCs that
you plan to connect to the Router.
3.2 The Setup Wizard
Figure 3-3 shows the page that you will see onc e you have accessed to the Utility. The
Setup Wizard of the router will lead you step by step to configure your Router. Please
follow the instructions as the Wizard page request and change the settings in
accordance to the information provided by your ISP.
If you use ADSL modem to make Cable/DSL access, please go to 3.2.1 PPPoE
Connection for W AN. If the fixed IP is use d, please go to 3.2.2 Fixed IP for WAN. As for
the Cable modem, please go to 3.2.4 Dynamic IP for WAN.
Figure 3-3 The “Home” page of the Utility Menu Screen
14
Loading...
